BRACKET SUMMARY
AI CIRCULAR BRACKET
Supplied as standard on double panel Adaptive illumination products. Can be attached directly to a wall, ceiling and any of the
brackets listed in this document.
25 series is supplied with a U-Bracket.
U bracket - 25 series
72.00
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
49.50
Assembly Notes: Access to the back of the bracket maybe
limited, it is possible to remove U/AI Circular / Large AI Circular
bracket from illuminator. Mount AI circular bracket to area of
your choice - fix illuminator to its AI circular bracket as shown
below. Set the vertical angle of illumination then tighten screws.
www.rayteccctv.com
1
LARGE AI CIRCULAR BRACKET
Supplied as standard on LARGE, triple panel Adaptive illumination products. Can be attached directly to a wall, ceiling and any of
the brackets listed in this document.
50
40
6.5
44.3°
R61.5
114.5
R53
8.5
C
L
38
90
140
35
85
PLEASE NOTE: The Large AI Circular bracket comes standard with the following products
-RM300 and RL300
-RM300 Platinum
-RM300 and RL300 Panoramic
-VARIO i8-3 and w8-3
Assembly Notes: Access to the back of the bracket maybe
limited, it is possible to remove U/AI Circular / Large AI Circular
bracket from illuminator. Mount AI circular bracket to area of your
choice - fix illuminator to its AI circular bracket as shown below.
Set the vertical angle of
100
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
www.rayteccctv.com
2
VARIO U BRACKET
Supplied as standard with all Raytec VARIO illuminators. Provides a large degree of flexibility of mounting options. Can be attached
directly to a wall, ceiling and any of the brackets listed in this document.
VARIO 2
VARIO 4
VARIO 8
Assembly Notes: You will need a 4mm allen/hex key to remove the button socket screws when adjusting the VARIO U Bracket.
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
www.rayteccctv.com
3
WB1 WALL BRACKET
Designed to mount Raytec illuminators to walls or to Raytec PBC brackets (see page 3 and 4) to provide full pan/tilt adjustment
when used with AI circular bracket.
Assembly Notes: Mount WB1 to wall or Raytec PBC-1/
PBC-2. Mount illuminator to WB1 as shown below. Set the
vertical/horizontal angle of illumination then tighten screws.
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
www.rayteccctv.com
4

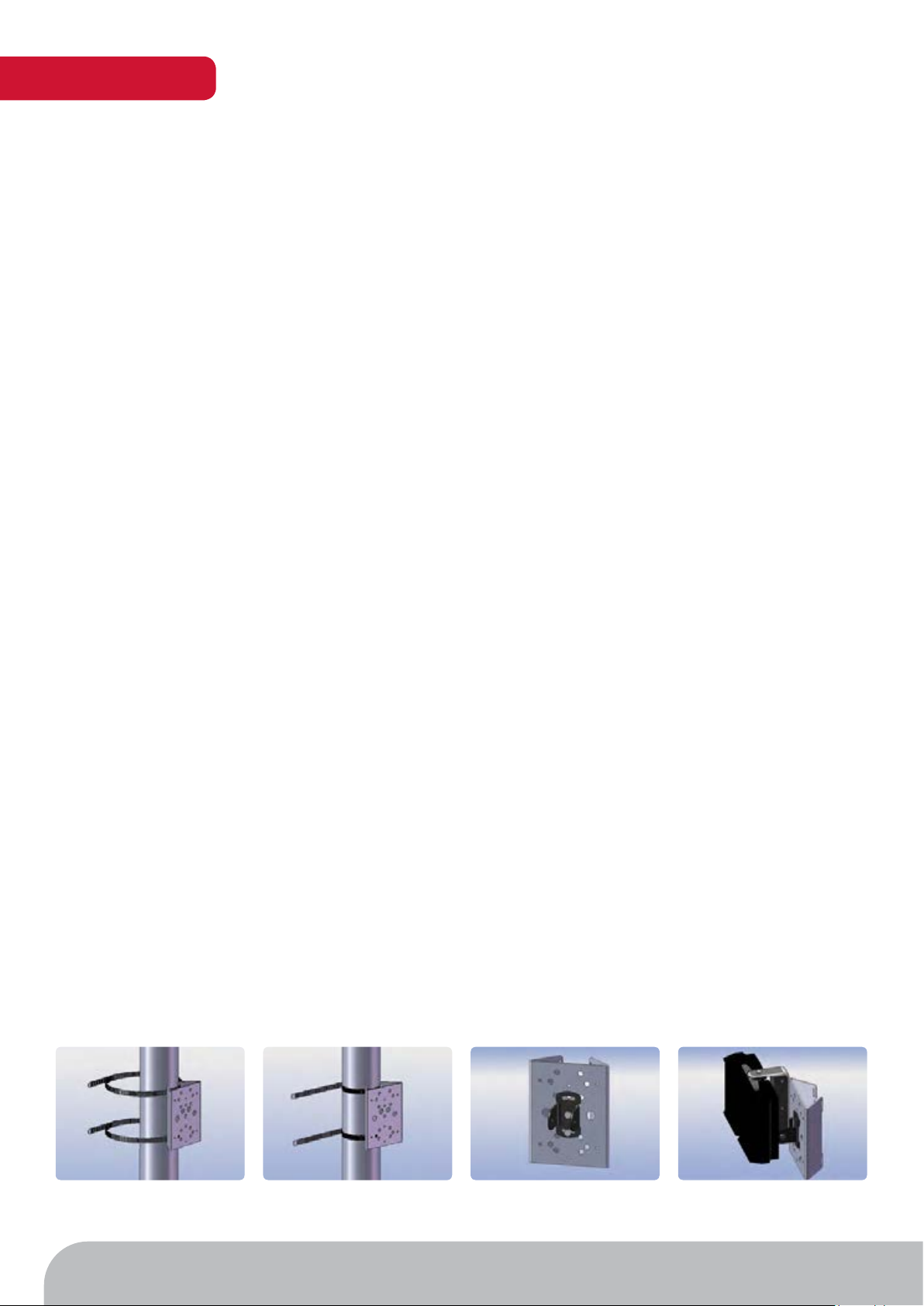

PBC-1
Designed to mount Raytec illuminators to circular poles / columns.
To fit poles approx minimum 50mm up to 170mm (other diameters available on request).
Provides flat mounting platform for 1x RAYMAX or RAYLUX illuminator and Voyager Range. (PSU mounted elsewhere)
Large Circular Bracket
Assembly Notes: Mount PBC- 1 to pole using mounting clips – position and tighten. Access to the back of the bracket maybe limited,
it is possible to remove U/AI Circular / Large AI Circular bracket from illuminator, mount bracket to PBC- 1 as shown below.
Fix illuminator to its bracket as shown below. Set the vertical angle of illumination then tighten screws. (please note full pan and tilt
capability can be possible by mounting an illuminator to PBC- 1 bracket using a WB1 bracket – see page 2)
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
www.rayteccctv.com
5
PBC-2
Pole Bracket Clamp for 2x RAYMAX or RAYLUX illuminators and Voyager range.
Assembly Notes:
Mount PBC-2 to pole using
mounting clips – position and
tighten. Mount illuminators as
per PBC-1. (see page 3)
PBC-
Adaptor plate to allow the additional mounting of PSU to pole. (see ordering table on page 5)
PSU-ADAP
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
www.rayteccctv.com
6
PBC-PSU-ADAP (continued...)
Pole Mounting Product Combinations Order List Guide
To Mount 1x illuminator (PSU mounted elsewhere) 1x PBC-1
To Mount 2x illuminators (PSU mounted elsewhere) 1x PBC-2
To Mount 1x illuminator + 1x PSU (to suit RM/RL25, 50, 100, 200) 1x PBC-1 and x1 Adaptor Plate
To Mount 2x illuminators + 2x PSUs (to suit RM/RL25, 50, 100, 200) 1x PBC-2 and x2 Adaptor Plates
To Mount 1x RM/RL 300 series illuminator + 1x PSU 1x PBC-2 and x1 Adaptor Plate
1x PBC- 1 and x1 Adaptor Plate
Mount additional plate(s) to pole bracket clamp(s)
1x PBC- 2 and x2 Adaptor Plates
1x PBC- 2 and x1 Adaptor Plate
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
RM/RL 300 series illuminator
attaches to PBC-1 pole bracket
clamp and PSU attaches to
adaptor plate.
www.rayteccctv.com
7
SB1 SINGLE PAN & TILT BRACKET ADAPTOR
350
219
Designed to mount any Raytec illuminator (normally 1 unit) to a Top Mount Pan/Tilt (PTZ) motor. The bracket should be fitted
between camera housing and PTZ motor. Mounting holes provided to match with most industry standard PTZ units.
Several mounting options provided to mount Raytec illuminator.
Other versions available for specific PTZ motors.
Ø8.00
150.00
219.00
200.00
350.00
141.25
36
105
109
Please be aware of the maximum width available to
mount camera to SB1.
Image shows an RM/RL 200 series illuminator
mounted on the outer most fixing hole.
Please note: It is not possible to mount an RM/
RL 300 series illuminator on an SB1 bracket.
Assembly Notes: Mount SB1 to PTZ unit. Mount illuminator to SB1 as shown below – bracket
can be mounted above or below SB1. Fix illuminator its bracket, as shown below. Set the
vertical/horizontal angle of illumination then tighten screws.
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
www.rayteccctv.com
8

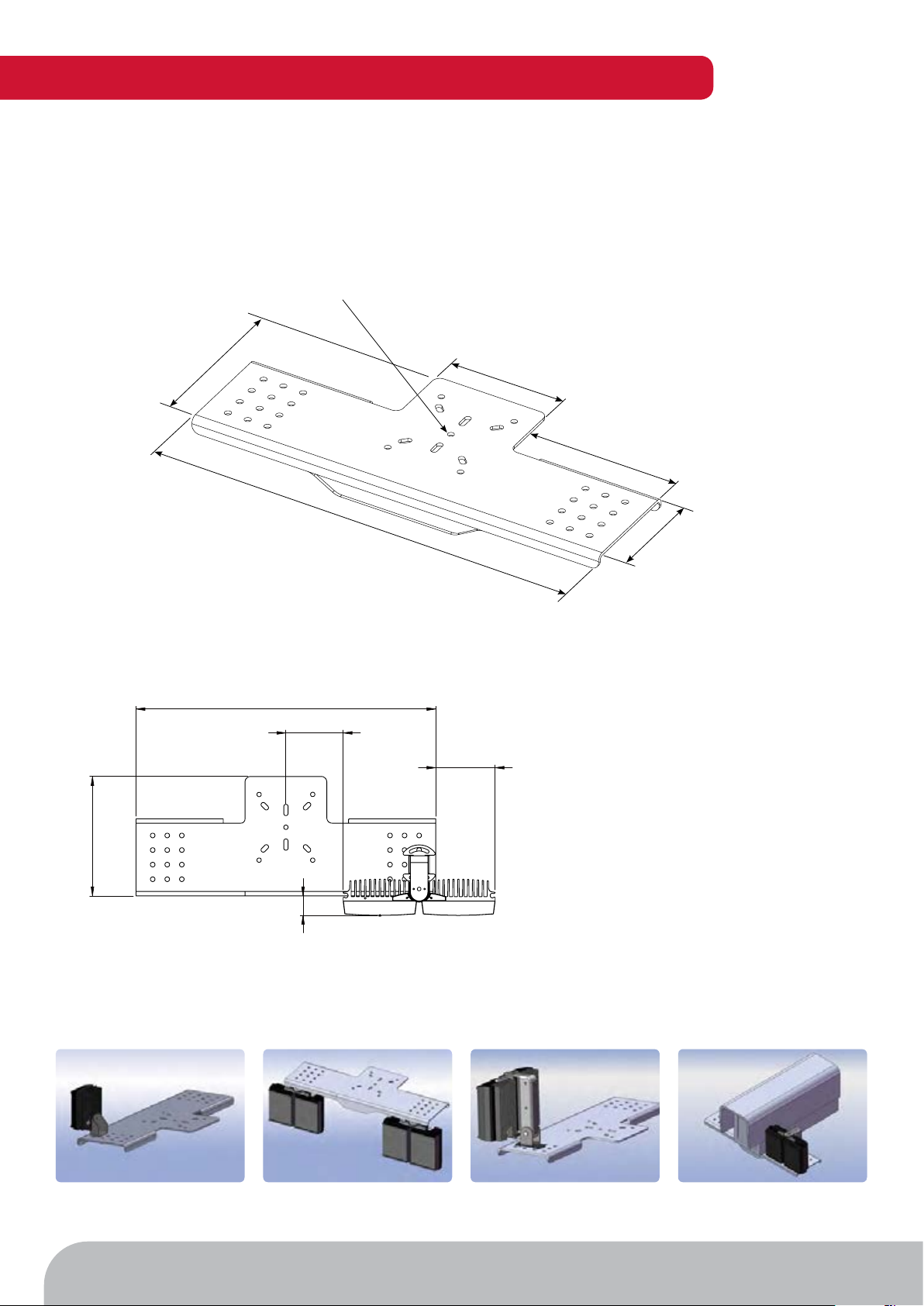

DB2 DOUBLE PAN & TILT BRACKET ADAPTOR
550
219
Designed to mount any Raytec illuminator (normally 2 units) to a Top Mount Pan/Tilt (PTZ) motor.
The bracket should be fitted between camera housing and PTZ motor. Mounting holes provided to match with most industry
standard PTZ units. Several mounting options provided to mount Raytec illuminator.
Other versions available for specific PTZ motors.
Ø8.00
219.00
141.25
160.00
550.00
141.25
105
109
Please be aware of the maximum width available to
mount camera to DB2.
Image shows an RM/RL 200 series illuminator
mounted on the outer most fixing hole.
Please note: It is not possible to mount an RM/
36
RL 300 series illuminator on a DB2 bracket.
Assembly Notes: Mount DB2 to PTZ unit. Mount illuminator to DB2 – bracket can be mounted above or below DB2. Fix illuminator
to its bracket as shown below. Set the vertical/horizontal angle of illumination then tighten screws.
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
www.rayteccctv.com
9
PB-180/ PB-360
Designed to mount Raytec illuminators to poles / columns – for use mainly with dome cameras. Mounts to top of pole. Provided with
4” PCD (101.6mm) and 2” (61.5mm) PCD mounting options. PB-360 supplied with 4 mounting areas to mount up to 4 illuminators.
PB-180 supplied with 2 mounting areas (plus spacer) to mount up to 2 illuminators.
294
101.6 mm
(4”PCD)
61.5mm
PCD
PB-360 shown above - 4 mounting areas
Assembly Notes: Mount PB-180/360 to pole (mount spacer adjacent to PB-180 if required). Mount illuminator to PB- 180/360 as
shown below – bracket can be mounted above or below PB- 180/360. Fix illuminator to its bracket as shown below. Set the vertical/
horizontal angle of illumination then tighten screws.
UK Tel: +44 (0) 1670 520055 Fax: +44 (0) 1670 819760
Americas Tel: +1 613-270-9990
www.rayteccctv.com
10
