BRACKET SUMMARY
AI CIRCULAR BRACKET
Supplied as standard with all Raytec illuminators. Provides a large degree of flexibility of mounting options. Can be attached
directly to a wall, ceiling and any of the brackets listed below.
300 series is supplied with a larger version of this bracket.
25 series is supplied with a U-Bracket.
UK Tel: + 44 (0) 1670 52005 5 Fax: +44 (0) 1670 819760
Am ericas (Tol l Fr ee ) Tel: +1 888 505 8335
www.rayteccctv.com
SB1 SINGLE PAN & TILT BRACKET ADAPTOR
Designed to mount any Raytec illuminator (normally 1 unit) to a Top Mount Pan/Tilt (PTZ) motor. The bracket should be fitted
between camera housing and PTZ motor. Mounting holes provided to match with most industry standard PTZ units.
Several mounting options provided to mount Raytec illuminator.
Other versions available for specific PTZ motors.
UK Tel: + 44 (0) 1670 52005 5 Fax: +44 (0) 1670 819760
Am ericas (Tol l Fr ee ) Tel: +1 888 505 8335
www.rayteccctv.com

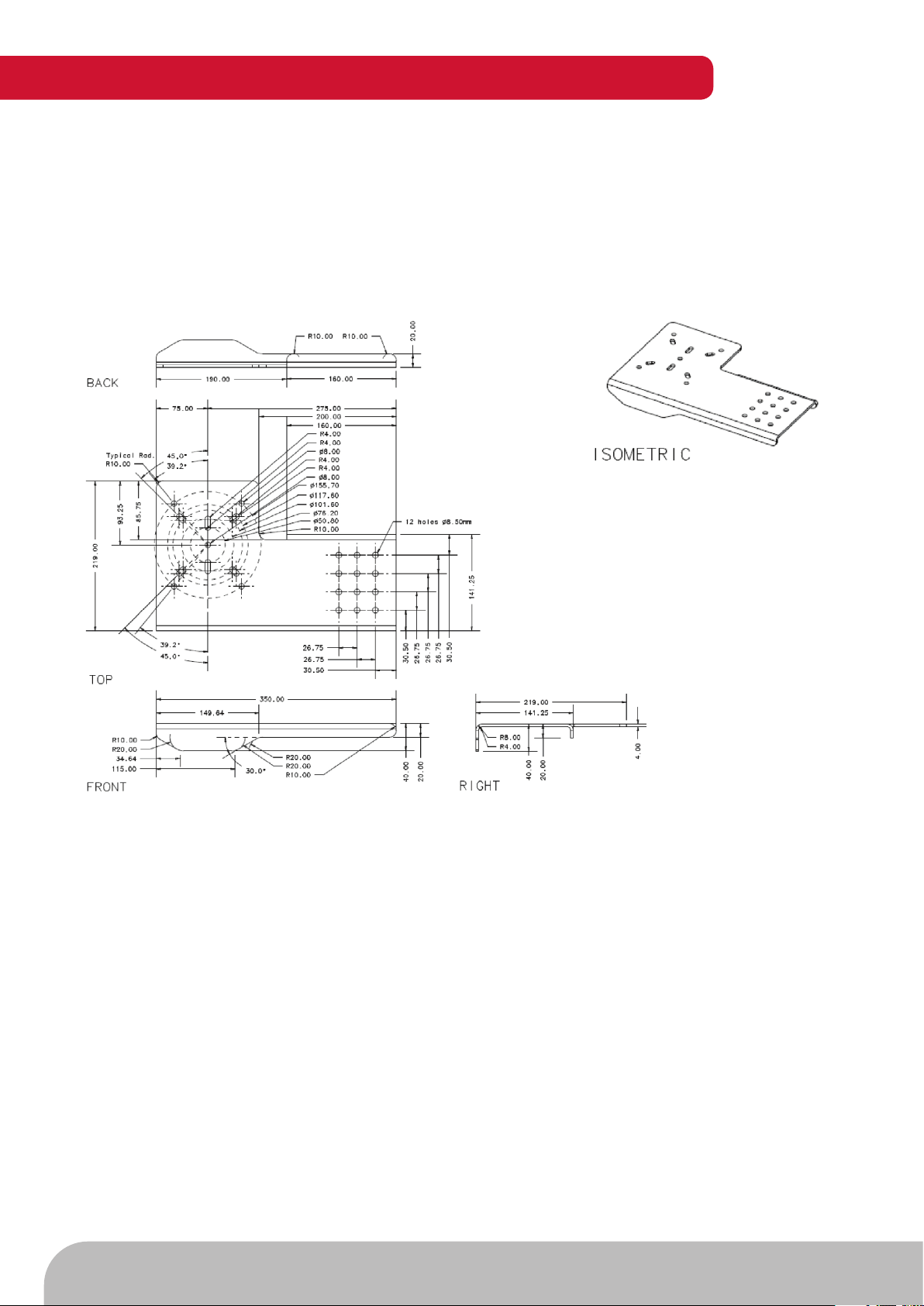

DB2 DOUBLE PAN & TILT BRACKET ADAPTOR
Designed to mount any Raytec illuminator (normally 2 units) to a Top Mount Pan/Tilt (PTZ) motor.
The bracket should be fitted between camera housing and PTZ motor. Mounting holes provided to match with most industry
standard PTZ units. Several mounting options provided to mount Raytec illuminator.
Other versions available for specific PTZ motors.
UK Tel: + 44 (0) 1670 52005 5 Fax: +44 (0) 1670 819760
Am ericas (Tol l Fr ee ) Tel: +1 888 505 8335
www.rayteccctv.com
PB180/ PB360
Designed to mount Raytec illuminators to poles / columns – for use mainly with dome cameras. Mounts to top of pole.
Provided with 4” PCD (50.75mm) and 2” (30.75mm) PCD mounting options. PB360 supplied with 2 mounting areas to mount up
to 4 lamps. PB180 supplied with 1 mounting area (plus spacer) to mount up to 2 lamps.
PB360 supplied with 2 mounting areas to mount up to 4 lamps.
PB180 supplied with 1 mounting area (plus spacer) to mount up to 2 lamps
PB360 shown above - 2 mounting areas PB180 – one mounting area as per
PB360 and one spacer – shown above
UK Tel: + 44 (0) 1670 52005 5 Fax: +44 (0) 1670 819760
Am ericas (Tol l Fr ee ) Tel: +1 888 505 8335
www.rayteccctv.com

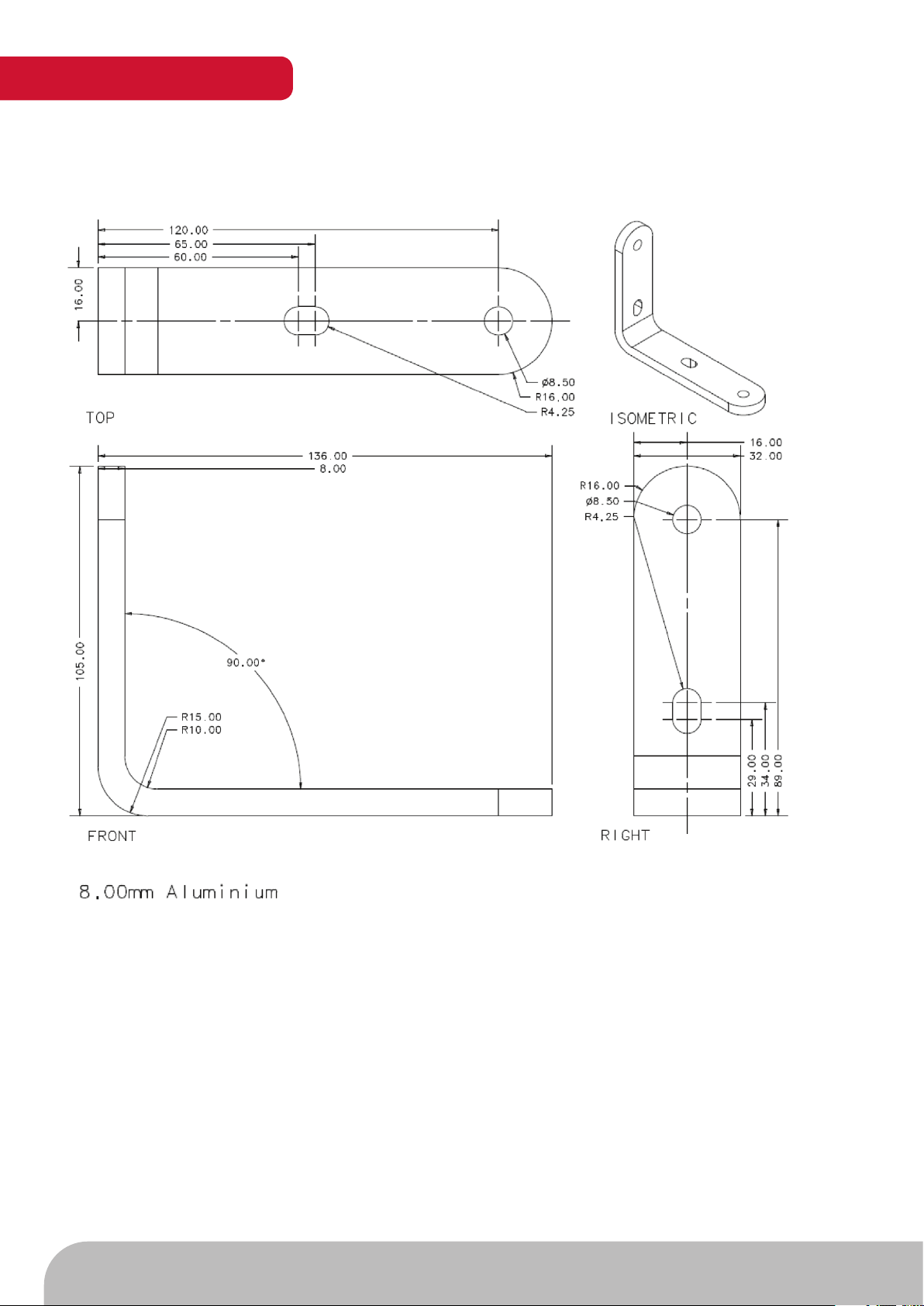

L BRACKET
Designed to mount Raytec illuminators to walls to provide full pan/tilt adjustment when used with AI circular bracket.
UK Tel: + 44 (0) 1670 52005 5 Fax: +44 (0) 1670 819760
Am ericas (Tol l Fr ee ) Tel: +1 888 505 8335
www.rayteccctv.com
PBC-1
Designed to mount Raytec illuminators to circular poles / columns.
To fit poles approx minimum 50mm up to 170mm (other diameters available on request).
Provides flat mounting platform for 1 Raytec illuminator.
UK Tel: + 44 (0) 1670 52005 5 Fax: +44 (0) 1670 819760
Am ericas (Tol l Fr ee ) Tel: +1 888 505 8335
www.rayteccctv.com
PBC-2
Pole Bracket Clamp for 2 x RAYMAX or RAYLUX illuminators
PBC-1-PSU
Pole Bracket Clamp for illuminator + PSU (to suit RM/RL25, 50, 100, 200)
UK Tel: + 44 (0) 1670 52005 5 Fax: +44 (0) 1670 819760
Am ericas (Tol l Fr ee ) Tel: +1 888 505 8335
www.rayteccctv.com
