Chapter 1: DVR Features

DVR Feature

z MPEG-4 compression z 4-Channel: 4 BNC Camera Inputs - 2 BNC Video Outputs

9-Channel: 9 BNC Camera Inputs - 1 BNC Video Output 4-Channel: 2 Audio Inputs - 2 Audio Outputs 9-Channel: 1 Audio Input -1 Audio Output

z System Format : NTSC /PAL z Motion Detection with Sensitivity and Area Settings z Time Schedule, Alarm and Motion Triggered Recording Modes z Hard Disk Support up to 500GB z Supports PTZ Control via RS-485 Port z View and Operate over Network (Broadband Connection Required) z Built-in USB 2.0 Port for Backup to Computer or USB Memory Stick Backup (Optional) z VGA Output (Optional)

Chapter 2: Overview

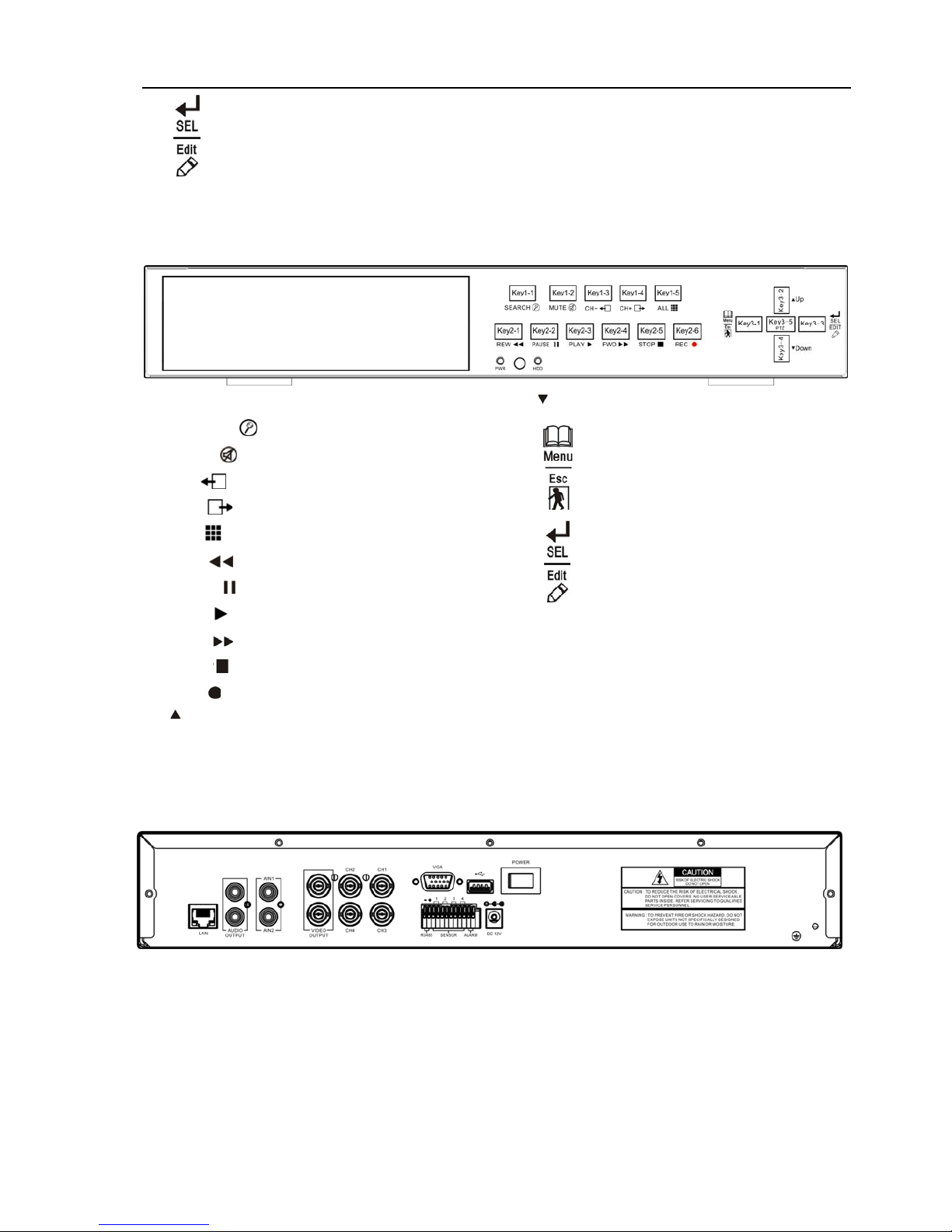

2.1 Front Panel

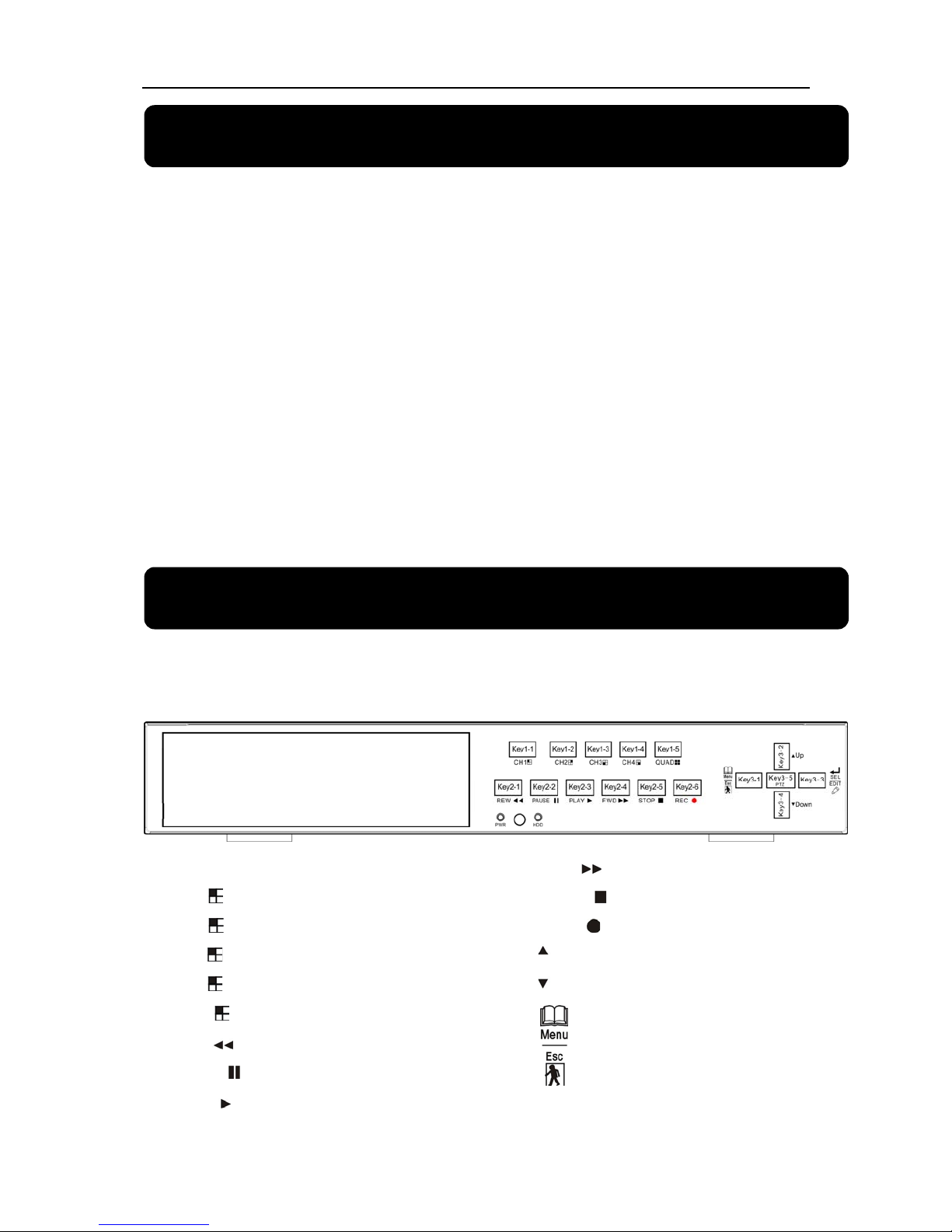

2.1.1 4-CH DVR front panel

1. Circumgyrate Door (optional)

2. CH1 : CH 1

3. CH2 : CH 2

4. CH3 : CH 3

5. CH4 : CH 4

6. Quad : View all channels

7. REW : Rewind play/Focus

8. PAUSE : Pause/Auto sequence display

9. PLAY :Play

10. FWD : Forward Play

11. STOP :Stop record

12. REC : Record

13. :UP

14. :DOWN

15.

:Menu/ESC/Left

Page 5

User Manual

16.

:Select/Edit/Right

17. PTZ：Enter or exit PTZ mode

18. Power LED

19. IR receiver

20. HDD LED

2.1.2 9-ch DVR front panel

1. Circumgyrate Door (optional)

2. SEARCH :

3. MUTE : Turn on/off audio output

4. CH- : View previous channel

5. CH+ : View next channel

6. ALL : View all channels

7. REW : Rewind play/Focus

8. PAUSE : Pause/Auto sequence display

9. PLAY : Play recorded file/Zoom

10. FWD ：Forward play/Iris

11. STOP :STOP Record

12. REC : Record

13. :UP

14. :DOWN

15.

: Menu/ESC/Left

16.

:Select/Edit/Right

17. PTZ: Enter or exit PTZ mode

18. Power LED

19. IR receiver

20. HDD LED

2.2

Rear Panel

2.2.1 4-ch DVR real panel

Page 6

User Manual

1. Audio Inputs

2. Video Outputs

3. VGA Output (Optional)

4. USB Port (Optional)

5. POWER Switch

6. LAN: Ethernet port

7. Audio Outputs

8. CH1-CH4：Video input1- video input4

9. RS-485/SENSOR/ALARM

10. Power Input Jack

11. Grounding

2.2.2 9-ch DVR rear panel

1.Audio output

2.Audio input

3.Video output

4.CH1-CH9:Video input1- video input9

5.VGA output (Optional)

6.USB port (Optional)

7.POWER Switch

8.LAN: Ethernet port

9.RS-485/Sensor/Alarm

10.DC Power input jack

11.Grounding

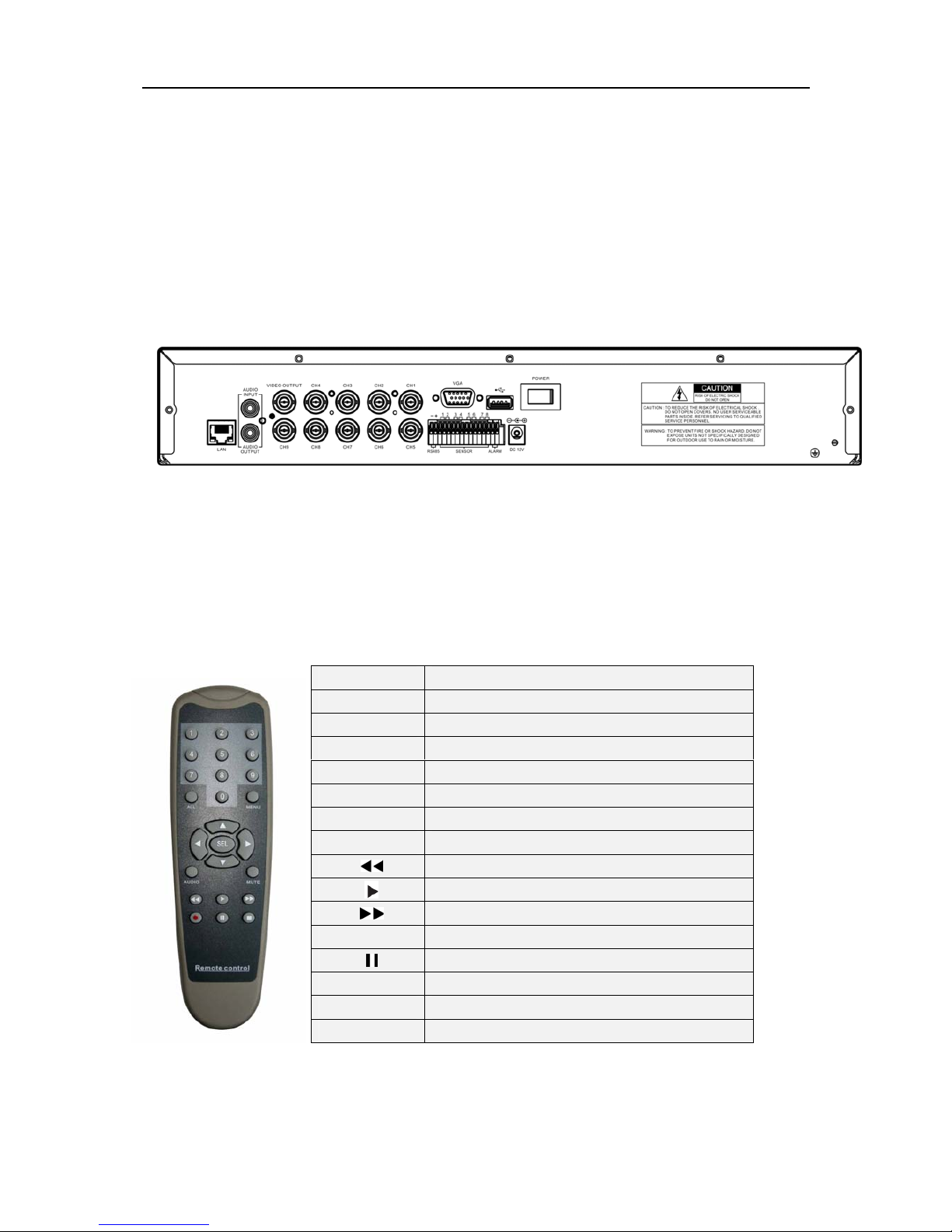

2.3 Remote Control

1-9 Channel Select 1-4/9

0 Number

ALL Display all Channels

Menu Enter or Exit Menu

▲

Move Up

▼

Move Down

◄ / ►

Left/ Right

SEL Select /Modify Item

Rewind/Focus

Play Recording/Zoom

Fast Forward/Iris

●

Record Pause/Auto sequence display

■

Stop Recording/Playback

Audio/Search Search (9-ch)or switch the audio channels(4-ch)

Mute Turn on/off audio output

Page 7

User Manual

Chapter 3: Installation

3.1 Install Hard Disk

NOTICE: Don’t take out HDD when DVR is running.

(1) Take out the Hard Disk Drive tray carefully. (2) Connect the power cord and data cable to hard disk carefully. (3) Put the Hard Disk Drive tray back into the DVR and then lock the HDD tray.

3.2 Connecting Camera and Monitor

There are 4/9 camera inputs and 2/1 Monitor outputs with BNC connectors (Refer to 2.2 Rear Panel).

3.3 VGA Output (optional)

There is 1 CRT or LCD monitor output with VGA port.

3.4 Connecting Power Supply

Please only use the power adapter supplied with the DVR.

Page 8

User Manual

Chapter 4: Starting the DVR

4.1 Firmware Version

4.2 Detecting Installed Hard Drive

4.3 Format Hard Drive

DVR will detect the installed hard drive and

display the hard drive information.

When the DVR detects a new hard drive, you

will be prompted to format the hard drive before

using the DVR.

Press [SEL] to format or press [MENU] to

cancel.

After connecting the power adapter and turning

on the power button, the system will boot-up and

display the version and released date of the DVR

firmware.

V1.9

V-EN-BG

2008.2.23

CHECKING HDD……

MASTER [WDC WD3200AAJB-00T] SLAVE……

CHECKING HDD…… MASTER [WDC WD3200AAJB-00T]-NEW-DVR FORMAT HDD CONFIRM (SELECT) FORMAT / (MENU) CANCEL?

Page 9

User Manual

Chapter 5: DVR Menu System

5.1 Navigating the Menus

5.2 Menu Overview

Menu Directory

Camera Setup Record Setup Record Frame rate

Video Quality Record Schedule Sensor Setup Hard Drive Setup Miscellaneous Setup Network Setup Language Video Backup

Reset Menu

5.3 Camera Setup

Press [MENU] to enter Main Menu Press [▲, ▼, or ] button to move the

cursor

Press [SEL] to select/modify settings Press [MENU] again to exit or go back to previous

menu.

Camera Setup allows you to turn cameras on or

off.

Press [▲, ▼, or ] button to select a channel and then press [SEL] to modify the setting ON or OFF.

Main Menu

Change Password Set Time Hidden Channel Audio Port Setup PTZ Setup Image Parameters Password Enable Keypad Tones Seq. Dwell Time VGA Setup

MAIN MENU

CAMERA SETUP RECORD SETUP RECORD FRAMERATE VIDEO QUALITY NORMAL RECORD SCHEDULE SENSOR SETUP HARD DRIVE SETUP MISCELLANEOUS SETUP NETWORK SETUP LANGUAGE ENGLISH VIDEO BACKUP RESET MENU

( ) MOVE (SEL)SELECT (MENU)EXIT

1 ON 2 ON

CAMERA SETUP

3 ON 4 ON

( )MOVE (SEL) SELECT (MENU)EXIT

Page 10

User Manual

Note：If a camera channel is set to OFF, it will not be recorded (Refer to 6.4 Record Setup)

5.4 Record Setup

5.5 Record Frame Rate

Press [▲, ▼, ◄◄or ►►] button to select a channel, and then press [SEL] to increase the

value or press [■STOP] to reduce the value.

Note: Higher frame rate shows smoother images, but requires more hard drive space.

5.6 Video Quality

5.7 Record Schedule

Setting the Record Schedule allows you to customize the type of recording depending on the

The total frame rate is 50fps (PAL) or

60fps (NTSC). You can set the frame rate for the

channel which you select to record. If the sum of

the frame rate you select for all cameras is more

than 50fps (PAL)/60fps(NTSC), the DVR will

automatically adjust the largest frame rate value

to a smaller value.

Video Quality has 4 different settings:

Highest, High, Normal and Low.

The higher the video quality, the better

quality of images, however higher quality

images require more hard drive space.

Press [SEL] to change the quality setting.

Record Setup allows you to set up recording

channels.

Press [▲, ▼, or ] button to select a channel, and then press [SEL] to modify the setting to ON or OFF.

If a channel is disabled in Camera Setup, it will

not record and the DVR will display “NOCAM” on

screen.

MAIN MENU

CAMERA SETUP RECORD SETUP RECORD FRAMERATE VIDEO QUALITY NORMAL RECORD SCHEDULE SENSOR SETUP HARD DRIVE SETUP MISCELLANEOUS SETUP NETWORK SETUP LANGUAGE ENGLISH VIDEO BACKUP RESET MENU

( )MOVE (SEL)SELECT (MENU)EXIT

1 ON 2 NOCAM

RECORD SETUP

3 ON 4 ON

( )MOVE (SEL) SELECT (MENU)EXIT

1 3FPS 2 5FPS

RECORD FRAMERATE

TOTAL 36FPS

3 25FPS 4 3FPS

( )MOVE (SEL) + ( ■ )- (MENU)EXIT

Page 11

User Manual

time of day.

NO-RECORD [ white]: DVR will not record during the time. NORMAL-RECORD [ red]: DVR will record continuously. SENSOR-RECORD [S]: DVR will record when sensor or motion is triggered. NOTE: In order to activate the record schedule, press the [] record button when viewing the

cameras. After pressing the [] record button, if schedule is set to “NORMAL-RECORD” , the

DVR will start to record immediately; if the schedule is set to be “SENSOR-RECORD” , the

DVR will not start recording until a motion is detected by the DVR or an installed sensor is

triggered.

5.8 Sensor Setup

CONT: Continuous alarm until any key is pressed.

OFF: No alarm

Note: Sensored Record Time and Alarm On Time are measured in seconds

5.9 H/W Sensor Setup

Note: Sensors and extension alarm are not included with the DVR system and may be purchased

separately.

The time line indicates 24 hours of a day based

on AM/PM (0 = 12).

Press [▲, ▼, ◄◄ or ►►] button to select a

time point, press [SEL] to modify the recording

mode.

Sensored Record Time indicates how long the recording time is when the motion or sensor is triggered.

Alarm On Time indicates whether the buzzer

will sound when motion is detected.

Hardware Sensor Setup:

There are 3 different modes for sensor setting: NOT

INSTALLED, NORMAL-CLOSE and

NORMAL-OPEN. Consult the alarm purchased for more

details on which setting is required.

RDCORD SCHEDULE

AM PM

0… 3… 6… 9… 0… 3…. 6… 9…

NO-RECORD NORMAL-RECORD SENSOR-RECORD

( )MOVE (SEL)SELECT (MENU)EXIT

SENSOR SETUP

SENSORED RECORD TIME 30 ALARM ON TIME OFF

H/W SENSOR SETUP MOTION DETECTOR SETUP

( )MOVE (SEL)SELECT (MENU)EXIT

H/W SENSOR SETUP

CHANNEL-1 TYPE:NORMAL-OPEN CHANNEL-2 NOT INSTALLED CHANNEL-3 NOT INSTALLED CHANNEL-4 NOT INSTALLED

( )MOVE (SEL)SELECT (MENU)EXIT

Page 12

User Manual

Note: For 4-ch DVR, there are 4CH inputs of the sensor

For 9-ch DVR, there are 8CH inputs of the sensor

5.10 Motion Detector Setup

This section allows you to set up motion detection options for each camera.

5.11 Hard Drive Setup

This section will display the current hard drive status and usage options

HDD SIZE: Indicates the total capacity of the hard drive installed in the DVR. HDD USED: Indicates the space used in the hard disk drive for recording and the percent used. HDD FORMAT: Will erase all video and data on the installed hard drive and make it readable

Motion Detector Setup: ON/OFF: Enable or disable motion detection

recording.

LEVEL: Sensitivity for motion detection. There are 3 levels sensitivity: Level 1-low, level 2- highe, level 3-

highest

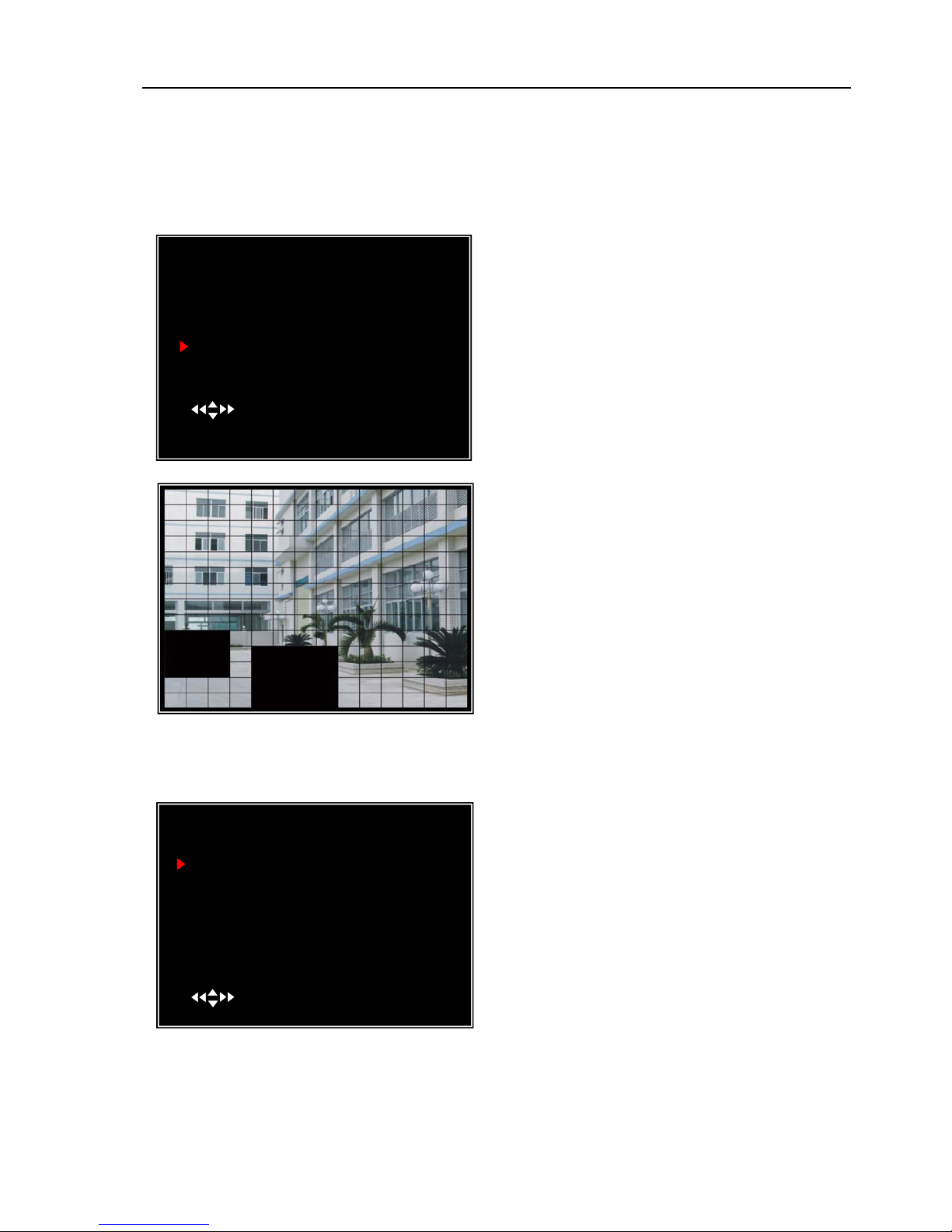

AREA: Select detectable area on the screen.

Area Selection:

Press [▲, ▼, ◄◄ or ►►] button to select a

block, and press [SEL] button to set the block to detect

motion. The area is detectable when it is clear; the area is

not detectable when it is covert by shadow.

Press “Stop” button to disable all areas, press

“Quad” or “All” button to enable all areas.

Overwrite Enabled: ON: Overwrite oldest video when hard drive is full. OFF: Stop recording when hard drive is full.

HARD DRIVE SETUP

OVERWRITE ENABLED [ ON ] ST3160215A MASTER HDD SIZE 160133MB MASTER HDD USED 124931MB 78% MASTER HDD FORMAT

SLAVE HDD SIZE N/A SLAVE HDD USED N/A SLAVE HDD FORMAT

( )MOVE (SEL)SELECT (MENU)EXIT

MOTION DETECTOR SETUP

CH1 ON LEVEL1 AREA CH2 ON LEVEL2 AREA CH3 ON LEVEL2 AREA CH4 ON LEVEL2 AREA

( )MOVE (SEL)SELECT (MENU)EXIT

Page 13

User Manual

by the DVR

Note: You will be prompted for the password when formatting a hard drive. The default

password is “111111”

5.12 Miscellaneous Setup - Change Password

5.13 Miscellaneous Setup - Set Time

Enter the current password first, and then

enter six characters as your new password, repeat

the new password to confirm.

If you forget your password, please contact

technical support for assistance.

The system date and time format is

YYYY/MM/DD and HH:MM: SS.

Press [◄◄] or [►►] button to select the data to

modify, press [SEL] to modify. Press [MENU] to save

and return to previous menu.

This option allows you to change the system

password. The password must be composed with

six characters.

All keys can be used as password key except

the [MENU] key, which is used to exit.

SET TIME

2008/11/11 17:50:01

( )MOVE (SEL)SELECT (MENU)EXIT

CURRENT PASSWORD NEW PASSWORD CONFIRM PASSWORD

[- - - - -] [- - - - -] [- - - - -]

MISCELLANEOUS SETUP

CHANGE PASSWORD SET TIME HIDDEN CHANNEL AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS PASSWORD ENABLE KEYPAD TONES SEQ. DWELL TIME VGA SETUP

( )MOVE (SEL)SELECT (MENU)EXIT

[ 4 ]

[ CH4 ] [ OFF ] [ ON ] [ 05 ]

[

1024*768 75HZ

]

Page 14

User Manual

5.14 Miscellaneous Setup - Hidden Channel

5.15 Miscellaneous Setup - Audio Port Setup

Note: For 4-ch DVR, there are 2 audio inputs.

For 9-ch DVR, there is only 1 audio input.

5.16 Miscellaneous Setup - PTZ Setup

ID: Assign an ID to your speed dome.

Press [SEL] to select the camera, press [ ] and [ ] buttons to assign the ID.

Note: the ID must be unique.

The system provides a function to hide a channel

on monitoring mode. The selected channel can still be

recorded while it’s hidden; the hidden picture is

viewable during playing back.

Press [SEL] to select a channel to hide.

You can select the audio recording function to

ON or OFF, and select the video channel that you

like to record the audio on.

SPEED: Set the baud rate (2400,4800，9600，

19200，38400) to match with your speed dome

PROTOCOL: Supports “PELCO-D” and

“PELCO-P”. Select the protocol according to your

speed dome’s protocol.

CAMERA: Select the camera channel which is

connected with the speed dome.

PTZ SETUP

SPEED [4800] PROTOCOL [PELCO-D] CAMERA- [ 1 ] ID [ 1 ]

( )MOVE ( )CAM ID (SEL)SELECT (MENU)EXIT

AUDIO PORT SETUP

AUDIO PORT1-VIDEIO CHANNEL AUDIO PORT1-RECORD AUDIO PORT2-VIDEO CHANNEL AUDIO PORT2-RECORD

( )MOVE (SEL)SELECT (MENU)EXIT

MISCELLANEOUS SETUP

CHANGE PASSWORD SET TIME HIDDEN CHANNEL AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS PASSWORD ENABLE KEYPAD TONES SEQ。DWELL TIME VGA SETUP

( )MOVE (SEL)SELECT (MENU)EXIT

[ 4 ]

[ CH4 ] [ OFF ] [ ON ] [ 05 ]

[

1024*768 75HZ

]

[ 1 ] [ OFF ] [ 2 ] [ ON ]

Page 15

User Manual

5.17 Miscellaneous Setup - Image Parameters

5.18 Miscellaneous Setup - Password Enable

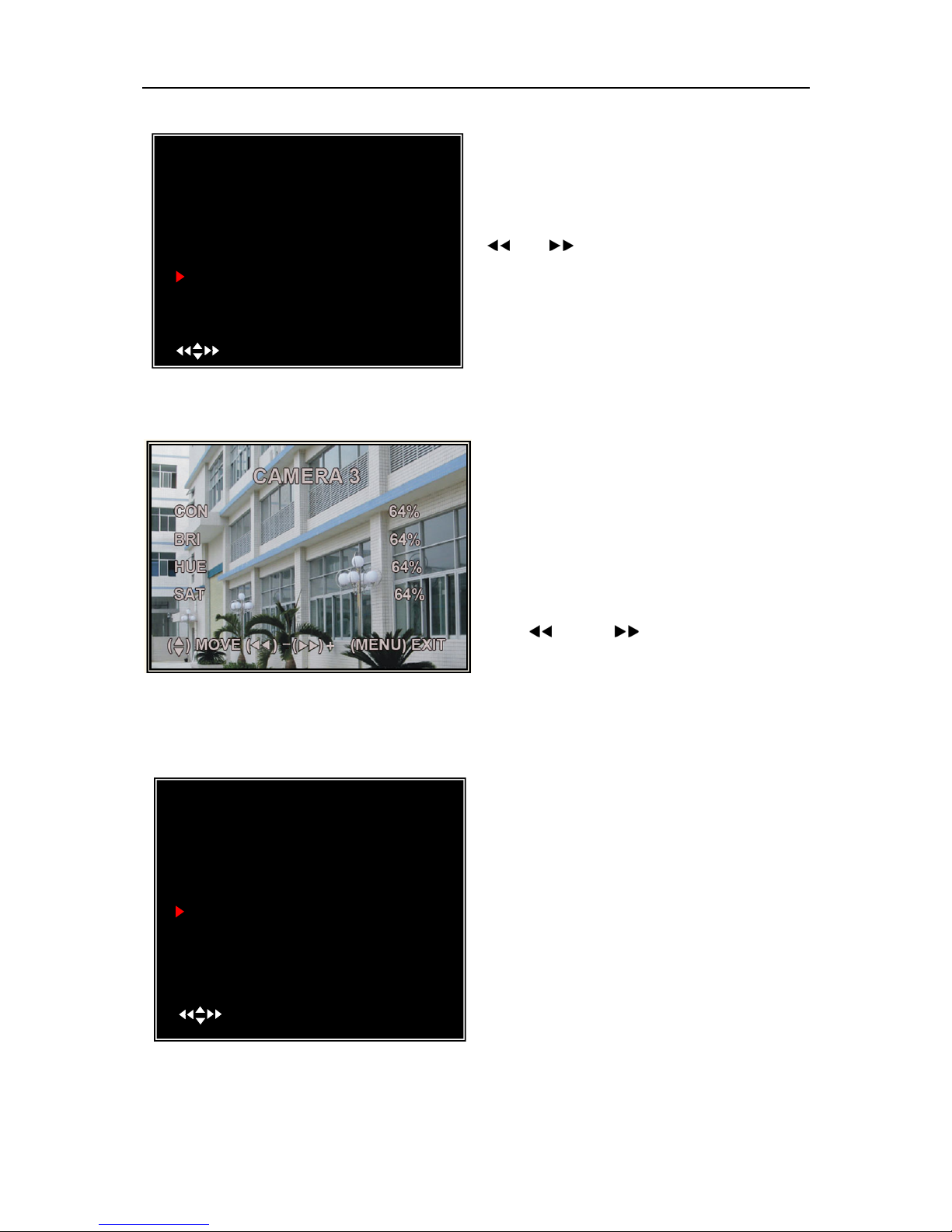

You can adjust the image parameters

according to your needs.

Move the cursor to this selection and press

[ ] or [ ] button to select a channel you want

to adjust, then press [SEL] button to edit

parameters.

CON: Contrast BRI: Brightness HUE: Hue SAT: Saturation

Press [▲] or [▼] to select the item， and then

press [ ] and [ ] buttons to adjust the value.

The password will be required to control the

DVR when this option is set to “ON”, and the

password is not required when this option is set to

“OFF”.

MISCELLANEOUS SETUP

CHANGE PASSWORD SET TIME HIDDEN CHANNEL AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS PASSWORD ENABLE KEYPAD TONES SEQ. DWELL TIME VGA SETUP

(

)MOVE (SEL)SELECT (MENU)EXIT

MISCELLANEOUS SETUP

CHANGE PASSWORD SET TIME HIDDEN CHANNEL AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS PASSWORD ENABLE KEYPAD TONES SEQ.DWELL TIME VGA SETUP

( )MOVE (SEL)SELECT (MENU)EXIT

[ 1 ]

[ CH3 ] [ OFF ] [ ON ] [ 05 ]

[

1024*768 75HZ

]

[ 1 ]

[ CH3 ] [ OFF ] [ ON ] [ 05 ] [1024*768 75HZ]

Page 16

User Manual

5.19 Miscellaneous Setup - Keypad Tones

5.20 Miscellaneous Setup - Sequence Dwell Time

After setting, press [ ] button to turn on auto-sequence display function and then there’s a

“SEQ”icon displayed on the right top of screen. Press [

] again to turn off this function in

preview mode

5.21 Miscellaneous Setup - VGA Setup

This function allows you to enable /disable buzzer sound when pressing a button. Press [SEL] to select ON or OFF.

Select a VGA resolution to match with your

CRT or LCD monitor.

NOTE: VGA video output is an optional

function and may not be available on all models.

MISCELLANEOUS SETUP

CHANGE PASSWORD SET TIME HIDDEN CHANNEL AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS PASSWORD ENABLE KEYPAD TONES SEQ. DWELL TIME VGA SETUP

( )MOVE (SEL)SELECT (MENU)EXIT

[ 4 ]

[ CH4 ] [ OFF ] [ ON ] [ 05 ] [1024*768 75HZ]

MISCELLANEOUS SETUP

CHANGE PASSWORD SET TIME HIDDEN CHANNEL AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS PASSWORD ENABLE KEYPAD TONES SEQ. DWELL TIME VGA SETUP

( )MOVE (SEL)SELECT (MENU)EXIT

[ 4 ]

[ CH4 ] [ OFF ] [ ON ] [ 05 ]

[

1024*768 75HZ

]

MISCELLANEOUS SETUP

CHANGE PASSWORD SET TIME HIDDEN CHANNEL AUDIO PORT SETUP PTZ SETUP IMAGE PARAMETERS PASSWORD ENABLE KEYPAD TONES SEQ.DWELL TIME VGA SETUP

( )MOVE (SEL)SELECT (MENU)EXIT

[ 4 ]

[ CH4 ] [ OFF ] [ ON ] [ OFF] [1024*768 75HZ]

This function allows you to set the dwell time for

each camera when you enable the auto sequence

display function.

Press [◄◄] and [►►] buttons to adjust the

value.

Page 17

User Manual

5.22 Network Setup

Network Setup allows you to prepare the DVR for viewing over the internet or local network.

IMPORTANT: This setting should only be changed if multiple DVRs are being setup on the same

network and the first code “00” must not to be changed.

MAC ADDRESS:

In a local area network(LAN)，

the MAC (Media Access Control) address is your computer’s unique hardware identity code(On an Ethernet LAN，it is the same as your Ethernet address).When you are connected to the Internet from your computer (or host as the Internet protocol thinks of it )，a corresponding table relates your IP address to your computer’s physical (MAC) address on the LAN.

IP ALLOCATION: DVR supports DHCP and

Static IP modes. If your modem/router supports DHCP function, you can use DHCP mode. When using STATIC mode, you will be required to setup your IP settings manually.

Note: After setting the DVR to DHCP mode

restart the unit.

IP Address: In a local network, the IP address

is a unique designated address for your DVR recognized by your router. Ensure this number is within the range usable by your modem/router. Use the UP “▲” and DOWN “▼” buttons to move the cursor and use the “SELECT” button to change the numbers. Once you have finished the changes restart your DVR.

SUBNET MASK: Subnet Mask is used to

determine what subnet an IP address belongs to. A number that is used to identify a sub network so that IP addresses can be recognized on a local area network. Consult your modem/router for your LAN’s subnet mask.

NETWORK SETUP

MAC ADDRESS IP ALLOCA TION IP ADDRESS SUBNET MASK GATEW AY DNS1 ADDRESS DNS2 ADDRESS HTTP PORT USER SETUP DDNS SETUP

(HTTP PORT) 80, 1024-49151 ( )MOVE (SEL)SELECT (MENU)EXIT

<00:11:22:33:44:55> [STATIC] [192.168.1.100] [255.255.255.0] [192.168.1.1] [0.0.0.0] [0.0.0.0] [ 80]

NETWORK SETUP

MAC ADDRESS IP ALLOCA TION IP ADDRESS SUBNET MASK GATEW AY DNS1 ADDRESS DNS2 ADDRESS HTTP PORT USER SETUP DDNS SETUP

(HTTP PORT) 80, 1024-49151 ( )MOVE (SEL)SELECT (MENU)EXIT

NETWORK SETUP

MAC ADDRESS IP ALLOCA TION IP ADDRESS SUBNET MASK GATEW AY DNS1 ADDRESS DNS2 ADDRESS HTTP PORT USER SETUP DDNS SETUP

(HTTP PORT) 80, 1024-49151 ( )MOVE (SEL)SELECT (MENU)EXIT

NETWORK SETUP

MAC ADDRESS IP ALLOCA TION IP ADDRESS SUBNET MASK GATEW AY DNS1 ADDRESS DNS2 ADDRESS HTTP PORT USER SETUP DDNS SETUP

(HTTP PORT) 80, 1024-49151 ( )MOVE (SEL)SELECT (MENU)EXIT

<00:11:22:33:44:55> [STATIC] [192.168.1.100] [255.255.255.0] [192.168.1.1] [0.0.0.0] [0.0.0.0] [ 80]

Page 18

User Manual

NOTE: To adjust the IP ADDRESS，SUBNET MASK and GATEWAY value, only when the

[STATIC] mode is being selected.

GATEWAY: Set this number to the gateway

set by your modem/router.

DNS ADDRESS: This code should be

provided by your local ISP.

HTTP PORT: This port number is used to

communicate with PC Client. The default value is 80(Can be changed from 1024 to 49151)

USER SETUP: When accessing the DVR

from a remote location you will be prompted for a login and password. The default is “admin” for full administrator rights. Set “User ID” and password to setup a user with limited rights to prevent tampering.

USER SETUP

ADMIN ID [admin] ADMIN PASSWORD USER ID USER PASSWORD

( )MOVE (SEL)SELECT (MENU)EXIT

NETWORK SETUP

MAC ADDRESS IP ALLOCA TION IP ADDRESS SUBNET MASK GATEW AY DNS1 ADDRESS DNS2 ADDRESS HTTP PORT USER SETUP DDNS SETUP

(HTTP PORT) 80, 1024-49151 ( )MOVE (SEL)SELECT (MENU)EXIT

<00:11:22:33:44:55> [STATIC] [192.168.1.100] [255.255.255.0] [192.168.1.1] [0.0.0.0] [0.0.0.0] [ 80]

NETWORK SETUP

MAC ADDRESS IP ALLOCA TION IP ADDRESS SUBNET MASK GATEW AY DNS1 ADDRESS DNS2 ADDRESS HTTP PORT USER SETUP DDNS SETUP

(HTTP PORT) 80, 1024-49151 ( )MOVE (SEL)SELECT (MENU)EXIT

<00:11:22:33:44:55> [STATIC] [192.168.1.100] [255.255.255.0] [192.168.1.1] [0.0.0.0] [0.0.0.0] [ 80]

NETWORK SETUP

MAC ADDRESS IP ALLOCA TION IP ADDRESS SUBNET MASK GATEW AY DNS1 ADDRESS DNS2 ADDRESS HTTP PORT USER SETUP DDNS SETUP

(HTTP PORT) 80, 1024-49151 ( )MOVE (SEL)SELECT (MENU)EXIT

<00:11:22:33:44:55> [STATIC] [192.168.1.100] [255.255.255.0] [192.168.1.1] [0.0.0.0] [0.0.0.0] [ 80]

Page 19

User Manual

LAN-DVR Connection

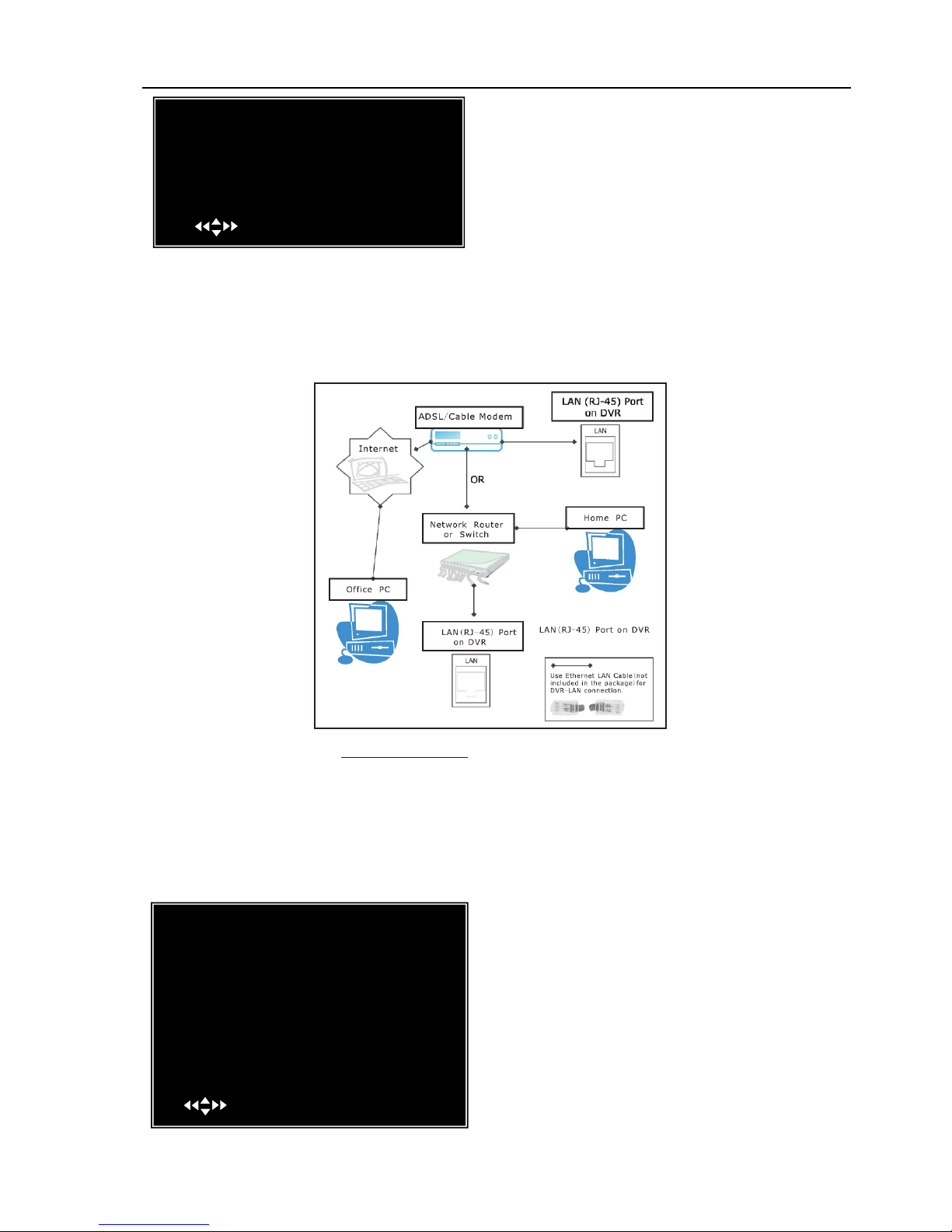

See the diagram below for steps to connect your DVR to a local area network or the internet.

For remote monitoring from your computer，you must have a LAN connection available or

broadband Internet access.

You need to register a www.dyndns.com to get a free account .After registration，you will

have a username and password. You can also register your domain name on the website. Please refer to Chapter 5 “Network Setup” for more details. There you will learn how to input the Dyndns username，password，and domain name. You can log in from anywhere by using Internet Explorer and entering your DVR’s domain name.

5.23 Language

You can change the OSD language from the

default English to other languages, if your DVR

supports multi-languages.

DDNS SETUP：If you require an external

service to maintain a dynamic IP address enter the user information here.

[WWW.DynDNS.com ] [ ] [ ]

MAIN MENU

CAMERA SETUP RECORD SETUP RECORD FRAMERATE VIDEO QUALITY NORMAL RECORD SCHEDULE SENSOR SETUP HARD DRIVE SETUP MISCELLANEOUS SETUP NETWORK SETUP LANGUAGE ENGLISH VIDEO BACKUP RESET MENU

( )MOVE (SEL)SELECT (MENU)EXIT

[111111]

[ ]

DDNS SETUP

DDNS PROVIDER DDNS USER NAME DDNS PASSWORD DOMAIN NAME

( )MOVE (SEL)SELECT (MENU)EXIT

[WWW.DynDNS.com ] [ ] [ ]

[

]

Page 20

User Manual

5.24 Video Backup

This function is only available for the model which supports USB memory stick or CD-RW

device backup. If your DVR is with PC-link USB interface, please refer Chapter 8 for video

backup.

Move the cursor to “VIEW EVENTS”, press [SEL] to enter event list. Press [▲] or [▼] button to move the cursor, and then press [SEL]

to select the event you like to backup and return

to previous menu.

The DVR system already indicated the start &

end time of the recording event. Move the cursor to

“SIZE”, DVR will automatically indicate the size

of the video you like to backup to USB memory

stick or CD/DVD.

You can directly select the start& end time of

a recording video to backup. Move the cursor to

“START” or “END”; press [SEL] to enter the

interface. Press [◄◄] or [►►] button to move the

cursor, and then press [SEL] to modify the value.

Press [MENU] back to previous menu.

You can rename the backup file. Press [◄◄]

or [►►] button to select the character you want to

modify, press [▲] or [▼] button to select a

character from the given character list, and then

press [SEL] to enter.

Please note that the name must be ended with

“.MCG”.

EVENT LIST

00003 T 2008/08/22 19:42:25 00002 T 2008/08/22 17:30:19 00001 T 2008/08/22 16:20:22 00000 T 2008/08/21 17:12:43

VIDEO BACKUP

VIEW EVENTS START: 2008/08/22 16:20:22 END: 2008/08/22 16:48:28 SIZE: [197] MB FILE NAME: [VID000.MCG] BACKUP TO CD/DVD BACKUP TO USB DEVICE

( )MOVE (SEL)SELECT (MENU)EXIT

BACKUP STARTING TIME

2008/08/22 16:20:22

( )MOVE (SEL)SELECT (MENU)EXIT

BACKUP FILE NAME

VIDOOO.MCG

0 1 2 3 4 5 6 7

( ) CHANGE ( )MOVE ( SEL )SELECT ( CH )NUMBER ( )DELETE ( ) INSERT

(

MENU)EXIT

Page 21

User Manual

Please read Chapter 8 on how to play back your backup file.

5.25 Reset Menu

If you select this item, the system will restore all your settings to factory default values. You

need to enter your password to reset the menu.

5.26 NTSC/PAL Output select

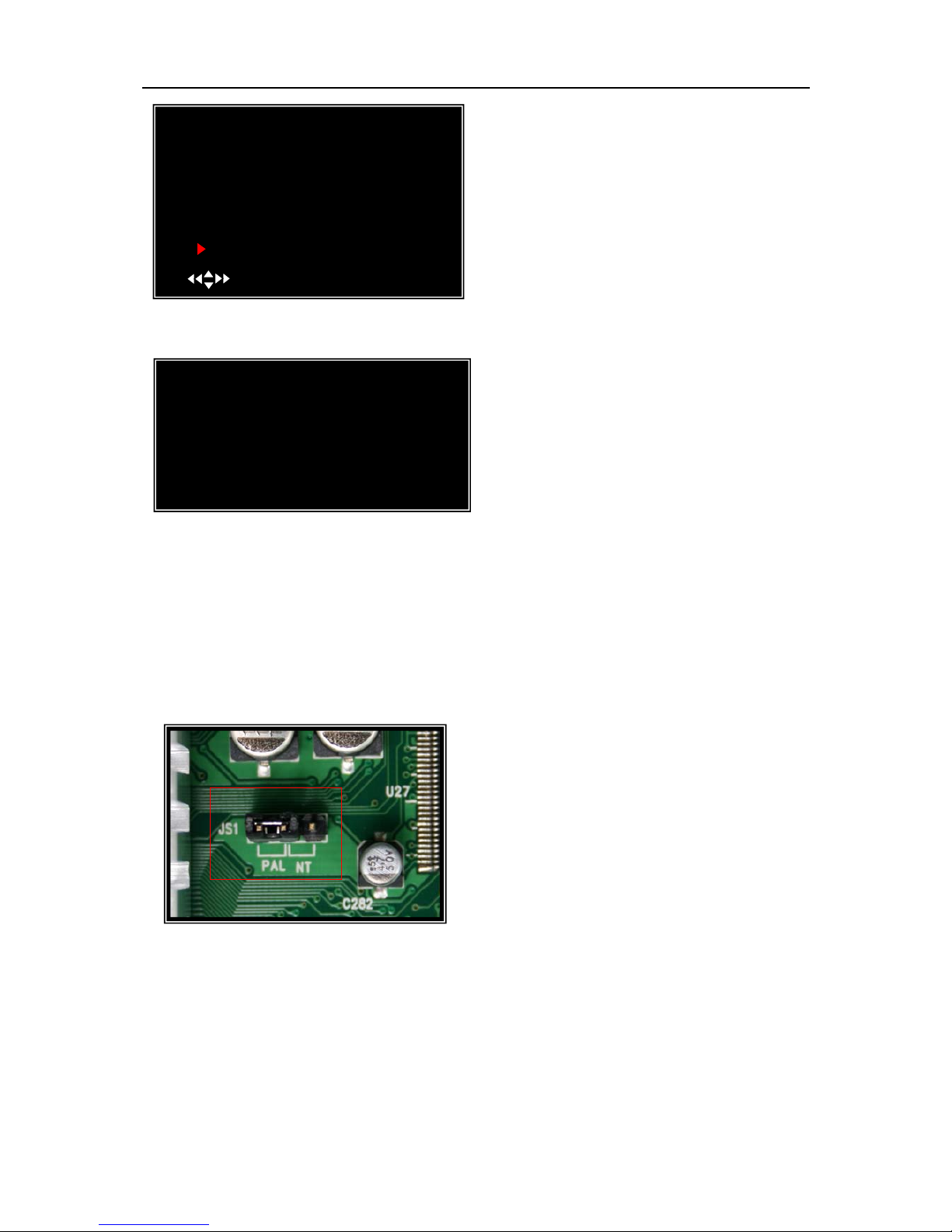

Change the jumper JS1 to select NTSC or PAL

video output format according to the silkscreen on

the PCB.

Insert your USB memory stick device into

DVR’s USB port.

Move the cursor to “BACKUP TO USB

DEVICE”, press [SEL] button.

DVR will check your USB device as left

picture showed and then start to copy the backup

file.

BACKUP TO USB DEVICE

Check USB devices

(MENU)EXIT

VIDEO BACKUP

VIEW EVENTS START: 2008/08/22 16:20:22 END: 2008/08/22 16:48:28 SIZE: [197] MB FILE NAME: [VID000.MCG] BACKUP TO CD/DVD BACKUP TO USB DEVICE

( )MOVE (SEL)SELECT (MENU)EXIT

Page 22

User Manual

Chapter 6: Record

6.1 Start Recording

Press [●] record button to start recording according to the record schedule you have set.

System will display some information on screen.

[

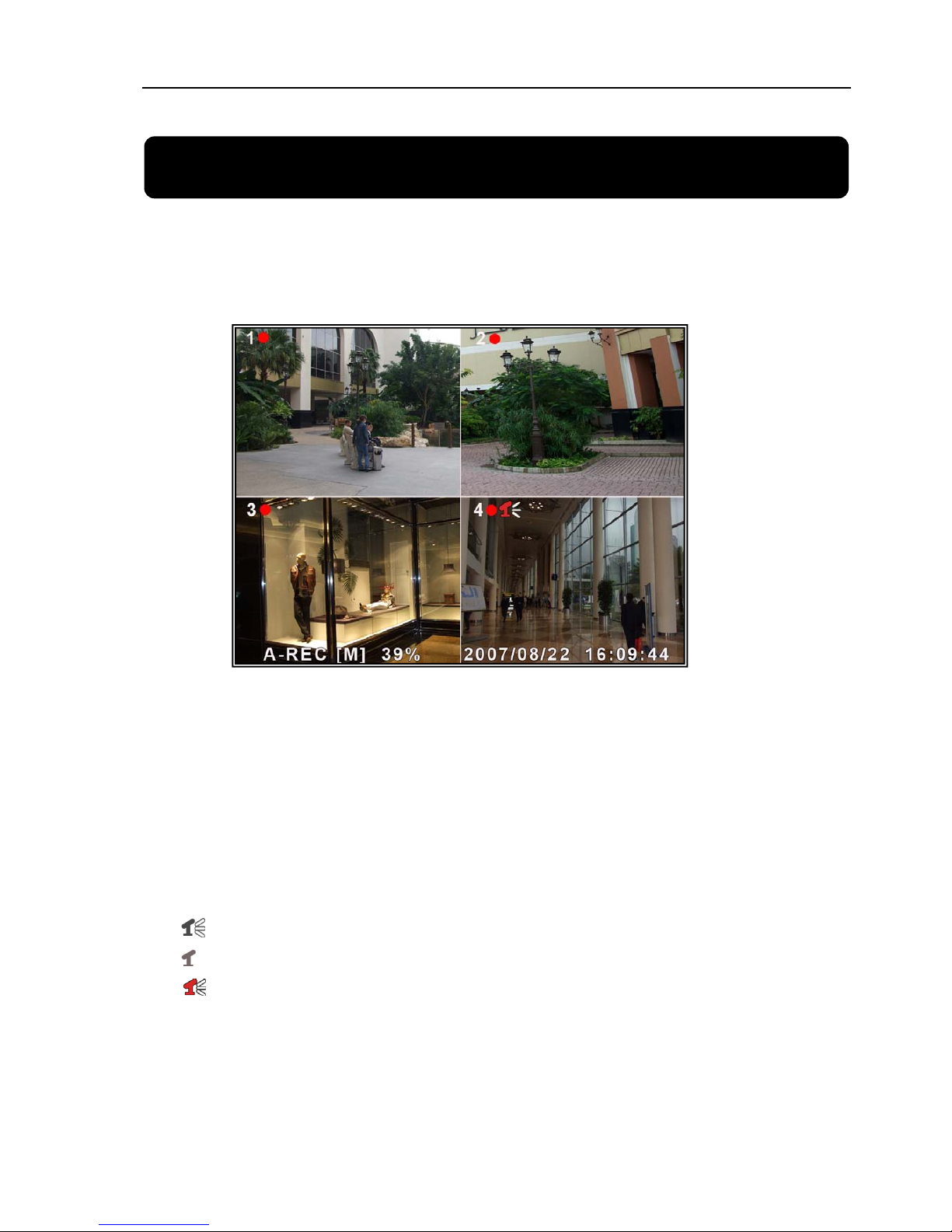

●]: the red pot next to the channel name indicates that the channel is being recorded.

[A-REC]: indicates the current record schedule is set to NORMAL-RECORD mode. [S-REC]: indicates the current record schedule is set to SENSOR-RECORD mode. [N-REC]:

indicates the current record schedule is set to NO-RECORD mode.

[39%]:

indicates the percentage of hard disk space used.

[M]: HDD info ([M] Master Hard Disk)

6.2 Audio Recording

[ ]: indicates this video channel is bundled with an audio port, and the audio output is on.

[ ]: indicates the audio output is off.

[ ]: indicates the audio is being recorded and the audio output is on.

For 9-channel, you could press [MUTE] button on front panel to be mute mode for audio

output. The audio input can be still recorded while the output is mute.

For 4-channel, you could press [DOWN] button on front panel to be mute mode for audio

output. The audio input can be still recorded while the output is mute. And you could press [UP]

Page 23

User Manual

button to switch one of the two audio inputs to live output

6.3 Stop Recording

When pressing [■] stop button DVR will stop recording. If password protection function is

enabled, system will prompt you to input password. Only correct password can stop recording

process.

6.4 Estimated Recording Length

Estimated record time based on 160GB HDD Standard Quality 60fps 48fps 32fps 16fps 1fps

Highest 62 78 116 232 3720

High 88 110 165 330 5280

Normal 107 134 201 401 6420

NTSC

Lower 120 150 225 450 7200

Standard Quality 50fps 36fps 24fps 12fps 1fps

Highest 64 89 133 267 3200

High 90 125 188 375 4500

Normal 110 153 229 458 5500

PAL

Lower 123 171 256 513 6150

Unit: Hour

Chapter 7: Playback

On preview mode, press the [►] PLAY button to go into PLAYBACK mode. The newest

record event will be played.

Another way to search video is to directly input time period. Press the [MENU] button then use [◄◄] or [►►] button to select the TIME search

mode. Use [SEL] button to edit time value, press

[►] to play the video. If the time you selected has no record event, it will indicates “NO EVENTS” on the screen when you press [►] play button.

SEARCH VIDEO

DISK:MASTER SLAVE [NONE] 08/09/19 11:16:31 - 08/09/19 15:05:48

TYPE: EVENT TIME PLAY:00006 T 2008/09/19 15:07:40

( )MOVE (SEL)SELECT

( )PLAY (MENU)PREV MENU

SEARCH VIDEO

DISK: MASTER SLAVE [NONE] 08/09/19 11:16:31 - 08/09/19 15:05:48

TYPE: EVENT TIME PLAY:EVENTS

00006 T 2008/09/19 15:07:40 00006 T 2008/09/19 14:07:40 00006 T 2008/09/19 13:07:40 00006 T 2008/09/19 12:07:40 00006 T 2008/09/19 11:07:40 00006 T 2008/09/19 10:07:40 00006 T 2008/09/19 09:07:40

( )MOVE (SEL)SELECT ( )PLAY (MENU)PREV MENU

Press the [MENU] button on Playback mode，

then the system will list all the recorded events. The latest record will be on top of the list. Press the ［▲］or [ ▼］ button to select the event and then press [►] to play the event.

Page 24

User Manual

Chapter 8: USB Progamming

8.1 Driver Installation

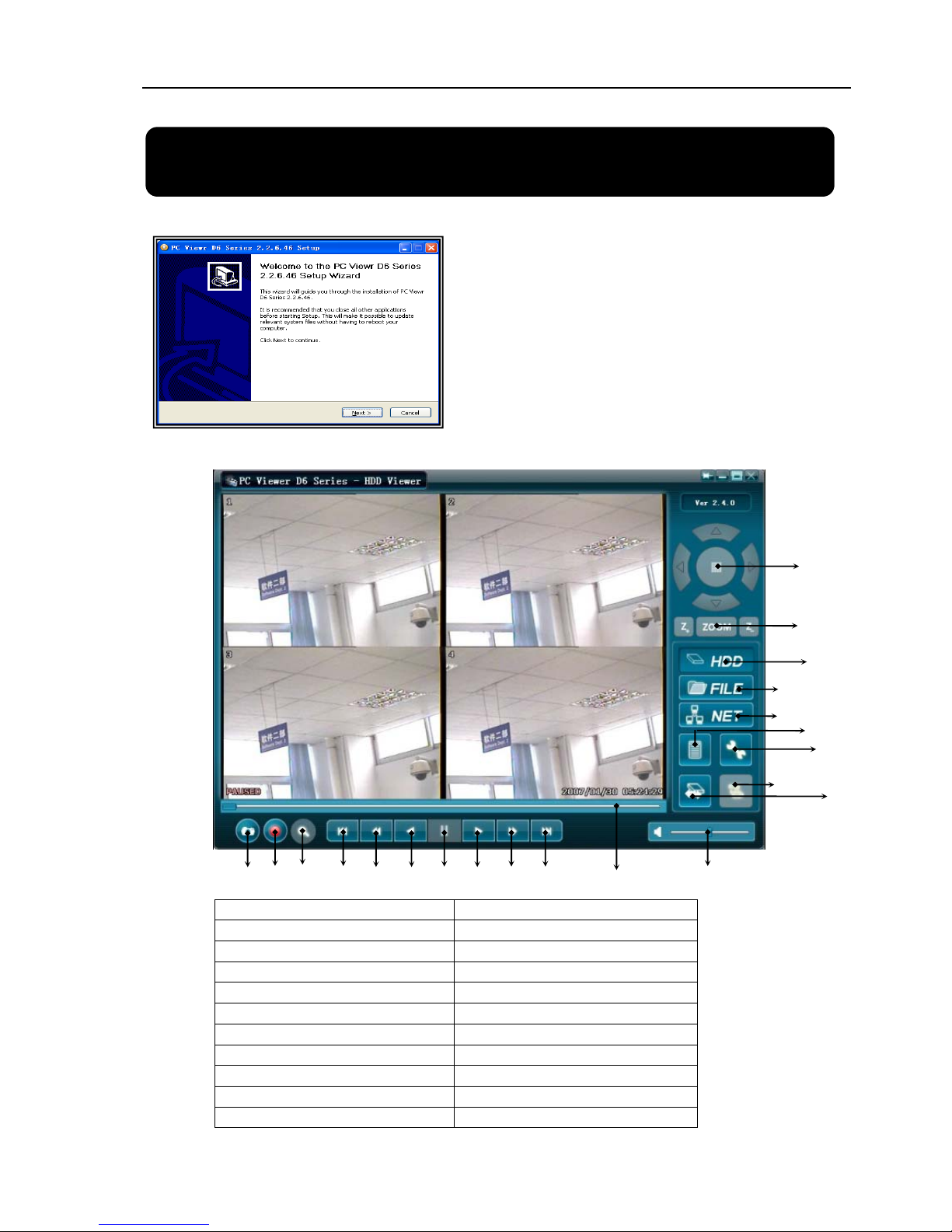

8.2 Program Interface – Button Functions

1.PTZ Control 12. Time Search

2.Zoomin，Zoom Out 13. Jump back 60s

3.HDD Play Mode 14. Jump back 10s

4.File Play Mode 15. Reverse playback

5.Net Play Mode 16. Pause

6.Event List 17. forward playback

7.Change DVR settings 18. Jump forward 10s

8.Remote DVR Control 19. Jump forward 60s

9.Change Storage Device 20.Playback Slide

10.Capture Image 21.Audio Slide

11. Convert Streams to AVI file

(1) Insert driver CD into your CD-ROM Drive. (2) Open CD directory. (3) Double click on the install applications. (4) Run “Install” program. (5) Follow the setup wizard to finish the

installation.

10 11 12 13

14 15

Page 25

User Manual

8.3 Program Running

8.3.1 HDD play mode

System will detect the HDD automatically when you connect the USB cable to your PC. An

USB icon“ ” will appear in the system tray (right bottom corner of the screen). After you’ve

seen the USB icon, double click “ ” icon on your desktop to run the program.

Note: if you do not follow above steps, the program will fail to detect HDD

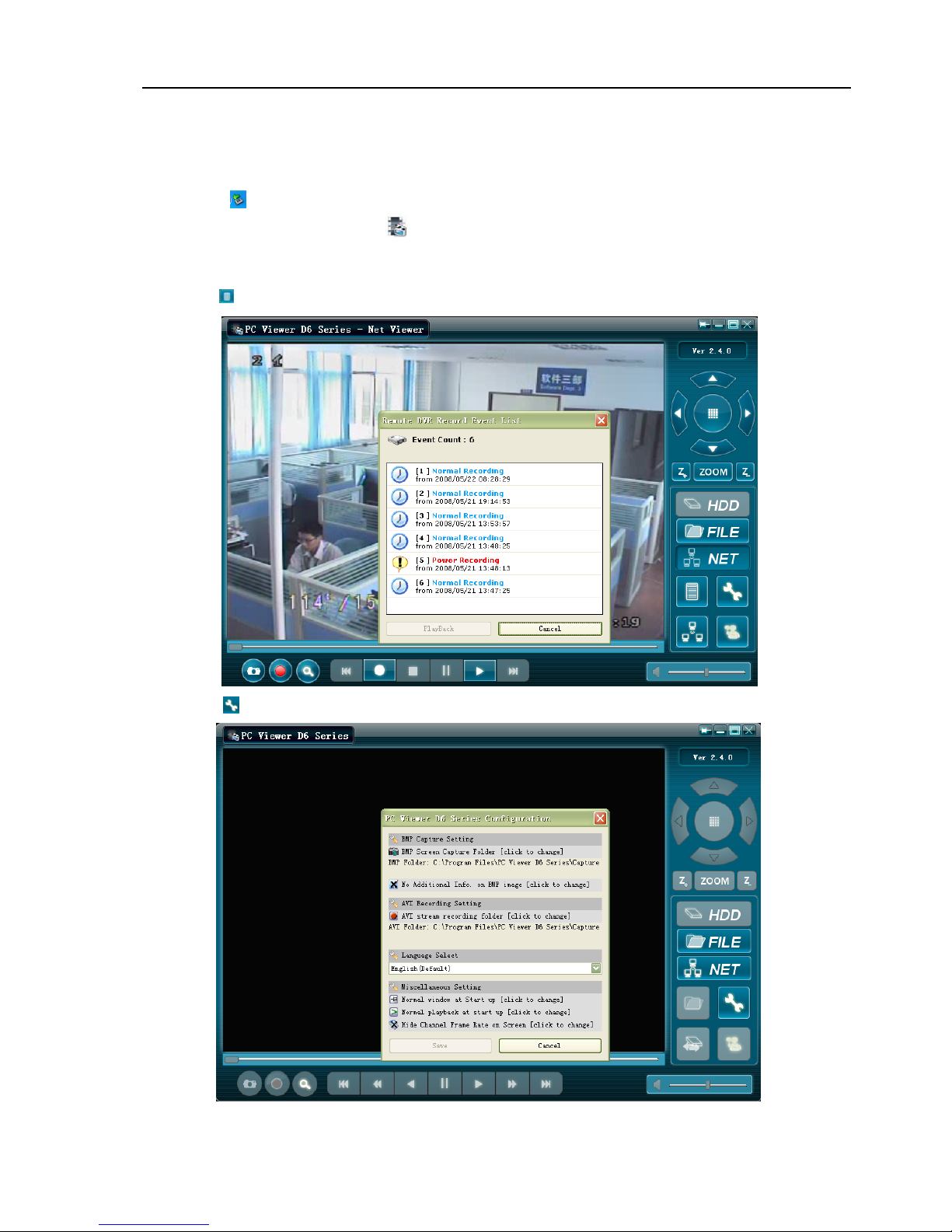

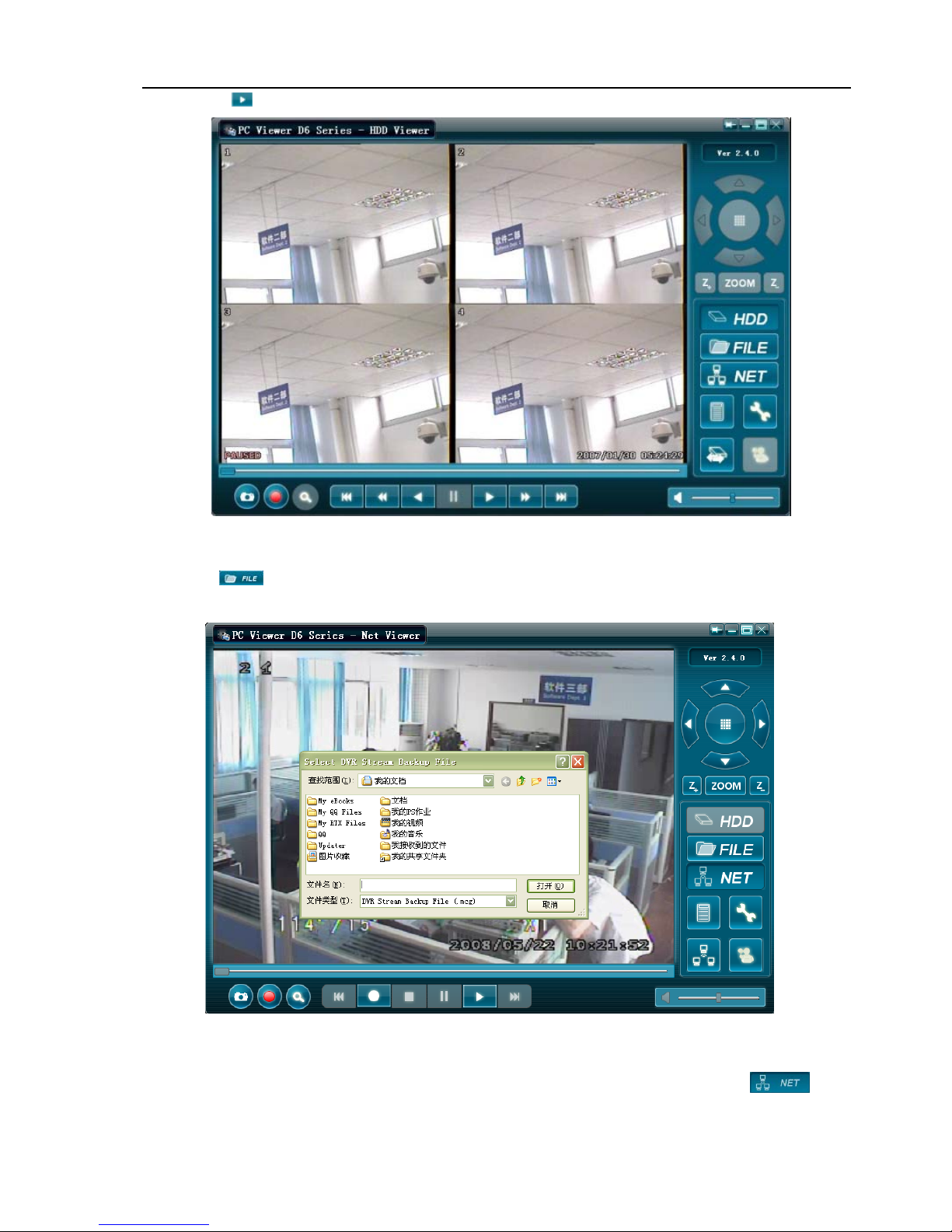

Press “ ” to open the video event lists.

Press “ ” to configure the program local settings.

Page 26

User Manual

Press “ ” to play video.

8.3.2 FILE play mode

Press “ ” to open a folder and select the file you want play. Double click the file.

Note : This function is only used to play the backup files on USB or CD/DVD device.

8.3.3 NET play mode

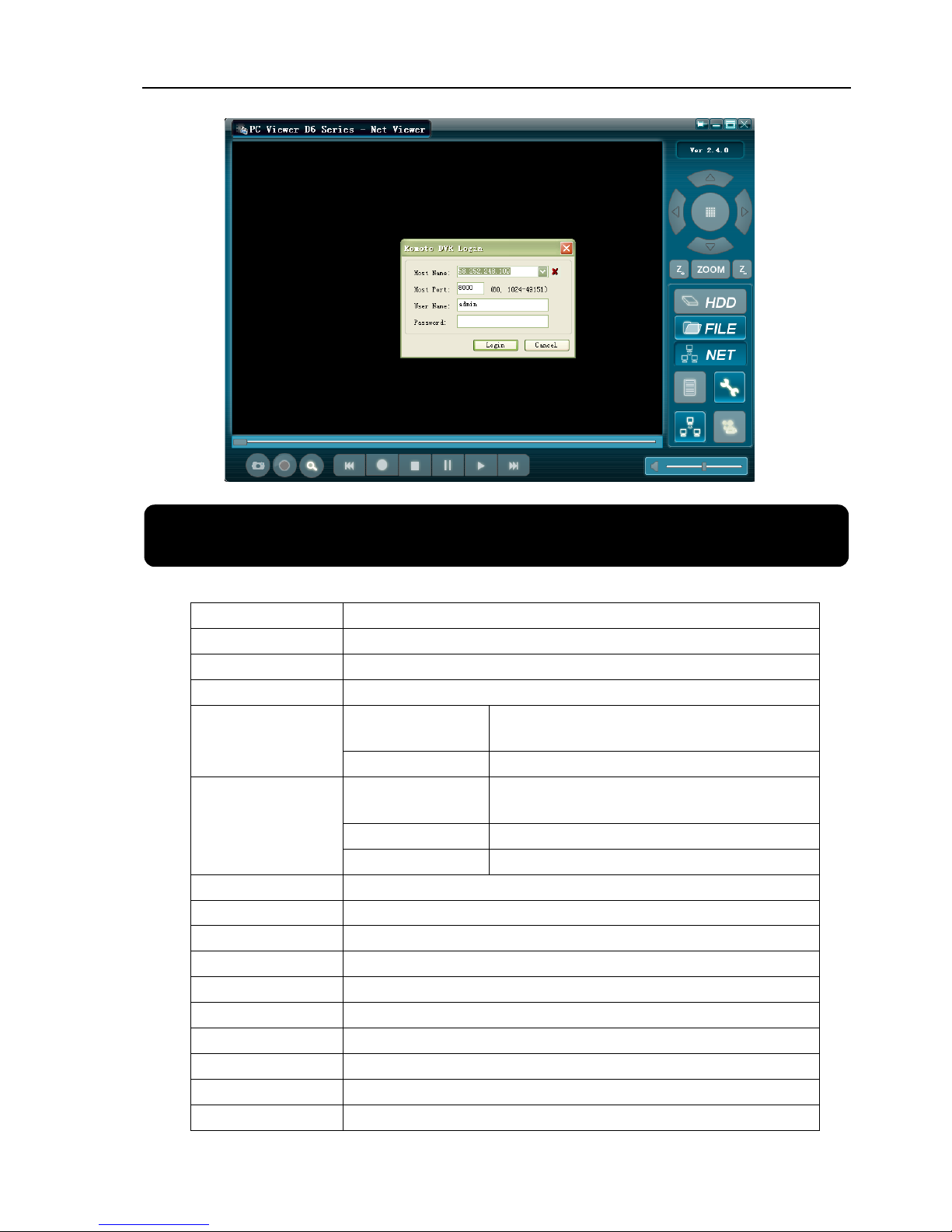

This mode allows you to remote control your DVR via Internet or Intranet. Press “ ” to

pop up the login window. Fill in Host Name, Host Port, User Name and Password of the DVR

Page 27

User Manual

that you want remotely access and then press Login to enter the main page.

Chapter 9: Specification

4 / 9-Channel DVR

Items Descriptions

Video Standard NTSC/PAL

Video Input/Output 4 Channels/2 Channels，9 Channels/1 Channel

Audio Input/Output 2 Channels/2 Channels，1 Channel/1 Channel

Resolution

NTSC:720X480@30fps(Each Ch)

PAL:720X576@25fps(Each Ch)

Monitoring

Features Full-D1，1-CH/4-CH/9-CH Display

Resolution

NTSC:720X240@60fps(4/9Ch.Total)

PAL:720X288@50fps(4/9Ch.Total)

Features Variable Frame Rate/Variable QL per Channel

Recording

Quality 4-Level(Highest, High, Normal, low)

Audio ADPCM2 CODEC

Video MPEG-4

Motion Detection Settable Window/Level

Microprocessor 32-bit RISC Processor

Network Interface TCP/IP(RJ45)

Network Monitor IE(Internet Explorer) PC Viewer Software

PTZ Interface RS-485

USB Interface USB 2.0

VGA Output Optional

Remote control IR remote control

Page 28

User Manual

Chapter 10: Appendix

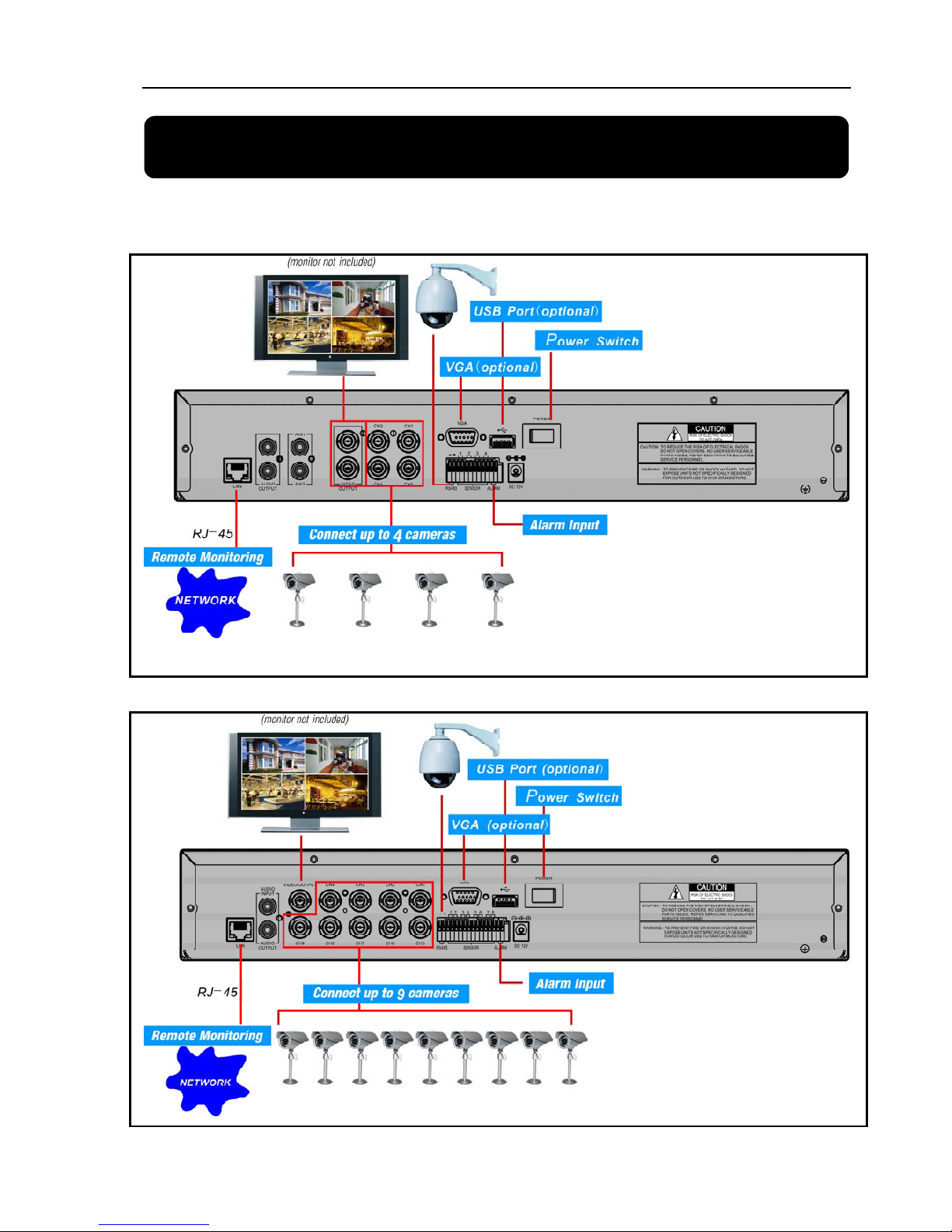

10.1 System connection diagram

4-CH DVR

9-CH DVR

(Speed dome not included)

(Cameras not included)

Page 29

User Manual

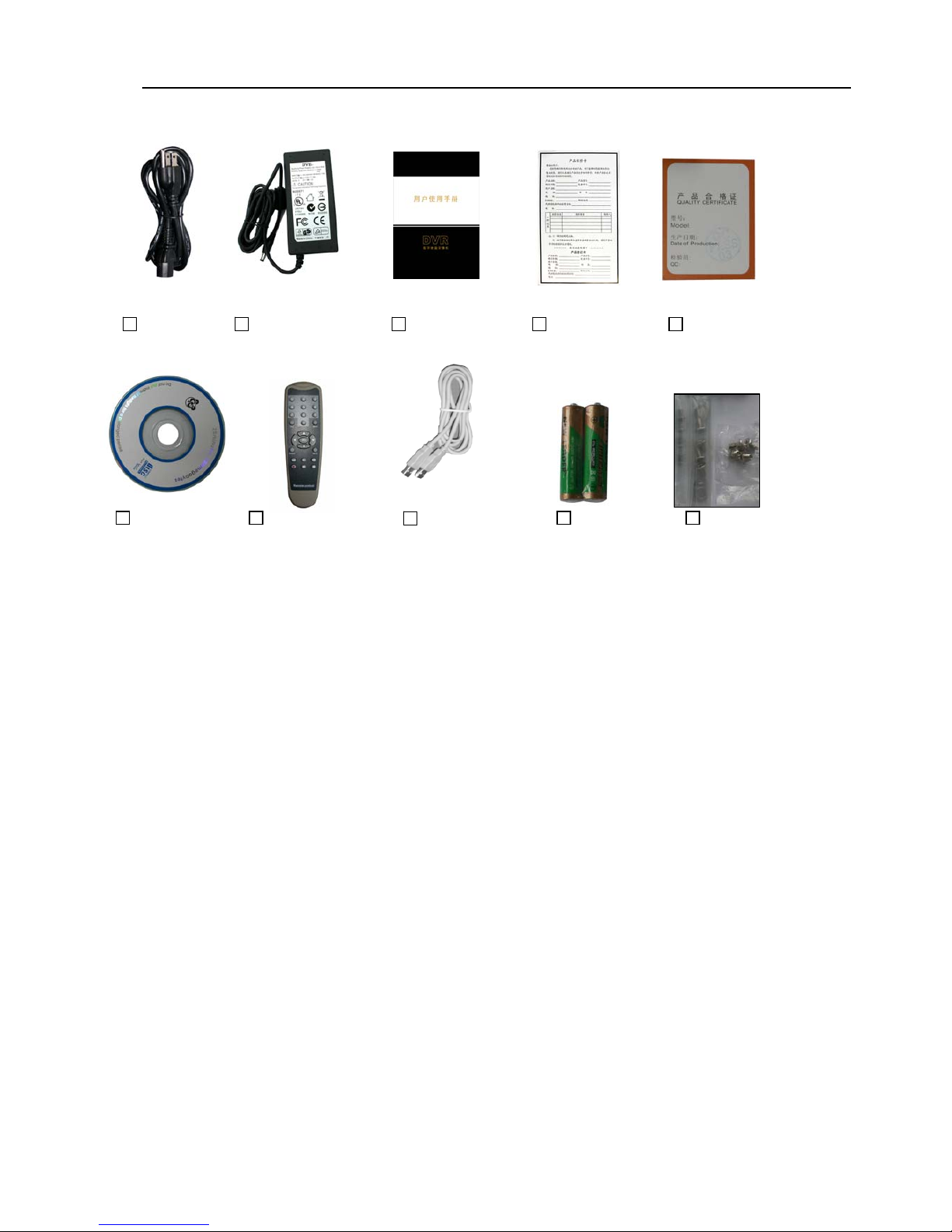

10.2 Accessories (optional)

(For PC Backup Only)

Power Cord Power Adaptor User’s Manual Guarantee Card Quality Cert.

CD Disk Remote Controller USB Cable Batteries for RC Screws

Page 30

The material in this document is the intellectual property of our

department .

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without our department prior written permission.

Our products are un de r continua l improvement and we reserve the right t o make changes without notice. But n o guarante e is given as to the correctne s s of its contents.

We do not und ertake any responsibility for the harms cause by using our product.

The model of the products in the user's manual only f recognition, but these names also perhaps are belong to other company's registered trademark o r the copyright.

The product picture may differ from the actual product, only for your reference. The accessories will probably be different according to the differ ent sell ing ar eas. Fo r deta ils of acce ssories, please refe r to your local distribut or.
