Raypak Y-308 User Manual

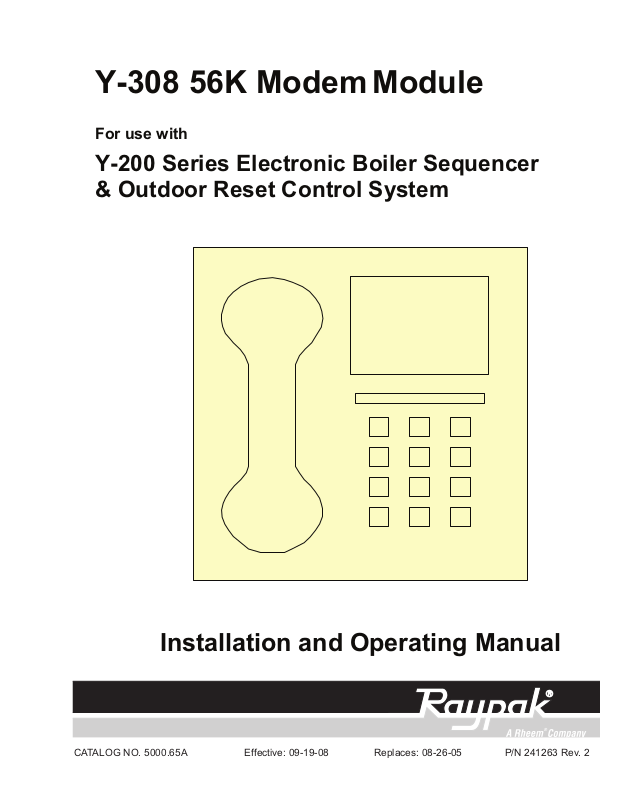

Y-308 56K Modem Module
CATALOG NO. 5000.65A Effective: 09-19-08 Replaces: 08-26-05 P/N 241263 Rev. 2
For use with
Y-200 Series Electronic Boiler Sequencer
& Outdoor Reset Control System
Installation and Operating Manual
Installation and Operating Manual Y-308 Modem Module
1
Contents
Introduction............................................................. 1
Important Safety Instructions...................................1
Installation and Set-Up ............................................ 2
Limited Warranty....................................................4
Introduction
The Raypak Y-308 modem module provides
a method to communicate with the Y-200
controller and auxiliary equipment.
IMPORTANT SAFETY
INSTRUCTIONS
IMPORTANT NOTICE: These instructions are
intended for use by qualified personnel who are specifically trained and experienced in the installation of
this type of equipment and related system components. Installation and service personnel may be required by some states to be licensed. If your state
requires certification, be sure your contractor bears
the appropriate license. Only qualified persons shall
attempt to repair this equipment. Repair must be according to these instructions.
WARNING: Improper installation, adjustment, alteration, service or maintenance may damage the
equipment, create a hazard resulting in asphyxiation,
explosion, fire, electric shock, personal injury or
property damage, and will void the warranty.
CAUTION: THIS APPLIANCE HAS PROVISIONS TO BE CONNECTED TO MORE THAN
ONE (1) SUPPLY SOURCE. TO REDUCE THE
RISK OF ELECTRIC SHOCK, DISCONNECT ALL
SUCH CONNECTIONS BEFORE SERVICING.
CAUTION: RISK OF ELECTRIC SHOCK. MORE
THAN ONE (1) DISCONNECT SWITCH MAY BE
REQUIRED TO DE-ENERGIZE THE EQUIPMENT BEFORE SERVICING.
Communication speed is 56k.
