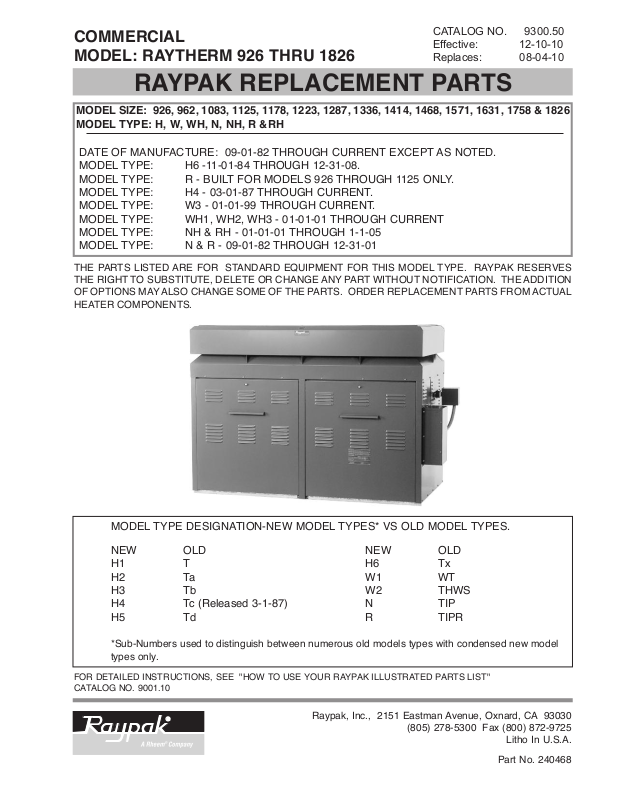

Raypak 1083 Parts List

ATALOG NO. 9300.50

COMMERCIAL
MODEL: RAYTHERM 926 THRU 1826

C

ffective: 12-10-10

E
Replaces: 08-04-10

RAYPAK REPLACEMENT PARTS

MODEL SIZE: 926, 962, 1083, 1125, 1178, 1223, 1287, 1336, 1414, 1468, 1571, 1631, 1758 & 1826
MODEL TYPE: H, W, WH, N, NH, R &RH

DATE OF MANUFACTURE: 09-01-82 THROUGH CURRENT EXCEPT AS NOTED.
MODEL TYPE: H6 -11-01-84 THROUGH 12-31-08.
MODEL TYPE: R - BUILT FOR MODELS 926 THROUGH 1125 ONLY.
MODEL TYPE: H4 - 03-01-87 THROUGH CURRENT.
MODEL TYPE: W3 - 01-01-99 THROUGH CURRENT.
MODEL TYPE: WH1, WH2, WH3 - 01-01-01 THROUGH CURRENT
MODEL TYPE: NH & RH - 01-01-01 THROUGH 1-1-05
MODEL TYPE: N & R - 09-01-82 THROUGH 12-31-01

THE PARTS LISTED ARE FOR STANDARD EQUIPMENT FOR THIS MODEL TYPE. RAYPAK RESERVES
THE RIGHT TO SUBSTITUTE, DELETE OR CHANGE ANY PART WITHOUT NOTIFICATION. THE ADDITION
OF OPTIONS MAY ALSO CHANGE SOME OF THE PARTS. ORDER REPLACEMENT PARTS FROM ACTUAL
HEATER COMPONENTS.

MODEL TYPE DESIGNATION-NEW MODEL TYPES* VS OLD MODEL TYPES.

NEW OLD NEW OLD
H1 T H6 Tx
H2 Ta W1 WT
H3 Tb W2 THWS
H4 Tc (Released 3-1-87) N TIP
H5 Td R TIPR

*Sub-Numbers used to distinguish between numerous old models types with condensed new model
types only.

FOR DETAILED INSTRUCTIONS, SEE "HOW TO USE YOUR RAYPAK ILLUSTRATED PARTS LIST"
CATALOG NO. 9001.10

Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030

[phone] Fax [phone]

Litho In U.S.A.

Part No. 240468

1-P

4-P

5-P

6-P

2-P

HONEYWELL IID PILOT

FIG # 9293

2

CALL 962 112 5 1223 1336 1468 1631 1826

OUT DESCRIPTION [926] [1083] [1178] [1287] [1414] [1571] [1758]

B BURNER TRAY**

1-B Burner Tray w/Burners (Sea Level)* 002092F 002093F 002094F 002095F 002096F 002097F 002098F

Burenr Tray w/o Burners (Sea Level)* 002099F 002100F 002101F 002102F 002103F 002104F 002105F

2-B Burner Tray w/Burners (Sea Level)* HW 002106F 002107F 002108F 002109F 002110F 002111F 002112F

Burner Tray w/o Burner (Sea Level)* HW 002113F 002114F 002115F 002116F 002117F 002118F 002119F
Burner Tray w/Burners (Sea Level)* RS 005605F 005606F 005607F 005608F 005609F 005610F 005611F
Burner Tray w/o Burners (Sea level)* RS 005612F 005613F 005614F 005615F 005616F 005617F 005618F

3-B Burner Spacer/Holddown (Single) 002120F 002121F 002122F 002123F 002124F 002125F 002126F

Burner Spacer/Holddown (Double) HW 002127F 002128F 002129F 002130F 002131F 002132F 002133F
B

urner Spacer/Holddown (Double) RS

0

02120F

0

02121F

0

02122F

0

02123F

0

05623F

0

05624F

0

05625F
4-B Burner 301210/59 301210/69 301210/75 301210/82 301210/90 301210/100 301210/112
5-B Burner Orifice Nat.#49 Outdoor (Sea Level)* 350078F/59 350078F/69 350078F/75 350078F/82 350078F/90 350078F/100 350078F/112

Burner Orifice Nat.#48 Indoor (Sea Level)* 350077F/59 350077F/69 350077F/75 350077F/82 350077F/90 350077F/100 350077F/112
Burner Orifice Pro.#57 (Sea Level)* 350083F/59 350083F/69 350083F/75 350083F/82 350083F/90 350083F/100 350083F/112

C CONTROLS
1-C Auto Reset Fixed High Limit 240°F 008554F 008554F 008554F 008554F 008554F 008554F 008554F
2-C Manual Reset Adju stible High Limit 240°F Max 007144F 007144F 007144F 007144F 007144F 007144F 007144F

Manual Reset Adj ustible High Limit 200°F Max 008081F 008081F 008081F 008081F 008081F 008081F 008081F
Auto Reset Dualstat 004092F 004092F 004092F 004092F 004092F 004092F 004092F
Manual Reset Dualstat 004092F 004092F 004092F 004092F 004092F 004092F 004092F
Auto Reset Adjustible High Limit 240°F Max 007141F 007141F 007141F 007141F 007141F 007141F 007141F
Auto Reset Adjustible High Limit 200°F Max 012546F 012546F 012546F 012546F 012546F 012546F 012546F
Auto Reset Adjustible High Limit 180°F Max 006445F 006445F 006445F 006445F 006445F 006445F 006445F
Controller Modulating (H2) N/A N/A N/A N/A N/A N/A N/A
Controller 2-Stage (H3) 007392F 007392F 007392F 007392F 007392F 007392F 007392F
Controller 2-Stage (W3) WH 006760F 006760F 006760F 006760F 006760F 006760F 006760F
Controller 4-Stage (W3) WH 006759F 006759F 006759F 006759F 006759F 006759F 006759F
Controller B3 (H6) Aquatrol 601036F 601036F 601036F 601036F 601036F 601036F 601036F
Controller B5 (H6) N/A N/A N/A N/A N/A N/A N/A

Controller Modulating (B-40/B-41 Digital) 013293F 013293F 013293F 013293F 013293F 013293F 013293F
3-C Flow Switch 007142F 007142F 007142F 007142F 007142F 007142F 007142F
4-C Low Water Cutoff (Not Shown) 006202F 006202F 006202F 006202F 006202F 006202F 006202F
5-C Thermostat Economaster 003609F 003609F 003609F 003609F 003609F 003609F 003609F
6-C Economaster II Control 004675F 004675F 004675F 004675F 004675F 004675F 004675F
7-C Flow Switch Paddle (McDonnel Miller) 004079F 004079F 004079F 004079F 004079F 004079F 004079F
Flow Switch Paddle (Taco) 010026F 010026F 010026F 010026F 010026F 010026F 010026F

G GAS VALVES (SEE GAS VALV E REPLACEMENT CHART)
H HEAT EXCHANGER

1-H Heat Exch Ass y. Cast Iron 002134F 002135F 002136F 002137F 002138F 002139F 002140F

Heat Exch Ass y Brass 002141F 002142F 002143F 002144F 002145F 002146F 002147F

Heat Exch Ass y Cast Iron w/Pump Hdr 002148F 002149F 002150F 002151F 002152F 002153F 002154F

Heat Exch Ass y Brass w/Pump Hdr 002155F 002156F 002157F 002158F 002159F 002160F 002161F

Heat Exch Ass y Cast Iron w/Pump Hdr (N) 002166F 002167F 002168F 002169F 002170F 002171F 002172F

Heat Exch Ass y Brass w/Pump Hdr (N) 002173F 002174F 002175F 002176F 002177F 002178F 002179F

Heat Exch Ass y Cast Iron w/Pump Hdr (R) 002162F 002163F

Heat Exch Ass y Brass w/Pump Hdr (R) 002164F 002165F

Heat Exch Ass y Cast Iron Cupro Nickel 002180F 002181F 002182F 002183F 002184F 002185F 002186F

Heat Exch Ass y Brass Cupro Nickel 012349F 012350F 012351F 002485F 002486F 002487F 002488F

Heat Exch Ass y Brass Cupro Nickel w/Pump (N) 002726F 002727F 002728F 002729F 002730F 002731F 002732F

Heat Exch Ass y Cast Iron One Pass (N) 003494F 003495F 003496F 003497F 003498F 003499F 003500F
2-H Inlet/Outlet Header Cast Iron 002215F 002215F 002215F 002215F 002215F 002215F 002215F

Inlet/Outlet Header Brass 002216F 002216F 002216F 002216F 002216F 002216F 002216F

Inlet/Outlet Hader Cast Iron (N) 002217F 002217F 002217F 002217F 002217F 002217F 002217F

Inlet/Outlet Header Brass (N) 002218F 002218F 002218F 002218F 002218F 002218F 002218F

Inlet/Outlet Header Cast (R) 002219F 002219F

Inlet/Outlet Header Brass (R) 002220F 002220F
3-H Inlet/Outlet Header Cast Iron One Pass 003493F 003493F 003493F 003493F 003493F 003493F 003493F
4-H Return Header Cast Iron 002221F 002221F 002221F 002221F 002221F 002221F 002221F

Return Header Brass 002222F 002222F 002222F 002222F 002222F 002222F 002222F
5-H Return Pump Header Cast Iron 002223F 002223F 002223F 002223F 002223F 002223F 002223F

Return Pump Header Brass 002224F 002224F 002224F 002224F 002224F 002224F 002224F
6-H Tube Bundle 002187F 002188F 002189F 002190F 002191F 002192F 002193F

Tube Bundle Cupro Nickel (N) 002194F 002195F 002196F 002197F 002198F 002199F 002200F
7-H Heat Exchange Tube 002201F 002202F 002203F 002204F 002205F 002206F 002207F
Heat Exchange Tube Cupro Nickel 002208F 002209F 002210F 002211F 002212F 002213F 002214F
8-H Baffle Kit 001520F 001521F 001522F 001523F 001524F 001525F 001526F
9-H Stud Bolt Kit 001051F 001051F 001051F 001051F 001051F 001051F 001051F

Stud Bolt Kit w/Pump Header 001527F 001527F 001527F 001527F 001527F 001527F 001527F

Stud Bolt Kit One Pass Header 003492F 003492F 003492F 003492F 003492F 003492F 003492F
10-H Header Gasket 800001B 800001B 800001B 800001B 800001B 800001B 800001B
11- H Sensor Well 007211F 007211F 007211F 007211F 007211F 007211F 007211F
12-H Well Retaining Clip 300203 300203 300203 300203 300203 300203 300203
*FOR ALTITUDES AB OVE 2,000 FEET ABO VE SEA LEVEL CONSULT THE FACTORY.
**REPLACEMENT BURNER TRAYS ARE BUILT FOR SEA LEVEL, NATURAL GAS APPL ICATIONS UNLESS OTHERWISE SPECIFIED AT THE TIME THE ORDER IS PLACED.
HW - HONEYWELL
RS - ROBERTSHAW

3

CALL 962 112 5 1223 1336 1468 1631 1826

OUT DESCRIPTION [926] [1083] [1178] [1287] [1414] [1571] [1758]

J J BOX

1-J J Box Nat IID (H1, H5, WH, W2, N, R) 002747F 002747F 002747F 002747F 002747F 002747F 002747F

J Box Pro IID Lockout (H1, H5, WH, W2, N, R) 002751F 002751F 002751F 002751F 002751F 002751F 002751F
2-J J Box Nat IID (H2, H6) 002409F 002409F 002409F 002409F 002409F 002409F 002409F

J Box Nat IID (H3, WH, W1) 002749F 002749F 002749F 002749F 002749F 002749F 002749F

J Box Pro IID Lockout (H2, H6) 002229F 002229F 002229F 002229F 002229F 002229F 002229F

J Box Pro IID Lockout (H3, WH, W1) 002230F 002230F 002230F 002230F 002230F 002230F 002230F
3-J J Box Nat IID (H1, H5, WH, W2, N & R) HW 002225F 002225F 002225F 002225F 002225F 002225F 002225F

J Box Nat IID Robertshaw (N & R) 002227F 002227F 002227F 002227F 002225F 002225F 002225F

J Box Nat IID/TTD (H1, H5 & W2, WH) HW 004811F 004811F 004811F 004811F 004811F 004811F 004811F

J Box Nat IID/ TTD Robertshaw (H1, H5, W2, WH) 004812F 004812F 004812F 004812F 004811F 004811F 004811F

J Box Pro IID Lockout (H1,H5,W2, WH, N & R) HW 002228F 002228F 002228F 002228F 002228F 002228F 002228F

J Box Pro IID/Lock Robertshaw ( N & R) 002230F 002230F 002230F 002230F 002228F 002228F 002228F

J Box Pro IID/TTD Lockout (H1, H5 & W2, WH) 004813F 004813F 004813F 004813F 004813F 004813F 004813F

J Box Pro IID TTD Robertshaw (H1, H5, W2, WH) 004814F 004814F 004814F 004814F 004813F 004813F 004813F

J Box Nat IID (H3, H4, W1, WH) 002227F 002227F 002227F 002227F 002227F 002227F 002227F

J Box Nat IID/TTD (H3, H4 & W1, WH) 004812F 004812F 004812F 004812F 004812F 004812F 004812F

J Box IID/TTD Lockout (W3, WH) 006653F 006653F 006653F 006653F 006653F 006653F 006653F

J Box Pro IID Lockout (H3, H4, W1, WH) 002230F 002230F 002230F 002230F 002230F 002230F 002230F

J Box Pro IID/TTD Lockout (H3, H4, W1, WH) 004814F 004814F 004814F 004814F 004814F 004814F 004814F

J Box Nat IID (H2, H6 W/B3 or B5) 002409F 002409F 002409F 002409F 002409F 002409F 002409F

J Box Pro IID Lockout (H2, H6 W/B3 or B5) 002229F 002229F 002229F 002229F 002229F 002229F 002229F
4-J J Box C2 Nat (H1, W2, WH) N/A N/A N/A N/A N/A N/A N/A

J Box C2 Nat Robertshaw (H1, WH, W2) N/A N/A N/A N/A N/A N/A N/A

J Box C2 Nat(H2,H3,H4,H6 w/B3 or B5,W1, WH) N/A N/A N/A N/A N/A N/A N/A

J Box C2 Nat (H6 for B6000) N/A N/A N/A N/A N/A N/A N/A

J Box IRI Nat N/A N/A N/A N/A N/A N/A N/A

J

Box IRI/TTD Nat (H2, W1, WH) N/A N/A N/A N/A N/A N/A N/A
J Box IRI/TTD Nat (H3) N/A N/A N/A N/A N/A N/A N/A
J Box IRI/TTD (W3, WH) N/A N/A N/A N/A N/A N/A N/A
J Box IRI Nat (H6 for B6000) N/A N/A N/A N/A N/A N/A N/A
J Box IRI Nat (N & R with Mech Mod Valve) N/A N/A N/A N/A N/A N/A N/A
J Box IRI Nat Robertshaw (N & R) N/A N/A N/A N/A N/A N/A N/A

5-J Tra nsforme r 40 VA 006533F 006533F 006533F 006533F 006533F 006533F 006533F

Trans former 50 VA 006533F 006533F 006533F 006533F 006533F 006533F 006533F
Trans former 100 VA N/A N/A N/A N/A 007373F 007373F 007373F
Spark Generator C2 & IRI (Not Shown) 007361F 007361F 007361F 007361F 007361F 007361F 007361F

6-J Relay SPST 24V NO 007377F 007377F 007377F 007377F 007377F 007377F 007377F

Relay DPDT 24V 008090F 008090F 008090F 008090F 008090F 008090F 008090F
Relay SPST 120V 008145F 008145F 008145F 008145F 008145F 008145F 008145F
Relay DPDT 120V 013243F 013243F 013243F 013243F 013243F 013243F 013243F
Relay SPDT C2 (Not Shown) 650117 650117 650117 650117 650117 650117 650117
Relay DPDT IRI (Not Shown) 600158 600158 600158 600158 600158 600158 600158

7-J Toggle Switch 008079F 008079F 008079F 008079F 008079F 008079F 008079F

M MISCELLANEOUS

1-M PRV 30 PSI (H5) 007218F 007218F 007748F 007748F 007748F 007748F 007748F

PRV 60 PSI (H1, H2, H3, H6, H4) 007222F 007222F 007222F 007222F 007753F 007753F 007753F
PRV 125 PSI (W1, W2, W3, N, R) 007224F 007224F 007224F 007224F 007224F 007224F 007224F
PRV 125 PSI (WH, NH) 007224F 007224F 007224F 007224F 007224F 007224F 007758F

2-M Deliming Kit 052870F 052870F 052870F 052870F 052870F 052870F 052870F
3-M T & P Gauge (H1, H2, H3, H4, H5, H6) 007205F 007205F 007205F 007205F 007205F 007205F 007205F

T & P Gauge (W1, W2, W3, WH, N, R) 007399F 007399F 007399F 007399F 007399F 007399F 007399F

4-M Integral Pump 4-1/4 Impeller 004844F 004844F 004844F 004844F 004844F 004844F 004844F

Integral Pump 4.7 Impeller 004845F 004845F 004845F 004845F 004845F 004845F 004845F

5-M Mixing Valve (R) 500409 500409
6-M Thermometer (R) 600133 600133
7-M Tank T & P Gauge (R) 500569 500569
8-M Power Vent Motor 951105F 951105F 951105F 951112F 951112F 951112F 951112F
9-M Power Vent Wheel 951106F 951106F 951106F 951113F 951113F 951113F 951113F
10-M Power Vent PC Board 005503F 005503F 005503F 005503F 005503F 005503F 005503F
11-M Power Vent Pressure Switch 601212 601212 601212 601212 601212 601212 601212

R REFRACTO RY
1-R Refractory Kit 001002F 001003F 001004F 001005F 001006F 001511F 001512F
2-R Refractory Retainer Kit 000987F 000988F 000989F 000990F 000991F 001518F 001519F

4

CALL 962 112 5 1223 1336 1468 1631 1826

OUT DESCRIPTION [926] [1083] [1178] [1287] [1414] [1571] [1758]

P PILOT
1-P Pilot Nat. IID 002234F 002234F 002234F 002234F 002234F 002234F 002234F

Pilot Pro. IID 002235F 002235F 002235F 002235F 002235F 002235F 002235F
Pilot Nat. C2 & IRI 002236F 002236F 002236F 002236F 002236F 002236F 002236F

2-P Pilot Orifice Nat. IID 600552 600552 600552 600552 600552 600552 600552

Pilot Orifice Pro. IID 600894 600894 600894 600894 600894 600894 600894
Pilot Orifice C2 & IRI 600552 600552 600552 600552 600552 600552 600552

3-P Ignition Control Nat. IID 004817B 004817B 004817B 004817B 004817B 004817B 004817B

Ignition Control Pro. IID/Lockout 004818B 004818B 004818B 004818B 004818B 004818B 004818B
Ignition Control C2, IRI, G13 007359F 007359F 007359F 007359F 007359F 007359F 007359F
Ignition Control C2, IRI, G13 (Complete) 008702F 008702F 008702F 008702F 008702F 008702F 008702F
Base Ignition Control 008701F 008701F 008701F 008701F 008701F 008701F 008701F

4-P Pilot Mounting Bracket 004728F 004728F 004728F 004728F 004728F 004728F 004728F
5-P Ignitor Wire 064839 064839 064839 064839 064839 064839 064839
6-P Pilot Tube 400013 400013 400013 400013 400013 400013 400013
7-P Hi Tension Wire 002663B 002663B 002663B 002663B 002663B 002663B 002663B

A

mplifier Flame Rectification C2 008092F 008092F 008092F 008092F 008092F 008092F 008092F

S SHEETMETAL
1-S Jacket top Indoor 002293F 002294F 002295F 002296F 002297F 002298F 002299F
2-S Flat Top Assy Outdoor 002312F 002313F 002314F 002315F 002316F 002317F 002318F

3-S Flue Collector Indoor 002248F 002244F 002249F 002250F 002251F 002252F 002253F
4-S Flue Collector Outdoor 002258F 002259F 002260F 002261F 002262F 002263F 002264F
5-S Door Ass y Left Indoor 002265F 002266F 002267F 002268F 002269F 002270F 002271F

Door Ass y Left Outdoor 002279F 002280F 002281F 002282F 002283F 002284F 002285F
Door Ass y w/Latch Indoor # 005337F 005338F 005339F 005340F 005341F 005342F 005343F

6-S Door Ass y Right Indoor 002272F 002273F 002274F 002275F 002276F 002277F 002278F

Door Ass y Right Outdoor 002286F 002287F 002288F 002289F 002290F 002291F 002292F

Door Ass y w/Latch Outdoor # 005330F 005331F 005332F 005333F 005334F 005335F 005336F
7-S Access Panel Group 2" w/Pump 002302F 002302F 002302F 002302F 002302F 002302F 002302F
8-S Access Panel Group 2 1/2" w/Pump 002304F 002304F 002304F 002304F 002304F 002304F 002304F

Access Panel Group 2 1/2" 002303F 002303F 002303F 002303F 002303F 002303F 002303F
9-S Access Panel Group 3" 003539F 003539F 003539F 003539F 003539F 003539F 003539F
10-S Control Cover 002672F 002672F 002672F 002672F 002672F 002672F 002672F
11- S P ump Cover 002671F 002671F 002671F 002671F 002671F 002671F 002671F
12-S J Box Sheetmetal 002668F 002668F 002668F 002668F 002668F 002668F 002668F

J Box Sheetmetal C2 002237F 002237F 002237F 002237F 002237F 002237F 002237F

VVENTING
1-V Stackless Top Kit (Outdoor) 002305F 002306F 002307F 002308F 002309F 002310F 002311F
2-V Draft Hood (Indoor) 006484 006485 006485 006486 006486 006486 006487
# Door Manufactured From 1995 To Current

5

BB33 SSEERRVVIICCEE RREEPPLLAACCEEMMEENNTT PPAARRTTSS PPAARRTT
B

B33 ((WW990022)) CCOONNTTRROOLLLLEERR NNOO..

A/N)209W( rellortnoC teseRroodtuO
A/NrosneS pmeT roodtuO
A

/NrosneS retaW

A/N)1-3B( )J449M( rotoM
A/N)2-3B( )J449M( rotoM
A/NretemoitnetoP
A/N)1-3B( hctiwS dnE yrailixuA
A/N)2-3B( hctiwS dnE yrailixuA

944006rotautcA

F541800V021 TDPD-yaleR

BB33AA ((WW996644)) AAQQUUAATTRROOLL

F908400rellortnoC teseR roodtuO
F898006rosneS pmeT roodtuO

F998006rosneS retaW
620056lleB mralA
420056hctiwS ecneliS

F526056cedI V021 TDPD yaleR

F626056cedI V021 TDPD yaleR

F

541800V021 TDPS yaleR

F

090800V42 TDPS yaleR

F206056 V021 TDPD yaleR

F336056hctiwS relioB daeL

F

060056hctiwS ffO/nO niaM

F335600remrofsnarT

BB33CC ((ZZGG5500)) CCEENNTTRRAA

F01840005GZ rellortnoC teseR roodtuO

F57900635HT eludoM lortnoC

F6790061FZ eludoM lortnoC

F779006rosneS pmeT roodtuO

F879006rosneS retaW
620056lleB mralA
420056hctiwS ecneliS

F526056cedI V021 TDPS yaleR

F626056cedI V021 TDPD yaleR

F986056cedI V42 TDPS yaleR

F607056)metsyS relioB 3( cedI V42 TDP P3 yaleR

F857056)metsyS relioB 3( cedI V42 TDP 4 yaleR

F707056)metsyS relioB 3( cedI V021 TDP 4 yaleR

F090800)mralA( V42 TDPS yaleR

F336056)srelioB 2( hctiwS relioB daeL

F957056)srelioB 3( hctiwS relioB daeL

F335600remrofsnarT

F060056hctiwS ffO/nO niaM

6

CALL DESCRIPTION PART 962 1125 1223 1336 1468 1631 1826 962 1125 1223 1336 1468 1631 1826

857117514141782187113801629857117514141782187113801629REBMUNTUO

GGAS VALVES

Manual "B" Valve 1/8" 007195F 1 1 1 1 1 1 1 1 1 1 1 1 1 1

11111F981700"1 evlaV "A" launaM
Manual "A" Valve 1 1/4" 007190F 1 1 1 1 1 1 1 1 1
M

anual "A" Valve 1 1/2" (Nat. Only) 600881 1

25230064/1 1 evlaV kcoC ebuL*
*Lube Cock Valve 1 1/2 600326 2 2 2 2 2
*Lube/Cock Valve 2 600327 2

Pressure Regulator Nat. 3/8" 004060F 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Pressure Regulator Pro. 3/8" 004061F 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Pressure Regulator Nat. 1 1/4" 600035 1 1 1 1 1 1

Pressure Regulator Pro. 1 1/4" 003571F 1 1 1 1 1 1
*Pressure Regulator Nat. 1 1/2 600044 1 1 1 1
*Pressure Regulator Pro. 1 1/2 003617F 1 1 1 1

1111630006 "2 .taN rotalugeR erusserP
1111F406300"2 orP rotalugeR erusserP

*Pilot Gas Valve All Gases 600154 1 1 1 1 1 1 1

Pilot Gas Valve All Gases 600562 2 2 2 2 2 2 2 1 1 1 1 1 1 1

Auto On/Off Valve All Gases 1" 004093F 1

Auto On/Off Valve All Gases 1 1/4" 004094F 1 1 1 1 1 1 1 1 1 1 1

11F590400"2/1 1 sesaG llA evlaV/ffO/nO otuA
Mod. Valve 120F-240F 1" HW N/A 3 3 3 3 444
Mod. Valve 85F-210F 1" HW N/A
Mod. Valve 140 F Max HW N/A
Mod. Valve 110F-170F 1" HW N/A
Mod. Valve 150F-210F Nat. HW N/A
Mod. Valve 110F-170F Nat. RS 006508F
Mod. Valve 110F-170F Pro. RS 006510F
Mod. Valve 150F-210F Nat. RS 006509F 2 2 2 2 333
Mod. Valve 150F-210F Pro. RS 006511F 2 2 2 2 333
Comb. Valve 2-Stage Nat. 1" 600655
Comb. Valve 2-Stage Pro. 1" 601094
Comb. Valve 2-Stage Nat. 1 1/4" 600656
Comb. Valve 2-Stage Pro. 1 1/4" 601095
Comb. Valve 2-Stage Nat. 1 1/2" 600850

*Actuator, 2-Stage 600458
*Actuator, On-Off 011908F 1 1 1 1 1 1 1

944006doM .rotautcA* 1111111

*Actuator. Mod B3/B6000 600900

1154006 ** "1 ydoB evlaV saG*

111154006**"4/1 1 ydoB evlaV saG*

* Gas Valve Body 1 1/2"** 600452 1 1 2 1 1 1

111354006**"2 ydoB evlaV saG*
* Gas Vent Valve All Gases 011913F 1 1 1 1 1 1 1
* Gas Pressure Switch - Low 007187F 1 1 1 1 1 1 1
* Gas Pressure Switch - High 007188F 1 1 1 1 1 1 1

*REQUIRED FOR IRI MODELS
**GAS VALVE BODY CONNECTION SIZE MAY BE DIFFERENT THAN INDICATED ON CHART.
SEE BOILER CONTROLS FOR ACTUAL SIZE REQUIRED FOR REPLACEMENT.

2H1H

7

C

ALL DESCRIPTION PART 962 1125 1223 1336 1468 1631 1826 962 1125 1223 1336 1468 1631 1826

857117514141782187113801629857117514141782187113801629REBMUNTUO

GGAS VALVES

M

anual "B" Valve 1/8" 007195F 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1

11111F981700"1 evlaV "A" launaM

Manual "A" Valve 1 1/4" 007190F 1 1 1 1 1 1 1 1

1188006)ylnO .taN( "2/1 1 evlaV "A" launaM

*

Lube Cock Valve 1 1/4 600325 2

*

Lube Cock Valve 1 1/2 600326 2 2 2 2 2

27230062 evlaV kcoC/ebuL*
Pressure Regulator Nat. 3/8" 004060F 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Pressure Regulator Pro. 3/8" 004061F 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Pressure Regulator Nat. 1 1/4" 600035 1 1 1 1 1 1
P

ressure Regulator Pro. 1 1/4" 003571F 1 1 1 1 1 1
*Pressure Regulator Nat. 1 1/2 60004411111
*Pressure Regulator Pro. 1 1/2 003617F 1 1 1 1 1

111630006 "2 .taN rotalugeR erusserP
111F406300"2 orP rotalugeR erusserP

*Pilot Gas Valve All Gases 600154 1 1 1 1 1 1 1

Pilot Gas Valve All Gases 600562 1 1 1 1 1 1 1 2 2 2 2 2 2 2

1F390400"1 sesaG llA evlaV ffO/nO otuA
Auto On/Off Valve All Gases 1 1/4" 004094F 1 1 1 1 1 1 1 1 1 1 1
Auto On/Off/Valve All Gases 1 1/2" 004095F 11
Mod. Valve 120F-240F 1" HW N/A
Mod. Valve 85F-210F 1" HW N/A
Mod. Valve 140 F Max HW N/A 3 3 3 3 4 4 4
Mod. Valve 110F-170F 1" HW N/A
Mod. Valve 150F-210F Nat. HW N/A
Mod. Valve 110F-170F Nat. RS 006508F 2 2 2 2 3 3 3
Mod. Valve 110F-170F Pro. RS 006510F 2 2 2 2 3 3 3
Mod. Valve 150F-210F Nat. RS 006509F
Mod. Valve 150F-210F Pro. RS 006511F
Comb. Valve 2-Stage Nat. 1" 600655 1
Comb. Valve 2-Stage Pro. 1" 601094 1 1 1 1 1 1
Comb. Valve 2-Stage Nat. 1 1/4" 600656 1 1 1 1 1

1590106"4/1 1 .orP egatS-2 evlaV .bmoC

1058006 "2/1 1 .taN egatS-2 evlaV .bmoC
*Actuator, 2-Stage 600458 1 1 1 1 1 1 1
*Actuator, On-Off 011908F 1 1 1 1 1 1 1
*Actuator. Mod 600449
*Actuator. Mod B3/B6000 600900
* Gas Valve Body 1" ** 600451 1
* Gas Valve Body 1 1/4"** 600451 1 1 1
* Gas Valve Body 1 1/2"** 600452 1 1 2 111

111354006**"2 ydoB evlaV saG*
* Gas Vent Valve All Gases 011913F 1 1 1 1 1 1 1
* Gas Pressure Switch - Low 007187F 1 1 1 1 1 1 1
* Gas Pressure Switch - High 007188F 1 1 1 1 1 1 1

*REQUIRED FOR IRI MODELS
**GAS VALVE BODY CONNECTION SIZE MAY BE DIFFERENT THAN INDICATED ON CHART.
SEE BOILER CONTROLS FOR ACTUAL SIZE REQUIRED FOR REPLACEMENT.

5H3H

8

C

ALL DESCRIPTION PART 962 1125 1223 1336 1468 1631 1826

8

57117514141782187113801629REBMUNTUO

GGAS VALVES

Manual "B" Valve 1/8" 007195F 1 1 1 1 1 1 1

F981700"1 evlaV "A" launaM
Manual "A" Valve 1 1/4" 007190F 1 1 1 1 1 1 1
Manual "A" Valve 1 1/2" (Nat. Only) 600881

*Lube Cock Valve 1 1/4 600325 2
*Lube Cock Valve 1 1/2 600326 2 2 2 2 2

27230062 evlaV kcoC/ebuL*
Pressure Regulator Nat. 3/8" 004060F 1 1 1 1 1 1 1
Pressure Regulator Pro. 3/8" 004061F 1 1 1 1 1 1 1
Pressure Regulator Nat. 1 1/4" 600035 1 1 1 1 1
Pressure Regulator Pro. 1 1/4" 003571F 1 1 1 1 1

*Pressure Regulator Nat. 1 1/2 600044
*Pressure Regulator Pro. 1 1/2 003617F

11630006 "2 .taN rotalugeR erusserP

11F406300"2 orP rotalugeR erusserP

*Pilot Gas Valve All Gases 600154 1 1 1 1 1 1 1

Pilot Gas Valve All Gases 600562 1 1 1 1 1 1 1
Auto On/Off Valve All Gases 1" 004093F
Auto On/Off Valve All Gases 1 1/4" 004094F 1 1 1 1 1 1 1
Auto On/Off/Valve All Gases 1 1/2" 004095F
Mod. Valve 120F-240F 1" HW N/A
Mod. Valve 85F-210F 1" HW N/A
Mod. Valve 140 F Max HW N/A
Mod. Valve 110F-170F 1" HW N/A
Mod. Valve 150F-210F Nat. HW N/A
Mod. Valve 110F-170F Nat. RS 006508F
Mod. Valve 110F-170F Pro. RS 006510F
Mod. Valve 150F-210F Nat. RS 006509F
Mod. Valve 150F-210F Pro. RS 006511F
Comb. Valve 2-Stage Nat. 1" 600655
Comb. Valve 2-Stage Pro. 1" 601094
Comb. Valve 2-Stage Nat. 1 1/4" 600656
Comb. Valve 2-Stage Pro. 1 1/4" 601095
Comb. Valve 2-Stage Nat. 1 1/2" 600850

854006egatS-2 ,rotautcA*

F809110ffO-nO ,rotautcA*1111111

944006doM .rotautcA*
*Actuator. Mod B3/B6000 6009001111111
* Gas Valve Body 1" ** 600451 1
* Gas Valve Body 1 1/4"** 600451 1 1 1
* Gas Valve Body 1 1/2"** 600452 1 1 2 1 1 1

111354006**"2 ydoB evlaV saG*
* Gas Vent Valve All Gases 011913F 1 1 1 1 1 1 1
* Gas Pressure Switch - Low 007187F 1 1 1 1 1 1 1
* Gas Pressure Switch - High 007188F 1 1 1 1 1 1 1

*REQUIRED FOR IRI MODELS
**GAS VALVE BODY CONNECTION SIZE MAY BE DIFFERENT THAN INDICATED ON CHART.
SEE BOILER CONTROLS FOR ACTUAL SIZE REQUIRED FOR REPLACEMENT.

H6

9

CALL DESCRIPTION PART 962 1125 1223 1336 1468 1631 1826 962 1125 1223 1336 1468 1631 1826

8

5

7

1

1

7

5

1

4

1

4

1

7

8

218

711

3

8

0

1

6

2

9

8

5

7

1

1

7

5

1

4

1

4

1

7

8

2

1

8

7

1

1

3

8

0162

9

RE

BMU

NTUO

GGAS VALVES

M

anual "B" Valve1/8" 007195F 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1

1

1

111

F

98

1

7

00

"

1

e

v

l

aV "A" launa

M

1

1

1

1

1

1

1

1F091700"4

/

1

1 e

v

l

aV "A" launa

M

1

18

8

0

06

)

ylnO .taN( "2/1

1 e

vl

aV "A" launa

M
*Lube Cock Valve 1 1/4 600325
*Lube Cock Valve 1 1/2 600326
*Lube/Cock Valve 2 600327

Pressure Regulator Nat. 3/8" 004060F 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Pressure Regulator Pro. 3/8" 004061F 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1

1

1

1153000

6

"4/1 1 .taN rotalugeR erusser

P

1

1

1

11F175300

"

4/1 1 .orP rotalugeR erusserP
*Pressure Regulator Nat. 1 1/2 600044
*Pressure Regulator Pro. 1 1/2 003617F

Pressure Regulator Nat. 2" 600036 11
Pressure Regulator Pro 2" 003604F 11

*Pilot Gas Valve All Gases 600154

Pilot Gas Valve All Gases 600562 1 1 1 1 1 1 1 2 2 2 2 2 2 2

1F390400"1 sesaG llA evlaV ffO/nO otuA
Auto On/Off Valve All Gases 1 1/4" 004094F 1 1 1 1 1 1 1 1 1 1 1
Auto On/Off/Valve All Gases 1 1/2" 004095F 11
Mod. Valve 120F - 240F 1" HW N/A

4443

3

33A/NWH "1 F012-F58 evlaV .do

M
Mod. Valve 140 F Max HW N/A
Mod. Valve 110F-170F 1" HW N/A
Mod. Valve 150F-210F 1" HW N/A

333222

2F

805600SR .taN F071-F

011 ev

laV .doM

33

32

222F01560

0

SR .orP F0

71-F011 evlaV

.doM
Mod. Valve 150F-210F Nat. RS 006509F
Mod. Valve 150F-210F Pro. RS 006511F
Comb. Valve Nat. 1" 600631 1
Comb Valve Pro. 1" 600692 1 1 1 1 1
Comb. Valve Nat. 1 1/4" 600632 1 1 1 1 1

1

1

396

006"4/1 1

.orP evlaV .bmoC

1

3

36006

"2/1 1 .taN evlaV .bmo

C

*Actuator, On-Off 011908F 1 1 1 1 1 1 1
*Actuator. Mod 600449
*Actuator. Mod B3 SYSTEM 600900
*Gas Valve Body 1 1/4" 600451
*Gas Valve Body 1 1/2" 600452
*Gas Valve Body 2" 600453
*Gas Vent Valve All Gases 011913F
*Gas Pressure Switch - Low 007187F
*Gas Pressure Switch - High 007188F

*REQUIRED FOR IRI MODELS

2

H

W

,2W

1

H

W

,4

H

,

1W

10

CALL DESCRIPTION PART 962 1125 1223 1336 1468 1631 1826 962 1125

3

8

0

1

6

2

9

8

5

711

751

4

1

4

178

2

187

113

8

0

16

29

RE

BMUNTUO

GGAS VALVES

1

1

1

F

591700

"8/1evlaV "B

" l

auna

M111111

1

1

1

1

1

F9817

00"

1

e

vl

aV "A" launa

M
Manual "A" Valve 1 1/4" 007190F 1 1 1 1
Manual "A" Valve 1 1/2" (Nat. Only) 600881

2

25

23

0

0

6

4

/1

1 evla

V

kcoC eb

u

L

*

2

22

2

22

62300

6

2

/1

1 evlaV kco

C e

b

uL*

2

72300

62 e

v

laV

kcoC/eb

uL*
Pressure Regulator Nat. 3/8" 004060F 1 1 1 1 1 1 1 1 1
Pressure Regulator Pro. 3/8" 004061F 1 1 1 1 1 1 1 1 1
Pressure Regulator Nat. 1 1/4" 600035 1 1 1 1 1 1
Pressure Regulator Pro. 1 1/4" 003571F 1 1 1 1 1 1

*Pressure Regulator Nat. 1 1/2 600044
*Pressure Regulator Pro. 1 1/2 003617F

11163000

6

"

2 .taN rot

alugeR erusserP

1

1

1

F406300"2 orP rot

aluge

R erusser

P

*Pilot Gas Valve All Gases 600154 1 1 1 1 1 1 1 1 1

Pilot Gas Valve All Gases 600562 2 2 2

222222

11F390400"1 sesaG llA evlaV ffO/nO otuA

11

1

11F49040

0

"4/1 1 sesaG llA evlaV ffO/nO otuA

11

F

590400

"

2/1 1 sesaG llA evlaV/ffO/nO otuA
Mod. Valve 120F - 240F 1" HW N/A
Mod. Valve 85F-210F 1" HW N/A
Mod. Valve 140 F Max HW N/A
Mod. Valve 110F-170F 1" HW N/A 3 3 3 3 444

3

3

A/

N

WH "1 F012-F051 evlaV .doM
Mod. Valve 110F-170F Nat. RS 006508F 2 2 2 2 333
Mod. Valve 110F-170F Pro. RS 006510F 2 2 2

2333

2

2F90560

0

S

R .

taN

F012-F051 evlaV .do

M

2

2F115600SR .o

rP F012-F051 evl

aV .doM

1

36006"1 .taN evlaV .bmo

C

29600

6

"1 .orP evlaV bmoC
Comb. Valve Nat. 1 1/4" 600632
Comb. Valve Pro. 1 1/4" 600693
Comb. Valve Nat. 1 1/2" 600633

F8

09110ffO-nO

,ro

tautc

A

*

944006

doM .rotau

tcA*

*Actuator. Mod B3 SYSTEM 600900

154006

"4

/1 1 ydoB evlaV saG*

254006"2/1 1 ydoB evlaV saG*
354

006"2

ydoB evlaV saG*
*Gas Vent Valve All Gases 011913F 1 1 1 1 1 1 1 1 1
*Gas Pressure Switch - Low 007187F 1 1 1 1 1 1 1 1 1
*Gas Pressure Switch - High 007188F 1 1 1 1 1 1 1 1 1

*REQUIRED FOR IRI MODELS

R, RH

N, NH

11

www.raypak.com
