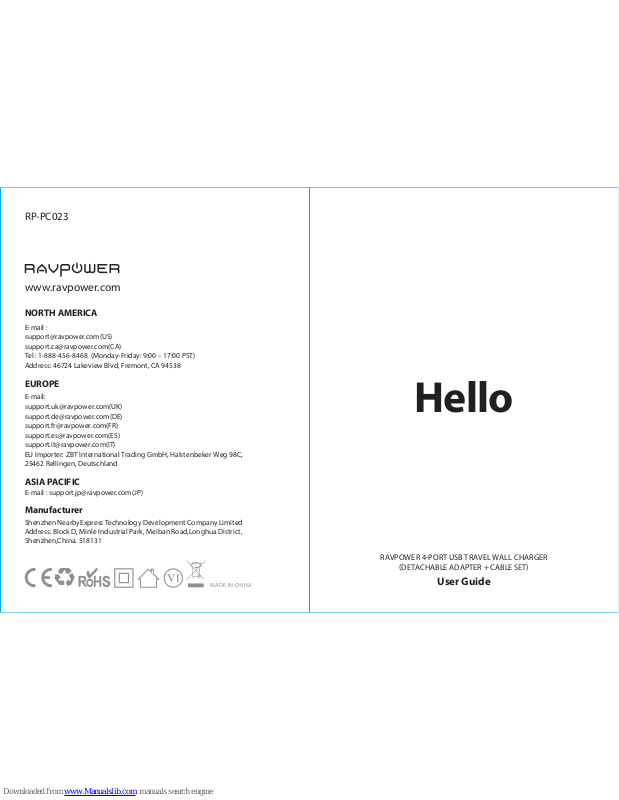

RAVPOWER 4PORT USB TRAVEL WALL CHARGER

DETACHABLE ADAPTER + CABLE SET

User Guide

Hello

RP-PC023

EUROPE

E-mail:
[e-mail](UK)
[e-mail](DE)
[e-mail](FR)
[e-mail](ES)
[e-mail](IT)
EU Importer: ZBT International Trading GmbH, Halstenbeker Weg 98C,
25462 Rellingen, Deutschland

NORTH AMERICA

E-mail :
[e-mail](US)
[e-mail](CA)
Tel : [phone] (Monday-Friday: 9:00 – 17:00 PST)
Address: 46724 Lakeview Blvd, Fremont, CA 94538

www.ravpower.com

ASIA PACIFIC

E-mail : [e-mail](JP)

MADE IN CHI NA

Manufacturer

Shenzhen NearbyExpress Technology Development Company Limited
Address: Block D, Minle Industrial Park, Meiban Road,Longhua District,
Shenzhen,China. 518131

CONTENTS

01/06

07/12

13/18

19/24

25/30

31/36

English
Deutsch
Francais
Espanol
Italiano

Product Diagram

iSmart USB Output (DC 5V/8A Total, Each 2.4A Max)
AC Cable Socket
AC Adapter (UK)
AC Adapter (EU)

①
②
③
④

01/02

US UK CA

Thank you for choosing the RAVPower 4-PORT USB
TRAVEL WALL CHARGER (DETACHABLE ADAPTER +
CABLE SET). Please read this guide carefully and keep it in

a safe place for future reference. If you need any further
assistance, please contact our customer support team at
[e-mail].

Scan the QR code to view the Online Guide:

① ②

③ ④

Package Contents

• 1 x 4-Port USB Travel Wall Charger (RP-PC023)

• 1 x AC Cable

• 1 x AC Adapter (UK)

• 1 x AC Adapter (EU)

• 1 x User Guide

Specications

03/04

Model

Input

iSmart USB Output

Dimensions

Weight

RP-PC023

AC 100-240V50/60Hz 1A Max

DC 5V/8A Total (Each 2.4A Max)

3.5 x 2.3 x 0.9 in / 9.0 x 5.9 x 2.5 cm

5.1 oz. / 145.8 g

How to Use

1. Connect one end of the AC cable to
the charger and the other end to an
active wall socket. The charger is
now ready for use.

2. You can also use the AC adapter to power the charger. Just insert the
charger into the adapter, and then plug the adapter into a wall socket.

Note:

• Match the arrow on the bottom of the charger with the arrow on the top

of the adapter. Make sure both are facing downwards

• Make sure the “RAVPower” logo on the charger and the adapter are on

opposite sides.

Shenzhen NearbyExpress Technology

Development Co.Ltd.

MADE IN CHINA

4-Port USB Travel Wall Charger

(Detachable Adapter + Cable Set)

Model: RP-PC023
Input: AC 100-240V 50/60Hz 1A Max
iSmart USB Output: DC 5V/8A Total
(Each 2.4A Max)
S/N: XXXXXXXX

Shenzhen NearbyExpress Technology

Development Co.Ltd.

MADE IN CHINA

4-Port USB Travel Wall Charger

(Detachable Adapter + Cable Set)

Model: RP-PC023
Input: AC 100-240V 50/60Hz 1A Max
iSmart USB Output: DC 5V/8A Total
(Each 2.4A Max)
S/N: XXXXXXXX

05/06

• Before connecting to a power source, make sure the charger is fully
inserted and plugged into the adapter.

Caution

• Keep away from liquids and sources of high heat.

• Do not drop, knock, or disassemble the charger.

• Keep it out of reach of children.

Warranty

RAVPower products are covered by an 18 month limited warranty from the
date of their original purchase. If any problems occur, please contact our
support team.

We can only provide after sales service for products that are sold by
RAVPower or RAVPower authorized retailers and distributors. If you have
purchased your unit from a dierent place, please contact your seller for
return and warranty issues.

Shenzhen NearbyExpress Technology

MADE IN CHINA

4-Port USB Travel Wall Charger

(Detachable Adapter + Cable Set)

Model: RP-PC023
Input: AC 100-240V 50/60Hz 1A Max
iSmart USB Output: DC 5V/8A Total
(Each 2.4A Max)
S/N: XXXXXXXX

Shenzhen NearbyExpress Technology

MADE IN CHINA

4-Port USB Travel Wall Charger

(Detachable Adapter + Cable Set)

Model: RP-PC023
Input: AC 100-240V 50/60Hz 1A Max
iSmart USB Output: DC 5V/8A Total
(Each 2.4A Max)
S/N: XXXXXXXX

DE

Vielen Dank, dass Sie sich für das RAVPower 4-Port USB
Reise-Ladegerät (Abnehmbarer Adapter +Kabelsatz)

entschieden haben. Bitte lesen Sie diese Anleitung sorgfältig und
bewahren Sie sie zum späteren Nachlesen auf. Wenn Sie weitere
Hilfe brauchen, bitte setzen Sie sich in Verbindung mit unserem
Kundendienst unter: [e-mail].

① ②

③ ④

Produktabbilung

iSmart USB Ausgang (DC 5V/ 8A , jeweils max. 2,4A)
AC Kabel Steckdose
AC Adapter (UK)
AC Adapter (EU)

①
②
③
④

07/08

Scannen Sie den QR Code um das online Handbuch zu lesen.
