Ravas iForks User Manual

USER MANUAL – iForks

1

USER MANUAL

iForks

We would like to inform you about the fact that this RAVAS product is 100 % recyclable on the basis
that the parts are processed and disposed off in the right manner.
More information can be found on our website www.ravas.com.

Rev.20150617
Printing/typographical errors and model changes reserved

USER MANUAL – iForks

2

PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
If you have any queries concerning the duration and terms of the guarantee, please contact your
supplier. We would also refer you to our General Sale and Supply Conditions, which are available on
request.

The manufacturer accepts no liability for any damage or injury caused by failure to follow these
instructions, or from negligent operation or assembly, even if this is not expressly stated in this
instruction manual.
In light of our policy of continuous improvement, it is possible that details of the product may differ from
those described in this manual. For this reason, these instructions should only be treated as guidelines
for the installation of the relevant product. This manual has been compiled with all due care, but the
manufacturer cannot be held responsible for any errors or the consequences thereof. All rights are
reserved and no part of this manual may be reproduced in any way.

USER MANUAL – iForks

3

Table of contents
page

1. Introduction 4

2. Warnings & Safety measures 4

3. Exploded-view & parts list 5

4. System setup 6

4.1 Installation the iForks 6

4.2 Locking the iForks 6

4.3 Installing the indicator 7

4.4 Placing battery modules in the iForks 8

4.5 Switching on the iForks 8

4.6 Switching on indicator 9

4.7 Switch off the system 9

5. Changing the batteries 10

5.1 Low battery indication iForks 10

5.2 Changing the batterypacks of the iForks 11

5.3 Changing the batteries of the indicator 13

6. Use 14

6.1 Use (accurate weighing) 14

6.1.1 zero check before a weighing 14

6.2 Level correction 15

6.3 Establish Bluetooth communication and weigh! 16

6.4 Auto shut-off indicator 17

6.5 Auto shut-off iForks 18

6.6 Indicator functions 19

6.7 Error messages 21

6.8 Gross / tare / net weight 22

6.8.1 Net weighing: automatic tare 22

6.8.2 Net weighing: manual tare PT 24

6.9 Adding and reset 27

6.10 KG-LB switch 29

6.11 User settings 30

6.12 Changing the time and date on the printout 33

USER MANUAL – iForks

4

IP65

1. Introduction

This manual describes the installation and use of the iForks. Read this manual carefully. The installer
must be informed of the contents of this manual. Follow the contents of the manual precisely. Always
do things in the correct order. This manual should be kept on a safe and dry place.
In case of damage or loss the user may request a new copy of the manual from RAVAS.

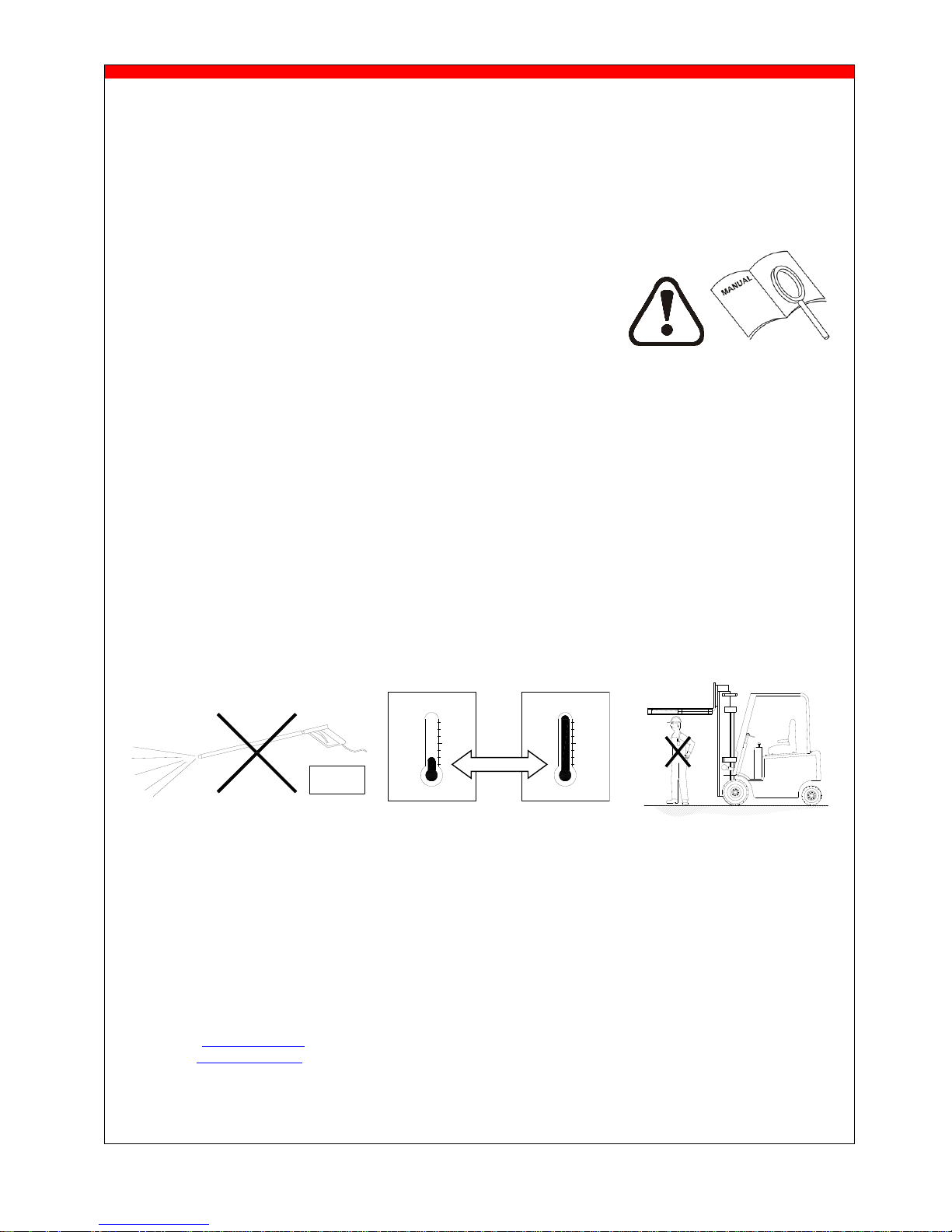

2. Warnings & Safety measures

When using the iForks, please observe carefully the instructions
and guidelines contained in this manual. Always perform each step in
sequence. If any of the instructions are not clear, please contact RAVAS.

- All safety regulations that apply on the truck remain valid and unchanged

- No weighing operations are allowed if any persons or objects are in the vicinity; around, under
or close to the load.

- RAVAS is not responsible for any physical harm done to the operator because of the presence
of the indicator in the cabin.

- Any modifications done to the system must be approved in writing from the supplier, prior to
any work being completed.

- It is the sole responsibility of the purchaser to train their own employees in the proper use and
maintenance of this equipment.

- Do not operate this unit unless you have been fully trained of its capabilities.

- Check the accuracy of the scale on a regular basis to prevent faulty readings.

- Only trained and authorized personnel are allowed to service the scale.

- Always follow the operating, maintenance and repair instructions of this truck and ask the
supplier when in doubt.

- RAVAS is not responsible for errors that occur due to incorrect weightings or inaccurate
scales.

Should you have any further questions after reading this manual then you can contact us at:

RAVAS Europe B.V.

Toepadweg 7
Postbus 2023
5300 CA Zaltbommel
Nederland
Phone: [phone]
Fax: [phone]
Internet: www.ravas.com
Email: [email protected]

Changes reserved

READ
CAREFULLY

min -10°C

15°F

0 0

max 40°C

105°F

USER MANUAL – iForks

5

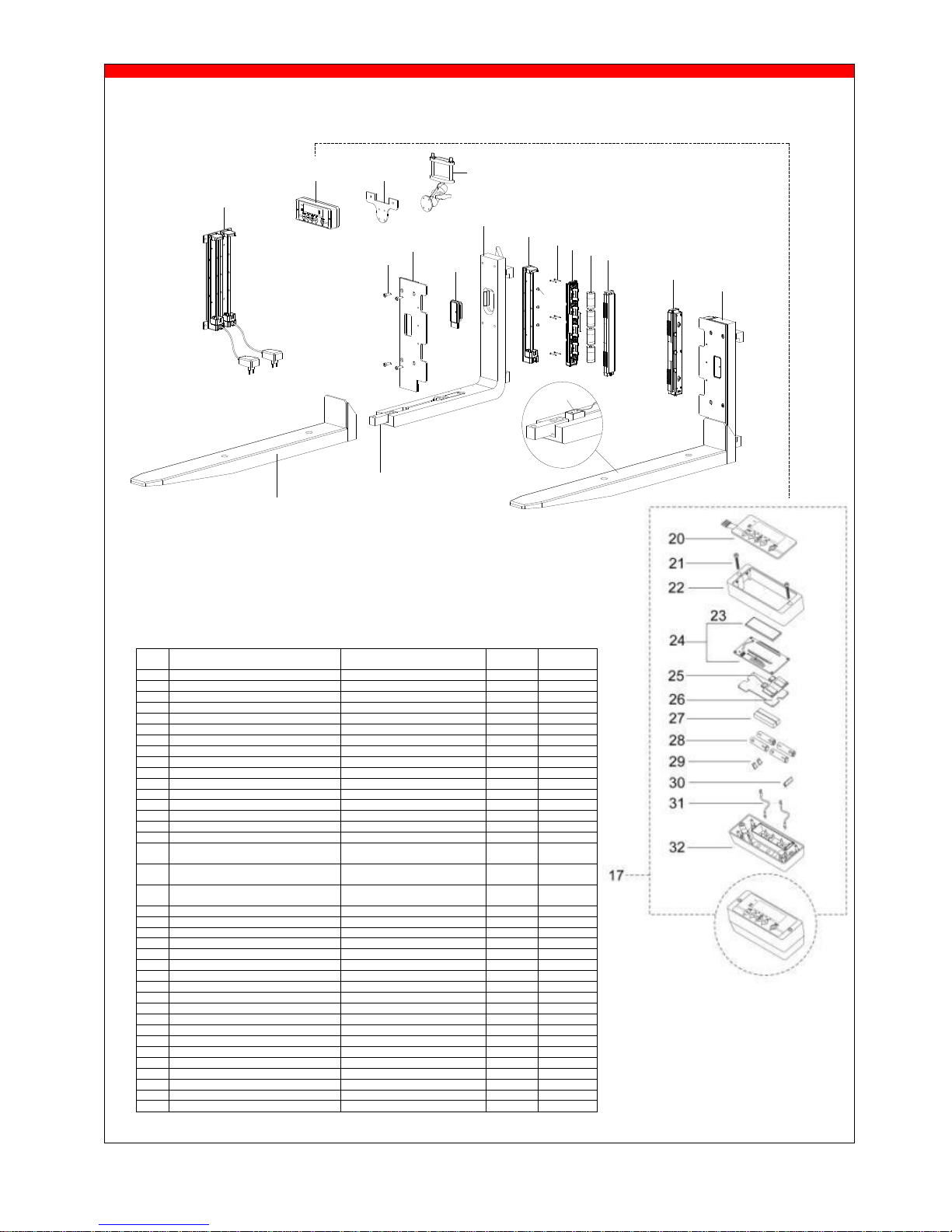

3. Exploded-view & parts list

Part
nr.

Designation

Article code

Number

Supplier

1

Assembled weighing fork

2 - 2 Battery pack (assembly without D-cellls)

BAP-IFORK

2

RAVAS

2a

with 1.5 V alkaline D-cellls (standard)

SA-BA-IFORK-ST

2

RAVAS

2b

with rechargable 1.2 V D-cells (option)

SA-BA-IFORK-RC

2

RAVAS

3

Top housing battery pack

2

-

4

Batteries (D-cell):

-

-

4a

A = regular 1.5 V D-cells (standard)

BA-1,5-DCELL

8

Buy locally

4b

B = rechargeable 1.2 V D-cells (option)

BA-1,5-DCELL-RC

8

Buy locally

5

Bottom housing battery pack

2

- 6 Philips-head screw M3 x 25

12

Buy locally

7

Round-head screw M6 x 8

MP-SCREW-M6-8-LOW-STST

6

Buy locally

8

Holder battery pack

BAP-HOLDER-WF

2

RAVAS

9

Weighing fork

WF-2A-100-45-608 (or 2B)

2

RAVAS

10

Loadcell

LC-2000

4

RAVAS

11

Loadcell fixation ring

MP-RING-LC-FIXATION

4

RAVAS

12

Fork shoe

FS-WF-25-1150-10-15-RAL7021

2

RAVAS

13

Bluetooth transmitterbox (assembly)

HO-J-RWV-BLT-F1
HO-J-RWV-BLT-F2

1 1 RAVAS

13a

Labels for Bluetooth transmitterboxes
(set with nr. 1 and 2)

SS-LABEL-WF-SMALL

1

RAVAS

14

Coverplate forks (left)
Coverplate forks (right)

MP-CP-RF-LEFT-FEM2A (or 2B)
MP-CP-RF-RIGHT-FEM2A

1 1 RAVAS
15

Socket-head screw M8 x 20

MP-BOLT-M8-20-CYL

8

Buy locally

16a

Mounting bracket indicator

MP-BRACKET-RAM-BB

1

RAVAS

16b

Indicator mounting support

MP-SUP-RAM-CLAMP-BASE

1

RAVAS

17

Indicator (assembled)

SA-IN-31-IFORK

1

RAVAS

18

Charger (option)

SA-CH-WF-DUAL

1

RAVAS

19

Level correction sensor (option)

EP-LEVELSENSOR

1

RAVAS

20

Touch panel

FR-31N-RAV-HO

1

RAVAS

21

Socket head screw M6x40

MP-BOLT-M6-40-CYL

2

RAVAS

22

Top housing indicator (red)

HOP-RAV-RAL3000-UPPER

1

RAVAS

23

Display

INP-31-DISPLAY

1

RAVAS

24

Indicator board

IN-31-N-NO-ADS

1

RAVAS

25

Bluetooth receiver board

EB-31-N-BLT-DUAL

1

RAVAS

26

Middle cover

HOP-MC

1

RAVAS

27

Cellrubber block

HOP-PACK-XTRA-RU-STRIP

1

RAVAS

28

AA battery 1.5V

BA-1,5-PENN-AA-R6

4

Buy locally

29

Contact snap single

BAP-SNAP-SINGLE

2

RAVAS

30

Contact snap dual

BAP-SNAP-DUAL

1

RAVAS

31

Strain relief

HOP-RAV-STRAINRELIEF

1

RAVAS

32

Bottom housing indicator

HOP-RAV-RAL9011-LOWER

1

RAVAS

2

3

4

5

6

8

7

13

14

15

11

12

17 16a

9

16b

18

10

1

USER MANUAL – iForks

6

4. System setup

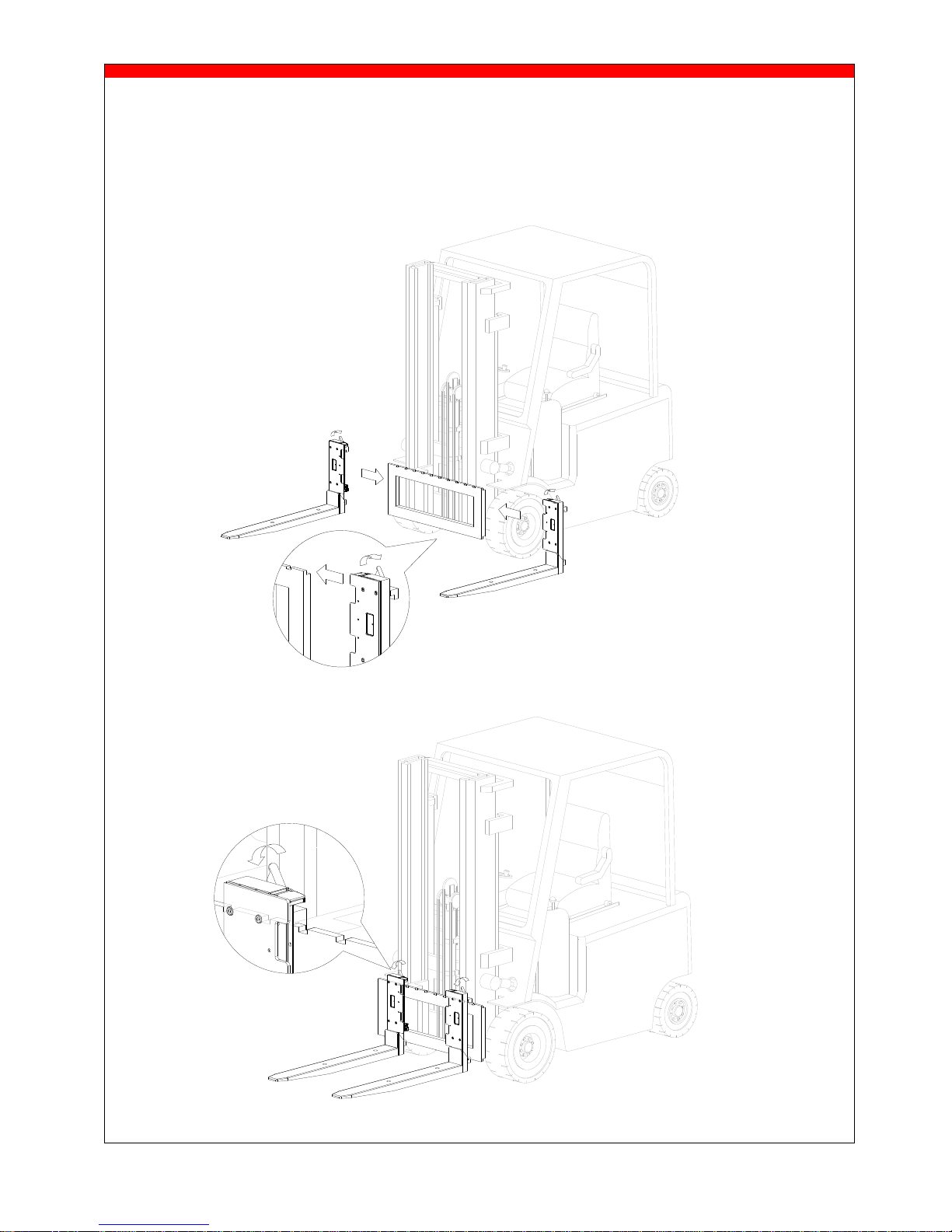

4.1 Installing the iForks

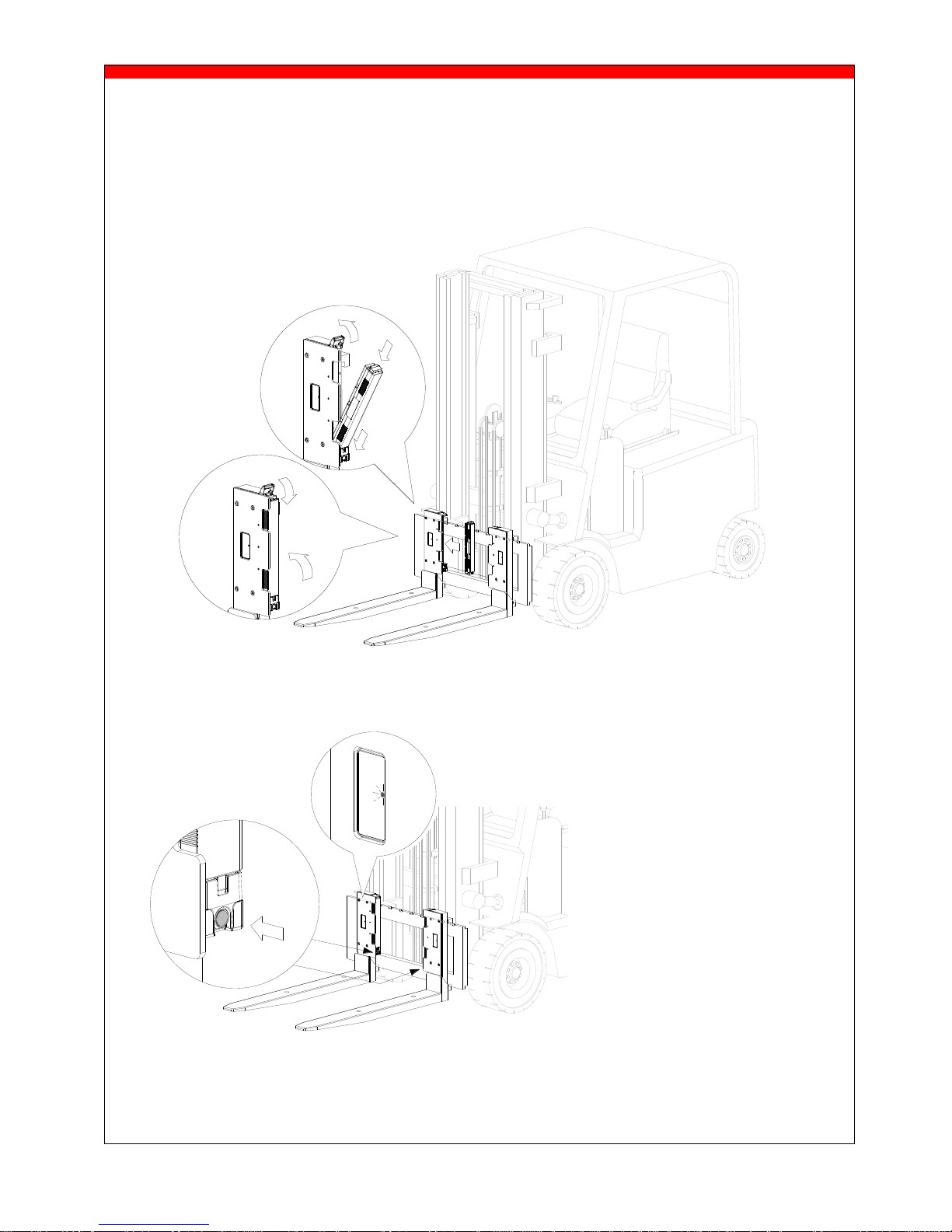

The standard forks must be taken from the carriage plate. The iForks are placed on the carriage plate.

Locking the iForks

1.

2.

USER MANUAL – iForks

7

3

2

1

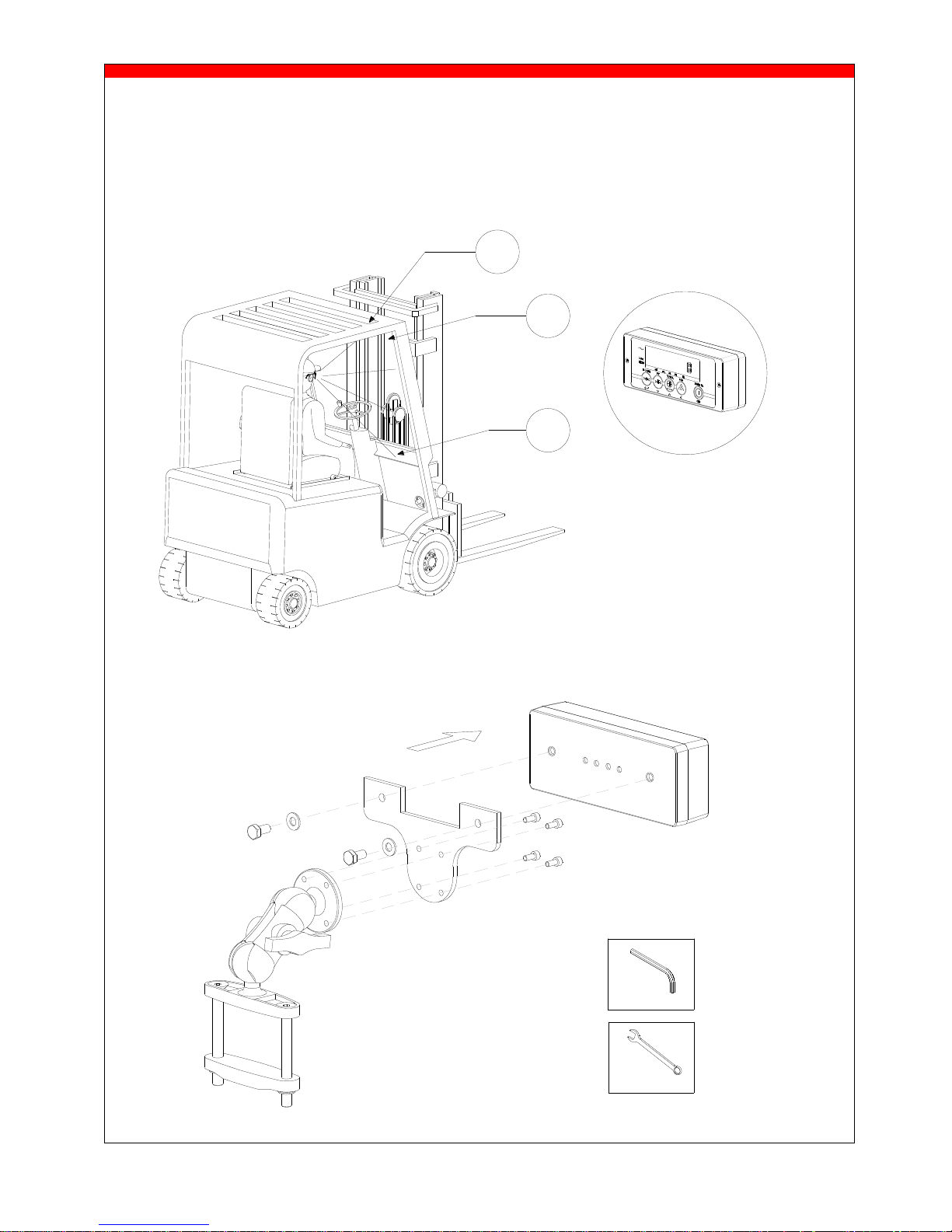

4.2 Installing the indicator

Find a suitable position for the indicator:

1. at the cabin’s roof.

2. at the right side of the cabin, mounted onto a side-rail.

3. at the dashboard.

Installation of the indicator bracket & support

The indicator should be easy
to reach and read out!

S13

1.

2.

S5

USER MANUAL – iForks

8

1.

4.

2.

3.

4.3 Placing the batterypacks in the iForks

1. Lift up the locking clips on the battery holders.

2. Position the batterypacks in both forks.

3. Click the batterypacks into the battery holders.

4. Push the locking clips down to secure the batterypacks.

4.4 Switching on the iForks

1. Switch on the forks by
pressing the blue buttons on
both batterypack holders.

1.

2.

LED

2. The blue LED’s on the

iForks will start blinking

automatically.

USER MANUAL – iForks

9

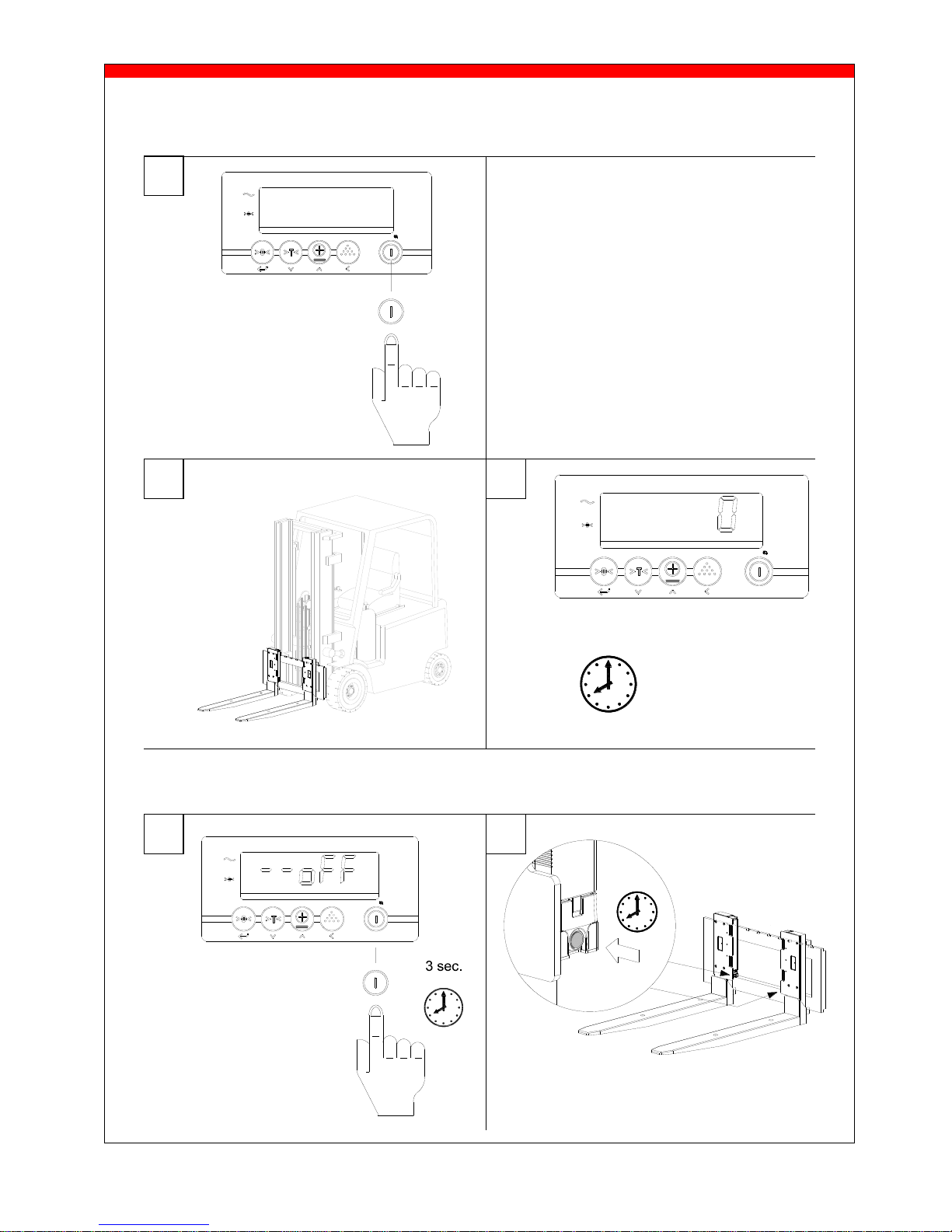

4.5 Switching on the indicator

4.6 Switching off the system

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

8 sec.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

Start up the
indicator. Press
the on/off key.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL

PCS KG/LB

CLR

5 sec.

1 2 3

Weigh!

Switch off the
indicator by
pressing the
on/off key for 3
seconds.

1

2

Switch off the forks by pressing the blue
buttons for 8 seconds.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

USER MANUAL – iForks

10

5. Changing batteries

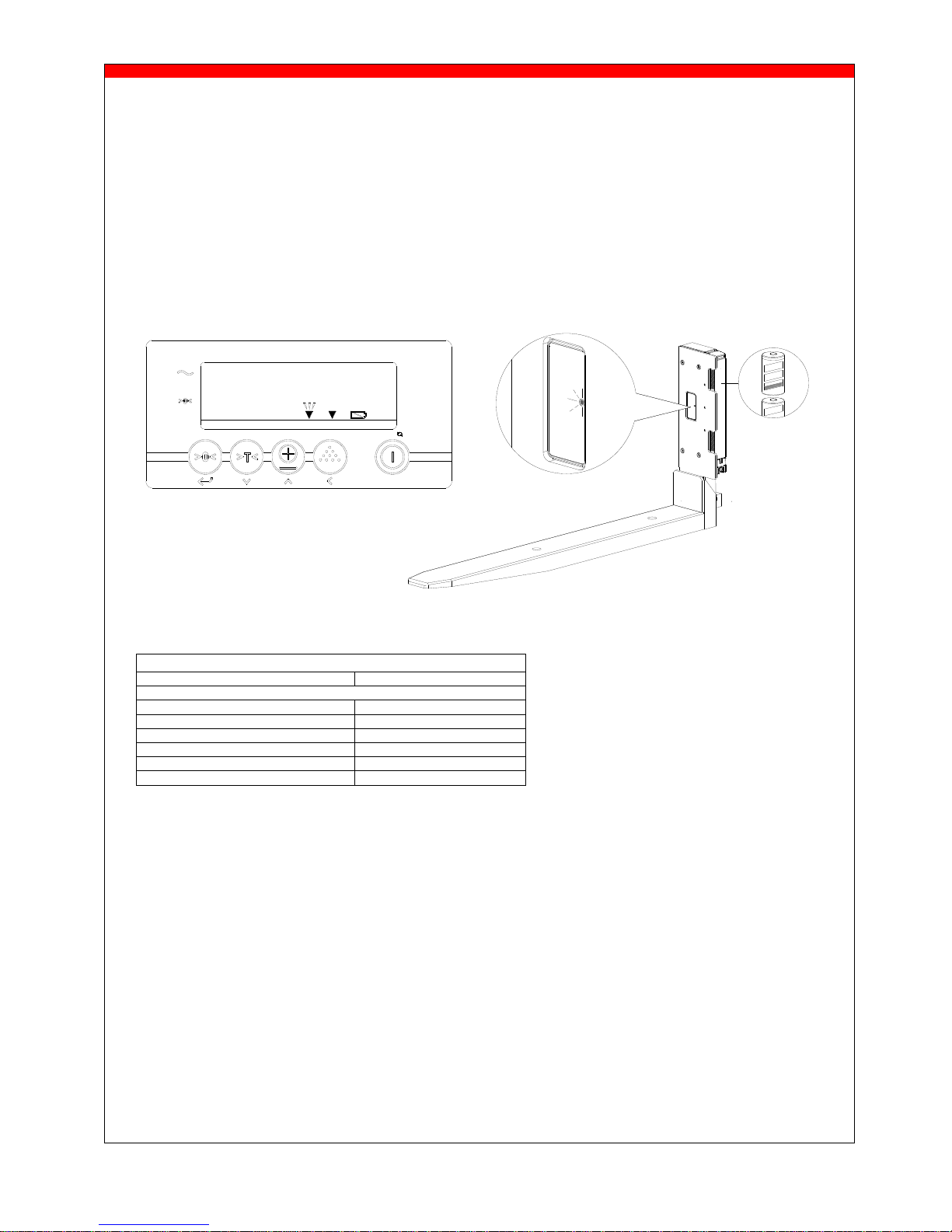

5.1 Low battery indication iForks

Exchangeable batterypacks supply power to the iForks .

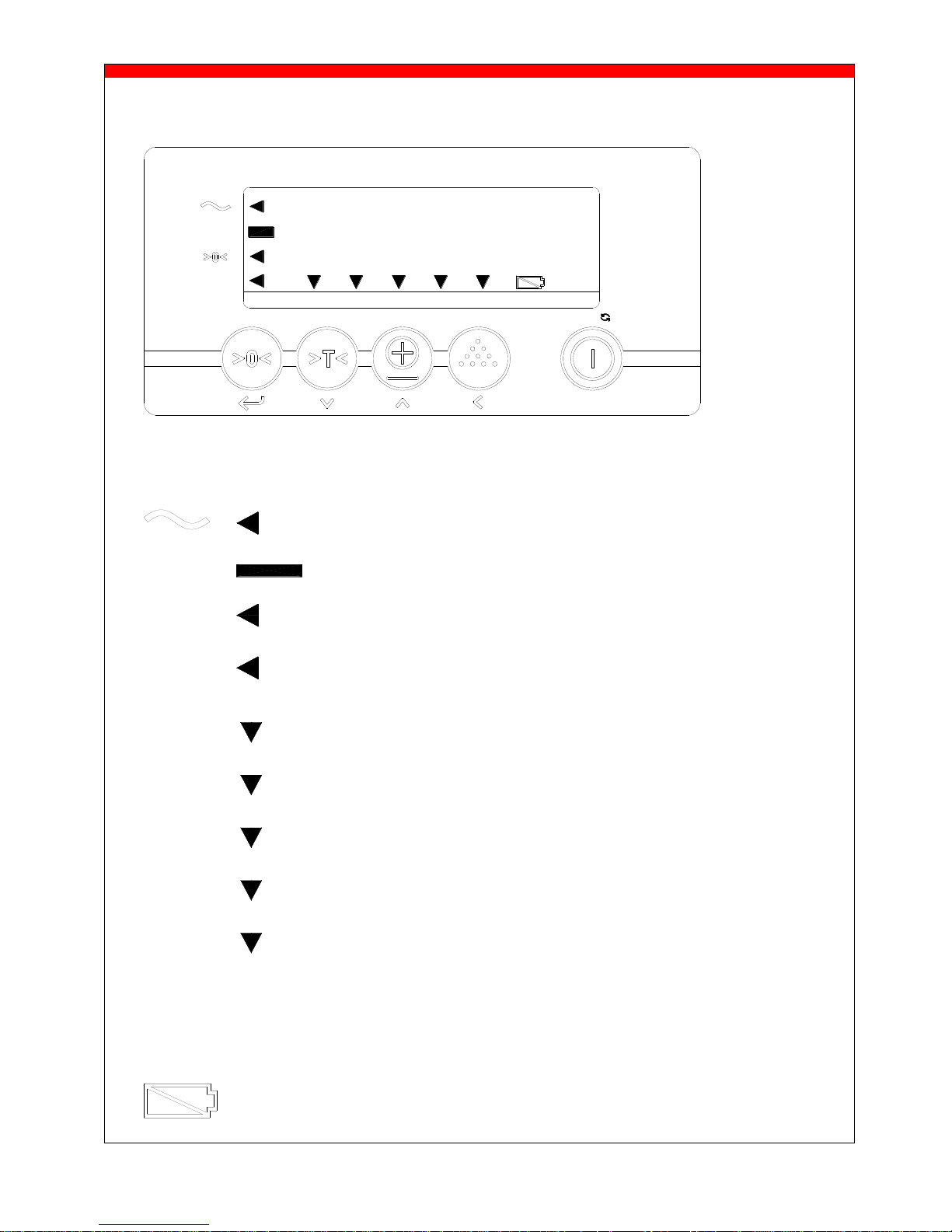

When the voltage level of the batterypacks is running low, the low bat indicator will light up and the

pointer of the relating fork - “F1”, ”F2” or both - will start blinking in the display.
The blue LED’s on the relating fork will start blinking very slowly (twice every 10 sec). The iForks will
switch off automatically after 10 minutes.

FUNCTIONALITY BLUE LED

DURING POWERING ON

ON for 5 sec.

FULL BATTERY

Blink time interval

Working mode

Once every 1,5 sec.

Sleep mode

Once every 4 sec.

LOW BATTERY

Working mode

Twice every 10 sec.

Sleep mode

Twice every 10 sec.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

USER MANUAL – iForks

11

2.

1.

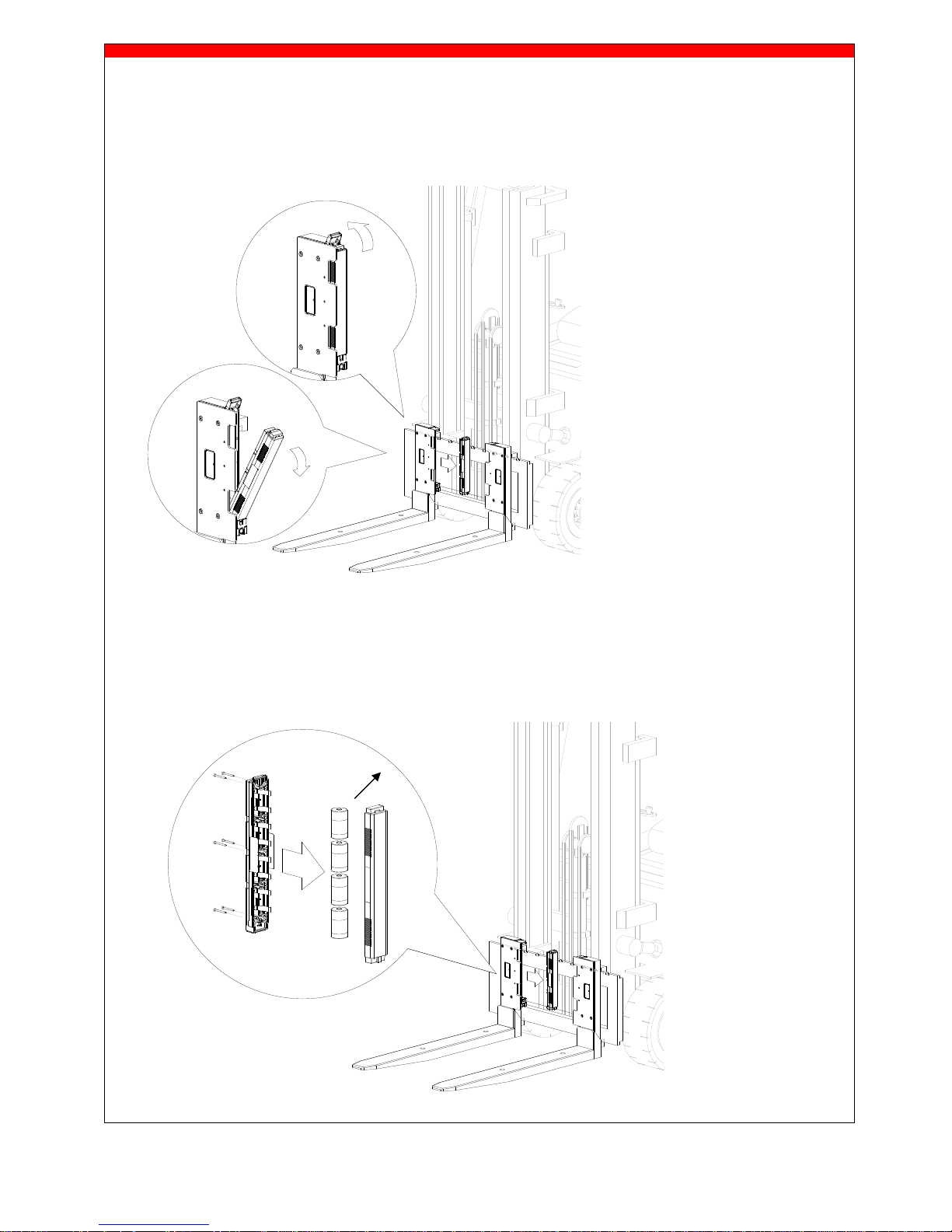

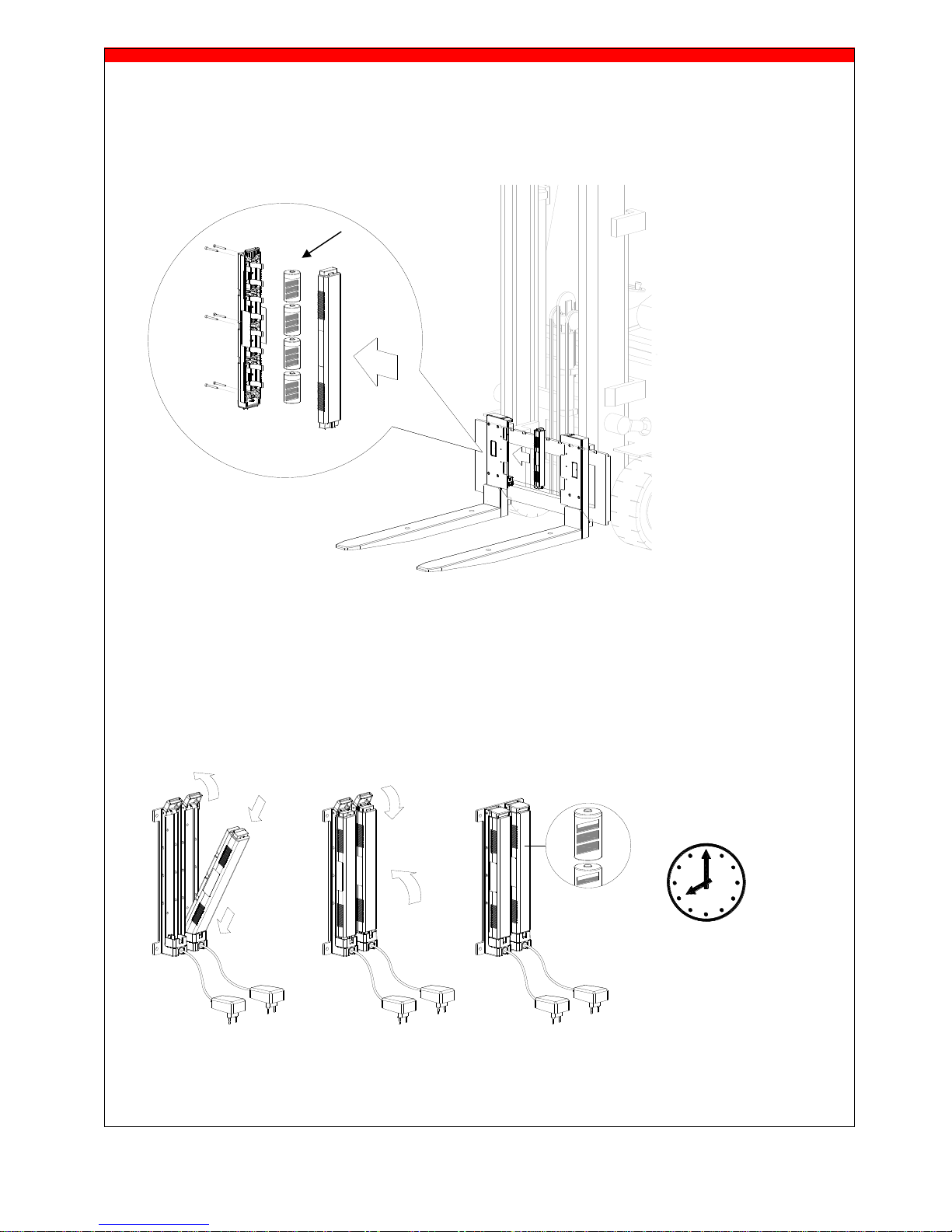

5.2 Changing the batterypacks of the iForks

5.2.1 Take out both batterypacks

5.2.2 Change the D-Cells inside the batterypacks

1.Remove the 6 Philips-head screws M3 x 25.

2.Remove the top housing of the battery pack.

3.Take out the D-cells.

USER MANUAL – iForks

12

5.2.3 Place 4 full D-cell batteries in each batterypack. Replace the top housing of the
batterypack and tighten the 6 Philips-head screws M3 x 25 (not too tight).

5.2.4 Replace the batterypacks of the iForks (see step 4.3, page 8)

5.2.5 Charge the rechargeable batterypacks (option)

The system additionally can be equipped with rechargeable batterypacks and a charger.
Charge the battery for at least 8 hours. This will prevent loss of battery capacity. Check by reading the
battery-pack label to make sure this batterypack is equiped with recharable batteries. Only
batterypacks with recharable D-cells can be re-charged.

First position the batterypack inside the charger module, then plug the adaptors into the mains voltage.
When the battery is being charged, the red LED on the charger is lit. After at least 8 hours charging,
the batterypacks are full again. The red LED will stay on, even when the batterypacks are fully
charged.

8 hours

1.

2.

4.

3.

USER MANUAL – iForks

13

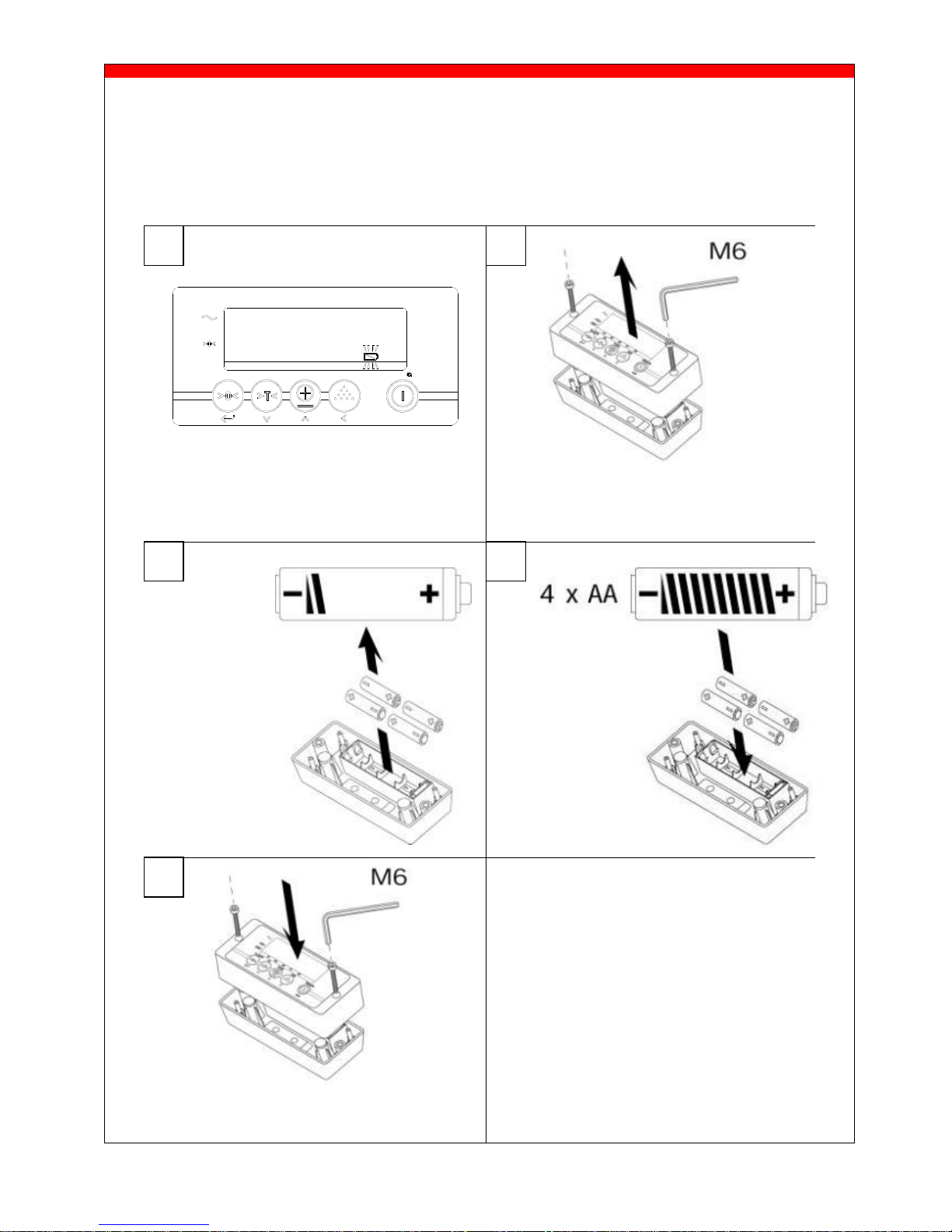

5.3 Changing the batteries of the indicator

As standard, the indicator is equipped with 4 AA batteries. Optionally the power supply of the indicator

can be wired from the truck’s batteries. This has to be ordered separately because the indicator has to

be supplied with the approperiate voltage converter of voltage stabilizator board.

Use a M6 hex key to release the
bolts of the indicator housing.

Open the indicator housing
and remove the empty
batteries.

Place new
batteries.

Be sure the
batteries are
positioned
correctly. Watch
for the polarity!

Close the indicator housing and tighten
the bolts by using a M6 hex key.

2

3

4

1

5

Replace batteries as soon as the
low bat indicator starts blinking.
When the low-bat symbol starts
flashing during printing (option)
please change the batteries.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

USER MANUAL – iForks

14

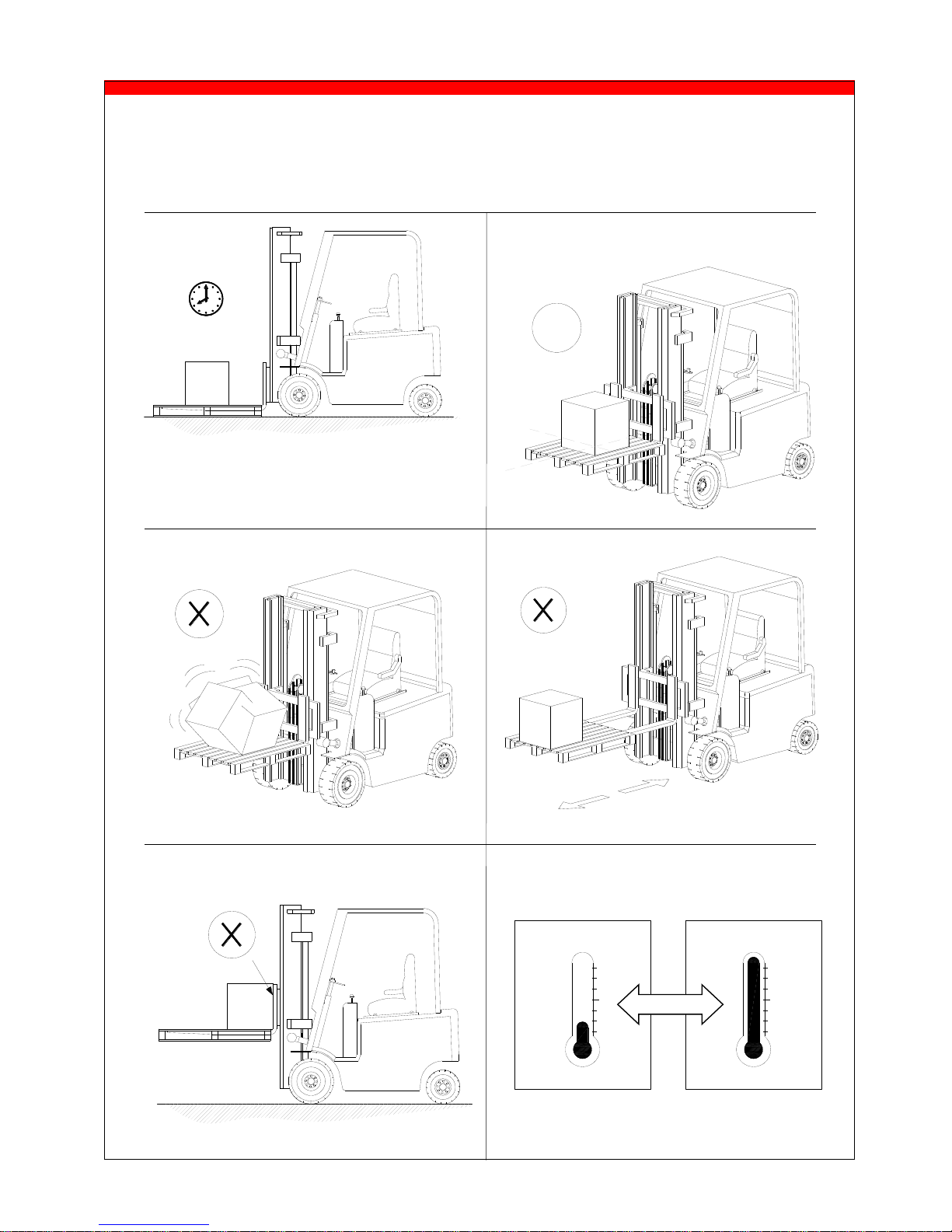

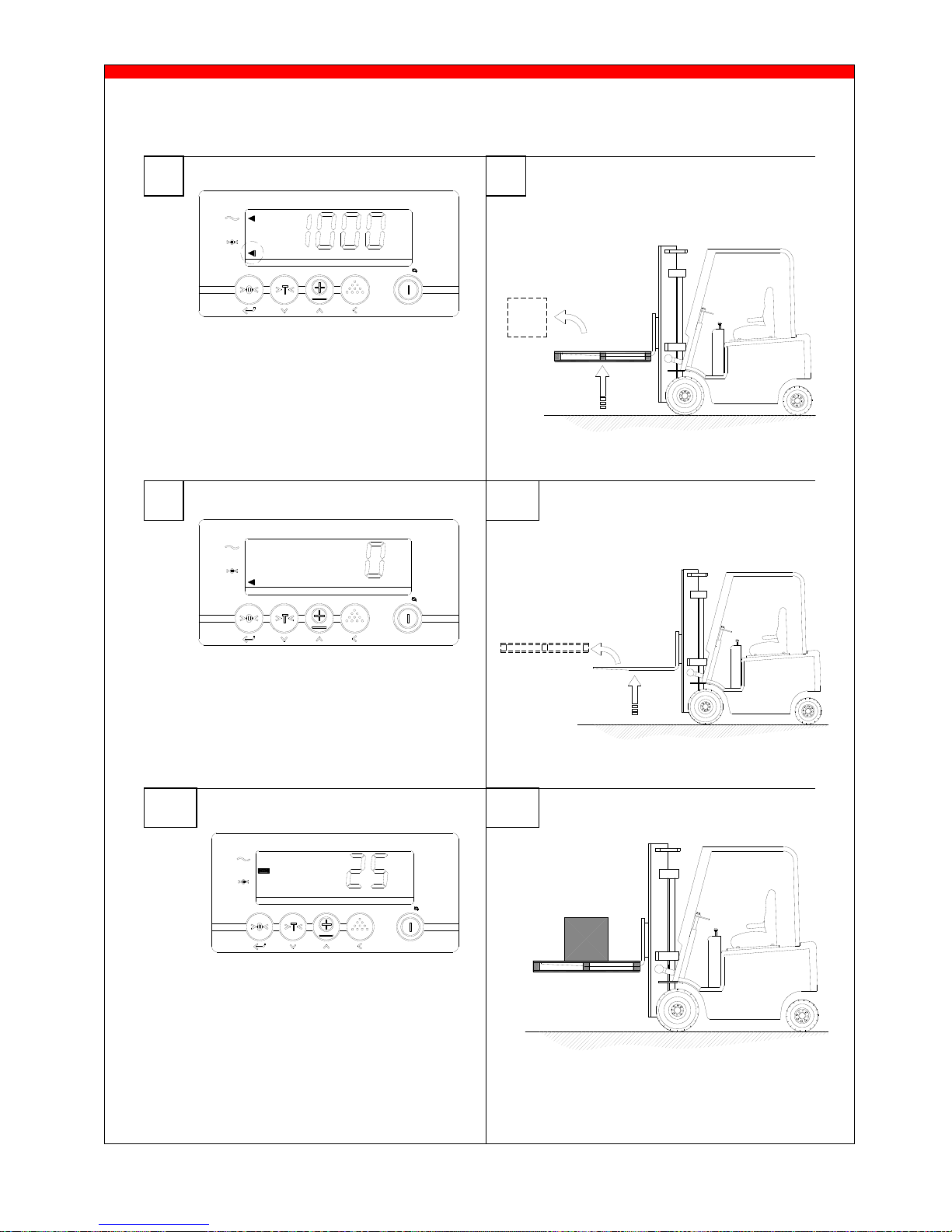

6. Use

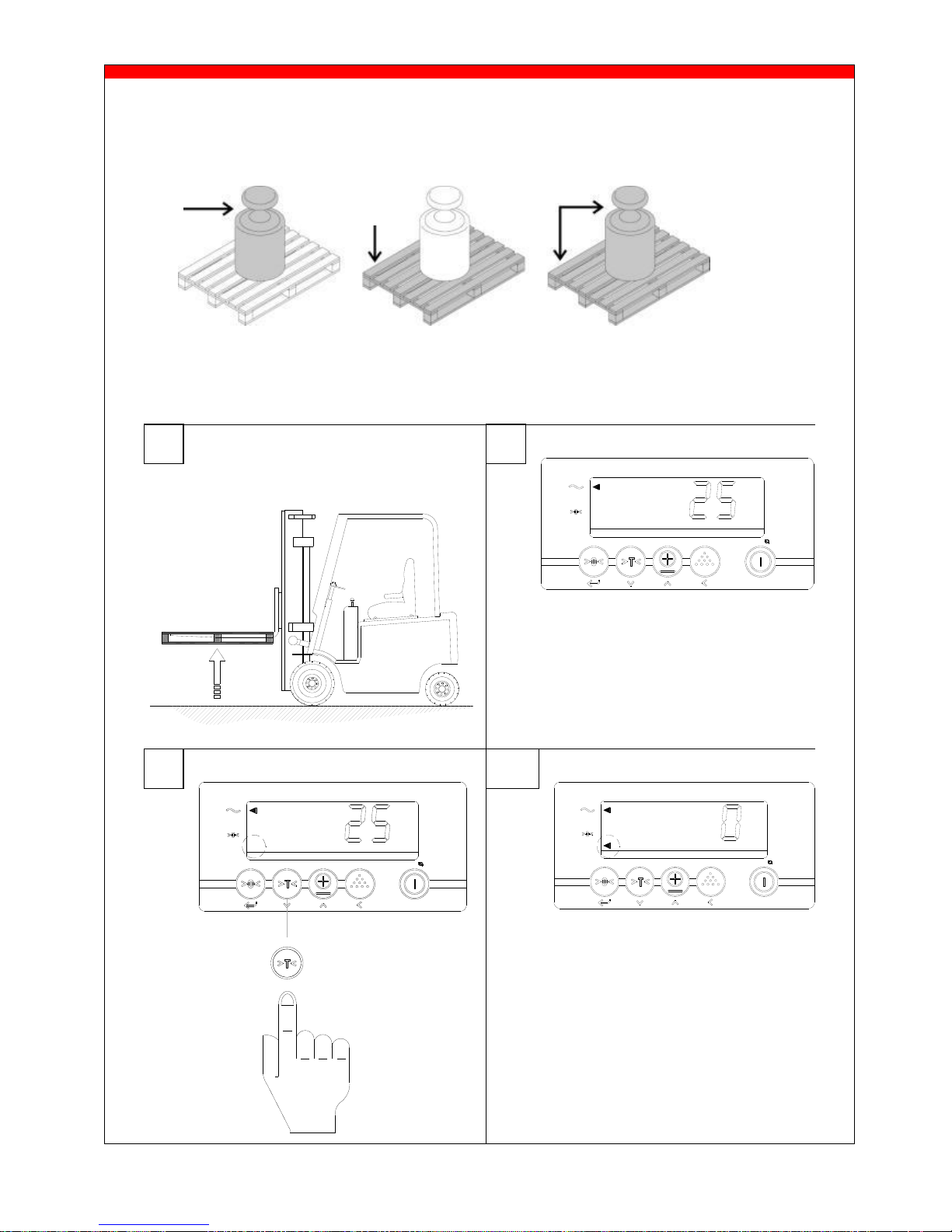

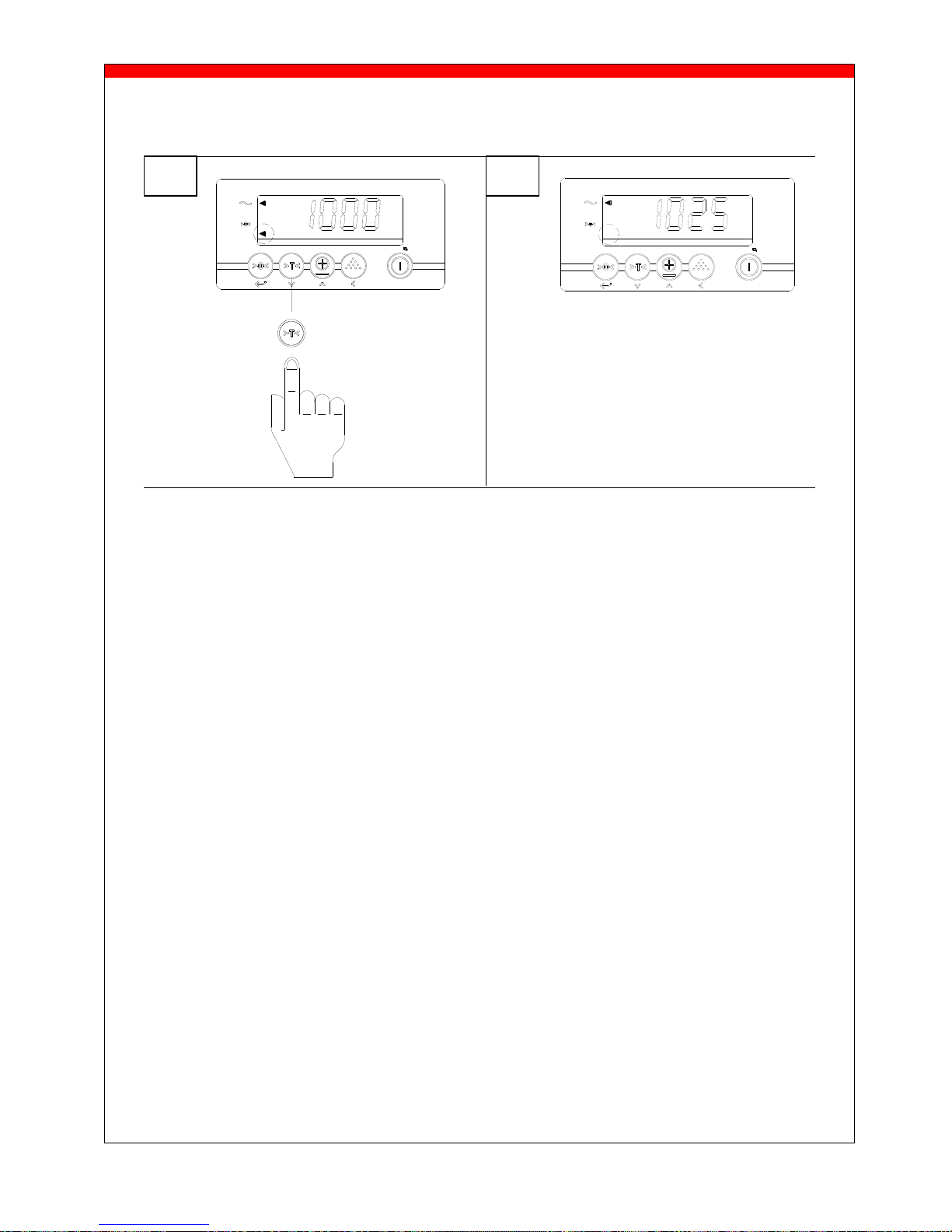

6.1 Use (accurate weighing)

OK

0

max 40°C

105°F

min -10°C

15°F

0

M1

M1

3 - 5 min.

After 3 to 5 minutes the load cells have reached the
operational temperature. Don’t lift loads before the

zero-point correction has been executed.

USER MANUAL – iForks

15

a

OK

F2e2e1 e3 F1

Check the zero reading
before each weighing!

Before each weighing it is
necessary to check if the system
in without a load and does not
make contact with other
obstacles

When de indicator doesn’t show

automatically the zero, then a
manual zero correction has to be
done by pressing short on the
key: >0<

e1 e2 e3 F1 F2

NET

ID CODE PT TOTAL PCS KG/LB

CLR

6.1.1 Check the zero reading before each weighing

6.2 Level correction (option)

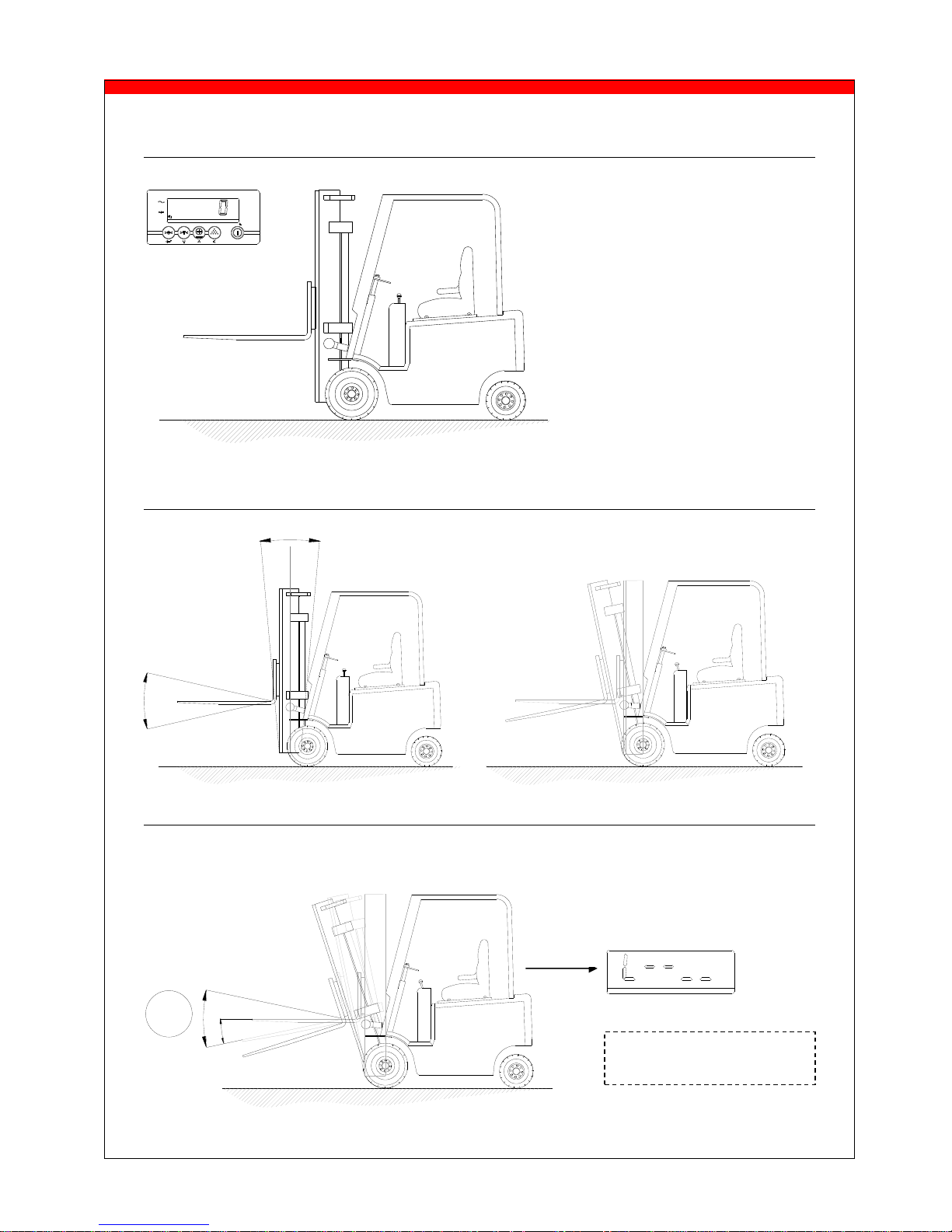

NTEP: OK if α = +/- 5% ( 3˚)
OIML: OK if α = +/- 5˚

Legal for trade:

OK

> α

USER MANUAL – iForks

16

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

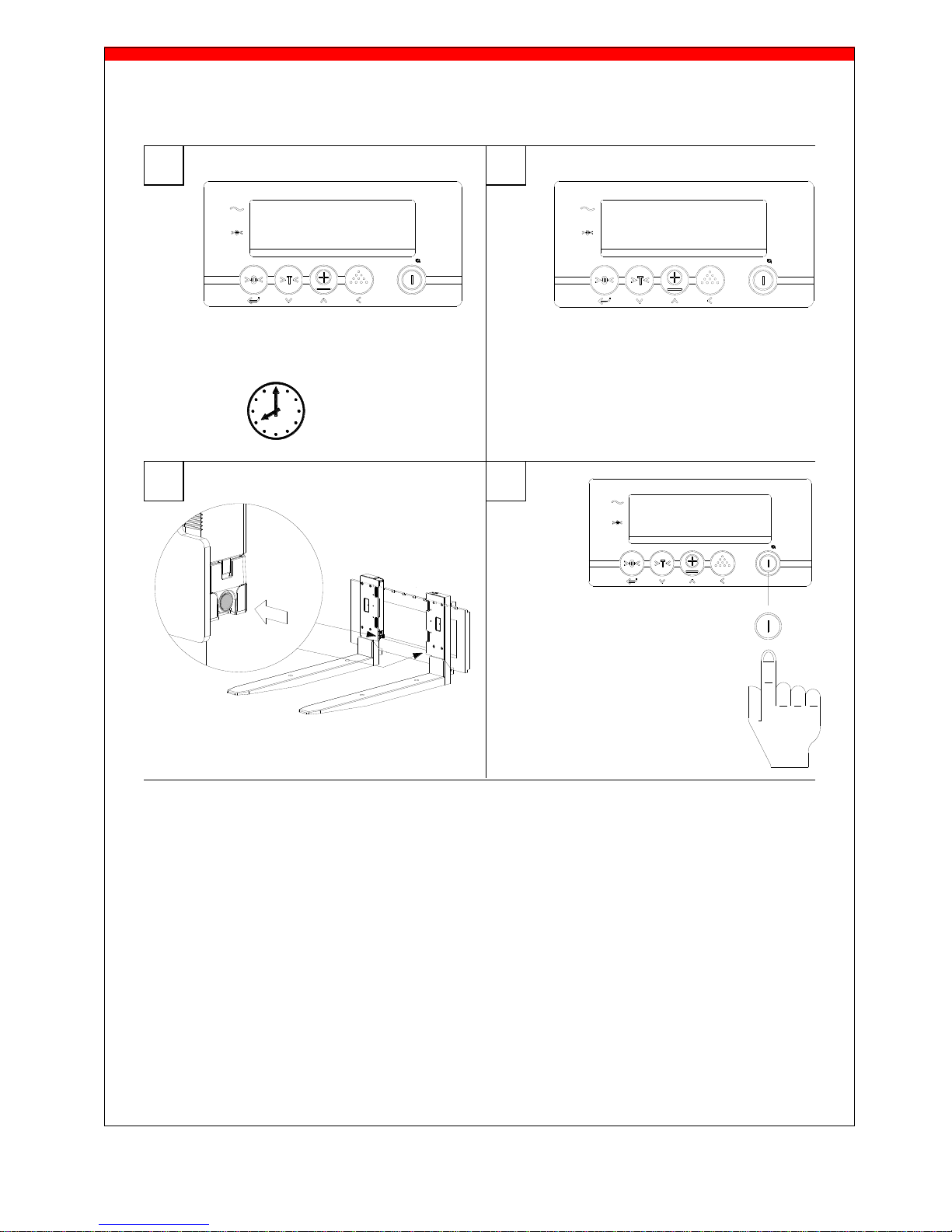

6.3 Establish Bluetooth communication and weigh!

Switch on the iForks:
press the blue button below both batterypacks.

Start up the indicator:
press the on/off key.

1000

2 3 4

1

5

System is ready to weigh.

6

5 sec.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL

PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

Before each weighing: check the zero point!

Before each weighing it is necessary to check
whether the system is unloaded and free.
If the indicator does not determine the zero point
automatically, it must be done manually using the
>0< key.

Before the next weighing,
check the zero point again.

USER MANUAL – iForks

17

20 sec.

2 min.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

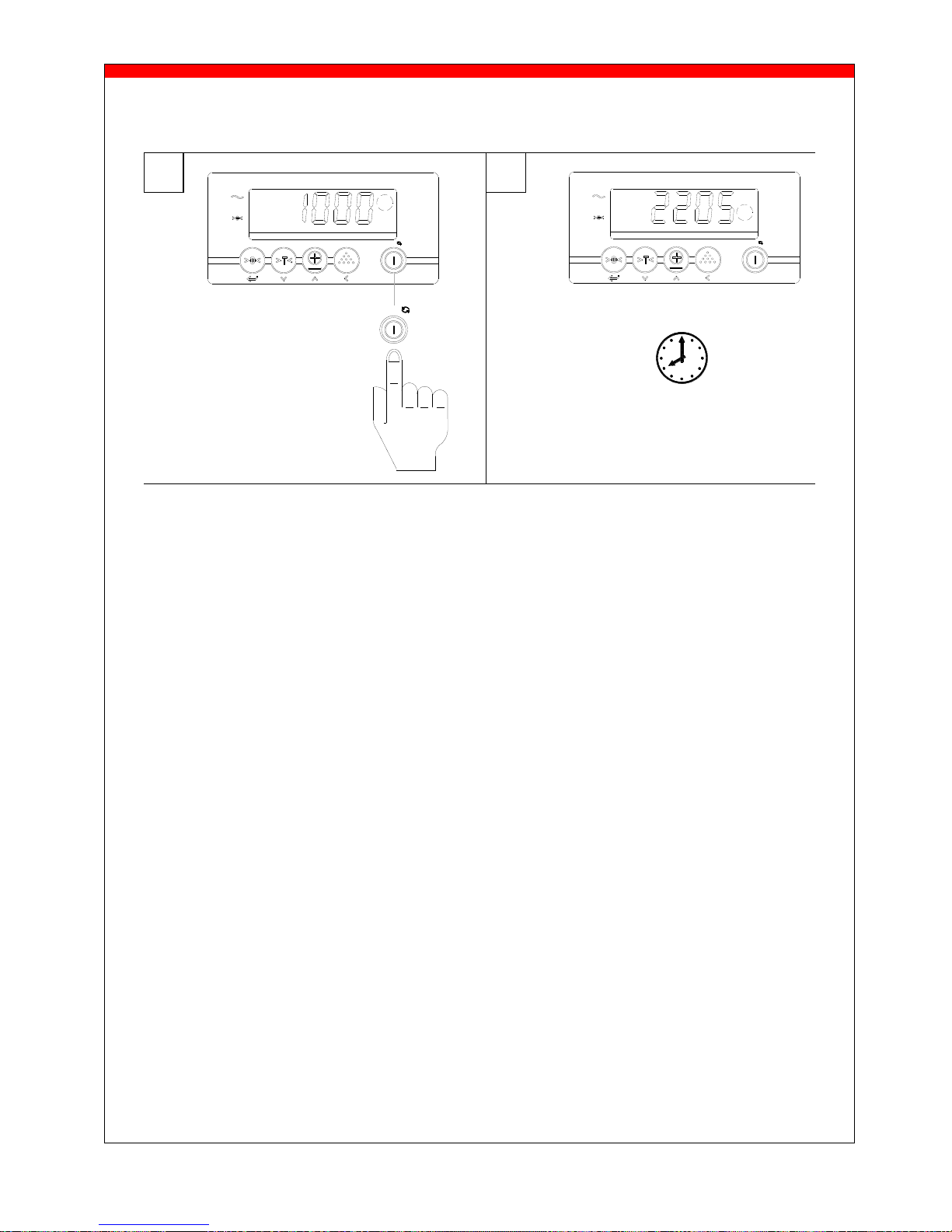

6.4 Auto shut-off indicator

2 5 4

1

no action !

Countdown starts:
Press any key during to
cancel auto-shut-off and
go back to the weighing
mode.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

Indicator off

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

3

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

USER MANUAL – iForks

18

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

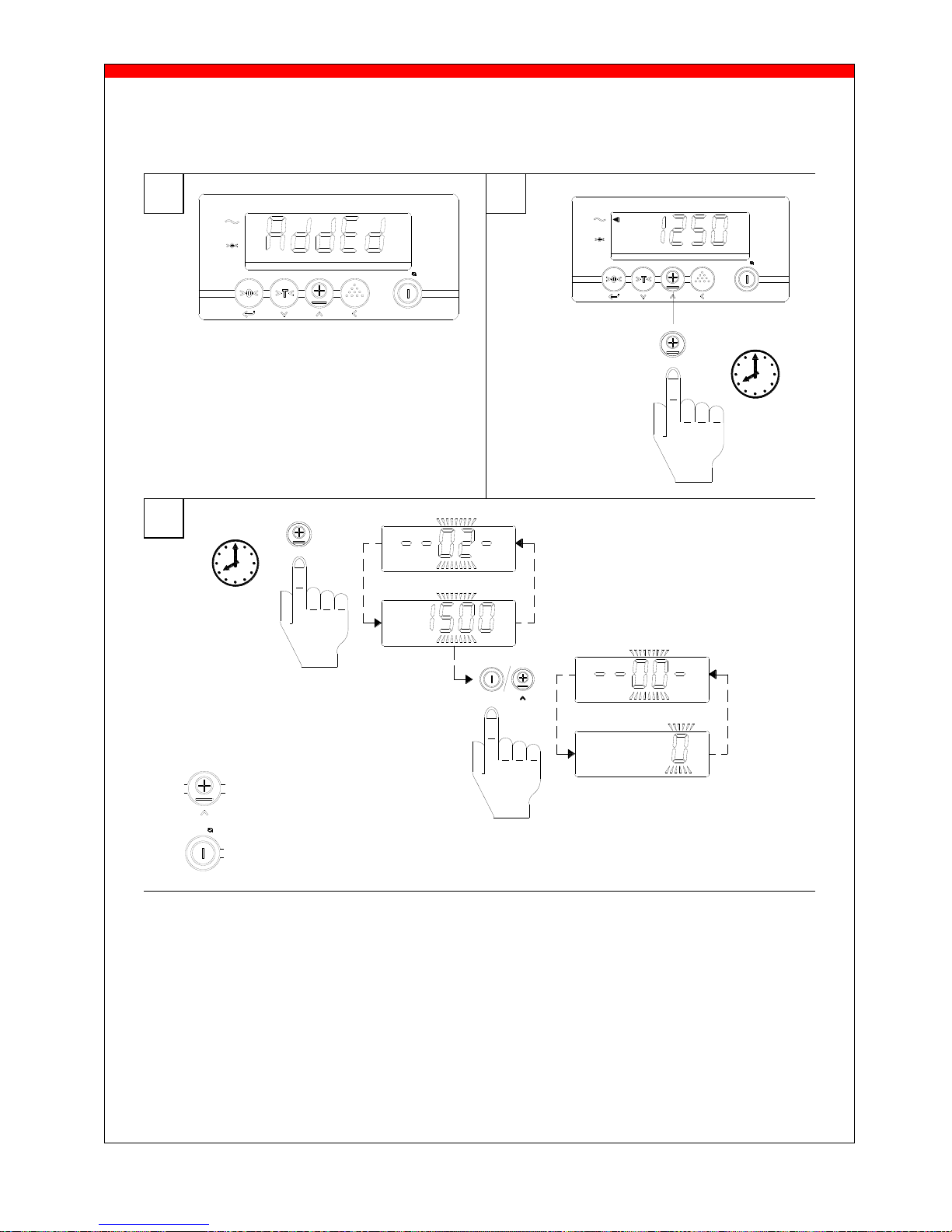

6.5 Auto shut-off iForks

Switch on the iForks:
press the blue button below both batterypacks.

2 3 4

1

Restart the indicator:
Press the on/off key.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

- iForks off

-Indicator off

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

2 hour

no weighing !

USER MANUAL – iForks

19

6.6 Indicator functions

Display Functions

the weighing system (including load) is stable

the weight shown is negative

ZERO the weight shown is within the zero range

NET the display is showing the net weight

e1 displayed weight shown is in range 1 (option multi range)

e2 displayed weight shown is in range 2 (option multi range)

e2 displayed weight shown is in range 3 (option multi range)

F1 Fork 1 / setpoint 1 is activated ( option relay output)

F2 Fork 2 / setpoint 2 is activated ( option relay output)
kg displayed shows weight is kilograms
lb displayed shows weight is pounds
pcs number displayed represent number of pieces on the scale

low bat indicator

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

pcs

lb

kg

USER MANUAL – iForks

20

Key functions

Each key has 2 operational and one entry function.

Standard function Key Special function Value entering
(Short key press) (long key press) function (entry mode)

zero setting code entry

enter

automatic tare pre-set tare

decrease the value
of the digit flashing

print weight and add to check subtotal and print total
the total

increase the value of
the digit flashing

sampling a piece weight enter a piece weight

shift to the next digit
on the left

On switch Off switch
And change to lb and kg

clear entry

Important

Operation of a key is not accepted unless the weighing system is stable (and the “load stable” pointer

lights up). This means that the indicator only executes commands with a stable load.
For a detailed description of the functions CODE ENTRY, PIECE COUNT and RELAY check our operational

manual Indicator 4100 at www.ravas.com.

ID CODE

PT

TOTAL

PCS

KG/LB

CLR

USER MANUAL – iForks

21

6.7 Error messages

ERROR MESSAGES

Display

Meaning

Out of error mode

Err01

Load cell signal is unstable

Automatic

Err02

Overload on full scale

Automatic after removing weight

Err03

Gross negative. This action is not allowed

Automatic

Err04

Out of zero range

Press any key

Err05

Sampling accuracy too low

Press any key

Err06

Input signal too high

Automatic after correcting input

Err08

Calibration out of range (negative)

Automatic

Err09

Calibration out of range (signal too low)

Automatic

Err10

Calibration count 2nd(3rd) point lower than count
1st(2nd) point

Automatic
Err14

Setpoint value 2 < setpoint value 1. This is not allowed

Automatic

Err97

Err98

Legal for trade version: not allowed action

Calibration point must be higher than previous one

When action is intended, install jumper JP1
( attention: after this action a complete
new calibration and stamping of the
system is necessary )
Automatic

Err99
ErrF1
ErrF2

---­L - _
ErrCS

+F1

+F2

Action only allowed in start-up units
Problem with fork 1 (no communication)
Problem with fork 2 (no communication)
Loadcell signal negative
Forks are out of level (only legal-for-trade version)
Problem with correction sensor
Battery of indicator is empty
Battery of fork 1 is empty

Battery of fork 2 is empty

Automatic
Restart indicator. Restart forks & indicator
Restart indicator. Restart forks & indicator
Lift up the forks from the ground
Put the forks into horizontal position
Contact the RAVAS Service department
Replace the 4 AA batteries
Replace the D-cells in both battery packs or
charge both battery packs
Replace the D-cells in both battery packs or
charge both battery packs

DISPLAY MESSAGES

Display

Meaning

BltF1
BltF2

Successful Bluetooth link with fork 1
Successful Bluetooth link with fork 2

No error
No error

USER MANUAL – iForks

22

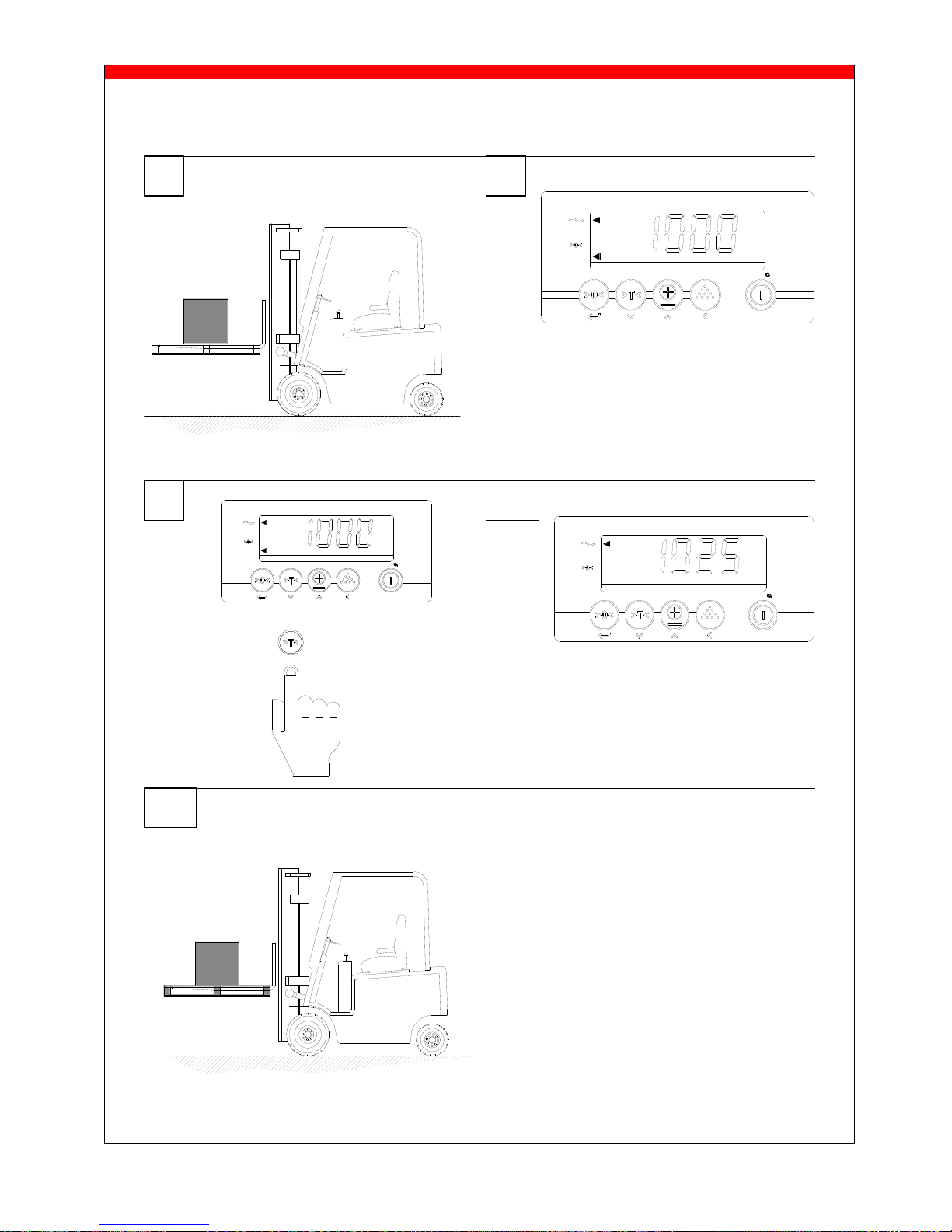

6.8 Net / Tare / Gross weight

EXPLANATION: Net(1) + Tare(2) = Gross(3)

6.8.1 Net weighing: automatic tare

2 1 3

4

The indicator is set to zero.
The “NET” pointer shows that
the tare weight is activated.

1 2 3

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

USER MANUAL – iForks

23

5 7 8

9

The display shows the net value
of the weighed load.

The gross weight is displayed
again.

1000

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

6

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

1000

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

USER MANUAL – iForks

24

3 sec.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL

PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

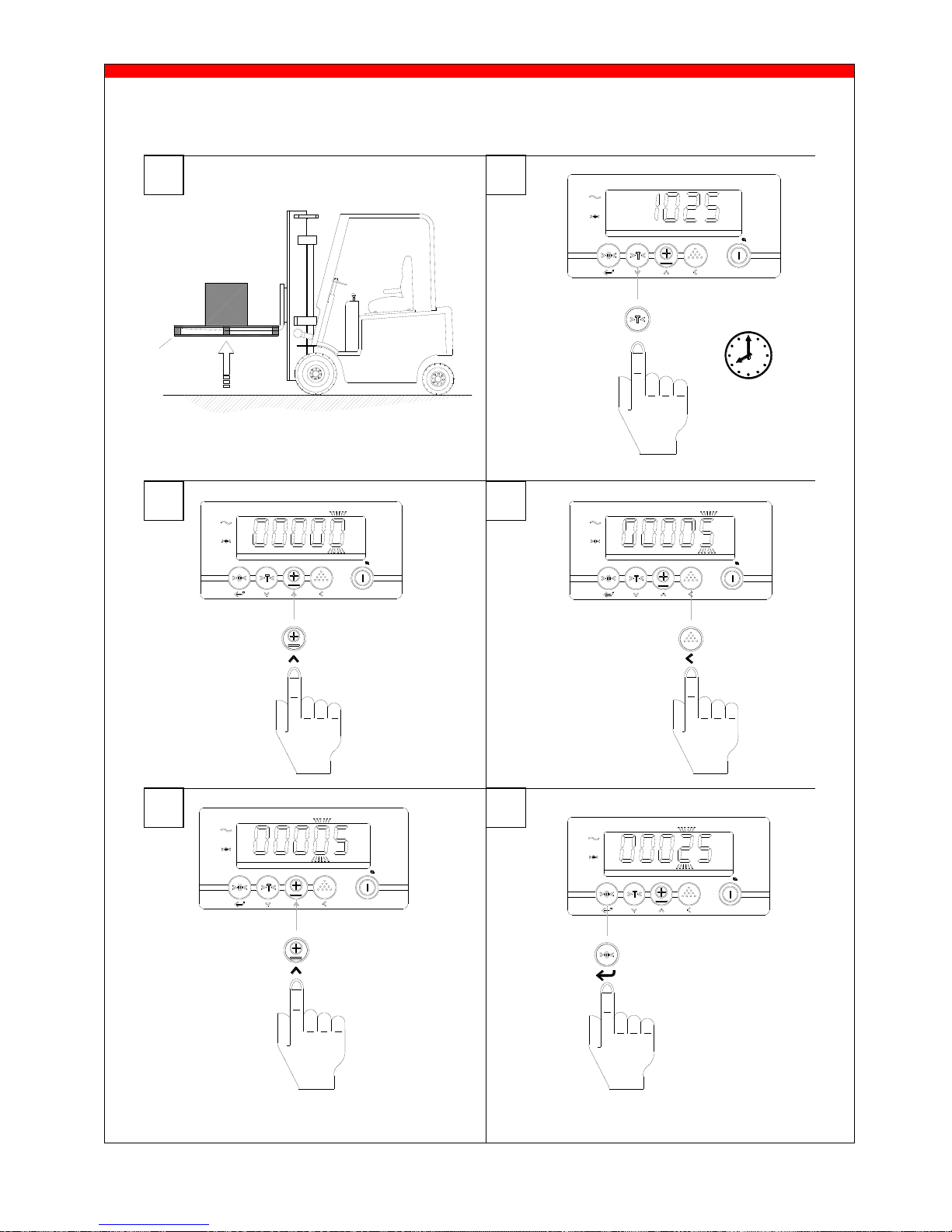

6.8.2 Net weighing: manual tare (PT)

2

1

6

3

4

5

Press the
PT key for 3
sec.

Press the up
or down key
until the
desired
value is
reached.

5x

Press the up
or down key
until the
desired
value is
reached.

1x

1000

25

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

Press ENTER
to activate the
tare weight.

2x

USER MANUAL – iForks

25

8

7

12

9

10

11

The “NET”pointer lights up

When the iForks are
completely unloaded, the
tare value is displayed
negatively.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

1000

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

1000

USER MANUAL – iForks

26

14

13

The gross weight is displayed
again.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

USER MANUAL – iForks

27

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

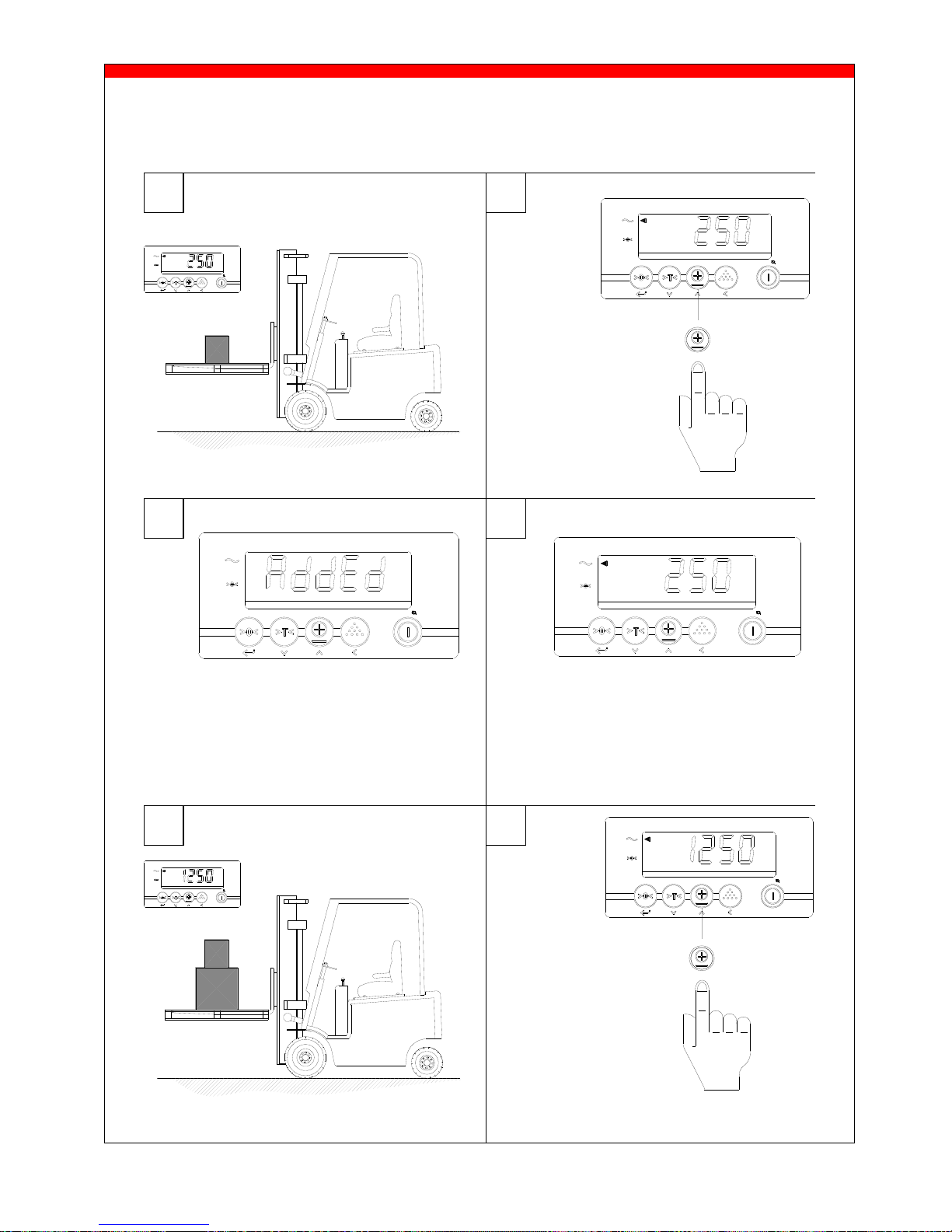

6.9 Adding & reset

Press the TOTAL key
to add the weight load
to the total weight.

2

1

6

3

4

5

The display returns to the
weighing mode automatically.

If a printer is
installed, a printout
will be made. The
gross, net and tare
weights are printed.

250

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

250

1000

e1 e2 e3 F1 F2

NET

ID CODEPTTOTAL PCS KG/LB

CLR

e1 e2 e3 F1 F2

NET

ID CODEPTTOTAL PCS KG/LB

CLR

Press the TOTAL
key to add the
weight load to the
total weight.

If a printer is
installed, a printout
will be made. The
gross, net and tare
weights are printed.

USER MANUAL – iForks

28

3 sec.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

3 sec.

CLR

8 7 9

The subtotal
can be checked
by pressing the
TOTAL key for
3 sec.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

TOTAL

KG/LB

CLR

= RESET TOTAL & PRINT

= RESET TOTAL

USER MANUAL – iForks

29

6.10 KG- LB switch

2

1

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

kg

KG/LB

5 sec.

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

lb

USER MANUAL – iForks

30

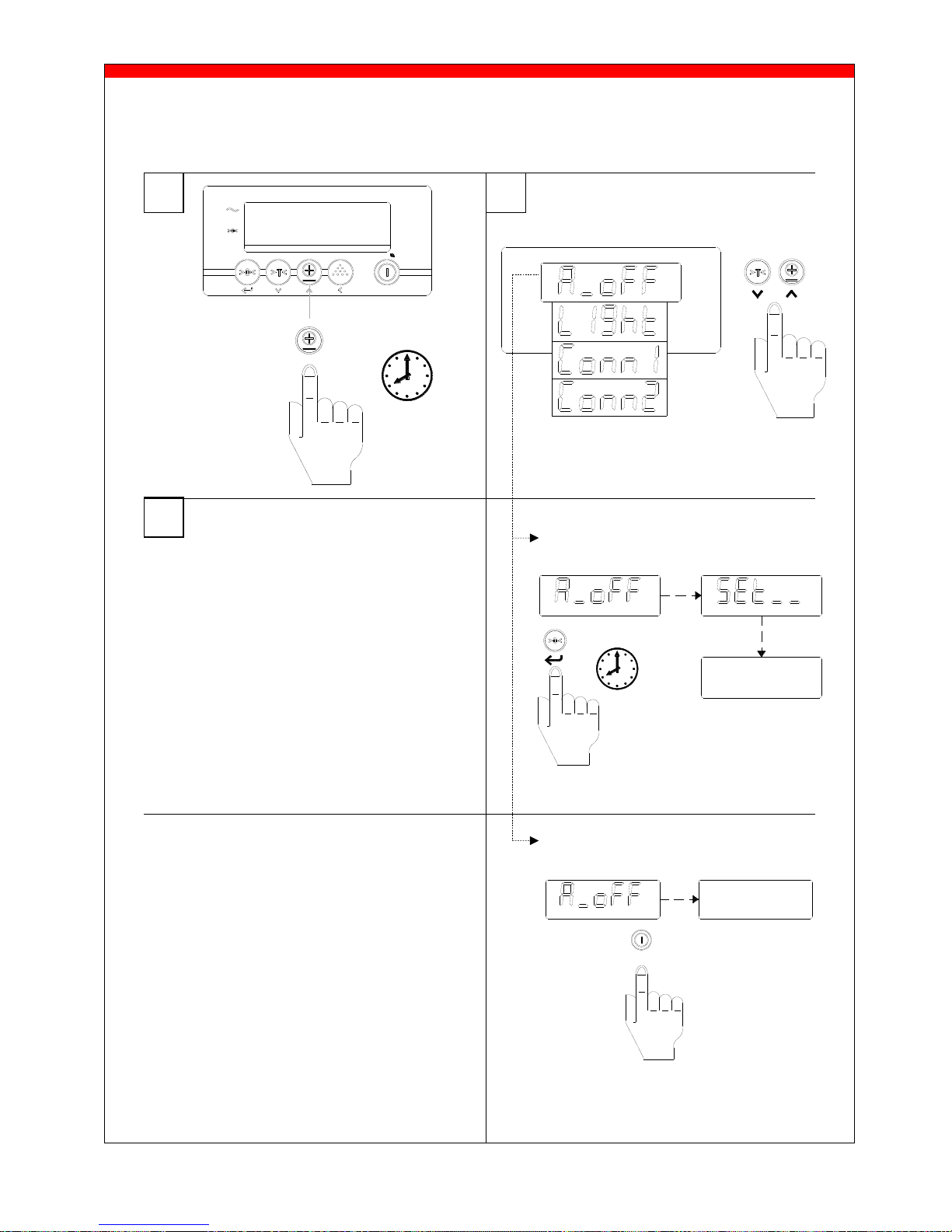

6.11 User settings

2 1 3

CLR

3 sec.

EXIT without SAVING
EXIT & SAVE

Back to
weigh mode

Back to
weigh mode

e1 e2 e3 F1 F2

NET

ID CODE

PT

TOTAL PCS KG/LB

CLR

10 sec.

??

The user menu
can be entered
by pressing the
TOTAL key for
10 sec.

These user settings can be changed if
desired. See next pages.

USER MANUAL – iForks

31

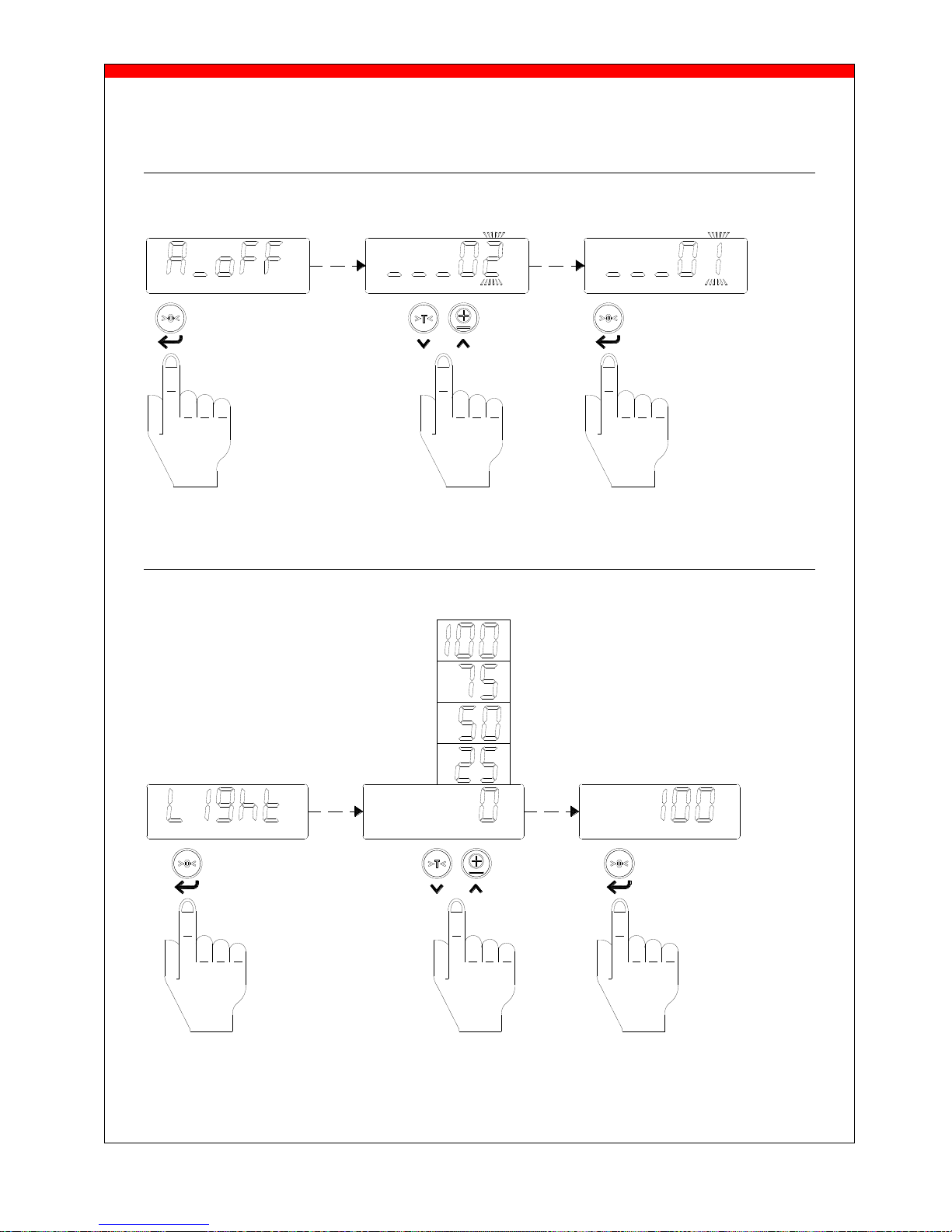

Set the auto shut-off time indicator (delay time in minutes)

Set backlight (intensity in %)

0 min = indicator always on

0 % = backlight off

USER MANUAL – iForks

32

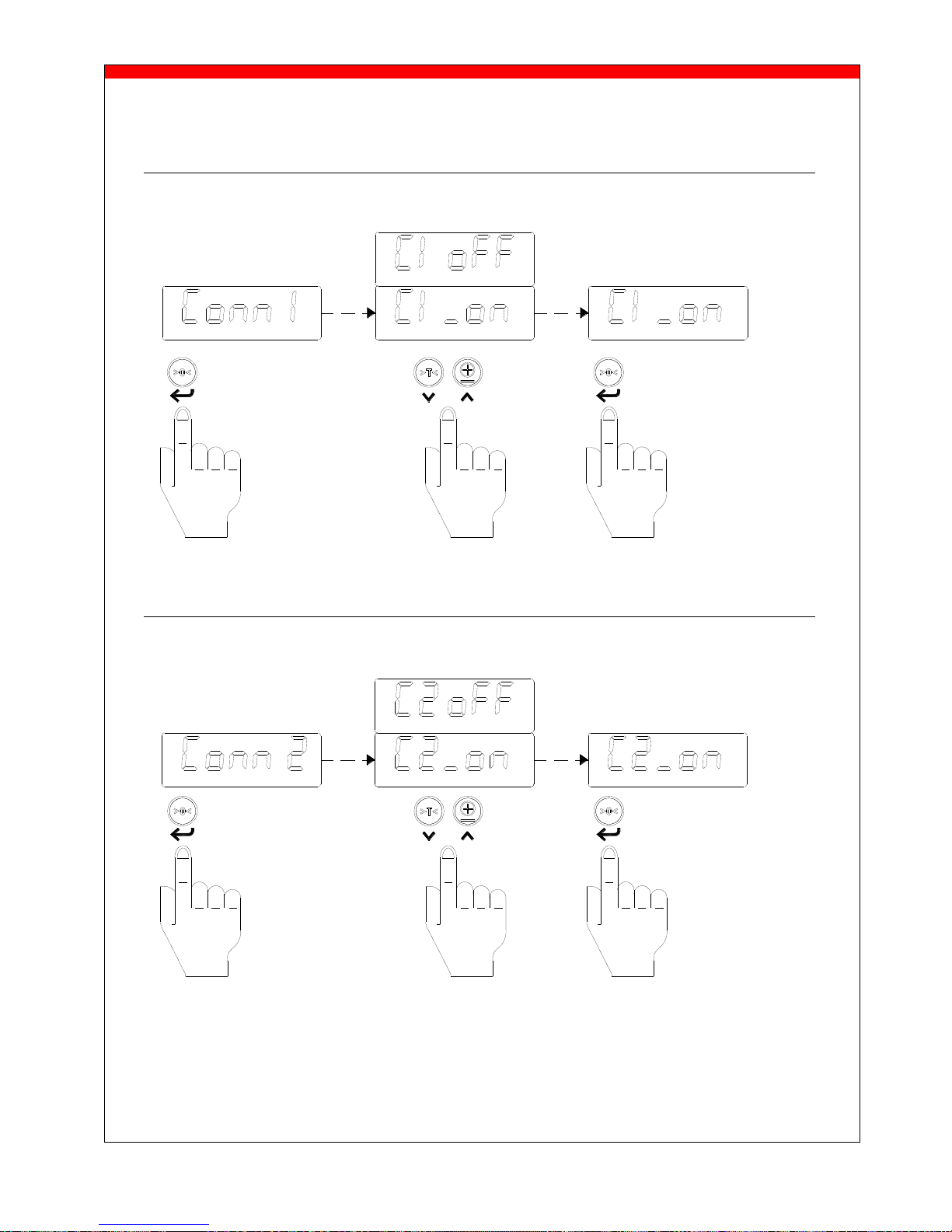

(De-) activate Com Port 2

(De-) activate Com Port 1

It is not possible to de-activate Com Port 1 for iForks

USER MANUAL – iForks

33

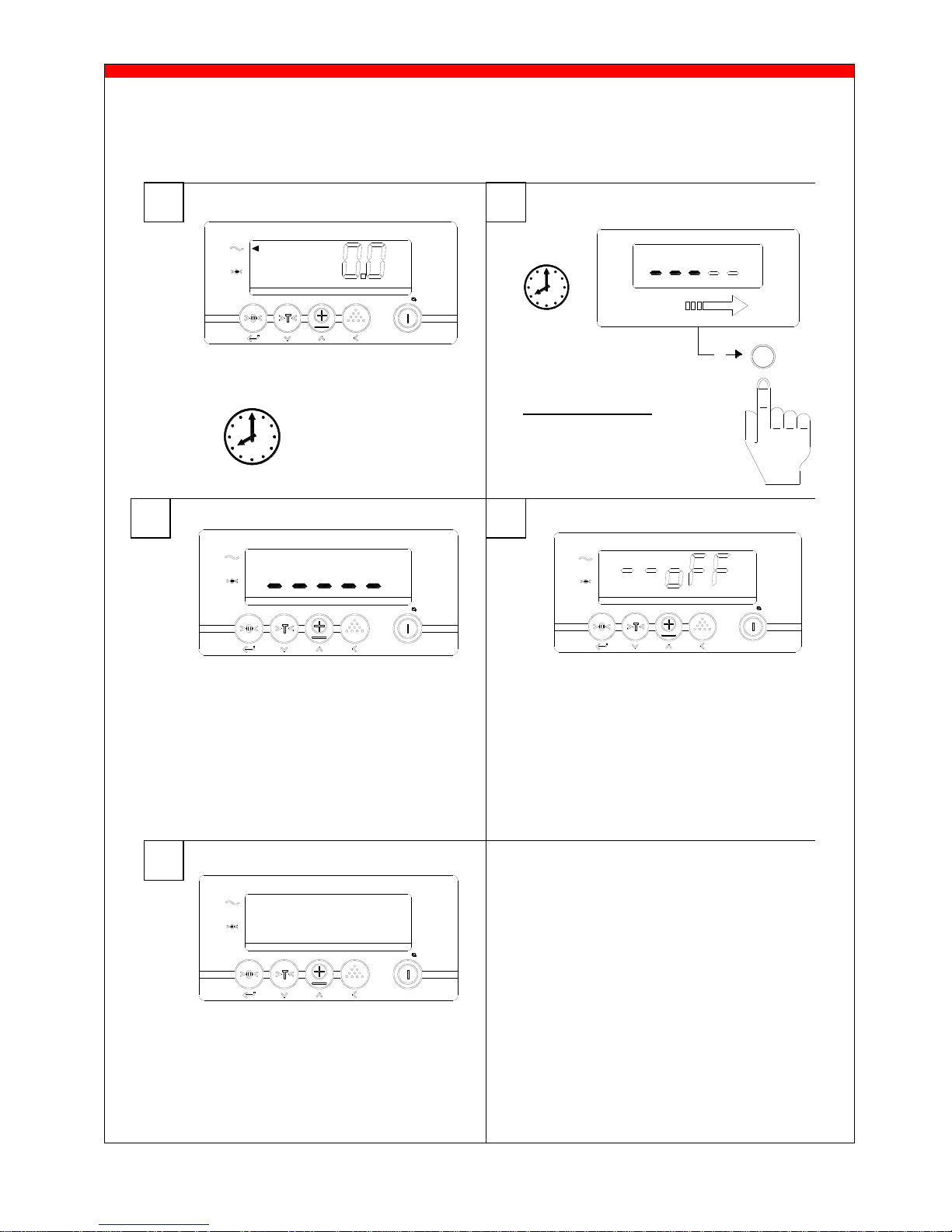

6.12. Changing the time and date on the printout

If the weighing system has been equipped with a printer, and an option board, the date and time can
be printed together with the weight information.

 Press the key for 6 seconds.

 The display will show “ho_00” or the previous hour time setting
 The right digit flashing.

 To accept the old value press ENTER ().

Or

 Press the  key to go up a value or press the  key to go down a value until the required value is

reached.

 Press  to change to the next digit and use the  or  key to change the value until the required

value is reached.

 To accept the new value press ENTER ().

 The display will show “m_00” or the previous minute time setting.
 The right digit flashing.

 Repeat the above procedure to accept or change the minute setting.

 The display will show “dA_00” or the previous date of the month setting
 The right digit flashing.

 Repeat the above procedure to accept or change the date of the month setting.

 The display will show “m_00” or the previous month setting.
 The right digit flashing.

 Repeat the above procedure to accept or change the month setting.

 The display will show “YE_00” or the previous year setting.
 The right digit flashing.

 Repeat the above procedure to accept or change the year setting.

 The indicator will return to normal weighing mode.

USER MANUAL – iForks

34

DECLARATION OF CONFORMITY

Issued by: RAVAS Europe B.V.

Toepadweg 7
5301 KA Zaltbommel
The Netherlands

In accordance with the requirements of:

EMC Directive 2004/108/EC

Council Directive 2009/23/EC, only for OIML Class III

approved systems

Forks are produced according to international standards:
ISO 2328
ISO 2330
EN 1726-1, paragraph 5.6.5

In respect of: a non-automatic weighing instrument
Manufacturer: RAVAS Europe B.V.

Model: iForks
Description: weighing forks

This declaration of conformity is valid when the above-mentioned instrument is marked with
the CE mark. The instrument is verified in the factory and may be used immediately.

We, RAVAS Europe B.V., declare under our sole responsibility that this weighing system is in
conformity with the directives and standards mentioned.

H.P.M. van Seumeren

Technical Director
