Page 1

Optima

702

ELECtRiC SCiSSORS

USE maNUaL

Page 2

COMPANY

Rasor® Elettromeccanica S.r.l. was established in Milan in 1946 by Luigi Spinelli. For more than sixty years it has been producing automatic cutting systems, cutting units for textile applications and electric and pneumatic cutters.

Initially considered as a point of reference for cutting systems in the

textile applications, the Rasor® products are nowadays widely used in other fields: chemical, automotive, nautical and sport sectors and in furniture manufacturing.

Rasor® can rely on the professional continuity of three generations, thanks to the precious support of the promoting partner, to his passion, dedication and great experience of seventy years. The main characteristic of Rasor® is that each working phase, starting from the manufacturing of the product up to its packing and delivery, is carried out in Rasor® premises by qualified operators who have professionaly grown up following the spirit of the company and of its founders. This ensures the high quality which Rasor® has always considered as essential since the beginning of its activity. Following the innovative spirit mentioned above, our company is constantly focused on the improvement of the product quality, on the study and development of new materials and technologies.

ACKNOWLEDGMENT

Dear Customer, thank you for choosing a Rasor® Elettromeccanica S.r.l. product. Rasor® has been a reference point in the field of cutting systems in the textile, clothing, furniture, tailoring, sport, chemical, automotive, nautical and insulating material sectors for years. Its production has been always synonymous with reliability attested by many of satisfied customers. Rasor® quality system supervises all the company activities in order to provide the Customer with a service that meets its needs and expectations in terms of product quality, delivery reliability and stock of finished products. All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor products, it is recommended using only original spare parts and to contact the head office for any maintenance work.

Page 3

1. GENERAL SAFETY RULES

This manual is an integral part of electric scissors OPTIMA 702 and must be carefully read before using it, since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.

Before using electric scissors OPTIMA 702, read carefully the following general safety rules.

• PACKAGING. After taking off the packaging make sure that the electric scissors are intact. In case of doubt do not use them and contact an authorized service centre. Do not leave pieces of packaging (plastic bags, foam polystyrene, boxes, etc.) within the reach of children or disabled persons, since they are potential sources of danger.

• AVOID DANGEROUS ENVIRONMENTS. Prevent the electric scissors OPTIMA 702 components from coming in contact with damp or wet surfaces.

• KEEP CHILDREN AWAY. Unauthorized persons, in particular children, must be kept away from the working area.

• FEED CABLE. Prevent the feed cable from coming in contact with hot objects, pointed surfaces or sharp edges. Never pull the feed cable of the machine. It must never be replaced by the user. If necessary contact professionally qualified staff.

• KEEP THE WORKING AREA ALWAYS IN ORDER. The workplace must always be kept in order and well lightened; liquids or oil traces must not be present.

• ALWAYS USE ELECTRIC SCISSORS OPTIMA 702 PROPERLY. Use the electric scissors only to carry out the works they have been designed for; do not use them improperly.

• OBSERVE THE USE OF THE TOOLS. Do not cut excessively thick materials and always check blade conditions.

• AVOID ACCIDENTAL STARTINGS. Before connecting electric scissors OPTIMA 702, make sure that everything is installed properly.

• CLOTHING. Do not use large clothes or accessories that might get stuck in the moving parts.

• GOGGLES AND PROTECTIVE METAL MESH GLOVES. Always use goggles, protective metal mesh gloves approved by Rasor® during use and maintenance operations (according to UNI EN 388:2004 standard).

• SPARE PARTS. During maintenance and replacement operations use only original spare parts. Blade maintenance must be only performed by Rasor® technicians.

• INSTALLATION. Any installation that is not in conformity with these specifications could jeopardize your safety and cancels the warranty.

Page 4

Informative letter

The installer and the maintenance man must know the content of this manual. Although the main features of the equipment described in this manual are not subject to change, Rasor® Elettromeccanica S.r.l. reserves the right to modify the components, details and accessories it deems necessary to improve the product or to meet manufacturing or commercial requirements at any time and without being obliged to update this manual immediately.

WARNING

ALL RIGHTS ARE RESERVED ACCORDING TO THE

INTERNATIONAL COPYRIGHT CONVENTIONS,

The reproduction of any part of this manual, in any form, is forbidden without

the prior written authorization of Rasor® Elettromeccanica S.r.l.

The content of this guide can be modified without prior notice. Great care has

been taken in collecting and checking the documentation contained in this

manual to make it as complete and comprehensible as possible.

Nothing contained in this manual can be considered as a warranty, either

expressed or implied - including, not in a restrictive way, the suitability warranty

for any special purpose. Nothing contained in this manual can be interpreted as a

modification or confirmation of the terms of any purchase contract.

Rasor® Elettromeccanica S.r.l. products have not been conceived to work in areas at risk of explosions and at high risk of fire and they cannot cut wet or damp materials. Moreover, they cannot work in case of rain. In case of damage or malfunction, electric scissors OPTIMA 702 must not be used until the Customer Care Technical Service has repaired them.

Customer Care Technical Service

For any information, please contact

RASOR®ELETTROMECCANICA S.r.l.

Via V. Caldesi, 6; 20161, MILANO (MI) - ITALY

Phone: +39.02.66221231; Fax: +39.02.66221293

e-mail: [email protected]

web: www.rasor-cutters.com

WARNING

The original configuration of the electric scissors must not be changed at all. On receiving them, make sure the supply corresponds to what has been ordered. In case of non-compliance immediately inform Rasor®. Also make sure the scissors have not been damaged during transport.

Page 5

2. TRANSPORT AND PACKING

The electric scissors are delivered in a carrying case, inside which there are various options. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are contained in a bag inside the carrying case:

1) Quadrangular blade (4 sides);

2) Grease tube;

3) Drift for blade assembly/disassembly;

4) Brushes for electric motor;

5) Fuse 1.25 A;

6) Butterfly wrench for blade nut disassembly.

3. PLATE DATA

The manufacturer's identification and EC STANDARD 2006/42/EC conformity plate (see picture below) is located on the front part of the electric scissors.

The plate must not be removed at all, even if the equipment is resold. Always refer to the serial number (written on the plate itself) when contacting the manufacturer.

Several safety warnings are printed on a card which is applied to the scissors feeding cable; such warnings must be strictly followed by everyone dealing with the equipment. The

company is not to be held responsible for damage to property or accidents to people which might occur if the above-mentioned warnings are not observed. In such a case, the operator is the only person responsible.

Model

Electric data

220

OPTIMA 702

230

750

60 0.5

W___________

150

Class II double insulation

Serial number

Year of production

READ THE

INSTRUCTION

MANUAL

USE

METAL

GLOVES

USE

GOGGLES

SHEARING

RISK

DO NOT

REMOVE

THE

SAFETY

DEVICES

HIGH

VOLTAGE

Page 6

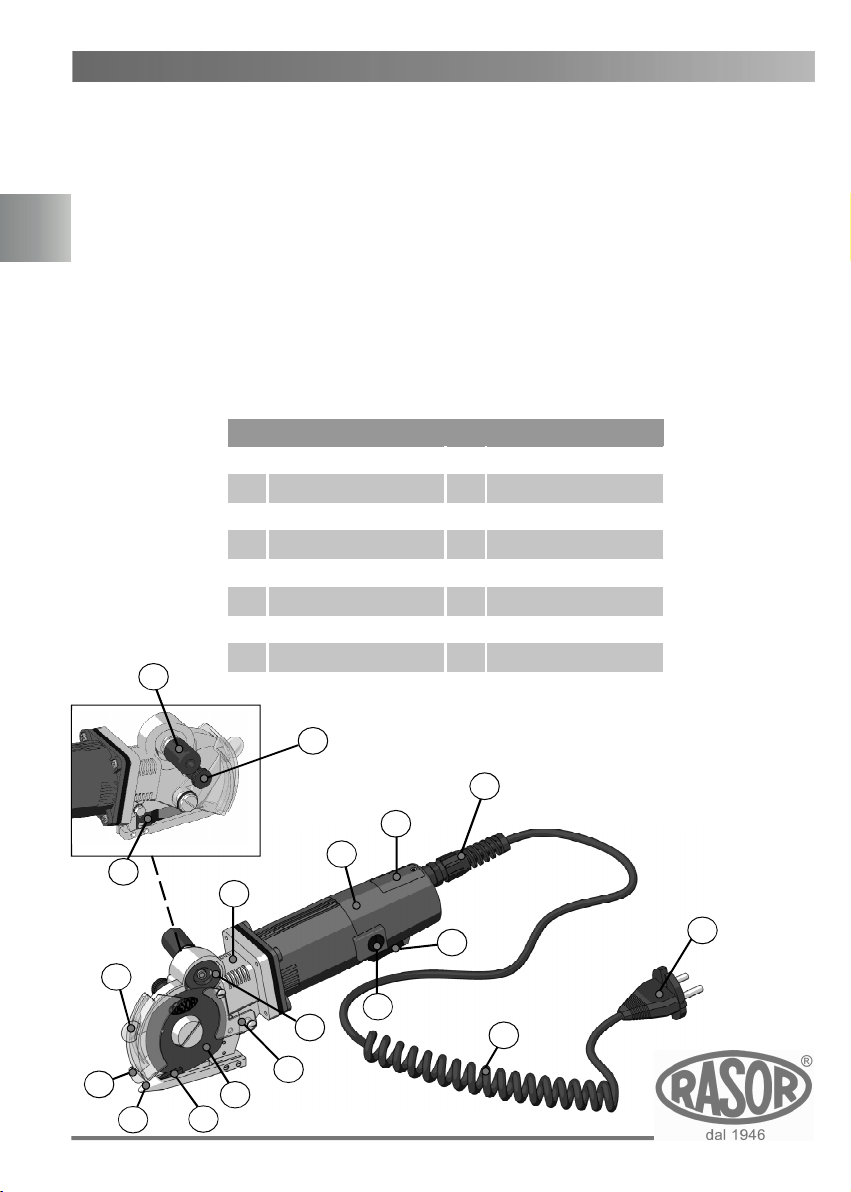

4. PRODUCT DESCRIPTION

This manual describes electric scissors model OPTIMA 702 which are used in order to quickly cut fabrics in the textile industry and other materials. They are extremely versatile, light and precise in the cutting operation. Thanks to the use of a supporting front foot and of an effective cutting system with quadrangular blade, it is possible to use the electric scissors to cut different materials. In particular the scissors have been designed to cut difficult materials such as moquettes, polymeric materials, fiber glass, insulations and leather (even hide).

One special feature of electric scissors OPTIMA 702 is their ability to sharpen the blade in

each moment, without disassembling it, by means of a grinding wheel mounted on the scissors head. After carrying out this operation, it is possible to immediately start cutting again. A high power motor, perfectly balanced, with a high number of revolutions and totally free of maintenance, reduces the vibrations to the minimum. For this reason the electric scissors comply with Legislative Decree no 187 dated 19/8/2005, which adopts European Directive no 2002/44/EC concerning the risks deriving from mechanical vibrations. The mechanical parts are made of high-quality steel, bronze and aluminium and require lubrication after several working hours.

Device components

1 Enabling push button 10 Sharpening button

2 Spiral cable gland 11 Front protection guard

3 Spiral feeding cable 12 Motor support

4 Two-pole Contur plug 13 Motor casing

5 Steel foot 14 Back protection guard

6 Steel polygonal blade 15 Reference point

7 Greaser 16 Carbide counterblade

8 Brush holder cap 17 Plate locking the threads

9 Emery grinding wheel 18 Fuse cover

Page 7

5. TECHNICAL FEATURES

Teflon® coated HSS steel quadrangular

Integral carbide hexagonal blade

operations

Electric scissors OPTIMA 702 features

Blade diameter

Blade speed

Cutting working depth

Motor power

Max. Absorption

Weight (with feeding cable)

Weight with package

Electrical cable length

Minimum luminosity for working

Vibrations at the start up

Temperature

Humidity

70 mm with carbide counterblade

750 revolutions/min

about 20 mm

Monophase 220 V - 150 W

0.5 A

1150 g

2000 g

1.5 mt

LUX 200

< 2.5 m/s

0 ~ 55°C

10 ~ 95% without condensate

Features of the available blades

HSS steel quadrangular blade Ø 70 mm

70SHSS

70EHSS

HSS steel hexagonal blade Ø 70 mm

70CEXT

70DHSS

70SHSSTF

70EHSSTF

70EMD

Extra steel circular blade Ø 70 mm

HSS steel decagonal blade Ø 70 mm

blade Ø 70 mm

Teflon® coated HSS steel hexagonal

blade Ø 70 mm

Ø 70 mm

The technical data is only indicative and it can be changed without notice.

6. NOISE LEVEL

The maximum acoustic pressure level emitted by electric scissors OPTIMA 702 is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010. The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A).

NOTE

It is advisable for electric scissors OPTIMA 702 owners to verify the compliance with the standard concerning safety of workers: Italian legislative decree 81/08. The use of ear protecting devices is compulsory.

7. FIELD OF APPLICATIONS

Electric scissors OPTIMA 702 have been designed, manufactured and assembled to cut every kind of fabrics or materials, with the exception of metal, plastic or wood, by means of rotary blades. This equipment must not work:

-in areas prone to explosions;

- in presence of fine dust or corrosive gases;

- on wet or damp materials;

- to cut plastic, metal and wooden materials.

It is forbidden to use electric scissors OPTIMA 702 for purposes different from the above-mentioned ones.

Page 8

8. USE WARNINGS

We recommend following the indications below in order to always work in safety conditions.

· All the operations must be carried out complying strictly with the safety rules of the country where the device is sold.

· It is STRICTLY FORBIDDEN to smoke during the installation or adjustment operations of the electric scissors.

· The Customer undertakes to comply with and make his staff observe all the rules and regulations in force concerning safety, prevention of accidents and health in the work place. Therefore, the Customer assumes the responsibility to strictly follow all the rules and regulations in force, as well as the special provisions in force in sport and public installations the Customer declares to know after receiving all the relative necessary pieces of information.

· The electric scissors work also without their safety protective device. This protective device must NEVER be removed.

· Always check the resistance of the material to be cut and the kind of blade which is being used.

· The Customer shall equip his own personnel with all the individual safety protections for the execution of the works, as well as with the ones which might be prescribed by the Manufacturer due to specific danger conditions of the plant or of the area where the personnel must work.

· Only one operator must use the electric scissors always standing behind the guide handle. Do not make any adjustment while the blade is working or while the electric plug is connected.

· Always pay attention to the electric cable position to prevent it from being cut or damaged by the blade.

· It is allowed to assemble electric scissors OPTIMA 702 on machines O.E.M. on condition that their original structure is not modified. Otherwise, the intervention must be certified by Rasor®.

9. RESIDUAL RISKS

Even though the electric scissors are safe, operators must pay attention to preserve their and other people’s safety.

L At the end of the working operations, the motor could be very hot. L The cutting blade can work even when the protective device is disassembled.

Page 9

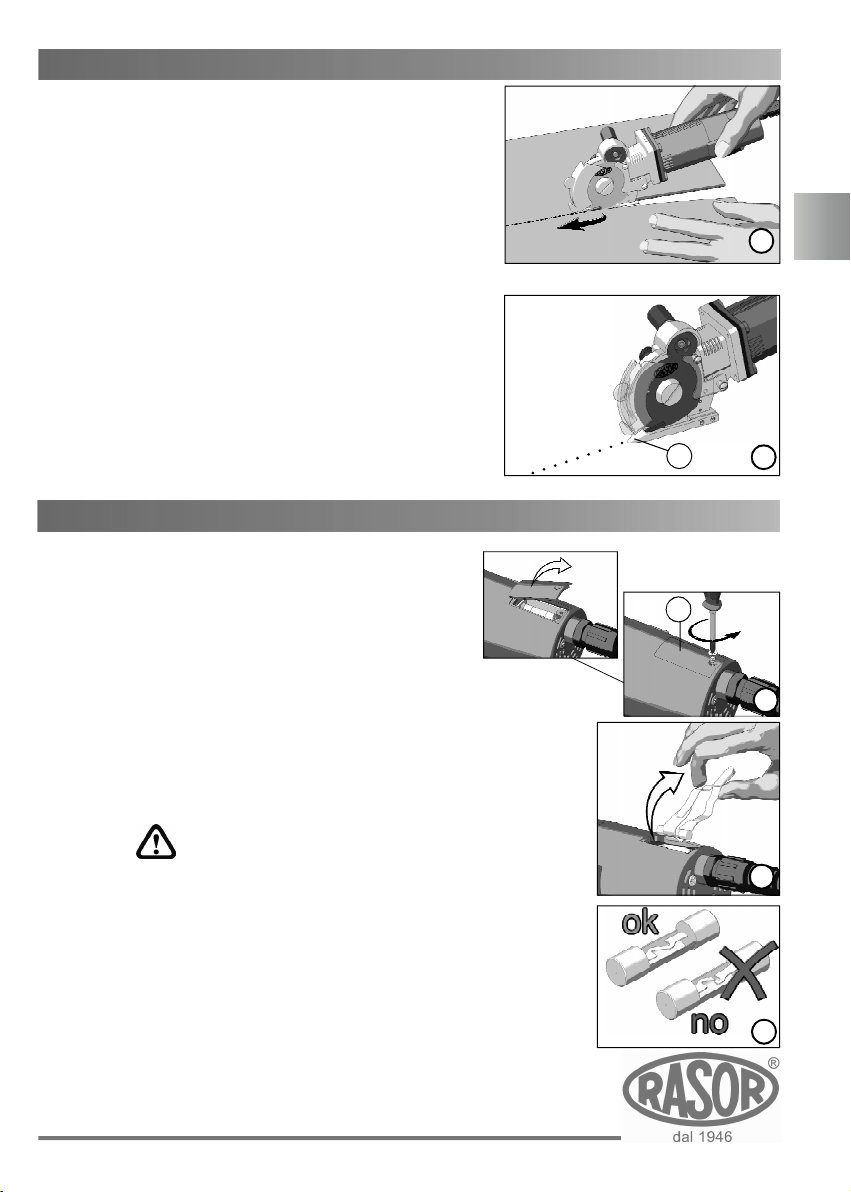

10. USE

To use the electric scissors manually, proceed as follows:

1) Lay the material to be cut on a table;

2) Connect the scissors to the power supply;

3) Put the material on the cutting foot;

4) Enable the enabling push button (see picture 3);

5) Push the electric scissors in the desired direction, being careful to keep the material in front of them as stretched as possible and preventing it from curling in the front part of the scissors.

NOTE

The thrust on the electric scissors must be as uniform as possible. To carry out linear cuts with precision (and to follow predetermined paths), we also recommend using the arrow point (see point “A” in picture 4).

11. MOTOR FUSE REPLACEMENT

In order to replace the motor fuse, proceed as follows:

1) Disconnect the scissors from the power supply;

2) Remove the screw from the fuse cover (see point “A” picture 5);

3) Take out the glass fuse by means of the proper pliers supplied (see picture 6);

4) Verify its integrity (see picture 7) and, in case, install a new fuse checking the correct amperage;

5) Close the cover and tighten the screw.

WARNING

Never use the scissors when the fuse cover is open. Risk of electric shock.



Page 10

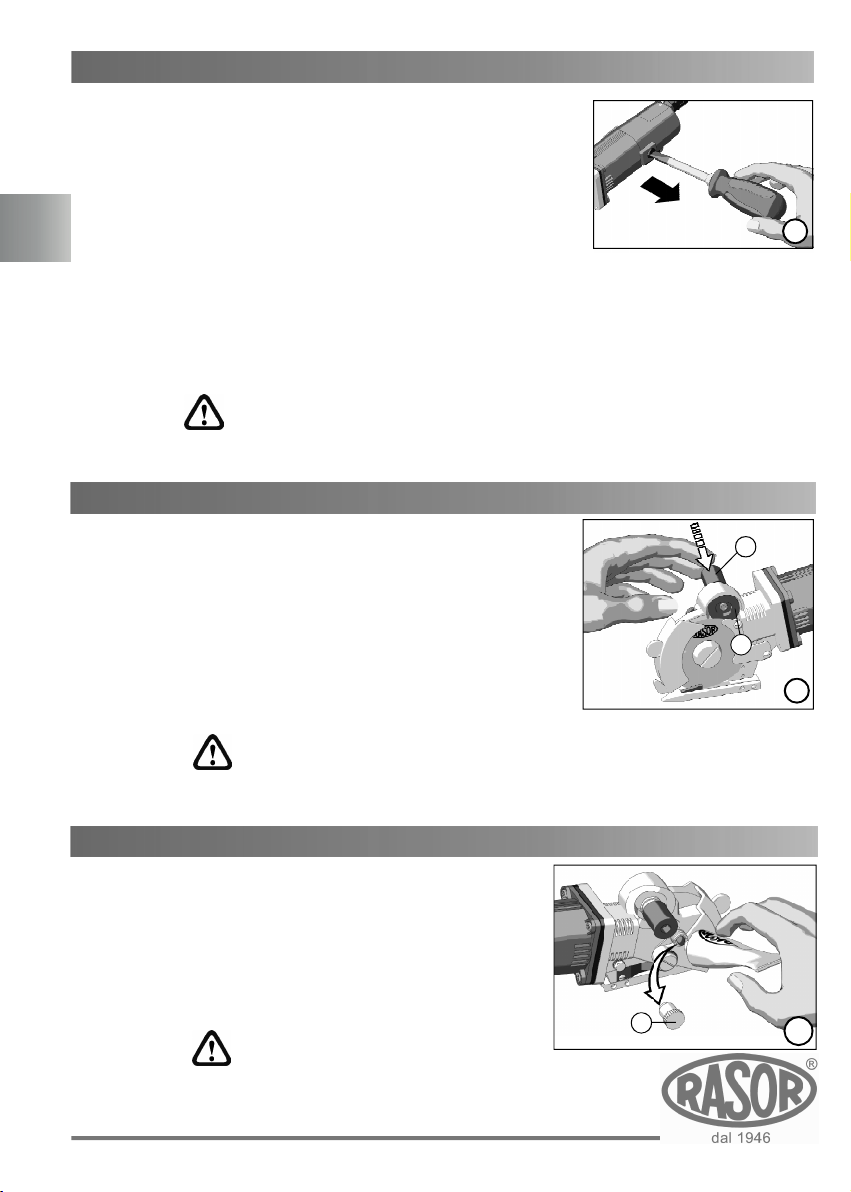

12. REPLACEMENT OF THE MOTOR BRUSHES

Electric scissors OPTIMA 702 are provided with a high power permanent magnet motor and torque. For this reason it is necessary to check periodically if the carbon brushes are worn in order not to jeopardize the motor operation and its duration period. Unscrew the caps located on the cover by means of a slotted screwdriver

(see picture 8); withdraw the carbon brushes, check if they are worn and, if needed, replace them. Assemble the two caps again,

being careful to hold them in a perfectly vertical position, and screw them completely only when you are sure that the mouth is the correct one.

Note: The brush must be inserted with its black part directed inside the motor.

Note: A slight difference in the wear of the two brushes is absolutely normal in a permanent

magnet motor. Nevertheless, in the event that the difference between them is excessive, it is necessary to apply to a technical center for a complete check of the fixture.

WARNING

Before carrying out any operations on the electric scissors, make sure that the supply plug is not connected to the mains.

13. BLADE SHARPENING

After many hours of a continuative use of the electric scissors or if they are not able to cut anymore, it is necessary to sharp the blade. To carry out this operation, start the blade and press sharpening button “1” for 3-4 seconds (as shown in picture 9). Repeat this operation 2-3 times.

If the sharpening process should be ineffective, check the wear of the emery grinding wheel “2” (see picture 9). If wheel “2” is too worn or dirty, replace it by removing the blade with the proper tool.

WARNING

The sharpening button can be only pressed if the front mobile protection is completely lowered.

14. LUBRICATION

Every 3-4 days of use, it is necessary to lubricate the pair of gears. To carry out this operation, remove protective plug “A” located on the head of the electric scissors and fill it with the supplied lubricating grease. Screw plug “A” again few turns. Screw plug “A” some turns every 2-3 working hours (see picture 10). Fill the plug again, once it has been tightened.

WARNING

The blade must never be dirty with grease or oil.

Page 11

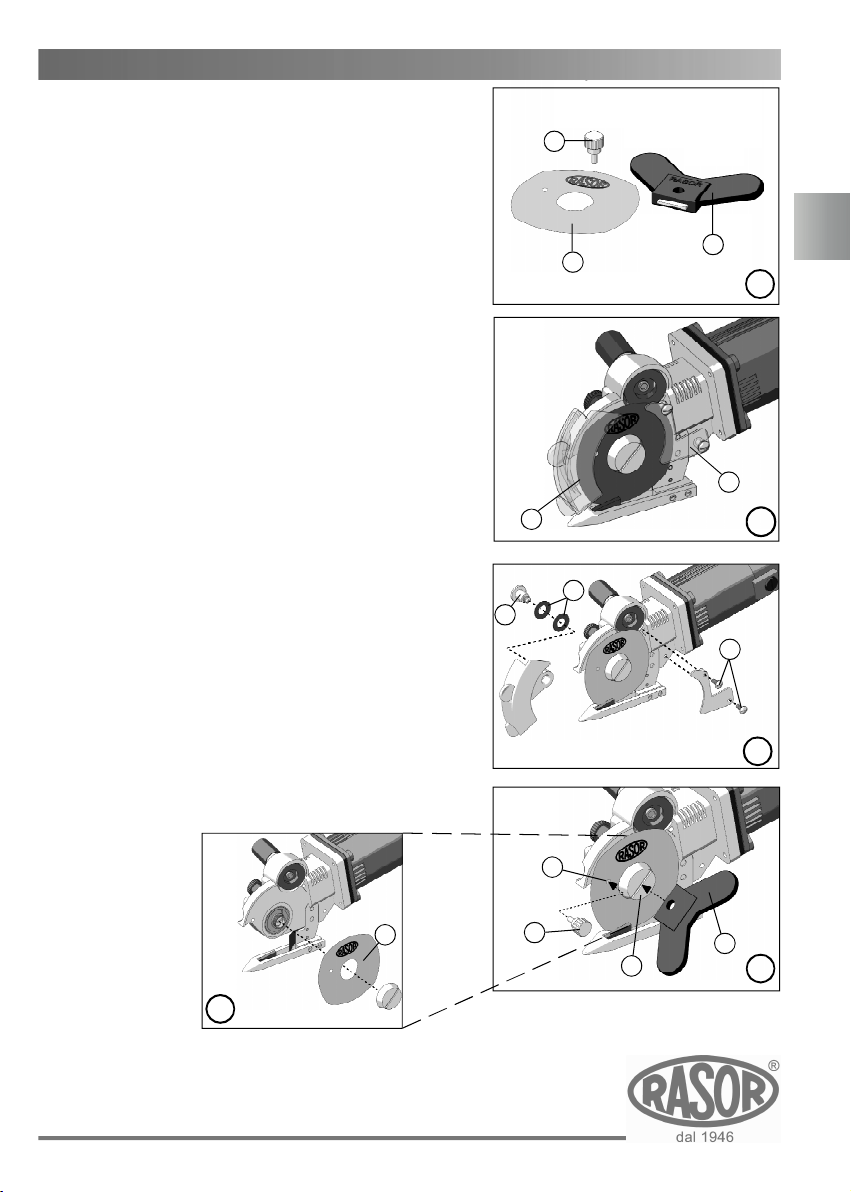

15. BLADE REPLACEMENT

If the blade is no more able to cut (even after repeating the sharpening operation several times), it is necessary to replace it. In order to carry out this operation, use butterfly wrench “1” and drift “3” locking the blade (shown in picture 11). In order to replace the blade, proceed as follows:

1)Use some protective gloves in compliance with Italian Legislative Decree 81/08;

2)Remove the safety back fixed protection “A” (see picture 12), by unscrewing the two slotted screws “C” by means of a screwdriver (not supplied by the manufacturer) as shown in picture

13.

Remove the safety front mobile protection “B” (see picture 12) by unscrewing pin “D” and by extracting the two washers “E” as shown in picture 13.

3)Insert drift “3” (see picture 11) into hole “F” in order to lock the blade (the hole in the blade must correspond to the hole in the structure).

4)Use butterfly wrench “1” in order to unscrew nut “G” (see picture 14) and remove blade “H” (see picture 15).

5)Replace the worn blade with the new one “2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it with the side with the writing Rasor positioned towards the external side of the electric scissors.

6)Assemble all the components again and carry out some cutting and sharpening tests.

Page 12

EMERY GRINDING WHEEL SPRING Ø 11

16. TROUBLESHOOTING

PROBLEM

SOLUTION

Check that blade and counterblade contact with each other

Check the kind of fabric

The fabric is not cut or it gets stuck between the

blade and the counterblade

Check the compatibility between blade and fabric

Sharpen the blade

Check the fabric thickness

Make sure that the motor turns correctly

Reduce the feeding speed

Check the counterblade integrity

Carry out the lubrication

The electric scissors are noisy

Disassemble the blade and remove the material residues

Check the wear of the pair of gears

Check the protection fuse with a tester

The scissors start slowly, work intermittently or

do not start

Check the electric connections

Check the motor brushes

Check the feeding cable

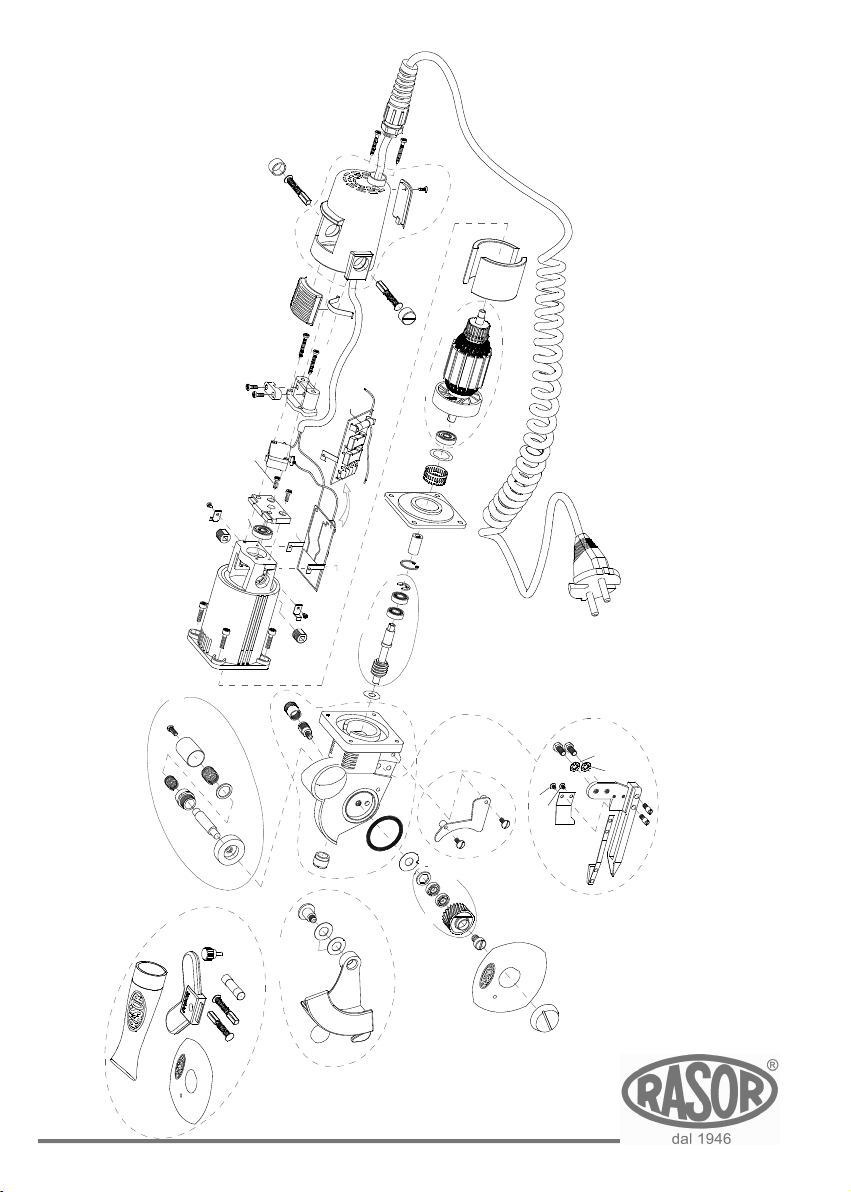

17. SPARE PARTS / EXPLODED VIEW

CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION

QUADRANGULAR BLADE Ø 70 mm,

70SHSS

H.S.S. STEEL

F 5004 PUSH BUTTON SPRING F 5059

F 5006 SINGLE-POLE ENABLING PUSH BUTTON F 506002 BRUSH CONTACT SPRING F 7030 WORM SCREW - MOD. 1 F 7056 COUNTERBLADE FASTENING SCREW

F 5007L LONG MOTOR CARBON BRUSH F 5061L CONTACT FASTENING SCREW F 7030CPL COMPLETE WORM SCREW - MOD. 1 F 7061 SUB-BLADE RING

F 5008 SWITCH FIXING PLATE F 5062 CARBON BRUSH HOLDER F 7031 ANTIFRICTION BUSHING FRN702

F 5009 CABLE FIXING U-BOLT F 5063 BRUSH HOLDER CAP F 7032 SNAP RING SW108600

F 5009/1 U-BOLT FASTENING SCREW F 7001 SPIRAL FEEDING CABLE F 7033 CORRUGATED THRUST WASHER SW1086CPL

F 501101 RIGHT CONTACT TERMINAL F 7002 SPIRAL CABLE GLAND F 7036 THRUST WASHER SW108700 EMERY GRINDING WHEEL PIN

F 501102 LEFT CONTACT TERMINAL F 7005 PUSH BUTTON LEVER F 7037 RING GEAR SW108800

F 5012 BEARING FIXING PLATE F 7006 EMERY GRINDING WHEEL CAP F 7038 RING GEAR BEARING SW108900 SCREWED BUSH

F 5013 MOTOR CAP FASTENING SCREW F 7018 MOTOR FRAME WITH MAGNETS F 7039CPL COMPLETE RING GEAR SW109000

F 5014 SWITCH PLATE FASTENING SCREW F 701901CPLCOMPLETE ROTOR 110 V F 7042 BLADE FIXING RING NUT SW109200

F 5015 BEARING PLATE FASTENING SCREW F 7019CPL COMPLETE ROTOR 220 V F 7043 FRONT PROTECTION GUARD SW109300 STEEL WASHER

F 5017 MOTOR BEARING mm 5x16x5 F 70202 FUSE COVER F 7043CPL FRONT PROTECTION SET T104500

F 5018/1 PERMANENT MAGNET COUPLE F 70203 MOTOR CAP WITH HOLE F 7044

F 5020 FAN F 70203CPLMOTOR CAP WITH DOOR AND SCREW F 7045 BACK PROTECTION GUARD T104700 GREASER CAP

F 5021 MOTOR BEARING 6x19x6 F 70210 ELECTRONIC CIRCUIT WITH FUSE F 7045CPL BACK PROTECTION SET T104800 GREASER

F 5022 BEARING FIXING SPRING F 70210F01FUSE 1.25 A F 7049 PLATE LOCKING THE THREADS T106000 RING GEAR LEFT FASTENING SCREW

F 5023 ADJUSTMENT RING F 7024 CLOSING FLANGE F 7050

F 5025 MOTOR COVER FASTENING SCREW F 7026 COMPLETE MOTOR SUPPORT F 7053 WELD FOOT

F 50304 FUSE COVER FASTENING SCREW F 7027 JOINT F 7054 FOOT FASTENING SCREW

F 5057 DRIFT LOCKING THE BLADE F 7028 CLOSING RING F 7054/1 TOOTHED WASHER

BLADE ASSEMBLY/DISASSEMBLY WRENCH

F 7029 WORM SCREW BEARING mm 10x22x6 F 7055 WIDIA COUNTERBLADE WITH SPRING

OPTIMA 702 COMPLETE ACCESSORIES SET EMERY GRINDING WHEEL: MEDIUM GRAIN COMPLETE EMERY GRINDING WHEEL UNIT

EMERY GRINDING WHEEL SPRING Ø 6 mm EMERY GRINDING WHEEL CAP FASTENING SCREW

FRONT PROTECTION GUARD

BACK PROTECTION GUARD FASTENING SCREW

PLATE LOCKING THE THREADS FASTENING SCREW

FASTENING SCREW

T104501 PAIR OF CONVEXED WASHERS

T107900 LUBRICATING GREASE

Page 13

F7002

F5013

F5063

F70203CPL

F5013

F7001

F5007L

F50304

F70202

F70203

F5018/1

F7005

F5007L

F5063

F701901CPL

F5004

F5014

F5009

F5009/1

F70210F01

F5009/1

F5008

F5006

F5015

F5012

F5061L

F506002

F5062

F5025

F 5025

F7018

SW1086CPL

F 7006

SW109200

SW108800

F5015

F5017

F501101

F70210

F501102

F506002

F5061L

F 7030CPL

F5025

F5062

F7030

F7033

T104700

T104800

SW109300

SW109000

SW108900

SW108700

F7031

SW108600

F7026

F7019CPL

F5020

F5021

F5023

F5022

F7024

F7027

F7028

F7032

F7029

F7053CPL

F7054

F7054/1

F7054

F7054/1

F7053

F7061

F7036

F7045

F7044

F7037

F7038

F7050

F7044

F7045CPL

F7049

F7055

F7056

FRN702

F5057

F5059

T104500

T104501

F7043CPL

F70210F01

F 7039CPL

F7043

T106000

70SHSS

F7042

F5007L

70SHSS

F5007L

T107900

Page 14

WARRANTY

Rasor® Elettromeccanica S.r.l. electric scissors have a 12 month warranty from the date

indicated on the last page of this manual, except in case of different written agreements.

The warranty covers all manufacturing and material defects. Replacement and repair operations

are covered only if carried out by our company and at our workshop. If in-warranty goods need to be repaired, the customer must always send the complete machine to Rasor®.

Single units will not be repaired under warranty.

The material to be repaired must be sent CARRIAGE FREE.

Once the equipment has been repaired, it will be sent CARRIAGE FORWARD to the customer.

The warranty covers neither technicians' intervention on the site where the electric scissors

are used nor their disassembly.

If for practical reasons, one of our technicians is sent to the premises, the customer will be

charged the costs plus the travelling expenses.

The warranty does not include:

+ failure caused by wrong use or assembly, + failure caused by external agents, + failure caused by lack of maintenance or neglicence; + blades and parts subject to wear.

WARRANTY FORFEITURE:

+ In case of arrearage or other breaches of contract, + Whenever changes or repairs are carried out on our electric scissors without our

prior authorization,

+ Whenever the serial number is tampered with or cancelled, + Whenever the damage is caused by improper use, bad treatment, bumps, falls and

other causes not due to normal working conditions,

+ Whenever the unit seems tampered with, dismantled or previously repaired by

unauthorized staff,

+ In case the electric scissors are used for purposes that are different from the ones

described in this manual.

All repair operations carried out under warranty do not interrupt its duration.

All disputes will be settled in the court of justice of Milan (Italy).

We thank you in advance for the attention you will pay to this manual and we invite you to

inform us of any change you deem necessary to improve it and make it more complete.

Page 15

RASOR ELETTROMECCANICA SRL

Via Vincenzo Caldesi 6 20161 Milan ∙ Italy ph. +39 02 66 22 12 31 fax +39 02 66 22 12 93 [email protected]

www.rasor-cutters.com
