USE MANUAL

english

PNEUMATIC SCISSORS MOD. FP861RC

ED.2-02/14

COMPANY

1. GENERAL SAFETY RULES

This manual is an integral part of pneumatic scissors FP861RC and must be

carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.

Before using pneumatic scissors FP861RC, read carefully the following general safety rules.

• PACKAGING. After taking off the packaging make sure that the machine is intact. In case of doubt do not use it and contact an authorized service centre. Do not leave pieces of packaging (plastic bags, foam polystyrene, boxes, etc.) within the reach of children or disabled persons since they are potential sources of danger.

• AVOID DANGEROUS ENVIRONMENTS.

• KEEP CHILDREN AWAY.

Unauthorized persons, in particular children, must be kept away from the working area.

• KEEP THE WORKING AREA ALWAYS IN ORDER. The workplace

must always be kept in order and well lightened; liquids or oil

traces must not be present.

• ALWAYS USE PNEUMATIC SCISSORS FP861RC PROPERLY. Use the scissors only to carry out the works they have been designed for; do not use them improperly.

• OBSERVE THE USE OF THE TOOLS. Do not cut excessively thick materials and always check blade conditions.

• AVOID ACCIDENTAL STARTINGS. Before connecting pneumatic scissors FP861RC, make

sure that everything is

installed properly.

• CLOTHING. Do not use large clothes or accessories that might get stuck in the moving parts.

• GOGGLES AND PROTECTIVE METAL MESH GLOVES. Always use goggles, protective metal mesh gloves approved by Rasor

during

use and maintenance operations (according to UNI EN 388:2004 standard).

• SPARE PARTS. During maintenance and replacement operations use only original spare parts. Blade maintenance must be only performed by Rasor

technicians.

• INSTALLATION. Any installation that is not in conformity with these specifications could jeopardize your safety and cancels the warranty.

Rasor® Elettromeccanica S.r.l. was established in Milan in 1946 by Luigi Spinelli. For more than sixty years it has been producing automatic cutting systems, cutting units for textile

thanks to the precious support of the promoting partner, to his passion, dedication and great experience of seventy years. The main characteristic of Rasor of the product up to its packing and delivery is carried out in Rasor operators who have professionaly grown up following the spirit of the company and of its founders. This ensures the high quality which Rasor since the beginning of its activity. Following the innovative spirit mentioned above, our company is constantly focused on the improvement of the product quality, on the study and development of new materials and technologies.

applications and electric and pneumatic cutters. Initially considered as a point of reference for cutting systems in the textile applications, the Rasor

products are nowadays widely used in other fields: chemical, automotive, nautical and sport sectors and in furniture manu

can rely on the professional continuity of three generations,

Rasor

facturing.

is that each working phase, starting from the manufacturing

has always considered as essential

premises by qualified

ACKNOLEDGEMENT

Dear Customer, thank you for choosing a Rasor Rasor furniture, tailoring, sport, chemical, automotive, nautical and insulating material sectors for years. Its production has been always synonymous with reliability attested by many of satisfied customers. Rasor with a service that meets its needs and expectations in terms of product quality, delivery reliability and stock of finished products. All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor products, it is recommended using only original spare parts and to contact the head office for any maintenance work.

has been a reference point in the field of cutting systems in the textile, clothing,

Elettromeccanica S.r.l. product.

quality system supervises all the company activities in order to provide the Customer

1. GENERAL SAFETY RULES

This manual is an integral part of pneumatic scissors FP861RC and must be

carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.

Before using pneumatic scissors FP861RC, read carefully the following general safety rules.

• AVOID DANGEROUS ENVIRONMENTS.

• KEEP CHILDREN AWAY.

Unauthorized persons, in particular children, must be kept away from the working area.

• KEEP THE WORKING AREA ALWAYS IN ORDER. The workplace

must always be kept in order and well lightened; liquids or oil

traces must not be present.

• ALWAYS USE PNEUMATIC SCISSORS FP861RC PROPERLY. Use the scissors only to carry out the works they have been designed for; do not use them improperly.

• OBSERVE THE USE OF THE TOOLS. Do not cut excessively thick materials and always check blade conditions.

• AVOID ACCIDENTAL STARTINGS. Before connecting pneumatic scissors FP861RC, make

sure that everything is

installed properly.

• CLOTHING. Do not use large clothes or accessories that might get stuck in the moving parts.

• GOGGLES AND PROTECTIVE METAL MESH GLOVES. Always use goggles, protective metal mesh gloves approved by Rasor use and maintenance operations (according to UNI EN 388:2004 standard).

• SPARE PARTS. During maintenance and replacement operations use only original spare parts. Blade maintenance must be only performed by Rasor

technicians.

• INSTALLATION. Any installation that is not in conformity with these specifications could jeopardize your safety and cancels the warranty.

during

Informative letter

2. TRANSPORT AND PACKING

3. PLATE DATA

Ser ial number

Year of production

Mod el

M otor data

FP861RC

900

RC________

The pneumatic scissors are delivered in a carrying case, inside which there are various options. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are contained in a bag inside the package:

1) Octagonal blade (8 sides);

2) Butterfly wrench for blade nut disassembly.

3) Drift for bl

ade disassembly;

4) Rubber hose;

5) Lubricating oil (15 ml).

The manufacturer's identification and EC STANDARD 2006/42/EC conformity plate (see picture below) is located on the front part of the pneumatic scissors.

The plate must not be removed at all, even if the machine is resold. Always refer to the serial number written on the plate itself when contacting the manufacturer.

Several safety warnings are printed on a card which is applied on the scissors; such war

nings

must be strictly followed by everyone dealing with the machine. The company is not to

be held responsible for damage to property or accidents to people which might occur if the above-mentioned warnings are not observed. In such a case, the operator is the only person responsible.

READ THE I NSTRUCTIO N MA NUAL

USE METAL GLOVES

USE GOGGLES

SHEA RING RISK

DO NOT REMOVE THE SAFETY DE VICES

The installer and the maintenance man must know the content of this manual. Although the main features of the machine described in this manual are not subject to change,

Rasor

Elettromeccanica S.r.l. reserves the right to modify the components, details

and accessories it deems necessary to improve the machine or to meet manufacturing or commercial requirements at any time and without being obliged to update this manual immediately.

WARNING

ALL RIGHTS ARE RESERVED ACCORDING TO THE

INTERNATIONAL COPYRIGHT CONVENTIONS,

The reproduction of any part of this manual, in any form, is forbidden without

the prior written authorization of Rasor

The content of this guide can be modified without prior notice. Great care has

been taken in collecting and checking the documentation contained in this

manual to make it as complete and comprehensible as possibl

Nothing contained in this manual can be considered as a warranty, either

expressed or implied - including, not in a restrictive way, the suitability warranty

for any special purpose. Nothing contained in this manual can be interpreted as a

modification or confirmation of the terms of any purchase contract.

Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk

Rasor of explosions and at high risk of fire and they cannot cut wet or damp materials. Moreover, they cannot work in case of rain. In case of damage or malfunction, pnaumatic scissors FP861RC must not be used until the Customer Care Technical Service has repaired them.

Customer Care Technical Service

Elettromeccanica S.r.l.

For any information, please contact

RASOR

WARNING

The original configuration of the pneumatic scissors must not be changed at all.

On receiving the machine make sure the supply corresponds to what has been ordered. In case of non-compliance immediately inform Rasor Also make sure the scissors have not been damaged during transport.

Via V. Caldesi, 6; 20161, MILANO (MI) - ITALY

Phone: +39.02.66221231; Fax: +39.02.66221293

ELETTROMECCANICA S.r.l.

e-mail: info@rasor-cutters.com

web: www.rasor-cutters.com

2. TRANSPORT AND PACKING

1) Octagonal blade (8 sides);

2) Butterfly wrench for blade nut disassembly.

3) Drift for blade disassembly;

4) Rubber hose;

5) Lubricating oil (15 ml).

3. PLATE DATA

The manufacturer'

s identification and EC STANDARD 2006/42/EC conformity plate (see picture

below) is located on the front part of the pneumatic scissors.

The plate must not be removed at all, even if the machine is resold. Always refer to the serial number written on the plate itself when contacting the manufacturer.

Several safety warnings are printed on a card which is applied on the scissors; such warnings must be strictly followed by everyone dealing with the machine. The company is not to

be held responsible for damage to property or accidents to people which might occur if the above-mentioned warnings are not observed. In such a case, the operator is the only person responsible.

Mod el

M otor data

900

FP861RC

RC________

Ser ial number

Year of production

READ THE I NSTRUCTIO N MA NUAL

USE METAL GLOVES

USE GOGGLES

SHEA RING RISK

DO NOT REMOVE THE SAFETY DE VICES

4. PRODUCT DESCRIPTION

5. TECHNICAL FEATURES

The technical data are only indicative and they can be changed without notice.

8 side blade Ø 86 mm, in H.S.S. steel

5 side blade Ø 86 mm, in H.S.S. steel

8 side blade Ø 86 mm, in H.S.S. steel treated

with titanium

8 side blade Ø 86 mm, in H.S.S. steel

covered with Teflon

5 side blade Ø 86 mm, in H.S.S. steel

covered with Teflon

8 side blade Ø 86 mm, in hard integral

metal (Widia)

Features of the availa ble blades

86THSS

86THSSTN

86TMD

86PHSSTN

86THSSTF

86PHSS

6. RUMOR LEVEL

NOTE

It is advisable for pneumatic scissors owners to verify the compliance with the standard concerning safety of workers: Italian legislative decree 81/08. The use of ear protecting devices is compulsory.

e maximum acoustic pressure level emitted by pneumatic scissors FP861RC is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010. The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A). The noise level has been detected with the silencer supplied mounted on the discharge unit.

7. FIELD OF APPLICATIONS

Pneumatic scissors FP861RC have been des

igned, manufactured and assembled to cut every kind of paper or similar materials, fabric and plastic. This equipment must not work:

- in areas prone to explosions;

- in presence of fine dust or corrosive gases;

- to cut metal and wooden materials.

It is forbidden to use pneumatic scissors FP861RC for

purposes different from the

above-mentioned ones.

86 mm

900 revolutions/min

about 20 mm

400 W with maximum pressure

max. 6 bar

1600 g

3100 g

9 liters/sec.

LUX 200

< 2,5 m/s

0 ~ 55°C

10 ~ 95% without condensate

Temperature

Humidity

Weight with package

Air consumption

Minimum luminosity for working

operations

Vibrations at the start up

Cutting working height

Power

Weight

Pneumatic scissors FP861RC features

Blade diameter

Blade speed

Working pressure

The fixture described in this manual is a pneumatic scissor model FP861RC which is used in order to quickly cut paper, fabric and plastic rolls.. It is extremely versatile, light and precise in the cutting operation, suitable also for very difficult cuttings. On the front part the scissor is provided with a three-position selector that allows adjusting quickly and faultless the desired cut height. Thanks to this selector it is possible to mak blade protrude from the supporting foot at three different heights according to the cut

requirements. One special feature of pneumatic scissors FP861RC is their ability to sharpen

the blade in each moment without disassembling it by means of a grinding wheel mounted on the scissors head. After carrying out this operation, it is possible to perform immediately the cutting operation. The pneumatic scissors are provided with a threaded the pneumatic circuits. The turbine, perfectly balanced, with a high number of revolutions and totally free of maintenance, reduces the vibrations and the noise to the minimum. The use of compressed air as source of energy allows working continuously without problems of heating or motor overload. The mechanical parts are made up of steel and high resistant bronze and require a lubrication after many working hours.

1/4" gas connection for the air

3 Control lever 11 Handle

4 Supporting foot 12 Mot or support

5 Polygonal blade 13 Silencer

6 Greaser 14 Cutting height selector

7 Pneumatic motor 15 Selector adjusting knob

8 Sharpener 16 Bush with return spring

connector

Safet device to enable the

control lever

Device components

9 Sharpening but ton

Protection guard of t he blade

(movable)

connection to

e the

5. TECHNICAL FEATURES

8 side blade Ø 86 mm, in H.S.S. steel treated

with titanium

Pneumatic scissors FP861RC features

Blade diameter

Blade speed

Cutting working height

Power

Working pressure

Weight

Weight with package

Air consumption

Minimum luminosity for working

operations

Vibrations at the start up

Temperature

Humidity

The technical data are only indicative and they can be changed without notice.

400 W with maximum pressure

10 ~ 95% without condensate

86 mm

900 revolutions/min

about 20 mm

max. 6 bar

1600 g

3100 g

9 liters/sec.

LUX 200

< 2,5 m/s

0 ~ 55°C

Features of the availa ble blades

86THSS

86PHSS

86THSSTN

86THSSTF

86PHSSTN

86TMD

8 side blade Ø 86 mm, in H.S.S. steel

5 side blade Ø 86 mm, in H.S.S. steel

8 side blade Ø 86 mm, in H.S.S. steel

5 side blade Ø 86 mm, in H.S.S. steel

8 side blade Ø 86 mm, in hard integral

covered with Teflon

metal (Widia)

6. RUMOR LEVEL

The maximum acoustic pressure level emitted by pneumatic scissors FP861RC is about 60 dB (A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010. The device noise levels, measured at different distances (without any so

und wave filtering system), vary in the extent of few db (A). The noise level has been detected with the silencer supplied mounted on the discharge unit.

NOTE

7. FIELD OF APPLICATIONS

Pneumatic scissors FP861RC have been designed, manufactured and assembled to cut every kind of paper or similar materials, fabric and plastic. This equipment must not work:

- in areas prone to explosions;

- in presence of fine dust or corrosive gases;

- to cut metal and wooden m

It is forbidden to use pneumatic scissors FP861RC for

aterials.

purposes different from the

above-mentioned ones.

8. USE WARNINGS

9. RESIDUAL RISKS

10. USE

� The cutting blade can work even when the protective guard is disassembled.

Even though the pneumatic scissors are safe, operators must pay attention to preserve their and other people’s safety.

To use the pneumatic scissors manually, proceed as follows:

1) Lay the roll to be cut on the table;

2) Position the selector knob “A” on the desired selector notch according to the thickness of the material to be cut (3mm, 10mm or 20mm) (see picture 3);

3) Connect the

air hose to the quick connection “B” (not supplied) (see picture 4);

4) Adjust the pressure gauge (option) on 6 bar;

5) Put the material on the roll cutting foot (see picture 4);

6) Push the starting lever after moving the safety device (see picture 5);

7) Push the pneumatic scissors in the desired direction, by keeping the handle pressed to carry out the cut.

NOTE

The thrust on the pneumatic scissors must be as uniform as possible.

closed

We recommend following the indications below in order to always work in safety conditions.

• All the operations must be carried out complying strictly with the safety rules of the

country where the machine is to be installed.

• It is STRICTLY FORBIDDEN to smoke during the installation or adjustment operations of

the pneumatic scissors.

• The Customer undertakes to comply with and make his staff observe all the rules and

regulations in force concerning safety, prevention of accidents and health in the work place. Therefore, the Customer assumes the responsibility to strictly follow all the rules and regulations in force, as well as the special provisions in force in sport and public installations the Customer declares to know after receiving all the relative necessary information.

• The pneumatic scissors work also without their safety protective device and

with protection guard lifted. This protective device must NEVER be removed.

• Always check the resistance of the material to be cut and the kind of blade which is being

used.

• The Customer shall equip his own personnel with all the individual safety protections for

the execution of the works, as well as with the ones which might be prescribed by the Manufacturer due to specific danger conditions of the plant or of the area where the personnel must work.

• Only one operator must use the pneumatic scissors always standing beh

handle. Do not make any adjustment while the blade is working.

• Always pay attention to the air hose position to prevent it from being cut or damaged

by the blade.

• It is allowed to assemble pneumatic scissors FP861RC on machines O.E.M. on condition

that their original structure is not modified. Otherwise, the intervention must be certified

by Rasor

• The pneumatic scissors FP861RC are equipped with double safety push button, made

up of a lever and a pawl in the handle: the pawl prevents the start push button to be activated accidentally, the lever enables the cutter. Never remove the pawl.

ind the guide

NOTE

The cutting blade protrudes from the bottom of the supporting foot as described in picture 3 on the following page. The materials to be cut must have a higher thickness than the real cutting height. The maximum projection of the blade is 20mm.

9. RESIDUAL RISKS

Even though the pneumatic scissors are safe, operators must pay attention to preserve their and other people’s safety.

� The cutting blade can work even when the protective guard is disassembled.

10. USE

To use the pneumatic scissors manually, proceed as follows:

1) Lay the roll to be cut on the table;

2) Position the selector knob “A” on the desired selector notch according to the thickness of the material to be cut (3mm, 10mm or 20mm) (see picture 3);

3) Connect the

4) Adjust the pressure gauge (option) on 6 bar;

5) Put the material on the roll cutting foot (see picture 4);

6) Push the starting lever after moving the safety device (see picture 5);

7) Push the pneumatic scissors in the desired direction, by keeping the handle pressed to carry out the cut.

NOTE

The thrust on the pneumatic scissors must be as uniform as possible.

air hose to the quick connection “B” (not supplied) (see picture 4);

closed

11. AIR PRESSURE GAUGE (OPTION)

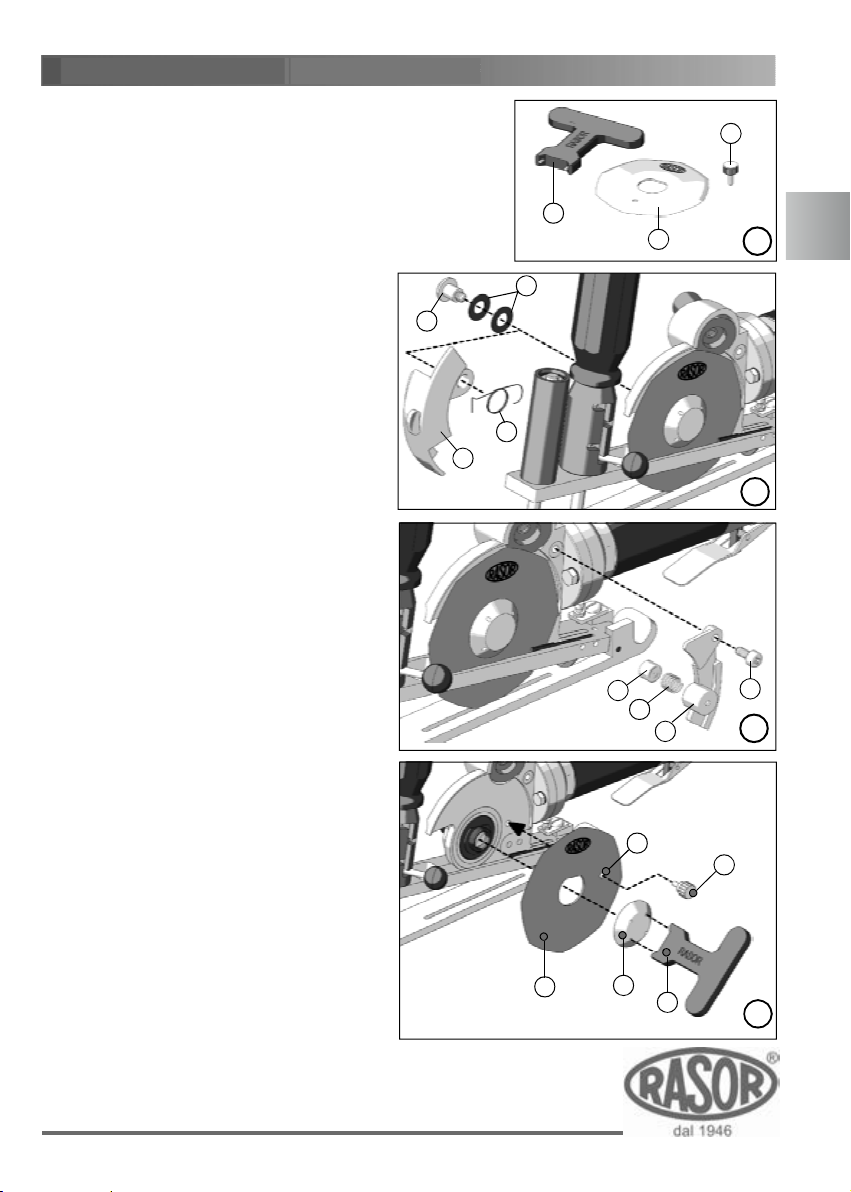

14. BLADE REPLACEMENT

11E

If the blade is no more able to cut (even after repeating the sharpening operation several times) it is necessary to replace it. In order to carry out this operation, use butterfly key “1” and drift “3” locking the blade (shown in picture

9). In order to replace the blade, proceed as follows:

1) Use some protective gloves in compliance with the

Local Law of the Country where the machine is to b

e used (use of personal

protection devices);

2) Remove front movable safety protection

“A” and the spring “B”, by unscrewing the slotted screw “C” through the proper screwdriver (not supplied by the manufacturer) and by extracting the two washers “D”, as shown in picture

10.

3) Re m ove t he r e a r fix e d safety

protection “E”, the spring “F” and the ring “G” by unscrewing the slotted screw “H” by means of the proper screwdriver (not supplied by the manufacturer), as shown in picture

11.

4) Insert drift “3” (see picture 12) in hole

“I” in order to lock the blade (the hole on the blade must correspond to the hole in the structure).

5) Use butterfly key “1” in order to

unscrew nut “L” and remove blade “M” (see picture 12).

6) Replace the worn blade with the new

one “2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it with sidee with the w

riting Rasor positioned towards the external side of the pneumatic scissors.

7) Assemble all the components again an d carry out some cutti ng and sharpening tests.

The pneumatic scissors must be necessarily fed with lubricated air with a pressure of maximum 6 bar.

offers a reduction unit filter with a pressure

Rasor gauge already calibrated with the quantity of oil to be delivered as option. The unit shown also in picture 6 is made up of:

1 - pressure reducer; 2 - valve to drain the condensate; 3 - drop-feed oiler unit; 4 - oil tank; 5 - pressure gauge; 6 - condensate tank; 7 - pipe fitting to connect the qu

the network;

8 - pipe fitting to connect the quick connection to the scissor.

For the use and maintenance read the instruction sheet supplied with the filter.

12. SHARPENER ADJUSTMENT

After using the machine for some hours without interruption, or if the machine cutting capacity is reduced, it is necessary to sharpen the blade. To carry out this operation, start the blade and

ick connection to

press sharpener “2” on the blade itself (by means of push button “1”, as shown in p 3-4 seconds. Repeat this operation 2-3 times.

icture 7) for

WARNING

The sharpener button can be used only if the transparent guard is completely lowered.

13. LUBRIFICATION

Every 3-4 working hours, it is necessary to lubricate the gear pair. In order to carry out this operation, remove pr otect ive plug “A” loca ted on the head of the pneumatic scissors and fill it with the grease supplied. Screw plug “A” again a few turns. Screw plug “A” a few turns every 2-3 working h

ours (see picture 8).

WARNING

The blade must never be dirty with grease or oil.

14. BLADE REPLACEMENT

9). In order to replace the blade, proceed as follows:

1) Use some protective gloves in compliance with the Local Law of the Country where the machine is to be used (use of personal protection devi

2) Remove front movable safety protection

ces);

10.

3) Re m ove t he r e a r fix e d safety protection “E”, the spring “F” and the ring “G” by unscrewing the slotted screw “H” by means of the proper screwdriver (not supplied by the manufacturer), as shown in picture

11.

nsert drift “3” (see picture 12) in hole

4) I “I” in order to lock the blade (the hole on the blade must correspond to the hole in the structure).

5) Use butterfly key “1” in order to unscrew nut “L” and remove blade “M” (see picture 12).

6) Replace the worn blade with the new one “2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it with sidee with the writing Rasor positioned towards the ex

ternal side

of the pneumatic scissors.

7) Assemble all the components again an d carry out some cutti ng and sharpening tests.

11E

GAS FEMALE

COMPLETE COUPLING WITH THREAD -

FP86160CPL

FP86178CPL

FP86170

FP86171

T106000

FP86159CPL

86THSS

T106300

T105700

T105800

FP86150

FP86150CPL

FP86103

FP86104

FP86106

FP86107

FP86138RC

FP86138A

FP86168

FP86173

FP86169

FP86170

FP86172

F7056

FP86175

FP86176

FP86177

FP86140R

FP86140L

FP86170

FP86172

FP86160

FP86163

FP86162

FP86161

FP86164

FP86165

FP86166

FP86167

T865400

T104700

T104800

T106100

T105300

T105200

T102909

T102910

T102906

FP86120CPL

FP86119

FP86118

FP86117

FP86116

FP86114

FP86115

FP86120

FP86113

FP86112

FP86110

FP86009

FP86013CPL

FP86012

FP86013

SW104102

FP86135CPL

SW104103

FP86135

FP86136

FP86146

FP86014

FP86021

FP86121

FP86022

FP86122

FP86101

FP86101CPL

FP86102

FP8612301

FP8612301CPL

FP86026

FP86025

FP86017

FP86019

FP86020

FP86018

FP86010

FP86011

FP86028

FP86130

FP86026

T 107900

T 107600

T 107500

05600

P173

ACCESSORIES

P170

P171

P171CPL

P170CPLP174CPL

AIR HOSE

T107902

SW108600

SW108700

SW108800

SW108900

SW109200

SW109000

SW109100

SW109300

SW1086CPL

FP86157

FP86137RC

FP86137RCCPL

T1045RC

T104501

P029

FP86198

FP86171

FP86166

FP86165

FP86164

FP86161

FP86178

15. TROUBLESHOOTING



PROB LEM

The roll is not cut or it gets stuck

The pne umatic scisso rs are no isy

The scissors start slowly or work intermittently

16. SPARE PARTS / EXPLODED VIEW

CODE DESCRIPT ION CODE DESCRIP TION CODE DESCRIPTION CODE DESCRIPT ION

8-FACES 86 mm BLADE IN H.S.S.

86THSSTF

STEEL, COATED WITH TEFLON

F 7056 COUNTERBLADE FIXED SCREW FP 86113 FRONT FLANGE FP 86158B UPPER SLIDE SW108700 EMERY PIN

FP 86009 COUPLING FLANGE FP 86114 ROTOR FP 86159CPL COMPLETE RING GEAR SW108800 Ø 11 mm EMERY SPRING

FP 86010 PISTON GUIDE FP 86115 ROTOR BLADE FP 86160 SELECTOR SW108900 SHARPENER BUSH

FP 86011 PISTON GUIDE O' RING FP 86116 POSITIONING PIN FP 86161 S HAFT SW109000 Ø 6 mm EMERY SPRING

FP 86012 PISTON GUIDE O' RING FP 86117 REAR FLANGE FP 86161CPL COMPLETE SELECTOR SW109100 SHARPENER CAP WITH BEARING

FP 86013 PISTON FP 86118 REAR FLANGE BEARING FP 86162 THREADED PIN SW109200 SHARPENER CAP FIXING SCREW

FP 86013CPL COMPLETE PISTON WITH GUIDE FP 86119 REAR FLANGE CAP FP 86163 SELECTOR ADJUSTING KNOB S W109300 STEEL WASHER

FP 86014 STOP RING FP 86120 CYLINDER FP 86164 SELECTOR SPRING T 102906 LEVER FIXING PIN

FP 86017 VALVE F P 86120CPL COMPLETE TURBINE FP 86165 SPACER T102909 RATCHET FOR LEVER SERIES 2002

FP 86018 VALVE O' RING FP 86121 O'RING GASKET FP 86166 STOP RING T102910 RATCHET SPRING

FP 86019 STEEL BALL FP 86122 MOTOR CASE FP 86167 PLASTIC HANDLE T104501 CONVEXED WASHER

FP 86020 SPRING FP 8612301 CONTROL HEAD FP 86168 STEEL PIN T1045RC FRONT PROTECTION FIXING SCREW

FP 86021 SILENCER HOUSING O'RING FP 8612301CPL COMPLETE CONTROL HEAD FP 86169 IRON PLATE T104700 GREASER CAP

FP 86022 SILENCER HOUSING FP 86130 1/4" CONNECTOR WITH FILTER FP 86170 LOCKING NUT T 104800 OILER

FP 86025 BRONZE SILENCER FILTER FP 86135 REAR CARTER FP 86171 ADJUSTING SCREW T105200 SUPPORT FIXING SCREW

FP 86026 SMALL REDUCTION UNIT O' RING FP 86135CPL REAR PROTECTION SET FP86172 LOCKING SCREW T105300 WASHER

FP 86028 REDUCTION UNIT FP 86136 4MA SCREW FOR CARTER FIXING FP86175 COUNTERBLADE IN HARD METAL T105600 SHAVING WASHER

FP 86100CPL COMPLETE PNEUMATIC MOTOR FP 86137RC FRONT PROTECTIVE GUARD FP86176 SUPPORTING FOOT T105700 BEARING FIXING RING NUT

FP 86101 GEAR WORM SCREW FP 86137RCCPL FRONT PROTECTION SET FP86177 UPPER SLIDE FIXING ALLEN

FP 86101CPL COMPLETE GEAR COUPLE FP 86138RC COMPLETE MOTOR SUPPORT FP 86178 RETURN BUSH T106000 LEFT SCREW FOR GEAR FIXING

FP 86102 ELASTIC PIN FP 86140L FOOT FIXING SCREW FP 89178CPL COMPLETE RETURN BUSH T106100 SUBBLADE RING

FP 86103 FRONT SHAFT BEARING FP 86140R TOOTHED WASHER FP 86198 THREADED RING NUT T106300 BLADE FIXING RING NUT

FP 86104 SNAP RING FP 86146 COMPLETE CONTROL LEVER PA P029 RUBBER HOSE T107500 BLADE DISASSEMBLING KEY

FP 86106 REAR SHAFT BEARING FP 86150 COUPLING SHAFT SW104102 OILER RING T 107600 BLADE LOCKING DRIFT

FP 86107 JOINT FP 86150CPL COMPLETE COUPLING SHAFT SW104103 OILER SPRING T107900 LUBRICATING GREASE

FP 86110 COMPENSATOR RING FP 86157 FRONT PROTECTION SPRING SW108600 EMERY TYPE Ø 25 x9 x 6 T107902 LUBRICATING OIL (15 ml)

FP 86112 MOTOR FLANGE BEARING FP 86158A LOWER SLIDE SW 1086CPL COMPLETE EMERY GROUP

Disassemble the blade and remov e the material residues



Check the material thickness

Check the compatibility between blade and material

Make s ure that the turbine turns correctly

SOLU TION

Check the kind of material

Sharpe n the blade

Reduce the feeding speed

Carry out the lubrication

Check the silencer

Check the wear of the gear couple

Check the integrity of the pneum atic circuit

Set the working pressure at 6 bar

SCREW T105800 GEAR BEARING

T865400 ANTI-FRICTION BUSH

ACCESSORIES

CODE DESCRIPTION CODE DESCRIPTION

FLEXIBLE PIPE FITTING Ø 8 mm - 1/4"

P169

P170 FEMALE QUICK COUPLING - 1/4" GAS P171CPL

P170CPL

FEMALE QUICK COUPLING - 1/4" GAS (COMPLETE)

P171 MALE QUICK COUPLING - 1/4" GAS

MALE QUICK COUPLING - 1/4" GAS (COMPLETE)

P173 AIR PIPE Ø 8x6 mm

P174CPL

1/4" GAS

FP86198

FP86119

P171CPL

FP86107

ACCESSORIES

P170CPLP174CPL

FP86150CPL

FP86106

AIR HOSE

FP86104

P173

FP86103

P171

T1045RC

T104501

P170

P029

FP86137RC

FP86150

FP86101CPL

FP86110

FP86102

FP86101

FP86113

FP86112

FP86117

FP86118

FP86116

FP86114

FP86115

FP86120

FP8612301

FP86120CPL

FP86020

FP86019

FP86018

FP86017

FP86022

FP86021

FP86130

FP86026

FP86025

FP86028

FP8612301CPL

FP86026

FP86011

FP86014

FP86010

FP86013

FP86012

FP86013CPL

FP86009

FP86137RCCPL

FP86157

SW1086CPL

SW109100

SW109200

SW109000

SW109300

T104700

T104800

SW104103

SW104102

FP86135

FP86136

FP86138RC

FP86122

T102910

T102909

FP86135CPL

FP86121

FP86177

T102906

FP86146

SW108800

SW108900

SW108700

SW108600

T865400

T106100

T105600

FP86140L

FP86140R

FP86175

FP86176

FP86173

F7056

FP86170

FP86169

FP86172

FP86168

T 107500

FP86172

FP86160CPL

FP86161

FP86163

FP86162

FP86160

T105300

T105200

FP86170

FP86171

T 107600

T 107900

FP86171

FP86170

FP86138A

T107902

FP86164

FP86165

FP86166

FP86167

FP86161

FP86178

FP86178CPL

FP86164

FP86165

FP86166

T105700

T105800

FP86159CPL

T106000

86THSS

T106300

DE C L A RATIO N O F CO N F O R MITY

RASOR ELETTROMECCANICA S.R.L.

CUTTING EQUIPMENTS

We hereby certify that the device specified hereunder complies to the requirements of Machinery Directive 2006/42/EC and to technical rulings UNI EN 414:2002, UNI EN ISO 12100:2010.

Noise tests have been carried out according to UNI EN ISO 11202:2010 Standards.

Pneumatic scissors FP861RC have been produced according to workmanlike standards.

We declare that the above-mentioned goods comply with the standards

in force concerning safety and hygiene at work that can be applied to the material itself according to the Italian legislative decree No. 81/08 (local law); the above-mentioned goods are not included in the

goods indicated in annex IV of Machinery Directive 2006/42/EC.

1. Category: PNEUMATIC SCISSORS

2. Manufacturer: RASOR

ELETTROMECCANICA S.R.L.

3. Type: FP861RC

4. Serial number: ..........................................................................................

5. Year of manufacture: ................................................................................

6. Country of manufacture: ITALY

7. Additional information: ..............................................................................

Date:

(Signatur

Warranty expiry:

12 months invoice date or receipt

WARRANTY

Rasor® Elettromeccanica S.r.l. pneumatic scissors have a 12 month warranty from the date

indicated on the last page of this manual, except in case of different written agreements.

The warranty covers all manufacturing and material defects. Replacement and repair operations

are covered only if carried out by our company and at our workshop.

In case of returned goods for repair under warranty, the Customer must send to

always the complete machine. Repairs under warranty of single faulty components are not accepted.

The material to be repaired must be sent CARRIAGE FREE.

Once the machine has been repaired, it will be sent CARRIAGE FORWARD to the customer.

The warranty covers neither technicians' intervention on site nor the machine disassembly

from the installation place.

If for practical reasons, one of our technicians is sent to the premises, the customer will be

charged the costs plus the travelling expenses.

The warranty does not include:

� failure caused by wrong use or assembly, � failure caused by external agents, � failure caused by lack of maintenance or neglicence; � blades and components subject to wear.

WARRANTY FORFEITURE:

� In case of arrearage or other breaches of contract, � Whenever changes or repairs are carried out on our pneumatic scissors without our

prior authorization,

� Whenever the serial number is tampered with or cancelled, � Whenever the damage is caused by improper use, bad treatment, bumps, falls and

other causes not due to normal working conditions,

� Whenever the unit seems tampered with, dismantled or previously repaired by

� In case the pneumatic scissors are used for purposes that are different from the ones

unauthorized staff,

described in this manual.

Rasor

All repair operations carried out under warranty do not interrupt its duration.

All disputes will be settled in the court of justice of Milan (Italy).

We thank you in advance for the attention you will pay to this manual and we invite you to

inform us of any change you deem necessary to improve it and make it more complete.

DE C L A RATIO N O F CO N F O R MITY

We hereby certify that the device specified hereunder complies to the requirements of Machinery Directive 2006/42/EC and to technical rulings UNI EN 414:2002, UNI EN ISO 12100:2010.

Noise tests have been carried out according to UNI EN ISO 11202:2010 Standards.

Pneumatic scissors FP861RC have been produced according to workmanlike standards.

We declare that the above-mentioned goods comply with the standards in safety and hygiene at work that can be applied to the material itself according to the Italian legislative decree No. 81/08 (local law); the above-mentioned goods are not included in the goods indicated in annex IV of Machinery Directive 2006/42/EC.

1. Category: PNEUMATIC SCISSORS

2. Manufacturer: RASOR

3. Type: FP861RC

4. Serial number: ..........................................................................................

5. Year of manufacture: ................................................................................

6. Country of manufacture: ITALY

ELETTROMECCANICA S.R.L.

force concerning

7. Additional information: ..............................................................................

Date:

RASOR ELETTROMECCANICA S.R.L.

CUTTING EQUIPMENTS

Warranty expiry:

12 months invoice date or receipt

(Signature)

MANUEL D’EMPLOI

ED.2-02/14

français

CISEAUX PNEUMATIQUES MOD. FP861RC

RASOR FP861RC Use Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
