RASOR FP503MT Use Manual

USE MANUAL

English

PNEUMATIC SCISSORS
MOD. FP503MT

ED.1-02/13

EN

18

COMPANY

Rasor® Elettromeccanica S.r.l. was established in Milan in 1946 by Luigi Spinelli. For more
than sixty years it has been producing automatic cutting systems, cutting units for textile
applications and electric and pneumatic cutters.

Initially considered as a point of reference for cutting systems in the
textile applications, the Rasor® products are nowadays widely used in
other fields: chemical, automotive, nautical and sport sectors and in
furniture manufacturing.

Rasor® can rely on the professional continuity of three generations,
thanks to the precious support of the promoting partner, to his passion, dedication and
great experience of seventy years.
The main characteristic of Rasor® is that each working phase, starting from the manufacturing
of the product up to its packing and delivery is carried out in Rasor® premises by qualified
operators who have professionaly grown up following the spirit of the company and of its
founders. This ensures the high quality which Rasor® has always considered as essential
since the beginning of its activity.
Following the innovative spirit mentioned above, our company is constantly focused on the
improvement of the product quality, on the study and development of new materials and
technologies.

ACKNOWLEDGMENT

RINGRAZIAMENTI

Dear Customer,
thank you for choosing a Rasor® Elettromeccanica S.r.l. product.
Rasor® has been a reference point in the field of cutting systems in the textile, clothing,
furniture, tailoring, sport, chemical, automotive, nautical and insulating material sectors for
years. Its production has been always synonymous with reliability attested by many of
satisfied customers.
Rasor® quality system supervises all the company activities in order to provide the Customer
with a service that meets its needs and expectations in terms of product quality, delivery
reliability and stock of finished products.
All the parts of the devices have been planned and produced to guarantee an optimum
performance. In order to keep the high quality level and the long reliabilty of the Rasor
products, it is recommended to use only original spare parts and to contact the head
office for any maintenance work.

®

1. GENERAL SAFETY RULES

This manual is an integral part of pneumatic scissors FP503MT and must be

carefully read before using it since it gives important indications with regards
to its safe installation, use and maintenance. Keep it with care.

Before using pneumatic scissors FP503MT, read carefully the following general
safety rules.

• PACKAGING.
After taking off the packaging make sure that the machine is intact. In case
of doubt do not use it and contact an authorized service centre. Do not leave
pieces of packaging (plastic bags, foam polystyrene, boxes, etc.) within the
reach of children or disabled persons since they are potential sources of danger.

• AVOID DANGEROUS ENVIRONMENTS.

• KEEP CHILDREN AWAY.
Unauthorized persons, in particular children, must be kept away from the
working area.

• KEEP THE WORKING AREA ALWAYS IN ORDER.
The workplace must always be kept in order and well lightened;

• ALWAYS USE PNEUMATIC SCISSORS FP503MT PROPERLY.
Use the scissors only to carry out the works they have been designed for; do
not use them improperly.

• OBSERVE THE USE OF THE TOOLS.
Do not cut excessively thick materials and always check blade conditions.

• AVOID ACCIDENTAL STARTINGS.
Before connecting pneumatic scissors FP503MT, make sure that everything is
installed properly.

• CLOTHING.
Do not use large clothes or accessories that might get stuck in the moving
parts.

• GOGGLES AND PROTECTIVE METAL MESH GLOVES.
Always use goggles, protective metal mesh gloves approved by Rasor® during
use and maintenance operations (according to UNI EN 388:2004 standard).

• SPARE PARTS.
During maintenance and replacement operations use only original spare parts.
Blade maintenance must be only performed by Rasor® technicians.

• INSTALLATION.
Any installation that is not in conformity with these specifications could jeopardize
your safety and cancels the warranty.

EN

19

EN

20

Informative letter

The installer and the maintenance man must know the content of this manual. Although
the main features of the machine described in this manual are not subject to change,
Rasor® Elettromeccanica S.r.l. reserves the right to modify the components, details
and accessories it deems necessary to improve the machine or to meet manufacturing
or commercial requirements at any time and without being obliged to update this
manual immediately.

WARNING

ALL RIGHTS ARE RESERVED ACCORDING TO THE

INTERNATIONAL COPYRIGHT CONVENTIONS

The reproduction of any part of this manual, in any form, is forbidden without

the prior written authorization of Rasor® Elettromeccanica S.r.l.

The content of this guide can be modified without prior notice. Great care has

been taken in collecting and checking the documentation contained in this

manual to make it as complete and comprehensible as possible.

Nothing contained in this manual can be considered as a warranty, either

expressed or implied - including, not in a restrictive way, the suitability warranty

for any special purpose. Nothing contained in this manual can be interpreted as a

modification or confirmation of the terms of any purchase contract.

Rasor® Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of
explosions and at high risk of fire. In case of damage or malfunction, pneumatic scissors
FP503MT must not be used until the Customer Care Technical Service has repaired them.

Customer Care Technical Service

For any information, please contact

RASOR®ELETTROMECCANICA S.r.l.

Via V. Caldesi, 6; 20161, MILANO (MI) - ITALY

Phone: [phone]; Fax: [phone]

e-mail: [e-mail]

web: www.rasor-cutters.com

WARNING

The original configuration of the pneumatic scissors must not be changed at all.
On receiving the machine make sure the supply corresponds to what has been ordered.
In case of non-compliance immediately inform Rasor®.
Also make sure the scissors have not been damaged during transport.

2. TRANSPORT AND PACKING

The pneumatic scissors are delivered in a cardboard box, inside which there are various
options. The code of the ordered product and its serial number are indicated outside the
package (see picture 1). The following accessories are contained in a bag inside the package
(see picture 2):

1) Heptagonal blade (7 sides);

2) Hexagonal wrench for grinding wheel nut tightening;

3) Grease tube;

4) Butterfly key for blade nut disassembly;

5) Drift for blade disassembly.

EN

21

2

1

1

3

4

5

2

3. PLATE DATA

The manufacturer's identification and 2006/42/EC STANDARD conformity plate (see picture
below) is located on the front part of the pneumatic scissors.

The plate must not be removed at all, even if the machine is resold. Always refer to
the serial number (written on the plate itself) when contacting the manufacturer.

Several safety warnings are printed on a card which is applied to the scissors; such warnings
must be strictly followed by everyone dealing with the machine. The company is not to be

held responsible for damage to property or accidents to people which might occur
if the above-mentioned warnings are not observed. In such a case, the operator is
the only person responsible.

Model

Motor
data

FP503MT ST____

1900

Serial number

Year of production

READ THE INSTRUCTION MANUAL

USE METAL GLOVES

USE GOGGLES

SHEARING RISK

DO NOT REMOVE THE SAFETY
DEVICES

4. PRODUCT DESCRIPTION

Safety device to enable the control

The fixture described in this manual is a pneumatic scissor model FP503MT which is used in
order to quickly cut composite materials, in particular the carbon fibre. It is extremely versa­tile, light and precise in the cutting operation. Thanks to the use of a supporting front foot
and of an effective cutting system with heptagonal, circular or decagonal blade, it is possible
to use the pneumatic scissors for the precise mold trimming.
One special feature of pneumatic scissors FP503MT is their ability to sharpen the blade in

EN

each moment without disassembling it by means of a grinding wheel mounted on the scissors

22

head. After carrying out this operation, it is possible to start cutting again. The pneumatic
scissors are provided with a threaded connection for many air pipeline. The turbine, perfectly
balanced, with a high number of revolutions and totally free of maintenance, reduces the
vibrations and the noise to the minimum.
The pneumatic scissors can be used also outdoor and to cut damp or wet materials and
therefore particularly recommended in tannery, dyeworks and for the carbon fibre cut.
The pneumatic scissors FP503MT are extremely light (they weight only 790g) and handy and
allow carrying out quick and precise cuts, even with curve profiles. The use of compressed
air as source of energy allows working continuously without problems of heating or motor
overload. The mechanical parts are made up of steel and high resistant bronze and require
a lubrication after many working hours.

Device components

1/4" gas connection for the air

1

2

3 Control lever 11 Motor support

4 Supporting foot 12 Silencer

5 Polygonal blade 13 Antifriction bush

6 Greaser 14 Reference point

7 Pneumatic motor 15 Welded counterblade

8 Sharpener 16

connector

lever

9 Sharpening button

10 Blade protection guard

Allen screw to disassemble the

scissor head

1

12

7

16

6

8

9

10

2

13

3

14

11

15

4

5

5. TECHNICAL FEATURES

Pneumatic scissors FP503MT features

Blade diameter

Blade speed

Cutting working depth

Power

Working pressure

Weight

Weight with package

Air consumption

Minimum light for working operations

Vibrations at the start up

Temperature

Humidity

50 mm with counterblade - heavy metal

1.900 rev/min

about 8 mm

350 W with max. pressure

6 bar

790 g

1.600 g

8 litres/sec.

LUX 200

2

< 2,5 m/s

0 ~ 55°C

10 ~ 95% without condensate

Features of the available blades

50CK

50SEXT

50SGHSS

50CHSS

50SHSSTF

50SEXTG

50SHSS

50DHSS

50CMD

50SMD

K190 steel circular blade

Extra steel heptagonal blade

HSS Germany steel heptagonal blade

HSS steel circular blade

HSS steel heptagonal blade covered

Extra steel Germany heptagonal blade

Integral hard metal circular blade

Integral hard metal heptagonal blade

with Teflon

HSS steel heptagonal blade

HSS steel decagonal blade

The technical data are only indicative and they can be changed without notice.

6. NOISE LEVEL

The maximum acoustic pressure level emitted by pneumatic scissors FP503MT is about 60 dB
(A). Noise tests have been carried out in compliance with Standard UNI EN ISO 3744:2010.
The device noise levels, measured at different distances (without any sound wave filtering
system), vary in the extent of few db (A). The noise level has been detected with the silencer
supplied with the fixture assembled on the exhaust. The silencer must never be removed.

NOTE

It is advisable for pneumatic scissors FP503MT owners to verify the compliance with the
standard concerning safety of workers: refer to the Local Law. The use of ear protecting
devices is compulsory.

EN

23

7. FIELD OF APPLICATION

Pneumatic scissors FP503MT have been designed, manufactured and assembled to cut every
kind of ordinary or technical fabrics, with the exception of metal, plastic or wood, by means
of rotary circular, decagonal or heptagonal blades.
This equipment must not work:

-in areas prone to explosions;

- in presence of fine dust or corrosive gases;

- to cut plastic, metal and wooden materials.

It is forbidden to use pneumatic scissors FP503MT for

purposes different from the

above-mentioned ones.

8. USE WARNINGS

We recommend following the indications below in order to always work in safety conditions.

· All the operations must be carried out complying strictly with the safety rules of the
country where the machine is to be installed.

· It is STRICTLY FORBIDDEN to smoke during the installation or adjustment operations of

EN

24

the pneumatic scissors.

· The Customer undertakes to comply with and make his staff observe all the rules and
regulations in force concerning safety, prevention of accidents and health in the work
place. Therefore, the Customer assumes the responsibility to strictly follow all the rules and
regulations in force, as well as the special provisions in force in sport and public installations
the Customer declares to know after receiving all the relevant necessary information.

· The pneumatic scissors work even without their safety protective device. This protective
device must NEVER be removed.

· Always check the resistance of the material to be cut and the kind of blade which is being
used.

· The Customer shall equip his own personnel with all the individual safety protections for
the execution of the works, as well as with the ones which might be prescribed by the
Manufacturer due to specific danger conditions of the plant or of the area where the
personnel must work.

· Only one operator must use the pneumatic scissors always standing behind the guide
handle. Do not make any adjustment while the blade is working.

· Always pay attention to the position of the air pipe to prevent it from being cut or
damaged by the blade.

· It is allowed to assemble pneumatic scissors FP503MT on machines O.E.M. on condition
that their original structure is not modified. Otherwise, the intervention must be certified by
Rasor®.

· The pneumatic scissors FP503MT are equipped with double safety push button with a lever
and a ratchet on the handle: the ratchet prevents the start push button from being
enabled accidentally, the lever operates the scissors. Never remove the ratchet.

9. RESIDUAL RISKS

Even though the pneumatic scissors are safe, operators must pay attention to preserve
their and other people’s safety.

L The cutting blade can work even when the protective device is disassembled.

10. USE

To use the pneumatic scissors manually, proceed as follows:

1) Lay the material to be cut on the table;

2) Connect the air hose to the quick connection “A” (not supplied) (see picture 3);

3) Set the pressure gauge (option) to 6 bar;

4) Put the material on the cutting foot (see picture 4);

5) Push the starting lever after moving the safety device (see picture 5);

6) Push the pneumatic scissors in the desired direction, being careful to keep the material
in front of them as stretched as possible and preventing it from curling in the front
part of the scissors.

NOTE

The thrust on the pneumatic scissors must be as uniform as possible. To carry out linear cuts
with precision (and to follow predetermined paths), we also recommend using the arrow
point (see point “B” in picture 6).

EN

25

A

3

4

B

5

6

EN

26

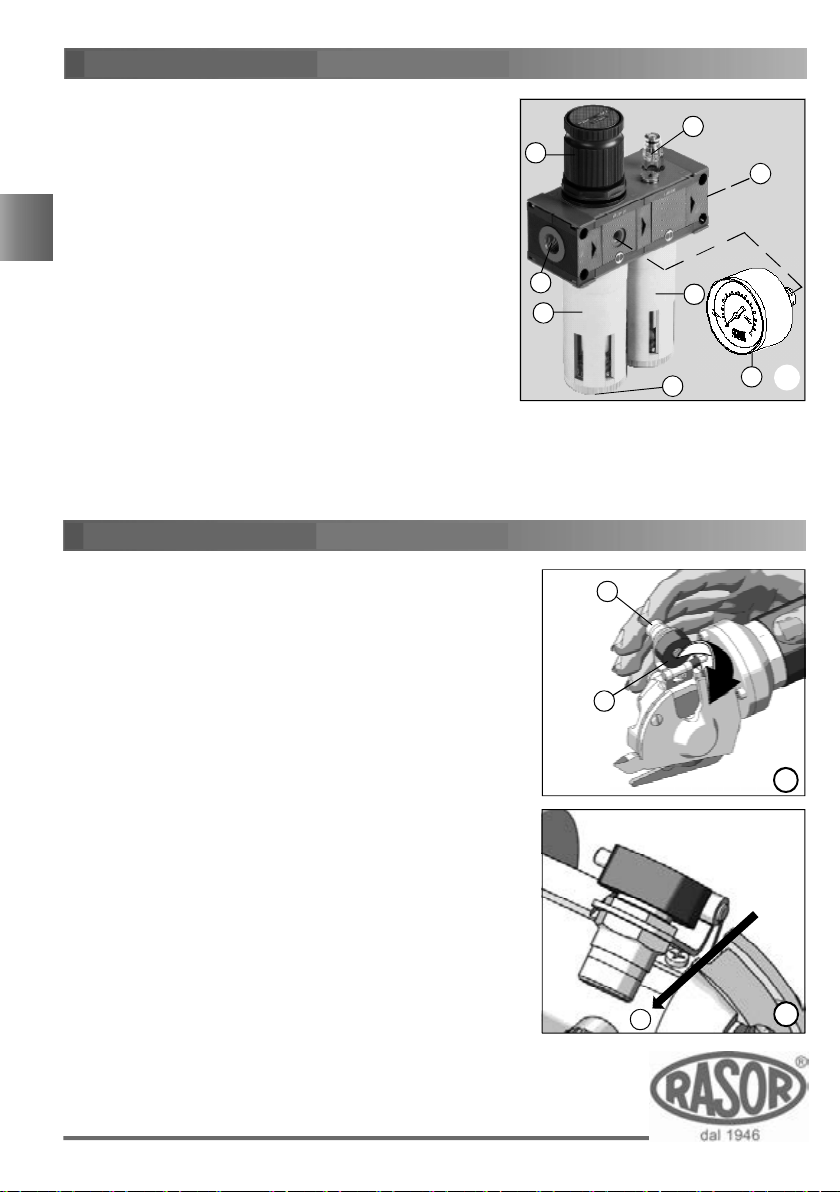

11. AIR PRESSURE GAUGE (OPTION)

The pneumatic scissors must be necessarily fed with
lubricated air with a pressure of 4-6 bar.
Rasor® offers, as option, a reduction unit filter with a
pressure gauge already calibrated with the quantity
of oil to be delivered.
The unit shown in picture 7 is made up of:

1 -pressure reducer;
2 -valve to drain the condensate;
3 -drip-feed oiler unit;
4 -oil tank;
5 -pressure gauge;
6 -condensate tank;
7 -pipe fitting to connect the quick connection to

the network;

8 -pipe fitting to connect the quick connection to the scissor.

For the use and maintenance read the instruction sheet supplied with the filter.

12. SHARPENER ADJUSTMENT

1

7

6

3

4

2

8

5

7

After using the machine for some hours without
interruption, or if the machine cutting capacity is reduced,
it is necessary to sharpen the blade.
To carry out this operation, start the blade and press
sharpener “2” on the blade itself (by means of push button
“1”, as shown in picture 8) for 3-4 seconds. Repeat this
operation 2-3 times.
The sharpener can slide along its seat (see picture 9) in
order to vary the sharpening angle. If the blade, after
various sharpening operations, has a chamfer (sharp
perimeter) with an excessive length (higher than 1.5 mm),
it is necessary to slightly move the sharpener away from
the blade. In order to do this, it is sufficient to slightly
loosen the screws without removing them, making the
sharpener slide toward direction “A”, and then tighten
the two screws again.

1

2

8

5

A

9

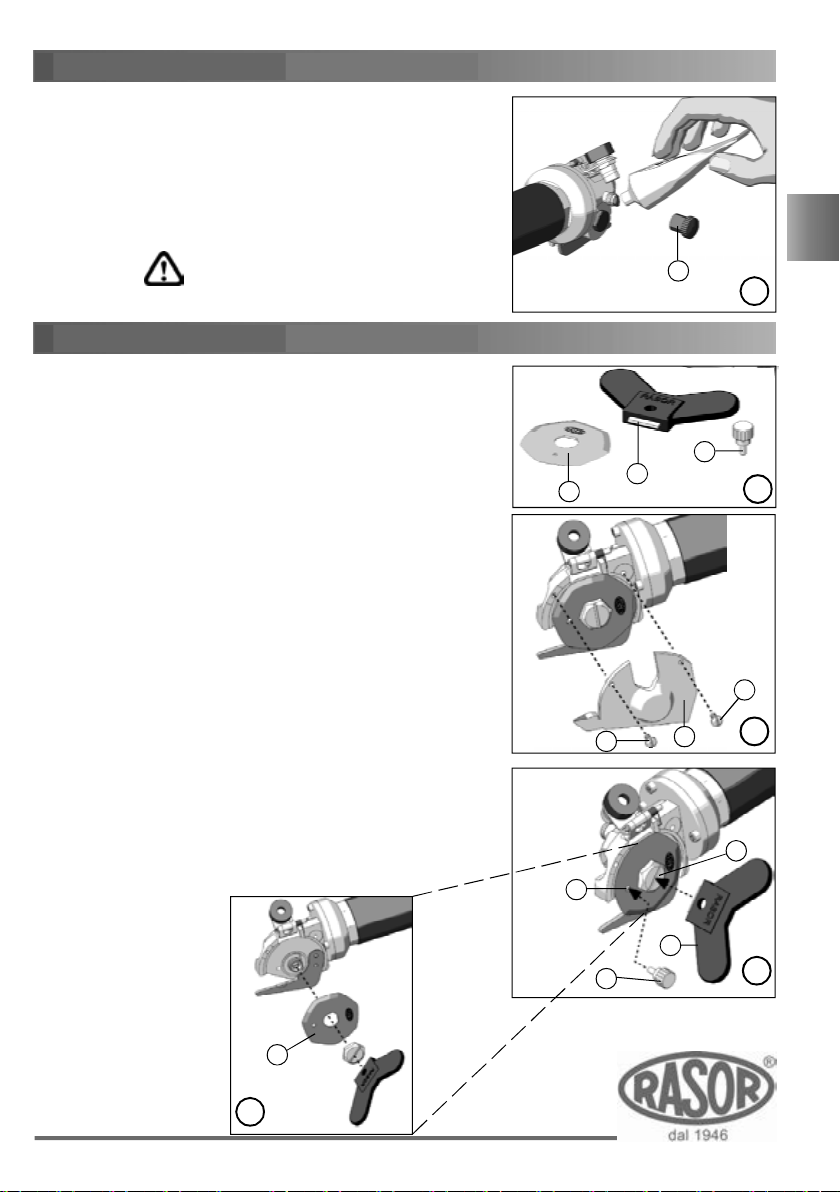

13. LUBRICATION

Every 3-4 working days, it is necessary to lubricate the
gear pair. In order to carry out this operation, remove
protective plug “A” located on the head of the pneumatic
scissors and fill it with the grease supplied. Screw plug
“A” again a few turns. Screw plug “A” a few turns every 2­3 working days (see picture 10) when the machine is
used without interruption.

WARNING

The blade must never be dirty with grease or oil.

14. BLADE REPLACEMENT

If the blade is no more able to cut (even after repeating
the sharpening operation several times) it is necessary to
replace it. In order to carry out this operation, use butterfly
key “1” and drift “2” locking the blade (shown in picture

11). In order to replace the blade, proceed as follows:

1) Use some protective gloves in compliance with the
Local Law of the Country where the machine is to
be used (use of personal protection devices);

2) Remove safety protection “B”, by unscrewing the
two slotted screws “A” by means of a screwdriver
(not supplied by the manufacturer), as shown in picture

12.

3) Insert drift “2” in hole “C” in order to lock the blade
(the hole in the blade must correspond to the hole
in the structure) (see picture 13).

4) Use butterfly key “1” in order to unscrew nut “D”
(see picture 13) and remove blade “E” (see picture 14).

5) Replace the worn blade with the new one “3”, being
careful to center the blade on the gear, in the correct
position, and remember to assemble it with its sharp
side (the one with the writing Rasor) positioned
towards the external side of the pneumatic scissors.

6) Assemble all the components again and carry out
some cutting and sharpening tests.

EN

27

A

10

2

3

C

1

A

B

11

A

12

D

14

1

2

E

13

15. TROUBLESHOOTING

COMPLETE COUPLING WITH THREAD -

COUNTERBLADE

BEARING

EN

28

À PROBLEM

à SOLUTION

Check the counterblade integrity

Check the kind of fabric

The fabric is not cut or it gets stuck between

the blade and the counterblade

Check the compatibility between blade and fabric

Sharpen the blade

Check the fabric thickness

Make sure that the turbine turns correctly

Reduce the feeding speed

Carry out the lubrication

Disassemble the blade and remove the material

The pneumatic scissors are noisy

residues

Check the silencer

Check the wear of the gear pair

The scissors start slowly or work

intermittently

Check the air circuit integrity

Set working pressure at 6 bar

16. SPARE PARTS / EXPLODED VIEW

CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION

HEPTAGONAL BLADE Ø 50 mm., HSS

50SHSS

STEEL

F 5032 GEAR CROWN CENTRAL PIN F 5051CPL COMPLETE SHARPENER FP086 SHAFT REAR BEARING FP86022 SILENCER SEAT

F 5033 GREASER CAP F 5052 HINGE FIXING SCREW 3,5MA FP08701 SPACER FP86025 BRONZE SILENCER-FILTER

F 5034 GREASER P053/1CPL FOOT WITH WELDED COUNTERBLADE FP088 SHAFT FRONT BEARING FP86026 SMALL REDUCTION UNIT O'RING

F 5036 SHIM ADJUSTMENT WASHER F 5053/SCPL

RING NUT TO FIX THE CROWN

F 5037

F 5038 GEAR CROWN BEARING F 5057 BLADE LOCKING DRIFT FP09301 COUPLING SHAFT FP86029 BIG REDUCTION UNIT O'RING

F 5039 GEAR CROWN F 5059 BLADE DISASSEMBLY KEY FP09301CPLCOMPLETE COUPLING SHAFT FP8612301CONTROL HEAD

F 5039CPL GEAR CROWN UNIT F 5064 EMERY DISASSEMBLY KEY FP09401 COUPLING FLANGE

F 5040 GEAR CROWN FIXING SCREW 3,5MA FP05001CPLCOMPLETE MOTOR FP095 HANDLE FOR HOOK FP86127 NYLON BUSH FOR VALVE

F 5042 RING NUT FIXING THE BLADE FP074 REAR FLANGE FP096 COMPENSATION RING NUT FP86130 CONNECTOR 1/4" WITH FILTER

F 5043 BLADE PROTECTION GUARD FP075 REAR FLANGE PLUG FP86010 PISTON GUIDE FP86146 COMPLETE CONTROL LEVER

F 5044 GUARD FIXING SCREW FP076 REAR FLANGE BEARING FP86011 PISTON GUIDE O' RING FRN50P SET OF ACCESSORIES FP501

F 5045 PLATE WITH EMERY FP077 POSITION PIN FP86012 PISTON GUIDE O' RING P001 WORM SCREW

F 5046 STEEL WASHER FP078 BUCKETS FP86013 PISTON P002 SPRING PIN

F 5047 THREADED BUSH FP079 CYLINDER FP86013CPLCOMPLETE PYSTON WITH GUIDE P003 ROLL BEARING

F 5048 STOP RING FP080 ROTOR FP86014 STOP RING P004 GEAR SUPPORT WITH PIN

F 5049 COMPLETE EMERY UNIT FP080CPL COMPLETE TURBINE FP86017 VALVE P005 SUPPORT FIXING SCREW 4MA

F 5050 EMERY CAP FP081 FRONT FLANGE BEARING FP86018 VALVE O' RING T102906 LEVER AND RATCHET FIXING PIN

F 5051 SHARPENER HINGE FP082 FRONT FLANGE FP86019 STEEL BALL T102909 RATCHET FOR LEVER

F 5051/1 SHARPENER HINGE SPRING FP08301 MOTOR CASE FP86020 CONICAL SPRING T102910 RATCHET SPRING

F 5051/2 HINGE SPRING FIXING SCREW FP085 JOINT FP86021 SILENCER SEAT O'RING

FOOT WITH BALL AND WELDED

F 5054 FOOT FIXING SCREW 3,5MB FP092 O-RING FP86028 REDUCTION UNIT

FP089 COMPENSATOR RING FP86027 CONNECTOR O' RING

FP8612301CP

COMPLETE CONTROL HEAD

L

T107900 LUBRICATING GREASER

ACCESSORIES

CODE DESCRIPTION CODE DESCRIPTION

P171 MALE QUICK COUPLING - 1/4" GAS P171CPL

P170 FEMALE QUICK COUPLING - 1/4" GAS P170CPL

FLEXIBLE PIPE FITTING Ø 8 mm - 1/4"

P169

GAS FEMALE

MALE QUICK COUPLING - 1/4" GAS
(COMPLETE)
FEMALE QUICK COUPLING - 1/4" GAS
(COMPLETE)

P174CPL

1/4" GAS

P173 AIR PIPE Ø 8x6 mm

FP86020

FP86019

FP86018

FP86017

FP86130

FP86025

FP86022

FP05001CPL

FP095

FP075

FP076

FP074

F5057

FRN50P

F5059

T107900

50SHSS

F5064

FP082

FP081

F5052

F5051/1

F5052

F5049

F5048

F5050

F5051

F5047

F5046

F5051/2

F5051CPL

F5045

FP077

FP0078

FP080

FP079

FP09401

F5032

F5033

F5034

P003

P005

P004

FP092

FP080CPL

FP096

FP089

F5054

F5037

F5038

F5036

F5038

F5039CPL

FP08301

FP86021

FP8612301

FP086

FP08701

FP09301CPL

FP09301

FP088

P002

P001

F5054

PO53/1CPL

F5053/SCPL

F5039

50SHSS

F5040

FP86013

FP085

FP86027

FP86028

FP8612301CPL

FP86029

FP86026

FP86014

FP86011

FP86010

FP86012

FP86013CPL

P173

T102910

T102909

T102906

FP86146

ACCESSORI

TUBO ARIA

P171CPL P174CPL

P170CPL

P169

P170P171

F5042

F5043

F5044

F5044

WARRANTY

Rasor® Elettromeccanica S.r.l. pneumatic scissors have a 12 month warranty from the date

indicated on the last page of this manual, except in case of different written agreements.

The warranty covers all manufacturing and material defects. Replacement and repair operations

are covered only if carried out by our company and at our workshop.

In case of returned goods for repair under warranty, the Customer must send to Rasor® always

the complete machine. Repairs under warranty of single faulty components are not accepted.

The material to be repaired must be sent CARRIAGE FREE.

Once the machine has been repaired, it will be sent CARRIAGE FORWARD to the customer.

The warranty covers neither technicians' intervention on site nor the pneumatic scissors

disassembly from the installation place.

If for practical reasons, one of our technicians is sent to the premises, the customer will be

charged the costs plus the travelling expenses.

The warranty does not include:

+ failure caused by wrong use or assembly,
+ failure caused by external agents,
+ failure caused by lack of maintenance or negligence,
+ blades and parts subject to wear.

WARRANTY FORFEITURE:

+ In case of arrearage or other breaches of contract,
+ Whenever changes or repairs are carried out on our pneumatic scissors without our

prior authorization,

+ Whenever the serial number is tampered with or cancelled,
+ Whenever the damage is caused by improper use, bad treatment, bumps, falls and

other causes not due to normal working conditions,

+ Whenever the unit seems tampered with, dismantled or previously repaired by

unauthorized staff,

+ In case the pneumatic scissors are used for purposes that are different from the ones

described in this manual.

All repair operations carried out under warranty do not interrupt its duration.

All disputes will be settled in the court of justice of Milan (Italy).

We thank you in advance for the attention you will pay to this manual and we invite you to

inform us of any change you deem necessary to improve it and make it more complete.

DECLARATION OF CONFORMITY

We hereby certify that the machine specified hereunder complies to the requirements of
Machinery Directive 2006/42/EC and to technical rulings UNI EN 414:2002 and UNI EN ISO
12100:2010.

Noise tests have been carried out according to UNI EN ISO 3744:2010.

The pneumatic scissors FP503MT have been produced according to workmanlike standards.

We declare that the above-mentioned goods comply with the standards in force concerning
safety and hygiene at work that can be applied to the material itself (refer to the Local Law).

1.Category: PNEUMATIC SCISSORS

2.Manufacturer: RASOR®ELETTROMECCANICA S.R.L.

3.Type: FP503MT

4.Serial number:..........................................................................................

5.Year of manufacture:.................................................................................

6.Manufactured in: ITALY

7.Additional information:..............................................................................

Date:

RASOR ELETTROMECCANICA

S.R.L.

Warranty expiration:

12 months from the date of invoice or receipt

CUTTING EQUIPMENTS

(Signature)
