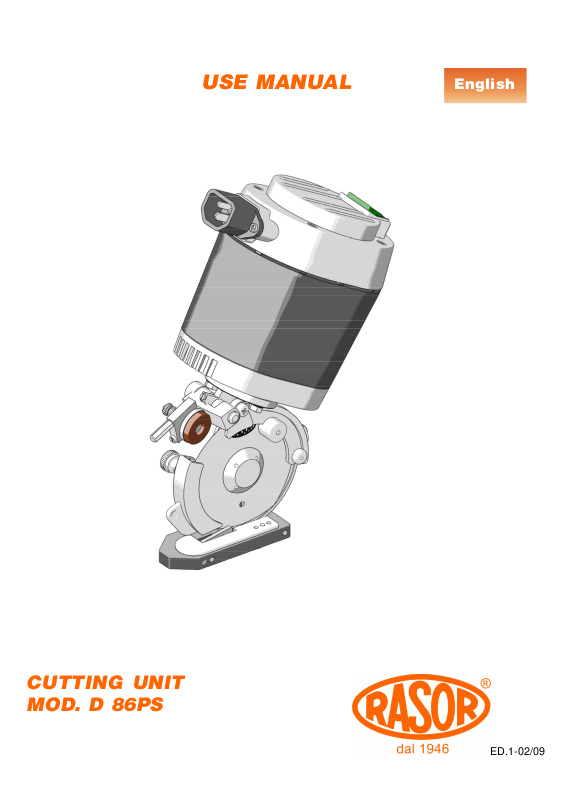

USE MANUAL

English

CUTTING UNIT MOD. D 86PS

ED.1-02/09

COMPANY

Rasor® Elettromeccanica S.r.l. was established in Milan in 1946 by the two promoting partners Spinelli and Ciminaghi. For more than sixty years it has been producing automatic cutting systems, cutting units for textile applications and electric and pneumatic cutters.

Initially considered as a point of reference for cutting systems in the textile applications, the Rasor® products are nowadays widely used in other fields: chemical, automotive, nautical and sport sectors and in furniture manufacturing.

Rasor® can rely on the professional continuity of three generations, thanks to the precious support of the promoting partner, to his passion, dedication and great experience of seventy years. The main characteristic of Rasor® is that each working phase, starting from the manufacturing of the product up to its packing and delivery is carried out in Rasor® premises by qualified operators who have professionaly grown up following the spirit of the company and of its founders. This ensures the high quality which Rasor® has always considered as essential since the beginning of its activity. Following the innovative spirit mentioned above, our company is constantly focused on the improvement of the product quality, on the study and development of new materials and technologies.

ACKNOWLEDGMENT

Dear Customer, thank you for choosing a Rasor® Elettromeccanica S.r.l. product. Rasor® has been a reference point in the field of cutting systems in the textile, clothing, furniture, tailoring, sport, chemical, automotive, nautical and insulating material sectors for years. Its production has been always synonymous with reliability attested by many of satisfied customers. Rasor® quality system supervises all the company activities in order to provide the Customer with a service that meets its needs and expectations in terms of product quality, delivery reliability and stock of finished products. All the parts of the devices have been planned and produced to guarantee an optimum performance. In order to keep the high quality level and the long reliabilty of the Rasor products, it is recommended to use only original spare parts and to contact the head office for any maintenance work.

1. GENERAL SAFETY RULES

This manual is an integral part of cutting unit D 86PS and must be carefully read before using it since it gives important indications with regards to its safe installation, use and maintenance. Keep it with care.

Before using cutting unit D 86PS, read carefully the following general safety rules.

• PACKAGING. After taking off the packaging make sure that the cutting unit is intact. In case of doubt do not use it and contact an authorized service centre. Do not leave pieces of packaging (plastic bags, foam polystyrene, boxes, etc.) within the reach of children or disabled persons since they are potential sources of danger.

• AVOID DANGEROUS ENVIRONMENTS. Prevent the cutting unit D 86PS components from coming in contact with damp or wet surfaces.

• KEEP CHILDREN AWAY. Unauthorized persons, in particular children, must be kept away from the working area.

• FEED CABLE. Prevent the feed cable from coming in contact with hot objects, pointed surfaces or sharp edges. Never pull the feed cable of the machine. It must never be replaced by the user. If necessary contact professionally qualified staff.

• KEEP THE WORKING AREA ALWAYS IN ORDER. The workplace must always be kept in order and well lightened; liquids or oil traces must not be present.

• ALWAYS USE CUTTING UNITS D 86PS PROPERLY. Use the cutting units only to carry out the works they have been designed for; do not use them improperly.

• OBSERVE THE USE OF THE TOOLS. Do not cut excessively thick materials and always check blade conditions.

• AVOID ACCIDENTAL STARTINGS. Before connecting cutting unit D 86PS, make sure that everything is installed properly.

• CLOTHING. Do not use large clothes or accessories that might get stuck in the moving parts.

• GOGGLES AND PROTECTIVE METAL MESH GLOVES. Always use goggles, protective metal mesh gloves approved by Rasor® during

use and maintenance operations (according to UNI EN 388:2004 standard).

• SPARE PARTS. During maintenance and replacement operations use only original spare parts. Blade maintenance must be only performed by Rasor® technicians.

• INSTALLATION. Any installation that is not in conformity with these specifications could jeopardize your safety and cancels the

warranty.

Informative letter

The installer and the maintenance man must know the content of this manual. Although the main features of the machine described in this manual are not subject to change, Rasor® Elettromeccanica S.r.l. reserves the right to modify the components, details and accessories it deems necessary to improve the machine or to meet manufacturing or commercial requirements at any time and without being obliged to update this manual immediately.

WARNING

ALL RIGHTS ARE RESERVED ACCORDING TO THE

INTERNATIONAL COPYRIGHT CONVENTIONS,

The reproduction of any part of this manual, in any form, is forbidden without

the prior written authorization of Rasor® Elettromeccanica S.r.l.

The content of this guide can be modified without prior notice. Great care has

been taken in collecting and checking the documentation contained in this

manual to make it as complete and comprehensible as possible.

Nothing contained in this manual can be considered as a warranty, either

expressed or implied - including, not in a restrictive way, the suitability warranty

for any special purpose. Nothing contained in this manual can be interpreted as a

modification or confirmation of the terms of any purchase contract.

Rasor® Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of explosions and at high risk of fire and they cannot cut wet or damp materials. Moreover, they cannot work in case of rain. In case of damage or malfunction, cutting unit D 86PS must not be used until the Customer Care Technical Service has repaired them.

Customer Care Technical Service

For any information, please contact

RASOR®ELETTROMECCANICA S.r.l.

Via V. Caldesi, 6; 20161, MILANO (MI) - ITALY

Phone: +39.02.66221231; Fax: +39.02.66221293

e-mail: info@rasor-cutters.com

web: www.rasor-cutters.com

WARNING

The original configuration of the cutting unit must not be changed at all. On receiving the machine make sure the supply corresponds to what has been ordered. In case of non-compliance immediately inform Rasor®. Also make sure the cutting unit has not been damaged during transport.

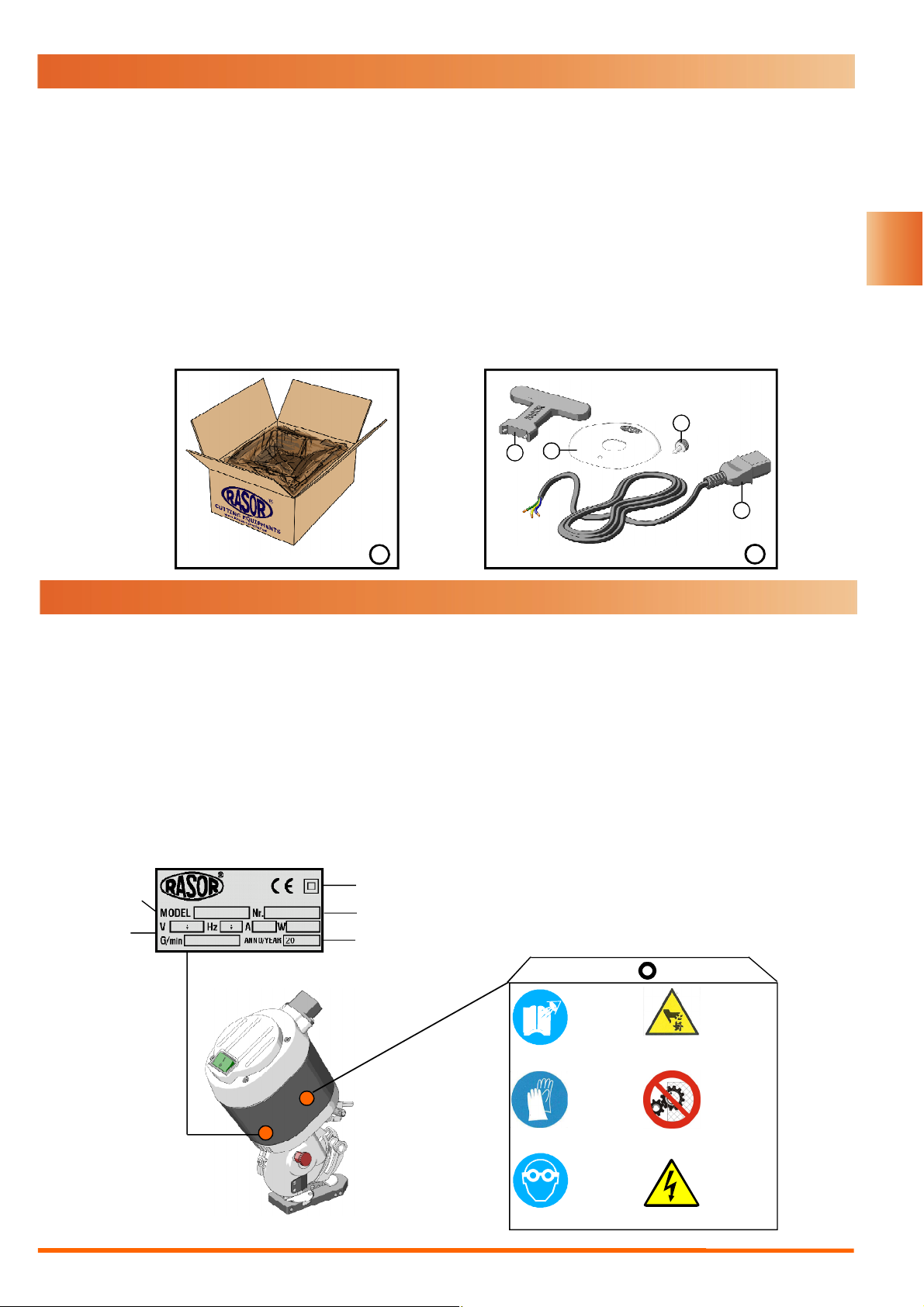

2. TRANSPORT AND PACKING

The cutting unit is delivered in a cardboard box, inside which there are various options. The code of the ordered product and its serial number are indicated outside the package (see picture 1). The following accessories are contained in a bag inside the package:

1) Poligonal blade;

2) Butterfly wrench for blade nut disassembly;

3) Shuko cable without plug;

4) Drift for blade disassembly.

3. PLATE DATA

The manufacturer's identification and CE STANDARD 2006/42/CE conformity plate (see picture below) is located on the front part of the cutting unit. The plate must not be removed at all, even if the machine is resold. Always refer to the serial number written on the plate itself when contacting the manufacturer. Several safety warnings are printed on a card which is applied to the cutting unit feeding cable; such warnings must be strictly followed by everyone dealing with the machine. The company is not to be held responsible for damage to property or accidents to people which might occur if the above-mentioned warnings are not observed. In such a case, the operator is the only person responsible.

Model

Electric data

D 86PS

230

220

850

60 1

Class II double insulation

Serial number

Year of production

READ

THE

INSTRUCTION

MANUAL

SHEARING

RISK

USE

METAL

GLOVES

USE

GOGGLES

DO NOT

REMOVE

THE

SAFETY

DEVICES

HIGH

VOLTAGE

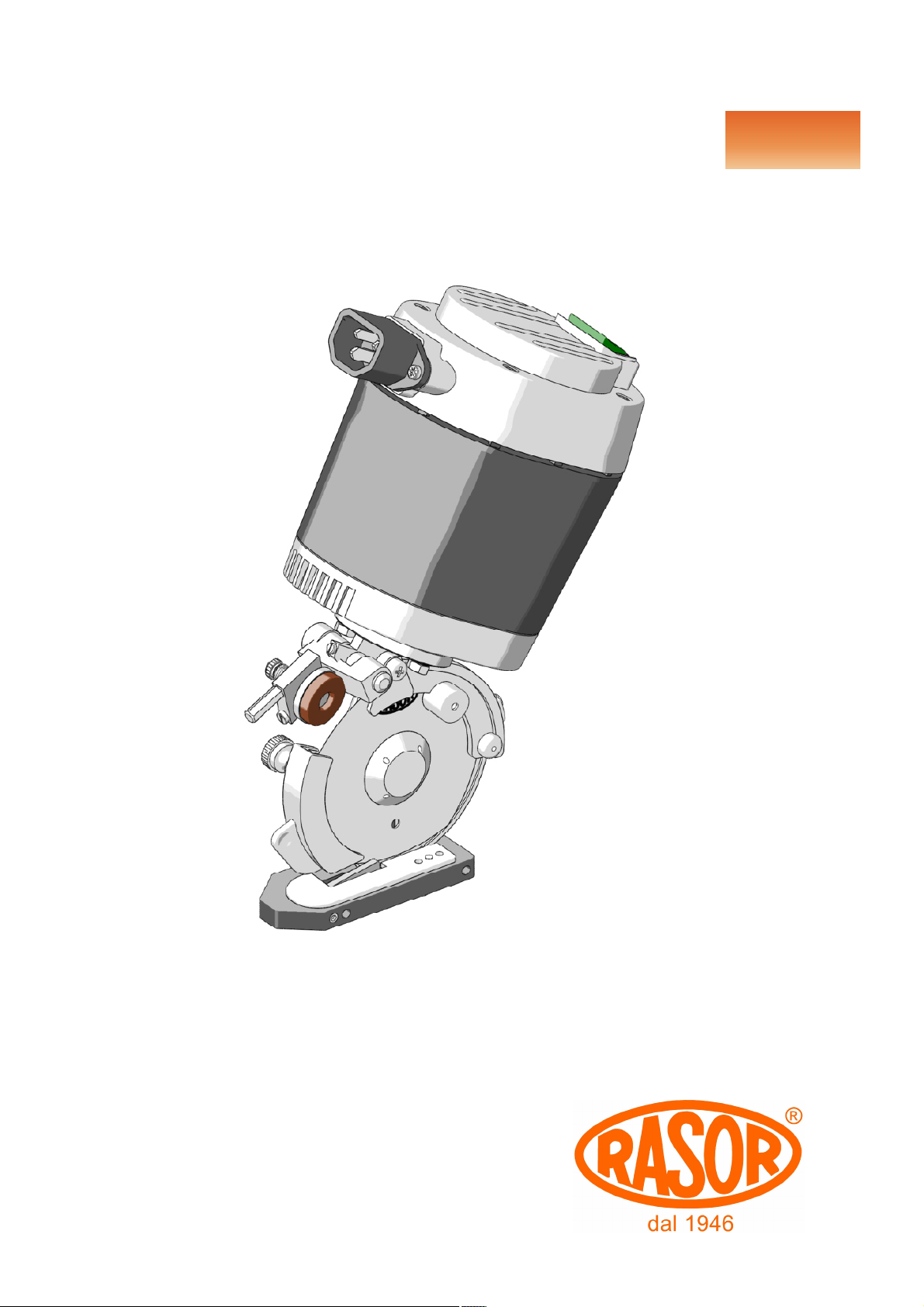

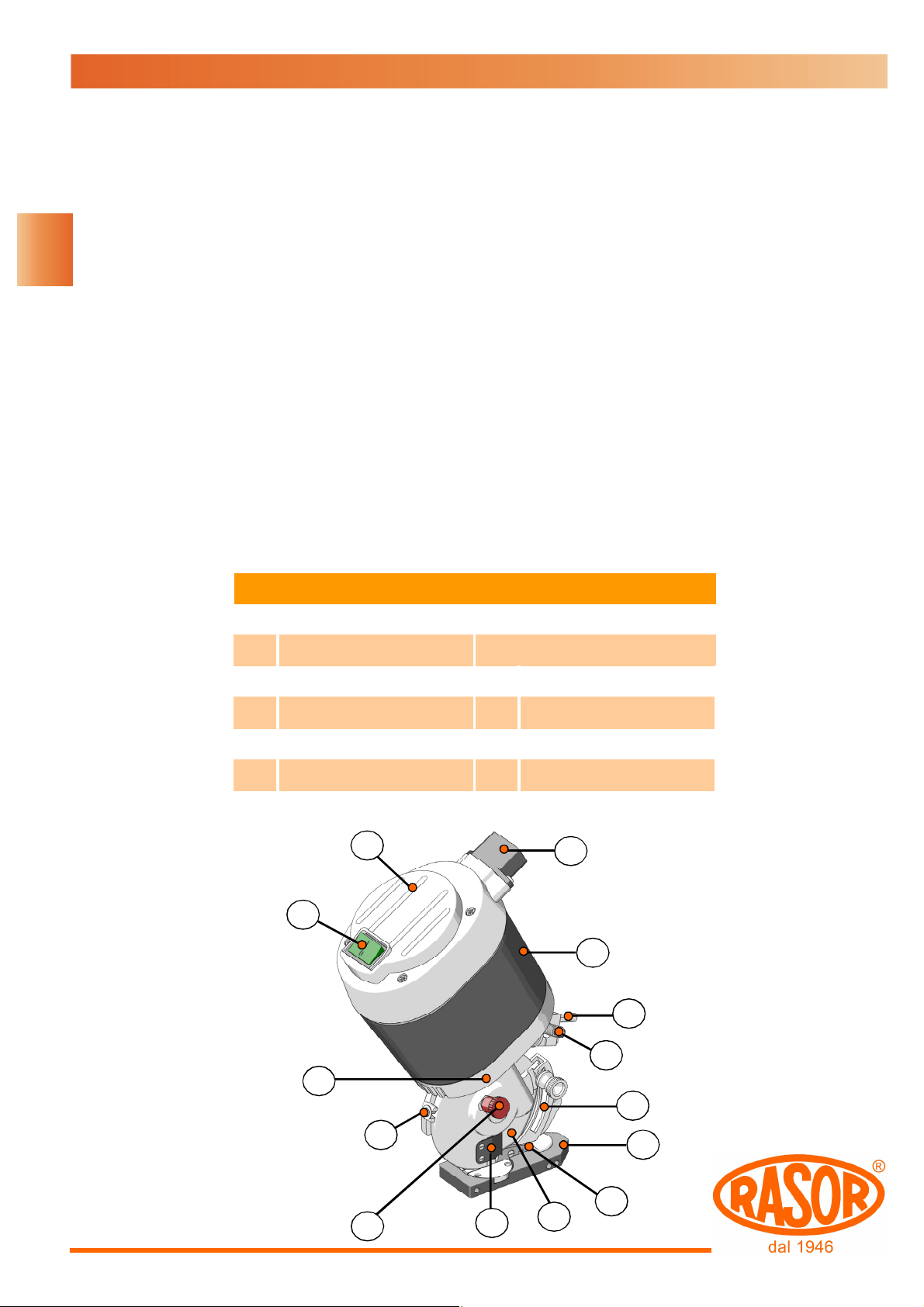

4. PRODUCT DESCRIPTION

The fixture described in this manual is a small cutting unit model D 86PS which can be assembled on automatic machines (e.g. spreaders, computerized cutting) by means of proper holes located in the motor support. D 86PS can operate continuously and it can cut at various widths by means of multiple installation. By cutting with the blade and the counterblade always in contact and thanks to the steel upper quality of the blade supplied, D 86PS guarantees the clean separation without frayings of the two borders of the cut material. Moreover, the 220 Volt single-phase motor guarantees a blade peripheral speed of 230 m/min allowing great cutting performances in terms of translation speed. The small dimensions of the blade (86 mm) and the light weight (only 2,4 Kg) of the cutting unit make it ideally suited for small radius cut profiles on materials with thickness up to 2,5 cm. A sharpener assembled on the cutting unit head allows whetting the blade at any moment without disassembling it. After carrying out this operation, it is possible to start cutting again. A high power motor, perfectly balanced, with a high number of revolutions and totally free of maintenance, reduces the vibrations to the minimum, thus making the cutting unit complies with Italian Legislative Decree No. 187 dated 19/8/2005, which adopts European Directive No. 2002/44/CE concerning the risks deriving from mechanical vibrations.The mechanical parts are made of high resistance steel, bronze and aluminium and require lubrication after several working hours.

Device components

1 Switch provided with light 8 Nylon base

2 Motor cover 9 Poligonal blade

3 Socket 10 Spring locking the thread

4 Motor frame 11 Greaser

5 Sharpening lever 12 Fixed back protection

6 Grinding wheel adjustment 13 Hard metal counterblade

7 Movable front protection 14

Motor metal lower cover with

assembly holes

5. TECHNICAL FEATURES

86 mm with hard metal counter

blade

Minimum luminosity for working

operations

5 side blade Ø 86 mm, in HSS steel

covered with Teflon

8 side blade Ø 86 mm in HSS steel covered

with T.I.N.

D 86PS cutting unit features

Blade diameter

Blade speed

Cutting working depth

Motor power

Max. absorption

Weight (with feeding cable)

Weight (with package)

Electric cable lenght

Vibrations at the start up

Working temperature

Working humidity

850 rev./min

about 25 mm

Single-phase - 90 W

1 A

2,400 Kg

3,200 Kg

1,5 mt

LUX 200

< 2,5 m/s

0 ~ 55°C

10 ~ 95% without condensate

86PHSSTF

86THSSTN

Features of the available blades

86PHSS

86THSS

86THSSTF

86TMD

5 side blade Ø 86 mm in HSS steel

8 side blade Ø 86 mm in HSS steel

8 side blade Ø 86 mm, in HSS steel

covered with Teflon

8 side blade Ø 86 mm in integral hard

metal

The technical data are only indicative and they can be changed without notice.

6. NOISE LEVEL

The maximum acoustic pressure level emitted by cutting unit D 86PS is about 60 dB (A). Noise tests have been carried out in compliance with Standard ISO 11202 (1995). The device noise levels, measured at different distances (without any sound wave filtering system), vary in the extent of few db (A).

NOTE

It is advisable for cutting unit D 86PS owners to verify the compliance with the standard concerning safety of workers: Italian legislative decree N.277 ITEM IV (DATED 15-08-91). The use of ear protecting devices is compulsory.

7. FIELD OF APPLICATION

Cutting unit D 86PS has been designed, manufactured and assembled to cut any kind of fabrics or materials, with the exception of metal, plastic or wood, by means of rotary poligonal blades. This equipment must not work:

- in areas prone to explosions;

- in presence of fine dust or corrosive gases;

- on wet or damp materials;

- to cut plastic, metal and wooden materials.

It is forbidden to use cutting unit D 86PS for purposes different from the above-mentioned ones.

8. USE WARNINGS

We recommend following the indications below in order to always work in safety conditions.

· All the operations must be carried out complying strictly with the safety rules of the

country where the device is to be installed.

· It is STRICTLY FORBIDDEN to smoke during the installation or adjustment operations of

the cutting unit.

· The Customer undertakes to comply with and make his staff observe all the rules and

regulations in force concerning safety, prevention of accidents and health in the work place. Therefore, the Customer assumes the responsibility to strictly follow all the rules and regulations in force, as well as the special provisions in force in sport and public installations the Customer declares to know after receiving all the relative necessary information.

· The cutting unit works also without its safety protective device. This protective device

must NEVER be removed.

· Always check the resistance of the material to be cut and the kind of blade which is being

used.

· The Customer shall equip his own personnel with all the individual safety protections for

the execution of the works, as well as with the ones which might be prescribed by the Manufacturer due to specific danger conditions of the plant or of the area where the personnel must work.

· Only one operator must use the cutting unit always standing behind the guide handle. Do

not make any adjustment while the blade is working or while the electric plug is connected.

· Always pay attention to the electric cable position to prevent it from being cut or damaged

by the blade.

· It is allowed to assemble cutting unit D 86PS on machines O.E.M. on condition that their

original structure is not modified. Otherwise, the intervention must be certified by Rasor®.

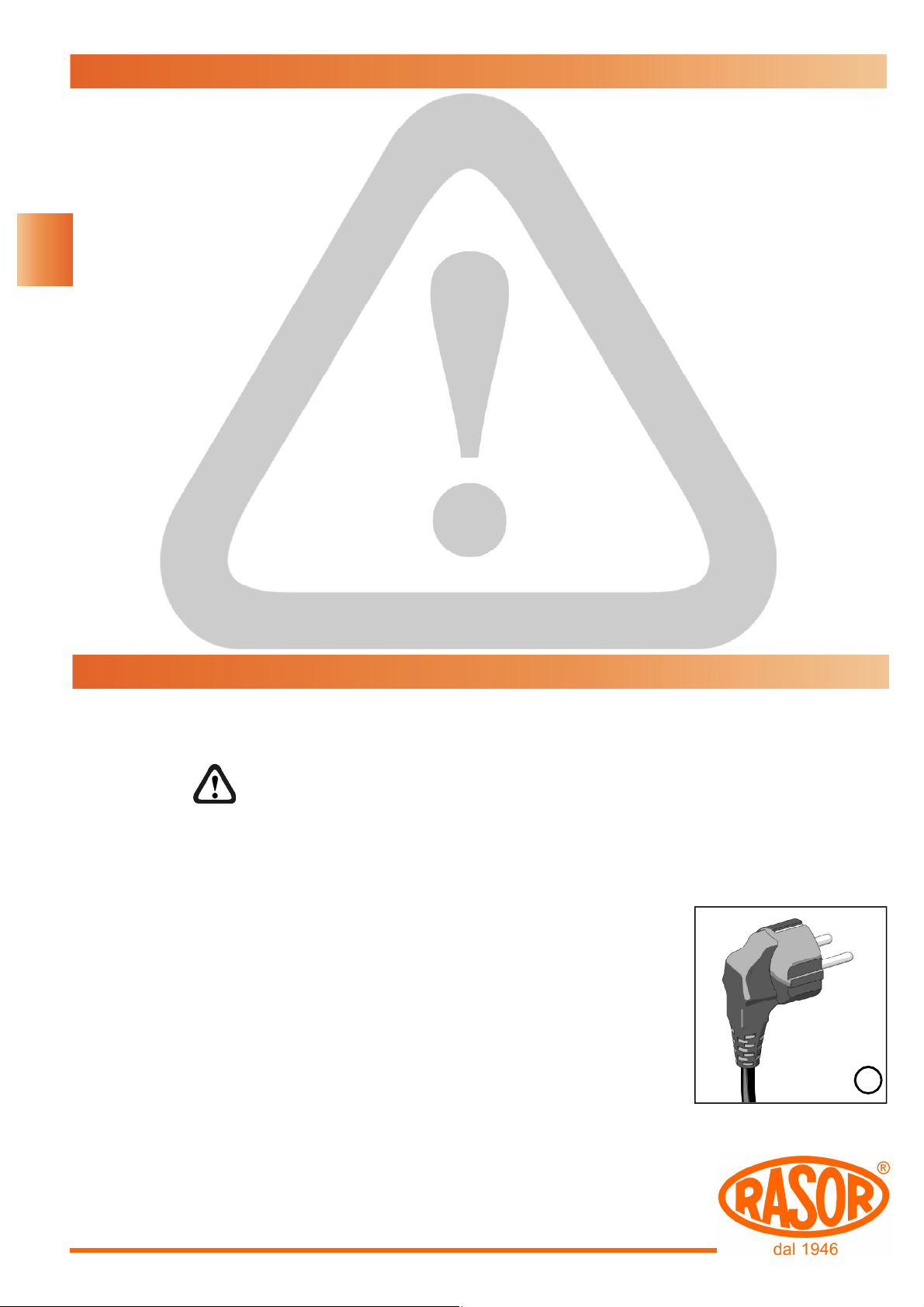

9. ELECTRIC CONNECTION

Firstly make sure that the lines are able to feed the cutting unit correcltly, in compliance with the safety rules

WARNING

We suggest installing a magnetothermic safety device before the cutting unit and check that the ground circuit is effective the plug out. Check that electric connections and protections correspond to the driving force and the plate data values required by the different electric circuits connections make the working conditions unsafe. Possible damages are not charged to 27/1 standard all the works carried out by means of electric

current must be performed by a staff, who has been provided with all the devices required by the above-mentioned standard. For the works carried out under voltage, it is necessary that the employer certifies the suitability, formative processes without plug, the user must use a plug homologated in the country in which the cutting unit is used. In the European Countries a Shuko plug is required (see picture the lenght of the cable supplied class II electric device; therefore, it does not need earthing.

. As the cutting unit

Rasor

(

for the feature required see par. 5

. Before working on the feeding cable pull

(voltage and current

. Possible faulty ground

. By referring to the EC

against

D 86PS is supplied

3). Never change

The cutting unit D 86PS is a

11-

10. RESIDUAL RISKS

Even though the cutting unit is safe, operators must pay attention to preserve their and other people’s safety.

L At the end of the working operations, the motor could be very hot. L The cutting blade can work even when the protective device is disassembled.

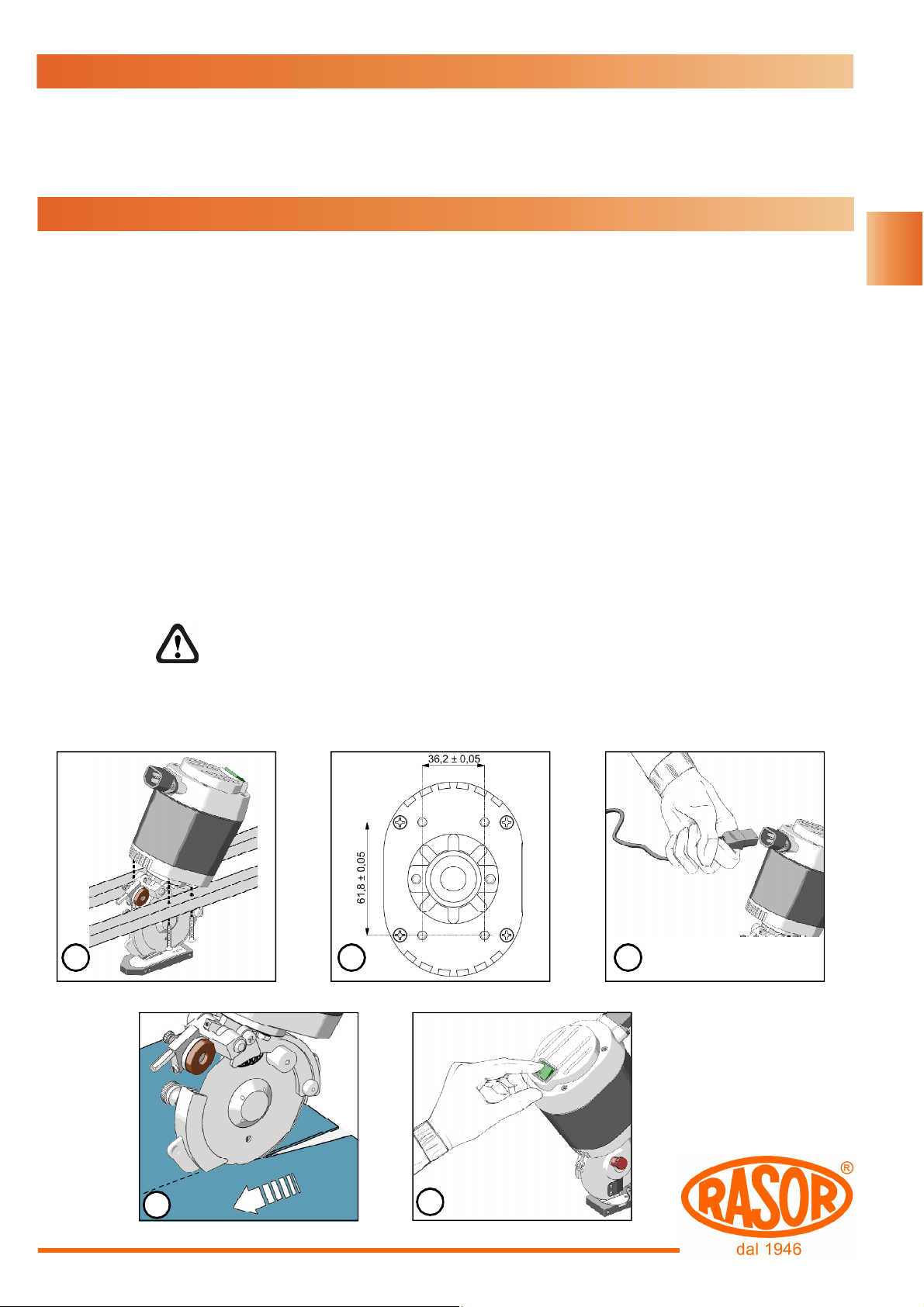

11. INSTALLATION AND USE

To install and use the cutting unit manually, proceed as follows:

1)Fix the cutting unit on level squares or angles by means of four 5MA screws, by inserting them in the four holes located in the motor lower cover (see pictures 4 and 5).

NOTE

The cutting unit can be installed in any position/angle: vertically, laterally and it can be turned upside down. It is not compulsory for the Teflon base to touch the machine table.

2)Lay the material to be cut;

3)Connect the cutting unit to the electric feeding (see picture 6);

3)Put the material on the cutting foot (see picture 7);

4)Adjust the front mobile protection according to the thickness of the material to be cut (see picture 7);

5)Enable the switch; once it has been enabled, it lights with a green light (see picture 8).

NOTE

Cutting unit D 86PS can work in a fixed position (the material has to be moved) or it can move forward while the material is kept in the same position. Make sure the material to be cut is properly stretched, preventing it from curling.

WARNING

Never use the two bolts which fix the motor to the cutting part to fasten cutting unit D 86PS. This operation may cause the motor shaft to break. In this case, warranty is not valid.

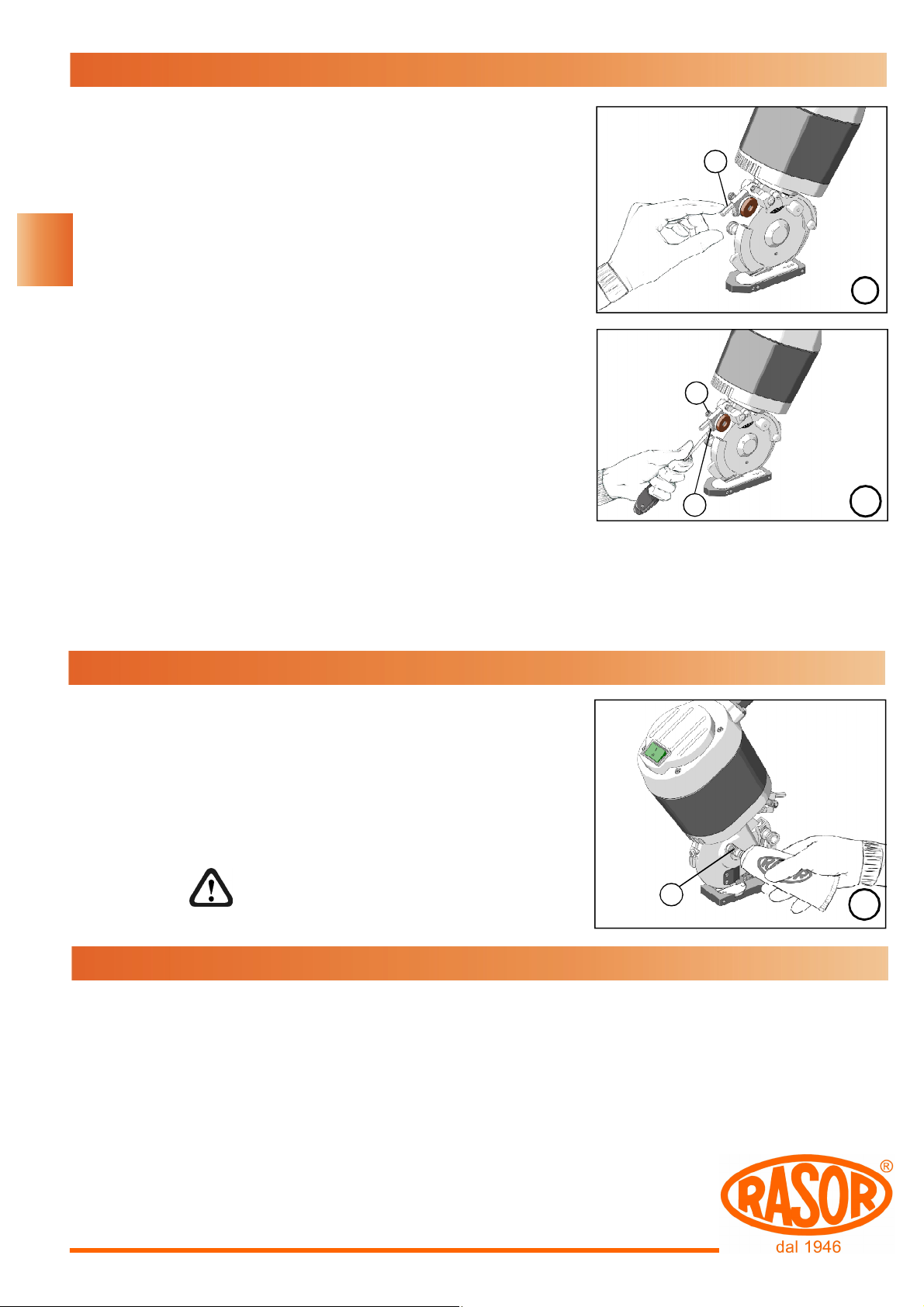

12. BLADE SHARPENING AND SHARPENER ADJUSTMENT

The blade sharpening is carried out with the cutting unit on, by lowering the proper lever (1, Pict. 9), until the cutting edge of the rotating blade is reached and the external edge is sharpened. Repeat this procedure 3-4 times, for 3-4 seconds.

To carry out a good sharpening, lower the lever progressively (1, Pict. 9), by avoiding abrupt movements and an extreme pressure on the lever itself, in order to protect the emery wheel from wear or damage. The sharpening procedure must be carried out carefully in particular when a worn blade is replaced with a new one. In this case, an extreme pressure on the sharpening lever may damage the cutting profile of the new blade, compromising its correct use. Therefore, we suggest adjusting the emery wheel as follows, after assembling a new blade on the cutting unit:

· Disconnect the device from the power supply.

· Manually lower the sharpener so that the emery

comes into contact with the cutting blade profile (Pict.9).

· By means of a screwdriver, loosen the screw (2, Pict.10)

· Manually rotate the threaded bush (3, Pict. 10) bringing the emery and the blade closer.

· Tighten the screw (2, Pict. 10) and sharpen the blade as previously described.

13. LUBRICATION

Every 3-4 working hours, it is necessary to lubricate the pair of gears. To carry out this operation, remove the protective plug “A” located on the motor support of the cutting unit and fill it with lubricating grease Rasor. Screw plug “A” again a few turns. Screw plug “A” a few turns every 2-3 working hours (see picture 11).

WARNING

The blade must never be dirty with grease or oil.

14. MOTOR BRUSH REPLACEMENT

Since worn motor brushes may cause cutting unit malfunctions (non-start, intermittent start), check motor brushes periodically. Open the motor cover by unscrewing the 4 screws on the cutting unit head. Remove the brush metal contacts by means of a flat screwdriver. Remove brushes and check them: if the graphite has a lenght shorter than 15 mm or it is uneven, replace it. Close the metal contacts again making sure that they adhere well to the metal part of the brush. Finally close the motor cover again.

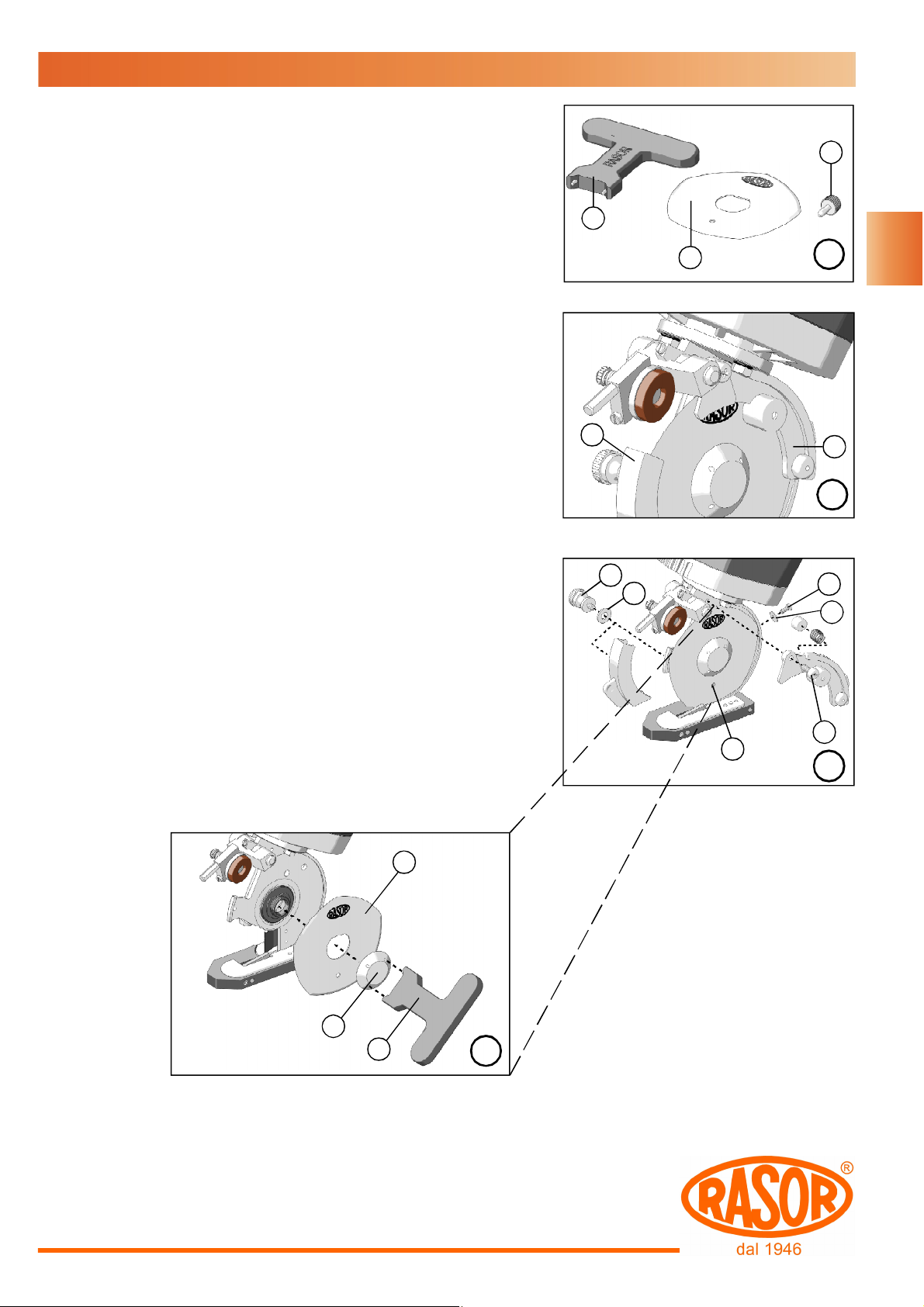

15. BLADE REPLACEMENT

If the blade is no more able to cut (even after repeating the sharpening operation several times) it is necessary to replace it. To carry out this operation, use butterfly wrench “1” and drift “3” locking the blade (shown in picture 12).

To replace the blade, proceed as follows:

1) Use some protective gloves in compliance with Italian Legislative Decree 242 dated 19 March 1996 (use of personal protection devices);

2) Remove the fixed rear safety protection “A” (see picture

13) by unscrewing the cross-slotted screw “C” and the cross-slotted screw “D” by means of the proper screwdriver (not supplied by the manufacturer) and by extracting washer “E” as shown in picture 14. Remove the mobile front safety protection “B” (see picture 13) by unscrewing pin “F” and removing washer “G” as shown in picture 14.

3) Insert drift “3” (see picture 12) into hole “H”, so as to lock the blade (the hole on the blade must correspond to the one on the structure).

4) Use butterfly wrench “1” to unscrew nut “L” and remove blade “M” (see picture 15).

5) Replace the worn blade with the new one “2”, being careful to center the blade on the shaft, in the correct position, and remember to assemble it with the side with the writing Rasor positioned towards the external side of the cutting unit.

6) Assemble all the components again and carry out the sharpening.

16. TROUBLE SHOOTING

Disassemble the blade and remove the material residues

The fabric is not cut or it gets stuck between the

6 PROBLEM

à SOLUTION

Check the distance between the blade and the counterblade

Check the kind of fabric

Sharpen the blade

blade and the counterblade

Check the compatibility between blade and fabric

Check the fabric thickness

Make sure that the motor turns correctly

Reduce the feeding speed

Check the counterblade integrity

Carry out the lubrication

The cutting unit is noisy

Check the wear of the pair of gears

The cutting unit starts slowly, works

intermittently or it does not start

Check the motor brushes

Check the electric connections

Check the feeding cable

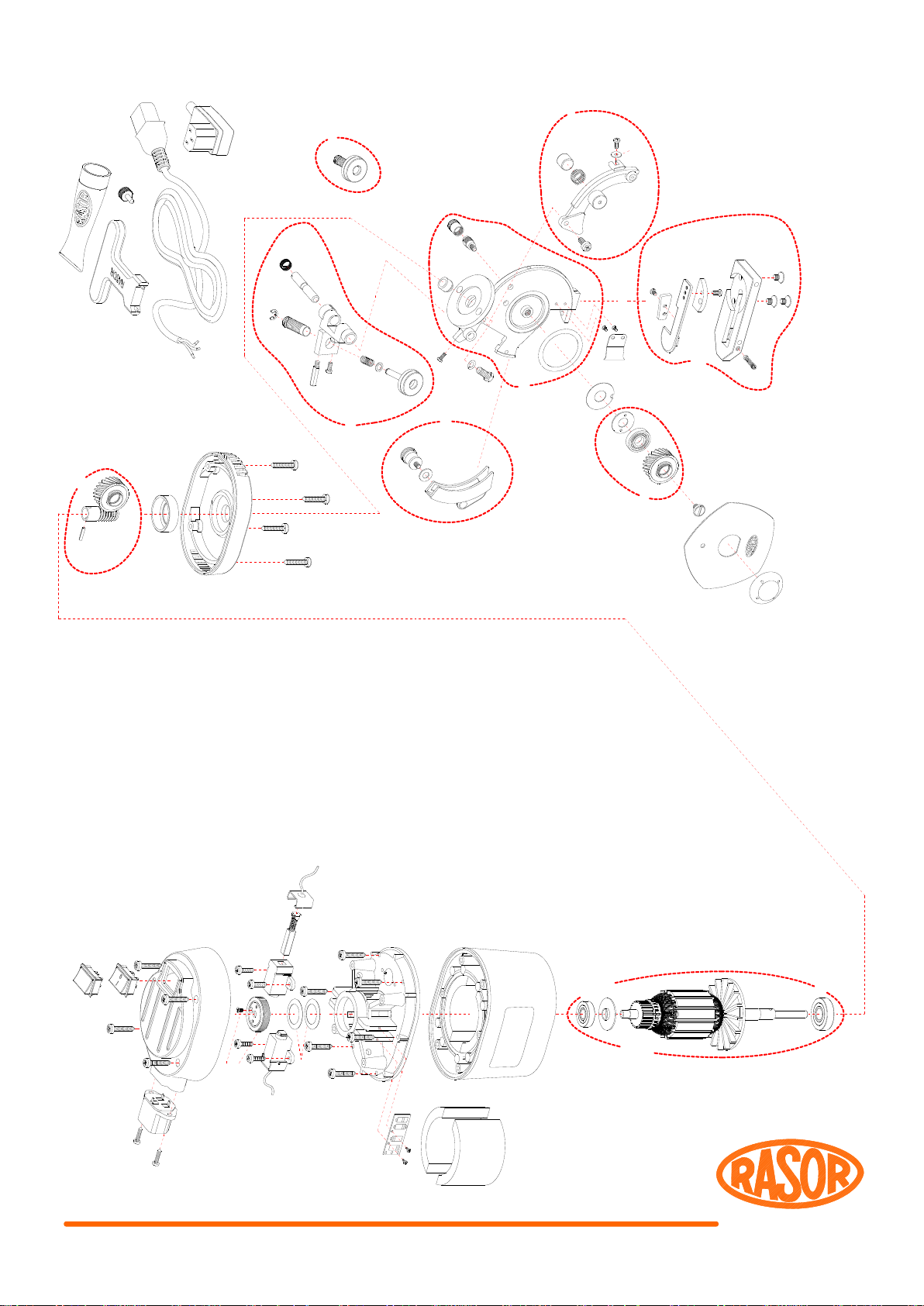

17. SPARE PARTS / EXPLODED VIEW

CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION

86PHSS

S 863601 SHARPENING LEVER SW104102 OILER RING T102201 UPPER COVER FIXING SCREW T 105800 GEAR RING BEARING

S 867001

S 8674S NYLON SIMPLE BASE SW1059CPL COMPLETE GEAR RING T102201 PERMANENT MAGNET PAIR T 106100 SUBBLADE RING

S 8674SCPL NYLON COMPLETE BASE SW1070S BASE/SECTOR FIXING SCREW T102701 L PLUG WITH FROMMET T 106300 BLADE FIXING RING NUT

S 8676S SPRING WITH DOWEL SW108000 COUNTERBLADE HOLDER T102702 SOCKET T 107500

S 867800 PLATFORM SECTOR SW108100 WIDIA COUNTERBLADE T1027CPLFEEDING CABLE WITHOUT PLUG T 107600 DRIFT LOCKING THE BLADE

S 868300 SHARPENER PIN SW108200 COUNTERBLADE FIXING SCREW T102904 COVER SWITCH WITHOUT LIGHT T 107900 LUBRICATING GREASE

S 868400 SIMPLE SHARPENER UNIT T100102 MOTOR COVER WITH SLOT T102904L

S 8684CPL COMPLETE SHARPENER UNIT T100200 MOTOR COVER FIXING SCREW T 103400 SHARPENER SPRING T 861301 COMPLETE ROTOR 110 V

S 868600 EMERY WITH PIN AND PLATE T100201 SOCKET SCREW T 103600 SHARPENER SCREW 3MA x 14 T 861302 COMPLETE ROTOR 48 V

PENTAGONAL BLADE Ø 86 mm, H.S.S. STEEL

COUNTERBLADE HOLDER FIXING SCREW

SW1037S

SW104103 OILER RING SPRING T102100 LOWER COVER FIXING SCREW T 106000

ELECTRONIC CIRCUIT FIXING SCREW

T101801 ELASTIC PIN T 105700

COVER SWITCH WITH LIGHT, SERIES 2008

T 861300 COMPLETE ROTOR 220 V

RING BEARING FIXING RING NUT

GEAR RING FIXING LEFT SCREW

BLADE ASSEMBLING/DISASSEMBLING SCREW

S 868700 SHARPENER PIN SPRING T100300 ADJUSTMENT LOCKING SCREW T 104000 SEEGER SPRING T 864100 REAR PROTECTION GUARD

S 868701 SHARPENER PIN WASHER T 100400 MOTOR BEARING ADJUSTMENT T 104200

S 868800 THREADED BUSH T 100600 MOTOR BRUSHES T 104201 WASHER T 864400 FRONT PROTECTION GUARD

S 869000 COMPLETE EMERY T 100700 BRUSH HOLDER T 104300

SW100500 PAIR OF DISC SPRINGS T 100800 BRUSH HOLDER SPRING T 104700 GREASER CAP T 864500 FRONT GUARD FIXING SCREW

SW101800 WORM SCREW T 100900 BRUSH HOLDER FIXING SCREW T 104800 GREASER T 864600 WASHER

SW101800CPL COMPLETE PAIR OF GEARS T 101000 MOTOR BEARING Ø 7 mm T 105000

SW1019S LOWER MOTOR COVER T 101200 ANTI-GREASE WASHER T 105100 SHARPENER PIN FIXING SCREW T 865400 ANTI-FRICTION BUSH

SW102000 UPPER MOTOR COVER T 101500 FAN T 105200 MOTOR SUPPORT FIXING BOLT T 8655CPLCOMPLETE MOTOR SUPPORT

SW1022S

SW1029S

MOTOR FRAME WITH MAGNETS FEEDING ELECTRONIC CIRCUIT

T 101600 MOTOR BEARING Ø 10 mm T 105300 WASHER

T 101700 COMPENSATION RING T 105600 ADJUSTING WASHER

2,6MA SCREW FOR THE REAR GUARD FIXING

4MA SCREW FOR THE REAR GUARD FIXING

FIXING SCREW OF THE PLATE BLOCKING THE THREAD

T 8641CPLREAR PROTECTION SET

T 8644CPLFRONT PROTECTION SET

T 864900 PLATE LOCKING THE THREAD

T 107900

T 1027 CPL

T 107600

T 102701

S 869000

SW 104102

T 8641CPL

SW 104103

T 104200

T 104201

T 864100

SW 1018CPL

T 101801

SW 101800

T 107500

SW 1059CPL

T 101700

T 104800

T 864500

T 104700

T 105100

T 8644CPL

T 864600

T 865400

T 105300

T 864400

T 105200

T 106100

T 8655 CPL

T 103400

S 868300

S 868800

T 102100

S 863601

S 868400

T 103600

S 868700

S 8684CPL

S 868701

S 868600

T 104000

SW 1019 S

T 104300

T 105600

T 105000

T 105700

T 864900

T 105800

SW 1059CPL

SW 108200

SW 108100

SW 108000

S 8674SCPL

S 867800

T 106000

S 867001

S 8674S

SW 1070S

S 8676 S

86 PHSS

T 106300

T 102904

T 102904L

T 100200

T 102702

T 100201

T 100102

T 100900

T 100300

T 100400

T 100900

T 100700

T 100800

T 100600

SW 100500

T 102001

SW 1029S

SW 102000

SW 1037S

T 102201

T 101200

T 101000

T 861300 - V220-230

T 861301 - V110

T 861302 - V48

SW 1022 S

T 101500

T 101600

dal 1946

WARRANTY

Rasor

on the last page of this manual, except in case of different written agreements.

The warranty covers all manufacturing and material defects. Replacement and repair operations

are covered only if carried out by our company and at our workshop.

The material to be repaired must be sent CARRIAGE FREE.

Once the machine has been repaired, it will be sent CARRIAGE FORWARD to the customer.

The warranty covers neither technicians' intervention on site nor the machine disassembly

from the installation place.

If for practical reasons, one of our technicians is sent to the premises, the customer will be

charged the costs plus the travelling expenses.

The warranty does not include:

Elettromeccanica S.r.l. cutting unit has a 12 month warranty from the date indicated

+ failure caused by wrong use or assembly, + failure caused by external agents, + failure caused by lack of maintenance or neglicence; + blades and parts subject to wear.

WARRANTY FORFEITURE:

+ In case of arrearage or other breaches of contract, + Whenever changes or repairs are carried out on our cutting units without our prior

authorization,

+ Whenever the serial number is tampered with or cancelled, + Whenever the damage is caused by improper use, bad treatment, bumps, falls and

other causes not due to normal working conditions,

+ Whenever the unit seems tampered with, dismantled or previously repaired by

unauthorized staff,

+ In case the cutting units are used for purposes that are different from the ones

described in this manual.

All repair operations carried out under warranty do not interrupt its duration.

All disputes will be settled in the court of justice of Milan (Italy).

We thank you in advance for the attention you will pay to this manual and we invite you to

inform us of any change you deem necessary to improve it and make it more complete.

DECLARATION OF CONFORMITY

We hereby certify that the machine specified hereunder complies to the requirements of Machinery Directive 2006/42/EC, Electromagnetic Compatibility 89/336/EEC and CEI EN 602041, Directive 2002/44/EC (Italian Legislative Decree 187 of 19/08/2005) and to technical rulings UNI EN 414:2002, UNI EN ISO 12100-1:2005 and UNI EN ISO 12100-2:2005.

Noise tests have been carried out according to UNI EN ISO 11202 Standards.

Cutting unit D 86PS has been produced according to workmanlike standards.

We declare that the above-mentioned goods comply with the standards in force concerning safety and hygiene at work that can be applied to the material itself according to art. 6 of the Italian legislative decree No. 81/08; the above-mentioned goods are not included in the goods indicated in annex IV, art. 4, paragraph 1, (letter a), Italian Law No. 459 of 24 July

1996.

1.Category: CUTTING UNIT

2.Manufacturer: RASOR®ELETTROMECCANICA S.R.L.

3.Type: D 86PS

4.Serial number:..........................................................................................

5.Year of manufacture:................................................................................

6.Country of manufacture: ITALY

7.Additional information:..............................................................................

Date:

RASOR ELETTROMECCANICA S.R.L.

Warranty expiry:

12 months invoice date or receipt

CUTTING EQUIPMENTS

(Signature)

Authorized dealer

(Stamp)

RASOR D 86PS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
