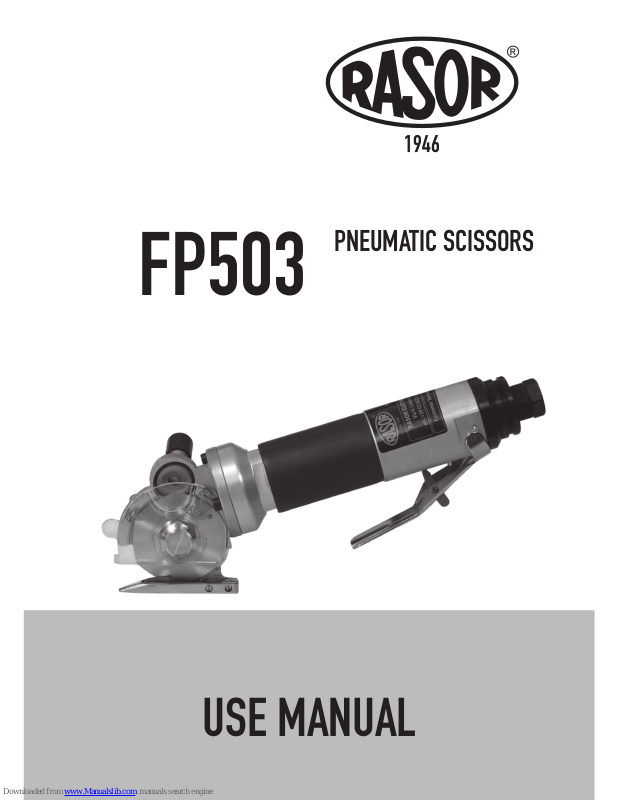

RASOR FP503, D86P2, DS503 Use Manual

PNEUMATIC SCISSORS

USE MANUAL

FP503

COMPANY

ACKNOWLEDGMENT

Dear Customer,
thank you for choosing a Rasor® Elettromeccanica S.r.l. product.
Rasor® has been a reference point in the field of cutting systems in the textile, clothing,
furniture, tailoring, sport, chemical, automotive, nautical and insulating material sectors for
years. Its production has always been synonymous with reliability attested by many of
satisfied customers.
Rasor® quality system supervises all the company activities in order to provide the Customer
with a service that meets its needs and expectations in terms of product quality, delivery
reliability and stock of finished products.
All the parts of the devices have been designed and produced to guarantee an optimum
performance. In order to keep the high quality level and the long reliabilty of the Rasor

®

products, it is recommended using only original spare parts and contacting the head office
for any maintenance work.

Rasor® Elettromeccanica S.r.l. was established in Milan in 1946 by Luigi Spinelli. For more
than sixty years it has been producing automatic cutting systems, cutting units for textile

applications and electric and pneumatic cutters.
Initially considered as a point of reference for cutting systems in the
textile applications, the Rasor® products are nowadays widely used in
other fields: chemical, automotive, nautical and sport sectors and in
furniture manufacturing.

Rasor® can rely on the professional continuity of three generations,
thanks to the precious support of the promoting partner, to his passion, dedication and great
experience of seventy years.
The main characteristic of Rasor® is that each working phase, starting from the manufacturing
of the product up to its packing and delivery is carried out in Rasor® premises by qualified
operators who have professionaly grown up following the spirit of the company and of its
founders. This ensures the high quality which Rasor® has always considered as essential since
the beginning of its activity.
Following the innovative spirit mentioned above, our company is constantly focused on the
improvement of the product quality, on the study and development of new materials and
technologies.

EN

18

1. GENERAL SAFETY RULES

This manual is an integral part of pneumatic scissors FP503 and must be carefully
read before using it since it gives important indications with regards to its safe
installation, use and maintenance. Keep it with care.

Before using pneumatic scissors FP503, read carefully the following general
safety rules.

• PACKAGING.
After taking off the packaging make sure that the machine is intact. In case of
doubt do not use them and contact an authorized service centre. Do not leave
pieces of packaging (plastic bags, foam polystyrene, boxes, etc.) within the
reach of children or disabled persons since they are potential sources of danger.

• AVOID DANGEROUS ENVIRONMENTS.

• KEEP CHILDREN AWAY.
Unauthorized persons, in particular children, must be kept away from the working
area.

• KEEP THE WORKING AREA ALWAYS IN ORDER.
The workplace must always be kept in order and well lightened;

• ALWAYS USE PNEUMATIC SCISSORS FP503 PROPERLY.
Use the scissors only to carry out the works they have been designed for; do
not use them improperly.

• OBSERVE THE USE OF THE TOOLS.
Do not cut excessively thick materials and always check blade conditions.

• AVOID ACCIDENTAL STARTINGS.
Before connecting pneumatic scissors FP503, make sure that everything is
installed properly.

• CLOTHING.
Do not use large clothes or accessories that might get stuck in the moving
parts.

• GOGGLES AND PROTECTIVE METAL MESH GLOVES.
Always use goggles, protective metal mesh gloves approved by Rasor® during
use and maintenance operations (according to UNI EN 388:2004 standard).

• SPARE PARTS.
During maintenance and replacement operations use only original spare parts.
Blade maintenance must be only performed by Rasor® technicians.

• INSTALLATION.
Any installation that is not in conformity with these specifications could jeopardize
your safety and cancels the warranty.

EN

19

ALL RIGHTS ARE RESERVED ACCORDING TO THE

INTERNATIONAL COPYRIGHT CONVENTIONS

The reproduction of any part of this manual, in any form, is forbidden without the

prior written authorization of Rasor® Elettromeccanica S.r.l.

The content of this guide can be modified without prior notice. Great care has

been taken in collecting and checking the documentation contained in this

manual to make it as complete and comprehensible as possible.

Nothing contained in this manual can be considered as a warranty, either

expressed or implied - including, not in a restrictive way, the suitability warranty

for any special purpose. Nothing contained in this manual can be interpreted as a

modification or confirmation of the terms of any purchase contract.

Rasor® Elettromeccanica S.r.l. machines have not been conceived to work in areas at risk of
explosions and at high risk of fire.
In case of damage or malfunction, pneumatic scissors FP503 must not be used until the
Customer Care Technical Service has repaired them.

The original configuration of the pneumatic scissors must not be changed at all.
On receiving the machine make sure the supply corresponds to what has been ordered.
In case of non-compliance immediately inform Rasor®.
Also make sure the scissors have not been damaged during transport.

Customer Care Technical Service

WARNING

The installer and the maintenance man must know the content of this manual. Although
the main features of the machine described in this manual are not subject to change,
Rasor® Elettromeccanica S.r.l. reserves the right to modify the components, details
and accessories it deems necessary to improve the machine or to meet manufacturing or
commercial requirements at any time and without being obliged to update this manual
immediately.

Informative letter

For any information, please contact

RASOR®ELETTROMECCANICA S.r.l.

Via V. Caldesi, 6; 20161, MILANO (MI) - ITALY

Phone: [phone]; Fax: [phone]

e-mail: [e-mail]

web: www.rasor-cutters.com

WARNING

EN

20

2. TRANSPORT AND PACKING

The pneumatic scissors are delivered in a carrying case, inside which there are various options.
The code of the ordered product and its serial number are indicated outside the package (see
picture 1). The following accessories are contained in a bag inside the package (see picture 2):

1) Hexagonal blade (6 sides);

2) Grease tube;

3) Hexagonal wrench for grinding wheel nut tightening;

4) Drift for blade disassembly.

5) Lubricating oil (15 ml);

6) Rubber hose.

3. PLATE DATA

The manufacturer's identification and 2006/42/EC STANDARD conformity plate (see picture
below) is located on the front part of the pneumatic scissors.

The plate must not be removed at all, even if the machine is resold. Always refer to
the serial number (written on the plate itself) when contacting the manufacturer.

Several safety warnings are printed on a card which is applied to the scissors; such warnings
must be strictly followed by everyone dealing with the machine. The company is not to be

held responsible for damage to property or accidents to people which might occur
if the above-mentioned warnings are not observed. In such a case, the operator is
the only person responsible.

Serial number

Year of production

Model

Motor data

READ THE INSTRUCTION MANUAL

USE METAL GLOVES

USE GOGGLES

SHEARING RISK

DO NOT REMOVE THE SAFETY
DEVICES

FP 503 SS_________

1900

2

2

1

1

3

4

6

5

EN

21

4. PRODUCT DESCRIPTION

This manual describes pneumatic scissors model FP503, which are used in order to quickly
cut fabrics in the textile industry and other materials. They are extremely versatile, light and
precise in the cutting operation. Thanks to the use of a new foot, the cutting procedure is
very quick and effective, even when the bending radius is particularly narrow. One special
feature of pneumatic scissors FP503 is their ability to sharpen the blade in each moment
without disassembling it by means of a grinding wheel mounted on the scissors head. After
carrying out this operation, it is possible to start cutting again. The pneumatic scissors are
provided with a threaded connection for many air pipeline. The turbine, perfectly balanced,
with a high number of revolutions and totally free of maintenance, reduces the vibrations and
the noise to the minimum.
The pneumatic scissors can be used also outdoor and to cut damp or wet materials and
therefore particularly recommended in tannery, dyeworks, etc. The pneumatic scissors FP503
are extremely light (they weight only 790g) and handy and allow carrying out quick and
precise cuts. The use of compressed air as source of energy allows working continuously
without problems of heating or motor overload. The mechanical parts are made up of steel
and high resistant bronze and require a lubrication after many working hours.

4

5

8

2

1

3

12

7

10

11

9

13

14

6

15

16

1

1/4" gas connection for the air

connector

9 Sharpening button

2

Safety device to enable the control

lever

10 Blade protection guard

3 Control lever 11 Motor support

4 Supporting foot 12 Silencer

5 Polygonal blade 13 Antifriction bush

6 Greaser 14 Carbide counterblade

7 Pneumatic motor 15 Reference point

8 Emery grinding wheel 16

Allen screw to disassemble the

motor support

Device components

EN

22

7. FIELD OF APPLICATION

6. NOISE LEVEL

The maximum acoustic pressure level emitted by pneumatic scissors FP503 is about 60 dB
(A). Noise tests have been carried out in compliance with Standard UNI EN ISO 11202:2010.
The device noise levels, measured at different distances (without any sound wave filtering
system), vary in the extent of few db (A). The noise level has been detected with the silencer
supplied with the fixture assembled on the exhaust. The silencer must never be removed.

NOTE

It is advisable for pneumatic scissors FP503 owners to verify the compliance with the standard
concerning safety of workers: Italian legislative decree 81/08. The use of ear protecting devices
is compulsory.

Pneumatic scissors FP503 have been designed, manufactured and assembled to cut fabrics or
technical materials, with the exception of metal, plastic or wood, by means of rotary circular,
decagonal or hexagonal blades.
This equipment must not work:

-in areas prone to explosions;

- in presence of fine dust or corrosive gases;

- to cut plastic, metal and wooden materials.

It is forbidden to use pneumatic scissors FP503 for

purposes different from the

above-mentioned ones.

5. TECHNICAL FEATURES

The technical data are only indicative and they can be changed without notice.

50 mm with counterblade - heavy metal

1.900 rev/min

about 8 mm

350 W with max. pressure

6 bar

790 g

1.600 g

8 litres/sec.

LUX 200

< 2,5 m/s

2

0 ~ 55°C

10 ~ 95% without condensate

Cutting working depth

Power

Weight

Pneumatic scissors FP503 features

Blade diameter

Blade speed

Working pressure

Temperature

Humidity

Weight with package

Air consumption

Minimum light for working operations

Vibrations at the start up

EXTRA steel hexagonal blade

HSS steel hexagonal blade

HSS steel circular blade

HSS steel hexagonal blade covered with

Teflon®

HSS steel decagonal blade

503CHSS

503EHSSTF

503DHSS

503EHSS

Features of the available blades

503EEXT

EN

23

8. USE WARNINGS

We recommend following the indications below in order to always work in safety conditions.

· All the operations must be carried out complying strictly with the safety rules of the
country where the machine is to be installed.

· It is STRICTLY FORBIDDEN to smoke during the installation or adjustment operations of
the pneumatic scissors.

· The Customer undertakes to comply with and make his staff observe all the rules and
regulations in force concerning safety, prevention of accidents and health in the work
place. Therefore, the Customer assumes the responsibility to strictly follow all the rules
and regulations in force, as well as the special provisions in force in sport and public
installations the Customer declares to know after receiving all the relevant necessary
information.

· The pneumatic scissors work even without their safety protective device. This
protective device must NEVER be removed.

· Always check the resistance of the material to be cut and the kind of blade which is being
used.

· The Customer shall equip his own personnel with all the individual safety protections for
the execution of the works, as well as with the ones which might be prescribed by the
Manufacturer due to specific danger conditions of the plant or of the area where the
personnel must work.

· Only one operator must use the pneumatic scissors always standing behind the guide
handle. Do not make any adjustment while the blade is working.

· Always pay attention to the position of the air pipe to prevent it from being cut or
damaged by the blade.

· It is allowed to assemble pneumatic scissors FP503 on machines O.E.M. on condition
that their original structure is not modified. Otherwise, the intervention must be certified
by Rasor®.

· The pneumatic scissors FP503 are equipped with double safety push button with a lever
and a ratchet on the handle: the ratchet prevents the start push button from being
enabled accidentally, the lever operates the scissors. Never remove the ratchet.

EN

24

9. RESIDUAL RISKS

10. USE

Even though the pneumatic scissors are safe, operators must pay attention to preserve their
and other people’s safety.

L The cutting blade can work even when the protective device is disassembled.

To use the pneumatic scissors manually, proceed as follows:

1) Lay the material to be cut on the table;

2) Connect the air hose to the quick connection “A” (not supplied) (see picture 3);

3) Set the pressure gauge (option) to 6 bar;

4) Put the material on the cutting foot (see picture 4);

5) Push the starting lever after moving the safety device (see picture 5);

6) Push the pneumatic scissors in the desired direction, being careful to keep the material
in front of them as stretched as possible and preventing it from curling in the front part
of the scissors.

NOTE

The thrust on the pneumatic scissors must be as uniform as possible. To carry out linear cuts
with precision (and to follow predetermined paths), we also recommend using the arrow
point (see point “B” in picture 6).

4

3

5

A



B

6

EN

25

11. AIR PRESSURE GAUGE (OPTION)

7

The pneumatic scissors must be necessarily fed with
lubricated air with a pressure of 4-6 bar.
Rasor® offers, as option, a reduction unit filter with a
pressure gauge already calibrated with the quantity
of oil to be delivered.
The unit shown in picture 7 is made up of:

1 -pressure reducer;
2 -valve to drain the condensate;
3 -drip-feed oiler unit;
4 -oil tank;
5 -pressure gauge;
6 -condensate tank;
7 -pipe fitting to connect the quick connection to

the network;

8 -pipe fitting to connect the quick connection to the scissors.

For the use and maintenance read the instruction sheet supplied with the filter.

5

1

2

3

4

6

7

8

12. BLADE SHARPENING

After many hours of a continuative use of the pneumatic
scissors or if they are not able to cut anymore, it is necessary
to sharp the blade.
To carry out this operation, start the blade and press emery
grinding wheel “2” on the same one (by pressing sharpening
button “1” as shown in picture 8) for 3-4 seconds. Repeat
this operation 2-3 times.

If the sharpening process should be ineffective, check the
wear of the emery grinding wheel “3” (see picture 9). If
wheel “3” is too worn or dirty, replace it by removing the
blade by means of the proper tool.

8

1

2

9

3

EN

26

13. LUBRICATION

Every 3-4 working days, it is necessary to lubricate the
gear pair. In order to carry out this operation, remove
protective plug “A” located on the head of the pneumatic
scissors and fill it with the grease supplied. Screw plug
“A” again a few turns. Screw plug “A” a few turns every
working day (see picture 10) when the machine is used
without interruption.

The blade must never be dirty with grease or oil.

14. BLADE REPLACEMENT

10

WARNING

A

If the blade is no more able to cut (even after repeating the
sharpening operation several times) it is necessary to replace
it. In order to carry out this operation, use butterfly wrench
“1” and drift “3” locking the blade (shown in picture 11).
In order to replace the blade, proceed as follows:

1)Use some protective gloves in compliance with
Italian Legislative Decree 81/08.

2)Remove safety protection “B”, by unscrewing the two
slotted screws “A” by means of a screwdriver (not
supplied by the manufacturer), as shown in picture 12.

3)Insert drift “3” (see picture 13) into hole “C” in
order to lock the blade (the hole in the blade must
correspond to the hole in the structure).

4)Use butterfly wrench “1” in order to unscrew nut
“D” and remove blade “E” (see picture 14).

5)Replace the worn blade with the new one “2”, being
careful to center the blade on the gear, in the correct
position, and remember to assemble it with its sharp
side (the one with the writing Rasor) positioned
towards the external side of the pneumatic scissors.

6)Assemble all the components again and carry out
some cutting and sharpening tests.

12

3

1

2

3

13

C

1

14

A

A

B

1

D

E

11

EN

27

16. SPARE PARTS / EXPLODED VIEW

15. TROUBLESHOOTING

ACCESSORIES

CODE DESCRIPTION CODE DESCRIPTION

P171 MALE QUICK COUPLING - 1/4" GAS P171CPL

MALE QUICK COUPLING - 1/4" GAS
(COMPLETE)

P170 FEMALE QUICK COUPLING - 1/4" GAS P170CPL

FEMALE QUICK COUPLING - 1/4" GAS
(COMPLETE)

P174CPL

COMPLETE COUPLING WITH THREAD -

1/4" GAS

P173 AIR PIPE Ø 8x6 mm

P169

FLEXIBLE PIPE FITTING Ø 8 mm - 1/4"
GAS FEMALE

CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION CODE DESCRIPTION

503EHSS

HEXAGONAL BLADE Ø 50 mm., HSS
STEEL

F 5074CPL

COMPLETE EMERY GRINDING WHEEL
UNIT

FP085 JOINT FP86021 SILENCER SEAT O'RING

F 5032 GEAR CROWN CENTRAL PIN F 5075 EMERY GRINDING WHEEL BUSH FP086 SHAFT REAR BEARING FP86022 SILENCER SEAT

F 5033 GREASER CAP F 5076 WASHER FP08701 SPACER FP86025 BRONZE SILENCER-FILTER

F 5034 GREASER F 5077

SPRING INSIDE THE SHARPENING

BUTTON, Ø 6 mm

FP088 SHAFT FRONT BEARING FP86026 SMALL REDUCTION UNIT O'RING

F 5036 SHIM ADJUSTMENT WASHER F 5078

SPRING INSIDE THE SHARPENING
BUTTON, Ø 9 mm

FP089 COMPENSATOR RING FP86028 REDUCTION UNIT

F 5037

RING NUT TO FIX THE CROWN
BEARING

F 5079 SHARPENING BUTTON FP092 O-RING FP8612301CONTROL HEAD

F 5038 GEAR CROWN BEARING F 5080

SCREW FIXING THE SHARPENING
BUTTON

FP09301 COUPLING SHAFT

FP8612301CP

L

COMPLETE CONTROL HEAD

F 5040 GEAR CROWN FIXING SCREW 3,5MA FP014 MOTOR SUPPORT FP09301CPLCOMPLETE COUPLING SHAFT FP86127 NYLON BUSH FOR VALVE

F 5042 RING NUT FIXING THE BLADE FP015CPL COMPLETE GEAR CROWN FP09401 COUPLING FLANGE FP86130 CONNECTOR 1/4" WITH FILTER

F 5057 BLADE LOCKING DRIFT FP05001CPLCOMPLETE MOTOR FP095 HANDLE FOR HOOK FP86146 COMPLETE CONTROL LEVER

F 5059 BLADE DISASSEMBLY KEY FP074 REAR FLANGE FP096 COMPENSATION RING NUT FRNF503 SET OF ACCESSORIES FP503

F 5065 SCREW FIXING THE FOOT FP075 REAR FLANGE PLUG FP86010 PISTON GUIDE P001 WORM SCREW

F 5066

PLATE LOCKING THE THREADS

FASTENING SCREW

FP076 REAR FLANGE BEARING FP86011 PISTON GUIDE O' RING P002 SPRING PIN

F 5067 PLATE LOCKING THE THREADS FP077 POSITION PIN FP86012 PISTON GUIDE O' RING P003 ROLL BEARING

F 5068 WIDIA COUNTERBLADE WITH SPRING FP078 BUCKETS FP86013 PISTON P005 SUPPORT FIXING SCREW 4MA

F 5069 SCREW FIXING THE COUNTERBLADE FP079 CYLINDER FP86013CPLCOMPLETE PISTON WITH GUIDE P029 RUBBER HOSE

F 5070 STEEL FOOT FP080 ROTOR FP86014 STOP RING T102906 LEVER AND RATCHET FIXING PIN

F 5070CPL COMPLETE FOOT FP080CPL COMPLETE TURBINE FP86017 VALVE T102909 RATCHET FOR LEVER

F 5071 BLADE PROTECTION GUARD FP081 FRONT FLANGE BEARING FP86018 VALVE O' RING T102910 RATCHET SPRING

F 5071/1

SCREW FIXING THE BLADE
PROTECTION GUARD

FP082 FRONT FLANGE FP86019 STEEL BALL T107900 LUBRICATING GREASER

F 5074 PLATE WITH EMERY FP08301 MOTOR CASE FP86020 CONICAL SPRING T107902 LUBRICATING OIL (15 ml)

à

SOLUTION

Check the counterblade integrity

Check the kind of fabric

Sharpen the blade

Check the fabric thickness

Check the compatibility between blade and fabric

Make sure that the turbine turns correctly

Reduce the feeding speed

Carry out the lubrication

Disassemble the blade and remove the material residues

Check the silencer

Check the wear of the gear pair

Check the air circuit integrity

Set working pressure at 6 bar

The scissors start slowly or work intermittently

6

PROBLEM

The pneumatic scissors are noisy

The fabric is not cut or it gets stuck between the

blade and the counterblade

EN

28

503EHSS

FP095

FP86026

FP86026

FP088

FP09301

FP078

503EHSS

FP015CPL

FP014

POO3

P029

FRNF503

T107902

P174CPL P170CPL

P171CPL

P171

P170

ACCESSORI

TUBO ARIA

P173

FP05001CPL

F5066

F5065

F5070

F5068

F5070CPL

FP081

FP082

FP079

FP080

FP077

FP074

FP076

FP075

T102909

T102910

T102906

FP86013CPL

FP86012

FP86013

FP86146

FP86014

FP86021

FP86022

FP8612301

FP86028

FP86130

FP8612301CPL

FP86025

FP86017

FP86019

FP86020

FP86018

FP86010

FP86011

FP09401

FP096

FP089

FP092

FP080CPL

FP08301

P002

P001

FP086

FP085

FP08701

FP09301CPL

F5033

F5032

F5042

F5071

F5071/1

PAT107900

F5057

F5059

F5038

F5038

F5037

F5036

F5040

F5067

F5069

F5079

F5080

F5077

F5074

F5078

F5074CPL

F5075

F5076

F5034

P005

WARRANTY

Rasor® Elettromeccanica S.r.l. pneumatic scissors have a 12 month warranty from the date

indicated on the last page of this manual, except in case of different written agreements.

The warranty covers all manufacturing and material defects. Replacement and repair operations

are covered only if carried out by our company and at our workshop. If in-warranty goods

need to be repaired, the customer must always send the complete scissors to Rasor

®

.

Single units will not be repaired under warranty.

The material to be repaired must be sent CARRIAGE FREE.

Once the machine has been repaired, it will be sent CARRIAGE FORWARD to the customer.

The warranty covers neither technicians' intervention on site nor the machine disassembly

from the installation place.

If for practical reasons, one of our technicians is sent to the premises, the customer will be

charged the costs plus the travelling expenses.

The warranty does not include:

+ failure caused by wrong use or assembly,
+ failure caused by external agents,
+ failure caused by lack of maintenance or negligence,
+ blades and parts subject to wear.
+ failure caused by dirty compressed and/or not lubricated air.

WARRANTY FORFEITURE:

+ In case of arrearage or other breaches of contract,
+ Whenever changes or repairs are carried out on our pneumatic scissors without our

prior authorization,

+ Whenever the serial number is tampered with or cancelled,
+ Whenever the damage is caused by improper use, bad treatment, bumps, falls and

other causes not due to normal working conditions,

+ Whenever the unit seems tampered with, dismantled or previously repaired by

unauthorized staff,

+ In case the pneumatic scissors are used for purposes that are different from the ones

described in this manual.

+ In case non-original spare parts are used.

All repair operations carried out under warranty do not interrupt its duration.

All disputes will be settled in the court of justice of Milan (Italy).

We thank you in advance for the attention you will pay to this manual and we invite you to

inform us of any change you deem necessary to improve it and make it more complete.

RASOR ELETTROMECCANICA SRL

Via Vincenzo Caldesi 6
20161 Milan ∙ Italy
ph. [phone]
fax [phone]
[e-mail]

www.rasor-cutters.com

FOLLOW US:
