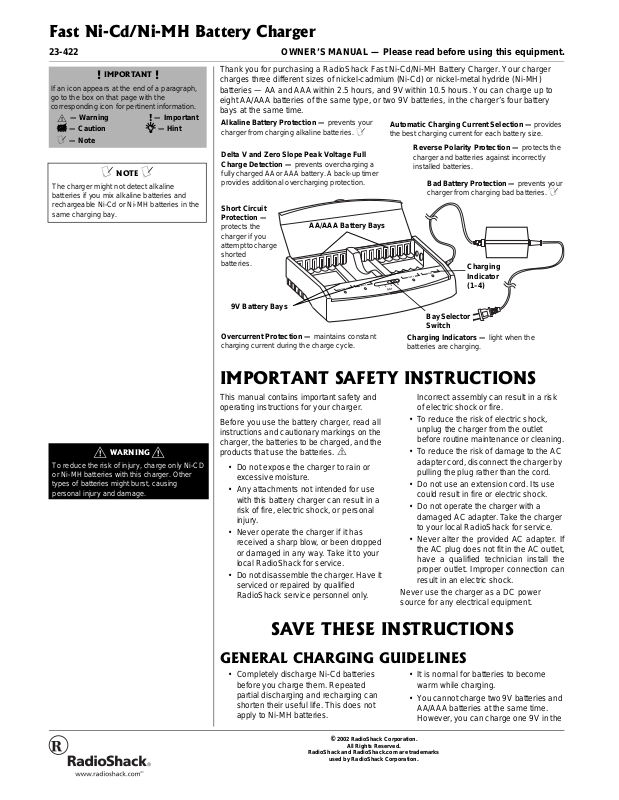

Fast Ni-Cd/Ni-MH Battery Charger

23-422 OWNER’S MANUAL — Please read before using this equipment.

IMPORTANT

!

If an icon appears at the end of a paragraph,
go to the box on that page with the
corresponding icon for pertinent information.

—Warning

o

 —Caution Ó —Hint

Ô —Note

!

—Important

!

Ô NOTE Ô

The charger might not detect alkaline
batteries if you mix alkaline batteries and
rechargeable Ni-Cd or Ni-MH batteries in the
same charging bay.

Thank you for purchasing a RadioShack Fast Ni-Cd/Ni-MH Battery Charger. Your charger
charges three different sizes of nickel-cadmium (Ni-Cd) or nickel-metal hydride (Ni-MH)
batteries — AA and AAA within 2.5 hours, and 9V within 10.5 hours. You can charge up to
eight AA/AAA batteries of the same type, or two 9V batteries, in the charger’s four battery
bays at the same time.

Alkaline Batt ery Protection — prevents your
charger from charging alkaline batteries.

Delta V and Zero Slope Peak Voltage Full
Charge Detection — prevents overcharging a

fully charged AA or AAA battery. A back-up timer
provides additional overcharging protection.

Short Circuit
Protection —

protects the
charger if you
attempttocharge
shorted
batteries.

9V Battery Bays

vercurrent Protection — maintains constant

harging current during the charge cycl e.

AA/AAA Battery Bays

Ô

Automatic Charging Current Selection —provide
the best charging current for each battery size.

Reverse Polarity Protection — protects the
charger and batteries against incorrectly
installed batteries.

Bad Battery Protection — prevents you
charger from charging bad batteries. Ô

Charging
Indicator
(1–4)

BaySelector
Switch

Charging Indicators— light when the

batteries are charging.

WARNING o

To reduce the risk of injury, charge only Ni-CD
or Ni-M H batteries with this charger. Oth er
types of batteries might burst, causing
personal injury and damage.

o

IMPORTANT SAFETY INSTRUCTIONS

This manual contains important safety and
operating instructions for your charger.

Before you use the battery charger, read all
instructions and cautionary markings on the
charger, the batteries to be charged, and the
products that use the batteries.

• Do not expose the charger to rain or
excessive moisture.

• Any attachments not intended for use
with this battery charger can result in a
risk of fire, electric shock, or personal
injury.

• Never operate the charger if it has
received a sharp blow,or been dropped
or damaged in any way. Take it to your
local RadioShack for service.

• Do not disassemble the charger.Have it
serviced or repaired by qualified
RadioShack service personnel only.

SAVE THESE INSTRUCTIONS

o

GENERAL CHARGING GUIDELINES

• Completely discharge Ni-Cd batteries
before you charge them. Repeated
partial discharging and recharging can
shorten their useful life. This does not
apply to Ni-MH batteries.

Incorrectassembly can result in a risk
of electric shock or fire.

• Toreducetheriskofelectricshock,
unplug the charger from the outlet
before routine maintenance or cleaning.

• To reduce the risk of damage to the AC
adapter cord, disconnect the charger by
pulling the plug rather than the cord.

• Donotuseanextensioncord.Itsuse
could result in fire or electric shock.

• Do not operate the charger with a
damaged AC adapter. Take the charger
to your local RadioShackfor service.

• Never alter the provided AC adapter. If
the AC plug does not fit in the AC outlet,
have a qualified technician install the
proper outlet. Improper connection can
result in an electric shock.

Never use the charger as a DC power
source for any electrical equipment.

• It is normal for batteries to become
warm while charging.

• Y oucannot charge two 9V batteries and
AA/AAA batteries at the same time.
However, you can charge one 9V in the

©2002 RadioShack Corporation.

RadioShackandRadioShack.com are trademarks

All RightsReserved.

used by RadioShack Corporation.

WARNING o

• To prevent damage to your charger andrisk

o

of shock, always unplug the A C cord from
the AC outlet before you remove or replace
the batter ies.

• Never mix alkaline batteries and
rechargeable Ni-Cd or Ni-MH batteries in
the charger for charging. Alkaline batteries
might burst, causing personal injury and
damage to the charger.

 CAUTION 

General Charging Guidelines

• Never mix AA and AAA batteries in the
charger, or put a discharged battery and a
charged battery in the same bay.

• Do not attempt to charge any other size or
type battery than those for which this
charger was designed.

• Charge batteries where the ambient
temperature is between 60° and 85°F (16°
and 29°C). Batteries do not fully charge
when cold. If thecharging conditions are too
warm, the batteries can permanently lose
their rechargeable properties.

Charging Batteries

Before connecting thecharger to AC power, be
sure all batteries are correctly installed
according to polarity. Incorrectly installed
batteries (polarity reversed) will not charge and
can be damaged.

right 9V bay and AA/AAA batteries in
the left bay.

• You cannot charge only one AA or AAA
battery in one battery bay. Y oumust
always charge a pair of the same size
and type batteries in one bay if the
other bays are empty.



CHARGING BATTERIES

The charger has 4 charging bays. Each bay
provides charging spaces for two AA and
two AAA batteries in alternating spaces. The
AA batteries fit between flat spring contacts
while the smaller AAA batteries fit between
flat spring contacts along the compartment’s
upper side and spring metal loops along the
lower edge of the compartment.

1. Lift the battery charger’s cover.

2. Place 2 AA or AAA batteries in BAY 1
according to the polarity symbols
(+ and –) marked inside the bay. If you
have more than 2 batteries to be
charged at a time, fill BAY 2 next, and
so on.

To charge 9V batteries, place the first
battery in the 9V channel across BAY 1
and BAY 2. Slide the battery’s connec­tors onto the terminals on the outside
wall of the channel. Place a second 9V
battery in the channel across BAY 3
and BAY 4.

3. Slide

BAY to select the number of bays

being used specifically for AA/AAA
batteries.

 Ô

4. Insert the AC adapter’s plug into a
standard AC outlet. The indicators on
top of the charger light showing that the
batteriesare charging. Ô

5. When the charging indicators turn off,
the batteries are fully charged. Unplug
the adapter from the AC outlet and
remove the batteries.

o

CHARGING TIMES

The following chart shows typical charging
times for several types and sizes of
RadioShack batteries.

RadioShack

Cat. No.

Size

Capacity

(mAh)

Ni-Cd

23-127 AAA 180 0.8
23-125 AA 600 1.09
23-149 AA 850 1.55
23-325 AA 700 1.09
23-299 9V 120 7.30

Ni-MH

23-527 AAA 550 2.44
23-525 AA 1250 2.27
23-526 9V 130 7.91

Charging

Time

(Hours)

Ô NOTE Ô

• The indicators light steadily while batteries
are charging. If the indicators flash, at least
one of the batteries you are trying to
charge is defective.

• When you charge 9V batteries, the
position of BAY has no effect. The
charger’s built-in timer tracks the state of
charge.

• To charge one 9V battery, use the left
(BAY1 and BAY2) 9V battery channel.

• If the indicators do not light, try one or
more o f the following suggestions.

Check the battery positions in the bay, and
reverse any that are incorrect.

Remove the batteries and clean the
batteries’ and charger’s contacts.

One or more batteries might be defective.
Replace any defective batteries.

CARE

Keep the charger dry; if it gets wet, wipe it
dry immediately. Use and store the charger
only in normal temperature environments.
Handle the charger carefully; do not drop it.
Keep the charger away from dust and dirt,
and wipe it with a damp cloth occasionally to
keep it looking new.

SPECIFICATIONS

Charging Current At 120V:

AAA ........................................................... 315 mA ±10%

AA .............................................................770 mA ±10%

9V ...............................................................23 mA ±10%

Charging Current At 120V ±15V:

AAA ........................................................... 315 mA ±15%

AA .............................................................770 mA ±15%

9V ...............................................................23 mA ±15%

Safety Timer:

AA/AAA ..................................................150 Mins ± 10%

9V ......................................................... 630 Mins ± 10%

General:

Dimensions (HWD) ................ 6

Weight .....................................................3.51 oz. (100 g)

Specifications are typical; individual units might vary.
Specificationsare subject to change and improvement
without notice.

3

3

/

× 3

/

× 1

4

16

(172 × 87 × 34 mm)

1

/3Inches

SERVICE AND REPAIR

If your charger is not performing as it should,
take it to your local RadioShack store for
assistance. Modifying or tampering with the
charger’s internal components can cause a
malfunction and might invalidate its
warranty.

This product is warranted by RadioShack against manufacturing defects in material and
workmanship under normal use for ninety (90) days from the date of purchase from Ra­dioShack company-owned stores and authorized RadioShack franchisees and dealers. EX­CEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND
ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY AND FIT­NESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION
OF THE WRITTEN LIMITED WARRANTIES CONTAINED HEREIN. EXCEPT AS PRO­VIDED HEREIN, RadioShack SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO CUS­TOMER OR A NY OTHER PERSON OR ENTITY WI TH RESPECT TO ANY LIABILITY,
LOSS OR DAMAGE CAU SED DIRECTLY OR INDIRECTLY BY USE OR PERFORMANCE
OF THE PRODUCT OR ARISING OUT O F ANY BREACH OF THIS WARRANTY,INCLUD­ING, BUT NOT LIMITED TO, ANY DAMAGES RESULTING FROM INCONVENIENCE,
LOSS OF TIME, DATA, PROPERTY, REVENUE, OR PROFIT OR ANY INDIRECT, SPE­CIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, EVEN IF RadioShack HAS BEEN
ADVISEDOF THE POSSIBILITY OF SUCH DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion
or limitation of incidental or consequential damages, so the above limitations or exclusions
may not apply to you.
In t he event of a product defect during the warranty period, take the produc t and the Ra­dioShack sales receipt as proof of purchase date to any RadioShack store. RadioShack will,
at its opt ion, unless otherwise provided by law: (a) correct the defect by product repair with­out charge for parts and labor; (b) replace the produc t with one of the same or similar de­sign; or (c) refund the purchase price. All replaced parts and products, and products on
which a refund is made, become the property of RadioShack. New or reconditioned parts
and products may be used in the performance of warranty service. Repaired or replaced
parts and products are warranted f or the remainder of the original warranty period. You will
be charged for repair or replacement of the product made after the expiration of the warranty
period.
This warranty does not cover: ( a) damage or failure caused by or attributable to acts of God,
abuse, accident, m isuse, improper or abnormal usage, failure to follow instructions, im­proper installation or maintenance, alteration, lightning or other incidence of excess voltage
or current; (b) any repairs other t han those provided by a RadioShack Authorized Service
Facility; (c) consumables such as fuses or batteries; (d) cosmetic damage; (e) transporta­tion, shipping or insurance costs; or (f) costs of product removal, installation, set-up service
adjustment or reinstallation.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.

RadioShack Customer Relations, 200 Taylor Street, 6th Floor, Fort Worth, TX 76102
