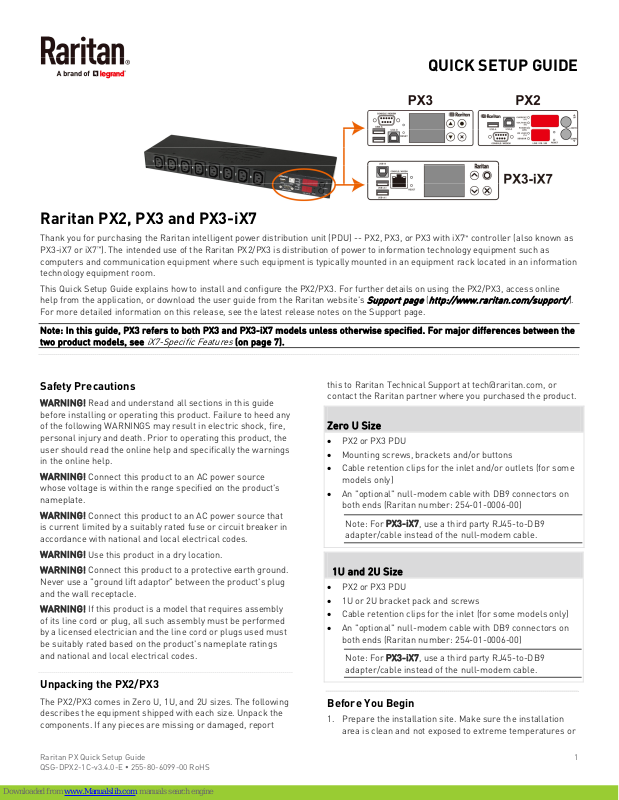

Raritan PX2, PX3 and PX3-iX7
QUICK SETUP GUIDE
Thank you for purchasing the Raritan intelligent power distribution unit (PDU) -- PX2, PX3, or PX3 with iX7™ controller (also known as
PX3-iX7 or iX7
™
). The intended use of the Raritan PX2/PX3 is distribution of power to information technology equipment such as
computers and communication equipment where such equipment is typically mounted in an equipment rack located in an information
technology equipment room.
This Quick Setup Guide explains how to install and configure the PX2/PX3. For further details on using the PX2/PX3, access online
help from the application, or download the user guide from the Raritan website's
Support page (http://www.raritan.com/support/
).
For more detailed information on this release, see the latest release notes on the Support page.
Note: In this guide, PX3 refers to both PX3 and PX3-iX7 models unless otherwise specified. For major differences between the
two product models, see
Safety Precautions
WARNING! Read and understand all sections in this guide
iX7-Specific Features
(on page 7).
this to Raritan Technical Support at [email protected], or
contact the Raritan partner where you purchased the product.
before installing or operating this product. Failure to heed any
of the following WARNINGS may result in electric shock, fire,
personal injury and death. Prior to operating this product, the
user should read the online help and specifically the warnings
in the online help.
WARNING! Connect this product to an AC power source
whose voltage is within the range specified on the product's
nameplate.
WARNING! Connect this product to an AC power source that
is current limited by a suitably rated fuse or circuit breaker in
accordance with national and local electrical codes.
WARNING! Use this product in a dry location.
WARNING! Connect this product to a protective earth ground.
Never use a "ground lift adaptor" between the product's plug
and the wall receptacle.
WARNING! If this product is a model that requires assembly
of its line cord or plug, all such assembly must be performed
by a licensed electrician and the line cord or plugs used must
be suitably rated based on the product's nameplate ratings
and national and local electrical codes.
QS Rule
Unpacking the PX2/PX3
The PX2/PX3 comes in Zero U, 1U, and 2U sizes. The following
describes the equipment shipped with each size. Unpack the
components. If any pieces are missing or damaged, report
Zero U Size
PX2 or PX3 PDU
Mounting screws, brackets and/or buttons
Cable retention clips for the inlet and/or outlets (for some
models only)
An "optional" null-modem cable with DB9 connectors on
both ends (Raritan number: 254-01-0006-00)
Note: For PX3-iX7, use a third party RJ45-to-DB9
adapter/cable instead of the null-modem cable.
1U and 2U Size
PX2 or PX3 PDU
1U or 2U bracket pack and screws
Cable retention clips for the inlet (for some models only)
An "optional" null-modem cable with DB9 connectors on
both ends (Raritan number: 254-01-0006-00)
Note: For PX3-iX7, use a third party RJ45-to-DB9
adapter/cable instead of the null-modem cable.
QS Rule
Before You Begin
1. Prepare the installation site. Make sure the installation
area is clean and not exposed to extreme temperatures or
Raritan PX Quick Setup Guide 1
QSG-DPX2-1C-v3.4.0-E 255-80-6099-00 RoHS
Page 2
humidity. Allow sufficient space around the device for
cabling and outlet connections. Safety instructions are
provided in the PX2/PX3 online help.
2. Fill out the Equipment Setup Worksheet found in the
PX2/PX3 online help. Record the model, serial number,
and use of each IT device connected to the PDU's power
outlets.
QS Rule
Mounting the PDU
Use one of the mounting methods to install your PX2/PX3 as
appropriate.
Circuit Breaker Orientation Limitation
Usually a PDU can be mounted in any orientation. However,
when mounting a PDU with circuit breakers, you must obey
these rules:
Circuit breakers CANNOT face down. For example, do not
horizontally mount a Zero U PDU with circuit breakers on
the ceiling.
If a rack is subject to shock in environments such as boats
or airplanes, the PDU CANNOT be mounted upside down.
If installed upside down, shock stress reduces the trip
point by 10%.
Note: If normally the line cord is down, upside down
means the line cord is up.
Mounting 1U or 2U Models
Using the appropriate brackets and tools, fasten the 1U or 2U
device to the rack or cabinet.
To mount the PX2/PX3 device:
1. Attach a rackmount bracket to both sides of the PX2/PX3
with the provided screws.
3. Secure with the provided end cap screws.
4. Fasten the rackmount brackets' ears to the rack using
your own fasteners.
Mounting Zero U Models Using Baseplate-Based
Tools
You can use one of the three baseplate-based tools to mount
the PDU: L-brackets, buttons or claw-foot brackets.
To mount Zero U models using baseplates:
1. Align the baseplates on the rear of the PX2/PX3 device.
2. Make the baseplates grasp the device lightly. Use the
included L-shaped hex key to loosen the hex socket
screws until the baseplate is "slightly" fastened.
3. Attach brackets or buttons to the baseplates.
Fasten each L-bracket or claw-foot bracket to each
baseplate with at least three screws (one through each
slot).
2. Insert the cable-support bar into rackmount brackets.
OR
Raritan PX Quick Setup Guide 2
QSG-DPX2-1C-v3.4.0-E 255-80-6099-00 RoHS
Page 3
Screw each mounting button to each baseplate. The
recommended torque for the button is 1.96 N·m (20
kgf·cm).
4. Fasten the device to the rack or cabinet using the
baseplaed-based tools.
Use rack screws to fasten L-brackets or claw-foot
brackets on the PDU to the rack.
For the buttons, press the PDU forward, pushing the
mounting buttons through the mounting holes, then
letting the device drop about 5/8".
Mounting Zero U Models Using Buttons
1. Turn to the rear of the PDU.
2. Locate the two screw holes on the rear panel.
3. Screw a button in each screw hole. The recommended
torque for the button is 1.96 N·m (20 kgf·cm).
mounting holes in the rack. The recommended torque
for the button is 1.96 N·m (20 kgf·cm).
QS Rule
Installing Cable Retention Clips on the Inlet
(Optional)
If your PX2/PX3 device is designed to use a cable retention
clip, install the clip before connecting a power cord. A cable
retention clip prevents the connected power cord from
coming loose or falling off.
To install and use a cable retention clip on the inlet:
1. Install the cable retention clip by inserting two ends of the
clip into the two tiny holes adjacent to the inlet.
Zero U models 1U/2U models
4. Press the PDU forward, pushing the mounting buttons
through the mounting holes, then letting the PDU drop
slightly.
Mounting Zero U Models Using L-Brackets and
Buttons
1. Fasten the L-bracket to each end of the PDU.
2. Choose either of the following ways to fasten the PDU to
the rack.
Attach the rack screws to the two rackmount holes of
each L-bracket.
Screw a mounting button in the back center of each
L-bracket and then have both buttons engage the
2. Connect the power cord to the inlet, and press the clip to
hold the cord.
Zero U models 1U/2U models
QS Rule
Connecting the PX3 Locking Line Cord
A PX3 model is shipped with a locking line cord. Plug that cord
into the PDU's inlet and the cord is securely locked.
Note: To remove the cord, press the locking clips or push the
slide buttons at two sides of the cord's connector. For details,
see the topic titled "Disconnecting a Locking Line Cord" in the
PX3 online help.
QS Rule
Raritan PX Quick Setup Guide 3
QSG-DPX2-1C-v3.4.0-E 255-80-6099-00 RoHS
Page 4
Connecting the PDU to a Power Source
The distance between a PDU and its power source must be
SHORTER than the PDU's line cord to avoid stretching out the
cord. A locking connector used at the power source is highly
recommended for a secure connection.
To connect a PDU to the power source:
1. Verify that all circuit breakers on the PX2/PX3 device are
set to ON. If not, turn them ON.
Or make sure that all fuses are inserted and seated
properly. If there are any fuse covers, ensure that they
are closed.
Note: Not all PX2/PX3 devices have overcurrent
protectors.
2. Connect each PX2/PX3 to an appropriately rated branch
circuit. See the label or nameplate affixed to your PX2/PX3
for appropriate input ratings or range of ratings.
3. When a PX2/PX3 device powers up, it proceeds with the
power-on self test and software loading for a few
moments. At this time, the outlet LEDs cycle through
different colors.
Note: If a PDU beeps after being powered up, either its
circuit breaker has tripped or the L-N wiring is reversed.
If no circuit breakers tripped, check the wiring of the plug
adapter that is used or the direction in which the plug or
plug adapter is plugged into the power socket.
4. When the software has completed loading, the outlet LEDs
show a steady color and the front panel display
illuminates.
Note: A PX2-1000 or PX3-1000 PDU does not have outlet
LEDs so only the front panel display illuminates.
QS Rule
Connecting the PDU to Your Network
PX2/PX3 can be connected to a wired or wireless network.
To make a wired connection:
1. Connect a standard network patch cable to the ETHERNET
port on the PX2/PX3.
2. Connect the other end of the cable to your LAN.
™
Note: You can connect either Ethernet port of an iX7
to the LAN, but the "green" port labeled "ETH 10/100/1000"
is highly recommended because it supports 1000 Mbps. If
connecting both ports to the LAN, you must connect them to
two "different" subnets. If you are not sure whether the device
is connected to the same or different subnets, contact your IT
department.
To make a wireless connection:
1. Connect an appropriate USB wireless LAN adapter to the
PDU.
device
2. Make sure the wireless LAN configuration is supported by
your PDU. See
(on page 6).
QS Rule
Appendix B: Wireless LAN Information
Initial Network Configuration
Depending on your networking environment, the best method
to initially configure your PX2/PX3 differs.
For a DHCP IPv4 networking environment, see
Web Browser
(on page 4).
Using a
For an IPv6 or "static" IPv4 networking environment, see
Appendix A: Configuration via a Mobile Device or
QS Rule
PDView
(on page 5).
Using a Web Browser
Initial configuration using a web browser involves these two
steps.
Step 1: Retrieve the IP Address
Step 2: Log in to the PX2/PX3 Web Interface
Step 1: Retrieve the IP Address
After connecting to a DHCP IPv4 network, an IPv4 address is
automatically assigned to your PX2/PX3.
PX3's IP address is available using the front panel display.
PX2's IP address is available by connecting an iOS or Android
mobile device to PX2.
PX3 Models
Depending on the PX3 model you purchased, the front panel
display is similar to either diagram below.
To retrieve the IP address:
1. Press
2. Press
press
3. Press
address is displayed.
/ or / to show the "Main Menu."
/ or / to select "Device Info," and
/ .
/ or / until the device's IP
PX2 Models
1. Use your mobile device to download Raritan's app,
PDView
page 5).
. See
Step 1: Download the "PDView" App
(on page 4)
(on page 5)
- OR -
(on
Raritan PX Quick Setup Guide 4
QSG-DPX2-1C-v3.4.0-E 255-80-6099-00 RoHS
Page 5
2. Connect the mobile device to PX2's USB port -USB-A, or
Android
Mobile Device to PX2/PX3
via USB-B. See
(on page 5).
Step 2: Connect the
3. Launch PDView to access the PX2 web interface. See
3: Launch PDView
(on page 6).
iOS
via
Step
4. Choose Maintenance > Device Information. Click 'Network'
to check the IP address.
Note: The DHCP-assigned IP address can be also retrieved
through the MAC address. You can contact your LAN
administrator for assistance. See MAC Address.
Step 2: Log in to the PX2/PX3 Web Interface
The PX2/PX3 supports common web browsers, including
Microsoft Internet Explorer
Chrome.
To access the PX2/PX3 web interface:
1. Open a web browser and type the IP address of PX2/PX3.
If the link-local addressing has been enabled, you can
type
pdu.local
A: Configuration via a Connected Computer.
®
, Mozilla Firefox®, and Google®
instead of an IP address. See Appendix
Tip: As of release 3.3.10, you can enable both wired and
wireless networking so that the PX2/PX3 can be accessed
via both wired and wireless IP addresses.
5. The PX2/PX3 is sent from the factory with all the outlets
ON. If your model is outlet-switching capable, turn OFF
the outlets without devices connected.
6. Use the menu to the left to configure user profiles,
privileges, security, outlet thresholds, or network settings.
Note: Detailed instructions are available in the PX2 or PX3
online help or user guide.
QS Rule
Appendix A: Configuration via a Mobile Device or
PDView
An iOS or Android mobile device, such as a smartphone or
tablet, can function as a local display of PX2/PX3. Note that
the Android device must support USB "On-The-Go" (OTG), or
this function does not work.
Step 1: Download the "PDView" App
Raritan's app "PDView" is required for the mobile device to
function as a local display. It is a free app.
2. Accept any security warnings that may appear.
3. Type the default user credentials and click Login.
User name: admin
Password: raritan
4. When prompted to change the password, change or ignore
it.
To change it, type the new password and click Ok.
To ignore it for this time only, click Not Now.
To ignore it permanently, select "Do not ask again" and
click Not Now.
QS Rule
What To Do Next
1. Connect IT equipment to the outlet(s) on the PX2/PX3.
2. Launch the web browser if not yet. See
the PX2/PX3 Web Interface
(on page 5).
3. Choose Device Settings > Date/Time to configure the
PX2/PX3 with the proper date and time or synchronize it
with an NTP server. The PX2/PX3 device's time must be in
sync with the LDAP server to use LDAP authentication.
Note: If you are using Sunbird's Power IQ to manage the
PX2/PX3, you must configure Power IQ and the PX2/PX3
to have the same date/time or NTP settings.
4. To change network settings, choose Device Settings >
Network.
Step 2: Log in to
To download PDView:
1. Visit either Apple App or Google Play Store.
https://itunes.apple.com/app/raritan-pdview/id780382
738
https://play.google.com/store/apps/details?id=com.rar
itan.android.pdview
2. Install PDView.
Step 2: Connect the Mobile Device to PX2/PX3
The USB cable and USB port to connect are determined by
your mobile operating system.
Raritan PX Quick Setup Guide 5
QSG-DPX2-1C-v3.4.0-E 255-80-6099-00 RoHS
Page 6
To connect your mobile device to PX2/PX3:
1. Get an appropriate USB cable for your mobile device.
iOS
: Use the regular USB cable shipped with your iOS
mobile device.
Android
: Use an USB OTG adapter cable.
2. Connect the mobile device to the appropriate USB port on
the PX2/PX3.
iOS
: USB-A port.
Android
: USB-B port
Wi-Fi LAN adapters Supported 802.11
protocols
SparkLAN WUBR-508N A/B/G/N
Proxim Orinoco 8494 A/B/G
Zyxel NWD271N B/G
Edimax EW-7722UnD A/B/G/N
TP-Link TL-WDN3200 v1 A/B/G/N
Raritan USB WIFI A/B/G/N
Note: To use the Edimax EW-7722UnD or Raritan USB WIFI
wireless LAN adapter to connect to an
802.11n
wireless
network, the handshake timeout setting must be changed to
500 or greater, or the wireless connection will fail.
Connecting the Wireless LAN Adapter
You can connect the wireless LAN adapter either to the PDU
or to a USB hub attached to the PDU.
Step 3: Launch PDView
You can access the PX2/PX3 web interface via PDView to view
or change the settings.
To access the PX2/PX3 web interface:
1. Launch PDView on your mobile device.
2. Wait until PDView detects the connected PX2/PX3 device
and shows the word "Connected" in green.
3. If the factory-default user credentials "admin/raritan"
remain unchanged, PDView automatically logs in to the
PX2/PX3 web interface.
If they have been changed, the login screen displays
instead and you must enter appropriate user credentials
for login.
4. (Optional) For initial login, you are prompted to change the
password. See
Interface
Step 2: Log in to the PX2/PX3 Web
(on page 5).
5. Now you can view the data or change any PX2/PX3
settings.
For details, refer to the user guide or online help on
the Raritan website.
QS Rule
Appendix B: Wireless LAN Information
To make a wireless connection:
Do one of the following:
Plug a supported USB wireless LAN adapter into the
USB-A port on your PX2/PX3.
Connect a USB hub to the USB-A port on the PX2/PX3.
Then plug the supported USB wireless LAN adapter
into the appropriate USB port on the hub.
Supported Wireless LAN Configuration
If wireless networking is preferred, ensure that the wireless
LAN configuration of your PX2/PX3 matches the access point.
The following is the wireless LAN configuration that the
PX2/PX3 supports.
Network type: 802.11 A/B/G/N
Protocol: WPA2 (RSN)
Key management: WPA-PSK, or WPA-EAP with PEAP
and MSCHAPv2 authentication
Encryption: CCMP (AES)
Important: Supported 802.11 network protocols vary
according to the wireless LAN adapter being used with the
PX2/PX3. See
QS Rule
USB Wireless LAN Adapters
(on page 6).
Appendix C: Other Information
USB Wireless LAN Adapters
The PX2/PX3 supports the following USB Wi-Fi LAN adapters.
PX3 Replaceable Controller
The controller of a PX3 model is replaceable if it is broken.
Contact Raritan Technical Support when a replacement
controller is needed.
Raritan PX Quick Setup Guide 6
QSG-DPX2-1C-v3.4.0-E 255-80-6099-00 RoHS
Page 7
For detailed information on how to remove it, see the topic
titled "Replaceable Controller" in the PX3 online help.
iX7-Specific Features
PX3 with iX7™ controller supports the following significant
features, which are NOT supported by non-iX7 PX3 models.
Dual networking with two Ethernet ports (ETH1/ETH2):
Both Ethernet ports must connect to two "different"
subnets. Connection to the same subnet is NOT
recommended.
Power sharing via the EXPANSION port: Power sharing
ensures the continuous accessibility to the iX7
when a power failure occurs on its inlet.
For more information on dual Ethernet and power sharing
functionality, refer to PX3 online help or user guide. Port
locations on your iX7
™
may look different from the following
illustration.
™
controller
The SENSOR port is marked with YELLOW color on a PX3
PDU, as shown below.
Note: On a PX2 PDU, there is no yellow color shown on the
SENSOR port.
Additional Information
For more information about PX2/PX3 and the entire Raritan
product line, see Raritan's website (www.raritan.com). For
technical issues, contact Raritan Technical Support. See the
Contact Support page in the Support section on Raritan's
website for technical support contact information worldwide.
Raritan's products use code licensed under the GPL and LGPL. You can request
a copy of the open source code. For details, see the Open Source Software
Statement at
(http://www.raritan.com/about/legal-statements/open-source-software-statem
ent/) on Raritan's website.
Identifying the Sensor Port
Warning: If you purchase Raritan's environmental sensor
packages, make sure you connect them to the correct port
on the PX2/PX3, or damages may be caused to the PX2/PX3
and/or connected sensor packages.
How to identify the SENSOR port:
The correct port is labeled SENSOR.
Raritan PX Quick Setup Guide 7
QSG-DPX2-1C-v3.4.0-E 255-80-6099-00 RoHS
Loading...
