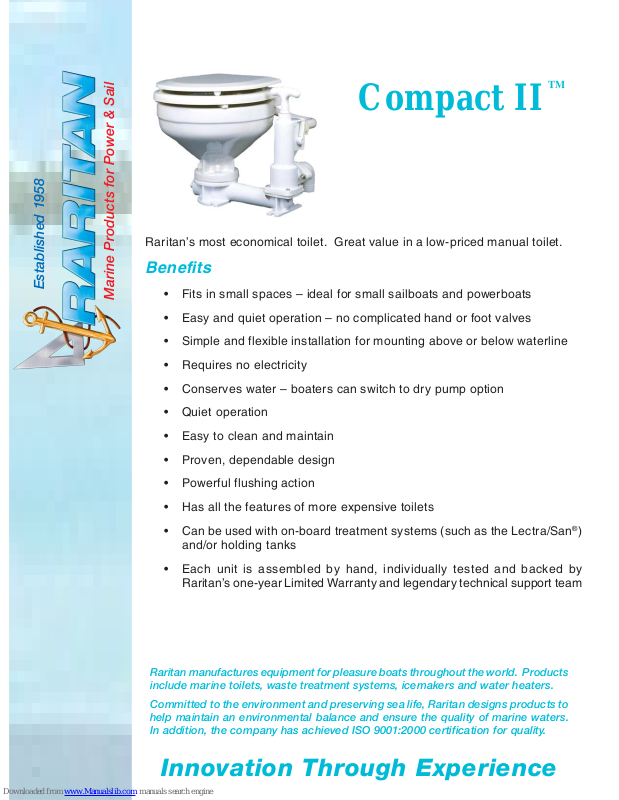

Raritan’s most economical toilet. Great value in a low-priced manual toilet.
Benefits
Established 1958
Marine Products for Power & Sail
TM
Compact II
• Fits in small spaces – ideal for small sailboats and powerboats
• Easy and quiet operation – no complicated hand or foot valves
• Simple and flexible installation for mounting above or below waterline
• Requires no electricity
• Conserves water – boaters can switch to dry pump option
• Quiet operation
• Easy to clean and maintain
• Proven, dependable design
• Powerful flushing action
• Has all the features of more expensive toilets
• Can be used with on-board treatment systems (such as the Lectra/San®)
and/or holding tanks
• Each unit is assembled by hand, individually tested and backed by
Raritan’s one-year Limited Warranty and legendary technical support team
Raritan manufactures equipment for pleasure boats throughout the world. Products
include marine toilets, waste treatment systems, icemakers and water heaters.
Committed to the environment and preserving sea life, Raritan designs products to
help maintain an environmental balance and ensure the quality of marine waters.
In addition, the company has achieved ISO 9001:2000 certification for quality.
Innovation Through Experience
Page 2
Compact II
™
Height:
13 3/8" (34cm)
Width:
17" (43.2cm)
Approximate Shipping Weight: 26 lbs (12 kg)
Raritan kept the concept of space conservation that
made the original model Compact ideal for fitting a real
toilet into a very small area. The re-engineered Compact
II toilet still meets the demand for small space but offers
improved flushing efficiency and simpler maintenance.
The Compact II presents a better appearance and provides
improved performance at an economical price.
The new "T" grip handle provides control over the flushing action by allowing the user to fully grip the handle and
pump. The longer shaft provides improved flush volume.
A redesigned cartridge-type seal extends the life of the
toilet and simplifies routine maintenance. The snaptogether shutoff/dry flush valve improvement allows the
user to evacuate the bowl in turbulent waters with no
vacuum resistance within the pump. Injection-molded
check- valve housing accommodates both intake and
discharge hoses, keeping all connecting hoses to the
rear of the toilet.
The Compact II is designed for easy assembly and
disassembly for maintenance. The standard 1½" discharge hose fitting is compatible with treatment devices
or holding tanks. The Compact II is an ideal replacement
for portable toilets.
Depth:
16 1/2" (42cm)
Additional parts that are needed for installation: Hose
clamps, four stainless steel mounting bolts (minimum ¼"
[6mm]) or lag screws and washers, 1½" (38mm) I.D. sanitation hose, and ¾" (19mm) I.D. sanitation hose.
Model
Part# Description
CPII Compact II Hand Toilet
CPIIRFK Compact II Retrofit Kit (converts Compact
to Compact II)
CPIIPUMP Compact II Pump Assembly Complete
Sample Installation
The Compact II can be installed above or below the water
line. For mounting at or below the water line, a vented
loop must be included in the installation between the
bowl and the pump. All thru-hull fittings should include
readily accessible seacocks for safety and simplification
of maintenance. (This recommendation is made by the
American Boat and Yacht Council [ABYC] and marine
underwriters for all installations.) The Compact II can be
easily combined with the Lectra/San or a holding tank for
a complete U.S. Coast Guard approved sanitation system.
Intake Vented Loop (3/4")
Discharge Vented Loop
(1½") - Vent must be
above maximum heeled
waterline
For more information contact:
Raritan Engineering Company Inc.
530 Orange Street, PO Box 1157
Millville, NJ 08332, USA
Telephone: 856-825-4900
FAX: 856-825-4409
e-mail: [email protected]
www.raritaneng.com
Southern Plant and Office
3101 SW 2nd Avenue
Ft. Lauderdale, FL 33315 USA
Telephone: 954-525-0378
FAX: 954-764-4370
Innovation Through Experience
Seawater intake
Below Waterline Installation
To holding tank, treatment
system or "Y" valve
