HITTING 2.0
user manual
Powered by: Rapsodo
contents
What’s Inside the Box
Cloud + App
Overview
Operating the Monitor
Understanding the Monitor LED Displays
Operating the Rapsodo Computing Engine (RCE)
Understanding the RCE LED Displays
Charging the Devices
Pairing the RCE and the App
Device Placement and Setup
Calibration
Troubleshooting Table
Specifications
General Information
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Support / Contact
15

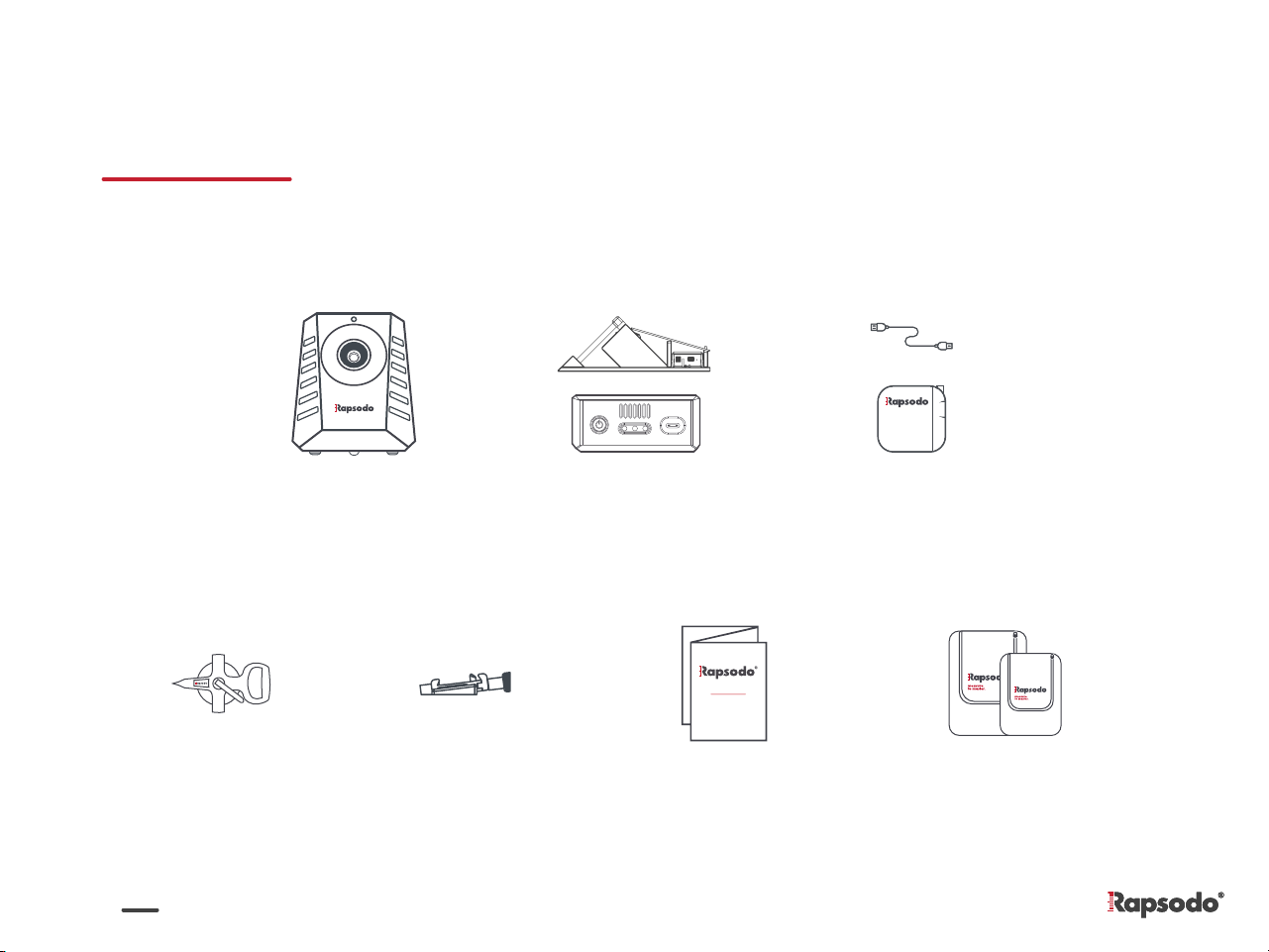

what’s ınsıde the box
Monitor USB Cables & Charger
Measuring Tape Protective CasesQuick Start Guide
Monitor Clip
Protective Tank & RCE
1
HITTING 2.0
QUICK START GUIDE
www.rapsodo.com
support@rapsodo.com
For additional user information download the
HITTING 2.0 user manual at
www.rapsodo.com/downloads

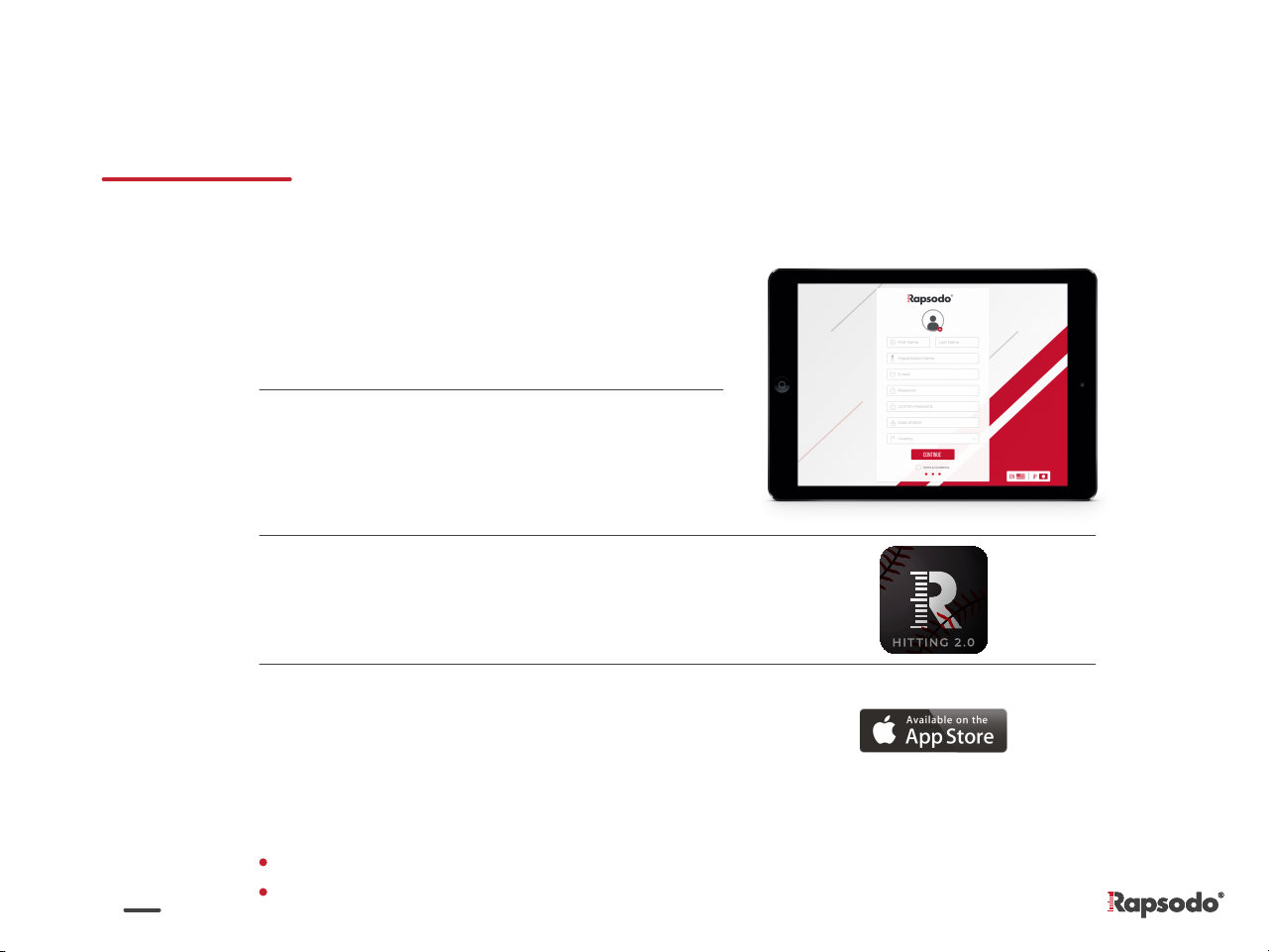

CLOUD + APP
Create a coach account and player profiles at
1.
cloud.rapsodo.com
This will be your username and password to login
2.
to both the cloud and applications
The Rapsodo Hitting App must be downloaded
3.
in order to use HITTING 2.0
To download go to the Apple App Store and
4.
search Rapsodo HITTING
App Requirements:
iOS 10.3 or later
2
iPad Air 2 or newer

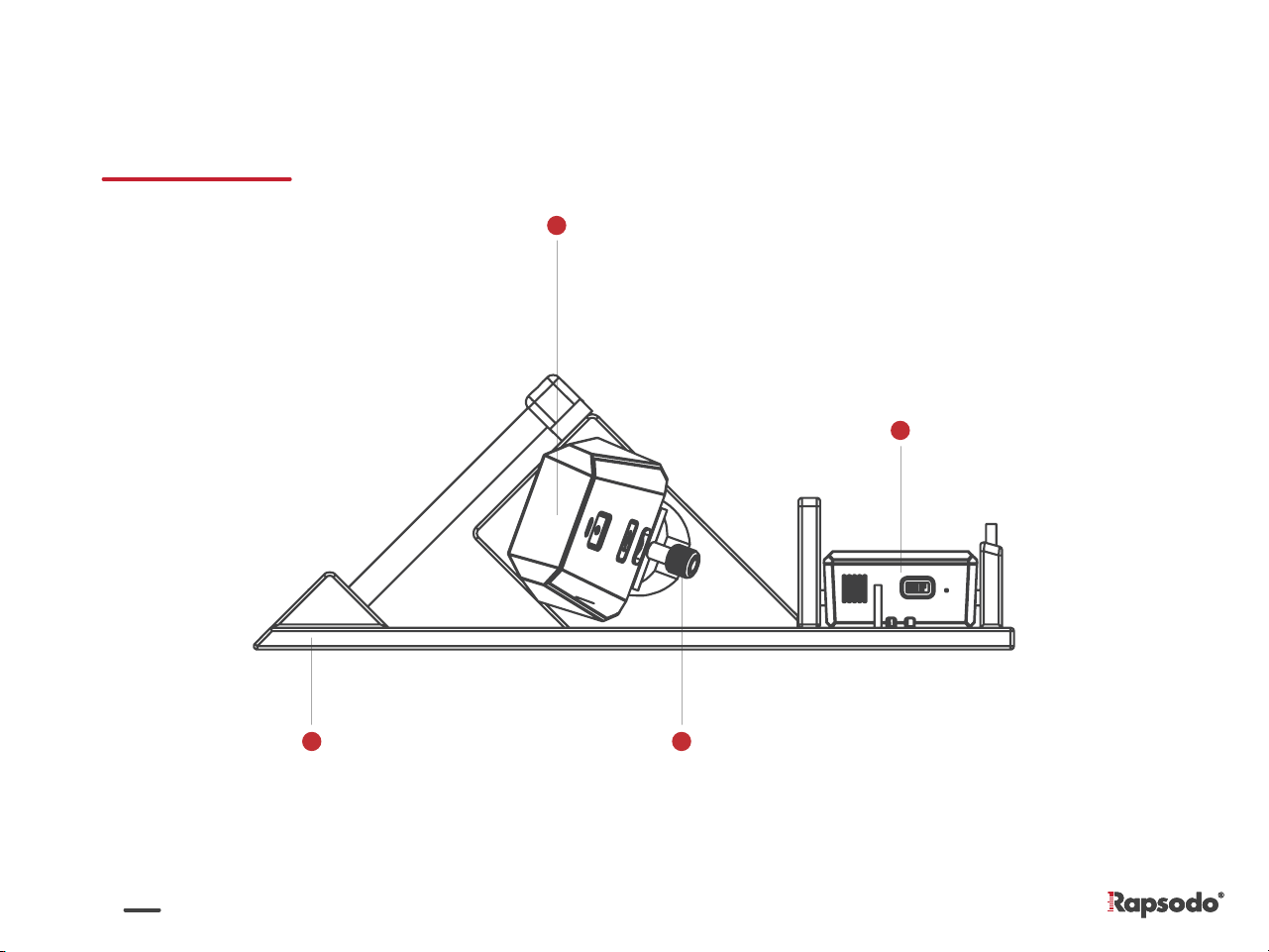

overvıew
3
Monitor
4
RCE
Tank
1
Clip
2
3

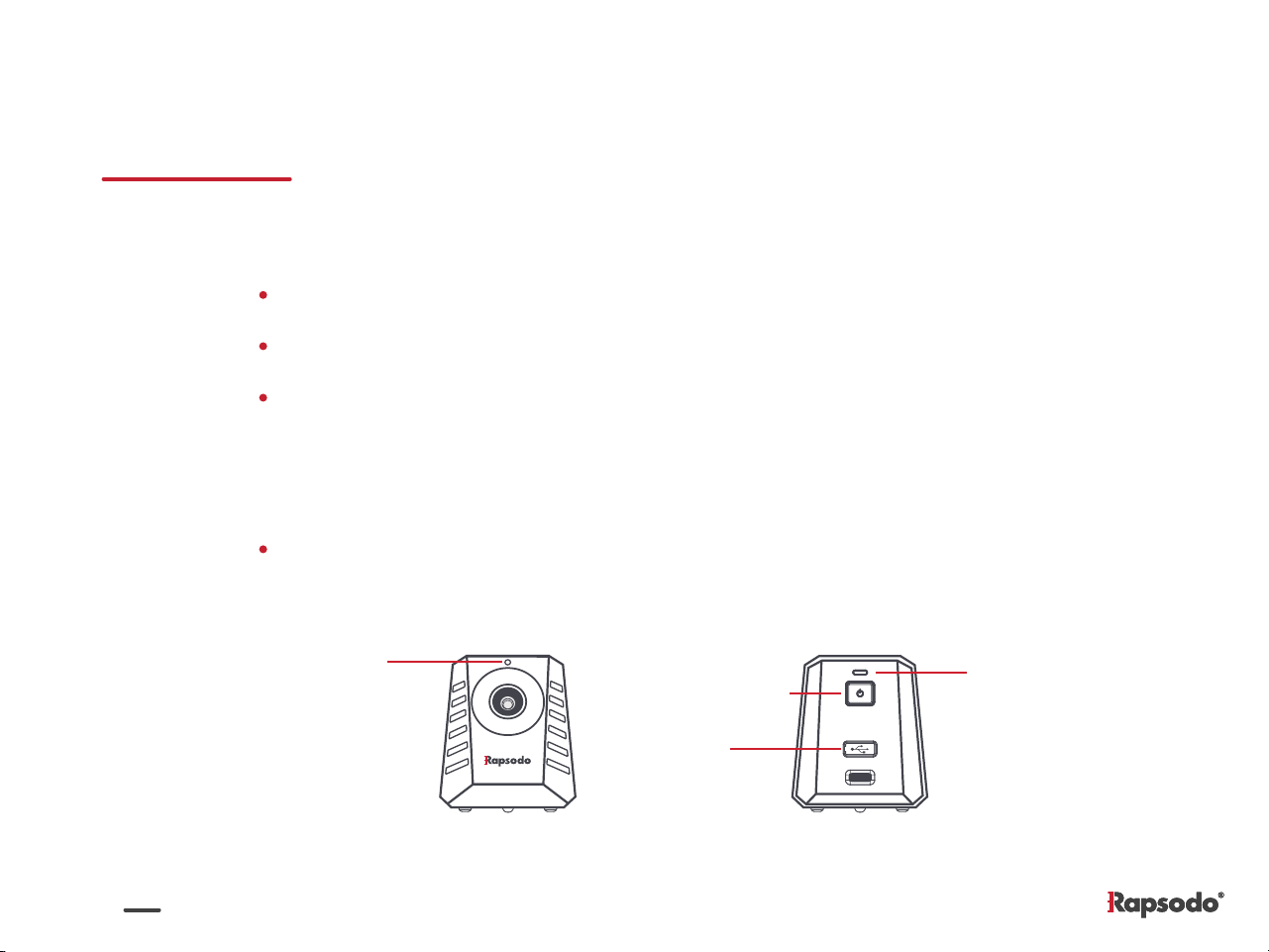

OPERATING THE MONITOR
Turning the Monitor ON
To turn the monitor on, press the power button
The front LED display will turn RED indicating the monitor is on but not ready to measure
The rear LED will turn RED when ready to connect
Turning the Monitor OFF
Press the power button
LED front light
Play information
ON / OFF button
USB port
Rear LED light
Connectivity and
battery information
4

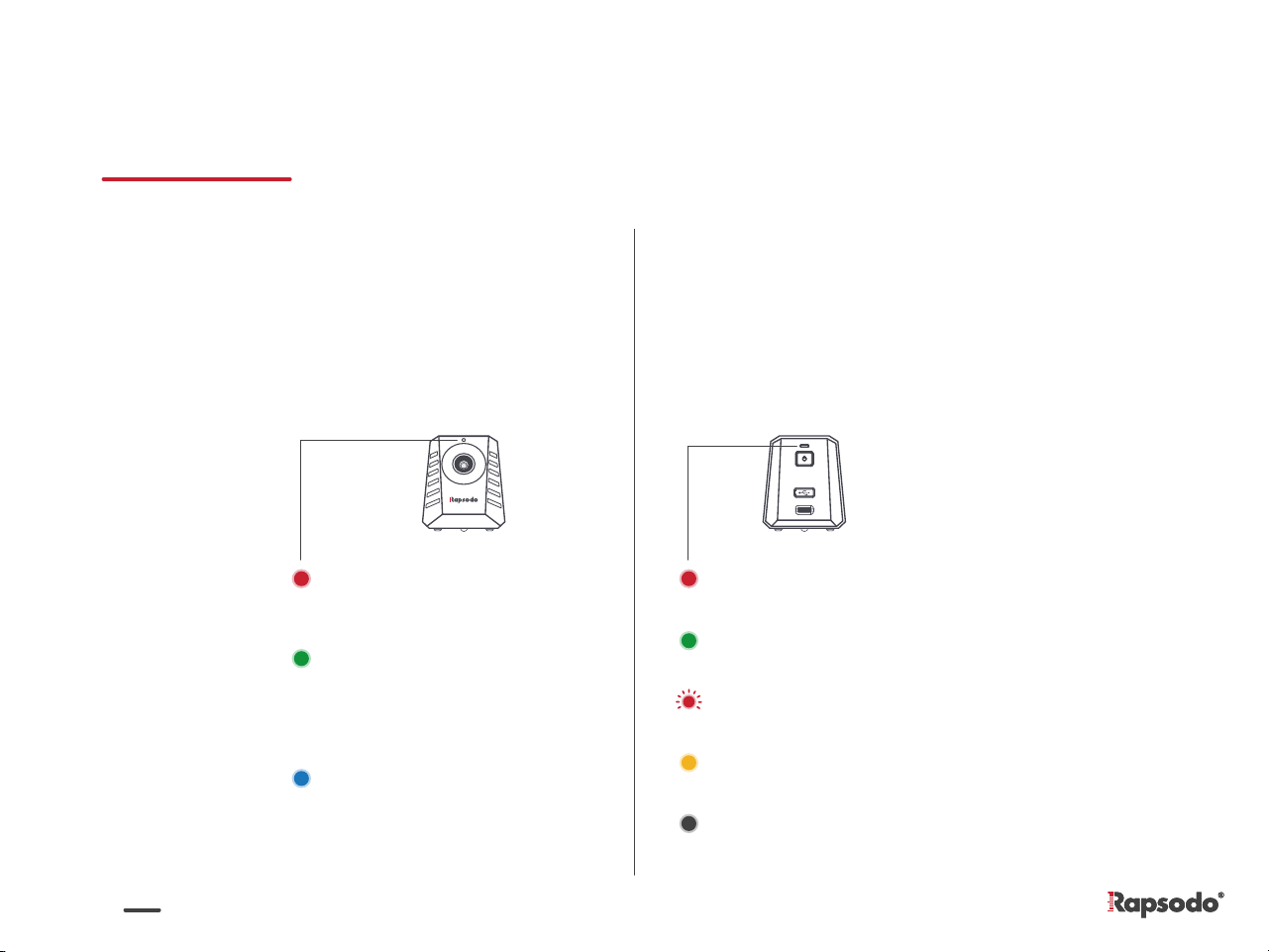

understanding the monıtor led dısplays
Front LED Display
The front LED display provides
information on the monitor status,
and will give the “green light” to
hit when the device is
ready to measure.
red light ‘‘ not ready ’’
Monitor is switched on,
but not ready to measure.
green light ‘‘ pıtch ’’
Monitor is ready for hitting. When
appearing after blue light just after a hit:
data is ready to be viewed on app,
and ready for next hit.
blue light ‘‘ processıng ’’
Monitor is processing data after a valid hit.
Wait for the green light to appear which
should take only a few seconds.
Rear LED Display
The rear LED display provides
information on connectivity and
battery. This display will be especially
important when pairing the app
with the monitor.
red light
Not connected to RCE, waiting for USB sync.
green light
Successfully connected to RCE through USB.
red flashıng light
Warning for low battery, please recharge monitor.
amber light
Switched off, and charging.
off
If USB is plugged into a charging device or PC,
it means the battery is fully charged.
5

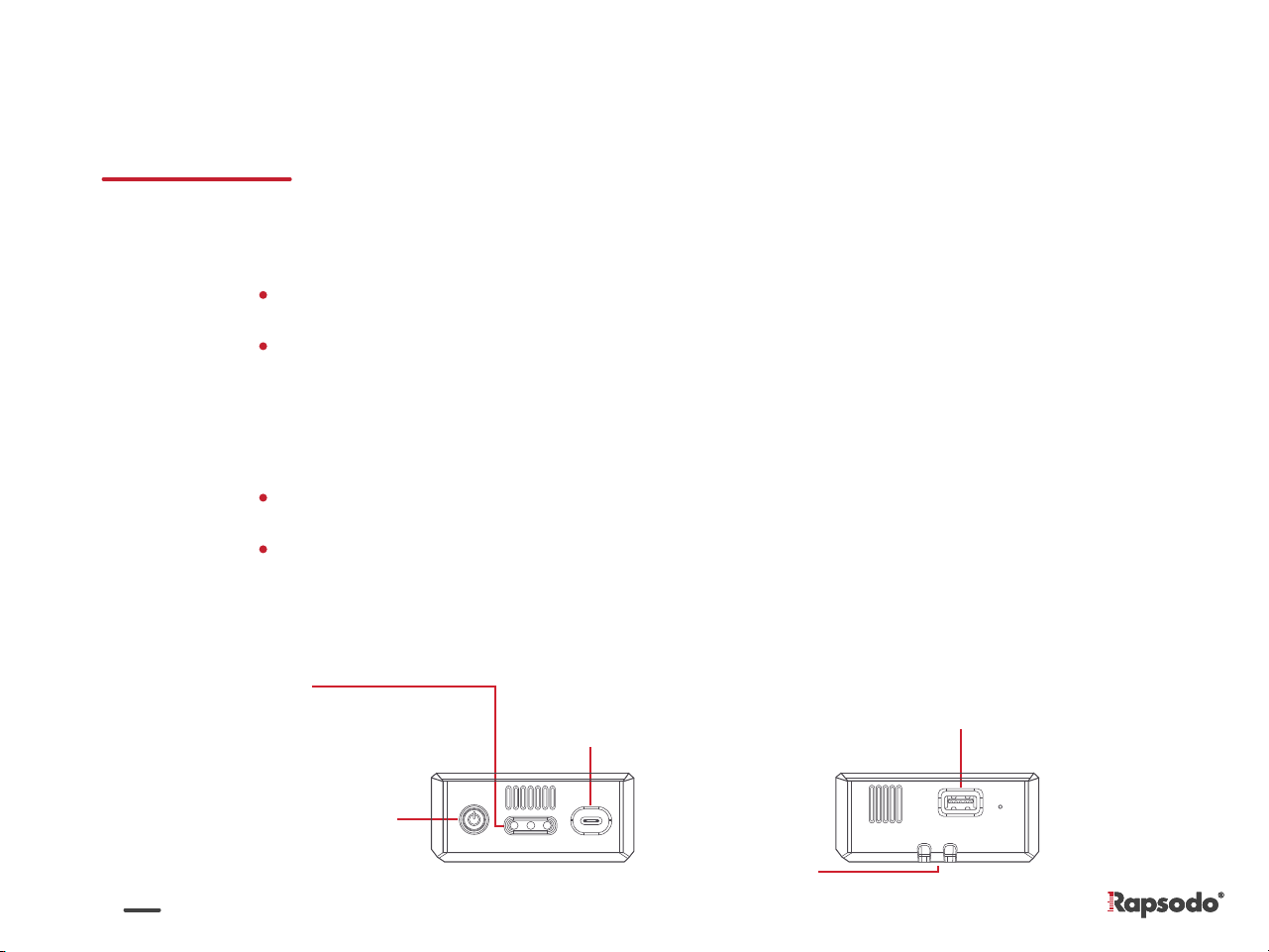

OPERATING THE RAPSODO COMPUTING ENGINE (RCE)
Turning the RCE ON
To turn the RCE on, press the power button
After 10-15 seconds the power LED will turn on and the RCE will be ready to connect to the monitor
Turning the RCE OFF
Press the power button
It will take 10-15 seconds for the RCE to turn off
front back
LEDs
Connectivity and
battery information
ON / OFF button
USB-C Charging
Port
Lanyard
connection
USB Port that connects
to monitor
6

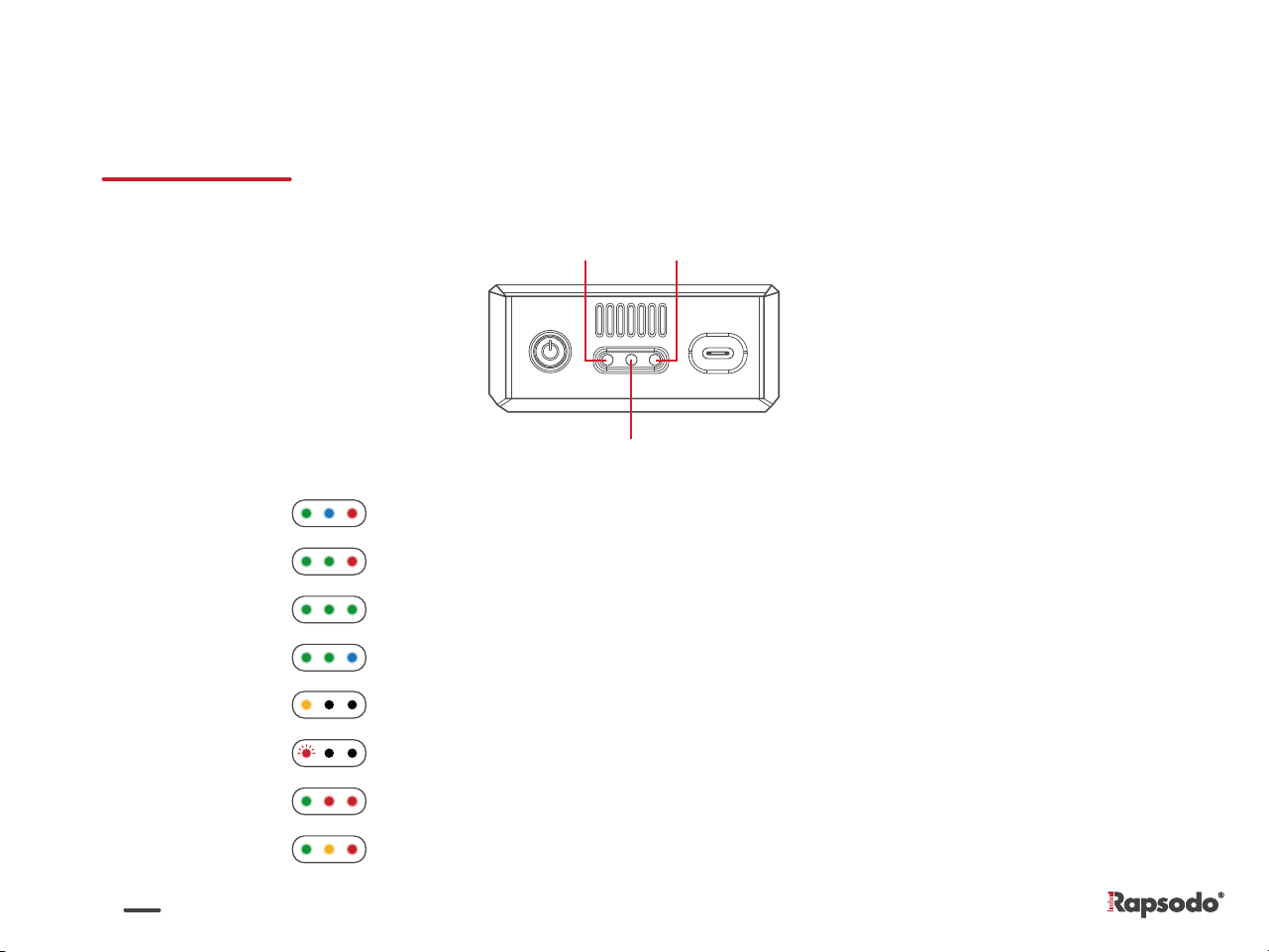

understanding the rce led dısplays
Power Battery Monitor
Connection to App
RCE and monitor connected
RCE and monitor connected to application, needs calibrated or on ‘Pause Mode’
Ready to record data
Data processing
RCE switched off and charging
Warning for low battery, please recharge monitor
RCE turned on, not connected to app and monitor
RCE turned on, connected to app but not the monitor
7
Charging the devices
Charging the Monitor
The battery can be charged by connecting the included USB cable into
the port on the rear monitor panel
The rear LED will show AMBER indicating the monitor is charging
The rear LED will switch off indicating the device has been sufficiently charged
The LED indication will blink red indicating the battery charge is getting low and
the battery should be charged
Charging the RCE
The battery can be charged by connecting the included USB-C cable
to the USB-C charging port (located on the side of the power button)
The power LED will show AMBER indicating the monitor is charging
The power LED will switch off indicating the device has been sufficiently charged
The LED indication will blink red indicating the battery charge is getting low and
the battery should be charged
The monitor and RCE must be charged separately
8
to ensure a complete charge for each device

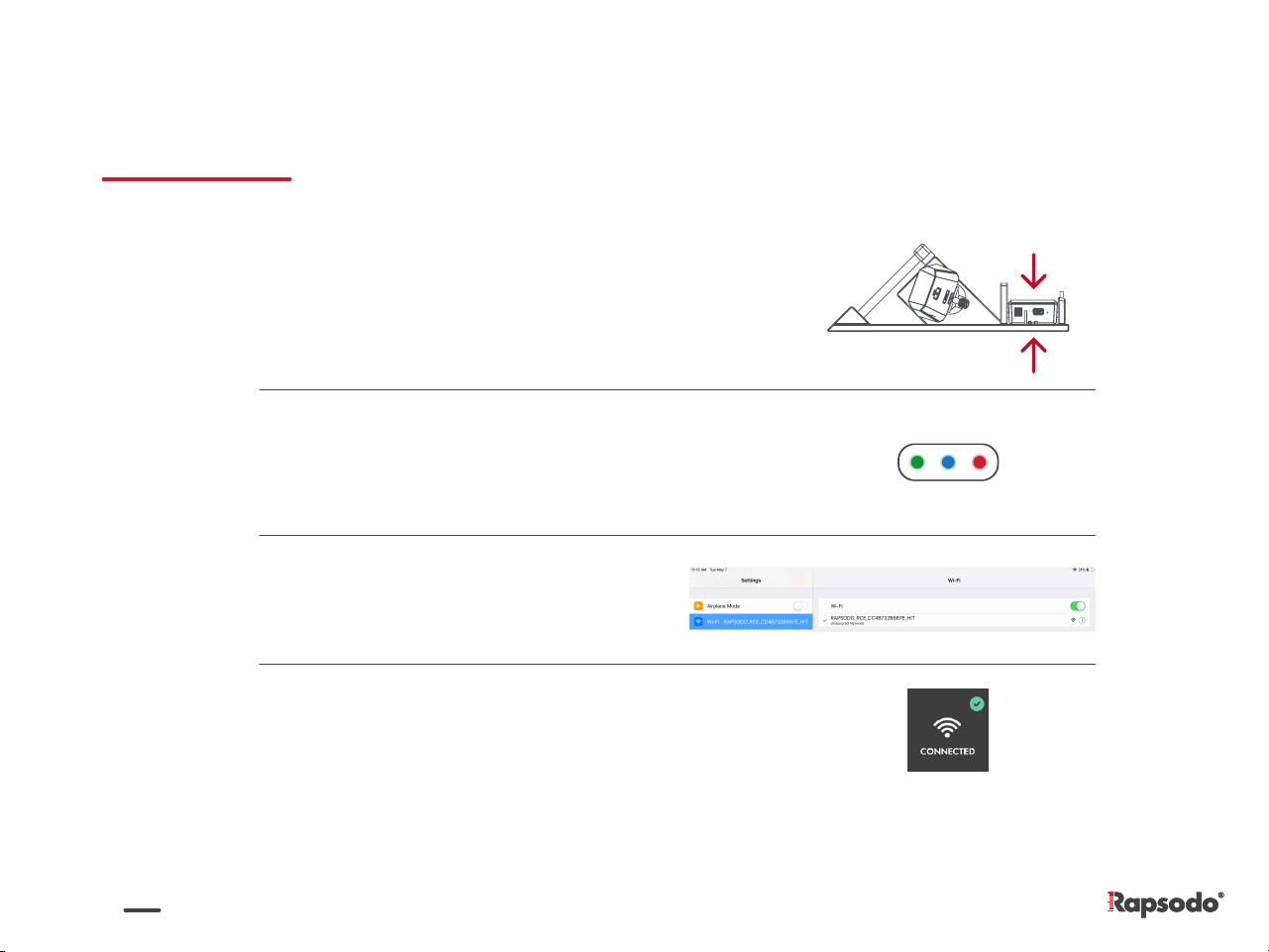

PAIRING THE rce and the app
Connect the RCE to the monitor via USB
1.
to mini USB
Press the power button on the monitor and RCE
2.
Connect to Rapsodo Wifi in iPad settings
3.
Open the Rapsodo HITTING 2.0 app and
4.
press the Wifi connection button
9

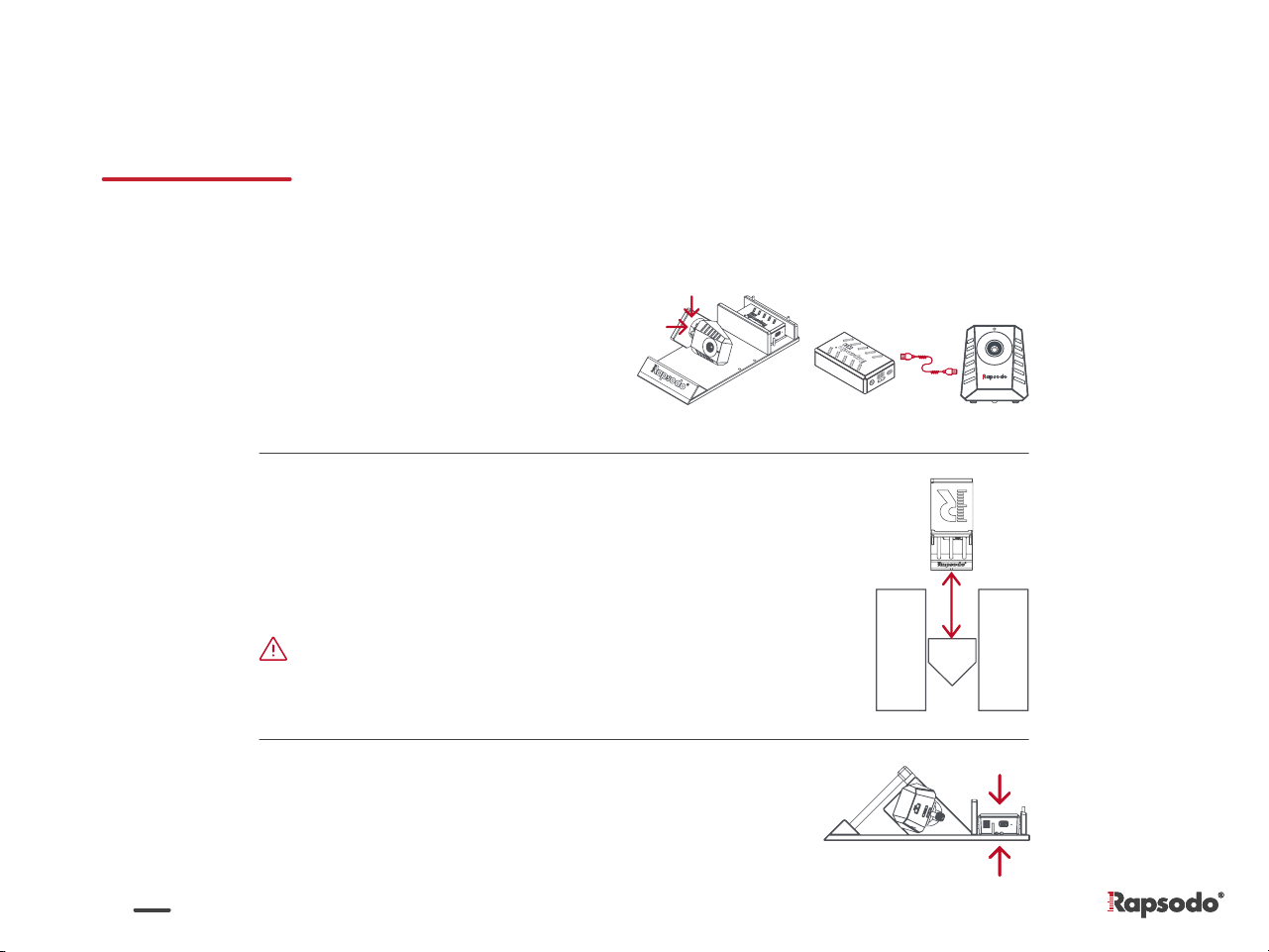

DEVICE PLACEMENT AND SETUP
Rapsodo HITTING 2.0 operates in a tank. Correct positioning
is important to get accurate results.
1. Internal Tank Set-Up
1. Attach monitor to mount plate
2. Place RCE in housing
3. Connect USB from monitor to RCE
2. Tank Positioning
Rapsodo HITTING 2.0 should be placed 14’ from the f ront of
home plate and the camera opening should face the batter.
The tank should be placed on an even surface and SHOULD
NOT be used in the rain or wet conditions.
Rapsodo HITTING 2.0 should only be used at the designated
distance and on a flat surface. Improper placement may cause
injury.
14’
10
3. Calibration
1. Align monitor angles with help of the application
2.Use azimuth view and tape measure to position the tank
directly in the center of home plate.

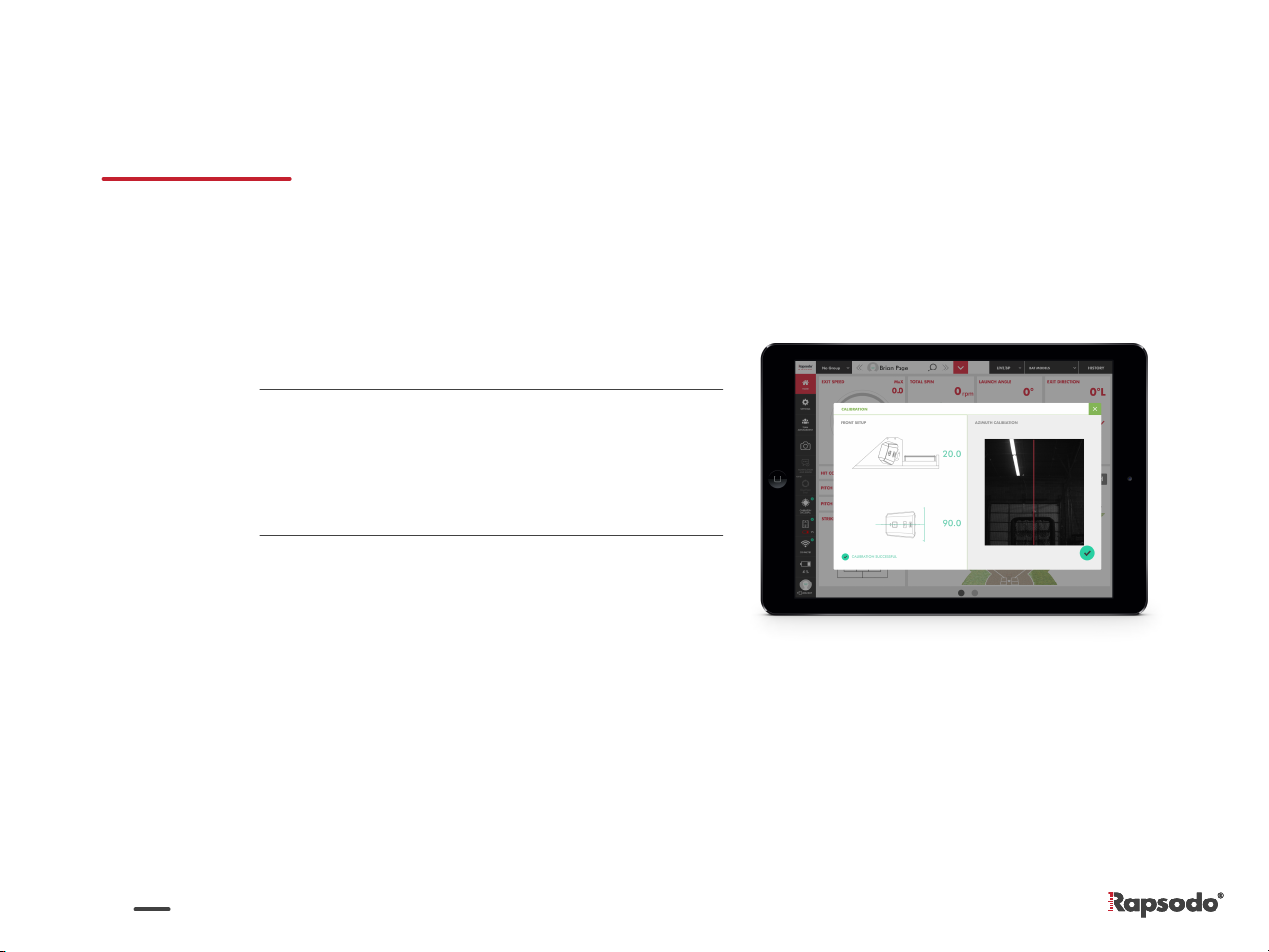

calıbratıon
1.
Press calibration icon inside app
Adjust monitor angles to
2.
20 degrees and 90 degrees
To calibrate the monitor have a person stand on
3.
the center of home plate. The red line in the
azimuth view should go directly down the middle
of home plate.
11
Troubleshooting table
App shows low
monitor battery
Results seem
inaccurate
Can’t connect
to app
Data not syncing
to cloud
Charge RCE and monitor separately
Make sure the tank is placed at 14’ and you have
correctly calibrated the monitor
Connect to wifi and calibrate from the play tab
inside the app
Disconnect from RCE wifi and connect to an
internet based wifi. Press sync and leave app open
12
Specifications
Exit Velocity
Exit Velocity is the speed of the
baseball as it comes off the bat
after contact.
Direction
The direction, plotted on a baseball
diamond, that an in-play ball
takes in flight.
Spin Direction
The tilt or angle of the baseball from the
contact point, measured in degrees,
created by the Magnus effect.
The Magnus Effect is created by the air
pressure surrounding the spinning
baseball on its path from the bat.
Launch Angle
Launch Angle is the vertical angle at
which the baseball leaves the bat
after contact.
Spin Rate
The rate at which the ball spins during flight
after contact, measured in rotations per
minute (RPM).
3D Ball Flight
Instantly track the ball off the bat to see
the actual ball flight of the projected hit.
13
general information
Interference
Rapsodo HITTING 2.0 is an extremely sensitive and accurate data-tracking monitor. While Rapsodo HITTING 2.0 hardware has been
engineered to achieve accuracy within a regular baseball environment; many everyday items like electrical appliances, computers,
cell phones, bulbs, etc. may produce electrical or optical interference that can generate false readings. You need to be aware of
these kinds of products in the environment where Rapsodo HITTING 2.0 is used, as they may cause interferences.
Use In Well-Lit Environments
Rapsodo HITTING 2.0 should be used in well lit locations. Performance may vary in certain lighting conditions, particularly in low
light conditions, which may result in incorrect measurements.
Do not use Rapsodo Hitting 2.0 in Wet Conditions
Rapsodo HITTING 2.0 is not water resistant. Do NOT expose the device to water as it may get damaged.
App Updates
Rapsodo will periodically update and improve the features of the Rapsodo Baseball app. It is recommended that users regularly
download the latest version to make for the highest monitor performance.
Return Policy and Warranty
Rapsodo provides a (1) one-year limited warranty for manufacturing defects. Under conditions of the warranty agreement, purchasers will be entitled to repair or replacement for defective Rapsodo products. This warranty begins from the date of initial purchase.
Rapsodo may also choose to refund the purchase price of the product to the purchaser, at its sole discretion. Warranty detailed
information and return policy can be found online at www.rapsodo.com/policy-warranty.
Regulatory notice: Waste electrical and electronic equipment
The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household
wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centres in
order to help conserve natural resources. Each country in the European Union should have its collection centres for electrical and
electronic equipment recycling. For information about your recycling drop off point, please contact your local electrical and
electronic equipment waste management authority. Do not dispose of the Rapsodo device with household waste. Batteries are not
to be disposed of in municipal waste stream and require separate collection. Disposal of the packaging and your Rapsodo should be
done in accordance with local regulations.
14
support / contact
If you have any questions or need any assistance, please contact us at:
Email: support@rapsodo.com
Phone: 1.844.772.7763
www.rapsodo.com
