Rapoo Technology M7093BT User Manual

Quick Start Guide

Of

Bluetooth Optical Mouse

V0.2

Installation

Step1. Inserting Batteries

1. Remove the battery cover.

2. Insert 2 AAA batteries.

3. Place back the battery cover. As the Mouse has power switch, please make
sure the power switch is on.

Step2. Connecting the Mouse to the Dongle

Before you install the Bluetooth Mouse, please make sure that you computer
support Bluetooth function, and finished the Bluetooth software installation.
Software available like Wincomm, IVT or the Microsoft built-in software.
Press the connect button at the bottom more than 1 second , then the Mouse is
ready for the match, please note that the connect button is only usefull during
the match procedure.

Match Procedure

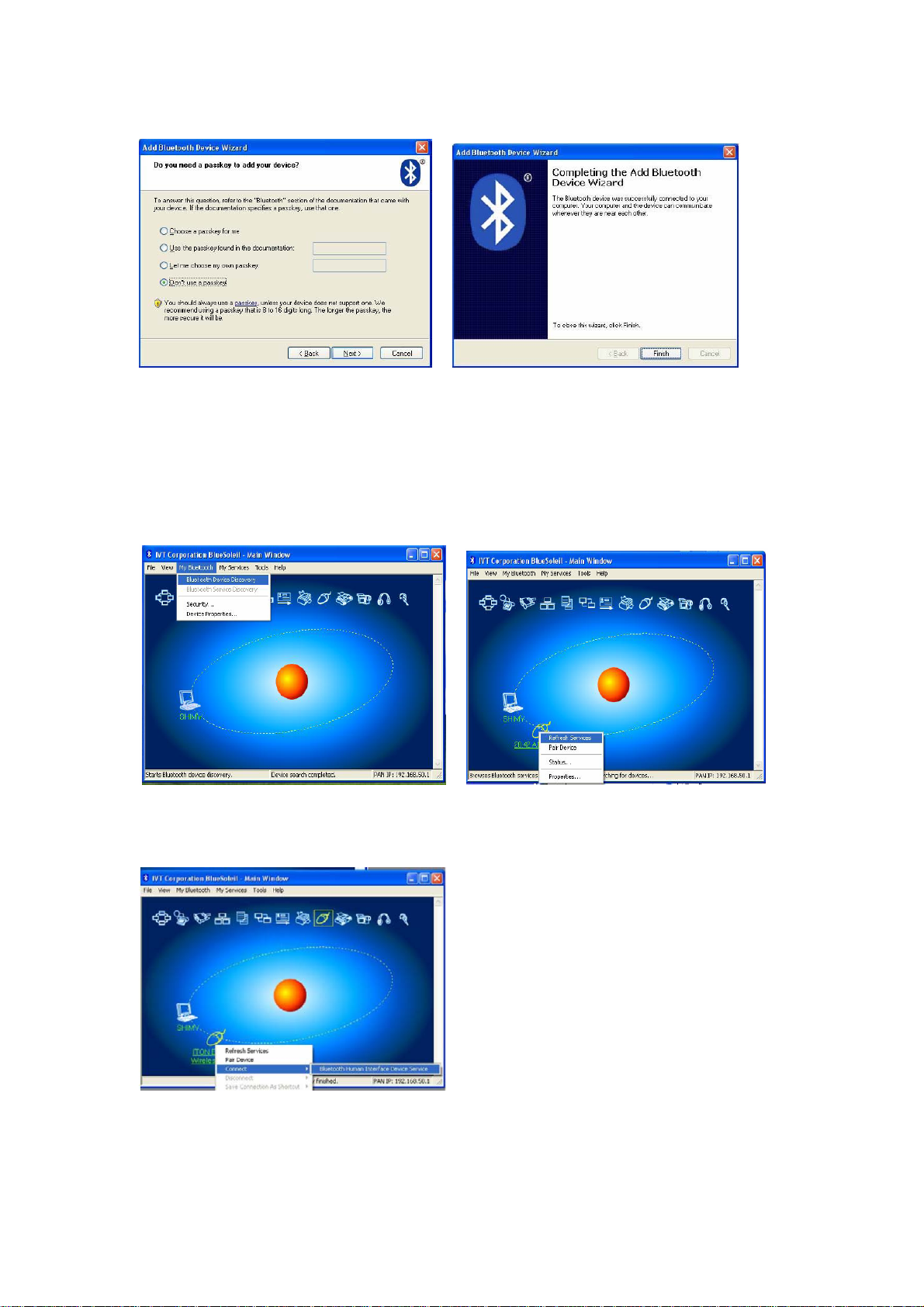

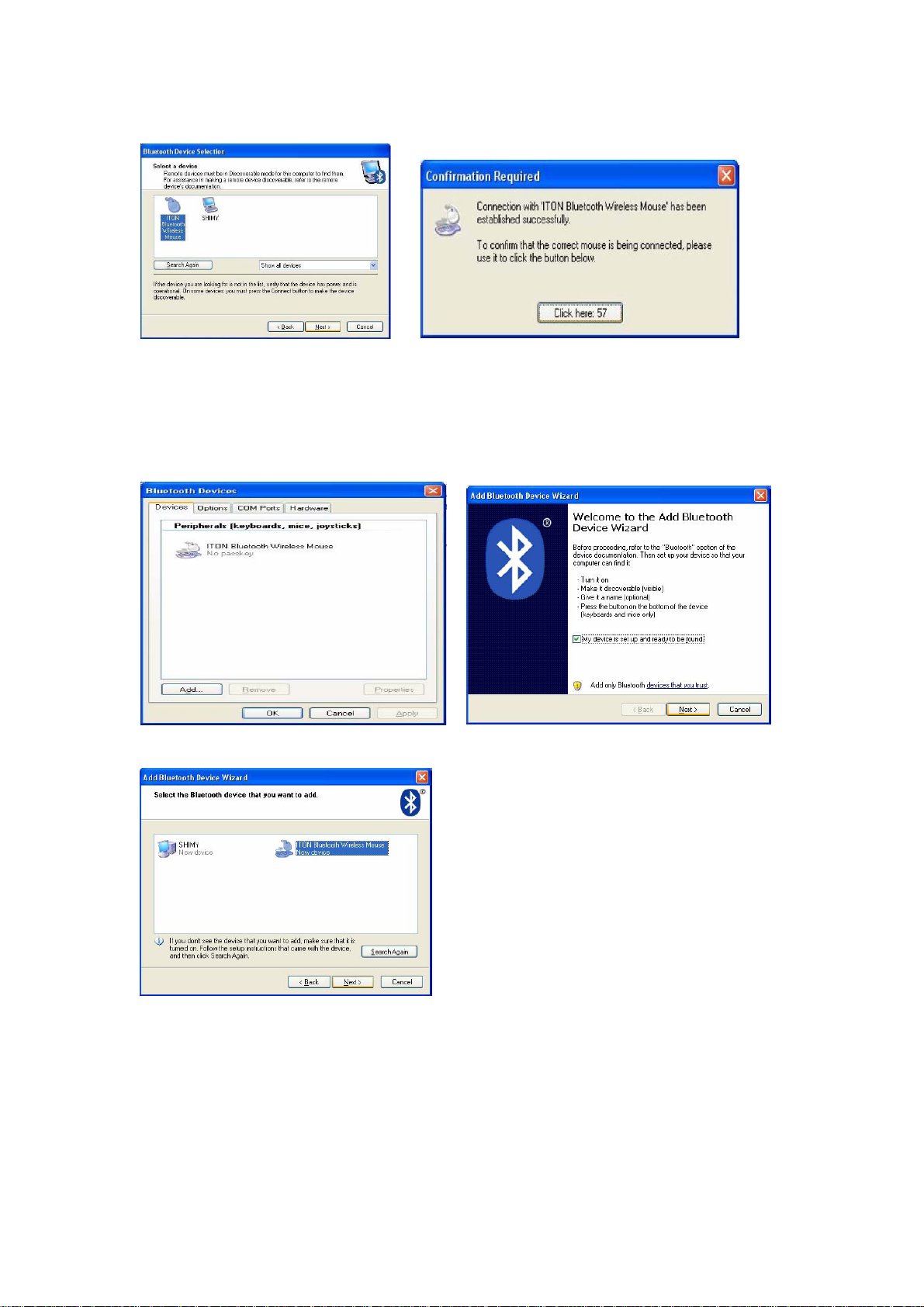

A. Match on Widcomm

1. Double click the Icon again, “My Bluetooth Place” pops up.

2. Click “Bluetooth Setup – Bluetooth Setup Guide”.

3. In the Setup Guide window, click next button, wait until the system found
the mouse, select “Mouse”, click “Next”. Hint for connection.

4. Click “Click here”, now you can use your mouse at ease.
