Rapoo Technology A650 Users Manual

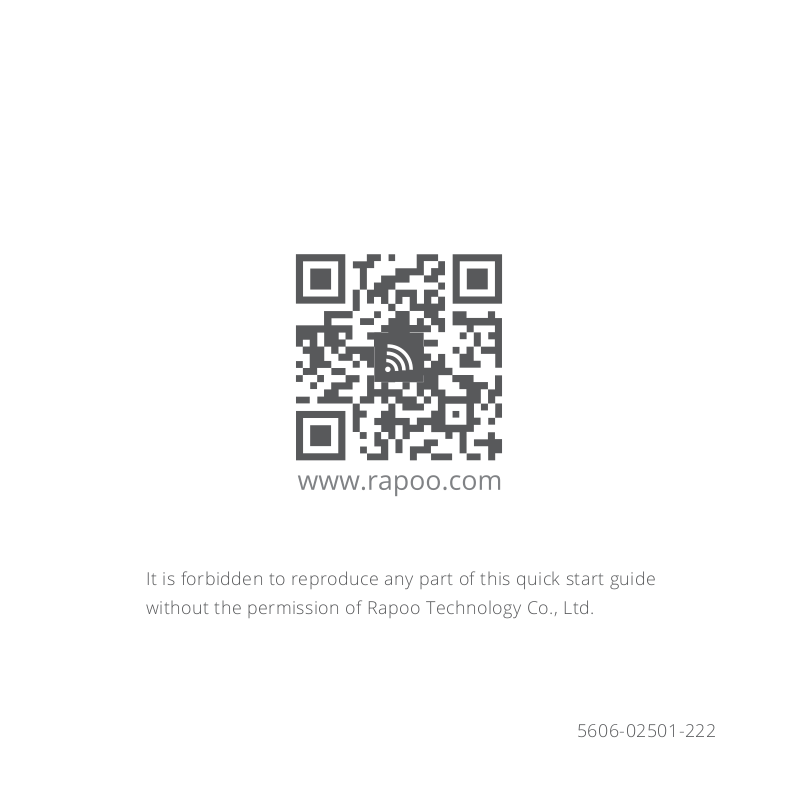

It is forbidden to reproduce any part of this quick start guide
without the permission of Rapoo Technology Co., Ltd.
5606-02501-222
Quick Start Guide
Schnellstartanleitung
Guide de démarrage rapide
A650
Bluetooth Outdoor Speaker
Bluetooth-Outdoor-Lautsprecher
Enceinte d'extérieur Bluetooth
English
Deutsch
Français
Italiano
Español
Nederlands
Português
українська мова
Русский Язык
Norsk Nynorsk
············
············
············
············
············
············
············
············
············
············
2
6
10
14
18
22
26
30
34
38
Ελληνική
České
Română
Magyar Nyelv
Български Език
Suomi
Dansk
Polski
يةبرعلا
תירבע
············
············
············
············
············
············
············
············
············
············
42
46
50
54
58
62
66
70
77
81
Package Contents Special Explanation
Bluetooth speaker
USB to 3.5mm charging cable
3.5mm audio cable
Power adapter
Quick start guide
Protection level of splash-proof, dust-proof and
shock-proof properties: IP55
Splash-proof: Speaker can withstand splash
water and water drops. You can wash it with
water. Do not immerse the product in water.
Dust-proof: Prevent harmful dust accumulation.
Shock-proof: Prevent dropping and bumping. Do
not hit or throw the product. Drop test has been
successfully completed based on a drop from a
height of maximum one meter.
Buttons and ports
Bluetooth button
Volume up button
Volume down button
Audio input & Charging port
Turn on or off
To turn on or off, press and
hold the Bluetooth button.
2
Status Lights
- The green LED blinks slowly when the wired connection is successful or the Bluetooth
connection is unsuccessful.
- The blue LED blinks slowly when Bluetooth connection is successful.
- The blue LED blinks when there is an incoming call.
- The red LED blinks when the battery is low.
- The red LED is on when charging.
- The green LED is on when fully charged.
Bluetooth connection
The speaker enters into pairing mode automatically after turnning it on. Activate the Bluetooth
settings on your smartphone or other device, then search and connect to the speaker. Enter
"0000" if a password is required.
NFC connection
Activate the NFC settings on your smartphone or
other devices, place your device's NFC zone on the
speaker's NFC zone (within 1cm), the speaker will
automatically connect to your device.
This method is only available for NFC-enabled devices.
Multipoint connection
Connect device 1 and device 2 to the speaker according to the method of Bluetooth, The
speaker will work normally when connected successfully.
Note: Up to two devices can be connected to one speaker at the same time.
3
