SPECIFICATION

Of

WMU93S Cordless Optical Mouse

Note:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that may cause undesired

operation.

Caution:

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications

to this equipment. Such modifications could void the user authority to operate the equipment.

REV: 1.0

Prepared by MLK Industries (ShenZhen) Limited

29 March 2004

DR： Sam CHECK： APPD：

Part 1.0: General features and description

- Prevent Repetitive Strain Injury on your wrists and arms!

- Radio frequency : 27 MHz, single channel with 256 random ID, no more problems with radio

frequency interference .

- Battery suggestion: Two AA size alkaline batteries for mouse.

- Mouse resolution of 800 counts per inch of motion.

- Sensor detects motion on all kinds of surface, including wood, plastics, pants, etc… ( Highly

reflective like mirror or deep dark color may not work properly).

- Comfortable shape:

The comfortable shape provides easy control.

- Compatible with windows 98/ME/2000/XP.

Part 2.0: System Requirements

. IBM PC or compatible system

Part 3.0: Preface

The functionality and performance requirements related to the mouse are defined in this

specification.

Part 4.0: Version

- USB Interface

- PS/2 Interface

Part 5.0: Physical characteristics and configuration

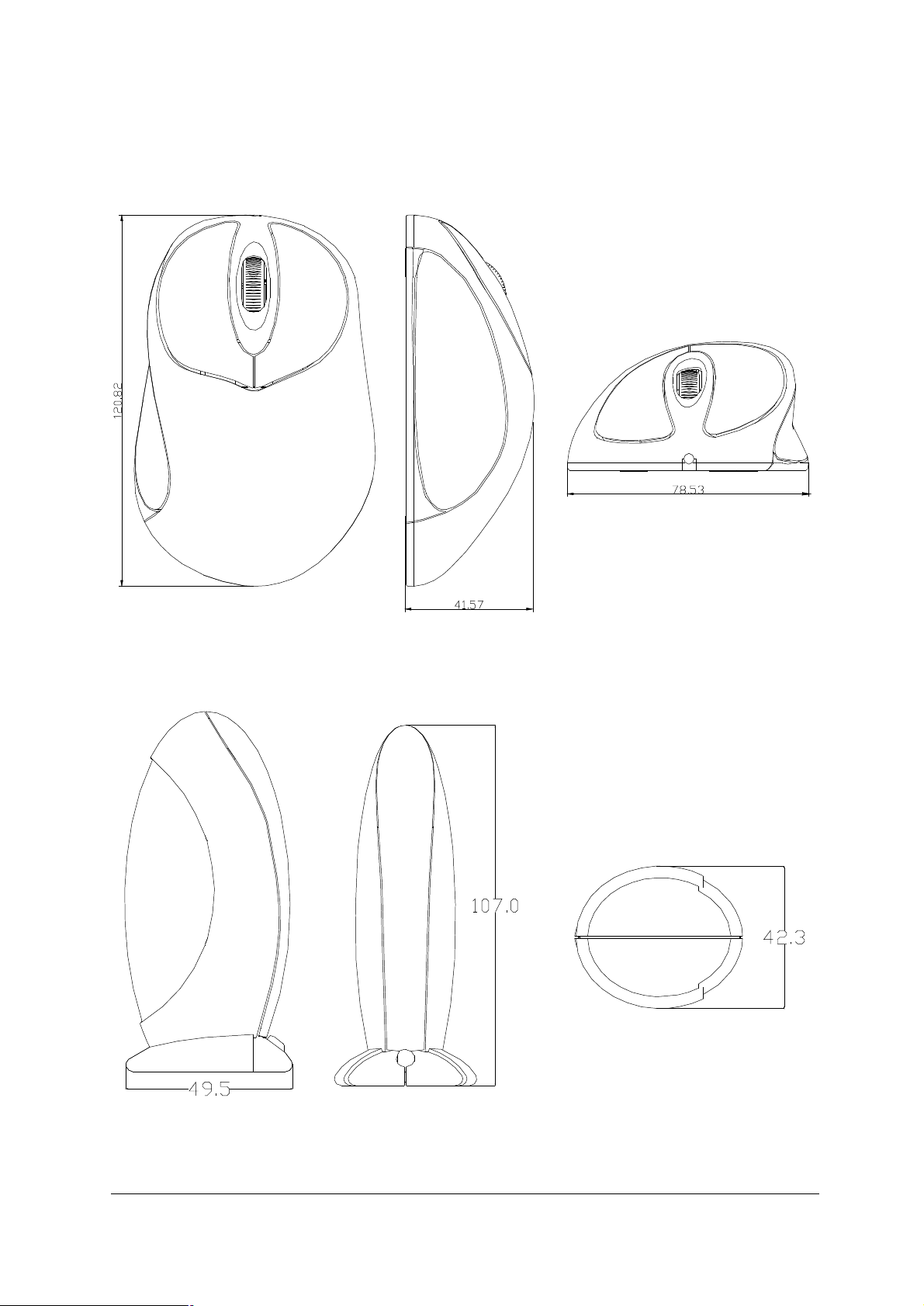

Item 5.1: Dimension

Mouse: 120.82mm(L) x 78.53mm(W) x 41.57mm(H)

Receiver: 107mm(L) x 49.5mm(W) x 42.3mm(H)

DR： Sam CHECK： APPD：
