Rapid silver workshop trolleys
Assembly instruction
AIW004
RAPID SILVER WORKSHOP TROLLEYS
TCT2, TCT3 & TCT4
IMPORTANT - ASSEMBLY INSTRUCTIONS
AIW004
For model TCT2
1 Fit castors C and D to base tray B.
2 Fix uprights A to the base trolley B using screws and
washers H. Fix upright outside tray.
3 Fix shelf tray E to the top of uprights A, using screws
and washers H.
4 Fix handle K, using screws and washers G.
For model TCT3
1 Follow instructions for TCT2 model but add the
middle shelf tray before fitting the top shelf tray.
For model TCT4
1 Follow instructions for the TCT2 model, but place tool
box I onto bars J before fitting the top shelf E.
ASSEMBLY
If you have any problems whatsoever please call 01285 686868 where a team of experts will be pleased to help.
A

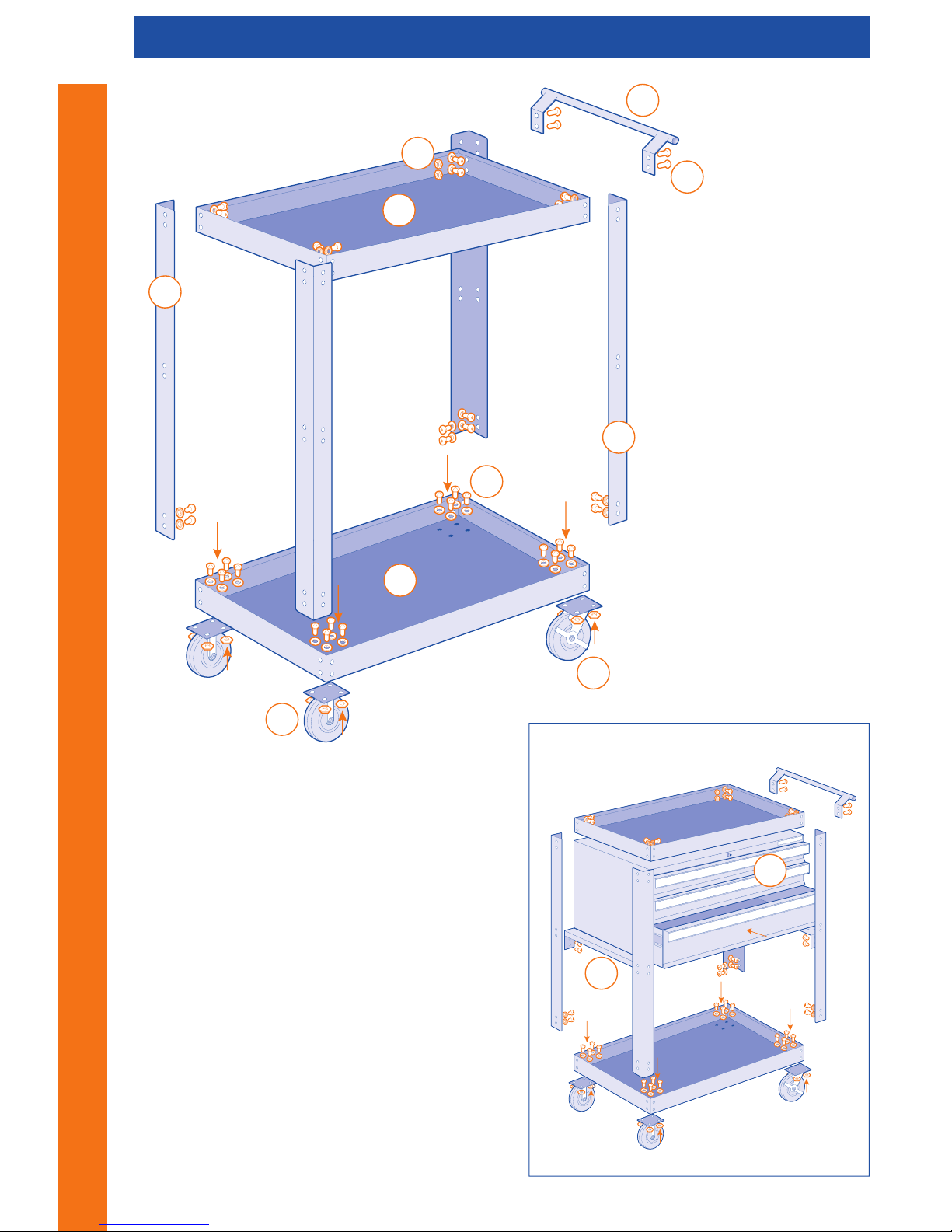

Illustration shown - TCT2
We advise the use of
protective gloves and
goggles, or eyeglasses
when assembling this
product.
Tools required: Spanners, socket and
wrench (provided)
Illustration shown - TCT4
with tool cabinet
A
B
C
D
E
F
K
I
J
H
G
If you have any problems whatsoever please call 01285 686868 where a team of experts will be pleased to help.
Uprights

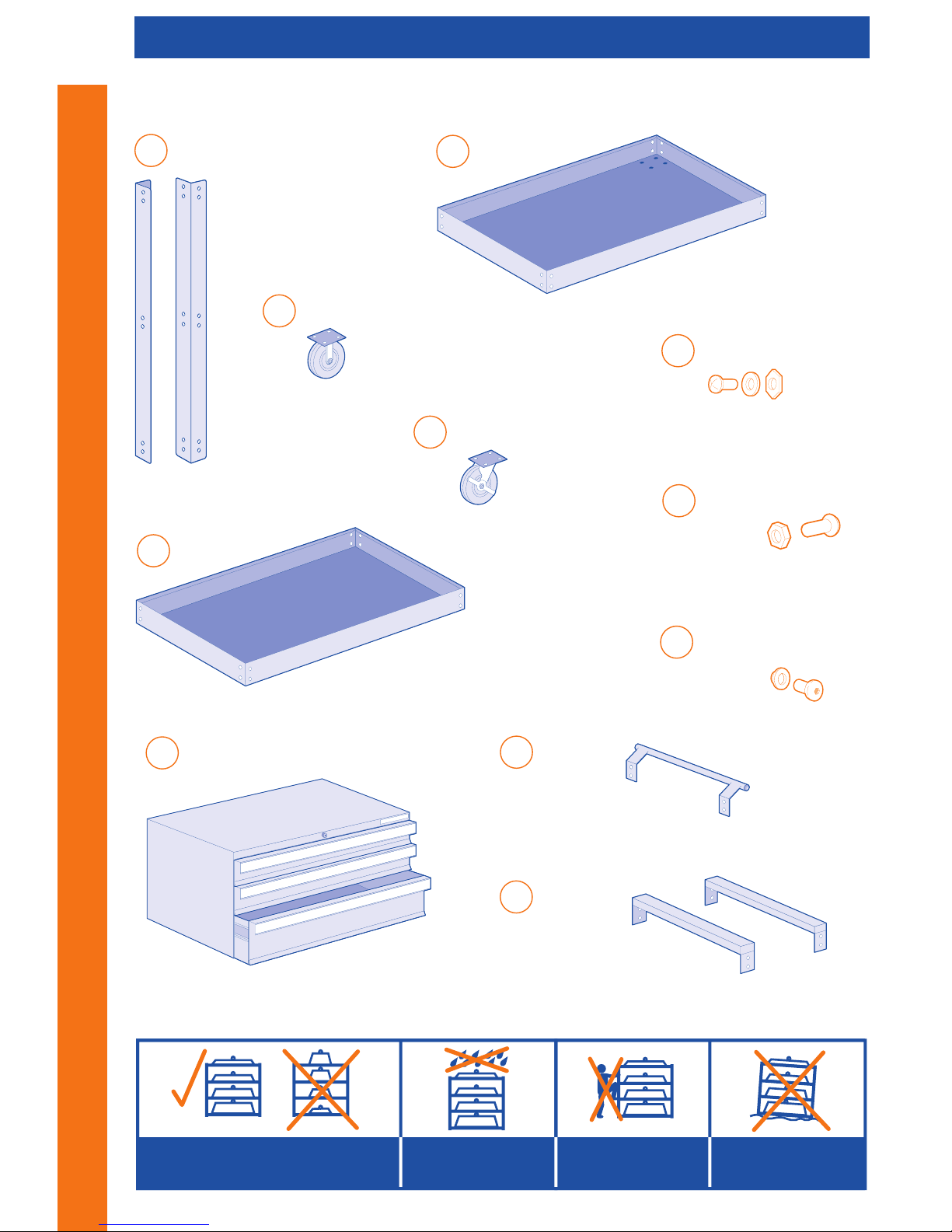

COMPONENTS
RAPID SILVER WORKSHOP TROLLEYS
TCT2, TCT3 & TCT4
IMPORTANT - ASSEMBLY INSTRUCTIONS
AIW004
A
Keep heavier items
on the bottom shelves
Do not climb
on your shelving
Make sure it is on a
level and even floor
Keep your
shelving dry
B
Base tray
SAFETY
4 of per unit
1 of per unit
C
Swivel castor
2 of per unit
D
Swivel/brake castor
2 of per unit
E
Tray
410 mm D x 810mm W
1 of per TCT2 unit
2 of per TCT3 unit
F
Castor nuts and bolts
16 per unit
K
Handle
1 of per unit
J
Shelf bars
410 mm D
2 of per TCT4 unit
(Includes 8 tray screws
and washers H)
I
Tool cabinet
1 of per TCT4 unit
G
Handle bolts
4 of per unit
H
Tray screws and
washers
16 per tray
