SPECIFICATIONS

19

CHAPTER 1

- 1 -

1.0 GENERAL

Model RCI-6900F HP / RCI-6900F TB
Frequency Range 28.245 - 29.655MHz.
Emission Modes CW/FM/AM/SSB (A1/F3/A3/A3J)
Frequency Control Phase Lock Loop (PLL) synthesizer.
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Microphone Dynamic PTT, 500 Ω
Input Voltage 13.8V DC
Current Drain: Transmit (AM full mod.) RCI-6900F HP < 5A; RCI-6900F TB < 15A.
Current Drain : Receiver (Squelched)
(Max. audio output) < 0.5A.
Antenna Connector UHF, SO239.
Dimensions : (RCI-6900F HP) 7 7/8”(W) x 10 3/4” (D) x 2 3/8”(H)
: (RCI-6900F TB) 7 7/8” (W) x 9 1/4” (D) x 3 7/8” (H)
Weight 5 lb. (RCI-6900F HP), 7lb 6 oz (RCI-6900F TB)

1.1 TRANSMITTER

AM/FM/CW ; SSB RF Power Output (RCI-6900FHP)
AM/FM/CW ; SSB RF Power Output (RCI-6900FTB)
RF Transmit Modes CW/FM/AM/SSB.
Modulation High and low level Class B, Amplitude Modulation.
Spurious Emissions -50 dB.
Carrier Suppression -35 dB.
Audio Frequency Response 300 to 2500 Hz
Antenna Impedance 50 Ohms.
Output Indicators Meter shows relative RF output power, receive signal

1.2 RECEIVER

Sensitivity For 10dB S/N (AM ; CW/SSB)
Sensitivity For 20dB S/N (FM)
IF Frequency AM: 10.695 MHz 1st IF, 455 KHz 2nd IF.
Image Rejection > 50 dB.
Adjacent Channel Selectivity > -55 dB (AM/FM) ; > -60 dB (CW/SSB)
RF Gain Control 45 dB adjustable for optimum signal reception.
Automatic Gain Control (AGC) Figure Of Merit 100 mV for 10 dB Change in Audio Output.
Squelch
Noise Blanker RF type.
Audio Output Power 2.5W @ 10% THD
Audio Frequency Response 300 to 2500 Hz.
Built-in Speaker 8 Ohms, 4 Watts.
External Speaker (Not Supplied) 8 Ohms; 4 Watts.

RCI-6900F HP
RCI-6900F TB

± 0.005 %.
± 0.001 %.

-30°C to +50°C.

≤ 0.25A.

10W ; 25W PEP
50W ; 100W PEP

and SWR. Transmit LED glows red when transmitter
is in operation.

< 0.5 µV ; < 0.25 µV.
< 0.5 µV.

Adjustable; threshold less than 0.5 µV.

(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)

CHAPTER 2

OPERATION

- 2 -

Figure 2-1 Front Panel

2.0 INTRODUCTION

This section explains the basic operating procedures for the RANGER RCI-6900F HP / RCI-6900F TB
mobile transceiver.

2.1 CONTROL AND CONNECTIONS

2.1.1 FRONT PANEL

Refer to the above Figure 2-1 for the location of the following controls.

1. ON/OFF VOLUME CONTROL

This knob controls the volume and the power to the radio. To turn the radio on, rotate the knob
clockwise. Turning the knob further will increase the volume of the receiver.

2. SQUELCH CONTROL

This switch is used to eliminate background noise being heard through the receiver which can be
disturbing when no transmissions are being received. To use this feature of your radio, gently turn the
switch fully counterclockwise, and then turn clockwise until the background noise is just eliminated.
Further clockwise rotation will increase the threshold level and only strong signals will be heard.

3. MIC GAIN CONTROL

Adjusts the microphone gain in the transmit mode. This control adjusts the gain to the extent that full
talk power is available several inches away from the microphone.

4. RF GAIN CONTROL

This control is used to reduce the gain of the RF amplifier under strong signal conditions.

5. TALKBACK CONTROL

Adjust this knob for desired volume of Talkback. This is used to monitor your own voice. For example,
you could use this feature to compare different microphones.

6. RF POWER CONTROL

This control allows the user to adjust RF power output.

- 3 -

7. FR. POOL SELECTOR

This switch is used to select the frequency range of operation (1 - 6).

8. MODE SWITCH

This control allows you to select one of the following operating modes: CW/FM/AM/USB/LSB.

9. FINE/COARSE CONTROL

Allows variation of the receiver operating frequency above and below the assigned frequency.
Although this control is intended primarily to tune in SSB signal, it may be used to optimize AM/FM
signals as described in the operating procedure paragraphs. Coarse operates both TX/RX, Fine operate
in RX only.

10. CHANNEL SELECTOR

This control is used to select a desired transmit and receive channel.

11. FRONT PANEL METER

The Front Panel Meter allows the user to monitor signal strength, RF output power and SWR level.

12. TX/RX LED

The red LED indicates the unit is in the transmit mode. The green LED indicates the unit is in the
receive mode.

13. FREQUENCY COUNTER

This display indicates the frequency of operations.

14. ECHO/OFF SWITCH

This control is used for echo effect.

15. HI/LO SWITCH

This switch changes tone quality in receive only. In LO position, bass is increased and in HI position,
treble is increased.

16. S-RF/SWR SWITCH

This is a two-function switch. In the S-RF position, the meter will indicate the strength of the signal
being received, as well as the relative RF output of transmission. To use the meter to measure the
standing wave ratio, turn the switch to the SWR position.

17. NB/ANL/OFF SWITCH

In the NB/ANL position, the RF Noise Blanker and the Automatic Noise Limiter in the audio circuits
are also activated. The Noise Blanker is very effective in eliminating repetitive impulse noise such as
ignition interference.

18. R.B./OFF SWITCH

In the Roger Beep position, the radio transmits an audio tone at the end of your transmission to indicate
that transmission has ended. As a courtesy to others, use the Roger Beep only when necessary.

19. +10KHz/OFF SWITCH

When the switch is pressed the frequency is shifted 10KHz up.

20. CHANNEL DISPLAY

- 4 -

The channel display indicates the current selected channel.

2.1.2 REAR PANEL

Figure 2-2 represents the location of the following connections:

Figure 2-2 Rear Panel

1. ANTENNA

This jack accepts 50 ohms coaxial cable with a PL-259 type plug.

2. POWER

This connector accepts 13.8V DC power cable with built-in fuse. The power cord provided with the
radio has a black and red wire. The black goes to negative and the red goes to positive.

3. CW. KEY

This is used for Morse Code operation. To operate this mode, connect a CW key to this jack, and place
the MODE switch in the CW position.

4. EXT. SP.

This jack accepts 4 to 8 ohms, 4 watts external speaker. When the external speaker is connected to this
jack, the built-in speaker will be disabled.

2.1.3 FREQUENCY CHART

FR. POOL

CHANNEL 1 (MHz) 2 (MHz) 3 (MHz) 4 (MHz) 5 (MHz) 6 (MHz)

1 28.245 28.695 29.145 28.315 28.765 29.215
2 28.255 28.705 29.155 28.325 28.775 29.225
3 28.265 28.715 29.165 28.335 28.785 29.235
4 28.285 28.735 29.185 28.355 28.805 29.255
5 28.295 28.745 29.195 28.365 28.815 29.265

- 5 -

6 28.305 28.755 29.205 28.375 28.825 29.275
7 28.315 28.765 29.215 28.385 28.835 29.285
8 28.335 28.785 29.235 28.405 28.855 29.305

9 28.345 28.795 29.245 28.415 28.865 29.315
10 28.355 28.805 29.255 28.425 28.875 29.325
11 28.365 28.815 29.265 28.435 28.885 29.335
12 28.385 28.835 29.285 28.455 28.905 29.355
13 28.395 28.845 29.295 28.465 28.915 29.365
14 28.405 28.855 29.305 28.475 28.925 29.375
15 28.415 28.865 29.315 28.485 28.935 29.385
16 28.435 28.885 29.335 28.505 28.955 29.405
17 28.445 28.895 29.345 28.515 28.965 29.415
18 28.455 28.905 29.355 28.525 28.975 29.425
19 28.465 28.915 29.365 28.535 28.985 29.435
20 28.485 28.935 29.385 28.555 29.005 29.445
21 28.495 28.945 29.395 28.565 29.015 29.465
22 28.505 28.955 29.405 28.575 29.025 29.475
23 28.535 28.985 29.435 28.605 29.005 29.505
24 28.515 28.965 29.415 28.585 29.035 29.485
25 28.525 28.975 29.425 28.595 29.045 29.495
26 28.545 28.995 29.445 28.615 29.065 29.495
27 28.555 29.005 29.455 28.625 29.075 29.515
28 28.565 29.015 29.465 28.635 29.085 29.525
29 28.575 29.025 29.475 28.645 29.095 29.535
30 28.585 29.035 29.485 28.655 29.105 29.545
31 28.595 29.045 29.495 28.665 29.115 29.555
32 28.605 29.055 29.505 28.675 29.125 29.565
33 28.615 29.065 29.515 28.685 29.135 29.575
34 28.625 29.075 29.525 28.695 29.145 29.585
35 28.635 29.085 29.535 28.705 29.155 29.595
36 28.645 29.095 29.545 28.715 29.165 29.605
37 28.655 29.105 29.555 28.725 29.175 29.625
38 28.665 29.115 29.565 28.735 29.185 29.635
39 28.675 29.125 29.575 28.745 29.195 29.645
40 28.685 29.135 29.585 28.755 29.205 29.655

2.2 MICROPHONE

The receiver and transmitter are controlled by the push-to-talk switch on the microphone. Press the
switch and the transmitter is activated, release switch to receive. When transmitting, hold the
microphone two inches from the mouth and speak clearly in a normal voice. The radio comes complete
with a low impedance (500 ohm) dynamic microphone.

2.3 OPERATION

2.3.1 PROCEDURE TO RECEIVE

1. Be sure that power source, microphone and antenna are connected to the proper connectors before
going to the next step.

- 6 -

2. Turn

VOL.

knob clockwise to apply power to the radio.

3. Set the

VOL.

to a comfortable listening level.

4. Set the

MODE

switch to the desired mode.

5. Listen to the background noise from the speaker. Turn the SQ knob slowly clockwise until the noise
just disappears. The SQ is now properly adjusted. The receiver will remain quiet until a signal is
actually received. Do not advance the control too far or some of weaker signals will not be heard.

6. Set the

CHANNEL

selector switch to the desired channel.

7. Set the

RF GAIN

control fully clockwise for maximum receive gain.

8. Adjust the

FINE/COARSE

control to clarify the SSB signals or to optimize AM/FM signals.

2.3.2 PROCEDURE TO TRANSMIT

1. Select the desired channel of transmission

2. Set the

MIC GAIN

control fully clockwise.

3. If the channel is clear, depress the push-to-talk switch on the microphone and speak in a normal
voice.

2.4 ALTERNATE MICROPHONES AND INSTALLATION

For best results, the user should select a low impedance dynamic type microphone or a transistorized
microphone. Transistorized type microphones have a low output impedance characteristic. The
microphones must be provided with a four-lead cable. The audio conductor and its shielded lead
comprise two of the leads. The third lead is for transmit control and the fourth is for receiving control.
The microphone should provide the functions shown in schematic below (Figure 2-3).

4 WIRE MIC CABLE

Pin Number Mic Cable Lead
1 Audio Shield
2 Audio Lead
3 Transmit Control

- 7 -

4 Receive Control

Figure 2-5 Microphone plugs pins numbers viewed from rear of pin receptacle.

RCI-6900F HP

Figure 2-3 Your Transceiver Microphone Schematic

CHAPTER 3

CIRCUIT

RCI-6900F TB

DESCRIPTION

3.0 INTRODUCTION

This section explains the technical theory of operation for the RCI-6900F HP / RCI-6900F TB mobile
transceiver.

3.1 PLL CIRCUIT

The Phase Lock Loop (PLL) circuit is responsible for developing the receiver’s first local oscillator
signal and the transmitter’s exciter signal. The PLL circuit consists primarily of IC2, IC3, IC4, IC5

- 8 -

Q25, Q27, Q28, Q29 and Q61. The PLL circuit is programmed by the rotary channel switch GPS-0501.
The GPS-0501 communicates the correct binary data information to the programmable divider inside
of IC3. IC3 then controls the VCO (Voltage Controlled Oscillator), to oscillate on the correct
frequency. This signal is fed either into the receiver’s first mixer (for receive operation) or the
transmitter’s mixer (for transmit operation).

3.2 RECEIVER CIRCUIT

The incoming RF signal comes into the radio via the antenna and into the front-end pre-amp, Q17. The
RF signal is fed into the mixer circuit of the Q18 & Q19 and then into the AM IF section of the
receiver (depending on the mode of operation). The signal is then detected by either the AM detector or
product detector or then fed to the audio amplifier section of the receiver and finally out to the speaker.

3.3 TRANSMITTER MODULATION CIRCUIT

(i) The transmitter modulation circuit modulates the low-level RF signal from the PLL exciter circuit

with the user’s audio voice signal from the microphone. The audio from the microphone is then
amplified and fed into the transmit amplifier circuit.

(ii) If the transceiver is in the AM mode, the AF Power amplifier modulates the last RF amplifier,

which produces a true amplitude modulated RF signal.

3.4 TRANSMITTER AMPLIFIER CIRCUIT

The transmitter takes the basic exciter signal from the TX mixer and amplifies it through a series of
amplifiers consisting of Q50, Q51, Q49, Q47, Q48 and EPA010010B (only for RCI-6900F TB) where
it is sent out to the antenna connector.

- 9 -

- 10 -

- 11 -

RCI-6900F HP / RCI-6900F TB FREQUENCY COUNTER CIRCUIT DIAGRAM

- 12 -

RCI-6900F HP / RCI-6900F TB ECHO BOARD (EB-99) CIRCUIT DIAGRAM

- 13 -

RCI-6900F HP

CHAPTER 4

RCI-6900F TB

ALIGNMENT

4.0 REQUIRED TEST EQUIPMENT

!

DC Power Supply (13.8VDC, 20A)

"

RF Wattmeter (25~60 MHz, 100W)

#

Multimeter (Digital)

$

Automatic Modulation Meter

%

Audio Signal Generator

&

Frequency Counter (100 MHz)

'

RF Signal Generator (100 MHz)

(

Automatic Distortion Meter

)

Oscilloscope (50 MHz)

*

Sinad Meter

4.1 ALIGNMENT PROCEDURES

This transceiver has been aligned at the factory and does not require any adjustments at installation.
The required test equipment listed is used for the test setup or alignment shown in Figure 4-1
Transmitter Test Setup and Figure 4-2 Receiver Test Setup. This test setup is used in part or total
during the following adjustments and refer to Figure 4-3 for adjustment location.

4.1.1 PLL ALIGNMENT

ITEM U.U.T. SETTING ADJUST

MEASUREMENT

POINT

VCO Voltage

Disconnect ‘short PCB” from TP7, TP8 and
TP9.
Set radio to Fr. Pool 6, CH 40 AM RX mode.
Set +10KHz/OFF switch to OFF position.
Connect Multimeter to TP2.
Connect Frequency Counter to TP11.

AM Frequency Set radio to Fr. Pool 1, CH 1 AM RX mode.

Set radio to Fr. Pool 6, CH 40 AM RX mode.
Connect Frequency Counter to TP3.

USB Frequency Set radio to Fr. Pool 1, CH 1 USB RX mode.

Set radio to Fr. Pool 6, CH 40 USB RX mode.
Connect Frequency Counter to TP3.

LSB Frequency Set radio to Fr. Pool 1, CH 1 LSB RX mode.

Set radio to Fr. Pool 6, CH 40 LSB RX mode.
Connect Frequency Counter to TP3.

TX Frequency Set radio to Fr. Pool 1, CH 1 AM TX mode.

Connect Frequency Counter to TP3.

AM OSC Set radio to Fr. Pool 1, CH 1 AM TX mode.

Connect Frequency Counter to TP5.

USB OSC Set radio to Fr. Pool 1, CH 1 USB TX mode.

Connect Frequency Counter to TP5.

LSB OSC Set radio to Fr. Pool 1, CH 1 LSB TX mode.

Connect Frequency Counter to TP5.

L15
VC1

L45

L41

L46
L42

L47
L43

VR8

L18

L19

L20

6.5 VDC ± 0.1

10.2400MHz ± 20Hz

17.5500MHz ± 20Hz

18.9600MHz ± 20Hz

17.5525MHz ± 20Hz

18.9625MHz ± 20Hz

17.5475MHz ± 20Hz

18.9575MHz ± 20Hz

17.5500MHz ± 20Hz

10.6950MHz ± 10Hz

10.6925MHz ± 10Hz

10.6975MHz ± 10Hz

4.1.2 TRANSMITTER ALIGNMENT

- 14 -

ITEM U.U.T. SETTING ADJUST

MEASUREMENT

POINT

TX Power Set radio to Fr. Pool 2, CH 19 AM TX mode.

Modulation Off.
Set radio to Fr. Pool 2, CH 19 USB TX mode.
AF signal 30mV, 1 KHz to microphone.
Connect Oscilloscope to TP12.
Set RF PWR Fully Clockwise.
Set FINE/COARSE Control to 12 o’clock.

AM APC

Set radio to Fr. Pool 2, CH 19 AM TX mode.
Connect Multimeter to TP8.

SSB APC Set radio to Fr. Pool 2, CH 19 USB TX mode.

Connect Multimeter to TP8.

BIAS Current Set radio to Fr. Pool 2, CH 19 USB TX mode.

Modulation Off.
Connect current meter to TP7(+) and TP9 (-)
Connect current meter to TP7 (+) and TP8 (-)

L18,L37,L35,
L34

L35,L34

VR15

Maximum Output.

Maximum Output
and Balance.
6VDC

VR18 12.5VDC

VR13
VR12 + VR11

10 mA
(50 mA + 50 mA) =
100 mA

AM TX Power Set radio to Fr. Pool 2, CH 19 AM TX mode.

Connect ‘short PCB” to TP7, TP8 and TP9.
Set RF PWR Fully Counter Clockwise.

Connect RF Power Meter to antenna jack.
RF Power
Meter

Set radio to Fr. Pool 2, CH 19 AM TX mode.

Set RF PWR Fully Clockwise.

VR15

VR19

10W (RCI-6900FHP)
50W (RCI-6900FTB)
2W

VR10 Adjust RF Power

meter needle until it
is in-between the
green and red bar on
TX PWR scale.

SSB ALC

SSB Carrier
Balance

Set radio to Fr. Pool 2, CH 19 USB TX mode.

AF signal 30mV, 1 KHz to microphone.

Set RF PWR Fully Clockwise.

Set radio to Fr. Pool 2, CH 19 USB TX mode.

AF signal 30mV, 1 KHz to microphone.

VR14 25W (RCI-6900FHP)

100W (RCI-6900F
TB)

VR7 Spurious Emission to

minimum.

Connect Oscilloscope to antenna jack.
CW TX Set radio to Fr. Pool 2, CH 19 CW TX mode.

VR9 200mV (Sine Wave)
Plug in CW key.
Disconnect the Mic Jack.
Connect AC Voltmeter to EXT SP.

SWR Meter Set radio to Fr. Pool 2, CH 19 AM TX mode.

Set SWR/S/RF switch to SWR position.
Connect 100 Ohm to antenna jack.

AM Modulation
FM Modulation

Set radio to Fr. Pool 2, CH 19 AM TX mode.
Set radio to Fr. Pool 2, CH 19 FM TX mode.
AF signal 30mV, 1 KHz to microphone.

VR1 on

SWR P.C.B

VR17 90%

Adjust SWR needle
until it is on the “2”
SWR scale.

4KHz

Set Mic Gain Fully Clockwise.

Frequency
Counter Adjust

Set radio to Fr Pool 2, CH 19 AM RX mode. VC1 on

frequency

Display should be

28.9150

counter

4.1.3 RECEIVER ALIGNMENT

- 15 -

ITEM U.U.T. SETTING ADJUST

Set NB/ANL/OFF switch to NB/ANL

AM Sensitivity Set radio to Fr. Pool 2, CH 19 AM RX mode.

Set RF Gain Fully Clockwise.
Set SQ Fully Counter Clockwise.
Set VOL Control at 2 o’clock.
Set NB/ANL/OFF switch to OFF position.
Connect RF SG to antenna jack
Frequency 28.915 MHz, 1uV. Mod 30%.
Set radio to Fr. Pool 6, CH 40 AM RX mode.
RF SG setting 29.655 MHz.
Set radio to Fr. Pool 1, CH 1 AM RX mode.
RF SG setting 28.245 MHz.

USB Sensitivity Set radio to Fr. Pool 2, CH19 USB RX mode.

Set VOL Control Fully Clockwise.
RF SG setting 28.916 MHz, 0.5uV. Mod off.

LSB Sensitivity Set radio to Fr. Pool 2, CH19 LSB RX mode.

Set VOL Control Fully Clockwise.
RF SG setting 28.914 MHz, 0.5uV. Mod off.

FM Distortion Set radio to Fr. Pool 2, CH 19 FM RX mode.

Set MODE switch to FM mode.
RF SG setting 28.915 MHz, 1mV. Mod 3KHz.

NB Adjust Set radio to Fr. Pool 2, CH 19 AM RX mode

RF SG setting 28.915 MHz, 100uV. Mod off.

position.
Connect Voltmeter to TP1.

AM Squelch Set radio to Fr. Pool 2, CH 19 AM RX mode.

Set SQ Control Fully Clockwise.
RF SG setting 28.915 MHz, 1 mV. Mod 30%.

SSB Squelch Set radio to Fr. Pool 2, CH 19 USB RX mode.

Set SQ Control Fully Clockwise.
RF SG setting 28.915 MHz, 1 mV. Mod off.

AM S/RF Meter
AM S-Meter

Set radio to Fr. Pool 2, CH 19 AM RX mode.
Set SWR/S/RF switch to S/RF position.
RF SG setting 28.915 MHz, 100uV. Mod 30%.

SSB S-Meter

Set radio to Fr. Pool 2, CH 19 USB RX mode.
Set SWR/S/RF switch to S/RF position.
RF SG setting 28.916 MHz, 100uV. Mod off.

Figure 4-1 Transmitter test setup

MEASUREMENT

POINT

L2,3,5,6,7,8,

9,10

L5,L6

Audio output > 2V
S/N > 10 dB.

For Balance between
CH 1 and CH 40.

L5,L6

L11,L12

Audio Output > 2V
S/N > 10dB.

L11,L12

Audio Output > 2V
S/N >10db.

L4 Audio output > 3V

Distortion < 10%

L1 DC Voltage to max.

( > 2.0V )

VR4 Slowly Adjust very slowly

until squelch just
open

VR3 Slowly Adjust very slowly

until squelch just
open

VR1 Meter needle to S9

on the S scale

VR2 Meter needle to S9

on the S scale

- 16 -

Figure 4-2 Receiver test setup

- 17 -

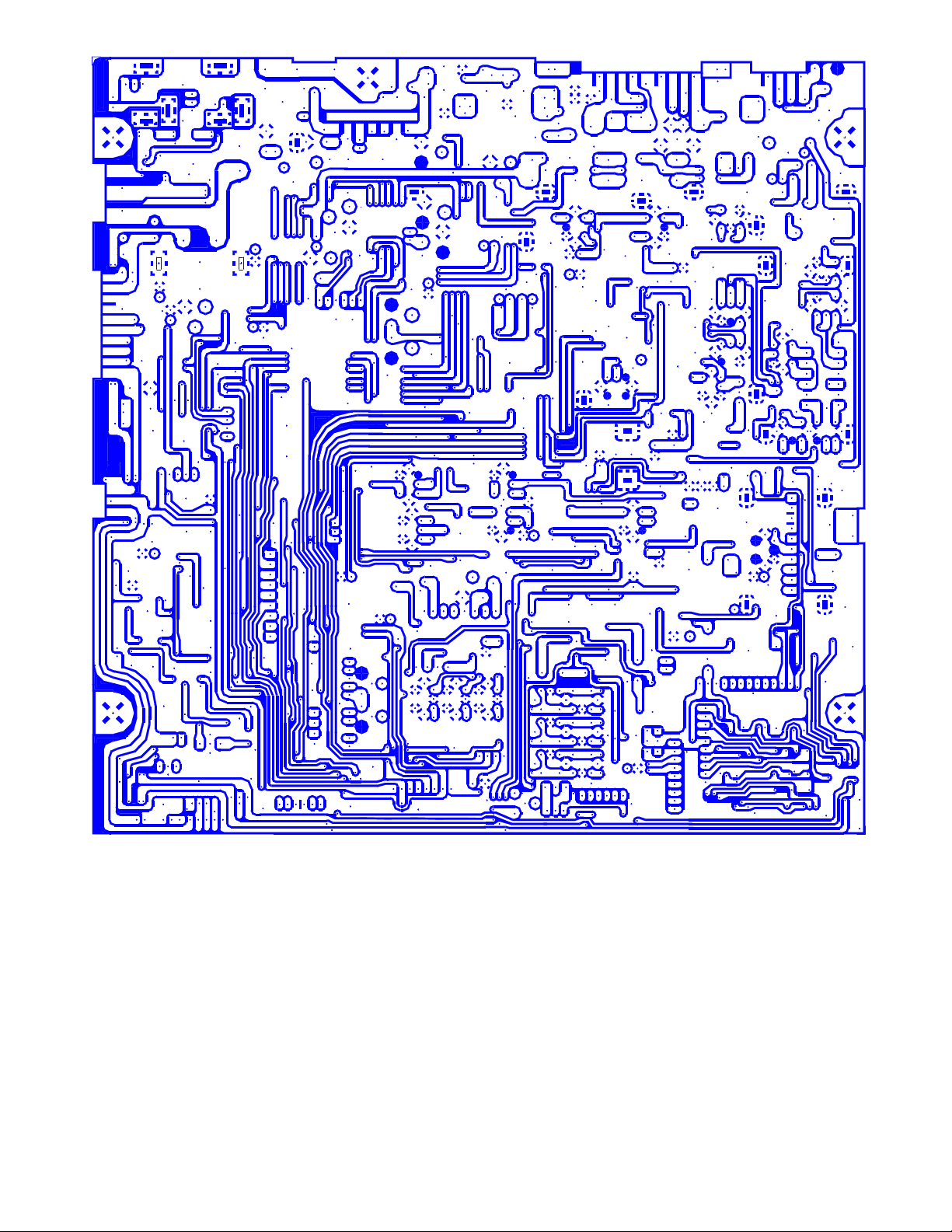

Figure 4-3 Main PCB Adjustment Location

RCI-6900F HP
RCI-6900F TB

- 18 -

CHAPTER 5

MAINTENANCE

5.0 PRECAUTIONS

The inherent quality of the solid-state components used in this transceiver will provide many years of
continuous use. Taking the following precautions will prevent damage to the transceiver.

(i) Never key the transmitter unless an antenna or suitable dummy load is connected to the antenna

receptacle.

(ii) Ensure that the input voltage does not exceed 16 VDC or fall below 11 VDC.

(iii) During alignment, do not transmit for more than 10 seconds at a time. Transmitting over long

periods can cause heat built-up and cause transmitter damage.

5.1 PERIODIC INSPECTION

This unit is aligned at the factory to deliver maximum performance. However, continued performance
cannot be expected without periodic inspection and maintenance. Important points to be checked
regularly are as follows;

Check Item Action

Whip antenna
(option)
Coaxial cable If sheath is cracked, seal with

Coaxial & power
plug connections
Battery connection If corroded, clean power

Ground terminal If corroded, clean terminal.

5.2 FUSE REPLACEMENT

To protect the equipment from serious damage, a fuse is provided on the power supply lines. The fuses
protect against over voltage / reverse polarity or internal fault of the equipment. If the fuse has blown,
first find out the cause of the trouble before replacing it. A fuse rated for more than the transceiver
requirement should not be used, since it may permanently damage the equipment. Damage due to over
fusing is not covered by the warranty.

If cracked or broken, replace it.

vinyl tape. If immersed with
water, install new coaxial cable.
If loosened, reconnect. If
corroded, clean contacts.

terminals.

RCI-6900F HP
RCI-6900F TB

- 19 -

CHAPTER 6

DIAGRAMS &

PARTS LIST

6.0 GENERAL

Information on most electrical and mechanical parts is included in the parts list. The reference
designators are in alphanumeric order.

6.1 ORDERING REPLACEMENT PARTS

Parts orders should be referred to the parts department at:

Ranger Communications, Inc.

•

3377 Carmel Mountain Road
San Diego, CA 92121

Tel: [phone]
Fax: [phone]

- 20 -

PART LIST:

RCI-6900F HP / RCI-6900F TB ROTARY SW P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT900030Z ROTARY SW P.C.B
2 R315 RCP168214Z 820 OHM 1/16W
3 R312,R313,R314,

RCP161524Z 1.5K OHM 1/16W

R316-R324
4 J303,J304,J305,J306 WX01070705 JUMPER WIRE
5 J308 WX01070708 JUMPER WIRE
6 J301,J302,D311,D312,

WX01070710 JUMPER WIRE

D301,D314,D315,D316,

D323,D324,D325,D326
7 J307 EX07N48209 PCB CONN/S 10PIN
8 ROTARY SW EWRT32000S ROTARY SW

REMARK:

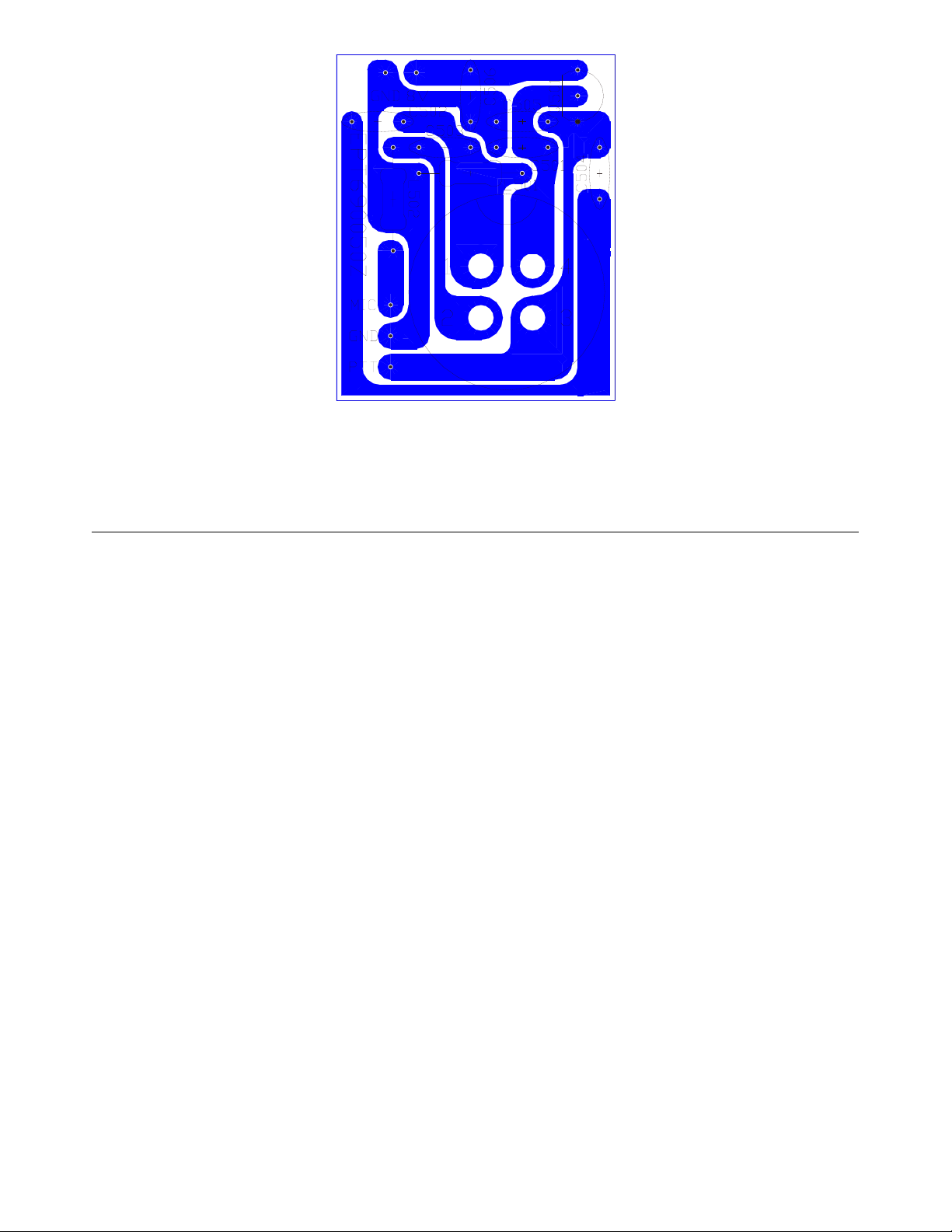

COPPER SIDE (BLUE)

- 21 -

PART LIST:

RCI-6900F HP ANT P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT360042Z ANT P.C.B
2 R9 RCY010004Z 0 OHM 0.1W
3 R1 RCY014714Z 470 OHM 0.1W
4 R3,R4 RCY011014Z 100 OHM 0.1W
5 R2 RCY013314Z 330 OHM 0.1W
6 R5,R11 RCY011024Z 1K OHM 0.1W
7 R10 RCY012224Z 2.2K OHM 0.1W
8 R12 RCY014724Z 4.7K OHM 0.1W
9 R7 RCY011034Z 10K OHM 0.1W

10 C5 RCY012234Z 22K OHM 0.1W
11 C7 CK1059AB1A 0.5PF 50WV
12 C6 CK1030AB1A 3PF 50WV
13 C3,C4 CK2104AB7R 0.1uF 25WV
14 C1,C2 CK1103AB7L 0.001uF 50WV
15 Q1 TY2SC2712G TR 2SC2712GR
16 D3 EDSS00355Y DIODE 1SS355
17 D1,D2 EDHM0198SY DIODE HSM198S
18 D4 EDMA0028TY DIODE MA28T
19 L1 ECRFZ10053 RF COIL C3RH0610
20 VR1 RE10300009 S/F/R 10K OHM
21 JP1 WX01070715 JUMPER WIRE

REMARK:
COPPER SIDE (BLUE)

- 22 -

PART LIST:

RCI-6900F TB POWER P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPA010010B POWER PCB
2 R18,R19 RCM141004A 10 Ω ¼ W
3 R16 RCM141014A 100 Ω ¼ W
4 R22 RCM144714A 470 Ω 1/4W
5 R21 RCM141024A 1K Ω 1/4W
6 R15 RCP121034Z 10K Ω 1/2W
7 R14 RFP102714Z 270 Ω 1W
8 C5,C6 CC0500201A 2PF 50WV

ITEM REFERENCE NUMBER RANGER PART

- 23 -

DESCRIPTION

NUMBER
9 C18,C19 CC0501515A 150PF 50WV

10 C13 CC0502215A 220PF 50WV
11 C9,C14 CC0505615G 560PF 50WV
12 C10,C23,C24,C25,

CC0501047L 0.1uF 50WV
C26,C27,C28,C37,
C38,C39,C40,C41,

C42,C43,C44,C45
13 C7,C8 CC5001037L .01uF 50WV
14 C34 CC5001204A 12PF 500WV
15 C32 CC5003904A 39PF 500WV
16 C31 CD5006604Z 68PF 300WV
17 C35 CD3008204Z 82PF 300WV
18 C16,C22,C33 CD3001514Z 150PF 300WV
19 C12 CE052257Z 2.2uF 50WV
20 C30 CE0254777Z 470PF 25WV
21 Q2 TDTC0114ES TR DTC114ES
22 D4,D7,D8,D9 ED1N04148Z DIODE 1N4148
23 D10 EDLT6A400Z DIODE LT6A400
24 L4,L5 ECSPG18382 SPRING COIL
25 L2 ECBAD18571 BEAD COIL
26 L3 ECBAD18572 BEAD COIL
27 L1 ECCHK16142 CHOKE COIL
28 TDK BRAND CORE ECRFZ10053 TDK BRAND CORE
29 T1 ECRFZ10184 RF COIL
30 T2 ECRFZ10185 RF COIL
31 RL1 EX05N40844 RELAY
32 J1 EX07N41226 PCB CONN/S 2PIN
33 J2 EX07N48490 PCB CONN/S 4PIN
34 B+,B- GZZZ50011Z AC 220V
35 I/P,O/P GZZZ50062Z V TYPE JACK
36 Q3,Q4 T2SC02290Z TR 2SC2290
37 Q5 T2SD02531Z TR 2SD2531

REMARK:
TOP: COMPONENT SIDE (WHITE)
BOTTOM: COPPER SIDE (WHITE)

- 24 -

PART LIST:

RCI-6900F TB SWR P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPA010020B SWR P.C.B
2 R13,R14 RCY010004Z 0 Ω 0.1W
3 R2 RCY011014Z 100 Ω 0.1W
4 R1,R3,R4 RCY014714Z 470 Ω 0.1W
5 R5,R11 RCY011024Z 1K Ω 0.1W
6 R12 RCY014724Z 4.7K Ω 0.1W
7 R7,R8,R10 RCY011034Z 10K Ω 0.1W
8 C1,C2 CK1102AB7L 0.001uF 50WV
9 C3,C4 CK2104AB7R 0.1uF 25WV

10 D1,D2 EDHM0198SY DIODE HSM198S
11 D4 EDMA0028TY DIODE MA28T
12 VR1 RE103Y0125 10KB 3L
13 Q1 TY2SC2712G 2SC2712GR-TE85L

REMARK:
COPPER SIDE (BLUE)

- 25 -

PART LIST:

RCI-6900F HP / RCI-6900F TB BAND P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION REMARK

NUMBER
1 EPT690070Z BAND P.C.B
2 R1 RCP164704Z 47 OHM 1/16W
3 J1,J5,J6,J7 EX07N48223 PCB CONN/S 2PIN
4 J3 EX07W48826 PCB CONN/S 5PIN
5 J4,J12 EX07W48827 PCB CONN/S 6PIN

RCI-6900FTB

6 J8 EX07N48224 PCB CONN/S 7PIN
7 J10 EX07N48331 PCB CONN/S 6PIN
8 JP3,JP7 WX01070705 JUMPER WIRE

RCI-6900FTB
RCI-6900FHP

9 JP1 WX01070710 JUMPER WIRE

10 VOL/SQ RV50303522 VR 50KB/50KA W/SW
11 FINE/COARSE RV20303523 VR 20KB/1KB
12 MIC/RF RV10203524 VR 1KB/1KA
13 SWR CAL RV20303560 VR 20KB/5KB
14 BAND EWRT32094S ROTARY SW 6N
15 MODE EWRT32083S ROTARY SW 5N

REMARK:
COPPER SIDE (WHITE)

- 26 -

PART LIST:

RCI-6900F HP / RCI-6900F TB MIC P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT690050Z MIC P.C.B
2 C502, C503,C504 CC0501027L 0.001uF 50WV
3 C505,C506,C501 CC0501037L 0.01uF 50WV
4 L501 ECCHK16001 CHOKE COIL
5 L502 ECBAD18526 BEAD COIL
6 1-4 EX06N41020 MIC JACK
7 MIC-50F EX07N48903 WIRE CONN/H 3PIN

REMARK:
COPPER SIDE (BLUE)

- 27 -

- 28 -

PART LIST:

RCI-6900F HP / RCI-6900F TB COUNTER P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT900040Z COUNTER P.C.B
2 R40 RCY010004Z 0 OHM 0.1W
3 R19-R39 RCY011014Z 100 OHM 0.1W
4 R6 RCY013314Z 330 OHM 0.1W
5 R9 RCY014714Z 470 OHM 0.1W
6 R4,R5 RCY012224Z 2.2K OHM 0.1W
7 R7 RCY014724Z 4.7K OHM 0.1W
8 R3,R10,R12 RCY011034Z 10K OHM 0.1W
9 R13-R18 RCY012234Z 22K OHM 0.1W

10 R11 RCY013334Z 33K OHM 0.1W
11 R41,R42 RCY014734Z 47K OHM 0.1W
12 C15 CK1150AB4A 15PF 50WV
13 C14 CK1330AB4A 33PF 50WV
14 C2,C6,C8,C10,C11,C12,

CK2104AB7R 0.1uF 25WV

C17,C19,C21,C29,C31,

C32,C33,C35,C36,C28

15 C5,7,16,20,22,25,38,40 CK1103AB6U 0.01UF 50WV

16 C13 CK1102AB7L 0.001uF 50WV

17 C9,C18,C27,C30,C34 CK5105AA7R 1uF 16WV
18 U3 YNRG0GX3SP IC LC7232N 18PIN
19 U2 YNTA04073B IC TC4093BFN 14PIN
20 U4,U5,U6 YNR006250F IC BA6250F 16PIN
21 U1 YNT011650U IC TK11650U 3PIN
22 Q3 TY25C2714Z TR 2SC2714
23 Q1,Q2 TY2SC2712G TR 2SC2712GR
24 D2,D3 EDSS00355Y DIODE 1SS355
25 L1 YCCHK16259 CHOKE COIL
26 VC1 CV038200AY TRIMMER/C 20PF
27 C1,C3 CEM161077A 100UF 16WV
28 X1 EYCAP04500 CRYSTAL 4.500MHz
29 C37 CE0161087Z 1000UF 16WV
30 COUNTER PCB x 2pc EX07N48927 PCB CONN/S 12PIN
31 CN1 EX07N48223 PCB CONN/S 2PIN
32 CN2 EX07N48224 PCB CONN/S 7PIN

REMARK:
TOP: COMPONENT SIDE (BLUE)
BOTTOM: COPPER SIDE (BLUE)

- 29 -

PART LIST:

RCI-6900F HP/ RCI-6900F TB LED DISPLAY P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT900022Z LED DISPLAY P.C.B
2 LED DISPLAY PCB EX03N40003 LED DISPLAY
3 1,2,3,4,5,6 EX03N40476 LED DISPLAY
4 TX/RX EX01N40004 LED RED/GREEN
5 ON,NB/ANL,R.B,S/RF,

EWPS33033X PUSH SW

SWR,+10K
6 LED DISPLAY PCB x 2pc
7 TOJ10,+10K,S/RF,

EX07N48928 PCB CONN/S 12PIN
EX07N48223 PCB CONN/S 2PIN

M-M+

8 LED DISPLAY PCB x 3pc

EX07N48350 PCB CONN/S 3PIN

9 LED DISPLAY PCB EX07N48490 PCB CONN/S 4PIN

10 RX/G/TX EX07N48947 PCB CONN/S 3PIN

REMARK:
TOP: COMPONENT SIDE (BLUE)
BOTTOM: COPPER SIDE (BLUE)

- 30 -

- 31 -

PART LIST:

RCI-6900F HP / RCI-6900F TB ECHO P.C.B (EB-99)

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT0SSB50F ECHO P.C.B
2 R3,R16 RCY011014Z 10 OHM 0.1W
3 R28 RCY014714Z 470 OHM 0.1W
4 R27 RCY011024Z 1K OHM 0.1W
5 R7 RCY012224Z 2.2K OHM 0.1W
6 R17,R29 RCY014724Z 4.7K OHM 0.1W
7 R1,R23,R24,R30,R26 RCY011034Z 10K OHM 0.1W
8 R18 RCY012234Z 22K OHM 0.1W
9 R2,R5,R6,R13,R15,R22 RCY013334Z 33K OHM 0.1W

10 R14,R20,R4 RCY014734Z 47K OHM 0.1W
11 R21 RCY011044Z 100K OHM 0.1W
12 C26 CK1331AB5A 330PF 50WV
13 C5 CK1561AB5A 560PF 50WV
14 C12,C14 CK1102AB7L 0.001uf 50WV
15 C4,C11,C23,C34 CK2103AB7R 0.01uF 25WV
16 C2,C3,C10,C16,C28,C29,

CK2104AB7R 0.1uF 25WV

C30,C32,C33,C36,C37,

C38,C39,C40,C18,C35
17 C6,C31,C20,C22 CK5105AB7R 1uF 16WV
18 C13 CK1152AB7R 0.0015uF 50WV
19 C19 CK1472AB6U 0.0047uF 50WV
20 C25 CK5105ZZ7R 1uF 16WV
21 C1 CK5225AA7R 2.2uF 16WV
22 IC1 YNJR04558M IC NJM4558M 8PIN
23 IC2 YNES56033S IC ES56033S 16PIN
24 Q1,Q3 TY2SC2712G TR 2SC2712GR
25 D1,D2,D4,D5,D6 EDSS00355Y DIODE 1SS355
26 D3 EDZD05569Y ZENER DIODE 5.6V
27 C27 CE0164767Z 47uF 16WV
28 ECHO,TIME RE50300014 S/F/R 50K OHM
29 J3 EX07N41216 PCB CONN/S 3PIN
30 J2 EX07N41227 PCB CONN/S 3PIN
31 J1,6 EX07N48223 PCB CONN/S 2PIN
32 J1-MAIN(J7) EX07N49085 WIRE CONN/H 2PIN-2PIN
33 J3-MAIN(J12) EX07N48902 WIRE CONN/H 3PIN-3PIN
34 J6 EX07N48917 WIRE CONN/H 2PIN-2PIN

REMARK:
TOP: COMPONENT SIDE (WHITE)
BOTTOM: COPPER SIDE (BLUE)

- 32 -

RCI-6900 HP / RCI-6900 TB MAIN PCB

REMARK:
COMPONENT SIDE (BLUE)

- 33 -

RCI-6900F HP / RCI-6900F TB MAIN PCB.

REMARK:
SMD COMPONENT SIDE (BLUE)

- 34 -

RCI-6900 HP / RCI-6900 TB MAIN PCB

REMARK:
COPPER SIDE (WHITE)

PART LIST RCI-6900F HP MAIN PCB

- 35 -

REFERENCE
NUMBER

EPT990010Z MAIN P.C.B
R274,275 RCP121514Z
R270 RCP121034Z
C214 CC0501804A 18PF 50WV
C217 CC0503304A 33PF 50WV
C222 CC0504704A 47PF 50WV
C209 CC0508204A 82PF 50WV
C215 CC0501215A 120PF 50WV
C216 CC0501815A 180PF 50WV
C221,223 CC0503915G 390PF 50WV
C220 CC1001037L 0.01UF

C219 CD3005614Z 560P 300WV
C13,24,27,28,52,63,
72,128,149,168,200,
308,344
C90,188,198 CE0252267Z 22UF 25WV
C42,43,45,110,154,
183,261
C137,166,260 CE0161077Z 100UF 16WV
C161,185 CE0163377Z 330UF 16WV
C118 CE0164777Z 470UF 16WV
C269,270 CE0251087Z 1000UF 25WV
FL1 EFCFW455HT CFW-455HT
FL2 EFCFE107MX SFE10.7MX
FL3 EFX8106952 C. FILTER

X1 EYCAB10240 CRYSTAL

X2 EYCAA15360 CRYSTAL

X3 EYBAA12660 CRYSTAL

X4 EYBAE10697 CRYSTAL

IC5 ENMA00612Z AN-612 7PIN
IC9 ENSM06130Z TDA6130
Q63 T2SC02538Z TR 2SC2538
D91,92,93 ED1N04148Z DIODE

L2,3 ECIFT12002 7MC-7172ABW
L41-43,45-47 ECIFT12012 113CN-6514X
L20 ECIFT12013 113CN-6485Z
L18,19 ECIFT12016 113CN-6344Z
L1,11 ECIFT12252 I.F.T
L5 ECIFT12253 I.F.T
L38 ECIFT12255 I.F.T
L9,10 ECIFT12256 I.F.T
L12 ECIFT12257 I.F.T
L17,37 ECIFT12258 I.F.T
L15 ECIFT12263 I.F.T
L34 ECIFT12559 I.F.T
L35 ECIFT12560 I.F.T
L6 ECIFT12290 I.F.T
L7 ECIFT12440 I.F.T
L8 ECIFT12492 I.F.T
L4 ECIFT12526 I.F.T 7P
L503 ECCHK16000 CHOKE COIL
L27,28,31 ECCHK16070 CHOKE COIL
T1 ECCHK16004 CHOKE COIL
L23,24 ECSPG18003 SPRING COIL
L25 ECSPG18077 SPRING COIL
L29 ECSPG18090 SPRING COIL
L26 ECSPG18365 SPRING COIL
L14,33 ECBAD18526 BEAD COIL
L32 ECRFZ10048 RF COIL
VR8,9,13,17,19 RE10200041 S/F/R 1K
VR14,15 RE50200042 S/F/R 5K
VR1,2,7,16,18 RE10300031 S/F/R 10K
VR10 RE10400043 S/F/R 100K
VR3,4 RE50400087 S/F/R 500K
VR11,12 RE10100074
CW,EXT SP EX06N41045 EAR JACK
J12 EX07N41227 P/C/S 3P
J17 EX07N41330 P/C/S 2P
J1,11,20,21,19 EX07N48223 P/C/S 2P
J7,29,31,3 EX07N48350 P/C/S 3P
J2,9 EX07N48490 P/C/S 4P

RANGER
PART NO.

CE0251067Z 10UF 25WV

CE0254767Z 47UF 25WV

DESCRIPTION

150 Ω 1/2W
10K Ω 1/2W

100WV

10M4D
(10.695MHz)

10.240MHz

15.360MHz

12.660MHz

10.6975MHz

1N4148

S/F/R 100 Ω

J6 EX07N48222 P/C/S 5P
J10,13,15 EX07N48331 P/C/S 6P
J28 EX07N48543 P/C/S 9P
J26 EX07N48209 P/C/S 10P
J30 EX07N48244 P/C/S 3P
J27 EX07N48884 P/C/S 6P
J27,30 EX07N48151 P/C/S SHORT

TP1,2,3,5,11,12 EX07N48612 P/C/S 1 PIN
J5 EX07N49140 P/C/S 2P
TP7-9 XZZZ90006Z PCB STOPPER
L30,36 WX01070710 JUMPER WIRE
L503 WX0012015A TUBE
L504 WH0007005Z LEAD WIRE
R153,308,317,318,328
,367,307,203,C266,
C267,D118,D119,D120,
D121,D122,D123,D124
R277 RCY014794Z
R369 RCY011004Z
R293 RCY011504Z
R272,273 RCY012204Z
R246 RCY013304Z
R115,152,226,281 RCY014704Z
R125,227,231 RCY015604Z
R11,105 RCY016804Z C/F/
R3,5,8,33,36,78,81,
97,126,154,182,186,
263,286,289,360
R35,104,253,276,280 RCY011514Z
R23 RCY011814Z
R130,150,190,262,136
R32,103 RCY012714Z
R6,10,16,279,282,306
R24,176,202,250,259,
304,347,354
R292 RCY015614Z
R4,50,90,224 RCY016814Z
R74 RCY018214Z
R64,67,71,75,101,117
,118,120,123,146,147
,148,151,178,192,199
,207,213,225,233,244
,249,255,257,258,266
,267,268,269,271,287
,294,297,322,326,329
,341,344,349,351,356
,357,358,96,D126
R91,205 RCY011224Z C/F/R

R56,79,80,89,100,127
,220,221,237,260,278
,283,299
R235,247 RCY011824Z C/F/R

R27,30,70,73,95,116,
121,144,209,214,254,
288,302,310,311,320
R9,25,31 RCY012724Z C/F/R

R18,28,66,113,124,
128,184,204,230,298,
305
R52,58 RCY013924Z C/F/R

R29,38,72,86,132,206
,211,212,215,216,256
,261,175
R87,94,201,290,291 RCY015624Z C/F/R

R14,42,43,69,85,342,
352
R92,300 RCY018224Z C/F/R

R1,13,17,39,40,41,57
,65,68,83,88,128,131
,135,140,142,177,179
,188,194,217,223,228
,239-243,248,251,252
,296,301,323,324,346
,348,350,362
R191,137 RCY011234Z
R193 RCY011534Z

- 36 -

PIN

RCY010004Z

RCY011014Z

RCY012214Z

RCY013314Z
RCY014714Z

RCY011024Z

RCY011524Z C/F/R

RCY012224Z C/F/R

RCY013324Z C/F/R

RCY014724Z C/F/R

RCY016824Z C/F/R

RCY011034Z

C/F/R 0 Ω

C/F/R 4.7 Ω
C/F/R 10 Ω
C/F/R 15 Ω
C/F/R 22 Ω
C/F/R 33 Ω
C/F/R 47 Ω
C/F/R 56 Ω

R 68 Ω

C/F/R 100 Ω

C/F/R 150 Ω
C/F/R 180 Ω
C/F/R 220 Ω
C/F/R 270 Ω
C/F/R 330 Ω
C/F/R 470 Ω

C/F/R 560 Ω
C/F/R 680 Ω
C/F/R 820 Ω
C/F/R 1K Ω

1.2K Ω

1.8K Ω

1.5K Ω

2.2K Ω

2.7K Ω

3.3K Ω

3.9K Ω

4.7K Ω

5.6K Ω

6.8K Ω

8.2K Ω
C/F/R 10K Ω

C/F/R 12K Ω
C/F/R 15K Ω

R34,93,110,133,134,
138,139,141,187,222
R122 RCY012734Z
R2,264 RCY013334Z C/
R46 RCY013934Z
R7,62,63,99,143,155­157,160-165,166-173,
149,198,200,229,234,
343,345,353,355,236
R26,107,112,181 RCY016834Z
R45 RCY018234Z
R12,44,48,49,51,53,
76,77,106,109,114,
195,197,232,238,284,
285,303,295,361
R47,59,84,119,145,
210,218
R54,55,183,185,189 RCY012744Z C/F/R

R15,37,111,196,219 RCY014744Z C/F/R

R102 RCY018244Z C/F/R

R108 RCY011054Z
R208 RCY011554Z C/F/R

C236,248,249,218 CK1010AB1A 1PF 50WV
C294,288,61 CK1020AB1A 2PF 50WV
C211 CK1030AB1A 3PF 50WV
C68,69,86,88,120,253
C1,57,114,155 CK1100AB2A 10PF 50WV
C247 CK1120AB4A 12PF 50WV
C97 CK1150AB4A 15PF 50WV
C51,98 CK1180AB4A 18PF 50WV
C79 CK1220AB4A 22PF 50WV
C44 CK1270AB4A 27PF 50WV
C30,89,134,140,300 CK1330AB4A 33PF 50WV
C243 CK1470AB4A 47PF 50WV
C96,60 CK1680AB4A 68PF 50WV
C8 CK1820AB4A 82PF 50WV
C4,160,129,130,212 CK1101AB5A 100PF 50WV
C62 CK1121AB5A 120PF 50WV
C242 CK1181AB5A 180PF 50WV
C35,237 CK1221AB5A 220PF 50WV
C39 CK1271AB5A 270PF 50WV
C11,14 CK1331AB5A 330PF 50WV
C83,228 CK1471AB5A 470PF 50WV
C29,227 CK1561AB5A 560PF 50WV
C206 CK1390AB4D 39PF 50WV
C205 CK1151AB5D 150PF 50WV
C144 CK1060AB2G 6PF 50WV
C289,290,291 CK1100AB2G 10PF 50WV
C143 CK1680AB4G 68PF 50WV
C287 CK1101AB5G 100PF 50WV
C142 CK1121AB5G 120PF 50WV
C202 CK1151AB5G 150PF 50WV
C321 CK1181AB5G 180PF 50WV
C95 CK1271AB5G 270PF 50WV
C203 CK1331AB5G 330PF 50WV
C99 CK1391AB5G 390PF 50WV
C48,64,91,111,112,
122,123,131,136,141,
146,345,152,156,179,
182,210,225,229,230,
231,239,245,246,257,
263,271,275,278,279,
280,282,285,286,295,
301,302,304,307,309,
310,311,312,313,320,
326,224
C2,3,6,9,15,21,22,25
,33,34,37,59,65-67,
70,71,73,76,82,87,92
,105,115,116,126,127
,139,148,153,158,159
,175,176,177,196,197
,201,207,226,232,234
,235,238,240,250,251
,254,255,268,281,292
,297,298,303,324,325
,340,341,342,346,350
C7,31,36,47,55,58,93
,104,133,135,145,150

RCY012234Z

RCY014734Z

RCY011044Z C/F/R

RCY012244Z C/F/R

CK1050AB1A 5PF 50WV

CK2104AB7R 0.1UF 25WV

CK1103AB6U 0.01UF 50WV

CK1102AB7L 0.001UF

C/F/R 22K Ω

C/F/R 27K Ω

F/R 33K Ω
C/F/R 39K Ω
C/F/R 47K Ω

C/F/R 68K Ω
C/F/R 82K Ω

100K Ω

220K Ω

270K Ω

470K Ω

820K Ω
C/F/R 1M Ω

1.5M Ω

50WV

,178,181,190,191,192
,204,259,265,322,121
,349
C5,23,26,41,56,74,77
,78,80,81,94,101,106
,109,119,125,157,162
,170,199,258,262,272
,274,277,283,284,296
C10 CK2474AB7R 0.47UF 25WV
C38,49,165,174,193 CK1223AB6U .022UF 50V
C171 CK1153AB6U 0.015UF

C12 CK1222AB7R 0.0022UF

C40,50,53,54,172,173
,184,241,343
C186,348 CK2224AB7R 0.22UF 16WV
C169,233,264 CK5225AA7R 2.2UF 16WV
C32,84,180,194,195,
256,306,299
C124 CTY161046Z 0.1UF 16WV
C163 CTY162246Z 0.22UF 16WV
C164,167,213,351,138
C100 CTY162256Z 2.2UF 16WV
C102 CTY164746Z 0.47UF 16WV
C46,103,189,323 CTY164756Z 4.7UF 16WV
IC1 YNJR00324M NJM324M 14P
IC6 YNJR04558M NJM4558M 8P
IC3,4 YNMC14008D MC14008BDR2
IC2 YNMC45106D MC145106DW
Q19 TY2SC3356Z TR 2SC3356
Q34,47,49,67 TY2SB0798Z TR 2SB798DL
Q3,5,6,8,15,18,28,40
,43,44,45,48,50,53,
55,57,65,68,69,71,32
Q7,41 TY2SA1298Y TR 2SA1298Y
Q1,2,10,11,12,13,14,
22,23,24,25,29,33,35
,36,58,59,64
Q16,17,26,27,52,54,
56,70
Q42 TYZRN2403Z TR RN2403
Q20,21 FY2SK0302Z F.E.T
D2-10,12-17,20,23-31
,33,35-41,48,50-52,
54-63,67,69-77,80-85
,87,99-104,110,115,
116,125,128,129,130,
132,133,134,135,136,
148,149,150,152
D89,90,94,109 ED1N04148Y DIODE

D78,79,86,88,137,138
,139,140,141,142,143
,144,145,146,147,151
,153
D21,49,95,108,113,
114,127
D22,96,97,107 ED1V00231Y DIODE

D1,11,34 EDHM0198SY DIODE

D18,19,154,155 EDRS00135Y DIODE

D65,98 EDMA0028TY DIODE

D53,66 EDMA0028WY DIODE

D105,106 EDRL04004X DIODE

D64 EDZD05519Z ZENER DIODE
D68 EDZD05759Y ZENER DIODE
D112 EDZD05569Y ZENER DIODE
VC1 CV038200AY TRIMMER/C
L22,39 YCCHK16240 CHOKE COIL
L16 YCCHK16258 CHOKE COIL
L40,44 YCTLI2273C CHOKE COIL

- 37 -

CK1473AB7R 0.047UF

50WV

50WV

25WV

CK1472AB6U .0047UF

25WV

CK5105AB7R 1UF 16WV

CTY161056Z 1UF 16WV

TY2SC2712G TR2

SC2712GR

TY2SC2714Z TR 2SC2714

TYZRN1403Z TR RN1403

EDSS00355Y DIODE

1SS355

1N4148 2P

EDSS00184Y DIODE

1SS184

ED1V00217Y DIODE

1SV217-TP

1SV231

HSM1985S

RLS135
TE-11

MA28T

MA28W

RLR4004

RCI-6900F HP MISC. PARTS

REFERENCE
NUMBER

COUNTER XZZZ90363Z PVC STAND

COUNTER JS013016WH SET SCREW

FRONT PANEL(4) JS033008MN SET SCREW

TONE(2),CH9(2),
WB/ANL(2)
SWR SW(2) JS052605MN SET SCREW

CH BRT(2),
CHASSIS(12)
SPK(4),DC SOCKET(2) JS053008MN SET SCREW

MAIN PCB(5) JS053006TN SET SCREW

SPK(4) JN263035ZS NUT WITH

Q54 XZZZ90020Z INSULATING

Q47,Q48,Q49 XZZZ90003Z INSULATING

Q47,Q48,Q49 XZZZ90358Z INSULATING

IC8 LZZZ61008Z IC SHIELD B

- ES300835SQ SPEAKER

- EX03N40005 SIGNAL

- PT9000060I FRONT PANEL

- PT9000020E CH KNOB

- PT9000040E INNER KNOB

- PT9000050E OUTER KNOB

- PT3600080A SIGNAL

- PT9000070E BAND KNOB

- PT2100031C COUNT

- PT2100041C DISPLAY

- PT7001070C PUSH KEY CR

- MT9000010X FRONT

- MT3600040S CHANNEL

- MT3600061X TOP HOUSING

- MT3600071Q BOTTOM

- MT3600030S HANDLER

- XZZZ90004Z FOAM

- XZZZ90005Z FOAM

- XZZZ90367A SPONGE

- GZZZ50000Z CLAMP

- XZZZ90098Z SOLDER

- XZZZ90021Z FOAM

- EX06T41019 ANT SOCKET

- EX06T40007 DC SOCKET

- MT3600021X SET CHASSIS

- MT3600050X DC SOCKET

- MM7878041B HEAT SINK

- JS052006MN SET SCREW

- JS052012MN SET SCREW

- JS013006MV SET SCREW

- JS013008TN SET SCREW

- JN242012ZS NUT M2x1.2t

- MT2950050X SHIELD

- MT2950060X SHIELD

RANGER
PART NO.

JS052004MN SET SCREW

JS053006MN SET SCREW

DESCRIPTION

METER

METER
HOLDER

WINDOW

WINDOW

CHASSIS

BRACKET

HOUSING

14x16x20mm

8x12x34mm

PLATE

11x30x15t

OFF

W3x16-1

M3x0.5Px8

M2x0.4Px4

M2.6x0.45x5

M3x0.5Px6

M3x0.5Px8

T3x6-2

WASHER
M3x3.5t

HOLDER

PLATE

RING

PLATE

M2x0.4Px6

M2x0.4Px12

M3x0.5Px6

T3x8-2

COVER A

- 38 -

- MT2950070X SHIELD

COVER B

COVER C

PART LIST
RCI-6900F TB MAIN PCB

REFERENCE
NUMBER

EPT990010Z MAIN P.C.B
R274,275 RCP121514Z C/F/R

R270 RCP121034Z C/F/R

C214 CC0501804A 18PF 50WV
C217 CC0503304A 33PF 50WV
C222 CC0504704A 47PF 50WV
C209 CC0508204A 82PF 50WV
C215 CC0501215A 120PF 50WV
C216 CC0501815A 180PF 50WV
C221,223 CC0503915G 390PF 50WV
C220 CC1001037L 0.01UF

C219 CD3005614Z 560P 300WV
C13,24,27,28,52,63,
72,128,149,168,200,
308,344
C90,188,198 CEO252267Z 22UF 25WV
C42,43,45,110,154,
183,261
C137,166,260 CE0161077Z 100UF 16WV
C161,185 CE0163377Z 330UF 16WV
C118 CE0164777Z 470UF 16WV
C269,270 CE0251087Z 1000UF 25WV
FL1 EFCFW455HT C.FILTER
FL2 EFCFE107MX C.FILTER
FL3 EFX8106952 CRYSTAL

X1 EYCAB10240 CRYSTAL

X2 EYCAA15360 CRYSTAL

X3 EYBAA12660 CRYSTAL

X4 EYBAE10697 CRYSTAL

IC5 ENMA00612Z I.C AN-612
IC9 ENSM06130Z I.C 14P
Q63 T2SC02538Z TR 2SC2538
D91,92,93 ED1N04148Z DIODE

L2,3 ECIFT12002 I.F.T
L41-43,45-47 ECIFT12012 I.F.T
L20 ECIFT12013 I.F.T
L18,19 ECIFT12016 I.F.T
L1,11 ECIFT12252 I.F.T
L5 ECIFT12253 I.F.T
L38 ECIFT12255 I.F.T
L9,10 ECIFT12256 I.F.T
L12 ECIFT12257 I.F.T
L17,37 ECIFT12258 I.F.T
L15 ECIFT12263 I.F.T
L34 ECIFT12559 I.F.T
L35 ECIFT12560 I.F.T
L6 ECIFT12290 I.F.T
L7 ECIFT12440 I.F.T
L8 ECIFT12492 I.F.T
L4 ECIFT12526 I.F.T
L503 ECCHK16000 CHOKE COIL
L27,28,31 ECCHK16070 CHOKE COIL
T1 ECCHK16004 CHOKE COIL
L23,24 ECSPG18003 SPRING COIL
L25 ECSPG18077 SPRING COIL
L29 ECSPG18001 SPRING COIL
L26 ECSPG18365 SPRING COIL
L14,33 ECBAD18526 BEAD COIL
L32 ECRFZ10048 RF COIL
VR8,9,13,17,19 RE10200041 S/F/R 1K
VR14,15 RE50200042 S/F/R 5K
VR1,2,7,16,18 RE10300031 S/F/R 10K
VR10 RE10400043 S/F/R 100K
VR3,4 RE50400087 S/F/R 500K
VR11,12 RE10100074 S/F/R 100

RANGER
PART NO.

CE0251067Z 10UF 25WV

CE0254767Z 47UF 25WV

DESCRIPTION

150 Ω 1/2W

10K Ω 1/2W

100WV

10M4D
(10.695MHz)

10.240MHz

15.360MHz

12.660MHz

10.697MHz

1N4148

Ω

CW,EXT SP EX06N41045 EAR JACK
J12 EX07N41227 P/C/S 3P
J17 EX07N41330 P/C/S 2P
J1,11,20,21,19,32,35
J7,29,31,3 EX07N48350 P/C/S 3P
J2,9 EX07N48490 P/C/S 4P
J6 EX07N48222 P/C/S 5P
J10,13,15 EX07N48331 P/C/S 6P
J28 EX07N48543 P/C/S 9P
J26 EX07N48209 P/C/S 10P
J30 EX07N48244 P/C/S 3P
J27 EX07N48884 P/C/S 6P
J27,30 EX07N48151 SHORT PIN
TP1,2,3,5,11,12 EX07N48612 P/C/S 1P
J5 EX07N49140 P/C/S 2P
TP7-9 XZZZ90006Z PCB STOPPER
L30,36 WX01070710 JUMPER WIRE
L503 WX0012015A TUBE
L504 WH0007005Z LEAD WIRE
R153,308,317,318,328
,367,307,203,C266,
C267,D117,D118,D119,
D120,D121,D122,D123,
D124
R277 RCY014794Z
R369 RCY011004Z
R293 RCY011504Z
R272,273 RCY012204Z
R246 RCY013304Z
R115,152,226,281 RCY014704Z
R125,227,231 RCY015604Z
R11,105 RCY016804Z
R3,5,8,33,36,78,81,
97,126,154,182,186,
263,286,289,360
R35,104,253,276,280 RCY011514Z
R23 RCY011814Z
R130,150,190,262,136
R32,103 RCY012714Z
R6,10,16,279,282,306
R24,176,202,250,259,
304,347,354
R292 RCY015614Z
R4,50,90,224 RCY016814Z
R74 RCY018214Z
R64,67,71,75,101,117
,118,120,123,146,147
,148,151,178,192,199
,207,213,225,233,244
,249,255,257,258,266
,267,268,269,271,287
,294,297,322,326,329
,341,344,349,351,356
,357,358,96,D126
R91,205 RCY011224Z C/F/R

R56,79,80,89,100,127
,220,221,237,260,278
,283,299
R235,247 RCY011824Z C/F/R

R27,30,70,73,95,116,
121,144,209,214,254,
288,302,310,311,320
R9,25,31 RCY012724Z C/F/R

R18,28,66,113,124,
128,184,204,230,298,
305
R52,58 RCY013924Z C/F/R

R29,38,72,86,132,206
,211,212,215,216,256
,261,175
R87,94,201,290,291 RCY015624Z C/F/R

R14,42,43,69,85,342,
352
R92,300 RCY018224Z C/F/R

R1,13,17,39,40,41,57
,65,68,83,88,128,131
,135,140,142,177,179

- 39 -

EX07N48223 P/C/S 2P

RCY010004Z C/F/R 0 Ω

C/F/R 4.7 Ω
C/F/R 10 Ω
C/F/R 15 Ω
C/F/R 22 Ω
C/F/R 33 Ω
C/F/R 47 Ω
C/F/R 56 Ω

RCY011014Z

RCY012214Z

RCY013314Z
RCY014714Z

RCY011024Z

RCY011524Z C/F/R

RCY012224Z C/F/R

RCY013324Z C/F/R

RCY014724Z C/F/R

RCY016824Z C/F/R

RCY011034Z C/F/R

C/F/R 68 Ω
C/F/R 100 Ω

C/F/R 150 Ω
C/F/R 180 Ω
C/F/R 220 Ω
C/F/R 270 Ω
C/F/R 330 Ω
C/F/R 470 Ω

C/F/R 560 Ω
C/F/R 680 Ω
C/F/R 820 Ω
C/F/R 1K Ω

1.2K Ω

1.5K Ω

1.8K Ω

2.2K Ω

2.7K Ω

3.3K Ω

3.9K Ω

4.7K Ω

5.6K Ω

6.8K Ω

8.2K Ω

10K Ω

,188,194,217,223,228
,239-243,248,251,252
,296,301,323,324,346
,348,350,362
R191,137 RCY011234Z
R193 RCY011534Z
R34,93,110,133,134,
138,139,141,187,222
R122 RCY012734Z
R2,264 RCY013334Z C/F/R 33K Ω
R46 RCY013934Z
R7,62,63,99,143,155­157,160-165,166-173,
149,198,200,119,134,
343,345,353,355,236
R26,107,112,181 RCY016834Z
R45 RCY018234Z
R12,44,48,49,51,53,
76,77,106,109,114,
195,197,232,238,284,
285,303,295,361
R47,59,84,119,145,
210,218
R54,55,183,185,189 RCY012744Z C/F/R

R15,37,111,196,219 RCY014744Z C/F/R

R102 RCY018244Z C/F/R

R108 RCY011054Z
R208 RCY011554Z C/F/R

C236,248,249 CK1010AB1A 1PF 50WV
C294,288,61,218 CK1020AB1A 2PF 50WV
C211 CK1030AB1A 3PF 50WV
C68,69,86,88,120,253
C1,57,11,155 CK1100AB2A 10PF 50WV
C247 CK1120AB4A 12PF 50WV
C97 CK1150AB4A 15PF 50WV
C51,98,212 CK1180AB4A 18PF 50WV
C79 CK1220AB4A 22PF 50WV
C44 CK1270AB4A 27PF 50WV
C30,89,134,140,300 CK1330AB4A 33PF 50WV
C243 CK1470AB4A 47PF 50WV
C96,60 CK1680AB4A 68PF 50WV
C8 CK1820AB4A 82PF 50WV
C4,160,129,130 CK1101AB5A 100PF 50WV
C62 CK1121AB5A 120PF 50WV
C242 CK1181AB5A 180PF 50WV
C35,237 CK1221AB5A 220PF 50WV
C39 CK1271AB5A 270PF 50WV
C11,14 CK1331AB5A 330PF 50WV
C83,228 CK1471AB5A 470PF 50WV
C29 CK1561AB5A 560PF 50WV
C227 CK1681AB5A 680PF 50WV
C206 CK1390AB4D 39PF 50WV
C205 CK1151AB5D 150PF 50WV
C144 CK1060AB2G 6PF 50WV
C289,290,291 CK1100AB2G 10PF 50WV
C143 CK1680AB4G 68PF 50 WV
C287 CK1101AB5G 100PF 50WV
C142 CK1121AB5G 120PF 50WV
C202 CK1151AB5G 150PF 50WV
C321 CK1181AB5G 180PF 50WV
C95 CK1271AB5G 270PF 50WV
C203 CK1331AB5G 330PF 50WV
C99 CK1391AB5G 390PF 50WV
C48,64,91,111,112,
122,123,131,136,141,
146,345,152,156,179,
182,210,225,229,230,
231,239,245,246,257,
263,271,275,278,279,
280,282,285,286,295,
301,302,304,307,309,
310,311,312,313,320,
326,224,345
C2,3,6,9,15,21,22,25
,33,34,37,59,65-67,
70,71,73,76,82,87,92
,105,115,116,126,127
,139,148,153,158,159
,175,176,177,196,197

RCY012234Z

RCY014734Z

RCY011044Z C/F/R

RCY012244Z C/F/R

CK1050AB1A 5PF 50WV

CK2104AB7R 0.1UF 25WV

CK1103AB6U 0.01UF 50WV

C/F/R 12K Ω
C/F/R 15K Ω
C/F/R 22K Ω

C/F/R 27K Ω

C/F/R 39K Ω
C/F/R 47K Ω

C/F/R 68K Ω
C/F/R 82K Ω

100K Ω

220K Ω

270K Ω

470K Ω

820K Ω
C/F/R 1M Ω

1.5M Ω

,201,207,226,232,234
,235,238,240,250,251
,254,255,268,281,292
,297,298,303,324,325
,340,341,342,346,350
C7,31,36,47,55,58,93
,104,133,135,145,150
,178,181,190,191,192
,204,259,265,322,349
,121
C5,23,26,41,56,74,77
,78,80,81,94,101,106
,109,119,125,157,162
,170,199,258,262,272
,274,277,283,284,296
C10 CK2474AB7R 0.47UF 25WV
C38,49,165,174,193 CK1223AB6U 0.22UF 50V
C171 CK1153AB6U 0.015UF

C12 CK1222AB7R 0.0022UF

C40,50,53,54,172,173
,184,241,343
C186,348 CK2224AB7R 0.22UF 25WV
C169,233,264 CK5225AA7R 2.2UF 16WV
C32,84,180,194,195,
256,306,299
C124 CTY161046Z 0.1UF 16WV
C163 CTY162246Z 0.22UF 16WV
C164,167,213,351,
138
C100 CTY162256Z 2.2UF 16WV
C102 CTY164746Z 0.47UF 16WV
C46,103,189,323 CTY164755Z 4.7UF 16WV
IC1 YNJR00324M NJM324M 14P
IC6 YNJR04558M NJM4558M 8P
IC3,4 YNMC14008D I.C 16P
IC2 YNMC45106D I.C 20P
Q19 TY2SC3356Z TR 2SC3356
Q34,47,49,67 TY2SB0798Z TR 2SB798DL
Q3,5,6,8,15,18,28,40
,43,44,45,48,50,53,
55,57,65,68,69,71,32
Q7,41 TY2SA1298Y TR 2SA1298Y
Q1,2,10,11,12,13,14,
22,23,24,25,29,33,35
,36,58,59,64
Q16,17,26,27,52,54,
56,70
Q42 TYZRN2403Z TR RN1403
Q20,21 FY2SK0302Z F.E.T
D2-10,12-17,20,23-31
,33,35-41,48,50-52,
54-63,67,69-77,80-85
,87,99-104,110,115,
116,125,128,129,130,
132,134,135,136,148,
149,150,152
D89,90,94,109 ED1N04148Y DIODE

D78,79,86,88,137,138
,139,140,141,142,143
,144,145,146,147,151
,153
D21,49,95,108,113,
114,127
D22,96,97,107 ED1V00231Y DIODE

D1,11,34 EDHM0198SY DIODE

D18,19,154,155 EDRS00135Y DIODE

D65,98 EDMA0028TY DIODE MA28T
D53,66 EDMA0028WY DIODE MA28W
D105,106 EDRL04004X DIODE

D64 EDZD05519Z ZENER DIODE
D68 EDZD05759Y ZENER DIODE
D112 EDZD05569Y ZENER DIODE
VC1 CV038200AY TRIMMER/C
L22,39 YCCHK16240 CHOKE COIL
L16 YCCHK16258 CHOKE COIL
L40,44 YCTLI2273C CHOKE COIL

- 40 -

CK1102AB7L 0.001UF

50WV

CK1473AB7R 0.047UF

50WV

50WV

50WV

CK1472AB6U .0047UF

50WV

CK5105AB7R 1UF 16WV

CTY161056Z 1UF 16WV

TY2SC2712G TR

2SC2712GR

TY2SC2714Z TR 2SC2714

TYZRN1403Z TR RN1403

EDSS00355Y DIODE

1SS355

1N4148

EDSS00184Y DIODE

1SS184­TE85L

ED1V00231Y DIODE

1SV217-TP

1SV231

HSM198S

RLS135

RLR4004

Q47,Q49 JS052012MN SET SCREW

IC8 JS013006MV SET SCREW

Q47,Q49 JN242012ZS NUT M2x1.2t

RCI-6900F TB MISC. PARTS

REFERENCE
NUMBER

METER STOPPER XZZZ90232Z FOAM

COUNTER XZZZ90363Z PVC STAND

COUNTER JS013016WH SET SCREW

FRONT PANEL(4) JS033008MN SET SCREW

CH BKT(2),
CHASSIS(14)
SPK(4) JS053008MN SET SCREW

MAIN PCB(5) JS053006TN SET SCREW

SPK(4) JN263035ZS NUT WITH

Q54 XZZZ90020Z INSULATING

Q47,Q49 XZZZ90003Z INSULATING

Q47,Q49 XZZZ90358Z INSULATING

IC8 LZZZ61008Z IC SHIELD B
Q37 JS052006MN SET SCREW

- WA9812300C DC CORD

- EX03N40005 SIGNAL

- EX04N40654 MIC BLACK

- PT9000060I FRONT PANEL

- PT9000020E CH KNOB

- PT9000070E BAND KNOB

- PT9000040E INNER KNOB

- PT9000050E OUTER KNOB

- PT2100041C DISPLAY

- PT3600080A SIGNAL

- PT2100031C COUNT

- PT7001070C PUSH KEY CR

- MT9000010X FRONT

- MT3600040S CHANNEL BKT

- MT3600061X TOP HPUSING

- MT3600071P BOTTOM

- MT3600030S HANDLER

- XZZZ90004Z FOAM

- XZZZ90208Z SPONGE

- GZZZ50000Z CLAMP

- LZZZ60001Z SHIELD

- XZZZ90098Z SOLDER

- XZZZ90021Z FOAM

- XZZZ90064Z INSULATING

- BA0112010P MIC PLATE

- EX06N41163 DC SOCKET

- EX06N41036 TERMINAL

- EX06T41019 ANT SOCKET

- MT3600190X SET CHASSIS

RANGER
PART NO.

JS053006MN SET SCREW

DESCRIPTION

METER

WINDOW

METER
HOLDER

WINDOW

CHASSIS

HOUSING

14x16x20mm

20x20x3t

14x14x5

CLOTH
10x88x0.3t

PLATE

11x30x15t

PLATE
13x18x0.15

OFF

W3x16-1

M3x0.5Px8

M3x0.5Px6

M3x0.5Px8

T3x6-2

WASHER
M3x3.5t

CONNECTOR

PLATE

RING

PLATE

M2x0.4Px6

- 41 -

M2x0.4Px12

M3x0.5Px6

- JS052010MN SET SCREW
M2x0.4Px10

- MT2950050X SHIELD
COVER A

- MT2950060X SHIELD
COVER B

- MT2950070X SHIELD

COVER C
