Ranger RCI-2985DX, RCI-2995DX User Guide

RCI-2985DX
RCI-2995

DX

TABLE OF

CONTENTS

PAGE

CHAPTER 1

SPECIFICATIONS

1.0 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.1 Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2 Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

CHAPTER 2

INTRODUCTION

2.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

CHAPTER 3

OPERATION

3.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3.1 Control & Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3.2 Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . … 9

3.3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CHAPTER 4

PROGRAMMING

4.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.1 Frequency Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.2 Frequency Scanning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

4.3 Offset Frequency Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

CHAPTER 5

CIRCUIT DESCRIPTION

5.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.1 PLL Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.2 Receiver Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.3 Transmitter Modulation Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.4 Transmitter Amplifier Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

CHAPTER 6

ALIGNMENT

6.0 Required Test Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . … 20

6.1 Alignment Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

CHAPTER 7

MAINTENANCE

7.0 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

7.1 Periodic Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . … 24

7.2 Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

CHAPTER 8

DIAGRAMS AND PART LIST

8.0 PCB Layout & Part List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

- 1 -

RCI-2985DX
RCI-2995

1.0 GENERAL

Model RCI-2985DX / RCI-2995DX
Frequency Range 12 meter : 24.8900 ~ 24.9900 MHz

Tuning Steps 100 Hz, 1 KHz, 10 KHz, 100 KHz, 1 MHz
Emission Modes AM(A3) / FM(F3) / LSB, USB(A3J) / CW(A1)
Frequency Control Dual Phase-Lock-Loop (PLL) synthesizer
Frequency Tolerance
Frequency Stability
Operating Temperature Range
Microphone Plug-in (6 pin), Dynamic PTT
Meter Function Meter #1 : Indicates relative RF Power Output / Antenna SWR

Input Voltage 110V 60Hz ( 220V 50Hz Optional)
Antenna Connector UHF, SO-239

1.1 TRANSMITTER

RF Power Output : RCI-2985DX
: RCI-2995DX
SSB Generation Dual-Balanced Modulation
AM Modulation High and Low level Class B, Amplitude Modulation
FM Deviation

Clarifier Range
Harmonic and Spurious Emissions > 60dB
AM/FM Frequency Response 400 to 5000 Hz
SSB Frequency Response 400 to 3000 Hz
Output Impedance 50 Ohms
Output Indicators RF Meter shows relative RF Output Power

1.2 RECEIVER

Sensitivity

AM/FM Selectivity 50dB at 10 KHz
SSB Selectivity 60dB at 4 KHz
Image Rejection Ratio > 50dB
IF Rejection > 80dB
Automatic Gain Control (AGC) Figure Of Merit SSB/CW/AM : 80dB for 50mV for 10dB Change in Audio

Squelch
Audio Frequency Response 400 to 2500 Hz
Distortion < 10% at 2 Watts Output
Adjacent Channel Rejection >50dB
Cross Modulation >50dB
Intermediate Frequency 10.695 MHz (AM-1st, SSB), 445 KHz (AM-2nd)
Clarifier Range
Noise Blanker IF Signal Gate Type
Audio Output Power 3W @ 10% THD
Built-in Speaker 8 Ohms, 4 Watts
External Speaker (Optional) 8 Ohms, 4 Watts

DX

(SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE)

10 meter : 28.0000 ~ 29.6990 MHz

± 0.005%
± 0.001%

-10°C to +50°C

Meter #2 : Indicates Received Signal Strength /
AM Modulation Level

CW/AM/FM : 10W RMS ; USB/LSB : 25W PEP
CW/AM/FM : 50W RMS ; USB/LSB : 150W PEP

± 4 KHz @ 1 KHz 30mV Audio (± 5 KHz max.)
± 5 KHz

AM/CW : < 0.50µV For 10dB S+N/N
FM : < 0.25µV For 12dB S+N/N
USB/LSB : < 0.15µV For 10dB S+N/N

Output
Adjustable-Threshold less than 0.7µV

± 5 KHz

CHAPTER 1

SPECIFICATIONS

- 2 -

RCI-2985DX
RCI-2995

2.0 INTRODUCTION

The Ranger RCI-2985DX / RCI-2995DX is a solid-state, fully synthesized Amateur 10 and 12 meter
dual band base station transceiver with full band coverage from 28.0000 MHz to 29.6999 MHz and

24.8900 MHz to 24.9900 MHz and all mode operation, including: AM, FM, USB, LSB, CW and PA
modes. The 10 most commonly used frequencies can be pre-programmed by the user for easy channel
access.

2.1 FEATURES

RCI-2985DX RCI-2995DX

• 25 Watts PEP of Output Power

• Full Band Coverage

• All Mode Operation

• Brightness Control

• CTCSS Encoder/Decoder (Optional)

• Repeater/Offset Switch

• Programmable Frequencies

• Built-in Dual VFO

• RIT (RX Incremental Tuning)

• Squelch

• Noise Blanker

• RF Gain Control

• RF Power Output Selector

• External Speaker Connection

• PA Mode

• LCD Display

• Multi-Function LCD Meter

DX

• 150 Watts PEP of Output Power

• Full Band Coverage

• All Mode Operation

• Brightness Control

• CTCSS Encoder/Decoder (Optional)

• Repeater/Offset Switch

• Programmable Frequencies

• Built-in Dual VFO

• RIT (RX Incremental Tuning)

• Squelch

• Noise Blanker

• RF Gain Control

• RF Power Output Selector

• External Speaker Connection

• PA Mode

• LCD Display

• Multi-Function LCD Meter

CHAPTER 2

INTRODUCTION

- 3 -

RCI-2985DX
RCI-2995

DX

CHAPTER 3

OPERATION











































 

 























  

 























  

  




















































































 

  











 

 























 





















Figure 3-1 Front Panel

3.0 INTRODUCTION

This section explains the basic operating procedures for the RCI-2985DX / RCI-2995DX Amateur 10
and 12 meter dual band base station transceiver.

3.1 CONTROL AND CONNECTIONS

3.1.1 FRONT PANEL

Refer to the above Figure 3-1 for the location of the following controls.

1. POWER ON/OFF SWITCH

Push this switch to apply power to the unit.

2. CALIBRATE CONTROL

This control is used for calibrating the built in SWR meter for accurate SWR readout. Control should
normally be left in the fully counter clockwise position for accurate power output meter readings. (This
stop is marked “RF”)

3. RF POWER CONTROL

This control allows the user to adjust RF power output.

4. RF GAIN CONTROL

This control is used to reduce the gain of the RF amplifier under strong signal conditions.

- 4 -

5. MIC GAIN CONTROL

Adjusts the microphone gain in the transmit and PA mode. This controls the gain to the extent that full
talk power is available several inches away from the microphone. In the Public Address (PA) mode, the
control functions as the volume control.

6. CHANNEL SELECTOR

This control is used to select a desired transmit and receive channel.

7. CLARIFIER CONTROL

Allows adjustment of the receive frequency above or below the channel frequency. Although this
control is intended primarily to tune in SSB signals, it may be used to optimize AM/FM signals as well.

8. SQUELCH CONTROL

This switch is used to eliminate background noise being heard through the receiver which can be
disturbing when no signal is being received. To use this feature of your radio, gently turn the switch
fully counterclockwise, and then turn clockwise until the background noise is just eliminated. Further
clockwise rotation will increase the threshold level so that only strong signals will be heard.

9. VOLUME CONTROL

Turn clockwise to set the desired listening level.

10. MODE SELECTOR

This selector allows you to select one of the following operating modes: FM/AM/USB/LSB/CW/PA.

11. PHONE JACK

Accepts a plug from a headset of 4 to 32 Ohm impedance. Insertion of the plug will disable the built-in
speaker and external speaker connected to External Speaker jack.

12. RF/SWR METER

Used for two purpose - to indicate approximate transmitter power when transmitting and antenna SWR
(standing wave ratio). Note that the power meter has separate scales for AM, FM, SSB and CW
transmission, respectively.

13. SIGNAL/MODULATION METER

This meter indicates signal strength when receiving and modulation percentage when transmitting in
the AM mode. Modulation readings are most accurate when using maximum output power. The
modulation meter does not show movement in FM or SSB, but the Power Output meter (RF/SWR)
does indicate RF out in these modes.

14. FREQUENCY DISPLAY
The frequency display indicates the frequency of the selected channel you wish to operate on.

15. FUNCTION INDICATORS

The indicators permit you to know instantly the mode to which the unit is engaged.

3.1.2 PROGRAMMING KEY PAD

- 5 -





















16. NB/ANL/OFF SWITCH

In the NB/ANL position, the RF Noise Blanker and the Automatic Noise Limiter in the audio circuits
are also activated. The Noise Blanker is very effective in eliminating repetitive impulse noise such as
ignition interference.

17. ROGER BEEP BUTTON (R.BEEP)

In the Roger Beep position, the radio transmits an audio tone at the end of your transmission to indicate
that transmission has ended. As a courtesy to others, use the Roger Beep only when necessary.

18. SPLIT BUTTON (SPLIT)

This control activates the offset frequency function. It causes the transmit frequency to be offset either
above or below the receive frequency by a user programmable amount to allow operation of a FM
Repeater.

19. PROGRAM BUTTON (PRG)

This button is used to program operating or scanning frequencies into memory. See the OPERATION
section of the manual for further details.

20. MANUAL BUTTON (MAN)

This is used to return the unit to manual mode.

21. SHIFT BUTTON (SHF)

This is used to select 100 Hz, 1 KHz, 100 KHz or 1MHz frequency steps.

22. UP/DOWN SELECTOR (VW)

These buttons are used in conjunction with the shift key to move the frequency upward or downward to
select a desired frequency.

23. LOCK BUTTON (LOCK)

This button is used to lock a selected frequency. Press it to activate the switch. In this position, it
disables the Frequency Selector Control, up/down buttons on the front control panel and remote
up/down buttons on the microphone. Repressing the switch will unlock the frequency.

24. ENTER BUTTON (ENT)



 



















 







- 6 -

This is used to program memory channels. See the OPERATION section of this manual for more
information on using this control.

25. MEMORY BUTTON (MEM)

This button is used to program memory channels. Detailed information on how to use this control is
provided in the OPERATION section of this manual.

26. SCAN BUTTON (SCAN)

This is used to scan frequencies in each band segment. The OPERATION segment of this manual
provides detailed information on using the SCAN control.

27. SWR BUTTON (SWR)
This button is used to check SWR.

28. DIM BUTTON (DIM)

This button adjusts the display backlighting in four different steps to best match the ambient light.

3.1.3 REAR PANEL

- 7 -

Figure 3-2 represents the location of the following connections:



1. ANTENNA

This jack accepts 50 ohms coaxial cable with a PL-259 type connector.

2. PA. SPEAKER

This jack is for PA operation. Before operating, you must first connect a PA speaker (8 ohms, 4 W) to
this jack.

3. EXT. SP.

This jack accepts a 4 to 8 ohm, 4 watt external speaker. When the external speaker is connected to this
jack, the built-in speaker will be disabled.

4. CW KEY

Used for Morse code operation. Connect a CW key to this jack and set the MODE SELECTOR
switch to the CW position.

5. FUSE

Accommodates a fuse for AC input circuit protection. Use a 125V 5A fuse for replacement.

6. AC POWER CORD

Connect to AC power outlet for AC mains supply.

7. FREQUENCY COUNTER OUTPUT JACK

This “RCA Phono” type jack provides output for connecting an optional frequency counter so that you
can watch the transmit frequency on an external frequency counter.

8. +12 VDC

This “RCA Phono” type jack provides 12 VDC power for an optional external cooling fan.

3.2 MICROPHONE





Figure 3-2 Rear Panel





- 8 -

1. PTT SWITCH

The receiver and transmitter are controlled by the push-to-talk switch on the microphone. Press the
switch and the transmitter is activated, release the switch to receive. When transmitting, hold the
microphone two inches from your mouth and speak clearly in a normal voice. The transceiver comes
complete with a low impedance (500 ohm) dynamic microphone.

2. REMOTE UP/DOWN SWITCH

An operating frequency can be increased or decreased simply by pushing either of these buttons.

3.3 OPERATION

3.3.1 CHANNEL SELECTION

Frequency selection for the RCI-2985DX / RCI-2995DX is simple. Select a desired operating
frequency by rotating the Frequency Selector, or using the (V) Up and (W) Down buttons on the front
panel or the microphone. Press the LOCK button to lock into the selected frequency. This will disable
the Frequency Selector and the up/down buttons on the front panel and the microphone. Repressing the
LOCK button unlocks the frequency. Use the SHF button to step frequency in 100 Hz, 1 KHz, 10 KHz,
100 KHz or 1 MHz increment when you select a band segment. The frequency step is indicated by a
small triangle directly under the corresponding digit on the frequency display.

3.3.2 MODE SELECTION

To select an operating mode on your RCI-2985DX / RCI-2995DX, simply rotate the MODE selector
and place it in the desired operating mode position FM/AM/USB or LSB modes are for your voice
communications. In the CW position, you can transmit CW if you have connected an external key to
the accessory jack provided on the back of the radio. In the PA position, the transceiver can be used as
a Public Address system. Before operating in PA mode, you must first connect a PA speaker (8 ohms, 4
Watt) to the jack located on the rear panel.

3.3.3 RF POWER CONTROL

This feature allows the adjustment of the RF output power continuously over the range of 1W through
25W (RCI-2995DX : 2W through 150W).

3.3.4 RECEIVE SCANNING

Receive scanning allows you to find active frequencies in the entire band segment. To begin scanning,
slowly turn the Squelch control clockwise until the receiver noise disappears. Press the Scan button.
The unit should start scanning from the lower to the higher frequencies. Pressing the Scan button again
will change the direction of scanning. Each time you press the Scan button, “SCAN+” or “SCAN-” will
displayed on the LCD display. The radio will stop on any active frequency for the entire duration of the
transmission. When the transmission stops, the RCI-2985DX / RCI-2995DX will wait approximately 2
seconds before it resumes scanning. If you want to deactivate Scan mode while it is scanning, press the
MAN (manual) button or turn the Squelch control counterclockwise until you hear the receiver noise.
The Manual button will disable Scan function.

3.3.5 SPLIT FUNCTION

This function enables you to offset the transmit and receive frequencies for FM repeater operation. The
transmitter frequency can offset either higher or lower than the receive frequency. To split frequencies,

- 9 -

press the MAN button and the Split button to select either +/- split frequency. If the + split is selected,
the transmit frequency will be higher than the receive frequency. If - split is selected, the transmit
frequency will be lower than the receive frequency.

3.3.6 MEMORY FUNCTION

The RCI-2985DX / RCI-2995DX can store up to 10 most frequently used frequencies (from 0 to 9). To
program a frequency into memory, follow the procedure described below:

(1) Press the MAN button.

(2) Press the PRG button.

(3) Press the MEM button (“MEMORY” and “0” should appear on the left-hand side of the LCD

display). Pressing the MEM button will advance the channel number from “0” to “9”.

(4) Select the desired frequency you wish to store in memory.

(5) Press the ENT button.

(6) Repeat the same procedure to program other memory channels.

3.3.7 MEMORY CHANNEL SCANNING

You can scan and select any of these 10 preset frequencies by following the procedure described
below:

(1) Press the MAN button.

(2) Press the MEM button.

(3) Slowly turn the Squelch knob clockwise until the receiver noise disappears.

(4) Press the Scan button. The unit will scan from lower to higher frequencies. When you press the

button again, it will scan from higher to lower frequencies.

(5) To stop scanning a certain channel, press the MAN button, or turn the Squelch knob

counterclockwise until you hear the receiver noise.

3.3.8 METER

The meter built into your RCI-2985DX / RCI-2995DX on the left hand side of the LCD display
provides the following information:

1. SIGNAL/MODULATION METER

In transmit mode, it provides a visual indication of modulation percentage when transmitting in the AM
mode and received signal strength on the receive mode.

2. RF/SWR METER

This meter has two purpose. It indicates relative transmitter power when transmitting and antenna SWR
(Standing Wave Ratio). In order to achieve maximum radiated power, it is important that your antenna
be in good condition, properly adjusted and matched to your transceiver. The built-in SWR (Standing

- 10 -

Wave Ratio) meter allows you to measure your antenna condition. To operate this function, connect
your antenna to the transceiver antenna connector, set the mode switch to AM and adjust the MIC Gain
to minimum. Select a frequency near the middle of the band you plan to use most. Activate the SWR
function and press the PTT button on the microphone. A bar on the meter is an indication of the
antenna matching. If there is no bar, it indicates that your antenna system is perfectly matched. The less
bar, the better matched. If several bars appear, your antenna needs adjusting. The SWR function is self
calibrating.

3.3.9 CTCSS - OPTIONAL

The RCI-2985DX / RCI-2995DX can operate with CTCSS frequencies for accessing repeaters, with an
optional CTCSS (Continuous Tone Coded Squelch System) encoding device installed.

3.3.10 PROCEDURE TO RECEIVE

(1) Be sure that the power source, microphone and antenna are connected to the proper connectors

before going to the next step.

(2) Press the POWER switch to apply power to the transceiver.

(3) Set the VOL. to a comfortable listening level.

(4) Set the MODE switch to the desired mode.

(5) Listen to the background noise from the speaker. Turn the SQUELCH knob slowly clockwise until

the noise just disappears. The SQUELCH is now properly adjusted. The receiver will remain quiet
until a signal is actually received. Do not advance the control too far or some of weaker signals will
not be heard.

(6) Set the CHANNEL selector switch to the desired channel.

(7) Set the RF GAIN control fully clockwise for maximum RF gain.

(8) Adjust the CLARIFIER control to clarify the SSB signals or to optimize AM/FM signals.

3.3.11 PROCEDURE TO TRANSMIT

(1) Select the desired channel of transmission

(2) Set the MIC GAIN control fully clockwise.

(3) If the channel is clear, depress the push-to-talk switch on the microphone and speak in a normal

voice.

RCI-2985DX
RCI-2995

DX

- 11 -

CHAPTER 4

PROGRAMMING

4.0 INTRODUCTION

This section explains the basic programming procedures for the RCI-2985DX / RCI-2995DX Amateur
10 and 12 meter dual band base station transceiver.

4.1 FREQUENCY SELECTION

Frequency selection in the RCI-2985DX / RCI-2995DX can be accomplished using anyone of the three
following methods:

(1) The first method of frequency selection is through the use of the SHF (Shift) key and the (V) Up

and (W) Down arrows. To accomplish this, press the SHF button until the cursor arrow is
positioned under the digit of the frequency that is to be changed, then use the (V) Up arrow to
increase the number. If a decrease in frequency is desired, press the (W) Down arrow. Perform
the steps described above for each digit of the frequency until the desired frequency is displayed
in the LCD display window.

(2) The second method of frequency selection is accomplished using the SHF button and the

frequency select knob located on the front panel. Use the SHF button in the manner described
above to select the digit to be changed. Proceed to rotate the frequency select knob clockwise to
increase the frequency. Rotate the frequency select knob counterclockwise to decrease the
frequency.

(3) The third method of selecting the operating frequency of the radio is through the use of the SHF

button and the Channel (V) Up and (W) Down buttons located on the microphone. Frequency
selection by this method is accomplished in the same manner as with the (V) Up and (W) Down
arrows on the keypad. The only difference is that the Channel Up and Down buttons on the
microphone is used.

4.2 FREQUENCY SCANNING

Frequency scanning can be achieved using one of two methods: the first method involves the scanning
of pre-programmed memory channels. The second method permits the user to scan all frequencies
between a pre-set upper and lower scan limit. Both of the methods of the frequency scanning.

4.2.1 ALL FREQUENCY SCANNING

To allow all Frequency Scanning, one must first program the upper and lower scanning limits. The
scan limits are simply the highest and lowest frequencies that will be scanned. To program these limits,
perform the following steps:

(1) Press the PRG (Program) key.

(2) Press the SCAN key (“PRG SCAN+” should appear in the lower right corner of the display

window).

(3) Using the SHF key and the (V) Up and (W) Down arrows, select the upper scan limit, then press

ENT.

(4) Press the SCAN key again (“SCAN-” should appear in the display window).

(5) Using the SHF key and (V) Up and (W) Down arrows, select the lower scan limit, then press

ENT.

- 12 -

The upper and lower scan limits have now been programmed. To activate the scan feature, return the
radio to manual operation and press the SCAN button. If the display shows “SCAN+”, the radio will
scan from the lower limit to the upper limit. If “SCAN-” is displayed, the unit will scan from the upper
limit to the lower limit. To change from SCAN+ to SCAN- or vice versa, press SCAN.

NOTE

When programmed, the upper and lower scan limits will
also act as the upper and lower operating limits of the
radio. The radio now cannot be programmed to operate
above or below the scan limits.

4.2.2 MEMORY SCANNING

The RCI-2985DX / RCI-2995DX has 10 non-volatile (i.e. memory resident) memory locations which
can be programmed with any available frequency within the operating band of the radio. The scan
function of the unit can be programmed to scan these memory channels. The radio will then scan only
those memory channels which have been programmed. The first step in utilizing the memory scan
function is to program the desired frequencies into the radio memory. This can be accomplished by
performing the following steps:

(1) With the radio operating in the manual mode, press the PRG (Program) key.

(2) Press the MEM (Memory) key. “PRG” should be displayed in the lower right-hand corner of the

LCD display window. In the upper left portion of the display, “MEMORY” should be displayed.
Directly below MEMORY, a number between 0 and 9 will be displayed. This number represents
the memory location currently being displayed. Pressing the MEM key will increase the memory
counter to the next memory location and the contents of that memory location will be displayed.

(3) Using the SHF key and the (V) Up and (W) Down arrows, enter the frequency to be stored in the

memory location displayed. After the desired frequency has been entered, press ENT.

(4) Repeat steps (2) and (3) for all the memory locations to be programmed.

(5) After all desired memory locations have been programmed with frequencies, return the unit to the

manual mode of operation by pressing the MAN key.

(6) To initiate memory scanning, press MEM and then press SCAN. As previously discussed, the

display will show “SCAN+” or “SCAN-” to indicate whether the radio is scanning from the
lowest or the highest memory location or vice versa.

(7) To return the radio to normal (non-scanning) operation, press the MAN key.

4.3 OFFSET FREQUENCY OPERATION

The RCI-2985DX / RCI-2995DX has an offset or split frequency feature that will permit the radio to be
operated in a half-duplex mode. This will allow the user to talk on FM repeaters operating in the 10 and
12 Meter dual band.

- 13 -

NOTE

The FM repeaters may require a subaudible (CTCSS)
tone be transmitted to gain access to the repeater. The
RCI-2985DX / RCI-2995DX is not factory equipped with
a CTCSS encoder/decoder.

The split frequency function offsets the transmitter frequency either above or below the receive
frequency by a user programmable amount. In the following example, programming of a 100 KHz
offset will be described. Before attempting to program the offset frequency, ensure that the radio is
operating in the manual mode by pressing the MAN key.

(1) Press the PRG (Program) key.

(2) Press the SPLIT key. The LCD display window will display “00000” with “PRG” and “SPLIT”

being displayed in the lower left hand corner.

(3) Using the SHF key and the (V) Up and (W) Down arrows as described earlier, program the

display to read “010000”.

(4) Press ENT. A 100 KHz offset has now been programmed into the radio.

(5) Return the radio to manual operation by pressing the MAN key.

(6) Using the SHF key and the (V) Up and (W) Down arrows as described previously, set the radio

for the desired receive frequency.

(7) Press SPLIT. In the lower right corner of the display, either “SPLIT+” or “SPLIT-” will be

displayed. If SPLIT+ is displayed, the transmitter will be offset 100 KHz above the receive
frequency when keyed. If SPLIT- is displayed, the transmitter will be offset 100 KHz below the
receive frequency.

When the transmitter is keyed, the frequency display will
change to show the frequency being transmitted.

(8) To return the radio to simplex operation (i.e., same transmit and receive frequency), press the

MAN key.

NOTE

RCI-2985
RCI-2995

DX

DX

- 14 -

CHAPTER 5

CIRCUIT

DESCRIPTION

5.0 INTRODUCTION

This section explains the technical theory of operation for the RCI-2985DX / RCI-2995DX Amateur 10
and 12 meter dual band base station transceiver.

5.1 PLL CIRCUIT

The Phase Lock Loop (PLL) circuit is responsible for developing the receiver’s first local oscillator
signal and the transmitter’s exciter signal. The PLL circuit consists primarily of IC2, IC3, Q29, Q32,
Q33, Q34, Q36, Q37, Q38 and L16. The PLL circuit is programmed by the rotary channel switch GPS-

0751. The switch allows IC (U601) on CPU PCB to communicates the correct binary data information
to the programmable divider inside of IC2. IC2 then controls the VCO (Voltage Controlled Oscillator)
to oscillate on the correct frequency. This signal is fed either into the receiver’s first mixer (for receive
operation) or the transmitter’s mixer (for transmit operation).

5.2 RECEIVER CIRCUIT

The incoming RF signal comes into the radio via the antenna and into the front-end pre-amp, Q19. The
RF signal is fed into the mixer circuit of Q20 and Q21. The signal is then filtered by L8, L9 and L10
then into the AM/FM IF section of the receiver (depending on the mode of operation). The signal is
then detected by either the AM detector or FM detector and then fed to the audio amplifier section of
the receiver and finally out to the speaker.

5.3 TRANSMITTER MODULATION CIRCUIT
(1) The transmitter modulation circuit modulates the low-level RF signal from the PLL exciter circuit

with the user’s audio voice signal from the microphone. The audio from the microphone is then
amplified and fed into the balanced modulator circuit.

(2) If the transceiver is in the AM mode, the AF Power amplifier modulates the last RF amplifier,

which produces a true amplitude modulated RF signal.

(3) If the transceiver is in the FM mode, the audio signal is not mixed with 10.6975MHz oscillator but

instead phase modulates the basic exciter signal from the PLL circuit in the TX mixer.

(4) If the transceiver is in the SSB mode, the audio signal is mixed with the 10.6975MHz oscillator in

IC5.

5.4 TRANSMITTER AMPLIFIER CIRCUIT

The transmitter takes the basic exciter signal from the TX mixer and amplifies it through a series of
amplifiers consisting of Q64, Q63, Q62, Q61, Q60 and EPA010010B (only for RCI-2995DX) where it
is then sent out to the antenna connector.

- 15 -

- 16 -

- 17 -

- 18 -

RCI-2985DX
RCI-2995

DX

6.0 REQUIRED TEST EQUIPMENT

 AC Power Supply (110V AC)
 RF Wattmeter
 Multimeter
 Automatic Modulation Meter

CHAPTER 6

ALIGNMENT

 Frequency Counter (100 MHz)
 RF Signal Generator (100 MHz)
 Automatic Distortion Meter
 Oscilloscope (50 MHz)

- 19 -

 Audio Signal Generator  Sinad Meter

6.1 ALIGNMENT PROCEDURES

This transceiver has been aligned at the factory and does not require any adjustments at installation.
The required test equipment listed are used for the test setup or alignment shown in Figure 6-1
Transmitter Test Setup and Figure 6-2 Receiver Test Setup. These test setups are used in part or total
during the following adjustments and refer to Page 59 for adjustment location.

6.1.1 PLL ALIGNMENT

ITEM U.U.T. SETTING ADJUST

MEASUREMENT

POINT

PLL 2
VCO Voltage

Set radio to 24.890 MHz, AM RX mode.
Frequency setting at 29.699 MHz.

L14

1.0 VDC ± 0.1
≤ 4.5 VDC

Connect Multimeter to TP10.

PLL 1
VCO Voltage

Set radio to 24.890 MHz, AM RX mode.
Frequency setting at 29.699 MHz.

L13

1.0 VDC ± 0.1
≤ 6.5 VDC

Connect Multimeter to TP11.

AM Frequency Set radio to AM RX mode.

Set Clarifier Control to 12 o’clock.

VC2

10.100 MHz ± 10 Hz

Connect Frequency Counter to TP16.

TX Frequency Set radio to AM TX mode.

VR8

10.100 MHz ± 10 Hz

Connect Frequency Counter to TP16.

VCO Output Set radio to 28.000 MHz, AM RX mode.

Connect Oscilloscope to TP3.

AM OSC Set radio to AM TX mode. Mod off

Connect Frequency Counter to TP5.

USB OSC Set radio to USB TX mode. Mod off.

Connect Frequency Counter to TP5.

LSB OSC Set radio to LSB TX mode. Mod off.

Connect Frequency Counter to TP5.

L17 Maximum Output

38.6950 MHz.

L18

10.6950 MHz ± 10
Hz

L20

10.6975 MHz ± 10
Hz

L19

10.6925 MHz ± 10
Hz

6.1.2 TRANSMITTER ALIGNMENT

RCI-2995DX LEVELS ARE SHOWN IN [ ].

ITEM U.U.T. SETTING ADJUST

MEASUREMENT

POINT

TX Power Set radio to 28.000 MHz, AM TX mode.

Modulation off.
Set radio to 28.000 MHz, USB TX mode.
AF signal 30mV, 1 KHz to microphone.
Connect Oscilloscope to TP17.
Set RF PWR Fully Clockwise.
Set Clarifier Control to 12 o’clock.

- 20 -

L18,L37,
L35,L34

Maximum Output.

Set radio to 24.890 MHz and 29.699 MHz. L35,L34 Maximum Output and

Balance.

AM APC

SSB APC

BIAS Current Set radio to USB TX mode.

AM TX Power Set radio to 28.000 MHz, AM TX mode.

RF Power
Meter

SSB ALC Set radio to USB TX mode.

SSB Carrier
Balance

Set radio to AM TX mode.
Connect Multimeter to TP8.

Set radio to USB TX mode.
Connect Multimeter to TP8.

Modulation off.
Connect current meter to TP7(+) and TP9(-).
Connect current meter to TP7(+) andTP8(-).

Modulation off.
Connect “short PCB” to TP7 and TP9.
Set RF PWR Fully Counter Clockwise.
Connect RF Power Meter to antenna jack.

Set radio to 28.0000 MHz, AM TX mode.
Set RF Power Fully Clockwise.

AF signal 30mV, 1 KHz to microphone.

Set radio to USB TX mode.
AF signal 30mV, 1 KHz to microphone.

VR15 6 VDC

VR18 12.5 VDC

VR13
VR12 + VR11

10 mA
(50 mA + 50 mA) =
100 mA

VR15
VR19

10W [50W]
1W [ 2W]

VR10 Meter Indicator

VR14

25W [100W]

VR7 Spurious Emission to

minimum.

Connect Oscilloscope to antenna jack.

CW TX Set radio to 28.000 MHz, CW TX mode.

VR9 200mV (Sine Wave)
Plug in CW Key.
Disconnect the Mic Jack.
Connect AC Voltmeter to EXT SP.

AM Modulation
FM Modulation

Set radio to 28.000 MHz, AM TX mode.
Set radio to 28.000 MHz, FM TX mode.
AF signal 30mV, 1 KHz to microphone.

VR17 90%

4KHz

Set Mic Gain Fully Clockwise.

6.1.3 RECEIVER ALIGNMENT

ITEM SETTINGS ADJUST

MEASUREMENT

POINT

AM Sensitivity Set radio to 28.000 MHz, AM RX mode.

Set Clarifier Control to 12 o’clock.
Set RF Gain Fully Clockwise.
Set SQ Fully Counter Clockwise.
Set NB/ANL/OFF switch to OFF position.
Set VOL Control at 2 o’clock.
Connect RF SG to antenna jack.
Frequency 28.000 MHz, 1uV. Mod 30%.
Set radio to 24.890 MHz, AM RX mode.

L5,6,7,8,9,10,

2,3

L5,L6, L7

Audio Output > 2V
S/N > 10 dB

Balance between

- 21 -

RF SG setting 24.890 MHz.
Set radio to 29.699 MHz, AM RX mode.

24.890 and 29.699
MHz

RF SG setting 29.699 MHz.

USB Sensitivity Set radio to USB RX mode.

VOL. Control Fully Clockwise.
RF SG setting 28.001 MHz, 0.5uV. Mod off.

LSB Sensitivity Set radio to LSB RX mode.

VOL Control Fully Clockwise.
RF SG setting 27.999 MHz, 0.5uV. Mod off.

FM Distortion Set radio to 28.000 MHz, FM RX mode.

Set MODE switch to FM mode.
RF SG setting 28.000 MHz, 1mV. Mod 3KHz.

NB Adjust Set radio to 28.000 MHz, AM RX mode.

RF SG setting 28.000 MHz, 100uV. Mod off.

L11, L12 Audio Output > 2V

S/N > 10 dB

L11, L12 Audio Output > 2V

S/N > 10 dB

L4 Audio Output > 3V

Distortion < 10%

L1 DC Voltage to max.

> 2V
Set NB/ANL/OFF switch to NB/ANL position.
Connect Voltmeter to TP1.

AM Squelch Set radio to 28.000 MHz, AM RX mode.

Set SQ Control Fully Clockwise.
RF SG setting 28.000 MHz, 1mV. Mod 30%.

SSB Squelch Set radio to USB RX mode.

Set SQ Control Fully Clockwise.
RF SG setting 28.001 MHz, 1mV. Mod off.

AM S/RF Meter
AM S-Meter

Set radio to 28.000 MHz, AM RX mode.
RF SG setting 28.000 MHz, 100uV. Mod 30%.

VR4 Slowly Adjust very slowly

until squelch just

open.

VR3 Slowly Adjust very slowly

until squelch just

open.

VR1 “6 bar” on the Level

Meter Indicator and

Meter needle to S9 on

the S scale.

SSB S-Meter Set radio to USB RX mode.

RF SG setting 28.001 MHz, 100uV. Mod off.

VR2 “6 bar” on the Level

Meter Indicator and

Meter needle to S9 on

the S scale.

Figure 6-1 Transmitter test setup

- 22 -

Figure 6-2 Receiver test setup

RCI-2985DX
RCI-2995

DX

CHAPTER 7

MAINTENANCE

7.0 PRECAUTIONS

The inherent quality of the solid-state components used in this transceiver will provide many years of
continuous use. Taking the following precautions will prevent damage to the transceiver.

(1) Never key the transmitter unless an antenna or suitable dummy load is connected to the antenna

receptacle.

(2) Ensure that the input voltage does not exceed 110 V AC.

- 23 -

(3) During alignment, do not transmit for more than 10 seconds at a time. Transmitting over long

periods can cause heat built-up and cause transmitter damage.

7.1 PERIODIC INSPECTION

This unit is aligned at the factory to deliver maximum performance. However, continued performance
cannot be expected without periodic inspection and maintenance. Important points to be checked
regularly are as follows;

Check Item Action

Whip antenna
(option)
Coaxial cable If sheath is cracked, seal with

Coaxial & power
plug connections
Ground terminal If corroded, clean terminal.

7.2 FUSE REPLACEMENT

To protect the equipment from serious damage, a fuse is provided on the power supply lines. The fuse
protect against over voltage / reverse polarity or internal fault of the equipment. If the fuse has blown,
first find out the cause of the trouble before replacing it. A fuse rated for more than the transceiver
requirement should not be used, since it may permanently damage the equipment. Damage due to over
fusing is not covered by the warranty.

If cracked or broken, replace it.

vinyl tape. If immersed with
water, install new coaxial cable.
If loosened, reconnect. If
corroded, clean contacts.

RCI-2985
RCI-2995

8.0 GENERAL

Information on most electrical and mechanical parts is included in the parts list. The reference
designators are in alphanumeric order.

8.1 ORDERING REPLACEMENT PARTS

Parts orders should be referred to the parts department at:

∗ Ranger Communications, Inc.
401 W. 35Th ST., # B,
NATIONAL CITY, CA 91950-7909

DX

DX

- 24 -

CHAPTER 8

DIAGRAMS &

PARTS LIST

Tel: [phone]
Fax: [phone]

PART LIST:

RCI-2985DX / RCI-2995DX CH SW P.C.B

ITEM REFERENCE NUMBER RANGER PART DESCRIPTION

- 25 -

NUMBER

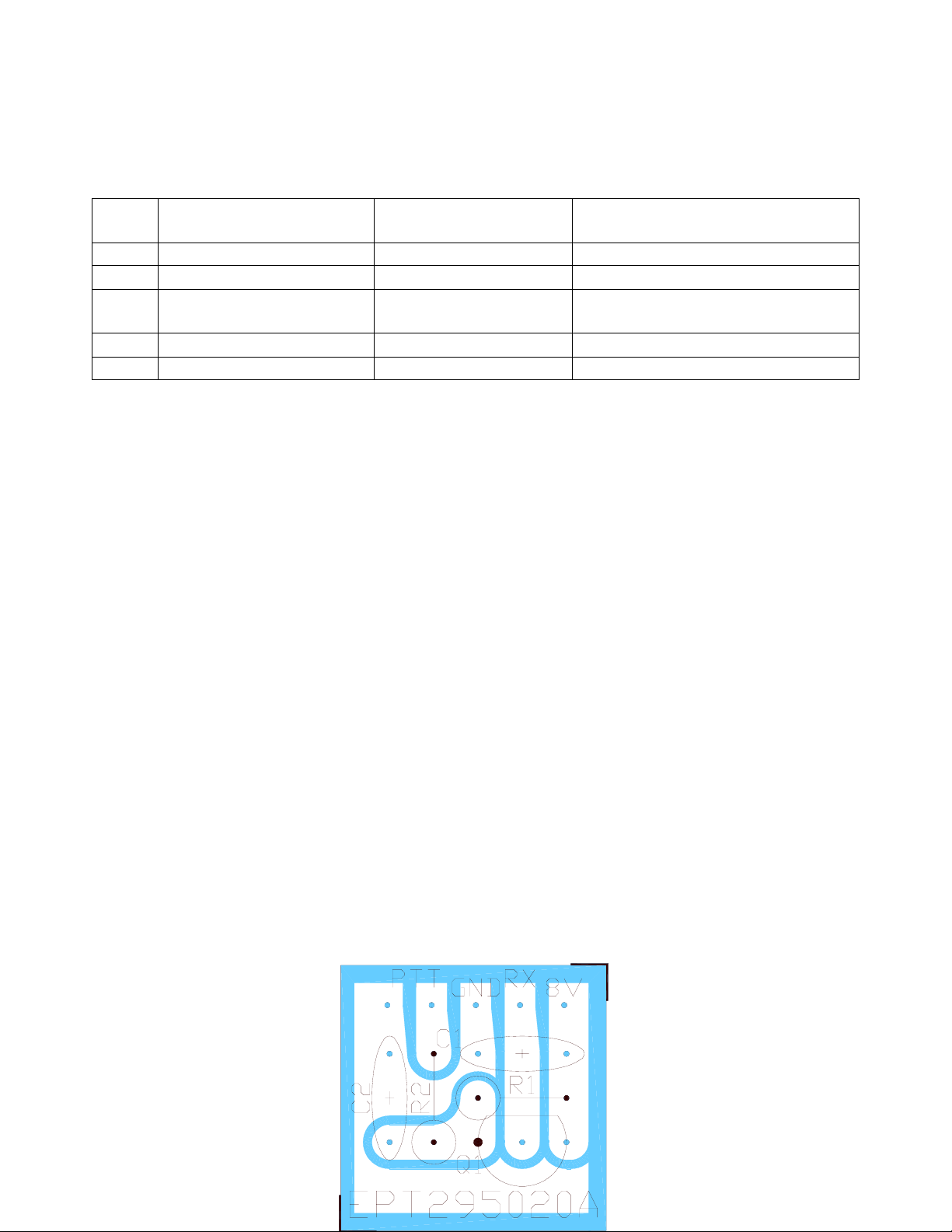

1 EPT295090A CH SW P.C.B
2 PCB CONN/S 3P

CC0501037L

0.01µF 50WV

(COPPER SIDE)
3 CH SW EWRT32097S ROTARY SW
4 CH SW P.C.B EX07N41216 PCB CONN/S 3PIN

REMARK:
COPPER SIDE (BLUE)

- 26 -

PART LIST:

RCI-2985DX SWR P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT360041Z SWR P.C.B
2 R402 RCP141014Z
3 R401 RCP141214Z
4 C401,C402 CC0501037L

100 Ω 1/4W
120 Ω 1/4W

0.01µF 50WV
5 D401,D402 ED1N00060P DIODE 1N60P
6 JP2,JP3 WX01070710 JUMPER WIRE

REMARK:
COPPER SIDE (BLUE)

- 27 -

PART LIST:

RCI-2995DX SWR P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPA010020B SWR P.C.B
2 R5,R14,C4 RCY010004Z
3 R1,R2 RCY011014Z
4 R3,R4,R6 RCY014714Z
5 C1,C2 CK1102AB7L
6 C3,R13 CK2104AB7R

0 Ω 0.1W
100 Ω 0.1W
470 Ω 0.1W

0.001µF 50WV

0.1µF 25WV
7 D1,D2 EDHM0198SY DIODE HSM198S
8 R11 ED1N04148Y DIODE 1N4148

REMARK:
COPPER SIDE (BLUE)

- 28 -

PART LIST:

RCI-2995DX NEW POWER P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPA010010B RF AMP P.C.B
2 Q3,Q4 T2SC02290Z TR 2SC2290
3 Q5 T2SD02531Z TR 2SD2531
4 R18,R19 RCM141004A
5 R16 RCM141014A
6 R22 RCM144714A

ITEM REFERENCE NUMBER RANGER PART

10 Ω 1/4W
100 Ω 1/4W
470 Ω 1/4W

DESCRIPTION

NUMBER

- 29 -

7 R21 RCM141024A
8 R14 RFP102714Z
9 R15 RCP121034Z

10 R23,R24 RFP204704Z

1K Ω 1/4W

270 Ω 1W

10K Ω 1/2W

47 Ω 2W

11 C5,C6 CC0500201A 2PF 50WV

C36 CC0503304A 33PF 50WV
12 C13 CC0501215A 120PF 50WV
13 C18,C19 CC0501515A 150PF 50WV
14 C9,C14 CC0505615G 560PF 50WV
15 C10,C23,C24,C25,C26,

CC0501047L

0.1µF 50WV
C27,C28,C29,C37,C38,
C39,C40,C41,C42,C43,

C44,C45,C47,C48

16 C7,C8 CC5001037L

0.01µF 500WV
17 C34 CC5001204A 12PF 500WV
18 C32 CC5003904A 39PF 500WV
19 C31 CD3006804Z 68PF 300WV
20 C35 CD3008204Z 82PF 300WV
21 C16,C22,C23 CD3001514Z 150PF 300WV
22 C12 CE0502257Z
23 C30 CE0254777Z

2.2µF 50WV

470µF 25WV
24 Q2 TDTC0114ES TR DTC114ES
25 D4,D7,D8,D9 ED1N04148Z DIODE 1N4148
26 D10 EDLT6A400Z DIODE LT6A400
27 L4,L5 ECSPG18382 SPRING COIL 1x6.5x6.5t
28 L2 ECBAD18571 BEAD COIL
29 L3 ECBAD18572 BEAD COIL
30 L1 ECCHK16142

CHOKE COIL 100µH
31 RF AMP P.C.B ECRFZ10053 TDK BRAND CORE
32 T1 ECRFZ10184 RF COIL ASS’Ý (#ST-182E-2)
33 T2 ECRFZ10185 RF COIL ASS’Ý (#ST-182E-3)
34 RL1 EX05N40844 RELAY S2EB-12V
35 J1 EX07N41226 PCB CONN/S 2PIN
36 J2 EX07N48490 PCB CONN/S 4PIN
37 B+,B- GZZZ50011Z C PIN
38 I/P,O/P GZZZ50062Z V TYPE JACK
39 RF AMP P.C.B JS052606MN SET SCREW
40 Q5 JS013008TH SET SCREW

REMARK:
TOP: COMPONENT SIDE (WHITE)
BOTTOM: COPPER SIDE (WHITE)

- 30 -

PART LIST:

RCI-2995DX POWER / TR P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB100B POWER / TR P.C.B
2 TR101,TR102 TZ2N03771Z TR 2N5301
3 TR101,TR102 PA0100010A MICA INSULATOR

REMARK:
COPPER SIDE (BLUE)

- 31 -

PART LIST:

RCI-2995DX REGULATOR P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB110B REGULATOR P.C.B
2 R112 RCM141094A
3 R113 RCM141024A
4 R111 RCP104704Z
5 C111,C112,C113,C115,

CC0501037L

1 Ω 1/4W

IK Ω 1/4W

47 Ω 1W

0.01µF 50WV

C116,C117,C118

6 C114 CC0501047L

0.1µF 50WV
7 D111 EDZD05519Z ZENER DIODE 5.1V 1/2W
8 TR111 T2SB00754Y TR 2SB754Y
9 IC111 ENJR07808A IC NJM7808A 3PIN

10 VR111 RE10100018
11 B1,B2,B3,B4,B6,

GZZZ50011Z C PIN

S/R/F 100 Ω

B7,B8,B9

REMARK:
COPPER SIDE (BLUE)

- 32 -

PART LIST:

RCI-2985DX POWER P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT0SSB62A POWER P.C.B
2 R607 RCU141034Z
3 R605 RCP101014Z
4 R606 RCP102214Z
5 R602,R603 RCP108214Z
6 R601 RCP101224Z
7 C602 CC0501036S
8 C506,C507,C601 CC0501037L
9 C603 CC0504737L

10 C604 CE0351077Z

10K Ω 1/4W

100 Ω 1W
220 Ω 1W
820 Ω 1W

1.2K Ω 1W

0.01µF 50WV

0.01µF 50WV

0.047µF 50WV
100µF 35WV

11 TR602 T2SD00471K TR 2SD47IK
12 TR601 T2SC05395Z TR 2SC05395E
13 D601 EDZD10569Z ZENER DIODE 5.6V 1W
14 D602 EDZD10160Z ZENER DIODE 16V 1W
15 FUSE EX02N40210 FUSE 16V 7A
16 VR601 RE50100063

S/F/R 500 Ω
17 FUSE GZZZ50043Z FUSE BRACKET
17 R604 WX01070705 JUMPER WIRE
18 J601 WX01070710 JUMPER WIRE

REMARK:
COPPER SIDE (WHITE)

- 33 -

PART LIST:

RCI-2985DX / RCI-2995DX MIC P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT295070Z MIC P.C.B
2 C701,C702,C703 CCM501025T

0.001µF 50WV
3 J702,J703 EX07N48152 PCB CONN/S 2PIN
4 J701 EX07N48244 PCB CONN/S 3PIN
5 MIC P.C.B EX06N41111 MIC JACK

REMARK:
LEFT: COMPONENT SIDE (BLUE)
RIGHT: COPPER SIDE (BLUE)

- 34 -

PART LIST:

RCI-2985DX / RCI-2995DX BAND P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT295090Z BAND P.C.B
2 MOD SW EWRT32053S ROTARY SW
3 J402 EX07N41216 PCB CONN/S 3PIN
4 J401 EX07N41261 PCB CONN/S 7PIN
5 J403 WX01070706 JUMPER WIRE

REMARK:
COPPER SIDE (BLUE)

- 35 -

PART LIST:

RCI-2985DX / RCI-2995DX KEY P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER

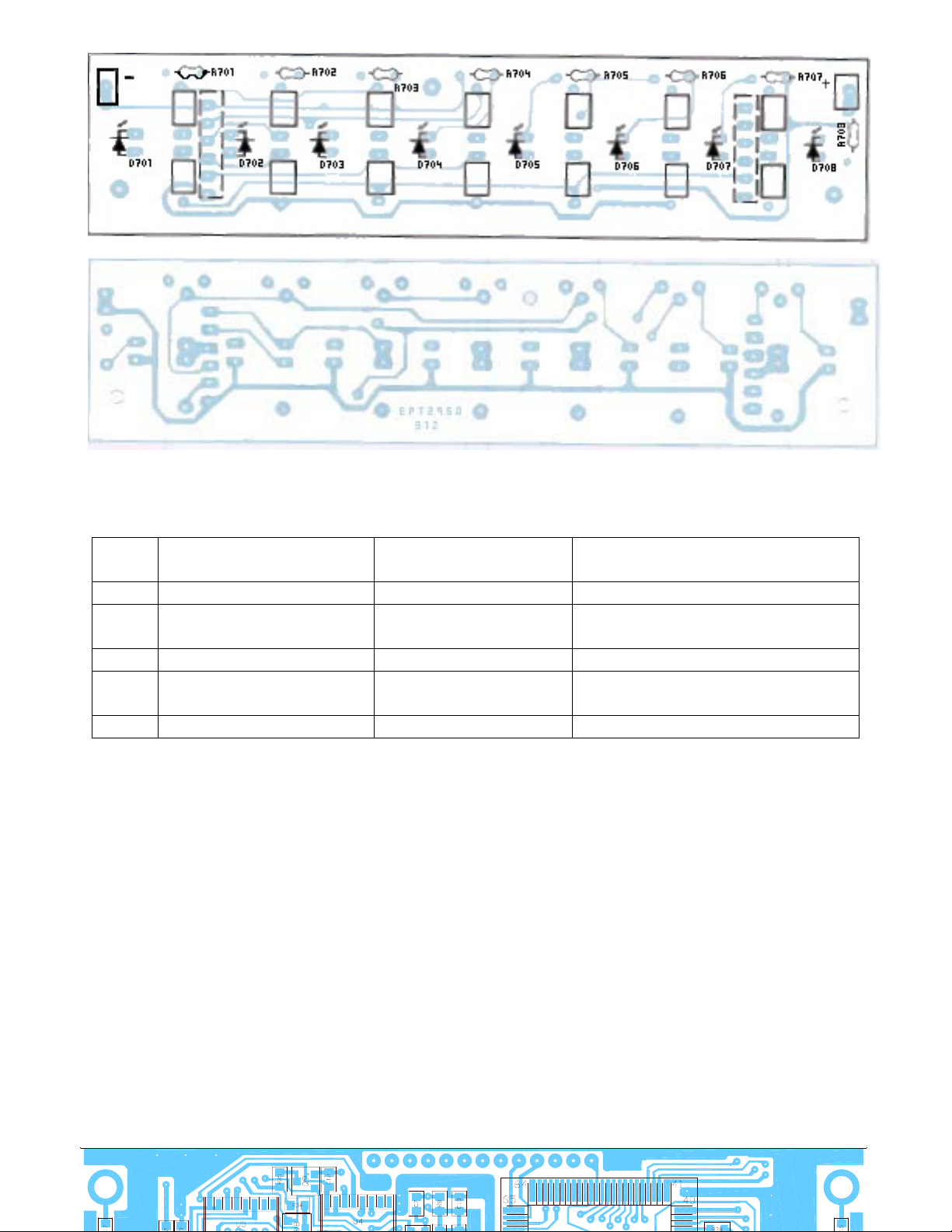

1 EPT295031Z KEY P.C.B
2 R701,R702,R703,R704,

RCP161524Z

1.5K Ω 1/16W

R705,R706,R707,R708
3 KEY SW P.C.B x 14 pcs EWPS33042X TACT SW
4 D701,D702,D703,D704,

EX01N40064 LED (WHITE)

D705,D706,D707,D708

5 KEY SW x 2 pcs EX07N41266 PCB CONN/S 6PIN

REMARK:
TOP: COMPONENT SIDE (BLUE)
BOTTOM: COPPER SIDE (BLUE)

- 36 -

PART LIST:

RCI-2985DX / RCI-2995DX CPU P.C.B

ITEM REFERENCE NUMBER RANGER PART

NUMBER
1 EPT695041Z CPU P.C.B
2 C619 CE0254767Z
3 C604 CE0102277Z
4 DISPLAY EX03N40460 LCD DISPLAY
5 X601 EX14N46510 CERAMIC RESONATOR
6 BU601 EX14N46511 BUZZER
7 CN602,CN608 EX07N41226 PCB CONN/S 2PIN

ITEM REFERENCE NUMBER RANGER PART

NUMBER
8 CN603,CN604,CN605, EX07N41216 PCB CONN/S 3PIN

DESCRIPTION

47µF 25WV

220µF 10WV

DESCRIPTION

- 37 -

CN610,CN611

9 CN601 EX07N41250 PCB CONN/S 4PIN

10 CN606,CN607,SK601,

EX07N41266 PCB CONN/S 6PIN

SK602
11 JP1/JP2(J5) EX07N48440 PCB CONN/H 4PIN
12 CPU P.C.B EX01N40119 LED BACK LIGHT
13 R604,LP601 RCY053304Z

14 R606 RCY055604Z
15 R636,R638,R633 RCY010004Z
16 R632 RCY011014Z
17 R635 RCY016814Z
18 R634 RCY011024Z
19 R607 RCY014724Z
20 R605 RCY018224Z
21 R601,R603,R610,R611,

RCY011034Z

33
56

0

Ω 0.1W

100
680

1K

4.7K

8.2K
10K

Ω 0.5W
Ω 0.5W

Ω 0.1W
Ω 0.1W

Ω 0.1W

Ω 0.1W
Ω 0.1W

Ω 0.1W

R627,R631

22 R616,R618,R620,R623,

RCY012734Z

27K

Ω 0.1W

R624

23 R629 RCY013334Z
24 R609,R612,R613,R628 RCY014734Z
25 R615,R617,R619,R621,

RCY015634Z

33K

47K
56K

Ω 0.1 W

Ω 0.1W
Ω 0.1W

R622,R625,R626

26 R614 RCY011044Z
27 R630 RCY011544Z
28 R608 RCY014744Z
29 R602 RCY011054Z

100K
150K
470K

1M

Ω 0.1W
Ω 0.1W
Ω 0.1W

Ω 0.1W

30 C601,C606 CK1330AB4A 33PF 50WV
31 C624,C625 CK1102AB7L
32 C608,C609,C620,C621,

CK1103AB5X

0.001µF 50WV

0.01µF 50WV

C622,C623

33 C610,C611,C612,C613,

CK1104AB7R

0.1µF 50WV

C614,C615,C616,C617,

C605
34 C607 CK1224AB7R
35 C602,C603 CK5105AB7R

0.22µF 50WV
1µF 16WV

36 U601 YN2950DXSP IC HD404818G17FS 80PIN
37 U602 YNMA08005M IC AN8005M 3PIN
38 U604,U605 YNR004094B IC BU4094BF 16PIN
39 U606 YNEX93L46P IC P93L46 8PIN
40 Q602,Q604 TY2SDO999Z TR 2SD999
41 Q601,Q603,Q605,Q606,

TY2SC2712G TR 2SC2712

Q607
42 Q608,Q609 TYZRN1403Z TR RN1403
43 D601 ED1N04148Y DIODE 1N4148
44 D602,D605,D606,D607 EDSS00355Y DIODE 1SS355

REMARK:
TOP: COMPONENT SIDE (BLUE)
BOTTOM: COPPER SIDE (BLUE)

- 38 -

PART LIST:

RCI-2985DX / RCI-2995DX TIME P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB120B TIME P.C.B
2 C120 CC0501027L

0.001µF 50WV
3 RF POWER RV50303461 VR 50KA
4 J121 EX07N48204 PCB CONN/S 2PIN

REMARK:
COPPER SIDE (BLUE)

- 39 -

PART LIST:

RCI-2985DX / RCI-2995DX AF/SQ/CLR P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB130B AF/SQ/CLR P.C.B
2 C130,C131,C132,C133 CC0501027L

0.001µF 50WV
3 AF GAIN RV50303461 VR 50KA
4 SQ RV50303463 VR 50KB
5 CLARIFIER RV10203465 VR 1KB
6 J131 EX07N48204 PCB CONN/S 2PIN
7 J132 EX07N48546 PCB CONN/S 3PIN
8 J130 EX07N48497 PCB CONN/S 5PIN
9 J133 WX01070705 JUMPER WIRE

REMARK:
COPPER SIDE (BLUE)

- 40 -

PART LIST:

RCI-2985DX / RCI-2995DX CALIBRATE P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB150B CALIBRATE P.C.B
2 D150,D151 ED1N04148Z DIODE 1N4148
3 CALIBRATE RV50203466 VR 5KB/SW
4 J150 EX07N48497 PCB CONN/S 5PIN

REMARK:
COPPER SIDE (BLUE)

- 41 -

PART LIST:

RCI-2985DX / RCI-2995DX LED P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB170B LED P.C.B
2 LED P.C.B EX01N40010 LED (RED)

REMARK:
COPPER SIDE (BLUE)

- 42 -

PART LIST:

RCI-2985DX / RCI-2995DX CW/SP/PA JACK P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB180B CW/SP/PA JACK P.C.B
2 R180,R181 RCM141034A
3 C180,C181,C182,C183,

CC0501027L

10K Ω 1/4W

0.001µF 50WV

C184
4 CW,PA,SP EX06N41034 EAR JACK
5 J180,J181,J182,J183 EX07N41226 PCB CONN/S 2PIN
6 J184,J185 EX07N41216 PCB CONN/S 3PIN
7 JP180 WX01070710 JUMPER WIRE

REMARK:
COPPER SIDE (BLUE)

- 43 -

PART LIST:

RCI-2995DX POWER INPUT P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB190B POWER INPUT P.C.B
2 R190 RCP102254Z
3 C190,C191,C192,C193 CX0071027Z
4 L190,L191 ECCHK16098

2.2M Ω 1W

HV DISC 0.001µF

CHOKE COIL 6.8µH

5 A,B,C,D,E,F,G,H,I,J,K GZZZ50011Z C PIN

REMARK:
COPPER SIDE (BLUE)

- 44 -

PART LIST:

RCI-2985DX POWER INPUT P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT0SSB90B POWER INPUT P.C.B
2 R901 RCP122254Z
3 C901,C901,C902,C903,

CX0071027Z

2.2M Ω 1/2W

HV DISC 0.001µF

C904

4 L901,L902 ECCHK16098

CHOKE COIL 6.8µH

5 L901,L902 WX0008020A TUBE

REMARK:
COPPER SIDE (BLUE)

- 45 -

PART LIST:

RCI-2985DX / RCI-2995DX PTT P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT295020A PTT P.C.B
2 R1 RCU144724Z
3 R2 RCU141034Z
4 C1 CC0501037L

4.7K Ω 1/4W
10K Ω 1/4W

0.01µF 50WV
5 Q1 T2SA00733P TR 2SA733P
6 PTT P.C.B WM0407005Z LEAD WIRE (YELLOW)
7 PTT P.C.B WM0607005Z LEAD WIRE (BLUE)
8 PTT P.C.B WM0207005Z LEAD WIRE (RED)
9 PTT P.C.B WL0440005Z LEAD WIRE (YELLOW)

10 PTT P.C.B XZZZ90392Z SP SPACER

REMARK:
COPPER SIDE (WHITE)

- 46 -

PART LIST:

RCI-2985DX / RCI-2995DX RF/MIC GAIN P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB140B RF/MIC GAIN P.C.B
2 C140,C141 CC0501027L

0.001µF 50WV
3 L140 ECBAD18526 BEAD COIL 3.5x6x1.2
4 MIC GAIN RV10203464 VR 1KA
5 RF GAIN RV10203465 VR 1KB
6 J140 EX07N41280 PCB CONN/S 6PIN

REMARK:
COPPER SIDE (BLUE)

- 47 -

PART LIST:

RCI-2985DX / RCI-2995DX EAR JACK 4P P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPTSSB200B EAR JACK 4P P.C.B
2 R201,R202 RCP104704Z

47 Ω 1W

3 EARJACK 4P EX06N41221 PHONE JACK

REMARK:
COPPER SIDE (BLUE)

- 48 -

PART LIST:

RCI-2985DX / RCI-2995DX E-KEY P.C.B

ITEM REFERENCE NUMBER RANGER PART

DESCRIPTION

NUMBER
1 EPT695020Z E-KEY P.C.B
2 R6 RCY011014Z
3 R3,R4,R7 RCY011024Z
4 R1 RCY011034Z
5 R5 RCY014734Z
6 R2 RCY015644Z
7 C1,C4 CK1103AB5X
8 C2,C3 CK1224AB7R

100 Ω 0.1W

1K Ω 0.1W
10K Ω 0.1W
47K Ω 0.1W

560K Ω 0.1W

0.01µF 50WV

0.22µF 50WV

9 D1,D2 EDSS00355Y DIODE 1SS355
10 IC1 YNTA4069FN IC TC4069UBFN 14PIN
11 CN1 EX07N49161 WIRE CONN/H 3PIN

REMARK:
TOP: COMPONENT SIDE (BLUE)
BOTTOM: COPPER SIDE (BLUE)

- 49 -

RCI-2985DX / RCI-2995DX MAIN PCB

REMARK:
COMPONENT SIDE (BLUE)

- 50 -

RCI-2985DX / RCI-2995DX MAIN PCB

REMARKS:
COPPER SIDE (BLUE)

PART LIST
RCI-2985DX MAIN PCB

REFERENCE
NUMBER

EPT695011A MAIN P.C.B
R316,317,318,321,328,
403,177
R277 RCY014794Z
R179,144 RCY011004Z
R293 RCY011504Z
R272,273 RCY012204Z
R246 RCY013304Z
R115,226,281 RCY014704Z
R227,231 RCY015604Z
R11,105 RCY016804Z
R3,5,8,32,36,78,97,145,
172,143,182,186,286,289,
154,158
R35,104,276,280,136,253 RCY011514Z
R23 RCY011814Z

RANGER
PART NO.

RCY010004Z

RCY011014Z

DESCRIPTION

0Ω 0.1W

4.7Ω 0.1W
10Ω 0.1W
15Ω 0.1W
22Ω 0.1W
33Ω 0.1W
47Ω 0.1W
56Ω 0.1W
68Ω 0.1W
100Ω 0.1W

150Ω 0.1W
180Ω 0.1W

R166,171,190,130,262 RCY012214Z
R33,103 RCY012714Z
R6,10,16,279,282,306 RCY013314Z
R148,170,202,250,259,

304,24,116
R146,167,263,292 RCY015614Z
R4,50,90,224 RCY016814Z
R74 RCY018214Z
R19,22,64,67,71,75,82,
101,117,122,127,149,150,
152,174,178,192,199,207,
213,225,233,244,255,257,
258,266,267,268,269,271,
294,297,307,308,322,326,
134,329,96,D99,R287
R91,205 RCY011224Z
R56,89,100,220,221,260,
278,283,299,79,80
R235 RCY011824Z
R27,30,70,73,95,209,214,
254,288,302,310,311,320
R9,25,31 RCY012724Z

- 51 -

RCY014714Z

RCY011024Z

RCY011524Z

RCY012224Z

220Ω 0.1W
270Ω 0.1W
330Ω 0.1W
470Ω 0.1W

560Ω 0.1W
680Ω 0.1W
820Ω 0.1W
1KΩ 0.1W

1.2KΩ 0.1W

1.5KΩ 0.1W

1.8KΩ 0.1W

2.2KΩ 0.1W

2.7KΩ 0.1W

R18,28,66,113,184,204,
230,298,305
R52,58 RCY013924Z

R29,72,86,139,140,141,
142,159,162,163,206,211,
212,215,216,256,261,327,
247
R87,94,201,290,291 RCY015624Z

R14,42,43,69,85 RCY016824Z
R92,300 RCY018224Z
R1,13,17,20,38,39,57,65,

68,83,88,118-121,123,126,
157,164,165,168,173,187,
188,194,217,223,135,137,
239,240-243,153,248,251,
252,296,301,309,313,124,
128,131,265,323,324,160,
249,245,501
R191,138 RCY011234Z

R193 RCY011534Z
R93,110,222,155,236,40,

41
R2,264,228 RCY013334Z
R46 RCY013934Z
R7,34,62,63,99,132,175,
198,229,234,319,200
R26,107,112,181 RCY016834Z
R45 RCY018234Z
R12,44,48,49,51,53,76,77,
106,109,114,169,176,195,
197,232,238,284,285,303,
312,125
R156 RCY011544Z
R183 RCY011844Z
R21,47,59,84,147,151,210
,218,111
R54,55,185,189 RCY012744Z
R15,37,196,219 RCY014744Z
R102 RCY018244Z
R108,161,133 RCY011054Z
R208 RCY011554Z
C248 CK1059AB1A 0.5PF 50WV
C236,249,61 CK1010AB1A 1PF 50WV
C208,218,211 CK1030AB1A 3PF 50WV
C68,69,88,95,121,253,86,
148,155
C108 CK1080AB2A 8PF 50WV
C1,57,142,247 CK1100AB2A 10PF 50WV
C98,117 CK1150AB4A 15PF 50WV
C51 CK1180AB4A 18PF 50WV
C150,133 CK1220AB4A 22PF 50WV
C44,242 CK1270AB4A 27PF 50WV
C19,30,120,136,89 CK1330AB4A 33PF 50WV
L37(PIN4-6) CK1330AA4A 33PF 50WV
C300,159,237 CK1470AB4A 47PF 50WV
C115,243 CK1680AB4A 68PF 50WV
C8,212 CK1820AB4A 82PF 50WV
C4,79,114,139,160,301,
327
C143 CK1121AB5A 120PF 50WV
C101 CK1151AB5A 150PF 50WV
C35,131 CK1221AB5A 220PF 50WV
C39 CK1271AB5A 270PF 50WV
C11,14 CK1331AB5A 330PF 50WV
C60,62,227,228 CK1471AB5A 470PF 50WV
C29 CK1561AB5A 560PF 50WV
C206 CK1390AB4D 39PF 50WV
C291 CK1100AB2G 10PF 50WV
C119 CK1330AB4G 33PF 50WV
C18,118,135 CK1680AB4G 68PF 50WV
C134 CK1101AB5G 100PF 50WV
C202,205 CK1151AB5G 150PF 50WV
C17 CK1271AB5G 270PF 50WV
C203 CK1331AB5G 330PF 50WV

RCY013324Z

RCY014724Z

RCY011034Z

RCY012234Z

RCY014734Z

RCY011044Z

RCY012244Z

CK1050AB1A 5PF 50WV

CK1101AB5A 100PF 50WV

3.3KΩ 0.1W

3.9KΩ 0.1W

4.7KΩ 0.1W

5.6KΩ 0.1W

6.8KΩ 0.1W

8.2KΩ 0.1W
10KΩ 0.1W

12KΩ 0.1W
15KΩ 0.1W
22KΩ 0.1W

33KΩ 0.1W
39KΩ 0.1W
47KΩ 0.1W

68KΩ 0.1W
82KΩ 0.1W
100KΩ 0.1W

150KΩ 0.1W
180KΩ 0.1W
220KΩ 0.1W

270KΩ 0.1W
470KΩ 0.1W
820KΩ 0.1W
1MΩ 0.1W

1.5MΩ 0.1W

C20,100 CK1391AB5G 390PF 50WV
C289,290 CK1561AB5G 560PF 50WV
C256 CK1103AB7A
C48,64,85,104,124,288,
182,210,229,230,231,239,
245,246,257,263,287,304,
326,112,122,146,152,225,
271,275,278,282,285,286,
295,302,156,279,280,111,
307,309,310,311,312,313,
320
C2,3,6,9,15,21,22,25,33,
34,37,59,65-67,73,76,87,
92,96,97,105,106,324,116,
123,132,141,70,325,145,
149,153,158,175,176,177,
193,196,197,201,207,224,
226,232,234,235,238,240,
250,251,254,255,268,292,
297-299,303,190,281,38,
82,99,71,403
C7,31,36,55,58,83,93,107,
267,138,330,178,181,191,
192,204,259,265,266
C5,16,23,26,41,56,74,75,
77,78,81,157,162,170,199,
258,262,272,273,274,277,
283,284,296,80
C10 CK2474AB7R
C144 CK5475AA7R
C47,49,165,174,110,127 CK1223AB6U
C171 CK1153AB6U
C12 CK1222AB7R
C40,50,53,54,172,173,
241,184
C186 CK2224AB7R
C169,264,233 CK5225AA7R
C32,84,126,151,179,180,
194,195,306,94
C130,322 CTY161046Z
C163 CTY162246Z
C164,167,213,109,125,
137,147
C129 CTY162256Z
C189,140,323,46 CTY164756Z
IC4 YNMA08005M IC AN8005M-E2
IC1 YNJR00324M IC NJM324M
IC6 YNJR04558M IC NJM4558M
IC3 YNJR03404A IC NJM3404M
IC2 YNMC45162D IC MC145162D
IC9 YNSM6130X4 IC TDA6130
Q19,64 TY2SC3356Z TR 2SC3356
Q47,49,67 TY2SB0798Z TR 2SB798DL
Q3,5,6,8,15,18,30,35,40,
43,44,45,48,50,53,55,57,
65,68,69,71,28
Q7,41 TY2SA1298Y TR 2SA1298Y
Q1,2,9,10,11,12,13,14,22,
23,25,29,32,33,34,36,37,
38,58,59,24
Q73,74 TYTN2510N8 TR TN2510N8
Q16,17,26,27,52,54,56,70,
72,76
Q42,46 TYZRN2403Z TR RN2403
Q20,21 FY2SK0302Z F.E.T 2SK302
D1,11 EDSS00226Y DIODE 1SS226
D82 EDSS00314Y DIODE 1SS314
D2-10,14-17,23-33,35-41,
48,49-52,54-63,67,69-77,
83-85,87,100-104,110,111,
20,80,81,403,12,R295
D89,90,109,94 ED1N04148Y DIODE 1N4148
D78,79,86,88,Q401 EDSS00184Y DIODE 1SS184
D21,42,44,45,46,47 ED1V00217Y DIODE 1SV217
D22,107,95,96,97,108 ED1V00231Y DIODE 1SV231

- 52 -

CK2104AB7R

CK1103AB5X

CK1102AB7L

CK1473AB7R

CK1472AB6U

CK5105AB7R

CTY161056Z

TY2SC2712G TR 2SC2712GR

TY2SC2714Z TR 2SC2714

TYZRN1403Z TR RN1403

EDSS00355Y DIODE 1SS355

0.01µF 50WV

0.1µF 25WV

0.01µF 50WV

0.001µF 50WV

0.047µF 50WV

0.47µF 25WV

4.7µF 16WV

0.022µF 50WV

0.015µF 50WV

0.0022µF 50WV

0.0047µF 50WV

0.22µF 25WV

2.2µF 16WV
1µF 16WV

0.1µF 16WV

0.22µF 16WV
1µF 16WV

2.2µF 16WV

4.7µF 16WV

D34 EDHM0198SY DIODE HSM198S
D18,19,113,114 EDRS00135Y DIODE RLS135
D65,98 EDMA0028TY DIODE MA28T
D53,66 EDMA0028WY DIODE MA28W
D105,106 EDRL04004X DIODE RLR4004
D64 EDZD05519Y ZENER DIODE 5.1V
D68 EDZD05759Y ZENER DIODE 7.5V
D112 EDZD05569Y ZENER DIODE 5.6V
VC2 CV038100AY TRIMMER/C 10PF
L22 YCTLI2263C
L15 YCTLI1053C
L16 YCTLI2255C
TP7-TP9 EPT120060A PCB DC B+
R274,275 RCP121514Z
R270 RCP121034Z
C217 CC0500501A 5PF 50WV
C214 CC0505604L 56PF 50WV
C222 CC0504704A 47PF 50WV
C209 CC0508204A 82PF 50WV
C215 CC0501215A 120PF 50WV
C216 CC0501815A 180PF 50WV
C221,223 CC0503915G 390PF 50WV
C220 CC1001037L
C219 CD3005614Z 560PF 300WV
C13,24,27,28,52,63,72,
102,168,200,308,90
C188,198 CE0252267Z
C42,43,45,154,183,261 CE0254767Z
C166,260,103,128,
329(C144)
C161,185,328 CE0163377Z
C269,270 CE0251087Z
FL1 EFCFW455HT CERAMIC FILTER

FL2 EFCFE107MX CERAMIC FILTER

FL3 EFX8106952 CRYSTAL FILTER

X1 EYCAB10240 CRYSTAL

X2 EYBAB10100 CRYSTAL 10.1MHz
X3 EYBAE10697 CRYSTAL

IC5 ENMA00612Z IC AN-612
IC7 ENTA07222A IC TA7222AP
IC9 ENSM06130Z IC TDA6130
IC9 ENRCI06130 MODULAR IC100
Q51 T2SA01869Z TR 2SA1869
Q60,61 T2SC02312C TR 2SC2312C
Q62 T2SC02166C TR 2SC2166C
Q63 T2SC02538Z TR 2SC2538
Q66 T2SB00754Y TR 2SB754Y
D91,92,93 ED1N04148Z DIODE 1N4148
L2,3 ECIFT12002 I.F.T
L20 ECIFT12013 I.F.T.
L18,19 ECIFT12016 I.F.T.
L1,11 ECIFT12252 I.F.T.
L5 ECIFT12253 I.F.T.
L38 ECIFT12255 I.F.T.
L9,10 ECIFT12256 I.F.T.
L12 ECIFT12257 I.F.T.
L34 ECIFT12559 I.F.T.
L35 ECIFT12560 I.F.T.
L13,14,17 ECIFT12264 I.F.T.
L37 ECIFT12265 I.F.T.
L6 ECIFT12290 I.F.T.
L7 ECIFT12440 I.F.T.
L8 ECIFT12492 I.F.T.
L4 ECIFT12526 I.F.T.
L27,28,31 ECCHK16070
T1 ECCHK16004 CHOKE COIL 1.1mH
L24 ECSPG18003 SPRING COIL

CE0251067Z

CE0161077Z

CHOKE COIL 22µH
CHOKE COIL 1µH
CHOKE COIL 2.2µH

150Ω 1/2W
10KΩ 1/2W

0.01µF 100WV

10µF 25WV

22µF 25WV
47µF 25WV
100µF 16WV

330µF 16WV
1000µF 25WV

CFW-455HT

SPE10.7MX

10.695MHz

10.24MHz

10.6975MHz

CHOKE COIL 22µH

0.8x6.5x7.5t

L23 ECSPG18075 SPRING COIL

L25 ECSPG18077 SPRING COIL

L29 ECSPG18090 SPRING COIL

L26 ECSPG18365 SPRING COIL

L33 ECBAD18526 BEAD COIL

L32 ECRFZ10048
VR8,9,13,17,19 RE10200041
VR14,15 RE50200042
VR1,2,7,16,18 RE10300031
VR10 RE10400043
VR3,4 RE50400087
VR11,12 RE10100074
J4,11,12,19,20,16 EX07N48223 PCB CONN/S 2P
J2,18,28 EX07N48350 PCB CONN/S 3P
J10 EX07N41216 PCB CONN/S 3P
J25 EX07N48222 PCB CONN/S 5P
J3,16,23 EX07N48331 PCB CONN/S 6P
J27 EX07N48224 PCB CONN/S 7P
TP1,3,5,10,11,12,13,15,16

,17
TP7,8,9 XZZZ90006Z PCB STOPPER
J14 WX01070703 JUMPER WIRE
L30,36 WX01070710 JUMPER WIRE

- MT2950050X SHIELD COVER A

- MT2950060X SHIELD COVER B

- MT2950070X SHIELD COVER C

RCI-2985DX MISC. PART

REFERENCE
NUMBER

- MT0SSB305X HEATSINK E
IC7 MM5500100X HEATSINK C
IC7 LZZZ61008Z IC SHIELD B
Q66 XZZZ90020Z INSULATING

Q60,61,62 XZZZ90003Z INSULATING RING
Q60,61,62 XZZZ90358Z INSULATING

Q51 JS052006MN SET SCREW
Q66 JS052010MN SET SCREW
Q60,61,62 JS052012MN SET SCREW
IC7 JS013008MV SET SCREW
121Z CC0502237L

- CE0351097Z
METER-METER RCP202204Z

- EDBGAA121Z BRIDGE

- EX02N40214 FUSE 125V 5A

- EX03N40473 RF/SWR METER

- EX03N40493 SIGNAL METER

- EX04N40620 MICROPHONE

- EX06T41024 RCA SOCKET

- EX06N41029 ANT JACK

- ES300835SQ SPEAKER

- EWPS33050X POWER SW

- ETP8620129 T/F EI-86

- TZ2N03771Z TR 2N3771

- WA0100180A AC CORD 110V
METER EX01N40080 LAMP 5.3V 40mA
J20-RCA JACK EX07N48346 WIRE CONN/H 2P
180B(J181)-RCA JACK,
180B(J183)-MAIN PCB
41Z(CN610)-70Z(J102) EX07N48513 WIRE CONN/H 3-3P
90A-41Z(CN604) EX07N48514 WIRE CONN/H 3-3P
180B(J182)-SP EX07N48874 WIRE CONN/H 2P

- 53 -

0.8x6x8.5t

0.8x6x6.5t

0.8x3x4t

0.8x6.5x7.5t

3.5x6x1.2
RF COIL 25µH
S/F/R 1KΩ
S/F/R 5KΩ
S/F/R 10KΩ
S/F/R 100KΩ
S/F/R 500KΩ
S/F/R 100Ω

EX07N48612 PCB CONN/S 1P

RANGER
PART NO.

EX07N48510 WIRE CONN/H 2P

DESCRIPTION

PLATE

PLATE

0.022µF 50WV
10000µF 35WV
22Ω 2W

RECTIFIERS 10A

ASSY

41Z(SK2)-31Z,
41Z(SK1)-31Z
90Z(J402)-41Z(CN603) EX07N48519 WIRE CONN/H 3-3P
180B(J184)-200B EX07N48994 WIRE CONN/H 3P
J23-41Z(CN607) EX07N49038 WIRE CONN/H 6-6P
J4-180B(J180) EX07N49227 WIRE CONN/H 2-2P
J16-140B(J140) EX07N49228 WIRE CONN/H 6-6P
J19-120B(J121) EX07N49123 WIRE CONN/H 2-2P
J12-41Z(CN601) EX07N49125 WIRE CONN/H 4-2P
J11-20Z EX07N49128 WIRE CONN/H 2P
J10-41Z(CN605)­70Z(J701)-70Z(J703)
J28-130B(J132) EX07N49195 WIRE CONN/H 3-3P
J25-130B(J130) EX07N49196 WIRE CONN/H 5-5P
J27-90Z(J401) EX07N49197 WIRE CONN/H 7-7P
J3-41Z(CN606) EX07N49198 WIRE CONN/H 6-6P
J2-180B(J185) EX07N49199 WIRE CONN/H 3-3P
J18-METER-150B(J150)­METER-41Z(CN608)-J16
DIODE-E/C,62A(GND)­E/C
DIODE-E/C,62A(C+)-E/C WH0913005Z LEAD WIRE WHITE
62A(SW1)-POWER SW WH0222005Z LEAD WIRE RED
62A(SW2)-POWER SW WH0320005Z LEAD WIRE

62A(TR604/C)-2N5301 WH0225005Z LEAD WIRE RED
62A(TR604/E)-2N5301 WH0425005Z LEAD WIRE

62A(TR604/B)-2N5301 WH0925005Z LEAD WIRE WHITE
62A(GND)-MAIN PCB(GP) WH0049005Z LEAD WIRE BLACK
62A(B+)-MAIN PCB(V+) WH0251005Z LEAD WIRE RED
METER-METER WL0010005Z LEAD WIRE BLACK
CPU(LP1)-METER,
CPU(LP2)-METER
90B(FUSE LINE)­FUSE JACK
ANT JACK­MAIN PCB(ANT)

- MTTURB180A FRONT PANEL

- PTTURB010A RUBBER KEY

- PTTURB020A REFLECTOR

- PTTURB030A DISPLAY WINDOW

- PT0SSB010A GLASS WINDOW

- PT0SSB040A PLASTIC FOOT

- PT0SSB070A METER BACK

- PT0SSB092A ACRY WINDOW

- PT3600090A KNOB WASHER

- PA0100010A MICA INSULATOR

- MT0SSB430X SHIELD PLATE

- MTTURB012X FRONT CHASSIS

- MTTURB110X METER HOLDER

- MTTURB140D CHANNEL KNOB

- MTTURB150A PUSH BUTTON

- MT0SSB170N MIC BRACKET

- MT0SSB101K INDICATOR NAME

- MT0SSB161B VR KNOB BLACK

- MT0SSB010B TOP COVER

- MT0SSB021S BOTTOM PLATE

- MT0SSB071S RIGHT SIDE

- MT0SSB081S LEFT SIDE

- MT0SSB120B HANDLE ASSY

- MT0SSB130B HANDLE ASSY

- MT0SSB141S HANDLE BRACKET

- MT0SSB310X HEATSINK COVER

- MT0SSB272A BACK PANEL

EX07N48518 WIRE CONN/H 6-6P

EX07N49138 WIRE CONN/H

3-3-2-2P

EX07N49200 WIRE CONN/H

5-3-2-2P

WH0213005Z LEAD WIRE RED

ORANGE

YELLOW

WL0017005Z LEAD WIRE BLACK

WJ0319005Z LEAD WIRE

ORANGE

WX03001012 COAXIAL CABLE

PANEL

PLATE

HOLDER

COVER

PLATE

BLACK

BRACKET

BRACKET

BLACK

BLACK

- MT0SSB296X MAIN PCB

- MT0SSB360X PT SUPPORTER
PT MT0SSB371X PT FIXED PLATE
POWER INPUT PCB MD0360041X HEXANGULAR

- MT0SSB252B HEATSINK D

- MT3600090T D SPRING B

- MT3600100T D SPRING D

- QT2950010A RUBBER KEY
PA,EXT SP,CW KEY QM5500030A EARPHONE

TOP COVER LZZZ60018Z SHIELD CLOTH A
SPEAKER LZZZ60020Z SHIELD CLOTH C
FEET LZZZ60021Z FOOT WASHER
METER XZZZ90061Z FOAM
BUZZER XZZZ90206Z SPONGE

- XZZZ90091Z FOAM
2N5301(1) XZZZ90002Z SOLDER PLATE
2N5301(2) XZZZ90316Z INSULATING RING

- XZZZ90057Z EAR PVC WASHER
MOD PCB,SWR PCB XZZZ90004Z FOAM

- XZZZ90098Z SOLDER PLATE
KEY PCB XZZZ90367Z SPONGE
CPU PCB XZZZ90374Z SPONGE

- GZZZ50000Z CLAMP

- GZZZ50049Z FUSE HOLDER

- GZZZ50168Z CORD BUSHING

- BT6300041A MIC PLATE

- JW324008CN IN-TOOTH

- JS114012MQ SET SCREW
HANDLE JS035012MB SET SCREW
FRONT PLATE JS033006MN SET SCREW
HANDLE(4),
TOP COVER(4)
PCB CHASSIS(4) JS054008MS SET SCREW
EARPHONE(2) JS053008MB SET SCREW
C605 JS053010MN SET SCREW
2N5301(2) JS053012MN SET SCREW

- JS013006SN SET SCREW
HEATSINK(4) JS053008SN SET SCREW

- JS053008TB SET SCREW
HEATSINK(4) JS053208WB SET SCREW
ANT(3) JS053008TH SET SCREW
SPEAKER(4),PLATE(1) JS053508TH SET SCREW
FEET(4) JS013014TH SET SCREW

- JS013008TH SET SCREW
RECIFITER JS033018MN SET SCREW
2N5301(2) JN243024ZS NUT
PT JN284007ZN LOSK NUT
EAR PHONE JW306011EY WASHER
SET(TOP COVER)x4,
HANDLE(4)

- JW344006GN SPRING WASHER
PCB(5) JW323006DN IN-TOOTH

- JN263035ZS NUT WITH

FEET JW304009FS WASHER

- JW315510CN OUT-TOOTH

- JS015010WH SET SCREW

- EX02N40214 FUSE 125V 5A

- XZZZ90008Z MIC STOPPER

- 54 -

CHASSIS

SCREW

COVER

WASHEH

JS055012MB SET SCREW

JW305312FB WASHER

WASHER

WASHER

WASHER

PART LIST
RCI-2995DX MAIN PCB

REFERENCE
NUMBER

EPT695011A MAIN P.C.B
R316,317,318,321,328,
245,177
R277 RCY014794Z
R179,144 RCY011004Z
R293 RCY011504Z
R272,273 RCY012204Z
R246 RCY013304Z
R115,226,281 RCY014704Z
R227,231 RCY015604Z
R11,105 RCY016804Z
R3,5,8,32,36,78,97,145,
172,143,182,186,286,289,
154,158
R35,104,276,280,136,253 RCY011514Z
R23 RCY011814Z
R166,171,190,130,262 RCY012214Z
R33,103 RCY012714Z
R6,10,16,279,282,306 RCY013314Z
R148,170,202,250,259,
304,24,404,116
R146,167,263,292 RCY015614Z
R4,50,90,224 RCY016814Z
R74 RCY018214Z
R19,22,64,67,71,75,82,
101,117,122,127,149,150,
152,174,178,192,199,207,
213,225,233,244,255,257,
258,266,267,268,269,271,
294,297,307,308,322,326,
134,329,96,D99
R91,205 RCY011224Z
R56,89,100,220,221,260,
278,283,299,79,80
R235 RCY011824Z
R27,30,70,73,95,209,214,
254,288,302,310,311,320,
403
R9,25,31 RCY012724Z
R18,28,66,113,184,204,
230,298,305
R52,58 RCY013924Z
R29,72,86,139,140,141,
142,159,162,163,206,211,
212,215,216,256,261,327,
247
R87,94,201,290,291 RCY015624Z
R14,42,43,69,85 RCY016824Z

RANGER
PART NO.

RCY010004Z

RCY011014Z

RCY014714Z

RCY011024Z

RCY011524Z

RCY012224Z

RCY013324Z

RCY014724Z

DESCRIPTION

0Ω 0.1W

4.7Ω 0.1W
10Ω 0.1W
15Ω 0.1W
22Ω 0.1W
33Ω 0.1W
47Ω 0.1W
56Ω 0.1W
68Ω 0.1W
100Ω 0.1W

150Ω 0.1W
180Ω 0.1W
220Ω 0.1W
270Ω 0.1W
330Ω 0.1W
470Ω 0.1W

560Ω 0.1W
680Ω 0.1W
820Ω 0.1W
1KΩ 0.1W

1.2KΩ 0.1W

1.5KΩ 0.1W

1.8KΩ 0.1W

2.2KΩ 0.1W

2.7KΩ 0.1W

3.3KΩ 0.1W

3.9KΩ 0.1W

4.7KΩ 0.1W

5.6KΩ 0.1W

6.8KΩ 0.1W

R92,300 RCY018224Z
R1,13,17,20,38,39,57,65,

68,83,88,118-121,123,126,
157,164,165,168,173,187,
188,194,217,223,135,137,
239,240-243,153,248,251,
252,296,301,309,313,124,
128,131,265,323,324,160,
249
R191,138 RCY011234Z

R193 RCY011534Z
R93,110,222,155,40,41 RCY012234Z
R2,264,228 RCY013334Z
R46 RCY013934Z
R7,34,62,63,99,132,175,

198,229,234,319,200
R236 RCY015634Z
R26,107,112,181 RCY016834Z
R45 RCY018234Z
R12,44,48,49,51,53,76,77,
106,109,114,169,176,195,
197,232,238,284,285,303,
312,125
R156 RCY011544Z
R183 RCY011844Z
R21,47,59,84,147,151,210
,218,111
R54,55,185,189 RCY012744Z
R15,37,196,219 RCY014744Z
R102 RCY018244Z
R108,161,133 RCY011054Z
R208 RCY011554Z
C248 CK1059AB1A 0.5PF 50WV
C236,249,61 CK1010AB1A 1PF 50WV
C208,218 CK1030AB1A 3PF 50WV
C68,69,88,95,121,253,86,
148,155,211
C108 CK1080AB2A 8PF 50WV
C1,57,142,147 CK1100AB2A 10PF 50WV
C98,117 CK1150AB4A 15PF 50WV
C51 CK1180AB4A 18PF 50WV
C150,133 CK1220AB4A 22PF 50WV
C44,242 CK1270AB4A 27PF 50WV
C19,30,120,136,89 CK1330AB4A 33PF 50WV
L37(PIN4-6) CK1330AA4A 33PF 50WV
C300,159,237,212 CK1470AB4A 47PF 50WV
C115,243 CK1680AB4A 68PF 50WV
C8 CK1820AB4A 82PF 50WV
C4,79,114,139,160,301,
327
C143 CK1121AB5A 120PF 50WV
C101 CK1151AB5A 150PF 50WV
C35,131 CK1221AB5A 220PF 50WV
C39 CK1271AB5A 270PF 50WV
C11,14 CK1331AB5A 330PF 50WV
C60,62 CK1471AB5A 470PF 50WV
C29,227 CK1561AB5A 560PF 50WV
C206 CK1390AB4D 39PF 50WV
C291 CK1100AB2G 10PF 50WV
C119 CK1330AB4G 33PF 50WV
C18,118,135 CK1680AB4G 68PF 50WV
C134 CK1101AB5G 100PF 50WV
C202,205 CK1151AB5G 150PF 50WV
C17,289 CK1271AB5G 270PF 50WV
C203 CK1331AB5G 330PF 50WV
C20,100 CK1391AB5G 390PF 50WV
C256 CK1103AB7A
C48,64,85,104,124,288,
182,210,229,230,231,239,
245,246,257,263,287,304,
326,112,122,146,152,225,
271,275,278,282,285,286,
295,302,156,279,280,111,
307,309,310,311,312,313,

- 55 -

RCY011034Z

RCY014734Z

RCY011044Z

RCY012244Z

CK1050AB1A 5PF 50WV

CK1101AB5A 100PF 50WV

CK2104AB7R

8.2KΩ 0.1W
10KΩ 0.1W

12KΩ 0.1W
15KΩ 0.1W
22KΩ 0.1W
33KΩ 0.1W
39KΩ 0.1W
47KΩ 0.1W

56KΩ 0.1W
68KΩ 0.1W
82KΩ 0.1W
100KΩ 0.1W

150KΩ 0.1W
180KΩ 0.1W
220KΩ 0.1W

270KΩ 0.1W
470KΩ 0.1W
820KΩ 0.1W
1MΩ 0.1W

1.5MΩ 0.1W

0.01µF 50WV

0.1µF 25WV

320
C2,3,6,9,15,21,22,25,33,
34,37,59,65-67,73,76,87,
92,96,97,105,106,324,116,
123,132,141,70,325,145,
149,153,158,175,176,177,
193,196,197,201,207,224,
226,232,234,235,238,240,
250,251,254,255,268,292,
297-299,303,190,281,38,
82,99,71,403
C7,31,36,55,58,83,93,107,
267,138,330,178,181,191,
192,204,259,265,266
C5,16,23,26,41,56,74,75,
77,78,81,157,162,170,199,
258,262,272,273,274,277,
283,284,296,80
C10 CK2474AB7R
C144 CK5475AA7R
C47,49,165,174,110,127 CK1223AB6U
C171 CK1153AB6U
C12 CK1222AB7R
C40,50,53,54,172,173,
241,184
C186 CK2224AB7R
C169,264,233 CK5225AA7R
C32,84,126,151,179,180,
194,195,306,94
C130,322 CTY161046Z
C163 CTY162246Z
C164,167,213,109,125,
137,147
C129 CTY162256Z
C189,140,323,46 CTY164756Z
IC4 YNMA08005M IC AN8005M-E2
IC1 YNJR00324M IC NJM324M
IC6 YNJR04558M IC NJM4558M
IC3 YNJR03404A IC NJM3404M
IC2 YNMC45162D IC MC145162D
IC9 YNSM6130X4 IC TDA6130
Q19,64 TY2SC3356Z TR 2SC3356
Q47,49,67 TY2SB0798Z TR 2SB798DL
Q3,5,6,8,15,18,30,35,40,
43,44,45,48,50,53,55,57,
65,68,69,71,28,401
Q7,41 TY2SA1298Y TR 2SA1298Y
Q1,2,9,10,11,12,13,14,22,
23,25,29,32,33,34,36,37,
38,58,59,24
Q73,74 TYTN2510N8 TR TN2510N8
Q16,17,26,27,52,54,56,70,
72,76
Q42,46 TYZRN2403Z TR RN2403
Q20,21 FY2SK0302Z F.E.T 2SK302
D1,11 EDSS00226Y DIODE 1SS226
D82 EDSS00314Y DIODE 1SS314
D2-10,14-17,23-33,35-41,
48,49-52,54-63,67,69-77,
83-85,87,100-104,110,111,
20,80,81,403,12,R295
D89,90,109,94 ED1N04148Y DIODE 1N4148
D78,79,86,88 EDSS00184Y DIODE 1SS184
D21,42,44,45,46,47 ED1V00217Y DIODE 1SV217
D22,107,95,96,97,108 ED1V00231Y DIODE 1SV231
D34 EDHM0198SY DIODE HSM198S
D18,19,113,114 EDRS00135Y DIODE RLS135
D65,98 EDMA0028TY DIODE MA28T
D53,66 EDMA0028WY DIODE MA28W
D105,106 EDRL04004X DIODE RLR4004
D64 EDZD05519Y ZENER DIODE 5.1V
D68 EDZD05759Y ZENER DIODE 7.5V
D112 EDZD05569Y ZENER DIODE 5.6V
VC2 CV038100AY TRIMMER/C 10PF

CK1103AB5X

CK1102AB7L

CK1473AB7R

CK1472AB6U

CK5105AB7R

CTY161056Z

TY2SC2712G TR 2SC2712GR

TY2SC2714Z TR 2SC2714

TYZRN1403Z TR RN1403

EDSS00355Y DIODE 1SS355

0.01µF 50WV

0.001µF 50WV

0.047µF 50WV

0.47µF 25WV

4.7µF 16WV

0.022µF 50WV

0.015µF 50WV

0.0022µF 50WV

0.0047µF 50WV

0.22µF 25WV

2.2µF 16WV
1µF 16WV

0.1µF 16WV

0.22µF 16WV
1µF 16WV

2.2µF 16WV

4.7µF 16WV

L22 YCTLI2263C
L15 YCTLI1053C
L16 YCTLI2255C
TP7-TP9 EPT120060A PCB DC B+
R274,275 RCP121514Z
R270 RCP121034Z
C214 CC0501804L 18PF 50WV
C217 CC0503904A 39PF 50WV
C222 CC0504704A 47PF 50WV
C209 CC0508204A 82PF 50WV
C215 CC0501215A 120PF 50WV
C216 CC0501815A 180PF 50WV
C221,223 CC0503915G 390PF 50WV
C220 CC1001037L
C219 CD3005614Z 560PF 300WV
C13,24,27,28,52,63,72,

102,168,200,308,90
C188,198 CE0252267Z
C42,43,45,154,183,261 CE0254767Z
C166,260,103,128,
329(C144)
C161,185,328 CE0163377Z
C269,270 CE0251087Z
FL1 EFCFW455HT CERAMIC FILTER

FL2 EFCFE107MX CERAMIC FILTER

FL3 EFX8106952 CRYSTAL FILTER

X1 EYCAB10240 CRYSTAL

X2 EYBAB10100 CRYSTAL 10.1MHz
X3 EYBAE10697 CRYSTAL

IC5 ENMA00612Z IC AN-612
IC7 ENTA07222A IC TA7222AP
IC9 ENSM06130Z IC TDA6130
IC9 ENRCI06130 MODULAR IC100
Q51 T2SA01869Z TR 2SA1869
Q60 T2SC02312C TR 2SC2312C
Q62 T2SC02166C TR 2SC2166C
Q66 T2SB00754Y TR 2SB754Y
Q63 T2SC02538Z TR 2SC2538
D91,92,93 ED1N04148Z DIODE 1N4148
L2,3 ECIFT12002 I.F.T
L20 ECIFT12013 I.F.T.
L18,19 ECIFT12016 I.F.T.
L1,11 ECIFT12252 I.F.T.
L5 ECIFT12253 I.F.T.
L38 ECIFT12255 I.F.T.
L9,10 ECIFT12256 I.F.T.
L12 ECIFT12257 I.F.T.
L34 ECIFT12559 I.F.T.
L35 ECIFT12560 I.F.T.
L13,14,17 ECIFT12264 I.F.T.
L37 ECIFT12265 I.F.T.
L6 ECIFT12290 I.F.T.
L7 ECIFT12440 I.F.T.
L8 ECIFT12492 I.F.T.
L4 ECIFT12526 I.F.T.
L27,28,31 ECCHK16070
T1 ECCHK16004 CHOKE COIL 1.1mH
L23,24 ECSPG18003 SPRING COIL

L25 ECSPG18077 SPRING COIL

L29 ECSPG18090 SPRING COIL

L26 ECSPG18365 SPRING COIL

L33 ECBAD18526 BEAD COIL

L32 ECRFZ10048

CE0251067Z

CE0161077Z

CHOKE COIL 22µH
CHOKE COIL 1µH
CHOKE COIL 2.2µH

150Ω 1/2W
10KΩ 1/2W

0.01µF 100WV

10µF 25WV

22µF 25WV
47µF 25WV
100µF 16WV

330µF 16WV
1000µF 25WV

CFW-455HT

SPE10.7MX

10.695MHz

10.24MHz

10.6975MHz

CHOKE COIL 22µH

0.8x6.5x7.5t

0.8x6x6.5t

0.8x3x4t

0.8x6.5x7.5t

3.5x6x1.2
RF COIL 25µH

- 56 -

VR8,9,13,17,19 RE10200041
VR14,15 RE50200042
VR1,2,7,16,18 RE10300031
VR10 RE10400043
VR3,4 RE50400087
VR11,12 RE10100074
J10 EX07N41216 PCB CONN/S 3P
J25 EX07N48222 PCB CONN/S 5P
J4,11,12,19,20,22,5 EX07N48223 PCB CONN/S 2P
J27 EX07N48224 PCB CONN/S 7P
J3,16,23 EX07N48331 PCB CONN/S 6P
J2,18,28 EX07N48350 PCB CONN/S 3P
TP1,3,5,10,11,12,13,15,16

,17
TP7,8,9 XZZZ90006Z PCB STOPPER

- GZZZ50062Z V TYPE JACK
J14 WX01070703 JUMPER WIRE
L30,36 WX01070710 JUMPER WIRE

- MT2950050X SHIELD COVER A

- MT2950060X SHIELD COVER B

- MT2950070X SHIELD COVER C

EX07N48612 PCB CONN/S 1P

S/F/R 1KΩ
S/F/R 5KΩ
S/F/R 10KΩ
S/F/R 100KΩ
S/F/R 500KΩ
S/F/R 100Ω

RCI-2995DX MISC. PART

REFERENCE
NUMBER

METER-METER RCP202204Z
41036 CC0501037L
EDBG2BD11Z CC0502237L

- EWPS33050X POWER SW

- EX02N40214 FUSE 125V 5A

- ES300835SQ SPEAKER
METER-METER EX01N40080 LAMP 5.3V 40mA

- EX03N40493 SIGNAL METER

- EX03N40449 SWR/RF METER

- ETPRC20099 R-CORE

- EX06N41029 ANT JACK

- EX06T41024 RCA SOCKET

- EX06N41036 TERMINAL

- EX04N40620 MICROPHONE

J20-RCA JACK EX07N48346 WIRE CONN/H 2P
MAIN PCB(J5)-RCA JACK EX07N48888 WIRE CONN/H 2P
41Z(CN610)-70Z(J102) EX07N48513 WIRE CONN/H 3-3P
90A-41Z(CN604) EX07N48514 WIRE CONN/H 3-3P
180B(J182)-SP EX07N48874 WIRE CONN/H 2P
41Z(SK2)-31Z,
41Z(SK1)-31Z
J22-POWER PCB(J1) EX07N48999 WIRE CONN/H 2-2P
90Z(J402)-41Z(CN603) EX07N48519 WIRE CONN/H 3-3P
180B(J184)-200B EX07N48994 WIRE CONN/H 3P
J23-41Z(CN607) EX07N49038 WIRE CONN/H 6-6P
J4-180B(J180) EX07N49043 WIRE CONN/H 2-2P
J16-140B(J140) EX07N49228 WIRE CONN/H 6-6P
J19-120B(J121) EX07N49123 WIRE CONN/H 2-2P
J12-41Z(CN601) EX07N49125 WIRE CONN/H 4-2P
J11-170B EX07N49128 WIRE CONN/H 2P
J10-41Z(CN605)­70Z(J701)-70Z(J703)
J28-130B(J132) EX07N49195 WIRE CONN/H 3-3P
J25-130B(J130) EX07N49196 WIRE CONN/H 5-5P
J27-90Z(J401) EX07N49197 WIRE CONN/H 7-7P
J3-41Z(CN606) EX07N49198 WIRE CONN/H 6-6P
J2-180B(J185) EX07N49199 WIRE CONN/H 3-3P
J18-METER-150B(J150)­METER-41Z(CN608)­POWER PCB(J2)
180B(J183)-MAIN PCB EX07N48510 WIRE CONN/H 2P
METER-METER WL0010005Z LEAD WIRE BLACK

RANGER
PART NO.

EX07N48518 WIRE CONN/H 6-6P

EX07N49138 WIRE CONN/H

EX07N49229 WIRE CONN/H

DESCRIPTION

22Ω 2W

0.01µF 50WV

0.022µF 50WV

TRANSFORMER

CONNECTOR

ASSY

3-3-2-2P

5-3-2-2P

CPU(LP1)-METER,
CPU(LP2)-METER
E/C(-)-E/C(-) WN0007027K LEAD WIRE BLACK
E/C(+)-E/C(+) WN0307027K LEAD WIRE

110B(B3)-E/C,110B(B4)­E/C
110B(B1)-E/C,110B(B2)­E/C
190A(F)-50X/W,190A(G)­50X/W
110B(B9)-50X/W WI0360011S LEAD WIRE

E/C(-) WN0060011B LEAD WIRE BLACK
E/C(+) WN0360011B LEAD WIRE

110B(B6)-MAIN(GP) WI0060011S LEAD WIRE BLACK
TC41036 WN0260005Z LEAD WIRE RED
TC41036 WN0960005Z LEAD WIRE WHITE
MAIN(V+)-50X/W WN0373005Z LEAD WIRE

POWER PCB WN0204005Z LEAD WIRE RED
POWER PCB WN0905505Z LEAD WIRE WHITE
110B(B7)-POWER PCB
(B-)--110B(B8)-POWER
PCB(B+)00
190(A)-FUSE WU0212011Q TWIN S/WIRE RED

- WA0100180A AC CORD
POWER PCB(O/P)-ANT,
POWER PCB(I/P)­MAIN(ANT)

- WX0040015B PVC TUBE

- WX0040009B TUBE

- CE0353397Z
ANT JACK GZZZ50062Z V TYPE JACK

- PTTURB010A RUBBER KEY

- PTTURB020A REFLECTOR

- PTTURB030A DISPLAY WINDOW

- PT0SSB010A GLASS WINDOW

- PT0SSB040A PLASTIC FOOT

- PT0SSB070A METER BACK

- PT0SSB092A ACRY WINDOW

- PT3600090A KNOB WASHER

- PA0100010A MICA INSULATOR

- MTTURB012X FRONT CHASSIS

- MTTURB180B FRONT PANEL

- MTTURB030A BACK PANEL

- MTTURB041X MAIN PCB

- MTTURB050K HEATSINK COVER

- MTTURB064B REAR HEATSINK

- MTTURB070X PT HOLDER

- MTTURB080X PT BRACKET

- MTTURB090X POWER PCB

- MTTURB100X TR HEATSINK

- MTTURB110X METER HOLDER

- MTTURB140D CHANNEL KNOB

- MTTURB150A PUSH BUTTON

- MT0SSB021S BOTTOM PLATE

- MT0SSB071S RIGHT SIDE

- MT0SSB081S LEFT SIDE

- MT0SSB120B HANDLE ASSY

- MT0SSB130B HANDLE ASSY

- MT0SSB141S HANDLE BRACKET

- MT0SSB170N MIC BRACKET

- MT0SSB305X HEATSINK E

- 57 -

WL0017005Z LEAD WIRE BLACK

ORANGE

WI0020027R LEAD WIRE BLACK

WI0320027R LEAD WIRE

ORANGE

WN0250011Q LEAD WIRE RED

ORANGE

ORANGE

ORANGE

WX07918170 LEAD WIRE

RED/BLACK

WX04129230 RF CABLE

33000µF 35WV

PANEL

PLATE

HOLDER

COVER

CHASSIS

HOUSING

BRACKET

BRACKET

BLACK

BLACK

- MT0SSB010B TOP COVER

- MT0SSB390X FIXED PLATE

- MT0SSB101K INDICATOR NAME

- MT0SSB161B VR KNOB BLACK

- ML1645310X ANT COVER
POWER PCB MTTURB160X ONSERT

- MM5500100X HEATSINK C
METER BT6300041A MIC PLATE

- QT2950010A RUBBER KEY

- QM5500030A EARPHONE

CPU PCB XZZZ90374Z SPONGE

- XZZZ90208Z SPONGE
295031Z XZZZ90367Z SPONGE

- GZZZ50000Z CLAMP

- GZZZ50168Z CORD BUSHING

- GZZZ50049Z FUSE HOLDER
TOP COVER LZZZ60018Z SHIELD CLOTH A
SPEAKER LZZZ60020Z SHIELD CLOTH C
FEET LZZZ60021Z FOOT WASHER
2166,2312,473x1 XZZZ90003Z INSULATING RING

- XZZZ90358Z INSULATING

- XZZZ90057Z EAR PVC WASHER

- XZZZ90098Z SOLDER PLATE

- XZZZ90020Z INSULATING

METER XZZZ90061Z FOAM
90Z PCB XZZZ90357Z U TYPE BRACKET
IC7808 XZZZ90072Z INSULATING RING
BUZZER XZZZ90206Z SPONGE

- XZZZ90091Z FOAM

- JS013006MN SET SCREW
PT JS055010MN SET SCREW
HANDLE(4) JS035012MB SET SCREW
FRONT PLATE(3) JS033006MN SET SCREW

- JS053208WB SET SCREW
HANDLE(4),
TOP COVER(4)
REA(2),PT BKT(4) JS053008MB SET SCREW
754(1),ANT(1) JS053010MN SET SCREW
IC(3) JS052010MN SET SCREW

JS055012MB SET SCREW

BLACK

PLATE

COVER

PLATE

PLATE

2SA1869(1) JS052006MN SET SCREW
BACK PANEL(3),
INDICATOR,PLATE(4)

- JS053508TH SET SCREW
FEET(4) JS013014TH SET SCREW
E I/C(4),PCB CHASSIS(2),
HANDLE BKT(8),RIGHT/
LEFT(8),MAIN PCB(4),
FRONT PANEL(2),
POWER HOLDER(4),
BOTTOM PLATE(8),
MIC BKT(1),LED PCB(1),
LCD HOLDER(4)
EPT0SSB110A JS013508TH SET SCREW
PT(4),PCB CHASSIS(4),
PT
HEATSINK(4) JS054018MB SET SCREW
IC TA7222(1) JS013008MV SET SCREW

- JS013006SN SET SCREW
EAR PHONE(3) JW306011EY WASHER
SET/TOP COVER(4),
HANDLE(4)
FEET(4) JW304009FS WASHER
POWER PCB(4),ANT(1) JN243024ZS NUT

- JN263035ZS NUT WITH

- JE412004ZX EYELET

- JW315510CN OUT-TOOTH

- JS015010WH SET SCREW

- EX02N40214 FUSE 125V 5A

- XZZZ90008Z MIC STOPPER

- EDBG2BC11Z (22BC11) BRIDGE

- EDBG2BD11Z (22BD11) BRIDGE

(7222A) LZZZ61008Z IC SHIELD B

JS053008TB SET SCREW

JS013008TH SET SCREW

JS054008MS SET SCREW

JW305312FB WASHER

WASHER

WASHER

RECTIFIERS

RECTIFIERS

- 58 -

Main PCB Adjustment Location

- 59 -
