Page 1
Integrated Fridge
User Guide
&
Installation & Service Instructions
U110831-01
Page 2
Contents
1. Before You Start 1
Safety 1
Electrical Safety 3
CE Declaration of conformity 3
Disposal of your old appliance 3
Packaging and the Environment 3
2. About Your fridge 4
3. Using the Control Panel 5
Operating your Fridge 5
Accessories 7
4. Food Storage Tips 8
Food storage 8
Tips on Storing Fresh Food 9
5. Cleaning and Maintenance 10
Cleaning 10
When not in use 11
6. Troubleshooting 12
Tips for saving energy 13

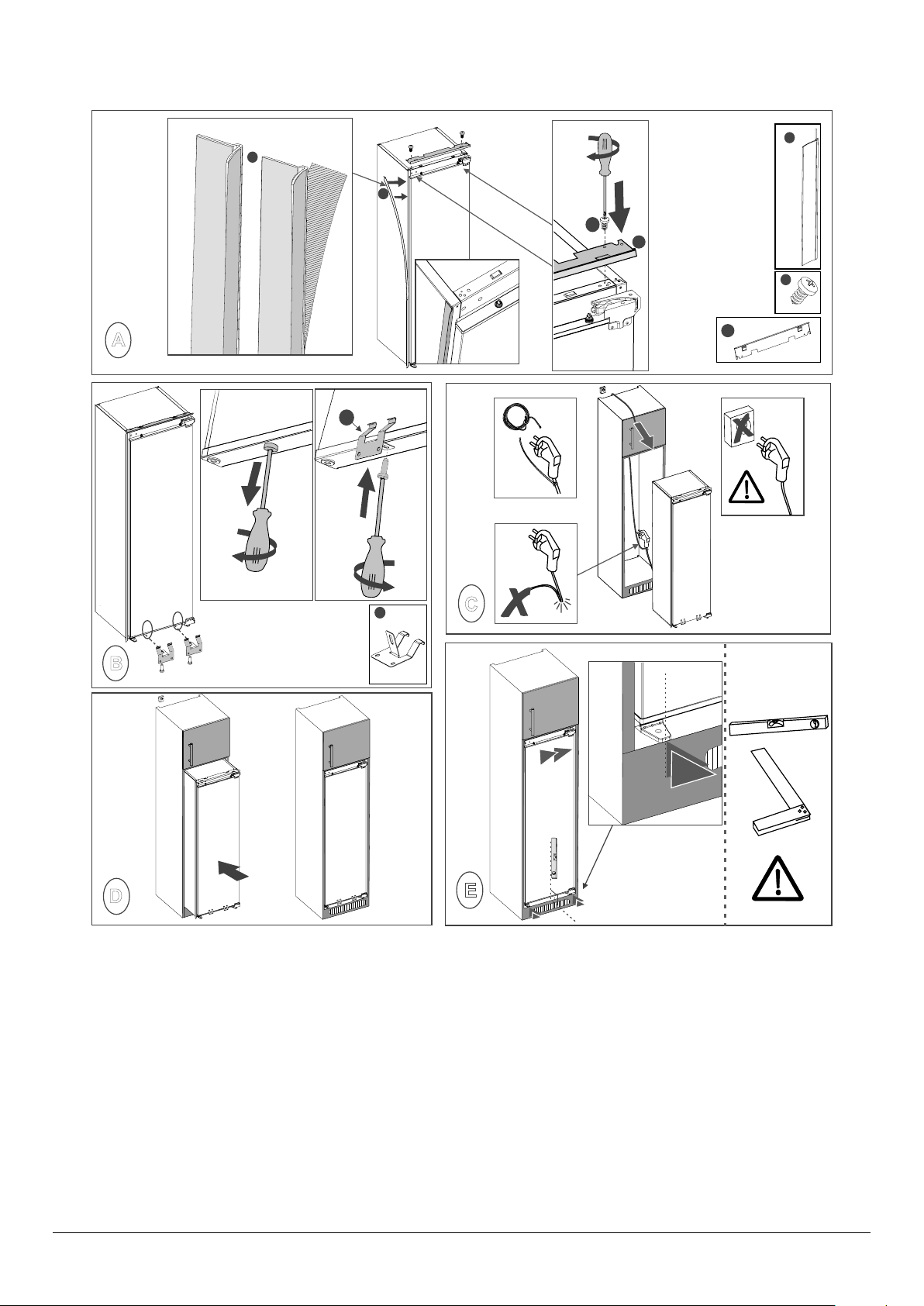

7. Installation 14
Installation warnings 14
Positioning Your Appliance 15
Electrical Supply Connection 16
8. Circuit diagram 21
9. Technical Data 22
10. Warranty/After Sales Service 24
Due to our policy of continual improvement, we reserve the right to change specications without prior notice.
Page 3
1. Before You Start
Icon Type Meaning
WARNING Serious injury or death risk
RISK OF ELECTRIC SHOCK Dangerous voltage risk
Thank you for buying a Rangemaster appliance. We hope
that it provides a stylish yet practical solution to your cooling
needs. We hope that this handbook supplies you with all the
information you require. If there is anything you are unsure of
please contact us (see ‘Warranty’ section for Customer Care’s
details).
FIRE Fire risk
CAUTION Injury or property damage risk
IMPORTANT Operating the system correctly
WARNING: This appliance must be earthed.
Please leave the appliance to stand for at least six
hours. This will allow the cooling system to settle
following transportation.
Always make sure a qualied person installs this
appliance.
This appliance is designed for domestic use only.
Using it for any other purpose could invalidate any
warranty or liability claim.
• Before you plug the appliance into the mains, clean
the inside of the appliance using warm water and
bicarbonate of soda, then dry thoroughly.
• Check that no parts of the appliance are damaged,
especially parts of the cooling system, pipes or leads.
If damage has occurred, DO NOT install the appliance;
you should contact a qualified service engineer or
return the appliance to its place of purchase.
• If the accessories inside the appliance have been
disturbed during transit, reposition them in accordance
with the instructions.
• Make sure that the electrical supply to your plug socket
is correct for this appliance – the required information is
on the data badge of the appliance.
• Once the appliance is installed, cleaned and dry, it is
ready to be plugged in and switched on.
Safety
The data badge is located inside the appliance
(refrigeration compartment).
WARNING: Use potable (drinking) water with this
appliance.
WARNING: Keep this appliance clear of any
obstruction.
DO NOT damage the refrigerant circuit. If it does
become damaged, do not use the appliance.
WARNING: DO NOT use mechanical devices (such as
hairdryers) to defrost this appliance.
If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the
cooler) you should take care during transportation
and installation to prevent the cooler elements
from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In
the event of a leak due to damage of the cooler
1
Page 4
elements, move your appliance away from open
ames or heat sources and ventilate the room where
the appliance is located for a few minutes.
• When replacing old appliances, make sure that you
have disabled any locking mechanisms before disposal
– it may even be best to remove the appliance door
completely to prevent children from becoming trapped
inside the appliance.
• The appliance must be connected to the power supply
safely. Loose connections, broken plugs and bare wires
are a safety hazard. Make sure that all connections are
sound.
• Before undertaking any routine maintenance or minor
repairs, disconnect the appliance from the electrical
supply.
• DO NOT touch cold surfaces of the appliance while it is
in use as this will cause hands to stick to them leading
to freezer burns.
• When moving the appliance take care not to damage
the leads, pipes or condenser unit. Should these parts
become damaged, contact a qualified service engineer.
• Effervescent liquids (fizzy drinks) should never be
frozen. These liquids expand during freezing and
this may lead to the bottles/containers shattering or
exploding.
• Foods that are intended to be defrosted or cooked first,
such as breads or meats, must not be eaten in their
frozen state.
• If food looks or smells strange, do not attempt to eat it.
If in doubt throw it away. Spoiled food can be harmful to
your health.
• Never use sharp, metal implements to scrape ice off the
surface of this appliance. Only use implements, which
are fit for this purpose (such as plastic scrapers) and use
carefully to avoid damaging the lining of the appliance.
• The cooling system contains refrigerant and oils, all of
which are harmful to health if leaked. Should leakage
occur, disconnect the appliance and ventilate the room
it is installed in. Take care to ensure that you do not get
any coolant near to, or in, your eyes. Contact a service
engineer or arrange to have the appliance removed.
DO NOT use the appliance under any circumstances.
WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING: DO NOT use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
WARNING: DO NOT damage the refrigerant circuit.
WARNING: In order to avoid any hazards resulting
from the instability of the appliance, it must be
xed in accordance with the following instructions:
If your appliance uses R600a as a refrigerant (this
information will be provided on the label of the
cooler) you should take care during transportation
and installation to prevent the cooler elements
from being damaged. R600a is an environmentally
friendly and natural gas, but it is explosive. In
the event of a leak due to damage of the cooler
elements, move your appliance away from open
ames or heat sources and ventilate the room where
the appliance is located for a few minutes.
While carrying and positioning the appliance, do not damage
the cooler gas circuit.
DO NOT store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
This appliance is intended to be used in household and
domestic applications only.
If the socket does not match the appliance plug, it must be
replaced by the manufacturer, a service agent or similarly
qualied persons in order to avoid a hazard.
A specially grounded plug has been connected to the power
cable of your appliance. This plug should be used with
a specially grounded socket of 13 amperes. If there is no
such socket in your house, please have one installed by an
authorised electrician.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and
user maintenance shall not be made by children without
supervision.
If the supply cord is damaged, it must be replaced by the
manufacturer, an authorised service agent or similar qualied
persons, in order to avoid a hazard.
This appliance is not intended for use at altitudes exceeding
2000 m.
WARNING: DO NOT use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
2
Page 5
Electrical Safety
ArtNo.000-0001
Wa
CE Declaration of conformity
WARNING: When positioning the appliance, ensure
the supply cord is not trapped or damaged.
WARNING: DO NOT locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
DO NOT use plug adapter.
rning triangle
WARNING; Risk of re / ammable materials
• The plug must be accessible after installation.
• The operating voltage for your appliance is 220-240 V at
50Hz.
• Connections to the mains supply should be in
accordance with local regulations.
• Insert the plug into a socket with an efficient ground
connection. If the socket has no ground contact or the
plug does not match, we recommend you consult a
qualified electrician for assistance.
• The appliance must be connected with a properly
installed fused socket. The power supply (AC) and
voltage at the operating point must match with the
details on the name plate of the appliance (the name
plate is located on the inside left of the appliance).
• The appliance must be plugged into an earthed socket.
• We declare that our products meet the applicable
European Directives, Decisions and Regulations and the
requirements listed in the standards referenced.
Disposal of your old appliance
• The symbol on the product or on its packaging indicates
that this product may not be treated as household
waste. Instead it shall be handed over to the applicable
collection point for the recycling of electrical and
electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential
negative consequences for the environment and
human health, which could otherwise be caused by
inappropriate waste handling of this product. For more
detailed information about recycling of this product,
please contact your local city office, your household
waste disposal service or the shop where you purchased
the product.
Packaging and the Environment
• Packaging materials protect your machine from damage
that may occur during transportation. The packaging
materials are environmentally friendly as they are
recyclable. The use of recycled material reduces raw
material consumption and therefore decreases waste
production.
• The plug MUST be accessible after the appliance has
been positioned.
• The appliance is supplied with a standard three-pin
plug, of which the one for grounding should never be
removed.
• Hold the plug, not the electrical cable, when
unplugging the appliance.
• Make sure that the appliance does not trap the electric
cable.
• DO NOT step on the cable.
• Avoid damage to the electric cable when moving the
appliance.
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not
responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used in homes and it
can only be used in domestic environments and for the
specified purposes. It is not suitable for commercial or
common use. Such use will cause the guarantee of the
appliance to be cancelled and our company will not be
responsible for the losses to be occurred.
• This appliance is produced to be used in houses and
it is only suitable for cooling / storing foods. It is not
suitable for commercial or common use and/or for
storing substances except for food. Our company is not
responsible for the losses to be occurred in the contrary
case.
3
Page 6
6
7
8
9
6
2
5
10
4
3
1
14
13
12
11
Range Fresh Preserver
2. About Your fridge
Fig. 2.1
Fig. 2.2
The fridge is shown in Fig. 2.1 and has the following features:
1. Control panel
2. Even-Circ™
3. LED light
4. Egg tray
5. Wine rack
6. Door shelves
7. LED light strips
8. Opti-lift™
9. Bottle shelf
10. Fridge shelves
11. Upper crisper cover
12. Upper crisper
13. Crisper cover
14. Lower Crisper
Range Fresh (Fig. 2.2)
Range Fresh Preserver helps to remove ethylene gas
(a bioproduct released naturally from fresh foods) and
unpleasant odors from the crisper.
It must be regenerated once a year under a full day sunlight
for 24 hours, for example on a window sill.
To regenerate the lter, remove the casing of the lter box by
pulling it in the direction of the arrow (Fig. 2.2).
The lter should not be washed with water or in any
detergent.
4
Page 7
3. Using the Control Panel
1 2 3 4
Fig. 3.1
Using the Control Panel
1. Fridge temperature set button
2. Super cooling symbol (Super cooling LED)
3. Alarm symbol (Alarm LED)
4. Fridge adjusted temperature indicator
Operating your Fridge
Fridge Temperature Set Button
This button allows setting temperature of the fridge. In order
to set values for fridge partition, press this button. Use this
button also to activate super cooling mode.
Super Cooling Mode
When would it be used?
• To cooling huge quantities of food.
• To cooling fast food.
• To cooling food quickly.
• To store seasonal food for a long time.
Fig. 3.2
To use the super cool mode press the temperature set button
until super freezer light comes on (Fig. 3.2). To cancel press
the temperature set button.
For optimal appliance performance in maximum cooling
capacity, set the appliance to active super cooling mode 6
hours before you put the fresh food into the fridge.
During this mode:
If you press temperature set button, the mode will be
cancelled and the setting will be restored from 2.
The super cooling mode will be cancelled automatically after
6 hours or when cooling sensor temperature falls below 2 °C.
5
Page 8
Fig. 3.3
Fridge Temperature Settings
• The initial temperature of the setting display is 5°C.
• Press fridge setting button once.
• Every time you press the button, the setting
temperature will increase. (2°C, 4°C, 5°C, 6°C, 8°C, Super
cooling)
• If you press fridge setting button until super cooling
symbol is displayed on your fridge.
• After 3 seconds the wuper cooling light will blink.
• If you keep on pressing, it will restart from last value.
Temperature Settings Warnings
• It is not recommended that you operate your fridge in
environments colder than 10°C in terms of its efficiency.
• Do not start another adjustment before completing one
adjustment.
• Temperature adjustments should be made according
to the frequency of door openings, the quantity of food
kept inside the fridge and the ambient temperature in
the location of your fridge.
• When you first switch on the appliance, allow it to
operate for 24 hours in order to reach normal operating
temperature.
• During this time, do not open the door or place a lot of
food inside the appliance.
• If the appliance is switched off or unplugged, wait at
least 5 minutes before plugging the appliance in or
restarting it this will prevent damage to the compressor.
• Your appliance is designed to operate in the ambient
temperature (T/SN = 10°C - 43°C) intervals stated in
the standards. We do not recommend operating your
appliance out of the stated temperature limits in terms
of cooling effectiveness.
Even-circ(Fig. 3.3)
Do not block the air inlet and outlet openings when storing
food, otherwise air circulation provided by the turbo fan will
be impaired.
6
Page 9
Accessories
The Fresh Dial (Fig. 3.4)
If the crisper is full, the fresh dial located in front of the crisper
should be opened.
This allows the air in the crisper and the humidity rate to be
controlled, to increase the life of food within.
The dial, located behind the shelf, must be opened if any
condensation is seen on the glass shelf.
Opti-lift™
Fig. 3.4
Six dierent height adjustments can be made to provide
storage areas that you need by adjustable door shelf.
To change the position of adjustable door shelf.
Remove all foods, bottles and liquids from Opti-lift™ tray
before adjusting height.
Hold the bottom of the shelf and pull the buttons on the side
of the door shelf direction of arrow (Fig. 3.5). Position door
shelf to the height you need by moving up and down. After
you set the position, release the buttons on the side of the
door shelf (Fig. 3.6) Before releasing the door shelf, move up
down and make sure the door shelf is xed.
Note: Before moving door shelf is loaded, you must hold the
shelf by supporting the bottom. Otherwise, door shelf could
fall o the rails due to the weight. So damage may occur on
the door shelf or rails.
Fig. 3.5
Fig. 3.6
7
Page 10
4. Food Storage Tips
Food storage
Fridge Compartment
• To reduce humidity and avoid the consequent
formation of frost, always store liquids in sealed
containers in the fridge. Frost tends to concentrate in
the coldest parts of the evaporating liquid and, in time,
your appliance will require more frequent defrosting.
• Never place warm food in the fridge. Warm food should
be allowed to cool at room temperature and should be
arranged to ensure adequate air circulation in the fridge
compartment.
• Make sure no items are in direct contact with the
rear wall of the appliance as frost will develop and
packaging will stick to it. Do not open the fridge door
frequently.
• We recommend that meat and clean fish are loosely
wrapped and stored on the glass shelf just above the
vegetable bin where the air is cooler, as this provides
the best storage conditions.
• Store loose fruit and vegetables in the crisper.
Food Maximum
storage time
Vegetables and fruits 1 week Vegetable bin
Meat and sh 2 - 3 Days Wrap in plastic foil,
Fresh cheese 3 - 4 Days On the designated
Butter and margarine 1 week On the designated
Bottled products e.g.
milk and yoghurt
Eggs 1 month On the designated egg
Cooked food All shelves
Until the expiry date
recommended by the
producer
How and where
to store
bags, or in a meat
container and store on
the glass shelf
door shelf
door shelf
On the designated
door shelf
shelf
Table 4.1
• Storing fruit and vegetables separately helps prevent
ethylene-sensitive vegetables (green leaves, broccoli,
carrot, etc.) being affected by ethylene-releaser fruits
(banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the fridge.
• Storage time for all food products depends on the initial
quality of the food and an uninterrupted refrigeration
cycle before fridge storage.
• To avoid cross-contamination do not store meat
products with fruit and vegetables. Water leaking from
meat may contaminate other products in the fridge. You
should package meat products and clean any leakages
on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended
expiry date.
NOTE: Potatoes, onions and garlic should not be stored in
the fridge. The table Table 4.1 is a quick guide to show you
the most ecient way to store the major food groups in your
fridge compartment.
8
Page 11
Tips on Storing Fresh Food
• Make sure that foods, which have been cooked and
require chilling, are at room temperature before placing
them into the appliance. Make sure that these foods are
stored in suitable containers.
• Foods stored in the fridge should be cleaned and dried
before storing.
• Before foods are put into the fridge, it is recommended
that the foods should be pressurised, so that the water
cannot vaporise, and the fruits and vegetables keep
fresh and food smells will not mix.
• Beverages with high alcohol content should be stored
vertically in tightly sealed bottles.
• Delicate foods should be stored in the coolest part of
the appliance.
• Try not to open the door too often.
• Set the thermostat to make sure that foods remain
suitably cold; try to avoid freezing within the fridge.
Using a thermometer will help you to judge how cool
the appliance is. Place it into a glass of water and leave
it inside the appliance for several hours to get a reliable
reading.
• Stored foods can be marked in bags.
• Foods eaten daily should be stored at the front of the
shelf.
• Make sure that foodstuffs are stored systematically (raw
meats with raw meats, dairy with dairy) to avoid flavour
transfer and cross contamination. Raw meats should be
stored towards the bottom of the appliance to prevent
the possibility of it dripping onto uncooked food. Other
foods should be stored above raw meat.
• When storing food in the fresh food section always
make sure there is adequate space for airflow
circulation. This helps to maintain the shelf life of the
food.
• When storing food in the fridge make sure that foods
are not too close to the rear wall to avoid the risk of
freezing.
• It is suggested for radishes and other root vegetables to
trim the leaves. This keeps the nutrition in the root and
not absorbed by the leaves.
• Put frozen foods into the fresh food area to let them
defrost. The low temperature of the fridge reduces the
formation of bacteria and extends food life.
• Some foods contain natural oils and acids (e.g. citric
acid) which can damage plastics if spilled – make sure
these foods are suitably contained.
• Unpleasant odours inside the fridge are a sign that
something has spilled and cleaning is required. Using
warm water with bicarbonate of soda will clean the
interior of the appliance and remove most spillages (see
‘Cleaning and Maintenance’).
• Always remember to remove perishable foods from this
appliance before taking prolonged trips of holidays.
• Some foods like onions, garlic, bananas and root
vegetables are better stored at room temperature than
in the fridge.
• Melon, pineapples and bananas can go directly into the
freezer after preparing, for storage over a longer period.
• Packaging fresh foods properly, using the correct
temperature and taking into account food hygiene, will
enhance the quality of fresh foods stored within this
appliance.
• Use plastic bags, aluminium foil or other food wraps to
cover fresh foods not in packaging to prevent flavour
transfer and prevent contamination.
• Before storing items in multi-packs (i.e. yoghurt) remove
any excess packaging.
• NEVER store anything that is flammable, volatile or
explosive inside the appliance.
9
Page 12
5. Cleaning and Maintenance
Cleaning
Disconnect the appliance from the power supply
before cleaning.
Do not wash your appliance by pouring water on it.
DO NOT use harsh abrasives, or aggressive cleaners
as these can damage the interior of the appliance.
The fridge is heavy. When moving the fridge be
careful to protect the oor. Keep the fridge vertical
and do not tilt the fridge – this prevents damage to
the oor.
DO NOT spray or rinse the fridge with water or other
liquids. This could harm the electrical parts.
Use a dry cloth when cleaning near the electrical
parts (such as the light bulb or switch).
DO NOT clean the fridge with a sti or wire brush.
DO NOT use an organic solvent such as detergent,
petrol, lacquer, thinners, acetone or acid.
To prevent your skin sticking to cold steel parts,
make sure your hands are not wet when touching
the parts.
DO NOT use HOT water to clean the glass shelves, as
they may break or crack.
To keep internal odours to a minimum it is best to periodically
clean the inside shelves, crispers, bins and wall.
Empty the appliance of food and remove the shelves.
Clean the interior using warm water and bicarbonate of soda
with a soft cloth. Make sure that the interior is then dried
carefully with a suitable cloth.
After washing, rinse with clean water and dry carefully. When
you have nished cleaning, reconnect the plug to the mains
supply with dry hands.
Shelves and other accessories (plastic and glass parts) can be
cleaned in the sink using liquid dishwashing liquid and warm
water. Make sure all soap is rinsed o and all parts are dry
before replacing them inside the appliance.
Always keep the door seals clean.
Make sure that no water enters the lamp housing and other
electrical components.
The appliance should be cleaned regularly using a solution of
bicarbonate of soda and lukewarm water.
Clean the accessories separately by hand with soap and
water. Do not wash accessories in a dish washer.
Clean the condenser with a brush at least twice a year.
This will help you to save on energy costs and increase
productivity.
10
Page 13
Defrosting the Fridge Compartment (Fig. 5.1)
Upper side LED strip
(In some models)
Left-Right side LED strip
(In some models)
Defrosting occurs automatically in the fridge compartment
during operation. The water is collected by the evaporator
tray and evaporates automatically.
The evaporation tray and the water drain hole should be
cleaned periodically with the defrost drain plug to prevent
the water from collecting at the bottom of the fridge instead
of owing out.
You can also clean the drain hole by pouring half a glass of
water down it.
Replacing LED Lighting (Fig. 5.2)
Please refer to the Warranty chapter as this should be
changed by authorised personnel only.
The LED interior lights come on when the door is opened.
The performance of the light is not aected by any of the
appliances other settings.
Fig. 5.1
Note: The numbers and location of the LED strips may
change according to the model.
When not in use
If you are not using the appliance for an extended length
of time, it is recommended that you switch o the electrical
supply, empty any food out, clean the inside of the appliance
and leave the door ajar. This will save energy, and also prevent
a build up of stale odours inside.
Fig. 5.2
11
Page 14
6. Troubleshooting
Condenser
Before calling for service, please rst read the following table: this could save you time and money.
Error type Meaning Why What to do
Fig. 6.1
“Failure” Warning There is/are some part(s) out of order or there
is a failure in the cooling process.
The product is plugged for the rst time or a
long-time power interruption for 1 hour.
If you are experiencing a problem with your appliance, please check
the following before contacing the after-sales service.
Only a qualied service engineer should service the appliance and
only approved spare parts should be used.
Isolate the electricity supply before carrying out any
maintenance.
Your fridge does not operate
Check if:
• There is power.
• The plug is connected to the socket correctly.
• The socket fuse or the mains fuse has blown.
Check the door is open or not and check if
the product working 1 hour. If the door is not
open and the product had worked 1 hour,
call service for assistance as soon as possible.
• The socket is faulty. To check this, plug another working
appliance into the same socket.
Your fridge is performing poorly
Check if:
• The appliance is overloaded.
• The fridge temperature set to 2°C.
• The doors are closed properly.
• There is any dust on the condenser (Fig. 6.1).
• There is an adequate distance between the appliance
and surrounding walls. Please refer to Installation
chapter clearances.
Your appliance is operating noisily
The following noises can be heard during normal operation
of the appliance.
• Cracking (ice cracking) noise occurs: During
automatic defrosting. When the appliance is cooled or
warmed (due to expansion of appliance material).
• Motor noise: Indicates the compressor is operating
normally. The compressor may cause more noise for a
short time when it is first activated.
• Bubbling noise and splashing occurs: Due to the flow
of the refrigerant in the tubes of the system.
• Air blowing noise occurs: During normal operation of
the system due to the circulation of air.
12
Page 15
There is a build-up of humidity inside the fridge
Service Centre.
Check if:
• All food is packed properly. Containers must be dry
before being placed in the fridge.
• The fridge doors are opened frequently. Humidity of
the room will enter the fridge each time the doors
are opened. Humidity increases faster if the doors are
opened frequently, especially if the humidity of the
room is high.
The doors are not opening or closing properly
Check if:
• There is food or packaging preventing the door from
closing
• The door compartments, shelves and drawers are
placed properly
• The door gaskets are broken or torn
• Your fridge is level.
Recommendations
To stop the appliance completely, unplug from main socket
(for cleaning and when the door is left open)
Important:
In the case of a power failure, or if the appliance is unplugged
and plugged in again, the gas in the cooling system of your
fridge will destabilise, causing the compressor protective
thermal element to open.
This appliance is designed for domestic use and for the stated
purposes only. It is not suitable for commercial or common
use. If the consumer uses the appliance in a way that does
not comply with these instructions, we emphasise that the
manufacturer and the dealer will not be responsible for any
repair or failure within the guarantee period.
Tips for saving energy
1. Install the appliance in a cool, well ventilated room, but
not in direct sunlight and not near a heat source (such
as a radiator or oven) otherwise an insulating plate
should be used.
2. Allow warm food and drinks to cool before placing them
inside the appliance.
3. Drinks or other liquids should be covered when inside
the appliance. If left uncovered, the humidity inside the
appliance will increase, therefore the appliance uses
more energy. Keeping drinks and other liquids covered
helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and
opening the doors too frequently as warm air will enter
the appliance and cause the compressor to switch on
unnecessarily often.
5. Keep the covers of the dierent temperature
compartments (such as the crisper and chiller) closed.
6. The door gasket must be clean and pliable. Replace
gaskets if worn.
Your fridge will start to operate normally after 5 minutes.
If the appliance will not be used for a long period of time
(such as during holidays), disconnect the plug. Defrost
and clean the fridge, leaving the door open to prevent the
formation of mildew and odour.
If the problem persists after you have followed all the
instructions above, please consult the nearest Authorised
13
Page 16
7. Installation
Installation warnings
Before using your appliance for the rst time, please pay
attention to the following points:
• Your appliance may have an odour when it is operated
for the first time. This is normal and the odour will fade
when your appliance starts to cool.
• Before connecting your appliance, ensure that the
information on the data plate (voltage and connected
load) matches that of the mains electricity supply. If in
doubt, consult a qualified electrician.
• We DO NOT accept responsibility for any damages that
occur due to ungrounded usage.
• Place your appliance where it will not be exposed to
direct sunlight.
• Your appliance must never be used outdoors or
exposed to rain.
• Your appliance must be at least 50 cm away from stoves,
gas ovens and heater cores, and at least 5 cm away from
electrical ovens.
• If your appliance is placed next to a deep freezer,
there must be at least 2 cm between them to prevent
humidity forming on the outer surface.
• DO NOT cover the body or top of appliance with lace.
This will affect the performance of your appliance.
• DO NOT place anything on top of your appliance.
• DO NOT place heavy items on the appliance.
• Clean the appliance thoroughly before use (see
Cleaning and Maintenance).
• This product is intended to be used in the kitchen.
• Before using your appliance, wipe all parts with a
solution of warm water and a teaspoon of sodium
bicarbonate. Then, rinse with clean water and dry.
Return all parts to the appliance after cleaning.
14
Page 17
Positioning Your Appliance
The fridge must be carried by at least 4 people.
The original packaging and foam may be kept for retransportation (optional).
Fasten your appliance with thick packaging, bands or strong
cords and follow the instructions for transportation given on
the package.
Remove all movable parts (shelves, accessories, vegetable
bins, etc.) or x them into the appliance against shocks using
bands during re-positioning and transportation.
An ambient sensor, main board and hinge covers are
available on your fridge. During cleaning, make sure no uid
enters this area.
Choosing the Right Location
Avoid exposing the appliance to direct sunlight, and sources
of heat (such as radiators, heaters or cookers).
If this appliance is situated in a cold environment (such as
a shed, outhouse or garage) it will aect its performance.
You may nd that the performance of the appliance is not
consistent and this may damage foods. A consistent ambient
temperature of 10 °C or above is recommended.
Refrigerator should be placed against a wall with a free
distance not exceeding 75 mm.
15
Page 18
Electrical Supply Connection
Connect the appliance to the electrical supply (220-240V ~
50Hz) with the plug and lead, which are tted.
Connections to the mains supply should be in accordance
with local regulations.
DO NOT use plug adapter.
The appliance must be plugged into an earthed
socket.
Always make sure that the plug is accessible after
the appliance has been positioned.
If the electrical cable is damaged or worn, turn o the fridge
and consult an authorised agent for replacement.
• The appliance is supplied with a standard 13 amp 3-pin
mains plug fitted with a 13-amp fuse. Should the fuse
require replacement, it must be replaced with a fuse
rated at 13 amp and approved to BS1362.
• If the mains plug which is fitted is unsuitable for the
socket outlet in your home or is removed for any other
reason, please contact an approved electrician.
During Usage
• DO NOT connect your appliance to the mains electricity
supply using an extension lead.
• DO NOT use damaged, torn or old plugs.
• DO NOT pull, bend or damage the cord.
• This appliance is designed for use by adults. DO NOT
allow children to play with the appliance or hang off the
door.
• Never touch the power cord/plug with wet hands. This
may cause a short circuit or electric shock.
• DO NOT place glass bottles or cans in the ice-making
compartment as they will burst when the contents
freeze.
• DO NOT place explosive or flammable material in
your appliance. Place drinks with high alcohol content
vertically in the appliance compartment and make sure
their tops are tightly closed.
• When removing ice from the icemaking compartment,
do not touch it. Ice may cause frost burns and/or cuts.
• DO NOT touch frozen goods with wet hands. DO NOT
eat ice-cream or ice cubes immediately after they are
removed from the ice-making compartment.
• DO NOT re-freeze thawed frozen food. This may cause
health issues such as food poisoning.
• If your old appliance or freezer has a lock, break or
remove the lock before discarding it, because children
may get trapped inside it and may cause an accident.
• Old appliances and freezers contain isolation material
and refrigerant with CFC. Therefore, take care not to
harm environment when you are discarding your old
appliances.
16
Page 19
min. 200 cm²
1b1a
1a
(1 x)
2
(1 x)
4
(2 x)
8
(2 x)
5
(25 x)
(4 x)
pH2pH2
75mm
1b
(1 x)
560 mm
(recommended)
3
mm0012.xam
min
550mm
540 mm
545 mm
3
(1 x)
B
6
(4 x)
9
4
10
(4 x)
4
7
(1 x)
(Recommended)
75mm
560-570mm
A
200cm²
min.75 mm
min.75 mm
200cm²
90°
=
200cm²
1
90°
2mm 2mm
5
3
4
4
2
17
Page 20
(2 x)
(1 x)
4
7
7
4
7
4
1a
B
A
1
1a
(1 x)
2
8
1
2
C
(2 x)
8
12
D
18
E
90°
Page 21
5
m
m
2
2
5
5
5
3
3
1
2
3
(8x)
5
F
1
2
X
m
m
5
G
X
H
X
3
I
19
Page 22
x
5
3
3
(1 x)
x
3
2
K
L
L1
1
5
5
2
(5 x)
1
L2
M
L4L3
9mm
9
click
6
(4 x)(4 x)
9
5
6
10
1
2
5
(1 x)
2
10
(4 x)
5
(12 x)
2
4
3
20
Page 23
8. Circuit diagram
WHITE
BROWN
RED
1234
CN3
20BD53 DISPLAY
123456789101112
PINK
BROWN
ORANGE
12345678
CN8
WHITE
PINK
YELLOW
RED
ArtNo.095-0003 - Circuit diagram - 90 induction
FRIDGE SENSOR
SERPANTIN SENSOR
FAN LED
DOOR SWITCH
20BD52 MAINBOARD
POSITIVE TEMPERATURE
COEFFICIENT
RAN CAPASITOR
OVERLOAD
PROTECTOR
COMPRESSOR
CN2
12345
BLACK
BROWN
LEN
CN2
123
BLUE
YELLOW
DRAIN RESISTANCE
21
Page 24
9. Technical Data
INSTALLER: Please leave these instructions with the user.
DATA BADGE LOCATION: Left-hand side of the fridge compartment.
COUNTRY OF DESTINATION: GB, IE.
Dimensions
540
545
DocNo.600-0008 - Technical data - DxD 910
All dimensions in mm
1770
Max. 110°
Door Clearances
This illustration is prepared according to 20mm
furniture thickness.
The hinge can open up to 110° and the handle on
the furniture is a sample.
220
187
62.5
22
Page 25
Ratings
Brand RANGEMASTER
Model identication RTFR18/INT
Product category 1 (Refrigerator)
Mass kg 55
Number of cavities 1
Energy class A+
Annual energy consumption* 144 kWh
Total gross volume 303 litres
Total net volume 300 litres
Refrigerator gross volume 303 litres
Refrigerator net volume 300 litres
Chiller compartment net volume - litres
Freezer gross volume - litres
Freezer net volume - litres
Star rating
Refrigeration system STATIC
Temperature rise time (-18°C/-9°C) N / A
Freezing capacity N / A
Climate class ** T/SN (10°C - 43°C)
Noise emission 40 dB(A)
Energy consumption of 144 kWh per year, calculated on the basis of results obtained in 24 hours under normalised test
conditions. Real energy consumption depends on the conditions in which the equipment is used as well as where it is
placed.
This appliance is designed for use at an ambient temperature within the 10°C- 43°C range.
23
Page 26
10. Warranty/After Sales Service
If consultation or technical assistance is needed, please
provide the local authorised service agent with the purchase
invoice and the product code/serial number.
Please refer to the Technical Data to locate the product
number/serial number.
The 2 years free maintenance for the operation of the
appliance started from the date of purchase of this product.
Any cosmetic damage to the appliance must be reported
within 30 days of delivery.
For in-warranty service please call: 0844 847 6711.
For general enquiries please call: 0870 789 5107.
24
Page 27
Notes
25
Page 28
Notes
26
Page 29
NOTE
27
Page 30
NOTE
28
Page 31
NOTE
29
Page 32
• DocNo.000-0001 - Back cover Rangemaster
Clarence Street, Royal Leamington Spa,
Warwickshire, CV31 2AD, England.
www.rangemaster.co.uk
Loading...
