RM61000EX
Series
Broan-NuTone LLC. 926 West State Street, Hartford, WI 53027
NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227
Broan-NuTone Canada, INC.1140 Tristar Drive, Mississauga, Ontario, L5T 1H9
ENGLISH.....................................2
FRANÇAIS................................13
ESPAÑOL...................................24
Page 2
- 2 -
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS,
OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions,
contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent warning device,
such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes
and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue
(chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any separate solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A . Never leave surface units unattended at high settings. Boilovers cause smoking and
greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
B . Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes
Suzette, Cherries Jubilee, Peppercorn Beef Flambe’).
C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or
filter.
D. Use proper pan size. Always use cookware appropriate for the size of the surface
element.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP
GREASE FIRE, OBSERVE THE FOLLOWING:*
1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the
burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately,
EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN - You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will
result.
4. Use an extinguisher ONLY if:
A. You know you have a Class ABC extinguisher and you already know how to operate
it.
B. The fire is small and contained in the area where it started.
C. The fire department is being called.
D. You can fight the fire with your back to an exit.
* Based on “Kitchen Fire Safety Tips” published by NFPA.
!
INTENDED FOR DOMESTIC COOKING ONLY
!
Page 3
- 3 -
!
CAUTION
1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
2. Take care when using cleaning agents or detergents.
3. Avoid using food products that produce flames under the Range Hood.
4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall
spray, construction dust, etc. off power unit.
6. Your hood motor has a thermal overload which will automatically shut off the motor if it
becomes overheated. The motor will restart when it cools down. If the motor continues
to shut off and restart, have the hood serviced.
7. For best capture of cooking impurities, the bottom of the hood should be a minimum of
24" and a maximum of 30" above the cooking surface.
8. Two installers are recommended because of the large size and weight of this hood.
9. This product is equipped with a thermostat which may start blower automatically. To
reduce the risk of injury and to prevent power from being switched on accidentally,
switch power off at service panel and lock or tag service panel.
10. Please read specification label on product for further information and requirements.
11. To reduce the risk of fire and electric shock, install this range hood only with Broan
Exterior blower models 331H, 332H, 335 or 336, or Broan In-Line Blower models HLB3,
HLB6, HLB9 or HLB11. Other Blowers cannot be substituted (Blowers sold separately).
Page 4
- 4 -
PREPARE THE HOOD
Unpack hood and check contents.
You should receive:
1 - Hood
1 - Decorative Flue Assembly
1 - Flue Mounting Bracket
1 - Parts Bag (B08081196) containing:
2 - Mounting Brackets
8 - Mounting Screws (4,8 x 38mm Pan Head)
4 - Mounting Screws (3,9 x 9,5mm Pan Head)
4 - Mounting Screws (3,9 x 9,5mm Pan Head Black)
8 - Drywall Anchors
1 - Installation Instructions
MOUNTING
BRACKETS
FLUE MOUNTING
BRACKET
8 MOUNTING SCREWS
(4,8 x 38mm Pan Head)
8 DRYWALL
ANCHORS
4 MOUNTING
SCREWS (3,9 x
9,5mm Pan Head)
DECORATIVE
FLUE
4 MOUNTING
SCREWS (3,9 x
9,5mm Pan Head Black)
Page 5
- 5 -
EXTERIOR OR IN-LINE BLOWER SELECTION
CAUTION: Either an exterior blower or in-line blower may be used with this hood.
The RM61000EX hood must be installed with blower models 331H, 332H, 335, 336,
HLB3, HLB6, HLB9 or HLB11 only. Other Blowers cannot be substituted (Blowers
sold separately).
The blower must be UL listed for Canadian and U.S. use, and evaluated for use with
solid state speed control, rated 120V, 60 Hz, 6.0 A max.
HOOD
24” TO 30” ABOVE
COOKING SURFACE
DECORATIVE
FLUE
8” ROUND
DUCT
INSTALL THE DUCTWORK
NOTE: To reduce the risk of fire, use only metal ductwork.
1. Choose the location where the Exterior or In-Line Blower will be mounted. See
illustrations below for mounting location suggestions and restrictions.
2. A straight, short duct run will allow the hood to perform most efficiently.
3. Long duct runs, elbows and transitions will reduce the performance of the
hood. Use as few of them as possible. Larger ducting may be required for best
performance with long duct runs.
4. After the Exterior or In-Line Blower has been installed, connect round metal
ductwork and work back towards the hood location. Use duct tape to seal joints
between ductwork sections.
5. An 8” round to 10” round transition (Model 414) is required. For best air
performance, install the transition as close to the range hood as possible.
OK
OK

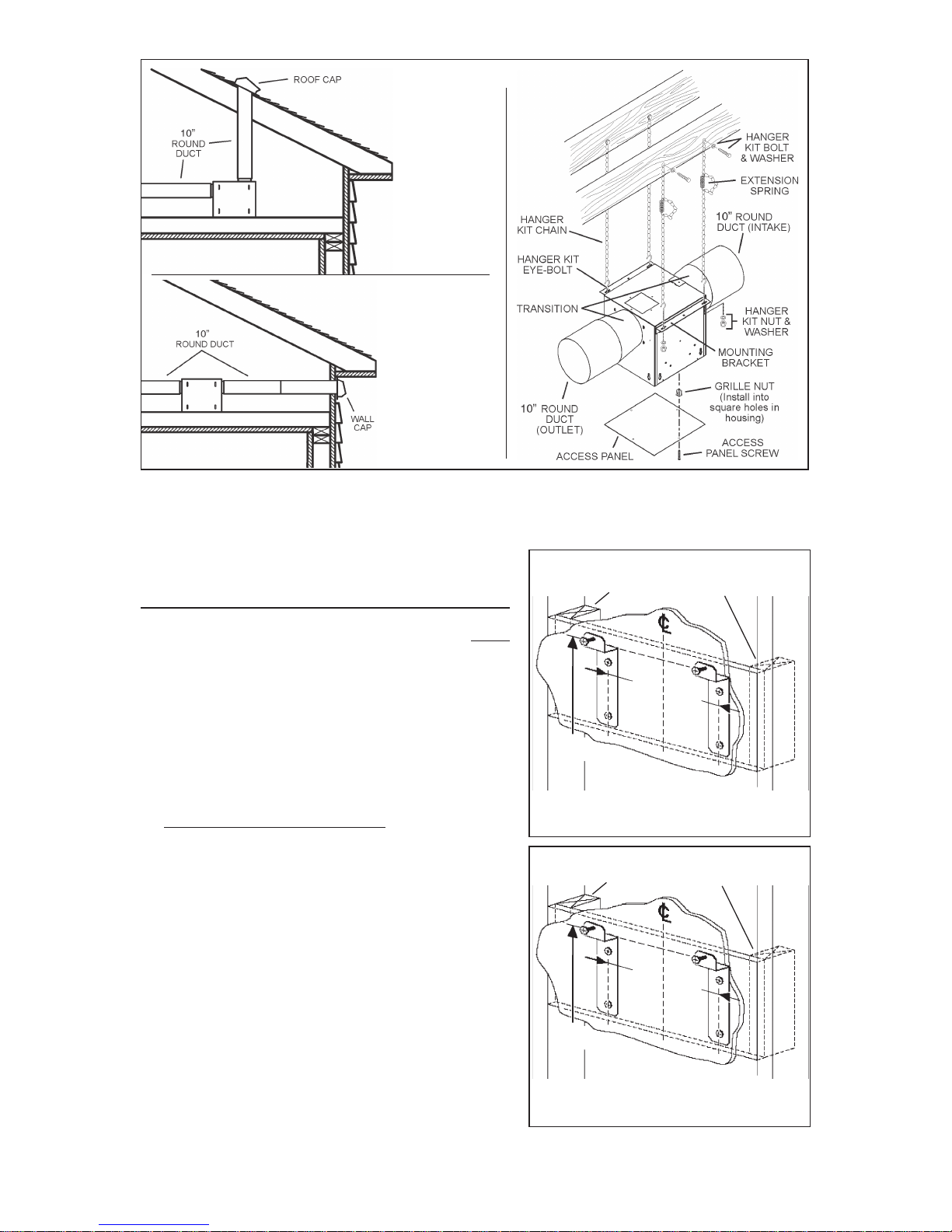

SUGGESTED MOUNTING LOCATIONS
EXTERIOR BLOWER
CAUTION: MAY NOT FIT
UNDER EAVES OF SINGLE
STORY HOMES
EXTERIOR
BLOWER
10” ROUND
DUCT
EXTERIOR
BLOWER
8” TO 10”
ROUND
ADAPTER
8” ROUND
ELBOW
10”
ROUND
DUCT
Page 6
- 6 -
INSTALL MOUNTING
BRACKETS
1. Construct wood wall framing that is flush
with interior surface of wall studs.Make
sure:
a) the framing is centered over installation
location.
b) the height of the framing will allow the
mounting brackets to be secured to
the framing within the dimensions
shown.
2.
After wall surface is finished, secure mounting brackets to framing using dimensions
shown.
FRAMING BEHIND DRYWALL
29-7/8” to 35-7/8” above
cooktop
29-7/8" = bottom of hood 24"above cooktop
35-7/8"= bottom of hood 30" above cooktop
36” MODEL
FRAMING BEHIND DRYWALL
29-7/8” to 35-7/8” above
cooktop
29-7/8" = bottom of hood 24"above cooktop
35-7/8"= bottom of hood 30" above cooktop
11-13/16”
48” MODEL
19-11/16”
IN-LINE BLOWER
Page 7
- 7 -
DEPTH ADJUSTMENT
SCREWS
WIRING
Note: This range hood must be properly
grounded. The unit should be installed by a
qualified electrician in accordance with all
applicable national and local electrical
codes.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event
of an electrical short circuit, grounding
reduces the risk of electric shock by providing
an escape wire for the electric current. This
appliance is equipped with a cord having a
grounding wire with a grounding plug. The
plug must be plugged into an outlet that is
properly installed and grounded.
WARNING - Improper grounding can result in a risk of electric shock.
Consult a qualified electrician if the grounding instructions are not completely
understood, or if doubt exists as to whether the appliance is properly grounded.
Do not use an extension cord. If the power supply cord is too short, have a qualified
electrician install an outlet near the appliance.
Set the electrical power supply within the space covered by the decorative flues.
Position the power socket at a maximum distance of 33-7/16” (85 cm) from where
the lead exits from the hood (see illustration alongside). Make sure this does not
interfere with the decorative flues (where the flue touches the wall).
Fit the plug into the power socket.

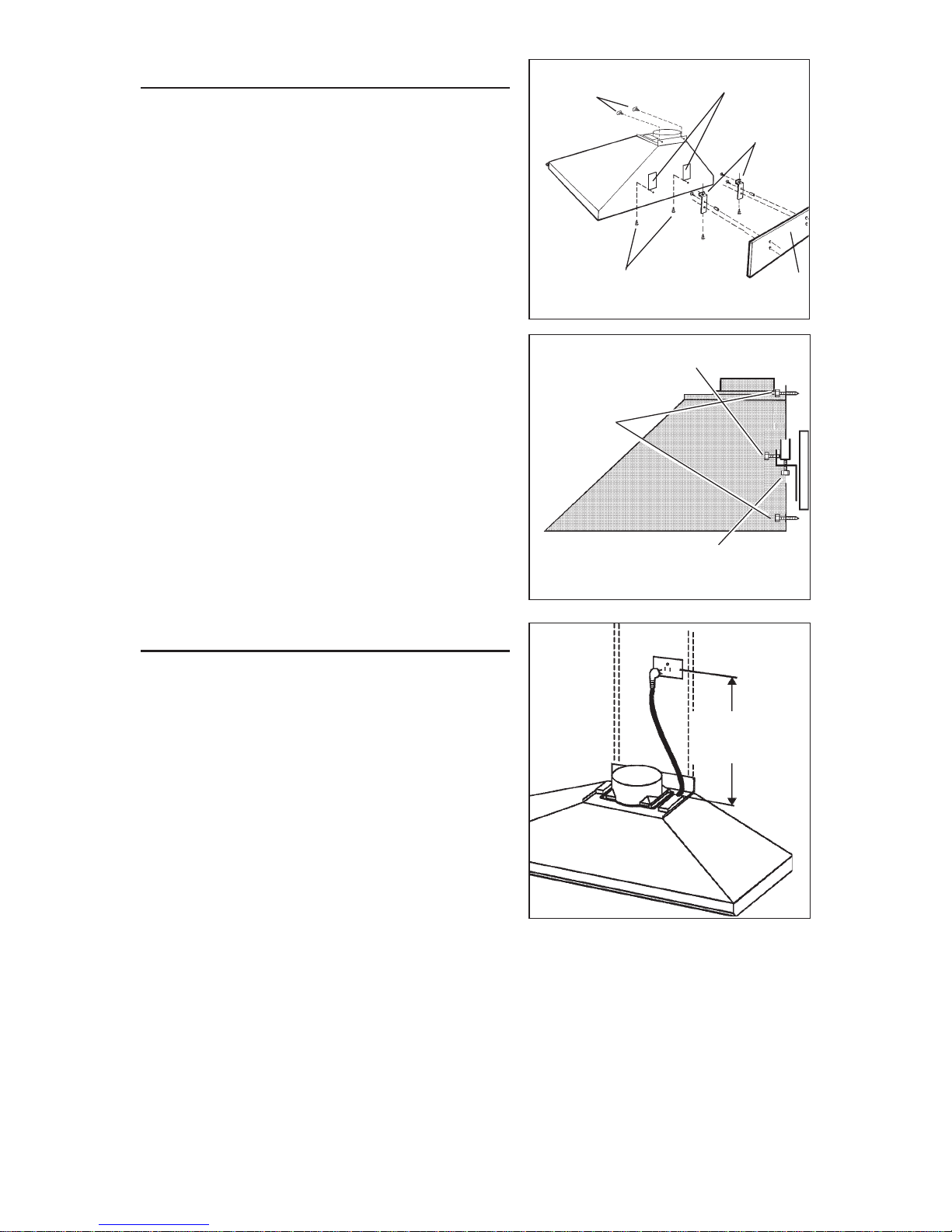

INSTALL THE HOOD
1. Hang the hood from the brackets through
the rectangular cut-outs on the back of
the hood. Cut-outs are larger than the
brackets to allow for horizontal adjustment.
The bottom of the hood should be 24" to
30" above the cooking surface.
2. Height adjustment screws provide vertical
adjustment.
3. Depth adjustment screws provide hori-
zontal adjustment.
4. Secure the hood with mounting screws
(4,8x38mm). Use drywall anchors,
provided, if wall studs or framing are not
available.
MOUNTING
SCREWS
(4,8x38mm)
MOUNTING
BRACKETS
HEIGHT ADJUSTMENT
SCREWS
WALL FRAMING
MOUNTING SCREWS
(4,8x38mm)
RECTANGULAR
CUTOUTS
MOUNTING SCREWS
(4,8x38mm)
33-7/16”
(85cm) max
Page 8
- 8 -

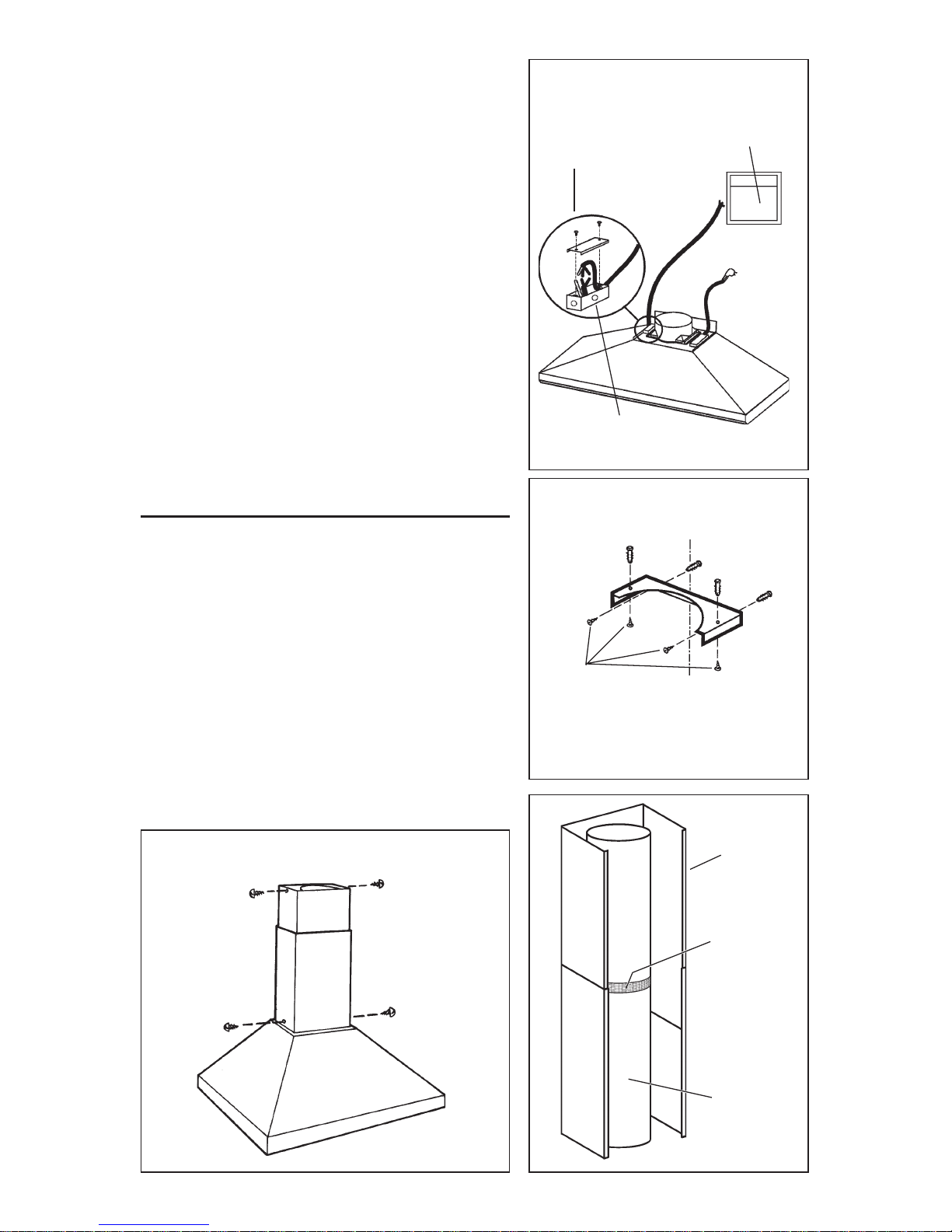

FASTEN FLUE TO HOOD AND BRACKET
WITH MOUNTING SCREWS (3,9x9,5mm)
8" ROUND
METAL DUCT
DECORATIVE
FLUE
DUCT TAPE
FLUE MOUNTING BRACKET
CONNECT DUCTWORK
1. Use mounting screws (4,8x38mm) and
drywall anchors to secure flue mounting
bracket to the ceiling and wall as shown.
2. Use 8" round metal duct to connect the
discharge collar on the hood to the
ductwork above.
3. Use duct tape to make all joints secure
and air tight.
4. Connect the upper flue to the bracket with
mounting screws (3,9x9,5mm).
5. Slide the lower flue downward, until it fits
properly around hood.
6. Secure lower flue to hood with mounting
screws (3,9x9,5mm).
MOUNTING
SCREWS
(4,8x38mm)
Exterior or In-Line
blower
Blower connection at hood:
1. Run 2-wire plus ground power cable from
the exterior or In-Line blower to the hood’s
wiring box marked “motor connection”.
2. Remove the cover from the wiring box and
remove one knockout.
3. Feed 6” of cable through the knockout
opening and secure the cable to the wiring
box with an appropriate connector.
4. Make electrical connections at the hood.
Connect white-to-white, red-to-black and
green-to-ground.
5. Replace the wiring box cover and screws.
make sure wires are not pinched between
the cover and box.
Exterior or In-Line blower connection:
1. Make electrical connections at the exterior
or In-Line blower (see instructions provided
with the exterior or In-Line blower).
Power connection at hood:
1. Plug the power cord into the electrical wall
receptacle.
BLOWER CONNECTION AT HOOD
BOX MARKED
“MOTOR
CONNECTION”
CONNECT:
WHITE-TO-WHITE,
RED-TO-BLACK,
GREEN-TO-GROUND.
Page 9
- 9 -
MAINTENANCE
Proper maintenance of the Range Hood will
assure proper performance of the unit.
Grease Filters
The grease filters should be cleaned fre-
quently. Use a warm detergent solution. Grease
filters are dishwasher safe.

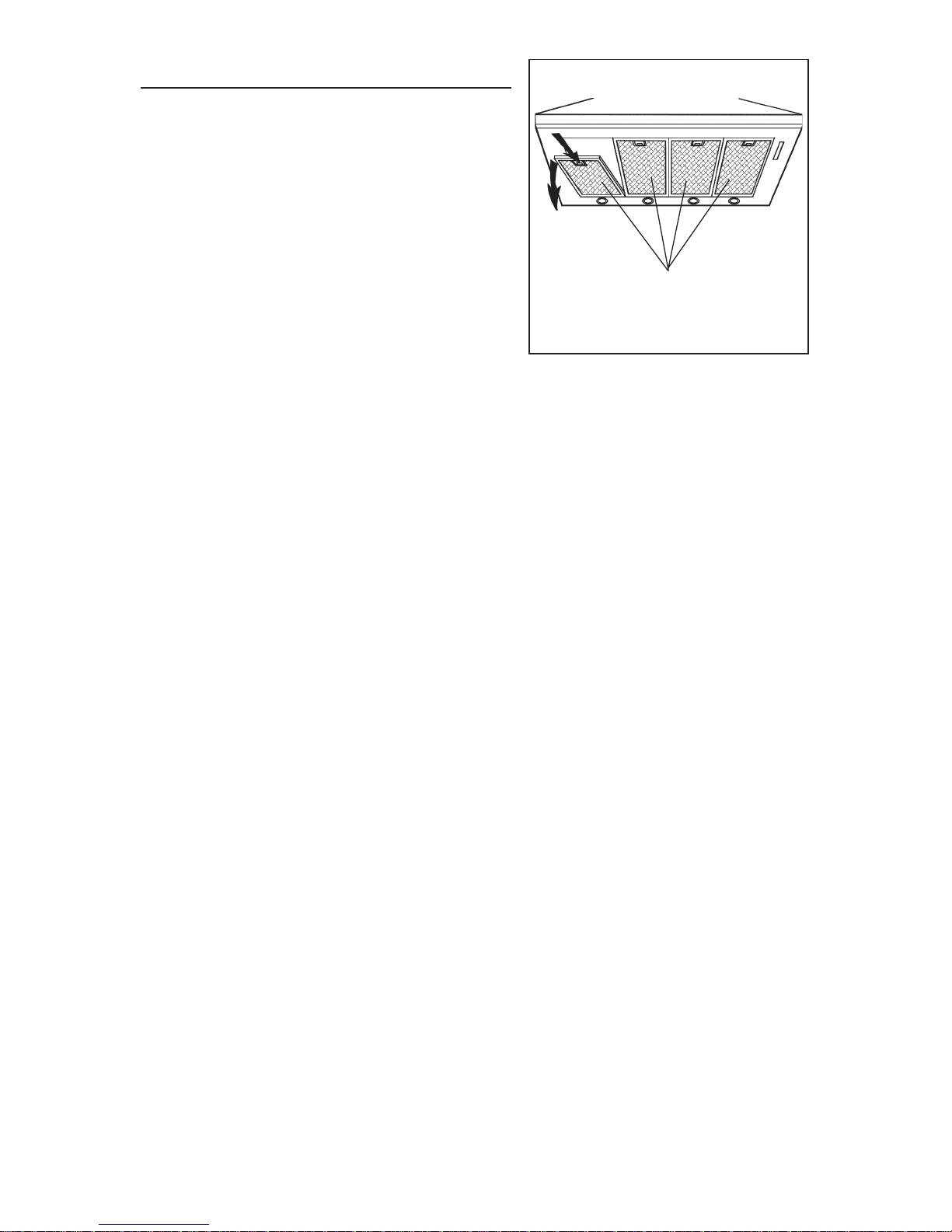

Remove filter by pushing filter towards the back
of hood and rotating filter downward.
Hood Cleaning
Stainless steel is one of the easiest materials
to keep clean. Occasional care will help preserve its fine appearance.
Cleaning tips:
O Hot water with soap or detergent is all that is usually needed.
O Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth
to avoid water marks.
O For discolorations or deposits that persist, use a non-scratching household
cleanser or stainless steel polishing powder with a little water and a soft cloth.
O For stubborn cases, use a plastic scouring pad or soft bristle brush together
with cleaser and water. Rub lightly in direction of polishing lines or "grain" of the
stainless finish. Avoid using too much pressure which may mar the surface.
O DO NOT allow deposits to remain for long periods of time.
O DO NOT use ordinary steel wool or steel brushes. Small bits of steel may
adhere to the surface causing rust.
O DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds
to remain in contact with stainless steel for extended periods. Many of these
compounds contain chemicals which may be harmful. Rinse with water after
exposure and wipe dry with a clean cloth.
Painted surfaces should be cleaned with warm water and mild detergent only.
GREASE FILTERS
Page 10
- 10 -
OPERATION
Controls

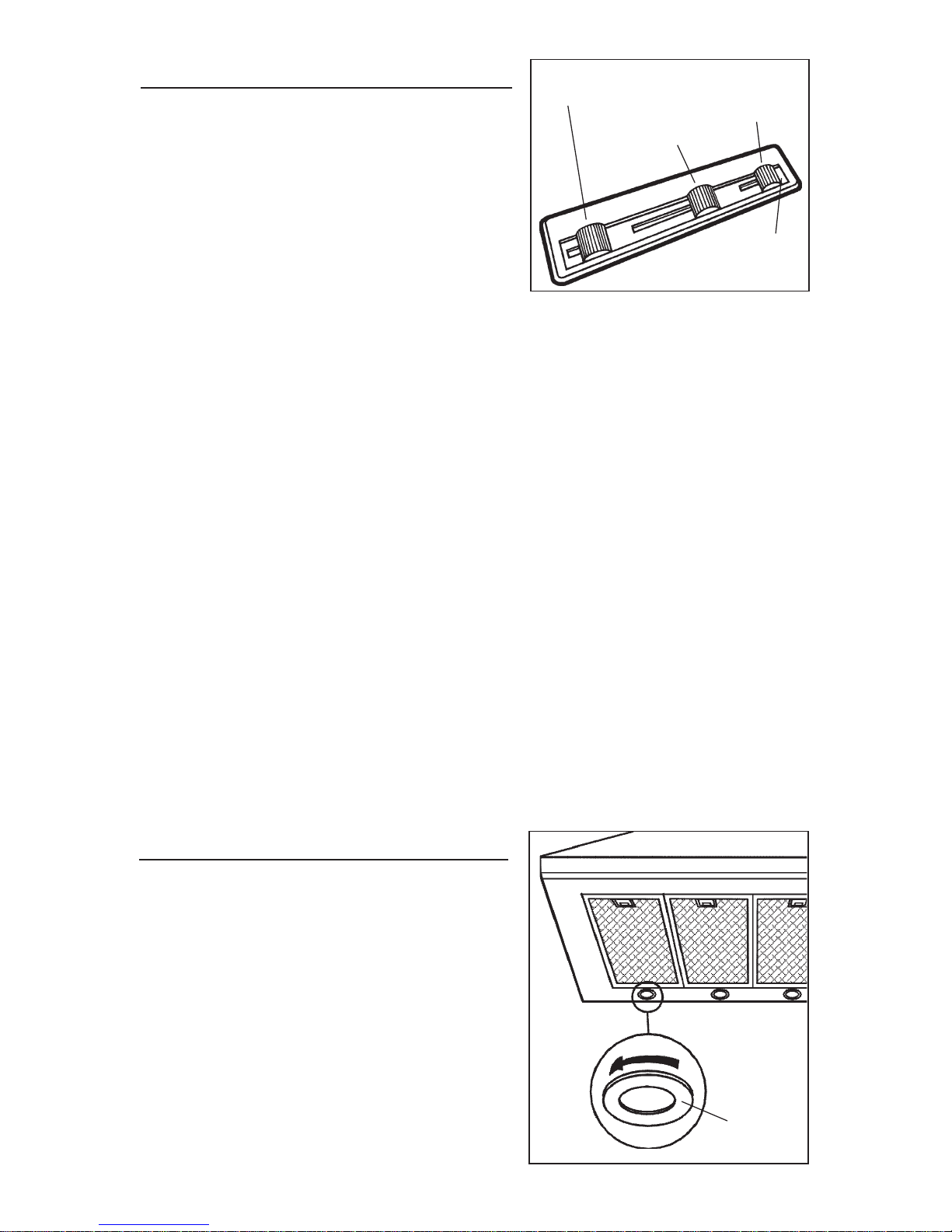

The hood is operated using the slide controls
under the front edge of the hood.
The light switch turns the halogen lights on
and off.
The blower on / off switch turns the blower on
to the running speed set by the blower speed
control. The blower must be turned on and off
using this switch.
The blower speed control changes the speed
of the blower from 1 to 3 position.
The pilot lamp lights up whenever the blower is on.
HEAT SENTRY™
Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a
device that will turn on or speed up the blower if it senses excessive heat above
the cooking surface.
1) If blower is OFF - it turns blower ON to HIGH speed.
2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.
When the temperature level drops to normal, the blower will return to its original
setting.
WARNING
The HEAT SENTRY thermostat can start the blower even if the hood is turned
OFF. When this occurs, it is impossible to turn the blower OFF with its switch.
If you must stop the blower, do it from the main electrical panel.
LIGHT
SWITCH
PILOT
LAMP
BLOWER
SPEED
CONTROL
BLOWER
ON / OFF
SWITCH
HALOGEN BULBS
This range hood requires 2 or 4 halogen bulbs
(Type JC, 12Volt, 20Watt Max, G-4 Base).
ALWAYS SWITCH OFF THE ELECTRICITY
SUPPLY BEFORE CARRYING OUT ANY
OPERATIONS ON THE APPLIANCE.
To change bulbs:
1. Loosen the ring nut by turning it
counterclockwise.
2. Pull the bulb downwards to remove - DO
NOT ROTATE. CAUTION: BULB MAY BE
HOT!
3. Replace with Type JC, 12Volt, 20Watt Max,
G-4 Base halogen bulb. Do not touch
replacement bulb with bare hands!
RING NUT
Page 11
- 11 -

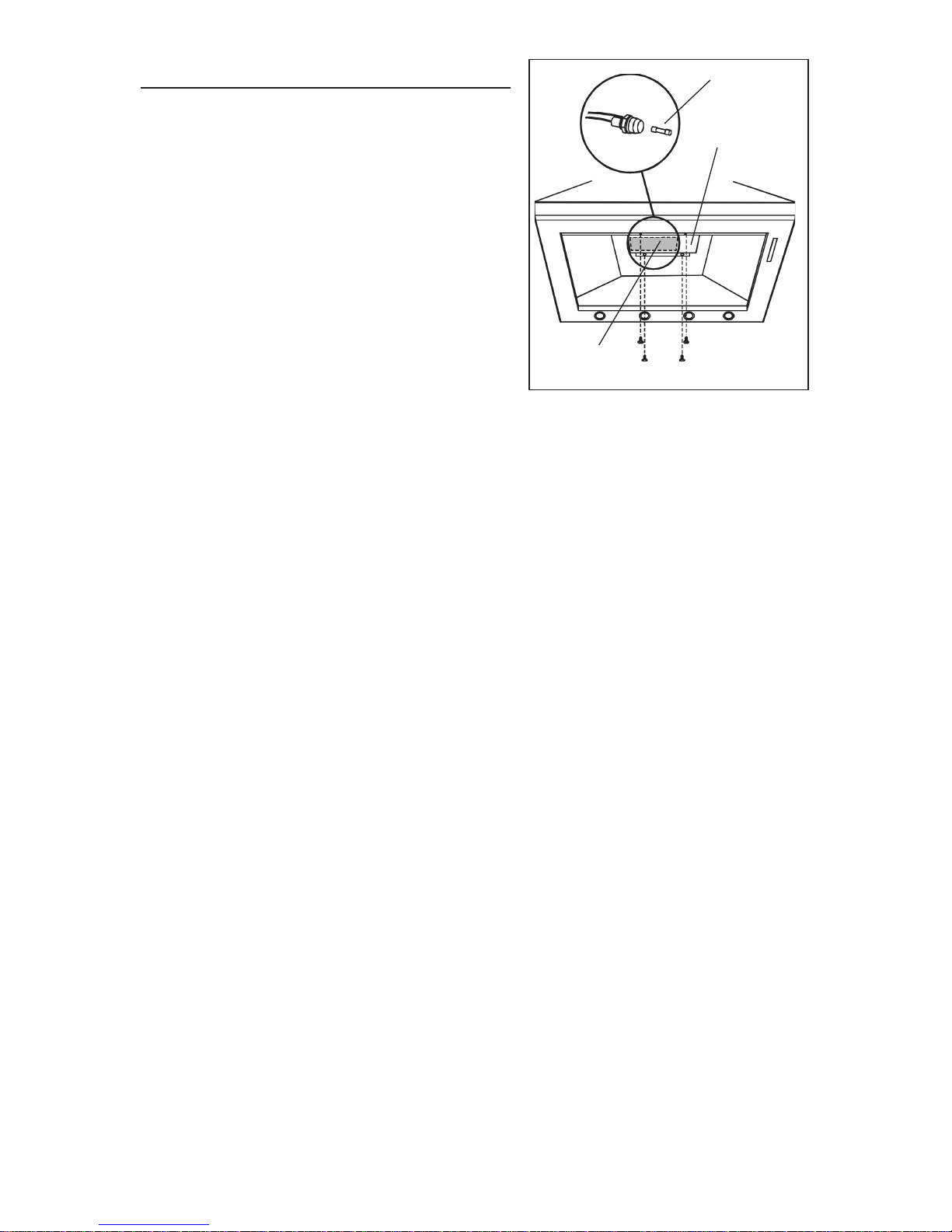

FUSE REPLACEMENT
SWITCH OFF THE ELECTRICITY SUPPLY.
Remove the grease filters.
Remove the electrical box support and open
the electrical box.
Replace with the same type of fuse (5x20mm,
5A, 125V).
ELECTRICAL
BOX
SUPPORT
FUSE
ELECTRICAL
BOX
Page 12
- 12 -
BROAN-NUTONE LLC ONE YEAR LIMITED WARRANTY
Broan-NuTone LLC warrants to the original consumer purchaser of its products that such products will be free from defects
in materials or workmanship for a period of one year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT
ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one-year period, Broan-NuTone LLC will, at its option, repair or replace, without charge, any product or part which
is found to be defective under normal use and service.
THIS WARRANTY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS, TUBES, HALOGEN AND
INCANDESCENDT BULBS. This warranty does not cover (a) normal maintenance and service or (b) any products or parts
which have been subject to misuse, negligence, accident, improper maintenance or repair (other than by Broan-NuTone LLC),
faulty installation or installation contrary to recommended installation instructions.
The duration of any implied warranty is limited to the one-year period as specified for the express warranty. Some states do
not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
BROAN-NUTONE LLC’S OBLIGATION TO REPAIR OR REPLACE, AT BROAN-NUTONE LLC’S OPTION, SHALL BE
THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY. BROAN-NUTONE LLC SHALL
NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFORMANCE. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. This warranty
supersedes all prior warranties.
To qualify for warranty service, you must (a) notify Broan-NuTone LLC at the address stated below or telephone: 1-800-6371453, (b) give the model number and part identification and (c) describe the nature of any defect in the product or part. At the
time of requesting warranty service, you must present evidence of the original purchase date.
Broan-NuTone LLC. 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
NuTone, Inc., 4820 Red Bank Road, Cincinnati, OH 45227 (1-800-543-8687)
Broan-NuTone Canada, Inc. 1140 Tristar Drive, Mississauga, Ontario, L5T 1H9 (1-888-882-7626)
WARRANTY
Page 13
- 36 -

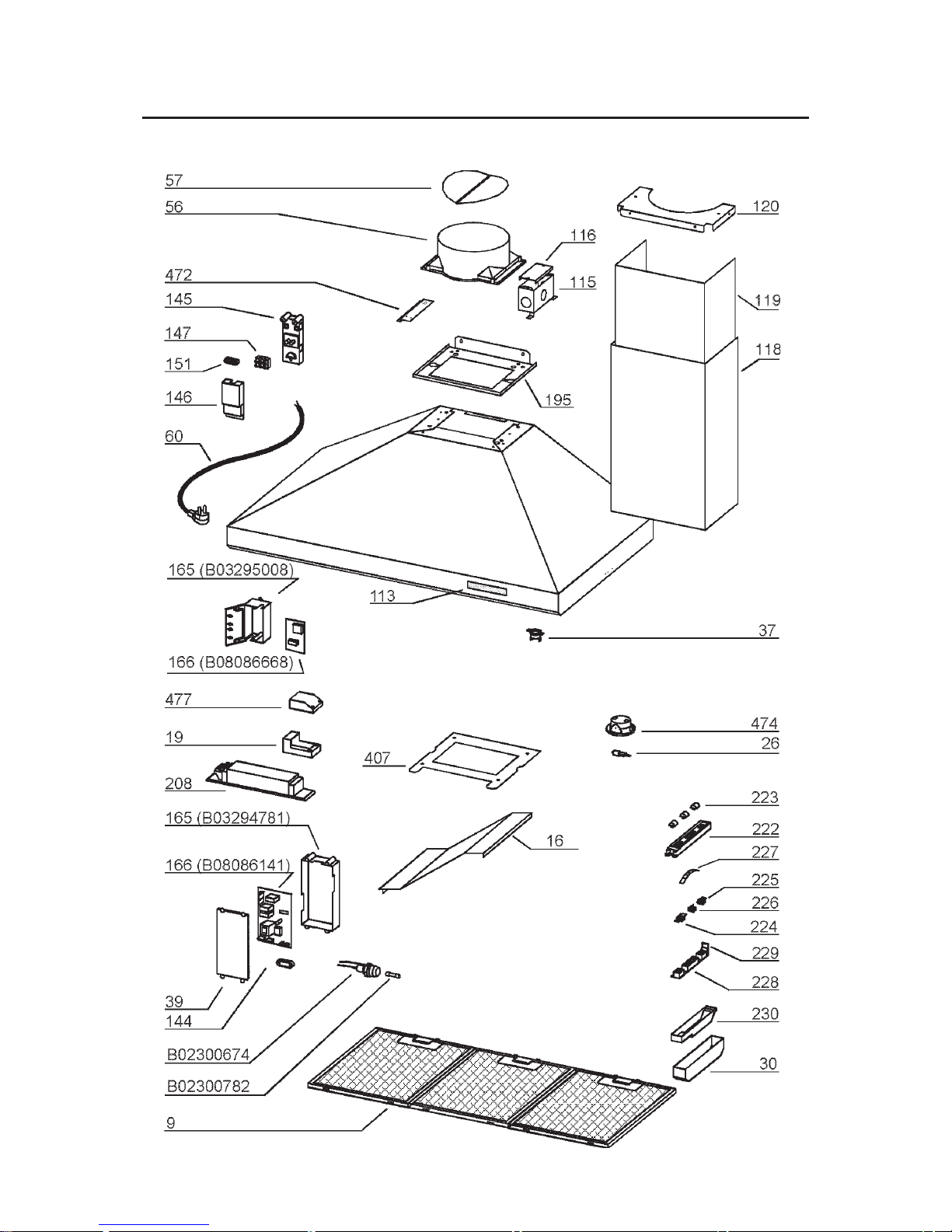

SERVICE PARTS
MODEL RM61000EX - Parts for stainless steel models shown. For service parts for
black, white, polished brass, or brushed copper models, call Broan Customer
Service.
KEY NO. PART NO. DESCRIPTION
9 B08087135 Grease Filter (n.3) - 36” model
9 B08087136 Grease Filter (n. 4) - 48” model
16 BE3345326 Electrical Box Support
19 B03295005 Transformer Protection
26 B02300891 Halogen Lamp Bulb
30 B03292291 Controls Protection
37 B02300787 Heat Sentry
39 B03294033 Electrical Box Cover
56 B03292465 Discharge collar
57 B02011004 Damper Flap
60 B02300249 Feeder Cable
113 B03202433 Nameplate
115 BE3495228 Wiring Box
116 BE3334252 Wiring Box Cover
118 BE3341301 Decorative Flue Bottom
119 BE3341311 Decorative FlueTop
120 BE3300517 Flue Mounting Bracket
144 B03292287 Wire Clamp
145 B032920170 Feeder Cable Connection Box
146 B032920180 Feeder Cable Connection Box Cover
147 BR2300132 Junction Clamp
151 B032920200 Electrical Box Wires Stop
165 B03294781 Electrical Box
165 B03295008 Electrical Board Box
166 B08086141 Electrical Board
166 B08086668 Electrical Board
195 BE3403629 Upper Support
208 B02300783 Transformer (36” Model)
208 B02300729 Transformer (48” Model)
223 B03202294 Switch Button
407 B08091607 Support
472 BE3345233 Wiring Box Support
474 B02300789 Halogen Lamp Housing
477 B03295006 Transformer Protection Cover
998 B08081196 Hardware Package
* B06108080 Switch Box Assembly for model 48”
(Includes Keys No. 222, 229, 223, 224, 225,
226, 227, 228, 230)
* B06108083 Switch Box Assembly for model 36”
(Includes Keys No. 222, 229, 223, 224, 225,
226, 227, 228, 230)
* B08085018 Damper Assembly (Includes Key Nos 56, 57)
- B02300782 Fuse
- B02300674 Fuse Holder
* Not shown assembled.
Page 14
- 39 -
SERVICE PARTS - LISTE PIECES DE RECHANGE -
LISTA DE PIEZAS DE RECAMBIO
MODEL 61000 EX
Loading...
