1. Before you start...
Your cooker should give you many years of trouble-free
cooking if installed and operated correctly. It is important
that you read this section before you start.
Personal safety
This appliance is for cooking purposes only. It must not be
used for other purposes, for example heating a room. Using
it for any other purpose could invalidate any warranty or
liability claim. Besides invalidating claims this wastes fuel and
may overheat the control knobs.
• This appliance can be used by children aged from
8years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
• Children less than 8 years of age should be kept away
unless continuously supervised. Children shall not play
with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
• This appliance is designed for domestic cooking only.
Use for any other purpose could invalidate any warranty
or liability claim.
• The appliance and its accessible parts become hot
during use and will retain heat even after you have
stopped cooking. Care should be taken to avoid
touching heating elements.
• A long term cooking process has to be supervised from
time to time. A short term cooking process has to be
supervised continuously.
• DANGER OF FIRE: DO NOT store items on the cooking
surfaces.
Electrical connection safety
The electrical installation must be installed in accordance
with all relevant British Standards/Codes of Practice, BS 7671.
Or with the relevant national and local regulations and with
the local gas and electricity supply companies’ requirements.
Otherwise, all installations must be in accordance with the
relevant instructions in this booklet.
Read the instructions before installing or using this appliance.
• This appliance is heavy so take care when moving it.
• The cooker may be installed in a kitchen/kitchen diner
but NOT in a room containing a bath or shower.
• This appliance MUST be earthed.
• The cooker MUST NOT be connected to an ordinary
domestic power point.
• It is normal for the hob control display to flash for about
2 seconds during first power setting.
• Set the clock to make sure that the oven is functional –
see the relevant section in this manual.
• The appliance must be installed in accordance with the
regulations in force and only in a well ventilated space.
• Failure to install the appliance correctly could invalidate
any warranty or liability claims and lead to prosecution.
• DO NOT install the appliance on a platform.
• DO NOT manouvre the cooker while it is plugged into
the electricity supply.
• Before electrical reconnection, check that the appliance
is electrically safe.
• To avoid overheating, DO NOT install the cooker behind
a decorative door.
• Accessible parts will become hot during use and will
retain heat even after you have stopped cooking. Keep
babies and children away from the cooker and never
wear loose-fitting or hanging clothes when using the
appliance.
• DO NOT use a steam cleaner on your cooker.
• A LWAYS keep combustible materials, e.g. curtains,
and flammable liquids a safe distance away from your
cooker.
• DO NOT spray aerosols in the vicinity of the cooker
while it is on.
1
Peculiar smells
When you rst use your cooker it may give o an odour. This
should stop after use.
Before using your cooker for the rst time, make sure that all
packing materials have been removed and then, to dispel
manufacturing odours, turn all the ovens to 200°C and run for
at least an hour.
Before using the grill for the rst time you should also turn on
the grill and run for 30 minutes with the grill pan in position,
pushed fully back and the grill door open.
Make sure the room is well ventilated to the outside air
(see ‘Ventilation’ below). People with respiratory or allergy
problems should vacate the area for this brief period.
Ventilation
The use of a cooking appliance results in the production
of heat and moisture in the room in which it is installed.
Make sure that the kitchen is well ventilated. Keep natural
ventilation holes open or install a powered cooker hood that
vents outside.
Prolonged intensive use of the appliance may call for
additional ventilation, for example opening a window, or
more eective ventilation, for example increasing the level of
mechanical ventilation where present.
Maintenance
• Only a qualied service engineer should service the
appliance and only approved spare parts should be
used. It is recommended that this appliance is serviced
annually.
• DO NOT use cooking vessels on the hotplate that
overlap the edges.
• A LWAYS allow the cooker to cool and then switch it
off at the mains before cleaning or carrying out any
maintenance work, unless specified otherwise in this
guide.
• NEVER leave the hotplate unattended at high heat
settings. Pans boiling over can cause smoking,
and greasy spills may catch on fire. Use a deep fat
thermometer whenever possible to prevent fat
overheating beyond the smoking point.
• Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
• NEVER leave a chip pan unattended. ALWAYS heat fat
slowly, and watch as it heats. Deep fry pans should be
only one third full of fat.
• NEVER try to move a pan of hot fat, especially a deep
fat fryer. Wait until the fat is cool. Filling the pan too full
of fat can cause spill over when food is added. If you use
a combination of oils or fats in frying, stir them together
before heating, or as the fats melt.
• Foods for frying should be as dry as possible. Frost on
frozen foods or moisture on fresh foods can cause hot
fat to bubble up and over the sides of the pan. Carefully
watch for spills or overheating of foods when frying at
high or medium high temperatures.
• DO NOT use the top of the flue (the slots along the back
of the cooker) for warming plates, dishes, drying tea
towels or softening butter.
• DO NOT use water on grease fires and never pick up
a flaming pan. Turn the controls off and then smother
a flaming pan on a surface unit by covering the pan
completely with a well fitting lid or baking tray. If
available, use a multi-purpose dry chemical or foamtype fire extinguisher.
• DO NOT modify this appliance. This appliance is not
intended to be operated by means of external timer or
separated remote-control system.
• If flammable materials are stored in the drawer, oven(s)
or grill(s) it may explode and result in fire or property
damage.
• DO NOT use the control knobs to manoeuvre the
cooker.
• NEVER operate the cooker with wet hands.
• DO NOT use a towel or other bulky cloth in place of a
glove – it might catch fire if brought into contact with a
hot surface.
• DO NOT use hotplate protectors, foil or hotplate covers
of any description. These may affect the safe use of
your hotplate burners and are potentially hazardous to
health.
• NEVER heat unopened food containers. Pressure build
up may make the containers burst and cause injury.
• DO NOT use unstable saucepans. ALWAYS make sure
that you position the handles away from the edge of the
hotplate.
2
Induction care
ArtNo.312-0003 Moving pans
• IMPORTANT INFORMATION FOR PACEMAKER AND
IMPLANTED INSULIN PUMP USERS: The functions
of this hob comply with the applicable European
standards on electromagnetic interference. If you are
fitted with a pacemaker or implanted insulin pump and
are concerned please consult your doctor for medical
advice.
• When the hob is in use keep magnetic items away, such
as credit and debit cards, floppy disk, calculators, etc.
Fig. 1.1
• To fully utilise the power of your induction hob and
to ensure longevity of performance, we recommend
the use of AGA Rangemaster Induction Pots and
Pans. If you decide to purchase an alternative set
of pans for use on your induction cooker, we would
strongly recommend that composite aluminium
pans with steel inserts, example shown Fig. 1.1,
are avoided. This type of pan construction can
significantly reduce the lifetime and performance of
your induction cook top.
• Take care when touching the marked cooking areas of
the hob.
• Use adequately sized pans with flat bottoms that are
large enough to cover the surface of the hotplate
heating area. The use of undersized pans will expose a
portion of the surface unit to direct contact and may
result in the ignition of clothing.
• Only certain types of glass, glass-ceramic, earthenware
or other glazed containers are suitable for use on the
warming zone; others may break because of the sudden
change in temperature.
• Only certain types stainless steel, enamelled steel pans
or cast iron pans with enamelled bases are suitable for
induction hob cooking.
Fig. 1.2
Fig. 1.3
Fig. 1.4
• Take care NOT to scratch the surface when placing
cookware on the glass panel.
• Only certain types of glass, glass-ceramic, earthenware
or other glazed containers are suitable for hotplate
cooking; others may break because of the sudden
change in temperature. NEVER cook directly on the hob
surface (Fig. 1.2).
• DO NOT leave the hob zones switched on unless being
used for cooking.
• DO NOT stand or rest heavy objects on the hob.
Although the ceramic surface is very strong, a sharp
blow or sharp falling object (e.g. a salt cellar) might
cause the surface to crack or break (Fig. 1.3).
• Should a crack appear in the surface, disconnect the
appliance immediately from the supply and arrange for
its repair.
• ALWAYS LIFT pans off the hob. Sliding pans may cause
marks and scratches (Fig. 1.4).
3
ArtNo.090-0007 90 Ceramic:
oven steam out the back
ArtNo.312-0001 Not cooking surface
Fig. 1.5
Fig. 1.6
Fig. 1.7
ArtNo.324-0001 Steam burst
• Take care NOT TO PLACE HOT LIDS onto the hob
surface (Fig. 1.5). Lids that have been used to cover
a hot pan can “stick” or create a “vacuum” effect to
the Glass Hob. Should this occur, DO NOT attempt
to lift the lid off the glass surface, this may damage
the glass. Instead slide the lid to the edge of the hob
surface and remove, taking care not to scratch the hob
surface. Alternatively wait until the lid has cooled to
room temperature, the vacuum has been released, then
remove the lid by lifting it from the hob surface.
• DO NOT place anything between the base of the pan
and the hob surface (e.g. asbestos mats, aluminium foil,
wok stand).
• Take care NOT to place metallic objects such as knives,
forks, spoons and lids on the hob surface since they can
get hot.
• We recommend that you avoid wiping any surface unit
areas until they have cooled and the indicator light
has gone off. Sugar spills are the exception to this (see
‘Cleaning your Cooker’). After cleaning, use a dry cloth
or paper towel to remove any cleaning cream residue.
• The ceramic surface should be washed after use in
order to prevent it from becoming scratched or dirty.
However, you should clean the hob with caution as
some cleaners can produce noxious fumes if applied to
a hot surface.
• DO NOT leave the hob unattended. Care should be
taken to not allow your cookware to boil dry. It will
damage your cookware and Induction Glass Hob.
• After use, switch off the hob element by its control. DO
NOT rely on the pan detector.
Oven care
• When the oven is not in use and before attempting to
clean the appliance ALWAYS be certain that the control
knobs are in the OFF position.
• Use oven gloves to protect your hand from potential
burns.
• Cooking high moisture content foods can create a
‘steam burst’ when the oven door is opened (Fig. 1.6).
When opening the oven, stand well back and allow any
steam to disperse.
• The inside door face is constructed with toughened
safety glass. Take care NOT to scratch the surface when
cleaning the glass panel.
• Accidental damage may cause the door glass panel to
fracture.
• Keep oven vent ducts unobstructed.
• DO NOT use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of
the glass.
4
• Make sure the shelves are pushed firmly to the back
of the oven. DO NOT close the door against the oven
shelves.
• DO NOT use aluminium foil to cover shelves, linings or
the oven roof.
• When the oven is on, DO NOT leave the oven door
open for longer than necessary, otherwise the control
knobs may become very hot.
• DO NOT use the timed oven if the adjoining oven is
already warm.
• DO NOT place warm food in the oven to be timed.
• DO NOT use a timed oven that is already warm.
Cooker care
As steam can condense to water droplets on the cool outer
trim of the oven, it may be necessary during cooking to wipe
away any moisture with a soft cloth. This will also help to
prevent soiling and discolouration of the oven exterior by
cooking vapours (Fig. 1.7).
Cleaning
• Isolate the electricity supply before carrying out any
thorough cleaning. Allow the cooker to cool.
• In the interests of hygiene and safety, the cooker should
be kept clean at all times as a build up in fats and other
food stuff could result in a fire.
• Use dry oven gloves when applicable – using damp
gloves might result in steam burns when you touch a
hot surface.
Hob care
• NEVER allow anyone to climb or stand on the hob.
• DO NOT use the hob surface as a cutting board.
• DO NOT leave utensils, foodstus or combustible items
on the hob when it is not in use (e.g. tea towels, frying
pans containing oil).
• DO NOT place plastic or aluminium foil, or plastic
containers on the hob.
• A LWAYS turn the control to the OFF position before
removing a pan.
• Avoid heating an empty pan. Doing so may damage
both the hob and pan.
Grill/glide-out grill™ care
• When using the grill, make sure that the grill pan is
in position and pushed fully in, otherwise the control
knobs may become very hot.
• DO NOT leave the grill on for more than a few moments
without the grill pan underneath it, otherwise the knobs
may become hot.
• Clean only the parts listed in this guide.
• Clean with caution. If a wet sponge or cloth is used to
wipe spills on a hot surface, be careful to avoid steam
burns. Some cleaners can produce noxious fumes if
applied to a hot surface.
• NEVER use paint solvents, washing soda, caustic
cleaners, biological powders, bleach, chlorine based
bleach cleaners, coarse abrasives or salt.
• DO NOT mix different cleaning products – they may
react together with hazardous results.
• All parts of the cooker can be cleaned with hot soapy
water.
• Take care that no water seeps into the appliance.
• Before you remove any of the grill parts for cleaning,
make sure that they are cool or use oven gloves.
• DO NOT use any abrasive substances on the grill and
grill parts.
• DO NOT put the side runners in a dishwasher.
• DO NOT put the burner heads in a dishwasher.
• NEVER use caustic or abrasive cleaners as these will
damage the surface.
• DO NOT use steel wool, oven cleaning pads or any
other materials that will scratch the surface.
• NEVER close the grill door when the grill is on.
• Accessible parts may be hot when the grill is in use.
Young children should be kept away.
Cooling fan
This appliance may have a cooling fan. When the grill or oven
is in operation the fan will run to cool the fascia and control
knobs.
• NEVER store flammable materials in the drawer.
This includes paper, plastic and cloth items, such
as cookbooks, plastic ware and towels, as well as
flammable liquids.
• DO NOT store explosives, such as aerosol cans, on or
near the appliance.
• DO NOT use steel wool, oven cleaning pads, or any
other materials that will scratch the surface.
• DO NOT attempt to disassemble or clean around any
burner while another burner is on, otherwise an electric
shock could result.
5
2. Cooker Overview
ArtNo.025-0005 - Overview - 90 induction - 2 button clock & GO grill
Fig. 2.1
A
B
C
E
D
Fig. 2.2
Fig. 2.3
Your 90 induction cooker (Fig. 2.1) has the following features:
A. 5 induction cooking zones
B. Control panel
C. A separate grill or glide-out grill (depending on model)
D. Main programmable fan or multifunction oven
(depending on model)
E. Tall fan oven
The Hob
Use only pans that are suitable for induction hobs. We
recommend stainless steel, enamelled steel pans or cast iron
pans with enamelled bases. Note that some stainless steel
pans are not suitable for use with an induction hob so please
check carefully before purchasing any cookware.
Pans made of copper, aluminium or ceramic are not suitable
for use on an induction hob. The kind of pan you use and the
quantity of food aects the setting required. Higher settings
are required for larger quantities of food.
Pots and pans should have thick, smooth, at bottoms
(Fig. 2.2). This allows the maximum heat transfer from the
hob to the pan, making cooking quick and energy ecient.
Never use a round-bottomed wok, even with a stand.
6
The very best pans have bases that are very slightly curved
up when cold (Fig. 2.3). If you hold a ruler across the bottom
you will see a small gap in the middle. When they heat up the
metal expands and lies at on the cooking surface.
Make sure that the base of the pan is clean and dry to prevent
any residue burning onto the hob panel. This also helps
prevent scratches and deposits.
Max: 1.85 kW
Boost: 2.5 kW
Max: 1.85 kW
Boost: 3.0 kW
Fig. 2.4
Max: 1.85 kW
Boost: 2.5 kW
Take care when placing hot lids onto the hob
surface. Lids that have been covering boiling or
steaming foods can ‘stick’ to the ceramic glass.
Should this occur, DO NOT attempt to lift the lid
o the hotplate: this may damage the hob surface.
Instead, carefully slide the lid to the edge of the hob
surface and remove.
Always use pans that are the same size as (or slightly larger
than) the areas marked on the hob. Using a lid will help the
contents boil more quickly.
Always take care before touching the surface, even
when the hob is turned o. It may be hotter than you
think!
The induction hob comprises of ve cooking zones
containing induction elements with dierent ratings and
diameters (Fig. 2.4) each with a pan detector and residual
heat indicator, and a hob control display.
The hob control display (Fig. 2.5) informs you of the following
induction hob functions:
• Pan detector
• H Residual heat indicator
Zone 1
Zone 2
Max: 1.15 kW
Boost: 2.0 kW
Zone 3 Zone 5
Zone 4
Max: 1.15 kW
Boost: 2.0 kW
Fig. 2.5
• A Automatic heat-up
• Child lock
• L1/L2 Low temperature setting
• P Power boost setting
Pan Detector,
IMPORTANT: After use, switch o the hob element
by its control and DO NOT RELY on the pan detector.
If a cooking area is switched on and there is no pan in place
or if the pan is too small for the cooking area, then no heat
will be generated. The symbol [ ] will appear on the hob
control display; this is the “pan-missing symbol”. Place a pan
of the correct size on the cooking area and the [ ] symbol
will disappear and cooking can begin. After 10 minutes
without detecting a pan the cooking zone will switch o
automatically.
Table 2.1 shows the minimum pan sizes recommended for
each cooking zone.
Note: Using pans with a base diameter smaller than those
recommended will result in a power reduction.
Cooking Zone
Front left 140
Rear left 180
Rear centre 180
Rear right 180
Front right 140
Minimum Pan Diameter
(Pan Base) mm
Table 2.1
7
0
1
L
2
L
1
A
P
9
0
1
L
2
L
1
A
P
9
0
1
L
2
L
1
A
P
9
0
1
L
2
L
1
A
P
9
0
1
L
2
L
1
A
P
9
Fig. 2.6
Power Level
Auomatic Heat-up Time at
1 0:48
2 2:24
3 3:50
4 5:12
5 6:48
6 2:00
7 2:48
8 3:36
9
Table 2.2
100% (min:sec)
Residual Heat Indicator, H
After use, a cooking zone will remain hot for a while as heat
dissipates. When a cooking zone is switched o the residual
heat indicator symbol [H ], will appear in the display. This
shows that the cooking zone temperature is above 60 °C and
may still cause burns. Once the temperature has dropped to
below 60 °C the [H ] will go out.
Automatic Heat-up, A
This function is available on all of the cooking zones. It
allows rapid heating up of the element to bring the selected
cooking zone up to temperature. Once the zone is at the
required cooking temperature the power level will reduce
automatically to the preset level.
The function is selected by turning the control knob to the
‘A’ position. Turn the control knob momentarily counterclockwise from the zero position until the symbol [A
on the hob control display.
] is shown
Fig. 2.7
Once the [A
] is displayed, turn the control knob to the level
of your choice (1 to 9). The pan will heat up at 100% power
for a specied time before the power is reduced to the level
selected.
When the Automatic Heat-up function is activated, the hob
control display will ash alternately between the [A
] setting
and the chosen power level.
Once the Automatic Heat-up time has ended the hob display
will stop ashing and will show the chosen power level.
The Automatic Heat-up function can be stopped by either
turning the control knob back to the “0” power setting or
turning the control knob to the “9” power setting.
For your guidance Table 2.2 shows the time available at
100% power depending on the power level selected in the
Automatic Heat-up mode.
Child Lock,
IMPORTANT: The child lock can only be activated
when all the cooking zones are switched o.
To prevent the unwanted use by children, the hob can be
locked.
To lock the hob, simultaneously turn the two left-hand
controls counter-clockwise (Fig. 2.6) and hold until the
symbol appears in the centre of the hob control display (Fig.
2.7).
Note: [A
] will ash when locking the hob – this is normal.
Locking the hob will NOT aect the ovens; they can still be
used.
To unlock the hob, simultaneously turn the two left-hand
controls counter-clockwise and hold until the
symbol
disappears from the centre of the hob control display.
8
Low Temperature Setting, L1/L2
This function should only be used when heating
from cold
Each cooking area is equipped with 2 low temperature
settings:
• L1 will maintain a temperature of about 40 °C – ideal for
gently melting butter or chocolate.
• L2 will maintain a temperature of about 90 °C – ideal for
simmering (bring the pan to the boil and then select L2
to keep soups, sauces, stews, etc at an optimal simmer).
The maximum time this setting can be used is 2 hours. To
increase the heat, just turn the control knob to the required
level. The maximum times for all other power levels are
shown in Table 2.3.
Power Level
L1 and L2
1
2
3
ArtNo.051-0002 - Min pan diameter
4
5
6
7
8
9
Power Boost
Maximum Operating Time
2 hours
6 hours
6 hours
5 hours
5 hours
4 hours
1.5 hours
1.5 hours
1.5 hours
1.5 hours
10 minutes
Table 2.3
Power Boost Setting, P
All of the induction cooking zones have Power Boost
available, activated by turning the control knob clockwise
until [P ] is shown on the hob control display.
Power Boost allows additional power to be made available for
each of the cooking zones. This is useful to bring a large pan
of water to the boil quickly.
The Power Boost function operates for a maximum of 10
minutes on each zone, after which the power is automatically
reduced to setting 9.
When using the Power Boost function, the cooking zones are
linked.
Fig. 2.8 shows the hob layout. Zones A and B are linked
together as are zones C, D and E.
This means that when using zone A on Power Boost and then
switching zone B to Power Boost , the power to zone A will
reduce slightly. The last zone switched to Power Boost always
takes priority. Zones C, D and E work in the same way.
This is a built-in safety device.
Deactivate the Power Boost function by turning the control
knob to a lower setting.
A & B linked
A B
D
Induction
Fig. 2.8
C
E
C, D & E linked
Overheat Function
This function identies when the temperature of the pan rises
rapidly and works to maintain a safe level of pan temperature.
It should not interfere with normal cooking.
Cookware with bases that become distorted (Fig.2-2) when
heated may interfere with the operation of the Overheat
Function. This may result in damage to your cookware or
Induction Glass Hob.
Please remember not to leave the hob unattended.
Care should be taken to not allow your cookware to
boil dry. Damage to your cookware and Induction
Glass Hob may result.
Please read and follow the manufacturers’ instructions
carefully before using cookware on your induction hob.
9
Fig. 2.9
Fig. 2.10
ArtNo.330-0003 - Grill pan w handle pulled forwards
The Grill / Glide-out Grill
CAUTION: This appliance is for cooking purposes
only. It must not be used for other purposes, for
example room heating.
CAUTION: Accessible parts may be hot when the grill
is in use. Young children should be kept away.

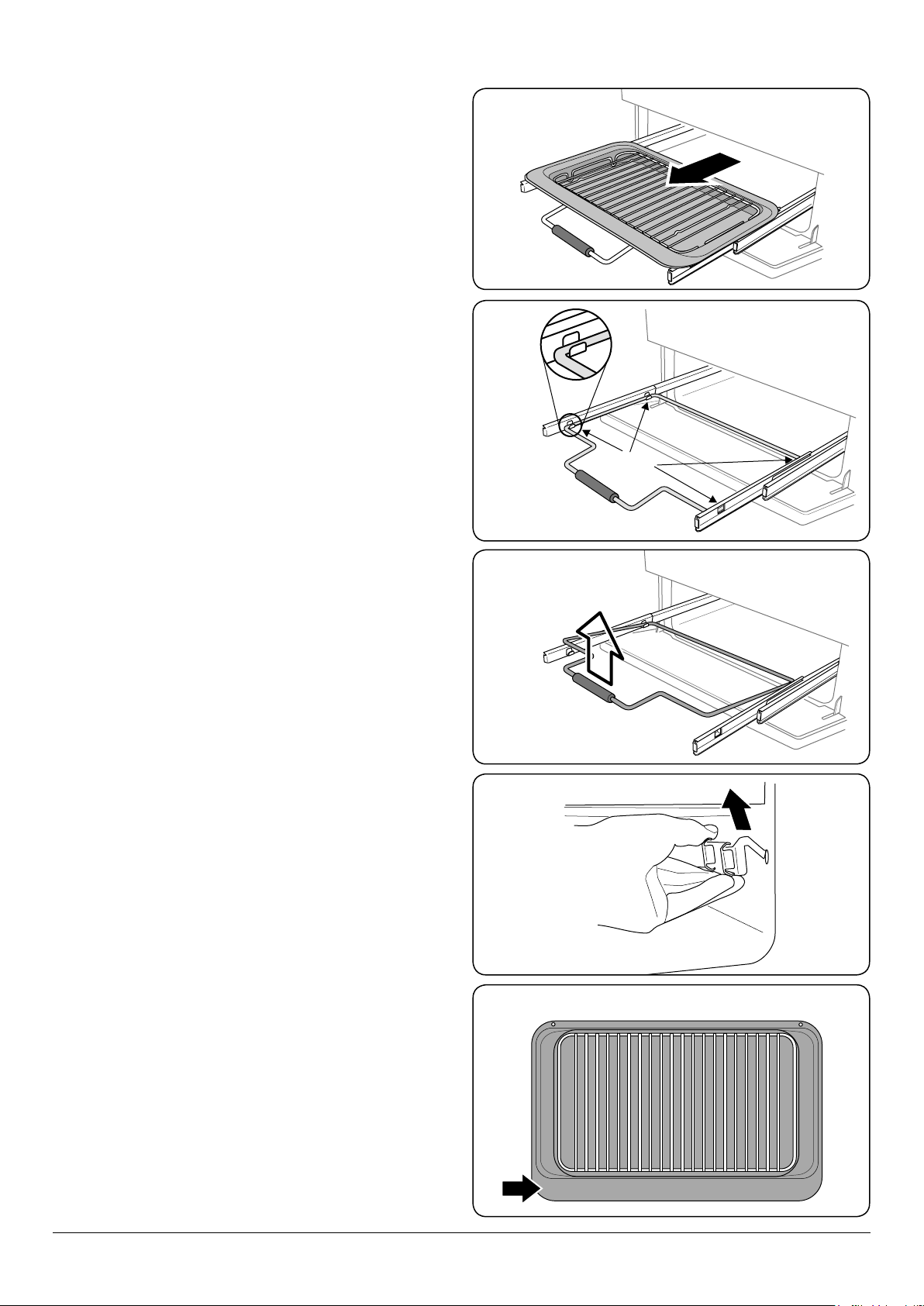

Open the door and pull the grill pan carriage forward using
the handle (Fig. 2.9, Fig. 2.10 or Fig. 2.11 depending on
model).
The grill has two elements that allow either the whole area of
the pan to be heated or just the right-hand half.
Adjust the heat to suit by turning the knob. To heat the whole
grill, turn the knob clockwise (Fig. 2.12).
Fig. 2.11
Fig. 2.12
Fig. 2.13
ArtNo.331-0001Grill pan pulled forwards
ArtNo.200-0003 -
Generic grill control to full
To heat the right-hand half, turn the knob counter-clockwise.
The neon indicator light by the grill control will come on.
For best results, slide the carriage back into the grill chamber
and preheat the appropriate part(s) of the grill for two
minutes. The grill trivet can be removed and the food placed
on it while you are waiting for the grill to preheat.
DO NOT leave the grill on for more than a few
moments, without the grill pan underneath it,
otherwise the knobs may become hot.
Once the grill has preheated, slide the carriage out again.
With the trivet back in place with the food on it, slide the
carriage back into the grill chamber. Make sure that it is
pushed right in.
The grill pan trivet in Fig. 2.9 and Fig. 2.10 can be turned
over to give two grilling positions (Fig. 2.13).
The grll pan trivet in Fig. 2.11 can be turned to give four
grilling positions (Fig. 2.14).
Never close the grill door when the grill is on.
Fig. 2.14
ArtNo.331-0002 Grill pan high/low position
1
2
3
4
10
ArtNo.321-0002 Fan assisted oven
The Ovens

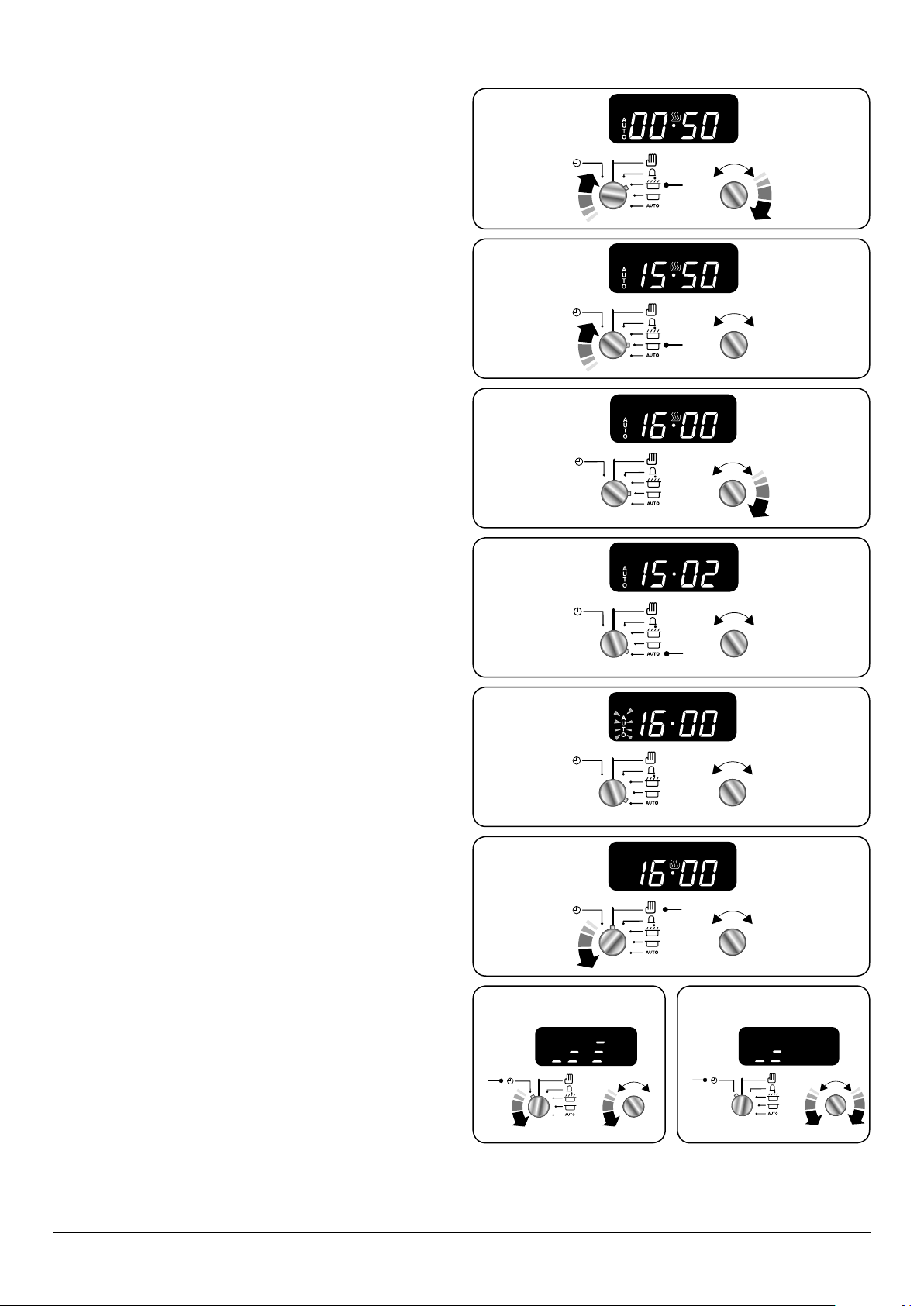

The clock must be set to the time of day before the
programmable oven will work. See the following section on
‘The Clock’ for instructions on setting the time of day.
Fig. 2.15
References to ‘left-hand’ and ‘right-hand’ ovens apply as
viewed from the front of the appliance.
The left-hand oven is either a programmable multifunction
(Fig. 2.15) or fan oven (Fig. 2.16), while the right-hand tall
oven is a fan oven (Fig. 2.17).
The Fan Oven (Classic & Professional +)
Fan ovens circulate hot air continuously, which means
faster, more even cooking. The recommended cooking
temperatures for a fan oven are generally lower than those
for a non-fan oven.
Note: Please remember that all cookers vary so temperatures
in your new ovens may dier to those in your previous
cooker.
The Multifunction Oven (Classic Deluxe & Professional
Deluxe)
Multifunction ovens have an oven fan and oven fan element,
as well as two extra heating elements. One element is in the
top of the oven and the second is under the oven base.
Note: Take care to avoid touching the top element and
element deector when placing or removing items from the
oven.
Multi-function oven
Classic Deluxe
Professional Deluxe
ArtNo.321-0006 - Multi-function oven
Fig. 2.16
Fan oven
Classic
Professional+
Fig. 2.17
Tall fan oven
The multifunction oven has 3 main cooking functions: fan,
fan assisted and conventional cooking. These functions
should be used to complete most of your cooking.
The browning element and base heat can be used in the
latter part of the cooking process to ne tune the results to
your particular requirements.
Use fanned grilling for all your grilling needs and defrost to
safely thaw small items of frozen food.
Table 2.4 gives a summary of the multifunction modes.
The multifunction oven has many varied uses. We suggest
you keep a careful eye on your cooking until you are familiar
with each function. Remember, not all functions will be
suitable for all food types.
ArtNo.323-0002 Tall oven
Function Use
Defrost
Fan oven
Fanned grilling
Fan assisted
Conventional
oven
Browning
element
Base heat
To thaw small items in the oven without heat
A full cooking function, even heat throughout,
great for baking
Grilling meat and sh with the door closed
A full cooking function good for roasting and
baking
A full cooking function for roasting and baking in
the lower half of the oven
To brown and crisp cheese topped dishes
To crisp up the bases of quiche, pizza or pastry
Table 2.4
11
Loading...
