Rangemaster 60S User Manual

SINGLE 60S - DOUBLE 90D
BUILT-IN ELECTRIC OVEN

INSTALLATION,
USE AND CARE INSTRUCTIONS

1 9880015700 E OVEN RANGEMASTER 03-2006

INDEX

INSTALLATION INSTRUCTION GUIDE: page

BUILT-IN OVEN TO CABINET UNIT 3
CHARACTERISTICS OF CABINET UNIT 3
OVEN ELECTRICAL CONNECTION 3
OVEN CLEANING 4
OVEN DOOR 4
REPLACING THE OVEN LIGHT 4
SPARE PARTS 5
APPLIANCE TECHNICAL FEATURES 5

OVEN USE GUIDE:

CONTROL PANEL 5
LIGHT INDICATORS 5
OVEN TEMPERATURE THERMOSTAT SWITCH 5

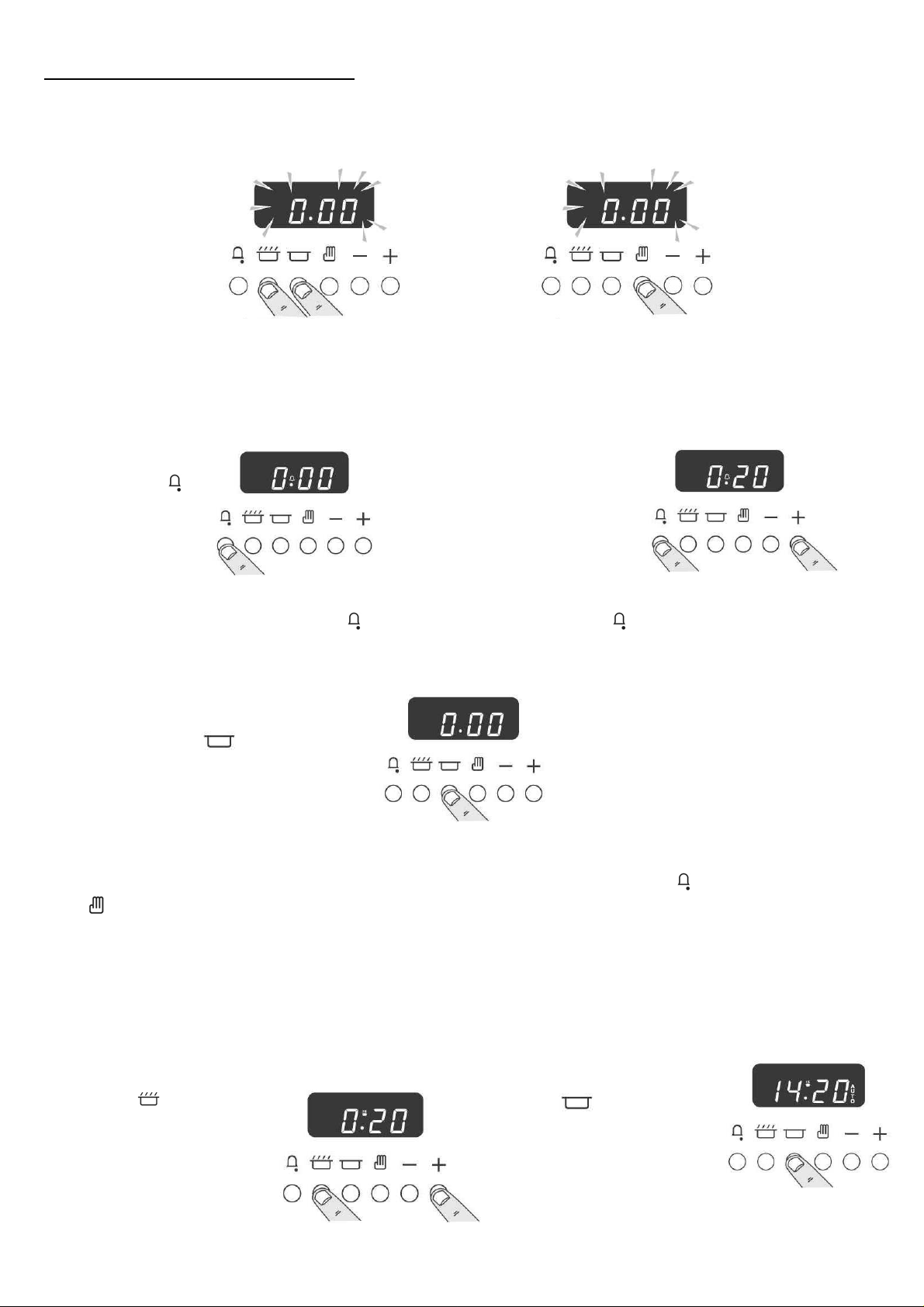

ELECTRONIC PROGRAMMER 6
MANUAL TIMER 7
OLD FASHION MANUAL TIMER 7
OVEN FUNCTION SELECTOR SWITCH 7 – 8

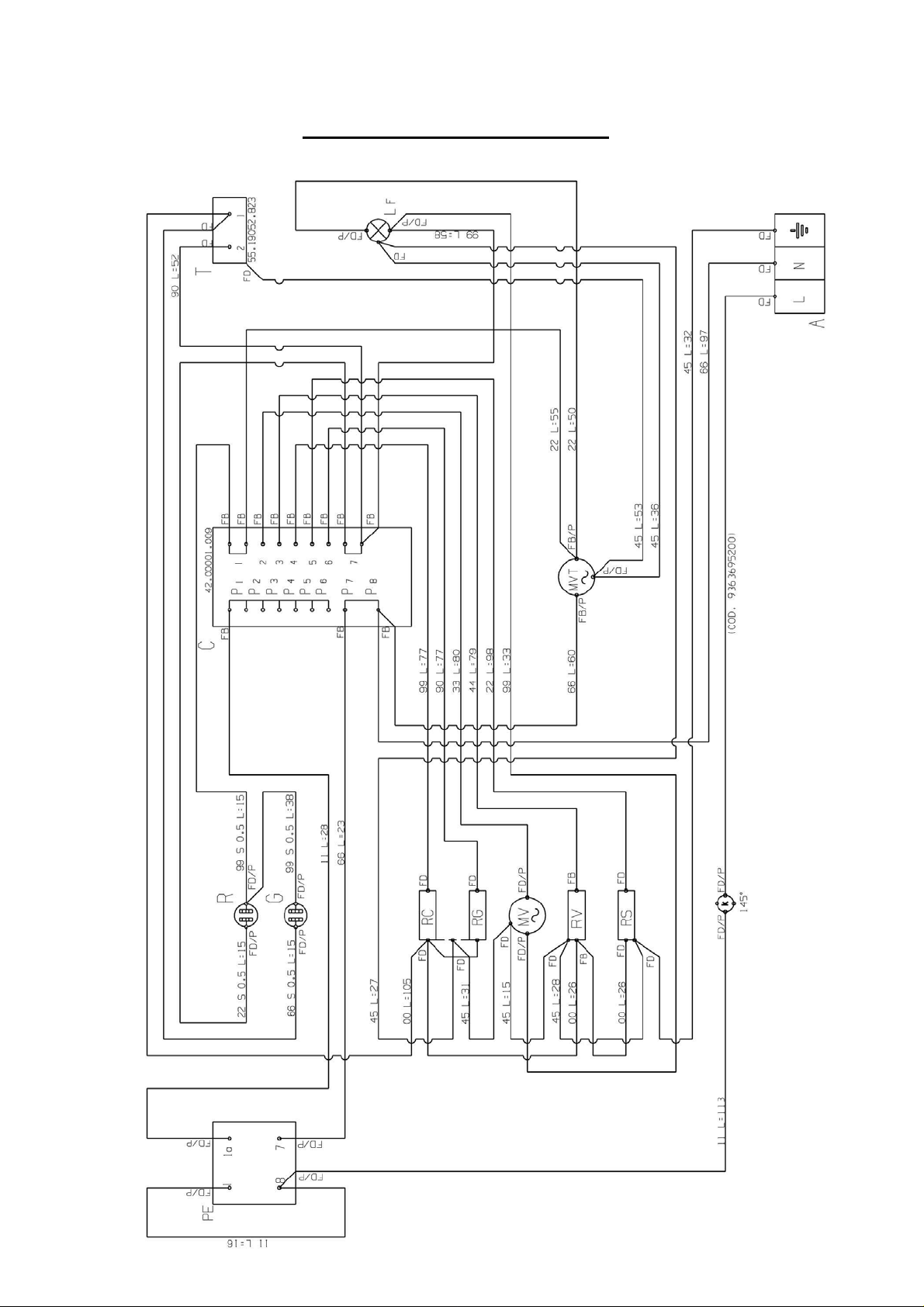

60S CIRCUIT DIAGRAM 10

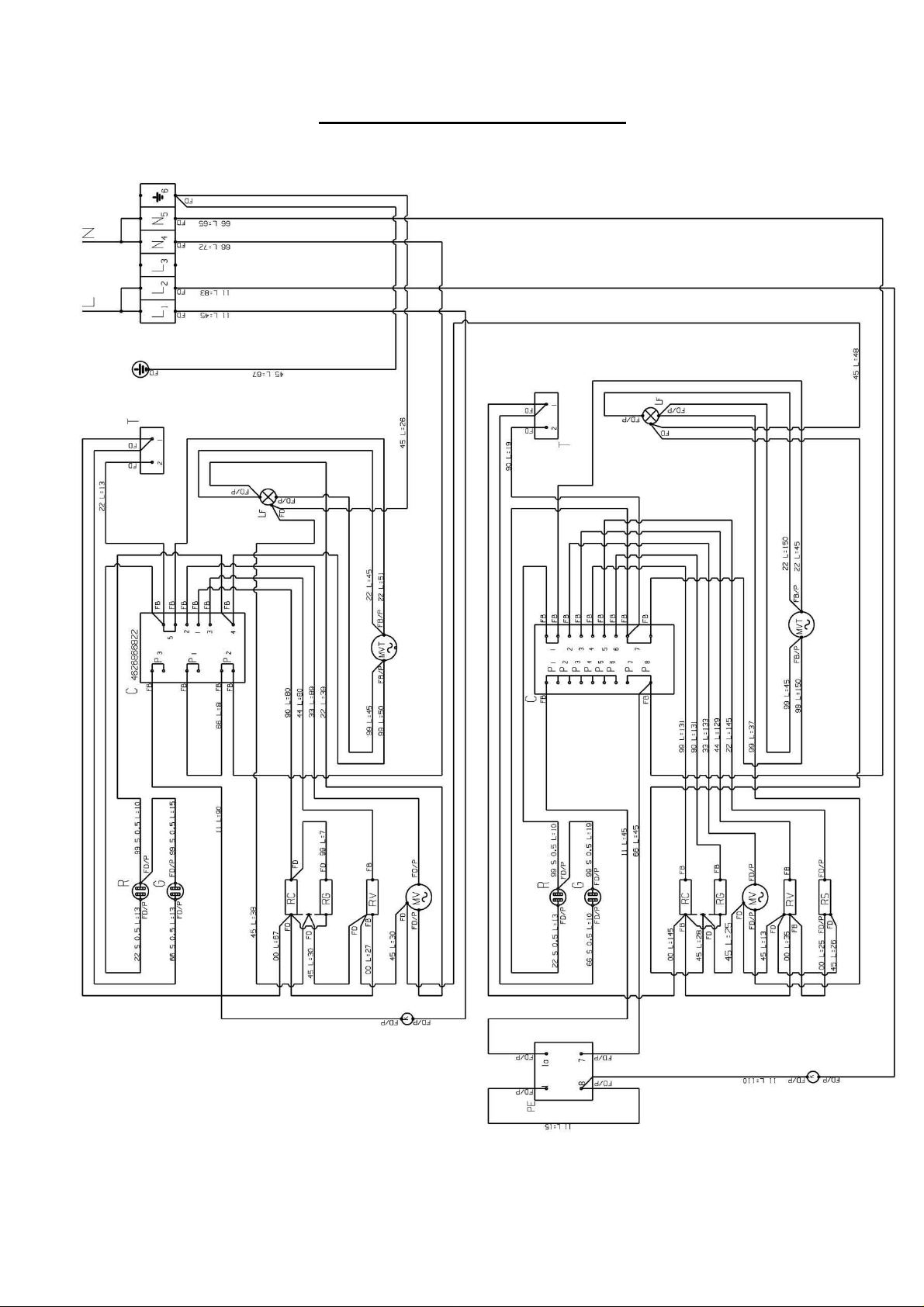

90D CIRCUIT DIAGRAM 11
FIGURES 12 – 15

2 9880015700 E OVEN RANGEMASTER 03-2006

USE AND CARE INSTRUCTION

ATTENTION: FOR CORRECT INSTALLATION AND USE, YOU MUST REFER TO
YOUR OVEN MODEL TECHNICAL DATA. PLEASE, CHECK APPLIANCE
RATING PLATE FOR OVEN MODEL NUMBER.

INSTALLATION INSTRUCTION GUIDE

BUILT-IN OVEN TO CABINET UNIT:

The oven may be built-in either in a column or under countertop of a suitable cabinet unit.

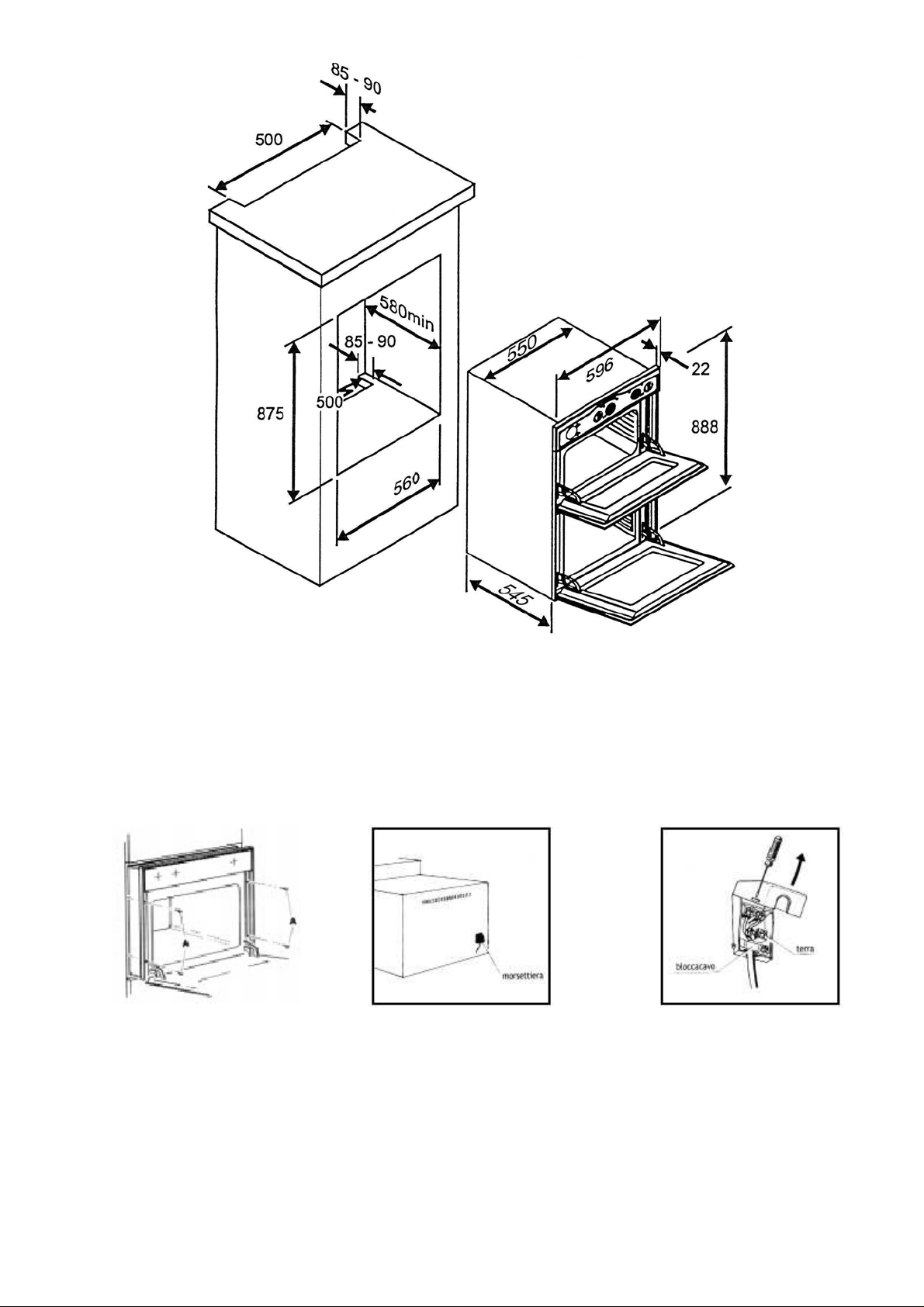

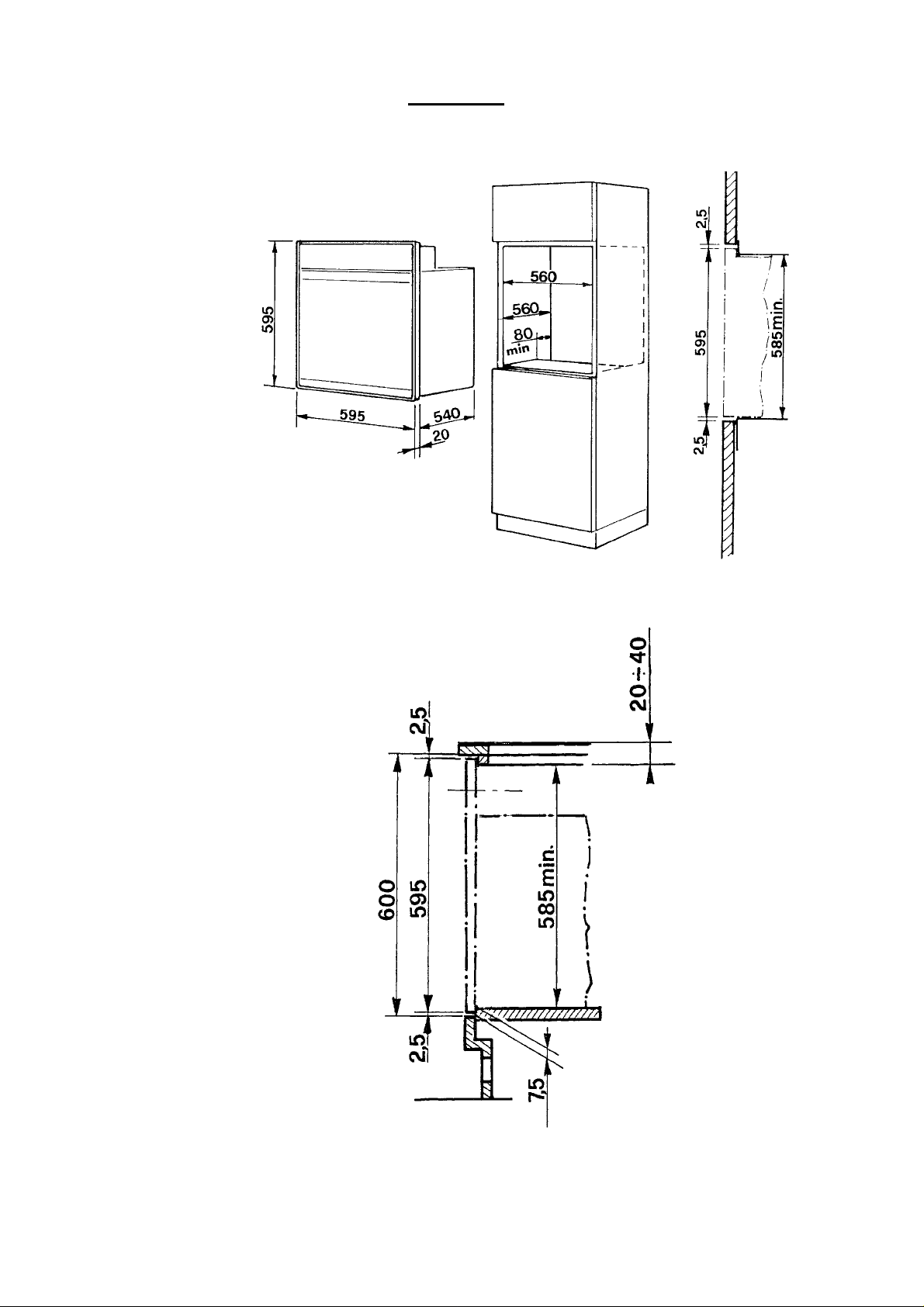

Cut-out opening dimensions to be performed on cabinets are indicated in fig. 1. Make sure cabinet unit in which the

oven is to be fitted is sufficiently sturdy to take the weight of the appliance, approx. 35 Kg. for mod. 60S or 52 Kg.for
model 90D. Please follow respective oven model cut-out dimensions: Fig. 1A for mod. 60 S and Fig. 1B for mod. 90D.
On the bottom of the unit and/or on the shelf supporting the oven, remember to do the cut-out section at the back, see
fig. 1, to allow fresh air passage for appliance cooling.
Ensure that the oven is firmly fixed on provided cut-out. Use screws “A” , fig. 2, to secure oven.

CHARACTERISTICS OF CABINET UNIT: Cabinet Unit technical requirements as follow;

- The unit and its components must be able to resist a temperature of 90°C without becoming unglued or warped.

- The unit must allow free passage of the electrical connections as well as gas tubing in case is needed.

OVEN ELECTRICAL CONNECTION

IMPORTANT.

- This appliance must be connected to power supply only by a skilled authorised personal.

- Electrical connection must comply with requested local product electrical standard requirements.

- It must be powered by a single-phase 230V ~ 50Hz electrical connection;
EARTH OR GROUND CONNECTION IS MANDATORY.

- If electrical wiring is made directly to wall outlet, it is necessary to apply a breaker type of switch suitable to appliance
electrical power and standard requirements.

- IN ANY TIME, GROUND WIRING MUST NOT BE INTERRUPTED BY A SWITCH OR SIMILAR
COMPONENT.

THE APPLIANCE MUST ALWAYS BE DISCONNECTED FROM POWER SUPPLY BEFORE
PERFORMING ANY MAINTENANCE AND SETTINGS.

The appliances could be supplied with an electrical flexible cord without plug. In case of plug application, use a suitable
plug in accordance to the appliance technical specifications. Remember to properly connect the ground or yellow/green
wire to the plug’s ground lead
In case of flexible cord replacement or application, read following instruction:

- Disconnect electrical power supply.

- Open terminal block cover (for mod. 60S; fig. 3 - 4A and for mod. 90D; fig. 4B).

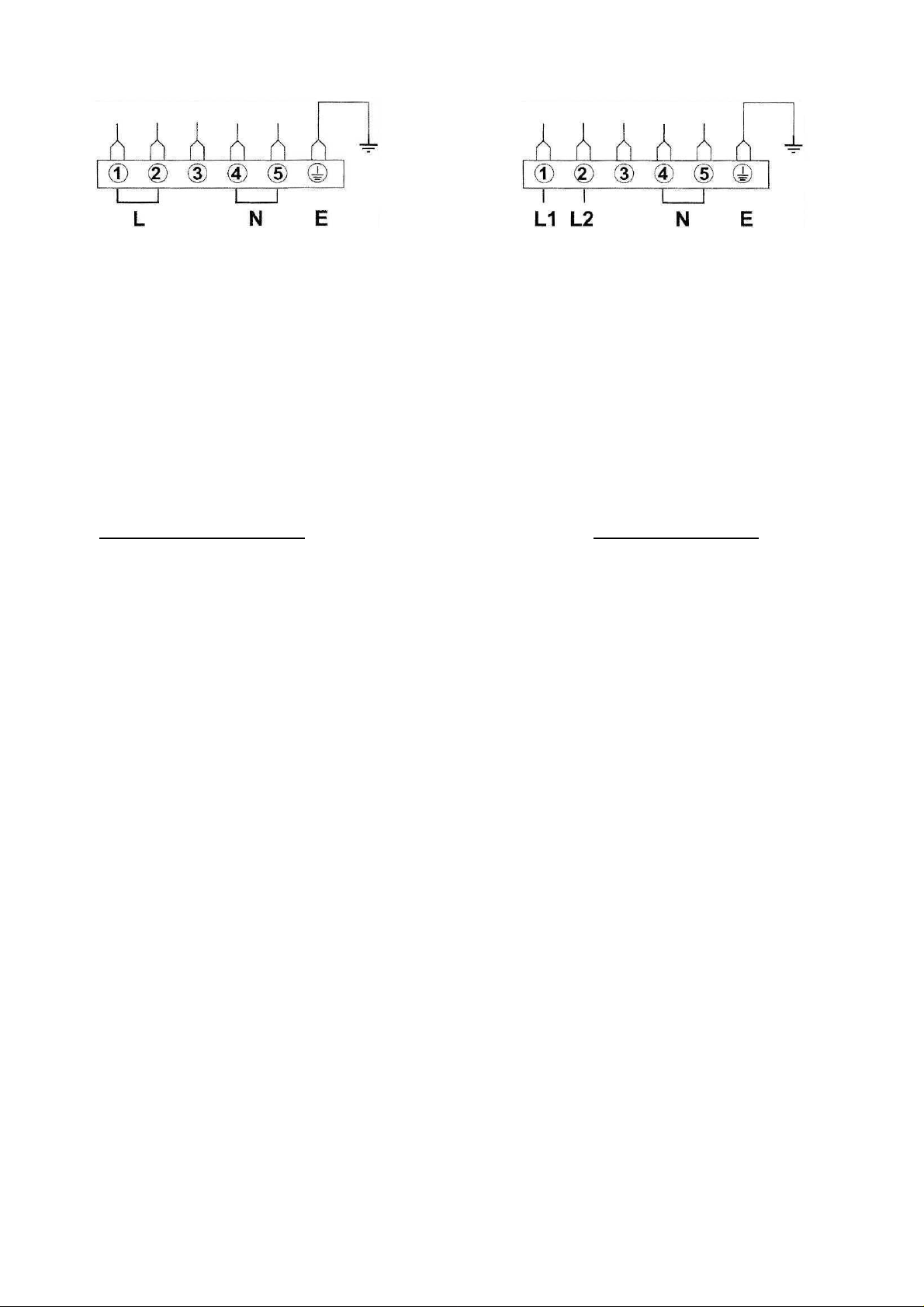

- Fix flexible cord leads properly as indicated in figure 4, Brown Hot (L), Neutral (N) and Ground. Remember the
yellow-green lead is ground. If a 13A (BS. 1363) plug is used, fit a 13 amp fuse.

- The flexible cord must always be secured by the cord clamp (fig. 4) on terminal block, so may not become loose by
being pulled accidentally. Also, make sure flexible cord does not touch hot point of over 75 °C through out the entire
cord length.

- Electrical plug must be suitable to appliance purpose, as mentioned before. Also, position the plug in a location
accessible after appliance installation, unless the appliance incorporates or is connected to a switch that ensures all-pole
disconnection. This type of switch must have a contact separation in all poles of not less than 3 mm.

ATTENTION: Use only electrical flexible cord with three-prong assembly, for all Single ovens use type
H05RR-FH 3 x 1.5 and for Twin-Style oven use type H05RR-FH 3 x 2.5.

3 9880015700 E OVEN RANGEMASTER 03-2006

OVEN CLEANING

CLEANING SAFETY

Turn off all controls and wait for appliance parts to cool before touching or cleaning them. Clean appliance with
caution. Use care to avoid steam burns if a wet sponge or clothe is used to wipe spills on a hot surface. Some cleaners
can produce noxious fumes if applied to a hot surface.

SURFACE CLEANING

This is easily done using a damp cloth and a non-abrasive detergent, wipe using a soft dry cloth. For stainless steel parts
with stubborn soils, use only plastic scrubbing pad or a sponge with vinegar and warm water. For Oven cooking cavity
cleaning, follow the same procedure mentioned above, but to ease the cleaning you may start cleaning when the cooking
cavity is still warm enough to be touched.

WARNING: Do not use steam cleaners to clean any part of the oven.

OVEN DOOR: To remove and replace the Oven Door, please follow procedures here below;

REMOVING OVEN DOOR ON 60S MODELS: Fig. 5

Fully open the oven door. – Raise the U-clip over the hook on each of the hinges to the “locked” position, see figure 5
and 6. This will prevent the hinge from snapping closed when the door is removed. – Grasp the door by the sides toward
the back. – Raise the front of the door several centimetres (there will be some spring resistance to overcome because of
the hinge being locked). – When the front of the door is high enough, you will be able to lift the hinges to clear the
indents. – Pull the hinges out of the slots in the oven front frame.

TO REPLACE THE OVEN DOOR ON 60S MODELS: Fig. 5

Grasp the sides of the door at the centre and inert the ends of the hinges into the slots in the oven front frame as far as
they will go, see figure 5 and 6. – With the door open all the way, lower the two locking clips. – Raise the oven door
and make sure that it fits evenly with the front sides.

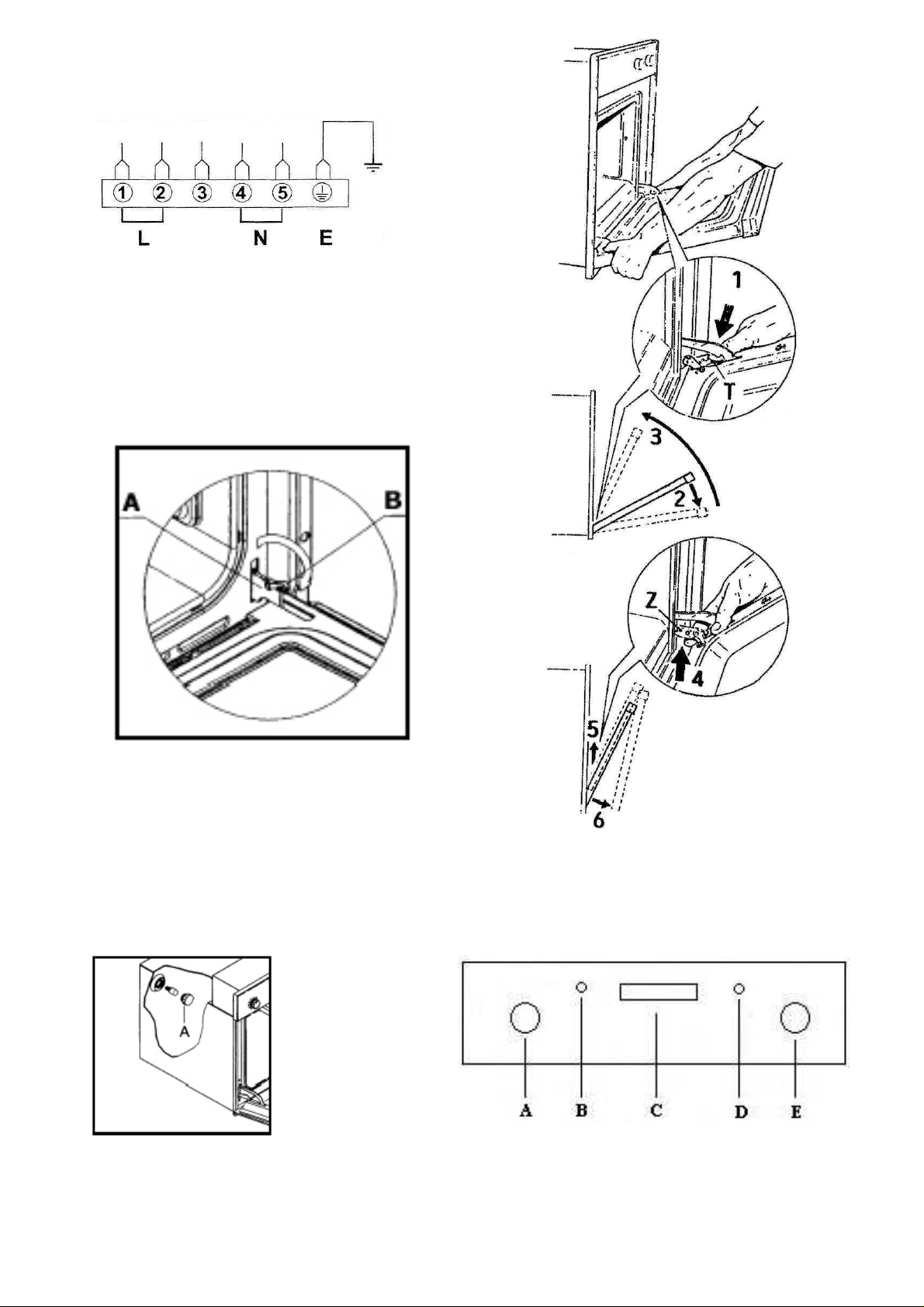

REMOVING OVEN DOOR ON 90D MODELS: Fig. 6
Open the door for about 45°. Step 1: With thumbs push levers “T” to bottom of the hinges. Step 2: Keeping levers “T”
down, lower the door till you hear the click when the “T” levers are locked and so blocking the hinges.
Step 3: Making sure “T” levers are locked, partially close the door to about 60°. Step 4: With the forefinger lift the “Z”
levers of both hinges. Step 5 and 6: Lift the door and take out as shown in fig. 6.

TO REPLACE THE OVEN DOOR ON 90D MODELS: Fig. 6

Grasp the door by the sides and insert hinges into their slots, keeping “Z” levers up (as in step 4). Hook the hinges into
their locations by following steps 6 and 5 backwards. Once “Z” levers are in place, fully the open door to unlock “T”
levers. Once “T” levers are in the up-right position, gently close the door.

WARNING. Never release the U-clip or T-clip levers when the door is off. Do not close the hinges without the weight
of the door, the powerful springs will snap the hinges closed with great force.
CAUTION: Do not place excessive weight on or stand on an open oven door. This could break the door or injure the
user. Also, do not attempt to open or close door or operate oven until door is properly replaced.

REPLACING THE OVEN LIGHT

WARNING; To prevent electrical shock and/or personal injury read follow this procedure:

Before replacing the light bulb, be sure the electric power is turned off at the circuit breaker.
Be sure the oven and light bulb are cool. Then remove light cover A by unscrewing it. Figure 7.
Do not touch hot bulb with a damp cloth as this may cause the bulb to break.
Replace light bulb with a 25 W for 230 V a.c. appliance bulb only. Figure 7.
If the light cover is damaged or broken, do not use the oven until a new cover is in place.
Do not operate the oven unless the light cover is securely in position.

4 9880015700 E OVEN RANGEMASTER 03-2006

SPARE PARTS.
Only authorised parts may be used in performing service on the appliance. Do not repair or replace any part of the
appliance unless specifically recommended in the manual. All other services should be referred to a qualified technician.
To request a product spare part, you must indicate the following product information:

1) Appliance or product model and serial production number which are indicated on product data label, placed on the
front-bottom of oven cooking cavity.

2) Spare part description and part number, technical information available only by authorised technical service centre.

3) And finally, also indicate information on the distributor that sold the appliance as well as your nearest technical
service centre.

APPLIANCE TECHNICAL FEATURES.

Voltage 230 V ~ 50 Hz
Total Power: kW 2.7 2.7 2.7
Top Heating Element: kW 0.8 0.8
Grill Heating Element: kW 1.8 2.6 2.6
Bottom Heating Element: kW 1.2 1,5
Centre Heating Element: kW 2.2 2,2 1.5
Oven Light: W 25 25 25
Oven Fan: W 25 25 25
Cooling Fan: W 25 25 25

Useful Cooking Cavity Dimensions

Height mm 315
Width mm 420
Depth mm 410
Useful Volume dm³ 56
Grilling Surface Area cm² 615

Power Consumption Performance
Power to reach 200° C kW/h 0.46 0.46 0.26
Power to maintain 200° C kW/h 0.54 0.54 0.53
Total Power Consumption kW/h 1.00 1.00 0.79

MAIN (60S) MAIN (90D) TOP (90D)

315
420
410

56 31

615

190
440
370

615

OVEN USE GUIDES

A = Selector knob - B = ON and OFF Power indicator light -

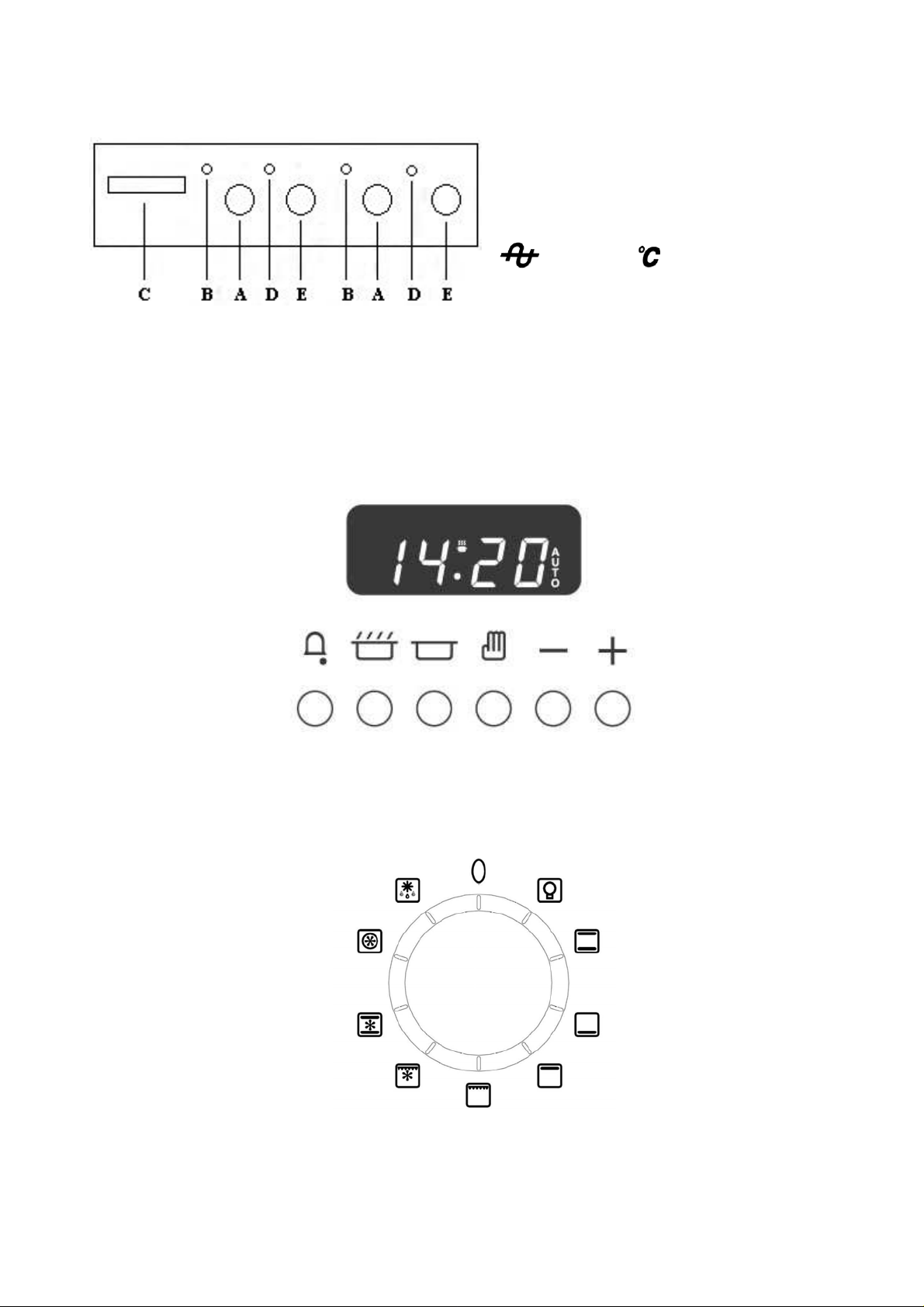

CONTROL PANEL. Please take a look at figure n° 8.

C = Electronic Programmer

D = ON and OFF Thermostat indicator light - E = Thermostat knob control.

IMPORTANT:

When using the oven for the first time, let it work empty for about 1 hour at the most, if possible leaving the kitchen
windows open. When lit for the first time the oven gives off unpleasant smells due to manufacturing residue such as
grease, oil or resin.

ON AND OFF PILOT LIGHT

Whenever is on it means the oven is electrically powered and functioning, see figure 9.

TEMPERATURE PILOT LIGHT

It turns on and off to indicate the elements are turning on and off to maintain the desired oven temperature, see fig. 10.

OVEN TEMPERATURE THERMOSTAT SWITCH:

This control allows you to choose the desired Oven Cooking Temperature, for all function modes. The elements will
turn on and off to maintain oven cooking temperature.
