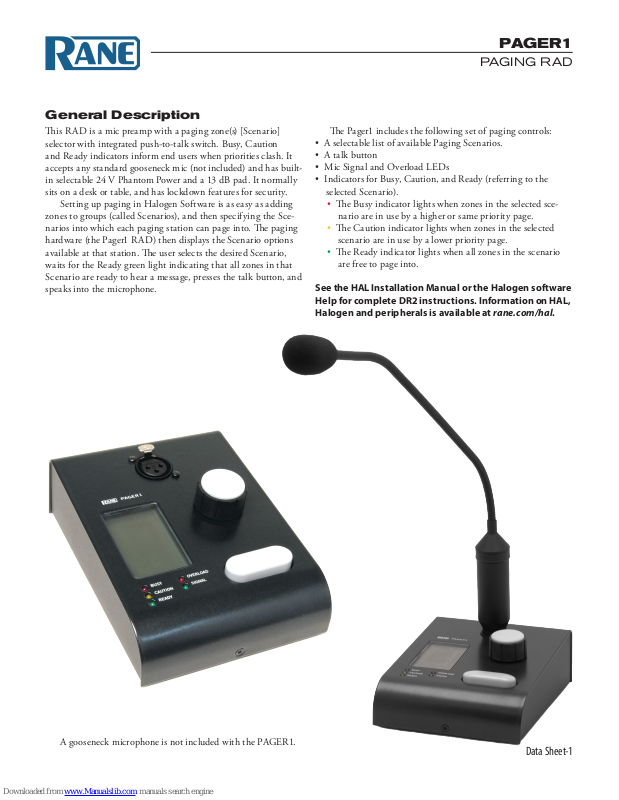

General Description
is RAD is a mic preamp with a paging zone(s) [Scenario]
selector with integrated push-to-talk switch. Busy, Caution
and Ready indicators inform end users when priorities clash. It
accepts any standard gooseneck mic (not included) and has builtin selectable 24 V Phantom Power and a 13 dB pad. It normally
sits on a desk or table, and has lockdown features for security.
Setting up paging in Halogen Software is as easy as adding
zones to groups (called Scenarios), and then specifying the Scenarios into which each paging station can page into. e paging
hardware (the Pager1 RAD) then displays the Scenario options
available at that station. e user selects the desired Scenario,
waits for the Ready green light indicating that all zones in that
Scenario are ready to hear a message, presses the talk button, and
speaks into the microphone.

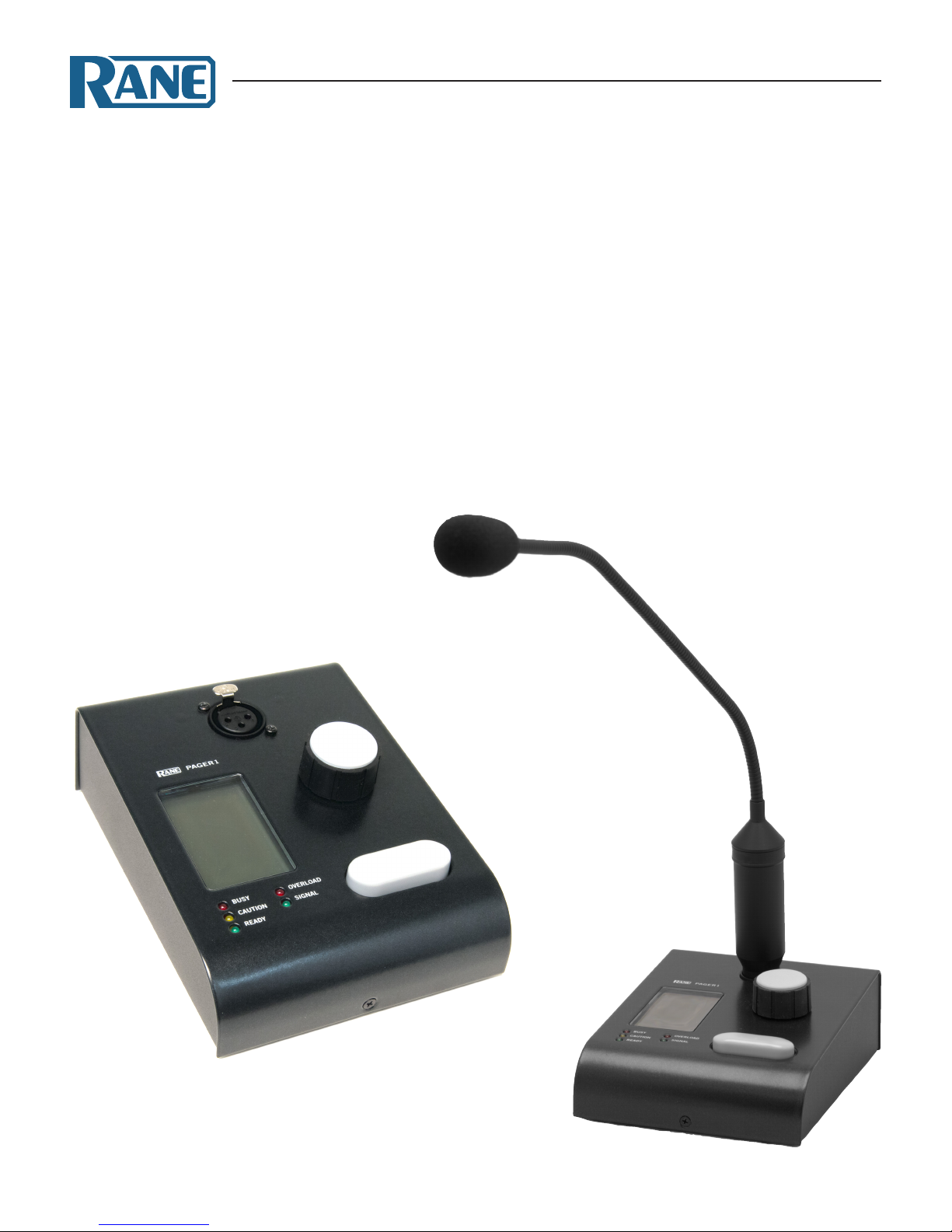

PAGER1
PAG I N G R A D
e Pager1 includes the following set of paging controls:
• A selectable list of available Paging Scenarios.
• A talk button
• Mic Signal and Overload LEDs
• Indicators for Busy, Caution, and Ready (referring to the
selected Scenario).
• e Busy indicator lights when zones in the selected sce-
nario are in use by a higher or same priority page.
• e Caution indicator lights when zones in the selected
scenario are in use by a lower priority page.
• e Ready indicator lights when all zones in the scenario
are free to page into.
See the HAL Installation Manual or the Halogen software
Help for complete DR2 instructions. Information on HAL,
Halogen and peripherals is available at rane.com/hal.
A gooseneck microphone is not included with the PAGER1.
Data Sheet-1
Page 2
PAGER1
ACN 001 345 482
PAG I N G R A D
Specifications
Parameter Specication Limit Conditions/Comments
RAD Port Rear panel with indicators RJ-45 connector
...Cable Length 500 feet / 153 meters Shielded CAT 5e or better.
Mic Input Accepts any gooseneck mic
...Connector 3-pin female XLR Locking tab may be removed
...Phantom Power 24 VDC @ 100 mA On/o in Halogen software
...Mic Pad 13 dB max Set in Halogen software
...Signal Indicator -50 dBFS Green LED, peak-reading
...Overload Indicator -0.5 dBFS Red LED, peak-reading
Page Indicators Busy (red), Caution (yellow), Ready (green)
Unit: Conformity CE, FCC
...Construction All Steel Lockdown holes in chassis allow securing to a table
...Size 4.5"H x 6"W x 2"D (11.5 cm x 15.3 cm x 5.1 cm)
...Weight 20 ounces (567 grams)
Shipping Size 6.25" x 8.5" x 5.5" (16 cm x 22 cm x 14 cm)
...Weight 1.64 lb (745 g ra ms)

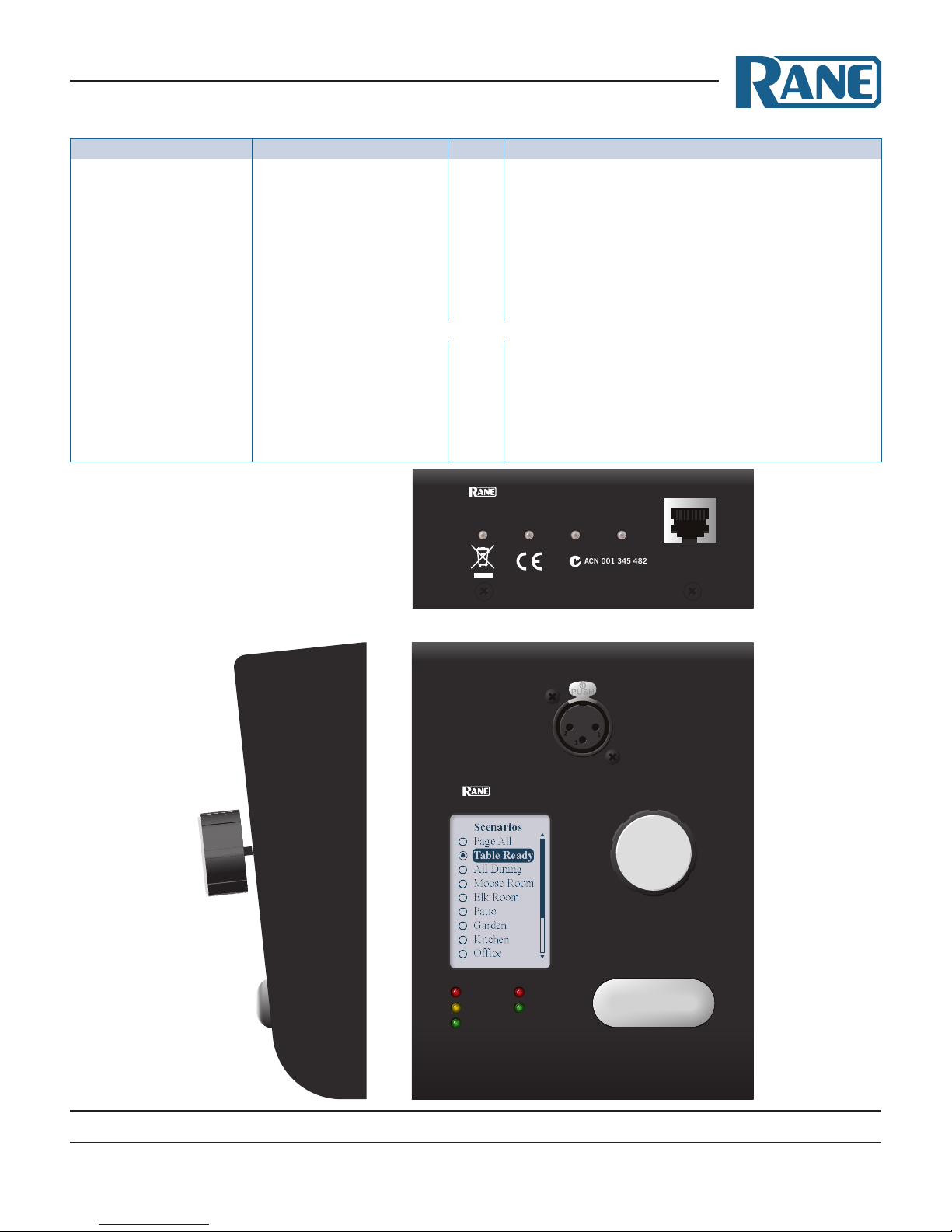

PAGER1
POWER COMM AUDIO RX AUDIO TX
PAGER1
MADE IN U.S.A. RAD PORT
