Blender
INSTRUCTION MANUAL
MODEL: RM/367
Read this booklet thoroughly before using and save it for future reference
2
IMPORTANT SAFEGUARDS
When using electrical appliance. Basic safety
precautions should always be followed including the
following:
1. Read all instructions.
2. Before using check that the voltage power
corresponds to the one shown on the appliance
nameplate.
3. Do not let cord hang over edge of table or counter.
4. Do not operate any appliance with a damage cord
or plug or after the appliance malfunction or has
been damaged in any manner. Return the appliance
to the nearest authorized service facility for
examination, repair or adjustment.
5. If the supply cord is damaged
，
it must be replaced
by the manufacture or its service agent or a
similarly quality person in order to avoid a hazard .
6. Close supervision is necessary when any appliance
is used by or near children.
7. Avoid contacting moving parts.
8. Blades are sharp, so handle carefully.
9. Never use hot liquids or run the appliance empty.
3
10.The use of accessory not recommended or sold by
the manufacturer may cause fire，electric shock or
injury
。
11. The appliance can not be used for blending or
grinding hard and dry substance, otherwise the
blade could be blunted. But it can be used for
blending ice cube.
12.Unplug from outlet when not in use, before putting
on or taking off parts, and before cleaning.
13.To protect against risk of electrical shock do not put
unit in water or other liquid.
14.Be sure blending cover is accurately put in place
before operating appliance
15.Keep hands and utensils out of container while
blending or grinding to reduce the risk of severe
injury to persons or damage to the blender. A
scraper may be used but must be used only when
the blender is not running.
16.To reduce the risk of injury , never place
cutter-assembly blades on base without jar or bowl
properly attached.
17.This appliance is not intended for used by persons
4
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliances by a person responsible for their safety.
18. Children should be supervised to ensure that they
do not play with the appliance.
19. Do not immerse the Motor Unit into water or other
liquids.
20. Do not use outdoors.
21. Save these instructions.
HOUSEHOLD USE ONLY
Speed knob
Motor unit
Seal ring 3
Blade assembly
Blade Base
Measure cup
Lip
Jar
Grinding cup
Blade asm
Blade shaft seal ring
Jar base
Washer
Top connector
Jar base seal ring
5
BEFORE THE FIRST USE
Check that all parts are complete and not damaged. Choose the
appropriate attachment to perform your desired task. The blending
attachment is suitable for blending fruits or vegetables and crushing
ice, while the grinding attachment for grinding coffee beans or other
granular beans. Clean the a ttachment according to the section
“CLEANING AND MAINTENANCE”.
WARNING: The blade is sharp, handle with great care and ensure
that unplug the appliance from outlet before assembling and
removing parts.
USE YOUR BLENDER
For blending operation
1. Lay the motor unit on the flat horizontal surface and make sure it
is unplugged.

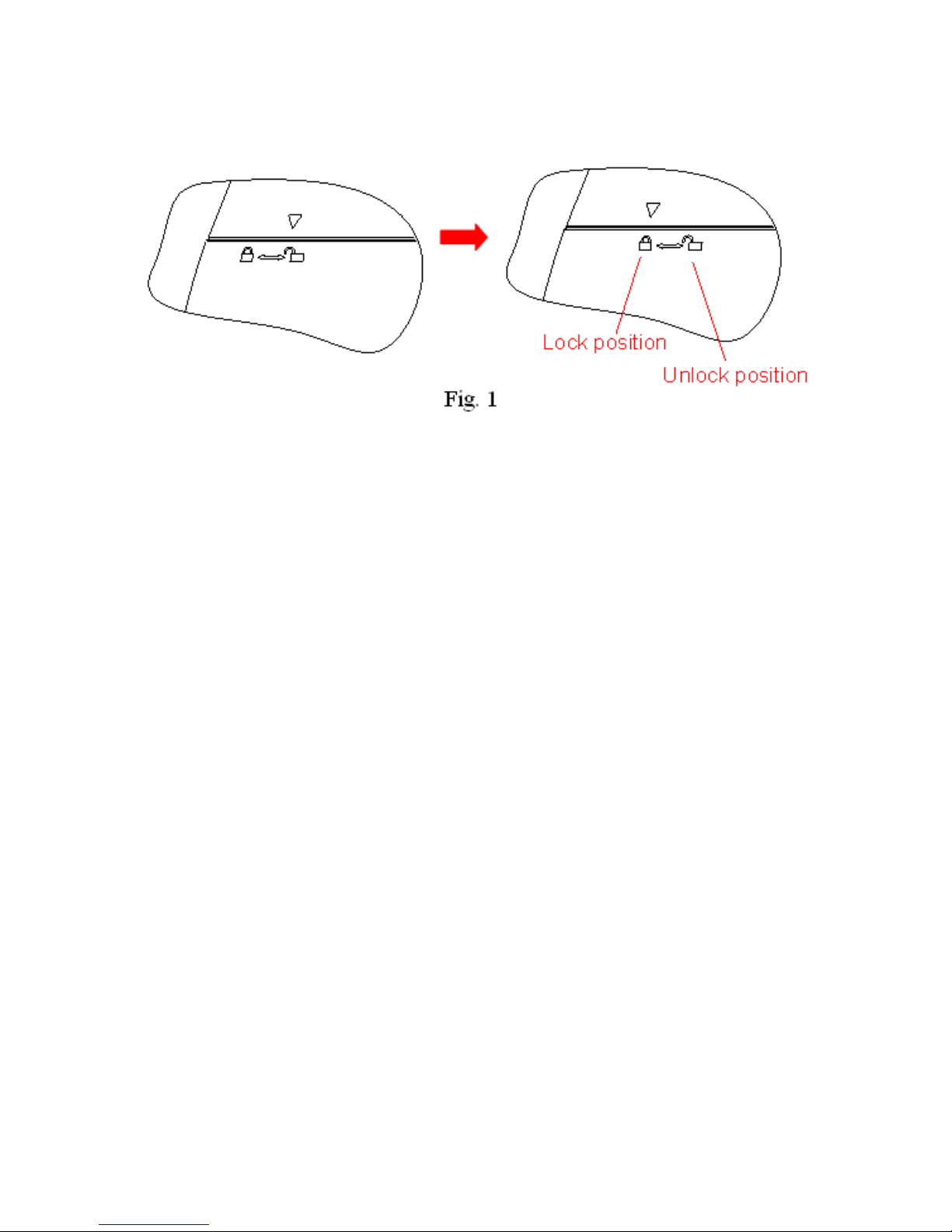

2. Place the Jar on the Motor Unit, let the triangle almost align
with the word “UNLOCK ” on jar base and then turn the jar
clockwise until the triangle aligns with the word “ LOCK ”,a
click will be heard when locked into position properly. Please
see Fig.1.
NOTE: There is a safety interlock device at the bottom of jar, if
6
the jar is not assembled in place, the blender will not operate.
3. Open the jar cover by turning anticlockwise and place
it on the surface. Peel or core the fruits or vegetables
and then cut it into small pieces, then put them into the
jar. Usually certain amount of purified water has to be
added to facilitate the smooth running of appliance.
The amount of mixture should not exceed the max level
as indicated on the jar, nor sit lower the min level. The
best proportion of the fruits or vegetables and water is
2:3.
NOTE: The blender is not applicable for beating egg
white, mashing potatoes, mixing dough, extracting juice
from fruit and vegetable.
4. Replace jar cover on the jar and turn it clockwise.
NOTE: There is a safety interlock device at the side of
jar cover, if the jar cover is not assembled in place, the
7
blender will not operate.
5. The ingredients may be added into the jar through the
center opening of jar cover during operation, then
replace measuring cup if necessary. Let the tabs of
measuring cup aligns with the g rooves of jar cover, put
down and turn the measuring cup by clockwise until it
in place.
6. Ensure the speed selector at the “0” Position, then
plug into power outlet and turn the speed selector to
the desired setting, there are four setting: 0, 1, 2,
PULSE. The “1” setting is the low speed, the “2”
setting is the high speed. During blending, you may
turn the speed selector to “Pulse” Position without
releasing it if want to accelerate the process of
blending.
NOTE: Make sure the jar cover is placed in position
completely before operating, and never open the jar
cover during operation.
8
7. Do not run the appliance for more than 3 minutes per
time, and only wait until the unit is cooled to room
temperature before performing next operation cycle.
8. Turn the Speed Selector to “0” position once the
mixture has been blended to your desired consistency.
9. Turn the jar anti-clockwise and remove it from the
motor unit, carefully take down the jar cover, then pour
and serve.
HOW TO USE
Before initial use
1. Before first use, unpack the appliance and place all parts on
a horizontal surface.
2. The jar assembly (including the measure cup, lid, seal ring 1,
jar, seal ring 2 , blade assembly and jar base) has already
been assembled into the motor unit. Disassemble to wash
all detachable parts except the motor unit. Refer to the latter
chapter CARE AND CLEANING.
3. Once all pieces have been cleaned and dry thoroughly,
reassemble.
1) Invert the jar onto a level surface, holding the jar handle,
put the the seal ring 2 and blade assembly onto the jar base
bottom and secure the blade assembly by turning it
9
anti-clockwise until tight（See Fig.3
）
2) Reposition the jar assembly with its opening upwards.
Wrap the seal ring 1 around the lid bottom and put the lid onto
the jar assembly. Place the measure cup exactly into the lid by
fitting the small projection on the both sides of the cup into the
slots of the lid and turning the cup clockwise until tight. （See
Fig.4
）
3) Finally, place the assembled jar onto the motor unit by
aligning the strip on the assembled jar bottom. (See Fig.5
）
4) Disconnect from power supply once finished. Disassemble
the grinding attachment from the unit, keep the grinding bowl
downward and turn it anticlockwise (See Fig.6), then empty the
bowl and serve.
CAUSION: Jar and jar base is now secure. Do not try to twist
the jar and jar base onto motor unit
Fig.3
Fig.4
10
Fig.5
Fig.6
How to use
1. Peeled or cored the fruit or vegetables and then cut it into
small dices.
2. Place the food to be blended into the jar
（
See Fig.7
）
.
Usually, certain amount of purified water has to be added to
facilitate the smooth running of appliance. The proportion of
the food and water is 2:3.The amount of mixture should not
exceed the max level as indicated on the jar.
RECIPE
FOOD TYPE SPEC WEIGHT SPEED
Carrot
(apple, pear
etc. )
Cut into
15mm*15mm*15mmm
Carrot: 600g
Water: 900g
High speed
11
Note: never use boiling liquids or run the appliance
empty.
3. Put the lid on the jar. Be sure the measuring cup is in place.
4. Plug the power cord into a standard wall outlet.
5. Turn the speed knob to the appropriate speed setting for
your task.
6. For quick or delicate blending tasks, turn the speed knob to
P position and hold for a few seconds and then release, the
knob will reset to O position automatically. Operate several
times until the consistence you want is obtained
7. If you want to add ingredients while the blender is working,
remove the measuring cup and place through the lid
opening.
（
See Fig.8
）
8. When crushing ice or hard food, keep one hand firmly on
the lid.
9. When the consistence you desire is obtained, turn the knob
to O position.
Note: 1) For each use, the consecutive operation time
should not exceed 3 minutes. at least 10 minutes rest
time must be maintained between two continuous cycles,
let the unit cool to room temperature before performing
next operation cycle.
2) For each use, the consecutive operation time of
Grinding cup should not exceed 30 Seconds. at least 10
12
minutes rest time must be maintained between two
continuous cycles, let the unit cool to room temperature
before performing next operation cycle.
3) If you want to stop the machine during operation, turn
the knob to O position anytime.
Important operating tips
·
For best circulation of food that are to be blended with some
liquid, pour the liquid into the jar first, then add solids.
·
Some of the tasks that cannot be performed efficiently with a
blender are: beating egg whites, whipping cream, mashing
potatoes, grinding meat, mixing dough, extracting juice from
fruit and vegetable
·
The following items should never be placed in the unit as they
may cause damage: bones, large pieces of solid, frozen food,
Fig.7
Fig.8
Before
blending, add
food to be
blended into
the jar.
During blending,
add the
ingredient
through the lid
opening.
13
or tough foods such as turnips.
·
To crush ice, add up to 6 ice cubes. If more ice is needed,
remove the cup and add cubes one by one through the lid
opening.
CARE AND CLEANING
This product contains no user serviceable parts. Refer
service to qualified service personnel.
1. Before cleaning, unplug the blender.
2. Always wash immediately after use for easier cleaning.
Don’t let food dry on the jar assembly as this will make
cleaning difficult.
3. Pour a little warm soapy water into the jar and turn the knob
to P position for a few seconds. And then empty the jar.
4. Dismantle all detachable parts. Lift the jar assembly off the
motor unit, To detach the blade assembly by turning it
clockwise from the jar base bottom , and remove the seal
ring 2 and blade assembly (see fig.9). In addition, detach
the jar cover seal ring 1 from the jar cover.
Fig.9
14
5. Rinse the measure cup, lid, seal ring 1, jar, seal ring 2 and
blade assembly by hands or in a dishwasher and then dry.
They are dishwasher safe components, but the temperature
setting shall not exceed 70℃.
6. Brush the blade clean using warm soapy water, then rinse
thoroughly under the tap. Don’t touch the sharp blades,
handle carefully. Don’t immerse the blade assembly in
water. Leave to dry upside down away from children.
7. Wipe the motor unit with a damp cloth and dry thoroughly.
Remove the stubborn spots by rubbing with non-abrasive
cleaner. If liquids spill into the motor unit; first unplug the
unit, then wipe with a damp cloth and dry thoroughly.
CAUSION
1) Do not immerse the motor unit in liquid to prevent the
risk of electric shock.
2) Do not use rough scouring pads or cleansers on parts
or finish.
ENVIRONMENT FRIENDLY DISPOSAL
You can help protect the environment!
Please remember to respect the local
regulations: hand in the non-working
electrical equipments t o an appropriate
waste disposal centre.
Loading...
