RAMSET SA270 Operator's Safety & Operating Instruction Manual

SA270 TOOL
OPERATOR’S
SAFETY & OPERATING
INSTRUCTION MANUAL
DANGER
THIS TOOL FOR USE BY LICENSED OPERATORS ONLY.
READ AND OBEY ALL SAFETY AND OPERATING
SEMI-AUTOMATIC, LOW VELOCITY
PISTON TYPE FASTENING TOOL
Just as no one can merely read a book about driving an automobile and then hope to drive one safely, no one should attempt to use any Ramset tool without adequate, competent personal instruction. And just as one must be licensed to drive an automobile, one must also be licensed to use a powder actuated tool. No automobile instruction book or instructor can forewarn a learner against all possibilities and emergencies, nor can Ramset instructors and printed material detail all possible conditions surrounding the use of Ramset tools and products.
Responsibility for the safe and proper use of this tool rests with the tool user and the employer.
SAFETY INTRODUCTION
DANGER
THIS TOOL IS TO BE USED ONLY BY PROPERLY TRAINED
AND LICENSED OPERATORS.
YOU MUST SUCCESSFULLY COMPLETE THE
RAMSET TRAINING PROGRAM FOR THE
TOOL AND OBTAIN A CERTIFIED OPERATOR’S LICENSE
BEFORE HANDLING, LOADING OR OPERATING THIS TOOL.
ATTEMPTING TO HANDLE OR OPERATE THIS TOOL
WITHOUT PROPER TRAINING AND LICENSING CAN RESULT IN
SERIOUS INJURY TO THE OPERATOR OR BYSTANDERS.
SAFETY INTRODUCTION
DANGER
2
Operator’s and bystanders
must wear eye and hearing
protection.
Never close tool with hand over fastener loading end of the tool.
A serious hand injury from penetration by the piston or a
discharged fastener could result.
Read manual before
operating tool.
DANGER
DANGER
Preparation
Acceptable Base Materials
Powder actuated fastening is suitable for use in the following base materials only:
Poured Concrete
Structural Steel
Masonry Joints (see page 8)
Never attempt to fasten into any other type of material.
Fastening into other materials can cause blindness or other serious injury.
Unacceptable Base Materials
Never attempt to fasten into very hard or brittle materials such as cast iron, tile, glass, or rock of any type.
These materials
can shatter, causing the fastener and/or base material fragments to fly free and cause serious injury to the tool operator and others.
Never fasten into soft base materials, such as drywall or lumber products.
These materials may allow the fastener to travel completely through and out the other side, endangering those in the path of the fastener.
Never fasten into any base material that does not pass the Center Punch test.
Failure to assure the suitability of the base material can result in serious injury to the eyes or other body parts.
Center Punch Test
ALWAYS WEAR SAFETY GOGGLES WHEN PERFORMING THIS TEST.
1. Always check the material being
fastened into for hardness before attempting any fastening operation.
2. Using a fastener as a center punch,
strike the fastener against the work surface using an average hammer blow and check the results.
Center Punch Test Results
1. If the fastener point is flattened, the material is too hard for a powder actuated fastening.
2. If the fastener penetrates the material easily, the material is too soft.
3. If the material cracks or shatters, the material is too brittle.
4. If the fastener makes a small indentation into the material, the material is suitable for fastening.
DANGER
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
DANGER 3
NEVER FASTEN INTO VERY HARD OR
BRITTLE MATERIALS
NEVER FASTEN INTO SOFT MATERIALS
SUCH AS DRYWALL
Loads & Load Selection Safety
1. Always make a test fastening after being sure that the base material is suitable for powder actuated fastening.
Failure to determine the correct power level to be used may result in the use of excessive power, allowing the fastener to pass completely through the work material, causing serious or fatal injuries to others who may be in the path of the fastener.
2. Color-blind operators must always select loads by number to prevent use of an incorrect load for the same reasons as in #1 above.
Workplace Safety
1. Operators and bystanders must always wear approved eye protection and approved hearing protection.
Failure to do so may result in blindness or serious eye injury from flying debris and loss of hearing from constant or repeated unprotected exposure to fastening noise.
2. Always keep the work area clear of bystanders and unnecessary materials that could interfere with safe tool operation.
Operating the tool in a congested or cluttered area may affect your ability to operate the tool safely.
3. Never operate tool if flammable or explosive materials are nearby.
Powder loads burn and create sparks when fired and could ignite these materials or fumes.
4. Always post warning signs within 50 ft. of the area where fastening is to be done. Sign must state: “WARNING - Powder Actuated Tool In Use”.
Failure to warn others may result in serious injury to them. Contact Ramset at 1-800-241-5640 to obtain this sign.
SAFETY INSTRUCTIONS
DANGER
SAFETY INSTRUCTIONS
DANGER
4
ALWAYS MAKE A TEST FASTENING
COLOR-BLIND OPERATORS MUST
ALWAYS SELECT LOADS BY NUMBER
KEEP WORK AREA CLEAR OF
BYSTANDERS AND CLUTTER
NEVER OPERATE THE TOOL AROUND
FLAMMABLE OR EXPLOSIVE MATERIALS
ALWAYS POST WARNING SIGNS
WARNING
POWDER
ACTUATED
TOOL IN USE
WITHIN 50 FEET
Safety is important – Take proper precautions.
Tool Handling Safety
1. Always be sure tool is operating properly before attempting to use it. Follow the “Daily Function Check” shown to the right and described on page 9.
2. Always load tool using a strip load selected directly from a box indicating the power load type and number. Never attempt to use loose strip loads that could be mis-identified.
3.
Never carry loose loads in pockets with pins or other hard objects.
4. Never load a tool unless you intend to immediately make a fastening.
Loading a tool and leaving it unattended in the work area can result in the tool being accidentally discharged by others.
5. Never place your hand or any other body part over the fastener loading end of the tool.
Serious hand injury could result from being struck by either a fastener or the tool piston should the tool be accidentally fired.
6. Always store the tool unloaded and keep the tool and the loads securely locked in a tool box. Keep keys away f
rom children and unlicensed persons.
7. Always keep the tool pointed away from yourself and others.
8. Never carry a loaded tool around the work area.
9. Never allow anyone not trained to use the tool.
10. Never engage in horseplay with
the tool.
11. Using the tool in poorly ventilated
areas, cleaning tool or handling loads may result in exposure to lead or other substances known to cause birth defects, and other physical harm. Have adequate ventilation at all times and wash thoroughly after exposure.
DANGER
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
DANGER 5
ALWAYS DO A DAILY FUNCTION CHECK
BEFORE LOADING TOOL
NEVER LOAD THE TOOL UNLESS IT IS TO
BE USED IMMEDIATELY
NEVER PLACE HANDS OR BODY OVER
MUZZLE OPENING
KEEP TOOL LOCKED & OUT OF THE
REACH OF CHILDREN
A
C
D
B
Empty
1
2
FAILURE TO FOLLOW INSTRUCTIONS CAN CAUSE INJURY TO THE TOOL OPERATOR OR TO BYSTANDERS.
Fastener Driving Safety
1. Only use the tool for fastening into a suitable base material.
2. Never fire the tool without a fastener.
Firing a tool without a fastener will cause the piston to strike the work surface, and may cause serious injury to you and others in the work area.
3. Always use the spall guard whenever possible to minimize flying particles or debris.
4. Always hold the tool perpendicular to and firmly against the work surface
when making a fastening.
Failure to do
so could allow a fastener
to ricochet.
5. Never attempt to drive a fastener close to an edge or to another fastener.
See page 8 for guidelines.
ALWAYS FOLLOW THE MISFIRE PROCEDURE.
If the tool does not fire after the normal firing sequence, continue to hold the depressed tool against the work surface for at least 30 seconds. Then carefully lower
the tool, remove the strip load, and put it in a can of water or other non-flammable liquid. Never carelessly discard a strip with live loads into a trash container.
If the tool becomes stuck or jammed with a live powder load,
keep the tool pointed
in a safe direction, and immediately tag it,
“Danger- defective - do not use”.
Lock the tool in a tool box and call your local Ramset distributor for assistance.
SAFETY INSTRUCTIONS
DANGER
SAFETY INSTRUCTIONS
DANGER
6
USE SPALL GUARD WHENEVER POSSIBLE
ALWAYS HOLD THE TOOL PERPENDICULAR
TO THE WORK SURFACE
NEVER DRIVE A FASTENER CLOSE TO
AN EDGE
HOLD THE TOOL FIRMLY AGAINST
THE WORK SURFACE FOR AT
LEAST 30 SECONDS
SPALL
GUARD
90°

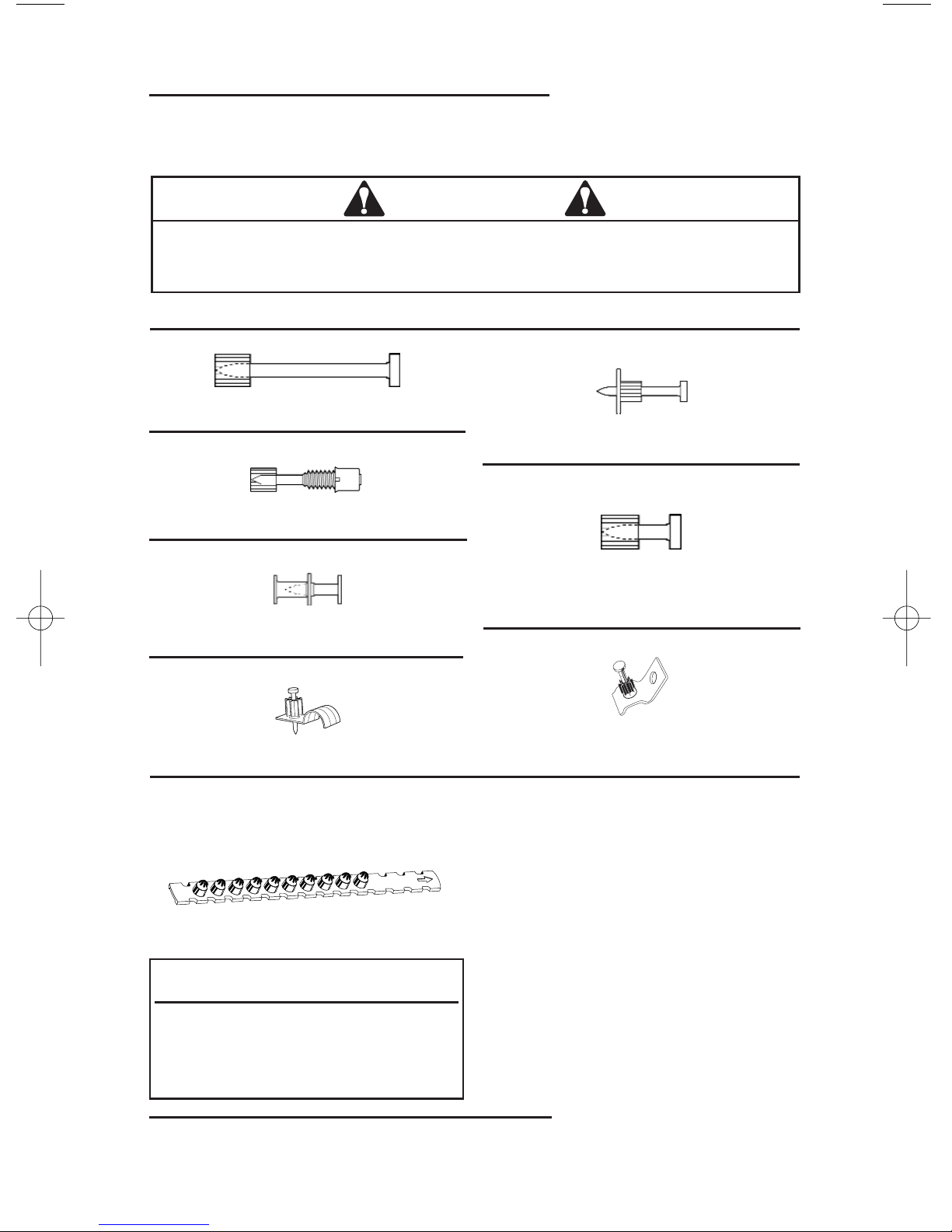

FASTENERS /LOADS
FASTENERS /LOADS
7
Your Ramset SA270 Tool uses only the Ramset fasteners and loads shown below or listed for the tool in the Product Catalog.
FASTENERS
Never use any other types of fasteners or strip loads in the Ramset SA270 Tool. Use of other
types of fasteners or loads may cause unintentional load discharge, damage the tool, cause
poor fastening performance, or create a risk of serious injury to the operator or bystanders.
DANGER
LOADS
Ramset RS27 strip loads are specially made for use in the Ramset SA270 Tool.
The power level of the load is indicated by the number marked on each box, the color of the box, and the color on the tip of each load. As the number increases, the power level also increases.
Always perform the center punch test described on page 3 to test the base material.
Always make a test fastening using the lowest power level first. If more power is required to set the fastener, use the next higher power level until the powder level necessary to drive the fastener is reached.
RS27 10 SHOT STRIP LOAD
POWER CATALOG LOAD CASE
LEVEL NUMBER COLOR COLOR
2 2RS27 Brown Brass 3 3RS27 Green Brass 4 4RS27 Yellow Brass 5 5RS27 Red Brass
.300 HEAD PLASTIC FLUTED DRIVE PINS
.145 Shank Diameter in Shank Lengths from
1/2" to 2-1/2"
.300 HEAD PLASTIC FLUTED DRIVE PINS
WITH 7/8" WASHER
.145 Shank Diameter in Shank Lengths from
1" to 3"
.300 HEAD POWER POINT
PLASTIC FLUTED DRIVE PINS
.150 Straight Shank in Shank Lengths
from 1/2" to 7/8"
.150 /.180 Step Shank in Lengths
from 1" to 1-7/8"
CEILING CLIP ASSEMBLIES
Ceiling Clip with 1" or 1-1/4" premounted
.145 Shank Pin and Ceiling Clip with 1" or
1-1/4" Premounted .150/.180 Shank Pin
1/4" - 20 THREADED STUDS
.145 Shank Diameter in Shank Lengths of 1/2" and 1" and Thread Lengths of 1/2", 3/4" and 1"
8 mm HEAD TOP-HAT DRIVE PINS
.145 Shank Diameter in Shank Lengths from
1/2" to 1"
CONDUIT CLIP ASSEMBLIES
For 1/2" and 3/4" Diameter Conduit with 1"
Premounted Fastener
FASTENING APPLICATIONS
Your Ramset tool can be used for a wide range of fastening needs in a variety of base materials. Reading and follow these important fastening guidelines will help you get the best results from your tool, fasteners, and powder loads, as well as help you perform these fastening operations safely and effectively.
Powder actuated fastenings are permanent fastening so attempting to remove a fastener from concrete or steel may result in serious injury.
Fastening to Concrete
When fastening into concrete, always maintain a minimum spacing of 3" between fastenings and 3" from any free edge. Concrete thickness should be at least three times the intended penetration depth into the concrete. The primary exception to the 3" edge distance can occur in a sill plate application where, by necessity, the edge distance is reduced.
Driving fasteners too close to an edge or too close to each other can cause the concrete edge to fail or fasteners to fly free.
Fastening to Concrete Block or to Masonry Walls
While this application is not recommended, when used, it is necessary to take care to observe a 3" edge distance to avoid cracking the block and over penetration of the fastener to avoid loss of holding value. Fastening may be made into the horizontal joint but not into the vertical joint.
Fastening to Steel
Your Ramset tool can be used for fastening on the flat surfaces of structural steel. When fastening into steel, always maintain a mini­mum spacing of 1-1/2" between fastenings and 1/2" from any edge.
FASTENING APPLICATIONS
FASTENING APPLICATIONS 8
SPACING WOOD TO CONCRETE
PENETRATION — THIN GAUGE
METAL TO CONCRETE
SPACING — FURRING
STRIP TO CONCRETE
SPACING — STEEL TO STEEL
3"
MIN.
3" MIN.
3"
MIN.
3" MIN.
1/2"
MIN.
1-1/2"
MIN.

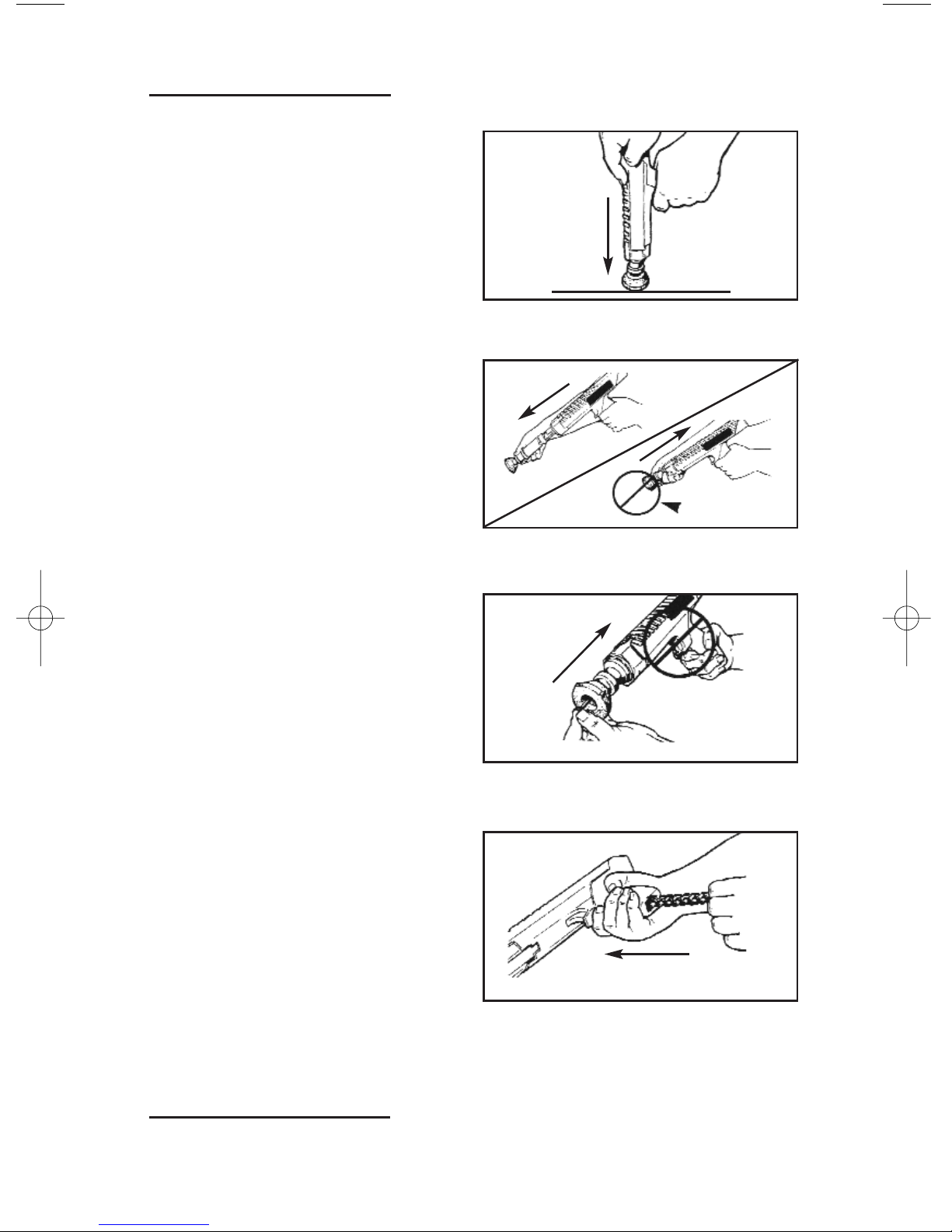

TOOL OPERATION
Daily Function Test Always check the tool first to make sure that it does not contain a strip load or fastener. Test the tool several times by
depressing the muzzle bushing fully on a hard surface and pulling the trigger. You should hear an audible click as the firing pin releases. Let up on the tool and check to be sure that the barrel has opened to the semi­open position.
OPERATING THE RAMSET SA270 TOOL
1. After checking to be sure that the tool
is not loaded, point it in a safe direction and be sure that the barrel is fully extended and then close the tool to the semi-closed position. This assures that the piston is in position for the next fastening. Use the spall guard every time possible to minimize the risk of being struck by flying debris.
2. With finger off the trigger, place the
fastener, point out, into the muzzle end of the tool until the point end is inside the muzzle. NEVER load a fastener with your finger on the trigger. DO NOT use excessive force when inserting a fastener. STOP immediately if excessive force is require, inspect the barrel to find out why the fastener is not entering the muzzle freely. DO NOT continue loading unless the problem is corrected.
3. With the tool pointed in a safe
direction and finger away from the trigger, insert a load strip into the bottom of the handle and push it in until your finger is in firm contact with the handle recess.
TOOL OPERATING INSTRUCTIONS
TOOL OPERATING INSTRUCTIONS
9
FULLY OPEN AND CLOSE TOOL TO THE
SEMI-CLOSED POSITION
INSERT FASTENER INTO THE MUZZLE END OF
THE TOOL WITH THE POINT OUT
INSERT LOAD STRIP INTO THE OPENING IN
THE BOTTOM OF THE HANDLE
PERFORM THE FUNCTION TEST WITH EMPTY,
UNLOADED TOOL
Keep hands away from muzzle
4. Hold the tool perpendicular (90°) to
the work surface with both hands and press firmly to fully depress the tool. Maintain firm downward pressure on the tool with both hands and pull the trigger to drive the fastener. DO NOT
DEPRESS THE TOOL AGAINST ANY­THING OTHER THAN THE INTENDED WORK SURFACE. Holding the tool firmly
in place will produce more consistent fastening quality and minimize tool wear or damage.
5. After making the fastening, fully open
and then close the tool to the semi­closed position. This resets the piston and indexes a new load into place for the next fastening.
6. Insert another fastener in the muzzle
end of the tool as before and the tool is ready for the next fastening. Keep your finger off of the trigger until the tool is in position to drive the fastener.
7. To remove a used or partially used
strip load from the tool, pull the strip out from the top of the tool. Do not try to remove the strip by pulling it out from the bottom of the handle. NEVER try to remove a jammed or stuck load strip. Should a “jammed” load strip occur, call your local Authorized Ramset Distributor for technical assistance.
TOOL OPERATING INSTRUCTIONS
TOOL OPERATING INSTRUCTIONS 10
HOLD THE TOOL FIRMLY
AND PERPENDICULAR TO THE
WORK SURFACE
INSERT THE NEXT FASTENER
REMOVE THE LOAD STRIP ONLY FROM
THE TOP OF THE TOOL
90°
FULLY OPEN AND CLOSE TOOL TO THE
SEMI-CLOSED POSITION
Keep hands away from muzzle
REFER TO PARTS SCHEMATIC FOR PROPER ASSEMBLY OF PARTS
– Overdriving of fasteners – Excessive power – Change to the next lower
power level load strip color and number.
– Soft base material – Check base material
(see page 3)
– Tool fails to fire – Failure to depress – See “Tool does not
completely completely depress”
– Excessive dirt buildup on – After following misfire
breech face not allowing procedure, check firing proper penetration of pin indentation on load. firing pin Clean breech face
– Firing pin and/or breech – Replace damaged parts
damaged
– Tool does not completely – Misassembled or – Check all parts in the
depress damaged parts receiver for damage or
improper assembly.
– Reduction or loss of power – Piston not being returned – Barrel must be pulled
to the full rear position completely open to
properly position the piston.
– Worn or damaged – Replace worn or
piston or piston ring damaged parts
– Worn or broken pawls – Replace pawls
– Tool cannot be cocked – Excessive dirt buildup – Clean tool thoroughly
or opened
– Damaged or bent piston – Replace piston – Broken or damaged parts – Tag tool with warning
“Defective–Do Not Use” Place in a locked container and contact your local Ramset representative for service.
– Failure to index strip – Strip not inserted in tool – Check load strip. Properly
correctly or is damaged dispose of damaged strip.
(See page 6)
– Damaged indexing – Contact your Ramset
mechanism Distributor for assistance
– Failure of tool to stay – Retaining ball missing – Contact your Ramset
closed when pointed in Distributor for assistance the downward position
TROUBLESHOOTING
TROUBLESHOOTING
11
PARTS SCHEMATIC
PARTS SCHEMATIC 12
PARTS LIST / MAINTENANCE
PARTS LIST / MAINTENANCE
13
Always make sure the tool is not loaded before performing any service or repair and always wear safety goggles when cleaning or servicing the tool.
NORMAL CLEANING
All front end parts shown in the disassembly section are to be cleaned daily with a good detergent oil and wire brush. Remove all dirt and carbon buildup and wipe parts dry with a clean rag. Check all parts for wear or damage before reassembly and replace or repair any worn or damaged parts.
COMPLETE CLEANING / GENERAL MAINTENANCE
Heavy or constant exposure to dirt and debris may require that the tool be cleaned more extensively. Complete disassembly and cleaning of all parts may be necessary to restore the tool to normal operation. General maintenance should be performed every six months or more often if the tool is subjected to heavy use. Contact your authorized Ramset Distributor for assistance.
IMPROPERLY MAINTAINED TOOLS CAN CAUSE SERIOUS INJURIES
TO TOOL OPERATOR AND BYSTANDERS
CLEAN TOOL DAILY
ALWAYS FUNCTION TEST THE TOOL AFTER PERFORMING ANY
SERVICE. SEE PAGE 9 FOR DETAILS ON THE FUNCTION TEST.
MAINTENANCE
SA270 TOOL PARTS LIST
KEY PART NO. DESCRIPTION
1 27664 FRONT BARREL 2 27667A BARREL RETAINING CLIP ASSEMBLY 3 27569 MUZZLE BUSHING 4 27921 PISTON WITH RING 5 27662 REAR BARREL 6 27563A LOAD ADVANCE ROD ASSEMBLY 7 27555A SPOOL COVER AND ROD 8 27524A STRIP DETENT SPRING AND BALL
9 27934A MECHANISM HOUSING AND SPRING 10 27931 FIRING PIN ASSEMBLY 11 27578A FIRING PIN SPRING AND WASHER 12 27552A BARREL DETENT CLIP ASSEMBLY 13 27657A COCKING ROD AND ROTARY SEAR 14 27930A FRONT HOUSING AND RETAINING RING 15 27527A ADVANCE LEVER AND SPRING 16 27952 OUTER HOUSING 17 27533A END CAP ASSEMBLY 18 27537A PAWL HOUSING SPRING, O-RING & PIN 19 27923 PAWL HOUSING 20 27532 RUBBER HANDLE 21 27516A TRIGGER MECHANISM PIN & SPRING 22 27514 TRIGGER SPRING 23 27608 TRIGGER ASSEMBLY 24 27519 ROLL PIN 25 27580 SPALL GUARD (NOT SHOWN) 26 24853 PISTON RING (NOT SHOWN)
* The receiver weldment is not available as a spare part
DISASSEMBLY 14
DISASSEMBLY
TOOL DISASSEMBLY
1. Depress the detent pin to release the pawl.
2. Lift the pawl up to release the barrel assembly. Check the O-ring around the pawl housing for damage and replace as necessary.
3 Slide the barrel assembly out of the
tool body while holding the pawl in the open position.
4. Slide the front barrel back until the round shear pin is in line with the perpendicular slot in the rear barrel.
5. Twist the front barrel in the slot and rotate it 90°.

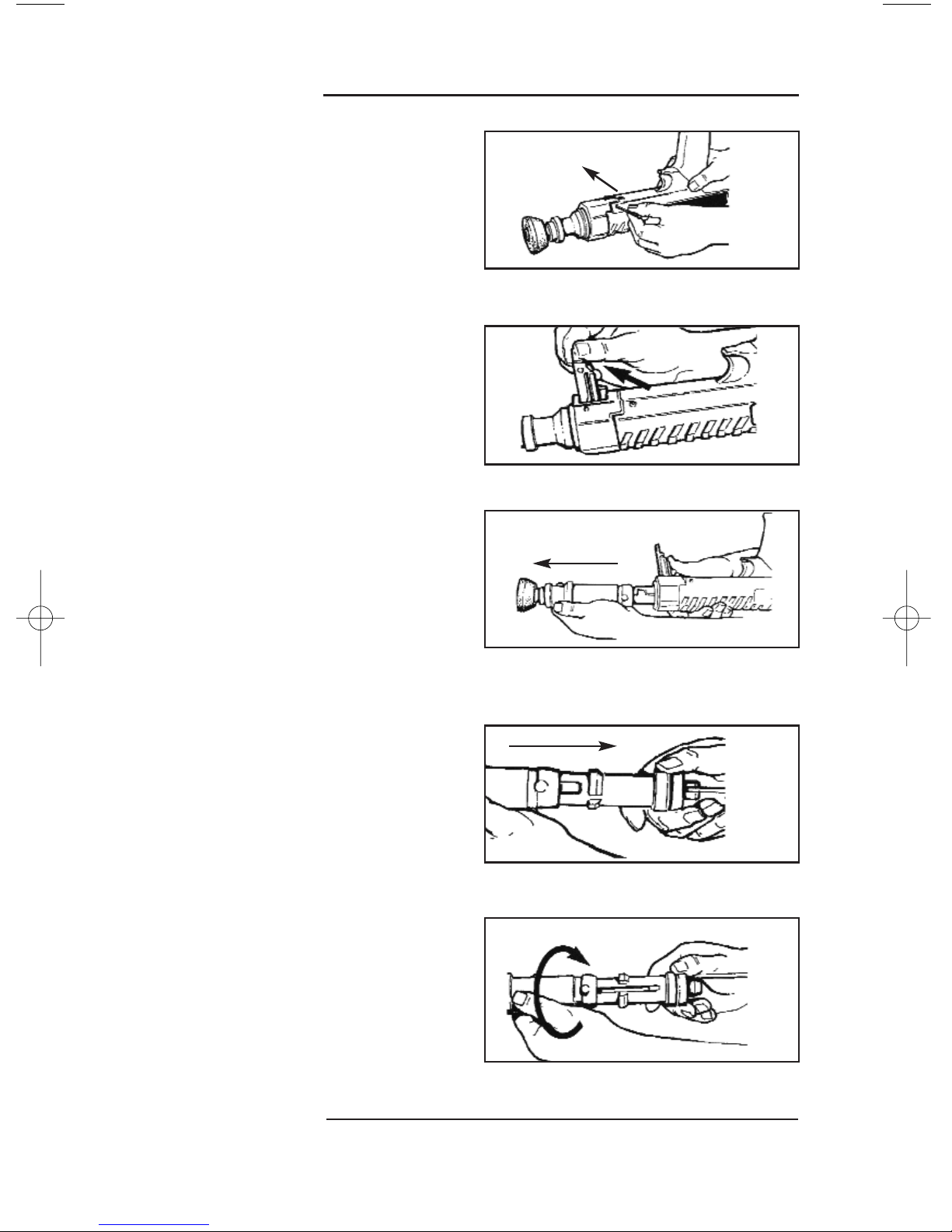

DEPRESS DETENT PIN TO RELEASE
THE PAWL
PIVOT PAWL UPWARD
REMOVE THE BARREL ASSEMBLY
ALIGN SHEAR PIN WITH SLOT
TWIST BARREL IN SLOT
AND ROTATE 90°
DISASSEMBLY
15
DISASSEMBLY
6. Slide the front barrel from the rear barrel and remove the piston from the rear barrel.
The tool is now disassembled for normal cleaning. Inspect all parts for
wear or damage and clean or replace as required. Use detergent oil and cleaning brushes to remove dirt and powder residues. Wipe all parts dry before reassembly. Wear safety
goggles when cleaning tool parts.
7. Check the piston tip for damage and grind flat. The tip of the piston must be 90° to the shank. Grinding should only be done by qualified personnel. The minimum overall length of the piston must not be less than 6 5/8" long. When less than 6 5/8" long, the piston must be replaced to avoid tool damage.
Reassemble the tool in the reverse order of disassembly.
Normal front end cleaning may be done without disassembling the rear barrel. If it is necessary to disassemble the rear barrel for part replacement, use a drive pin or small, flat screwdriver to pry the retaining clip out of the groove in the rear barrel to release the load advance rod. When removing the advance rod, note the position of the notch in the rod since the notch must be aligned with the retaining clip groove for reassembly.
ALWAYS PERFORM THE DAILY FUNCTION TEST BEFORE USING THE TOOL AFTER CLEANING OR SERVICING.
REMOVE THE PISTON AND
FASTENER GUIDE
ALIGN THE FRONT AND
REAR BARREL GROOVES
ALIGN THE BARREL ASSEMBLY
GROOVE WITH THE PAWL OPENING
GRIND THE PISTON TIP FLAT
AND BEVEL THE EDGE
5/16"
18°
90°
NOTE NOTCH POSITION IN ROD
WARRANTY
ALL WARRANTIES OF THE PRODUCTS DESCRIBED HEREIN, EXPRESSED OR IMPLIED, INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSES, ARE SPECIFICALLY EXCLUDED, EXCEPT FOR THE FOLLOWING: Ramset will repair or replace, at its sole
option, any tool, part, or fastener which, within 5 years after sale by Ramset is found by Ramset to be defective in material or workmanship, normal wear and tear excluded. THIS IS THE SOLE WARRANTY OF RAMSET AND THE
SOLE REMEDY AVAILABLE TO THE BUYER AND IN NO EVENT WILL ANY DIRECT OR INDIRECT INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR ANY OTHER DAMAGES, BE AVAILABLE.
Copyright 2008 Ramset
POWDER ACTUATED TOOL
MANUFACTURES' INSTITUTE INC.
TM
Concrete Fastening Systems
Glendale Heights, IL 60139
800-RAMSET6 (1-800-726-7386)
www.ramset.com
Buy with Confidence...
Buy From Your Authorized Distributor
AN ILLINOIS TOOL WORKS COMPANY
© ILLINOIS TOOL WORKS 2008
PRINTED IN THE U.S.A. REVISED 01/08
THE MODEL SA270 TOOL COMPLIES WITH OSHA REQUIREMENTS
AND WITH ANSI A10.3 SPECIFICATIONS
FOR TOOL REPAIR SERVICE CONTACT YOUR LOCAL
AUTHORIZED RAMSET DISTRIBUTOR OR TO FIND
YOUR NEAREST RAMSET TOOL REPAIR CENTER
VISIT OUR WEB SITE AT WWW.RAMSET.COM
OR CALL 800-241-5640
Loading...
