TABLE OF CONTENTS
Important Safety Requirements & Instructions ...................................................................................1
Responsibilities of Installers and Technicians ....................................................................................2
Important Safety Requirements by UL Standards ..............................................................................3
Classes of Vehicular Gate Operators .................................................................................................4
General Specifications........................................................................................................................5
Positive Stops and Emergency Release ............................................................................................6
Gate Operator Installation ..................................................................................................................7
Standard & Compact Installation ........................................................................................................8
Installation Guideline ..........................................................................................................................9
Terminal Strip Connections ........................................................................................................ 10-11
Trim Adjustments – Potentiometers .................................................................................................12
Dip Switch Configuration ..................................................................................................................13
Loop Installation ......................................................................................................................... 14-15
Photo Eye Installation .......................................................................................................................15
Master Slave Installation ..................................................................................................................16
Programming Procedure ..................................................................................................................17
Radio Transmitter Programming Procedure .....................................................................................17
Adjustable Slow Down Learning Procedure .....................................................................................17
Main Block Terminal Hookup............................................................................................................18
Ramset Optional Accessories ..........................................................................................................19
Important Information for The Homeowner.......................................................................................20
Gate Entrance Safety Precautions ...................................................................................................21
JET
Do not install this gate operator if you do not have experience or appropriate
WARNING
training with gate operators.
IMPORTANT SAFETY REQUIREMENTS & INSTRUCTIONS
WARNING To reduce the risk of injury or death:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Never let children operate or play with gate controls.
Keep the remote control away from children.
3. Always keep people and objects away from the gate.
NO ONE SHOULD CROSS THE PATH OF THE MOVING
GATE.
4. Test the Vehicular Gate Operator monthly. The gate
MUST reverse on contact with a rigid object or stop
when an object activates the non-contact sensors.
After adjusting the limit of travel, retest the Vehicular
Gate Operator. Failure to adjust and retest the
Vehicular Gate Operator properly can increase the
risk of injury or death.
5. Use the Emergency Release only when power switch
or circuit breaker has been turned off. Using the Emergency Release during a power failure can be a hazard
if power is abruptly restored.
6. KEEP GATES PROPERLY MAINTAINED. Read the
Owner’s Manual. Have a qualified service person
make repairs to gate hardware.
7. The entrance is for vehicles only. Pedestrians must
use separate entrance.
8. SAVE THESE INSTRUCTIONS.
www.ramsetinc.com
1
RAMSET
RESPONSIBILITIES OF INSTALLERS AND TECHNICIANS
INSTALLATION
• READ AND UNDERSTAND THE INSTRUCTION MANUAL BEFORE ATTEMPTING
ANY INSTALLATION.
• DO NOT EXCEED THE EQUIPMENT SPECIFICATIONS.
JET
• INSURE A SAFE AND PROPER INSTALLATION.
• INSTALL THIS EQUIPMENT IN ACCORDANCE WITH THE UL 325 SPECIFICATIONS.
• MAKE SURE TO ELIMINATE ANY PINCH POINTS EXISTING ON THE INSTALLATION.
(ie. ROLLERS, ARMS…etc. )
• RAMSET GATE OPERATORS MUST BE INSTALLED BY A TRAINED TECHNICIAN.
SAFETY DEVICES
• REMOVE OR PROTECT ALL PINCH POINTS FROM THE GATE OPERATOR.
• MAKE SURE EVERY INSTALLATION HAS A MINIMUM OF ONE NON-CONTACT
SAFETY DEVICE (SUCH AS A PHOTO EYE OR LOOP DETECTOR).
• CHECK THE E.R.D. SENSITIVITY FOR PROPER ADJUSTMENTS.
• MAKE SURE THAT ALL AREAS AROUND THE GATE ARE SAFE AND SECURE.
(SUCH AS THE FRONT, REAR, AND TRAVEL AREA).
COMMUNICATE WITH THE END-USER
• INSTRUCT THE END USER ON HOW TO SAFELY OPERATE ALL FUNCTIONS
OF THE OPERATOR.
• INSTRUCT THE END-USER ON HOW TO SAFELY USE THE EMERGENCY
RELEASE.
• CLEARLY LABEL AND IDENTIFY THE CIRCUIT BREAKER FOR THE OPERATOR.
• SHOW THE END-USER THE LOCATION OF THE CIRCUIT BREAKER FOR THE
OPERATOR.
• THOROUGHLY EXPLAIN ANY AND ALL WARRANTIES ASSOCIATED WITH THE
OPERATOR AND INSTALLATION.
• KEEP A COPY OF EACH MANUAL HANDY FOR FUTURE REFERENCES.
• PROVIDE THE END-USER WITH THE “HOME OWNERS MANUAL PACKET”
(INCLUDED WITH EVERY OPERATOR).
2
www.ramsetinc.com
IMPORTANT SAFETY REQUIREMENTS BY UL STANDARDS
RAMSET
Prior to installation, the following must be
observed: (per UL 325.56.8.4).
a) Install the gate operator only when:
1. The operator is appropriate for the construction of
the gate and the usage Class of the gate,
2. All openings of a horizontal slide gate are guarded
or screened from the bottom of the gate to a minimum of 4 feet (1.22 m) above the ground to prevent
a 2 1/4 inch (57.2 mm) diameter sphere from passing
through the openings anywhere in the gate, and in
that portion of the adjacent fence that the gate covers
in the open position.
3. All exposed pinch points are eliminated or guarded,
and
4. Guarding is supplied for exposed rollers.
b) The operator is intended for installation only on gates
used for vehicles. Pedestrians must be supplied with a
separate access opening. The pedestrian access opening
shall be designed to promote pedestrian usage. Locate
the gate such that persons will not come in contact with
the vehicular gate during the entire path of travel of the
vehicular gate.
c) The gate must be installed in a location so that enough
clearance is supplied between the gate and adjacent
structures when opening and closing to reduce the risk
of entrapment. Swinging gates shall not open into public
access areas.
g) The stop and/or reset button must be located in the lineof-sight of the gate. Activation of the reset control shall not
cause the operator to start.
h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.
i) For gate operators utilizing a non-contact sensor in accordance with UL 31.1.1:
1. See instructions on the placement of non-contact
sensors for each Type of application.
2. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the
sensor while the gate is still moving, and
3. One or more non-contact sensors shall be located
where the risk of entrapment or obstruction exists,
such as the perimeter reachable by a moving gate or
barrier.
j) For a gate operator utilizing a contact sensor in accordance with 31.1.1:
1. One or more contact sensors shall be located where
the risk of entrapment or obstruction exists, such as at
the leading edge, trailing edge, and postmounted both
inside and outside of a vehicular horizontal slide gate.
2. One or more contact sensors shall be located at the
bottom edge of a vehicular vertical lift gate.
JET
d) The gate must be properly installed and work freely in
both directions prior to the installation of the gate operator. Do not over-tighten the operator clutch or pressure
relief valve to compensate for a damaged gate.
e) For gate operators utilizing Type D protection:
1. The gate operator controls must be placed so that
the user has full view of the gate area when the
gate is moving.
2. The placard as required by 58.1.6 shall be placed
adjacent to the controls,
3. An automatic closing device (such as a timer, loop
sensor, or similar device) shall not be employed,
and
4. No other activation device shall be connected.
f) Controls intended for user activation must be located at
least six feet (6’) away from any moving part of the gate
and where the user is prevented from reaching over, under, around or through the gate to operate the controls.
Outdoor or easily accessible controls shall have a security
feature to prevent unauthorized use.
3. One or more contact sensors shall be located at the
pinch point of a vehicular vertical pivot gate.
4. A hardwired contact sensor shall be located and its
wiring arranged so that the communication between
the sensor and the gate operator is not subjected to
mechanical damage.
5. A wireless contact sensor such as one that transmits
radio frequency (RF) signals to the gate operator for
entrapment protection functions shall be located where
the transmission of the signals are not obstructed or
impeded by building structures, natural landscaping or similar obstruction. A wireless contact sensor
shall function under the intended end-use conditions.
6. One or more contact sensors shall be located on
the inside and outside leading edge of a swing gate.
Additionally, if the bottom edge of a swing gate is
greater than 6 inches (152 mm) above the ground
at any point in its arc of travel, one or more contact sensors shall be located on the bottom edge.
7. One or more contact sensors shall be located at the
bottom edge of a vertical barrier (arm).
www.ramsetinc.com
3
RAMSET
CLASSES OF VEHICULAR GATE OPERATORS
Vehicular horizontal slide-gate operator (or system) - A vehicular gate operator (or system) that
controls a gate which slides in a horizontal direction that is intended for use for vehicular entrance or
exit to a drive, parking lot, or the like.
Vehicular swing-gate operator (or system) - A vehicular gate operator (or system) that controls a
gate which swings in an arc in a horizontal plane that is intended for use for vehicular entrance or exit
to a drive, parking lot or the like.
JET
Residential vehicular gate operator-Class I - A vehicular gate operator (or system) intended for
use at a home of one-to four single family dwellings, or a garage or parking area associated there
with.
Commercial/general access vehicular gate operator-Class II - A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or
more single family units), hotels, garages, retail stores, or other buildings serving the general public.
Industrial/limited access vehicular gate operator-Class III - A vehicular gate operator (or system)
intend ed for use in an industrial location or building such as a factory or loading dock area or other
locations not intended to service the general public.
Restricted access vehicular gate operator-Class IV - A vehicular gate operator (or system) intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations not servicing the general public, in which unauthorized access is prevented
via supervision by security personnel.
RECOMMENDED ELECTRICAL CONNECTION
A 3 wire, 120 VAC electrical circuit with a 15 amps independent circuit breaker for single operator
and a 20 amps for Master/Slave. Low voltage control wires must be run in a separate conduit to the
operator.
NOTE: Always consult and follow all local building and electrical codes prior to installation.
RECOMMENDED WIRE GAUGE
INPUT POWER MOTOR RUN START
120 VAC 24 VDC 3 3
4
AMPERES
www.ramsetinc.com
MAXIMUM CONDUIT DISTANCE IN FEET
USING COPPER WIRE BY WIRE SIZE
14ga. 12ga. 10ga. 8ga.
Up to 100’ 100-350’ 350-650’ 800’
GENERAL SPECIFICATIONS
MAXIMUM GATE SIZE & WEIGHT: 14’ @ 600 lbs / 12’ @ 800 lbs
GATE TRAVELING SPEED: Approx 90° opening in 18 sec
MOTOR: 24 VDC, 3 amp
DUTY CYCLE: 70%
OPERATING TEMPERATURE: -4º F to 131º F
POWER FAILURE RELEASE: Hand Lever Release or Battery Back Up
OVERALL DIMENSIONS: H 4” L 32” W 4”
SHIPPING WEIGHT: Jet Arm: 22 lbs / Star Control Board: 22 lbs
RAMSET
JET
WARNING
Rear Bracket
Do not exceed the specifications. The warranty on your unit will be void if the
installation exceeds the recommended specifications.
Post
Gate
Jet
Bolt

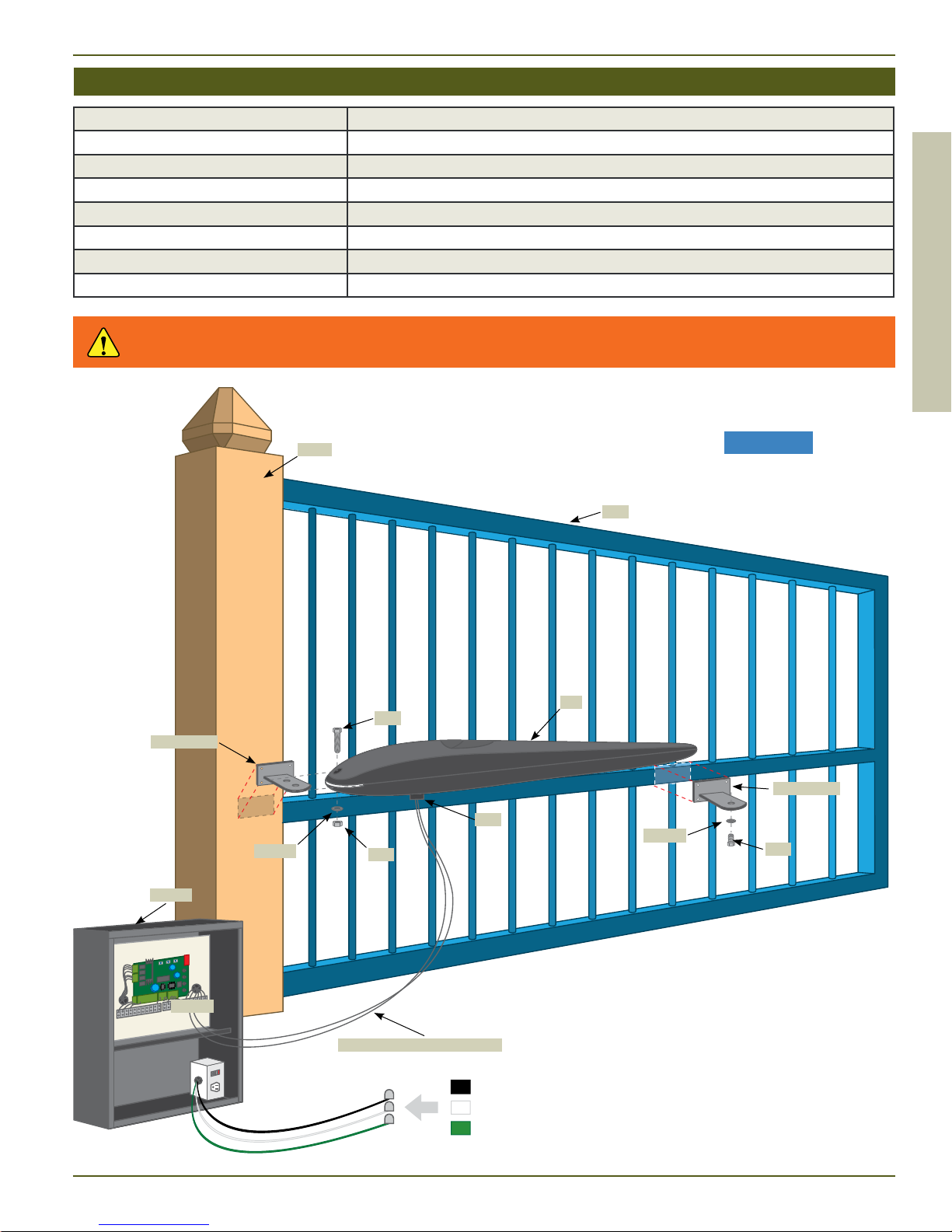

Figure 1
Washer
Star 24
Motor 1
Nut
24 Volt DC Output to Jet motor
www.ramsetinc.com
Front Bracket
Plug
Washer
Bolt
120 VAC – Black
Neutral – White
Ground – Green
5
RAMSET
JET
Figure A
POSITIVE STOPS AND EMERGENCY RELEASE
The breaker or all power should be turned off before using
the emergency release.

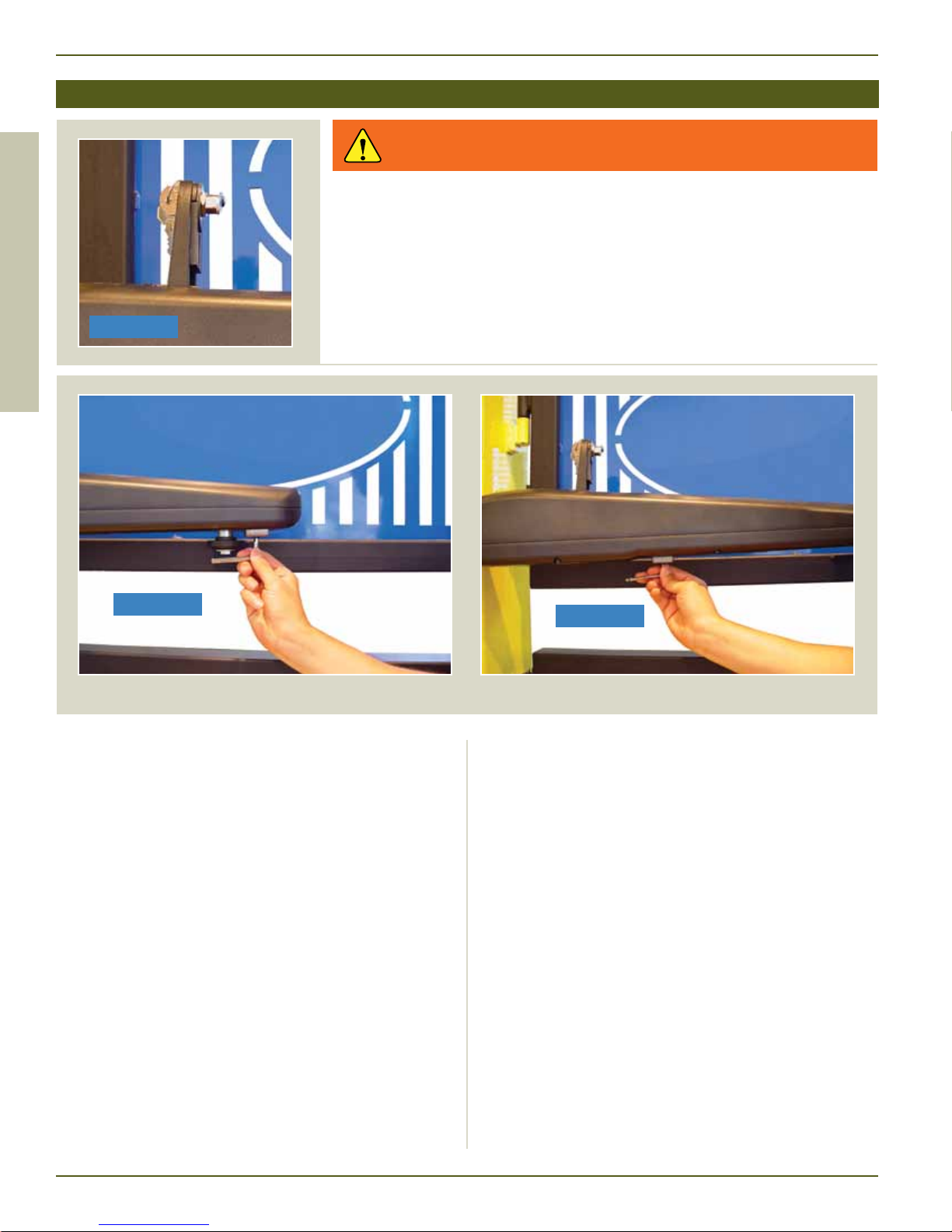

EMERGENCY RELEASE
The emergency release handle is located on the top of the Jet
arm. Insert the key into the emergency release handle and turn
it in order to unlock the release handle. The release handle can
now be raised in order to disengage the operator (see figure A).
The gate can now be opened and closed manually. To reengage
the emergency release handle: Lower the release handle back
into position and turn the key to lock it.
Figure B
POSITIVE STOPS
The positive stops for the Jet operator are located on the undercarriage of the Jet arm. Set
the positive stops using the following method.
1) Use a hex/ allen wrench to loosen the positive stops at the front and back of the undercarriage (See figures B and C). Once loosened, slide the forward stop all the way to the
front and the rear stop all the way to the back.
2) Lift the emergency release handle so that
the gate can move freely.
Figure C
Adjust on the open positionAdjust on the closed position
4) Push the gate all the way to the open position and slide the rear positive stop back until it contacts the screw arm bolt. Tighten the
positive stop into place.
The positive stops are now set. Close the gate
halfway and reengage the emergency release
handle. The operator is now ready to begin
programming mode through the Star 24 Control Board.
3) Push the gate all the way to the closed position and then slide the front positive stop
forward until it contacts the screw arm bolt.
Tighten the positive stop into place.
6
www.ramsetinc.com
GATE OPERATOR INSTALLATION
Figure 2 Figure 3
RAMSET

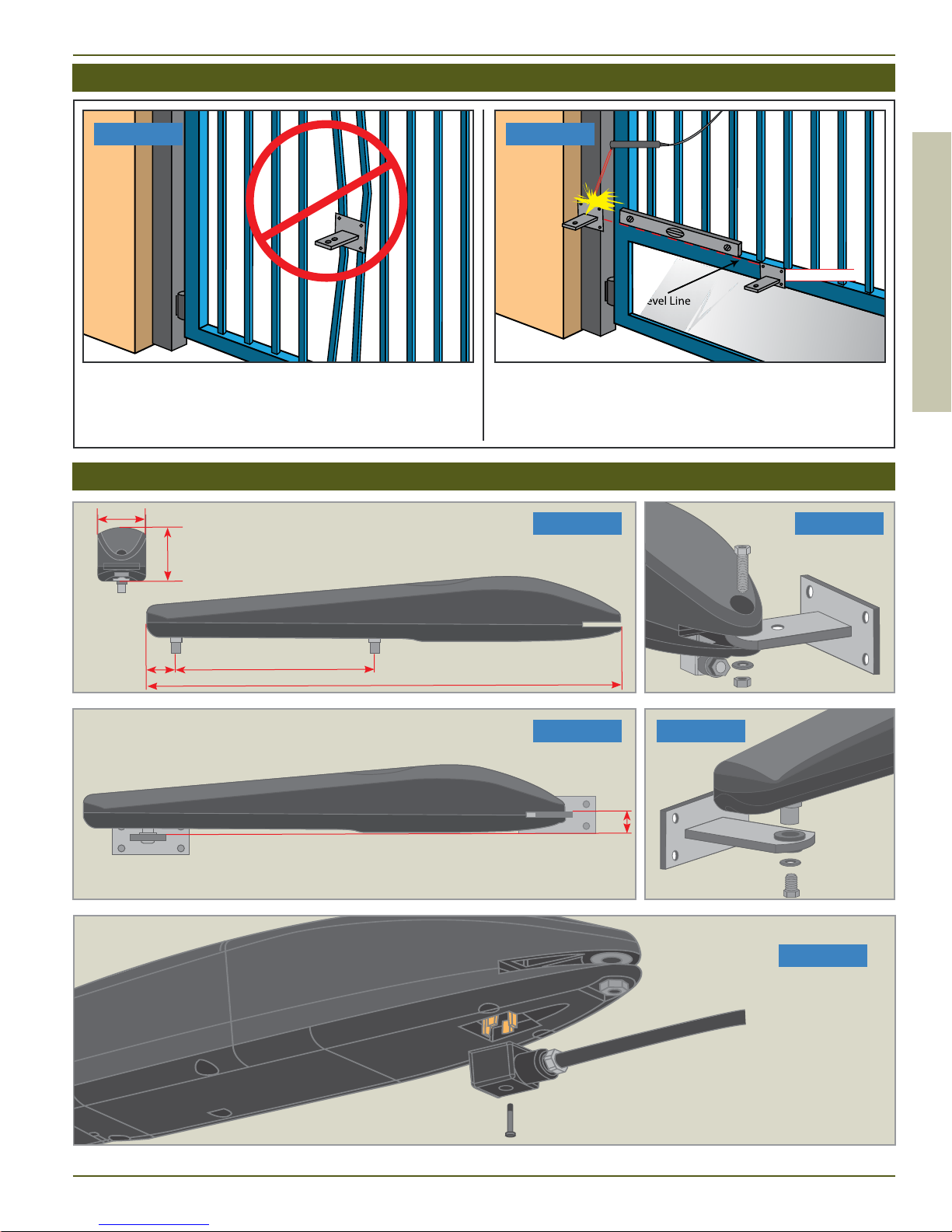

CAUTION: To avoid damage to gate and gate operator,
do not weld Jet bracket directly onto gate pickets.
INSTALLATION DETAILS
4”
4½”
2½”
14½”
32½”
1 3/4 below level
Level Line
CAUTION: Weld the Jet bracket onto a solid frame
member across the full length of the gate. 1 3/4” below the level of the rear bracket. Ramset suggests
that every installation should have a magnetic lock.
Figure 4
Figure 5
JET
Figure 6 Figure 7
1¾”
Figure 8
www.ramsetinc.com
7
RAMSET
STANDARD INSTALLATION
MAXIMUM GATE SIZE & WEIGHT 14’ @ 600 LBS –– 12’ @ 800 LBS
JET
Outside
Property
5”
Steel Square Tubing
4x4
Gate Rotation Center
(Hinge)
G a t e
5¼”
28½”
Top View
COMPACT INSTALLATION
MAXIMUM GATE SIZE & WEIGHT 8’ @ 400 LBS
Figure 9
Gate Closed
Inside
Property
Outside
Property
5”
3”
The base of the rear bracket needs to be altered
according to the dimensions of the post.
Steel Square Tubing
4x4
Gate Rotation Center
28½”
Top View
(Hinge)
Figure 10
Gate Closed
G a t e
Inside
Property
8
www.ramsetinc.com
RAMSET

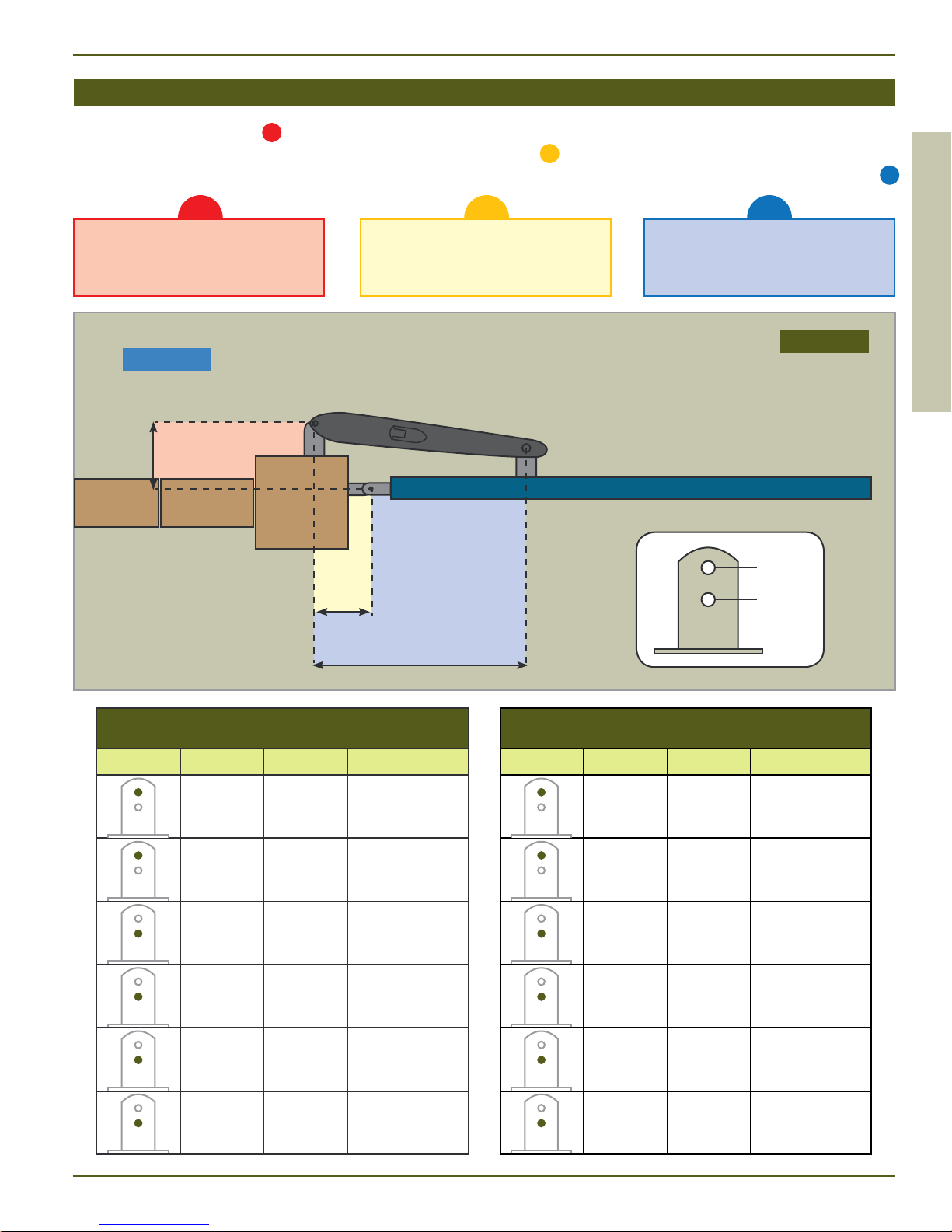

INSTALLATION GUIDELINE
1) Measure the distance A from the center point of the hinge to the rear bracket hole.
2) Use the table to determine the optimum measurement for B and attach the rear bracket to the post.
3) Mount the front bracket so that the hole of the front bracket is 28½” from the hole on the rear bracket C
A
Measurement between the
center of the gate plane and
the rear bracket hole.
Figure 11
A
B
Measurement between the
center of the gate hinge and
the rear bracket hole plane.
B
C
Measurement between the
front and rear brackets.
C
JET
Top View
HOLE B
HOLE A
90º Opening
A(in) B(in) C(in)
5” 5¼” 28½”
5¾” 5½” 28½”
5¼” 5½” 28½”
6” 5¾” 28½”
6¾” 6¼” 28½”
7½” 5¼” 28½”
110º Opening
A(in) B(in) C(in)
5” 6¼” 28½”
5¾” 6” 28½”
4¾” 6” 28½”
4¾” 6¼” 28½”
5¼” 6” 28½”
6” 6” 28½”
www.ramsetinc.com
9
RAMSET

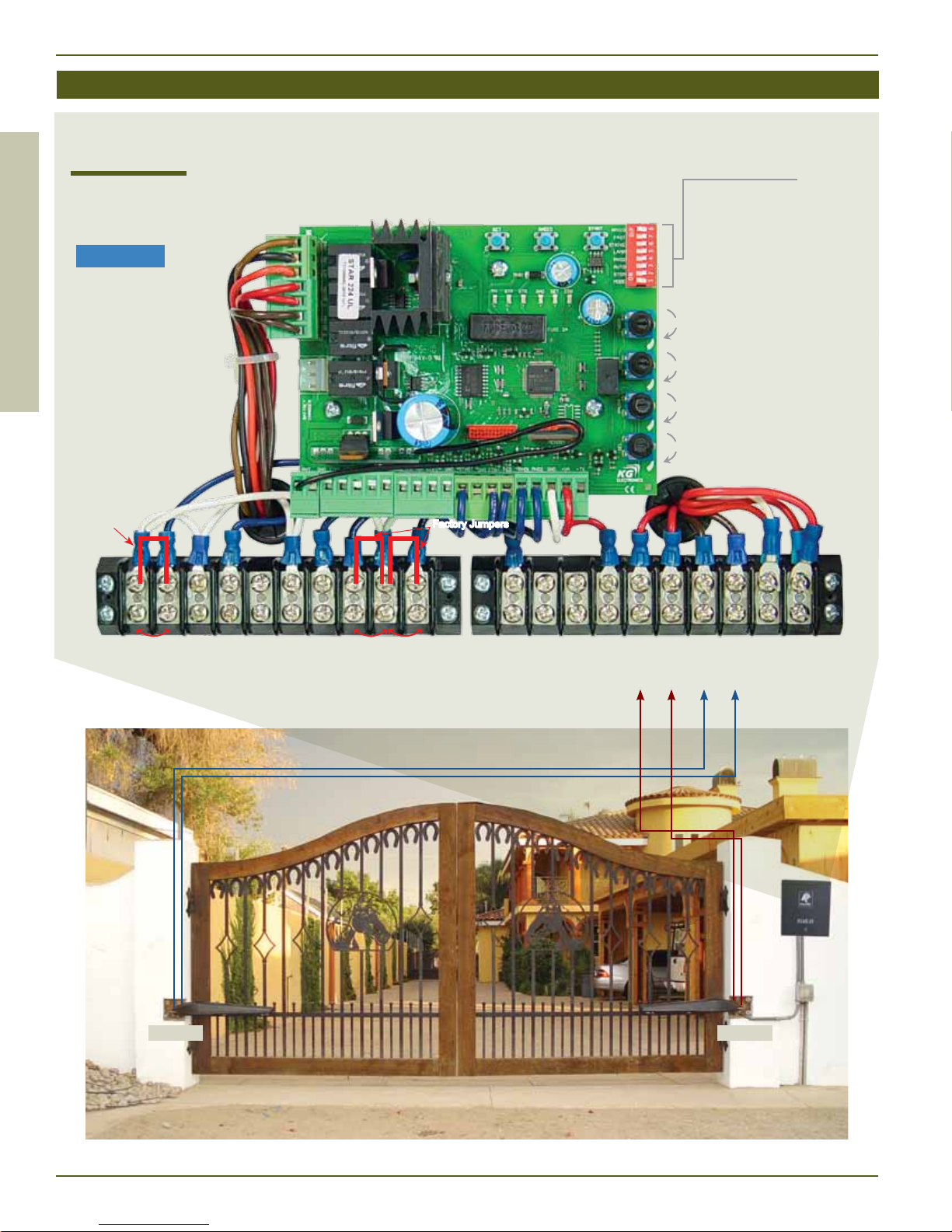

STAR

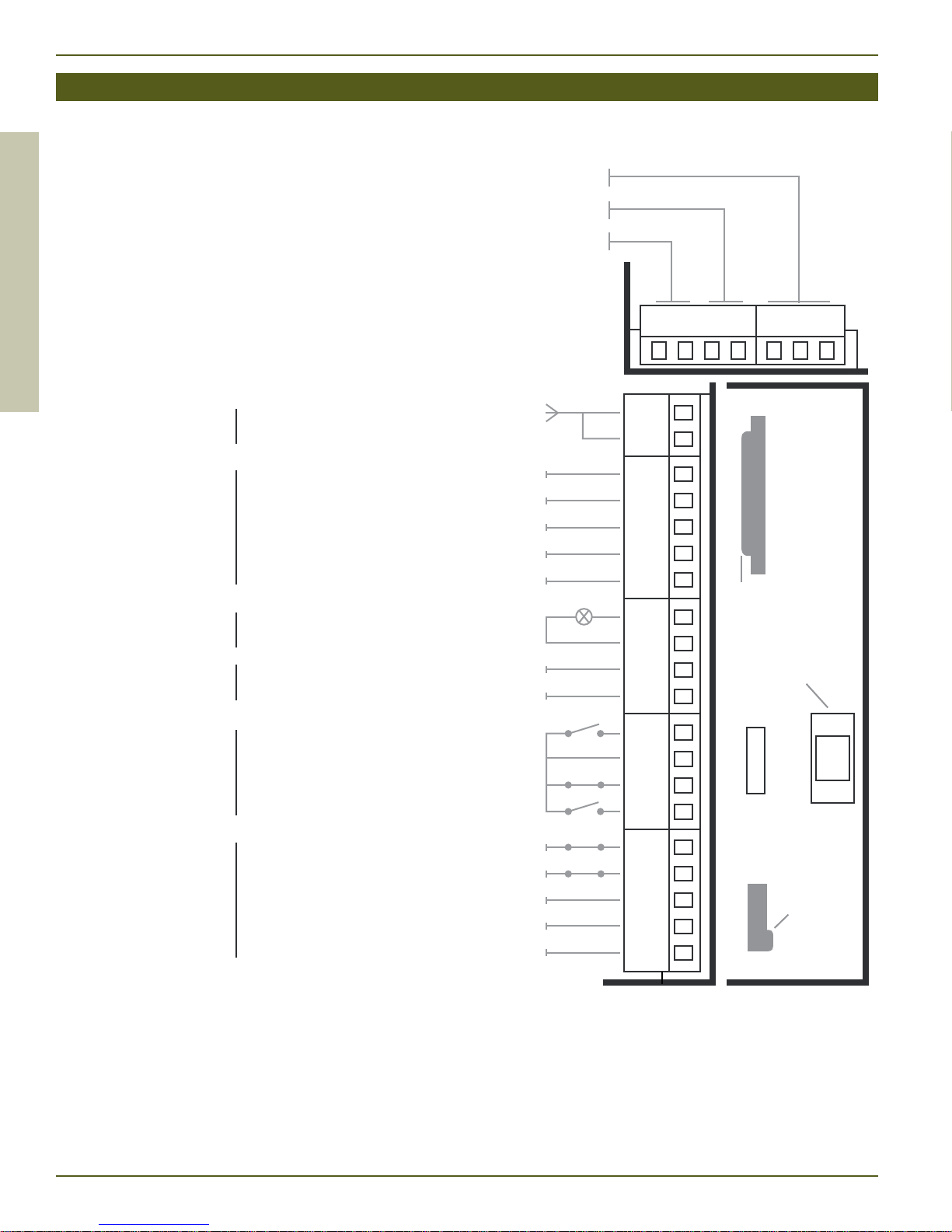

CONTROL BOARD
Figure 12
JET

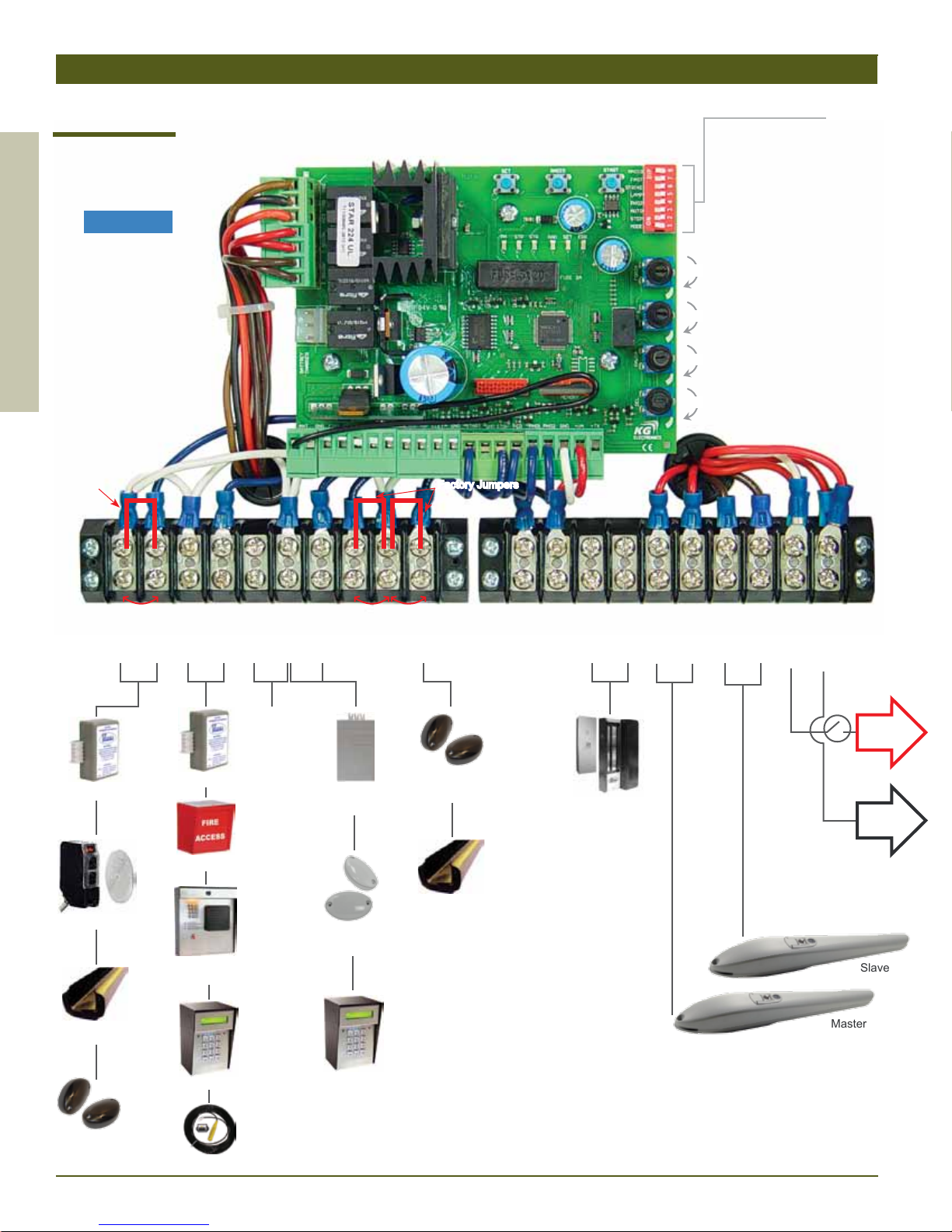

TERMINAL STRIP CONNECTIONS
PROGRAM
REMOTE
RADIO
DIP SWITCHES
8–PARTIAL
7–ONE-PASS
6–KICK-BACK
5–LOCK
4–PHO 2/ EDGE
3–TIMER
2–RADIO CYCLE
1–MODE
SPEED
+
ERD
+
TIMER
+
DELAY
+
Factory Jumper
Safety Loop
Photo Eye
COM
COM
SAFETY
Exit Loop
Fire Box
Telephone
Entry System
EXIT
PHAN
Phantom
Loop
(currently
not
available)
COM
RADIO
Radio
Receiver
Fred
Receiver
STOP
COM
Factory Jumpers
PHO 2
Vicky
Photo Eye
Safety Edge
COM
24 VDC
MAG -
Magnetic
Lock
MAG +
MOT 1
MOT 1
MOT 2
MOT 2
120 VAC
NEUTRAL
POWER
SWITCH
To 120 VAC
To Neutral
Slave
Safety Edge
LCD-KP
Vicky
Photo Eye
Exit Wand
10
Master
LCD-KP
www.ramsetinc.com
TERMINAL STRIP CONNECTIONS
RAMSET
TERMINAL #1 – COMMON
Low voltage common.
TERMINAL #2 – SAFETY
Normally Closed. Becomes active with an open contact to common. If the gate is closed, it will have no
effect. If the gate is opening, it will have no effect. If the
gate is opened, it will hold the gate open. If the gate is
closing it will stop and automatically reopen the gate.
Remove the factory jumper when using.
TERMINAL #3 – COMMON
Low voltage common.
TERMINAL #4 – EXIT
Normally open. Becomes active with a closed contact
tocommon.Usedwithloopdetectors,exitwands,re
boxes, keypads, etc… Opens the gate. If the gate is
closed, it will open the gate. If the gate is opening it
will have no effect. If the gate is opened, it will hold the
gate open. If the gate is closing, it will stop and reopen
the gate.
TERMINAL #5 – PHANTOM
This terminal is currently not active.
TERMINAL #6 – COMMON
Low voltage common.
TERMINAL #7 – RADIO
Normally open. Becomes active with a closed contact
to common. Used with RF receivers, keypads, pushbuttons, etc… Opens and closes the gate. Operation
depends on the position of Dip Switch #2 (Radio Cycle)
Dip switch #2 – OFF: If the gate is closed it will
open all the way. If the gate is open it will close all
the way. If the gate is traveling it will have no effect.
Dip switch #2 – ON: Cycle mode. The gate will open
and close to it’s limits but if a command it triggered
while traveling the gate will; stop on the rst
command and reverse on the second command.
TERMINAL #8 – STOP
Normally Closed. Becomes active with an open contact to common. Used with back plane photo eyes,
edge sensors, etc… If the gate is closed it will hold the
gate closed. If the gate is opening it will stop the gate
and hold it. To reactivate the motion a second command must be input and then the gate will reverse it’s
direction. If the gate is open it will hold the gate open.
If the gate is closing it will stop the gate and hold it. To
reactive the motion a second command must be input
and then the gate will reverse it’s direction.
TERMINAL #9 – COMMON
Low voltage common.
TERMINAL #10 – PHO 2
Normally Closed. Becomes active with an open contact to common. Used with photo eyes, loop detectors,
safety edges, etc… Operation depends upon the position of the Dip Switch #4 (Pho 2/ Edge)
Dip switch #4 – ON: If the gate is closed it holds the
gate closed. If the gate is opening it stops the gate
until the sensor is cleared and then it automatically
continues to open the gate. If the gate is open it
holds the gate open. If the gate is closing it stops
the gate and until the sensor is cleared and then
reverses the motion to reopen the gate automatically.
Dip switch #4 – OFF: If the gate is closed it holds
the gate closed. If the gate is opening it stops the
gate and reverses it’s motion for 2 seconds.
Another command must be received for the gate to
continue. If the gate is open it holds the gate open.
If the gate is closing it has no effect.
TERMINAL #11 – COMMON
Low voltage common.
TERMINAL #12 – 24 VDC
24 volt DC output for photocells, keypads, etc…
TERMINAL #13 – MAG –
Negative terminal for magnetic lock.
TERMINAL #14 – MAG +
Positive terminal for magnetic lock.
TERMINAL #15 & #16 – MOT 1
Input for motor wire coming from operator. If gate closes instead of opening, reverse polarity by switching the
motor 1 wires.
TERMINAL #17 & #18 – MOT 2
Inputforsecondoperatorinamaster/slaveconguration. If gate closes instead of opening, reverse polarity
by switching the motor 2 wires.
TERMINAL #19 – 120 VAC
120 Volt AC output terminal via switch. DO NOT wire
AC input power directly to this terminal.
TERMINAL #20 – NEUTRAL
Neutral output terminal via switch. DO NOT wire AC
input power directly to this terminal.
JET
www.ramsetinc.com
11
RAMSET

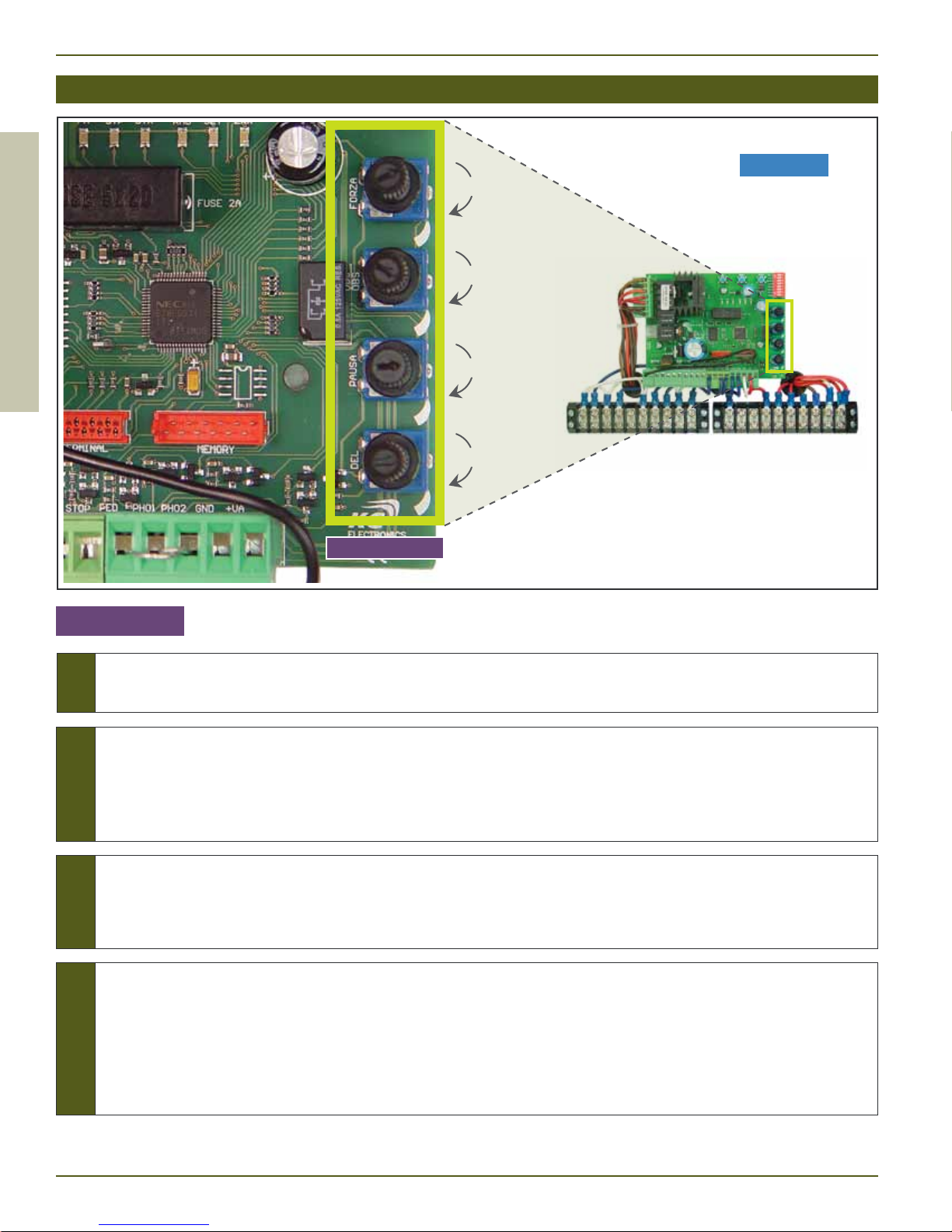

TRIM ADJUSTMENTS – POTENTIOMETERS
Figure 13
SPEED
+
JET
TRIM POTS
ERD
+
TIMER
+
DELAY
+
TRIM POTS
Use the “SPEED” trimmer to adjust the voltage with which the motor is powered during operation. Increasing/
decreasing this trimmer will affect the speed and torque with which the operator functions.
SPEED
12
The “ERD” trimmer is used to adjust the amount of time that the gate will continue to push before reversing.
Turning the trimmer clockwise increases the amount of time it will continue to push. At minimum setting the gate
will continue to push for about ½ second before reversing. At maximum setting the gate will continue to push
ERD
for about 3 seconds before reversing. If the ERD is triggered twice in a row it will stop the gate and the warning
siren will sound.
The “TIMER” trimmer is used with the automatic timer and adjusts the amount of time the gate will stay open
before automatically closing. The automatic timer is activated by putting the Dip Switch #3 (TIMER) in the ON
position. The timer trimmer can now be used to set the gate to stay open from a minimum of 3 seconds to a
TIMER
maximum of 90 seconds. Turning the trimmer clockwise increases the amount of delay.
The “DELAY” trimmer is used with a double gate - master/ slave configuration. The delay timer can be adjusted
to make sure that the gates open and close simultaneously. With the delay trimmer turned all the way counterclockwise the delay trimmer is off. The gates will open and close at the same time. Turning the delay trimmer
clockwise activates the delay. The gates will now open with a 3 second delay between gate #1 and gate #2. The
delay between the gates closing will depend upon how far the delay trimmer is turned clockwise; the further it is
DELAY
turned the longer the delay will be. With the delay trimmer turned to maximum delay: gate #1 will close 3 or 15
seconds after gate #2 begins to close.
www.ramsetinc.com

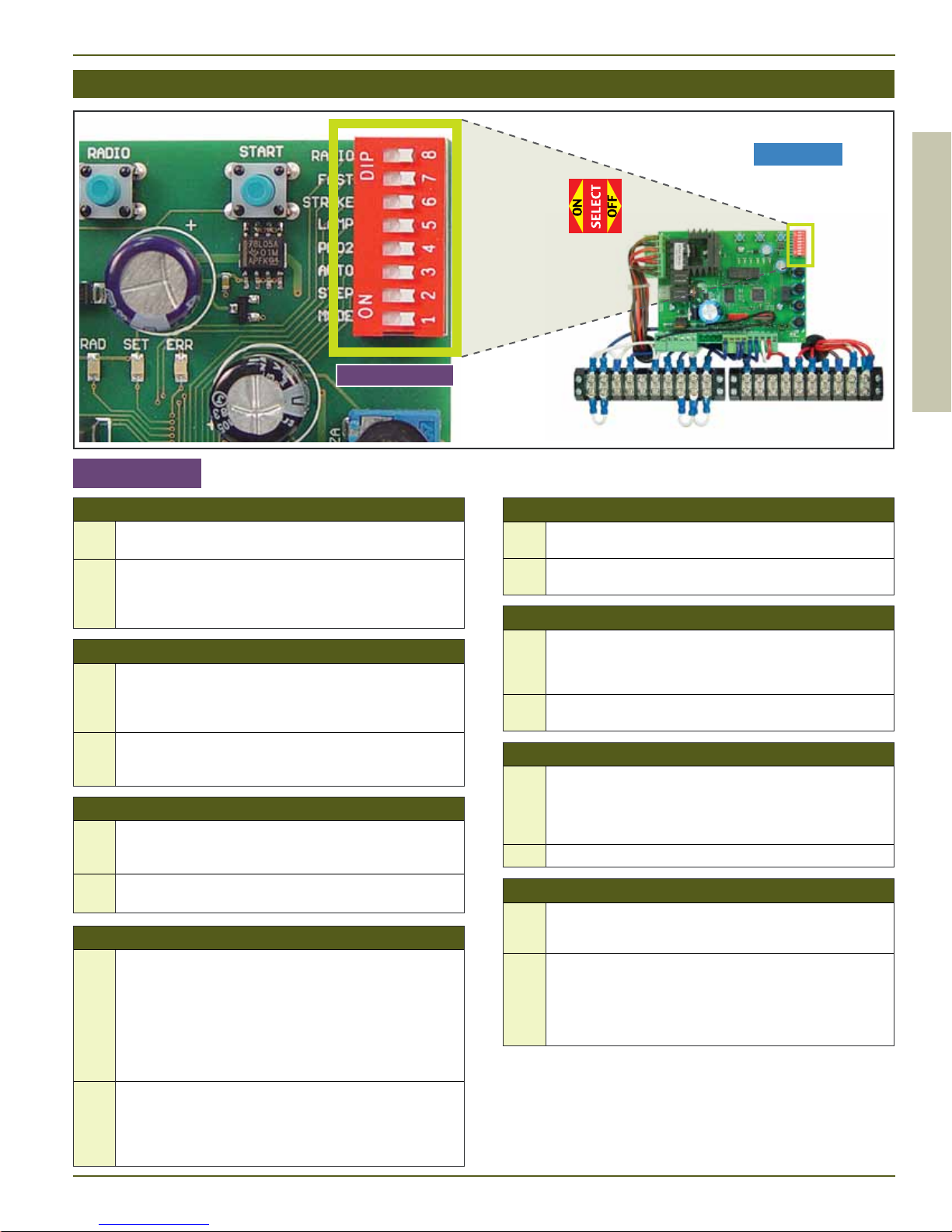

DIP SWITCH CONFIGURATION
RAMSET
DIP SWITCH
DIP SWITCH
Dip Switch 1 – MODE
The control unit is in slow mode. This setting is suitable
ON
for all gates.
(used on gates under 6 ft) The unit is in fast mode. Make
sure that the gate does not strike too hard against the
OFF
mechanical stops or the operator could be damaged. If
so turn the switch ‘on’.
Dip Switch 2 – RADIO CYCLE
The operator is in cycle mode. It will start the gate moving on the first command, stop the gate on the second
ON
command, and start the motion in the opposite direction on the next command.
The unit will open or close the gate depending on the
OFF
limits. The unit will not stop if a command is received
while the gate is moving. If closing the gate opens.
Dip Switch 3 – TIMER
The automatic closing timer is activated. The gate will
ON
automatically close according to the amount of time set
by the timer trimmer.
The automatic closing timer is inactive. The operator
OFF
must receive a command to close the gate.
Dip Switch 4 – PHO2/ EDGE
(PHOTO EYE) Safety devices attached to terminal #10
(PHO2) will cause the operator to do as follows: If the
gate is open or closed it will not move until the sensor is
cleared. If the gate is opening it stops the gate until the
ON
sensor is cleared and then automatically continues to
open the gate. If the gate is closing it stops the gate until the sensor is cleared and then automatically opens
the gate.
(EDGE) If the gate is open or closed it will not move until the sensor is cleared. If the gate is closing the safety
OFF
sensor has no effect. If the gate is opening the gate will
stop and reverse direction for 2 seconds. Another command must be received for the gate to continue.
8–PARTIAL
7–ONE-PASS
6–KICK-BACK
5–LOCK
4–PHO 2/ EDGE
3–TIMER
2–RADIO CYCLE
1–MODE
Dip Switch 5 – LOCK
Use this setting when operating a magnetic lock with
ON
the operator.
Use this setting when using an electric lock with the
OFF
operator.
Dip Switch 6 – KICK BACK
Kickback enabled. Used with the Modus operator. The
control board supplies a surge of reverse power to the
ON
operator to release tension on the emergency release
mechanism. No function currently.
The kickback feature is disabled. Keep this dipswitch
OFF
off when using the Jet operator.
Dip Switch 7 – ONE PASS
Rapid re-closing or “anti-tailgating” feature is enabled.
When this feature is active the gate will begin to re-
ON
close as soon as the photocell or loop has been occupied and cleared. If the gate is opening it will reverse
direction and close without fully opening.
OFF The rapid re-closing feature is disabled.
Dip Switch 8 – PARTIAL
Keep this switch ON for normal operation. The start
ON
channel is memorized during programming of the radio
transmitter.
(this is used on very long gates when to open limits
are desired) In this mode a partial opening channel is
memorized during the programming of the radio trans-
OFF
mitter. WARNING: THIS IS A VEHICULAR GATE OPERATOR. PEDESTRIANS SHOULD ALWAYS USE A
SEPARATE ACCESS DOOR.
Figure 14
JET
www.ramsetinc.com
13
RAMSET
LOOP INSTALLATION

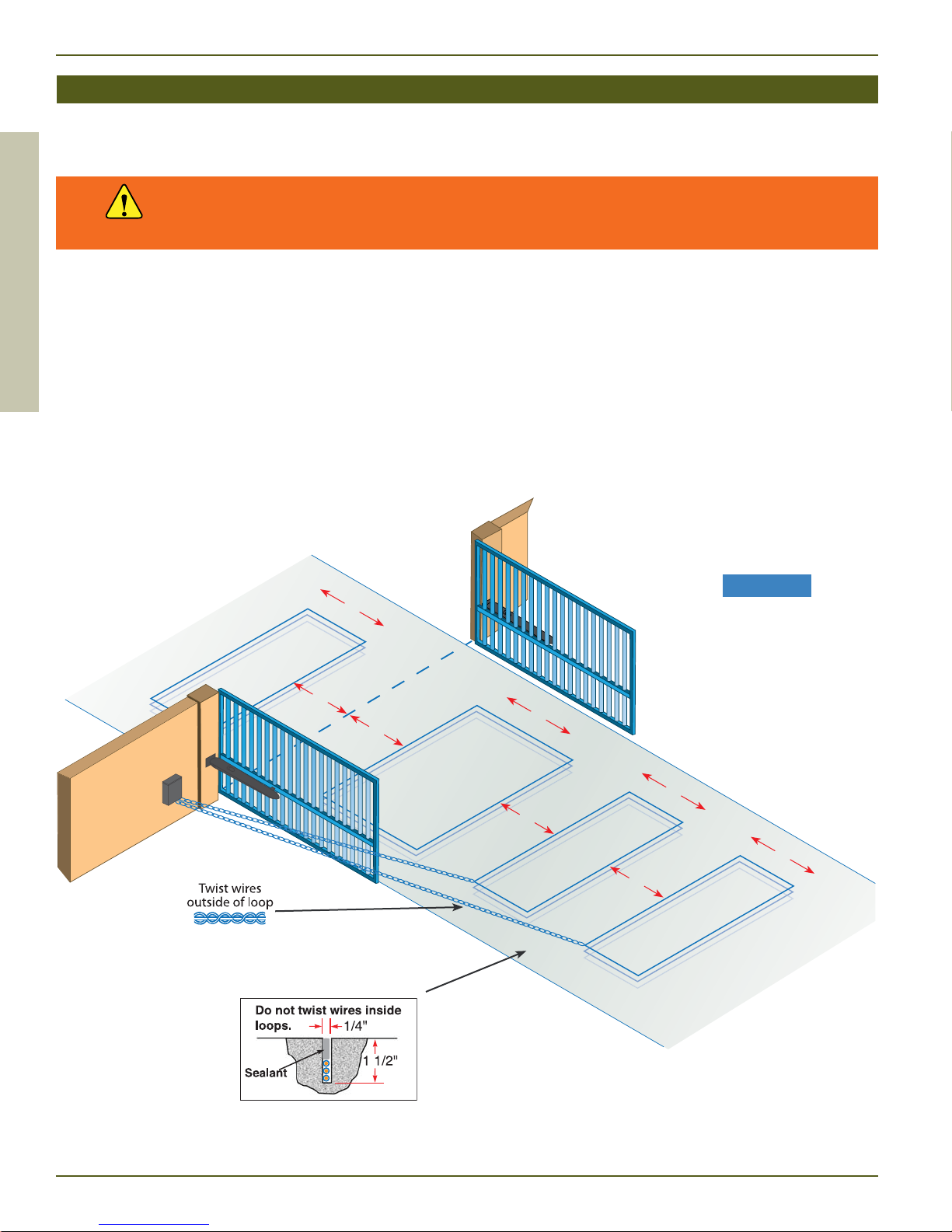

Ramset Gate Operators should always be installed with non-contact sensing devices such as
Loop Detectors, Photo Eyes or the equivalent.
A non-contact sensor (photoelectric sensor or equivalent) and a contact sensor (edge
WARNING
Reversing Loop (safety loop) Prevents the gate from closing when a vehicle is in the loop area. The reversing
JET
loop will either stop the gate movement or reopen the gate when activated.
Exit Loop Opens the gate when a vehicle crosses the loop area.
PHO 2 Loop (inside stop loop) Prevents the gate from opening or closing when a vehicle is in the loop area.
Can either stop the gate or reverse the gate motion if the gate is traveling when a vehicle crosses the loop
area.
Phantom Loop (shadow loop) Holds the gate open while there is a vehicle in the loop area. Has no effect
when the gate is in motion. This function is not currently active with the Star 24 control board.
device or equivalent) is required on each individual installation to comply with UL325.
Outside
Outside
Reverse Loop
(safety loop)
4’
2’
Minimum
4’
Phantom Loop
(shadow loop)
(currently not available)
2’
Minimum
4’
Pho 2 Loop
(inside stop loop)
2’
Minimum
4’
Exit Loop
Figure 15
Minimum
Inside
2’
14
www.ramsetinc.com
RAMSET
LOOP INSTALLATION
A non-contact sensor (photoelectric sensor or equivalent) and a contact sensor (edge device or equivalent)
is required on each individual installation to comply with UL325.
Top View
2’
Minimum
Outside
Reversing
Loop
Outside
Figure 16
4’
2’
Minimum
4’
Phantom
Loop
(currently not
available)
4’
Make Even with
Open Gate
Gate in Open Position
2’
Minimum
Inside
Stops
Loop

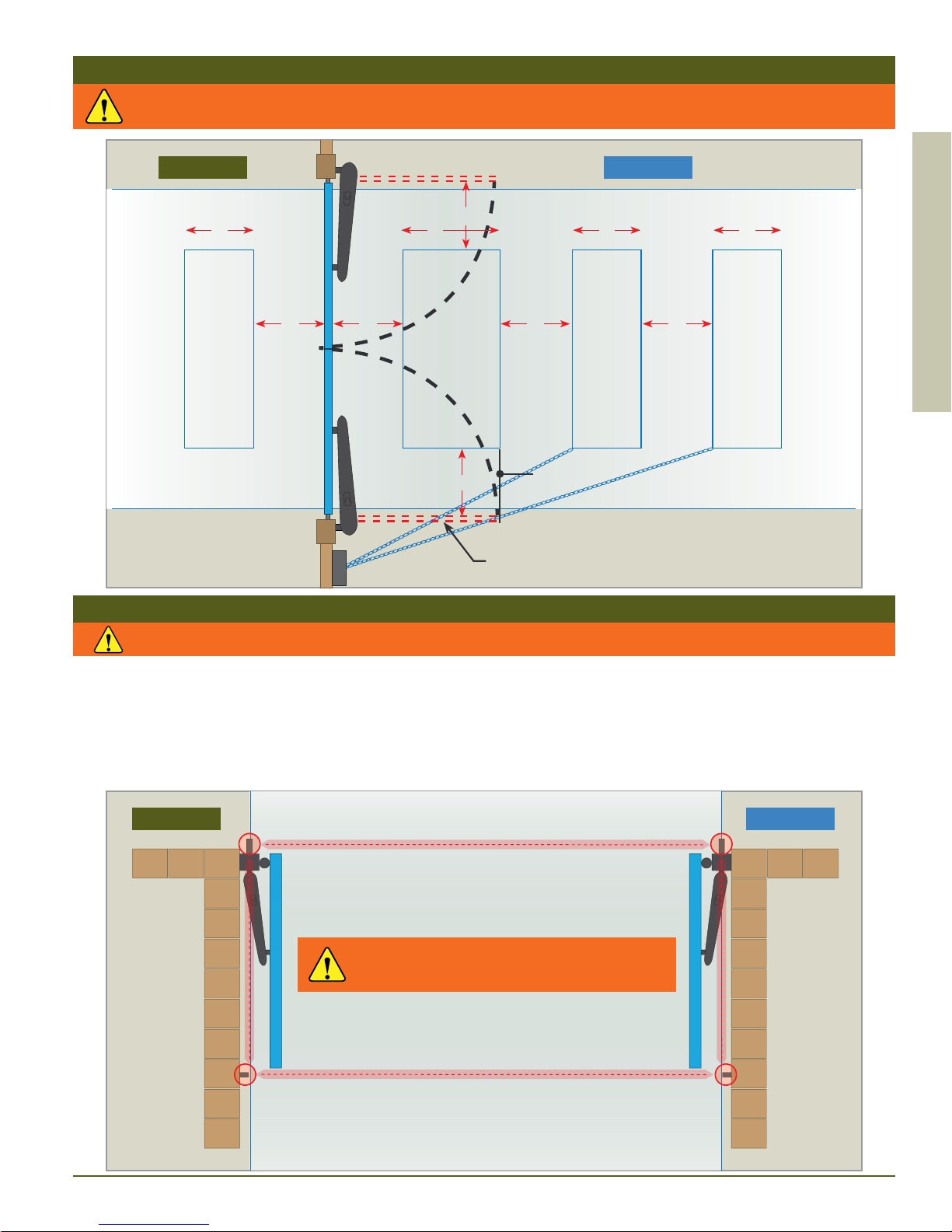

PHOTO EYE INSTALLATION
2’
Minimum
JET
4’4’4’
Exit Loop
Inside
Make sure that all areas around the gate are safe and secure.
Reversing Photo Eye Prevents the gate from closing when a vehicle has broken the beam of the photo eye. The photo
eye will either stop the gate movement or reopen the gate when activated.
PHO 2 Photo Eye Prevents the gate from opening or closing when a vehicle has broken the beam of the photo eye. The
photo eye can either stop the gate or reverse the gate motion if the gate is traveling when a vehicle crosses the photo eye.
Back Plane Photo Eye Prevents the gate from moving when a person, such as a service technician, is in the area behind
the gate. This helps eliminate entrapment.
Top View
Reverse/ Safety
Photo Eye
Outside
Reverse/ Safety
Photo Eye
Figure 17
Install a sensor photo eye to protect the gate
operator(s) backplane
Back Plane Photo Eye
PHO 2 (Inside Stop)
Photo Eye
PHO 2 (Inside Stop)
Back Plane Photo Eye
Photo Eye
Inside
www.ramsetinc.com
15
RAMSET
MASTER SLAVE INSTALLATION
STAR
CONTROL BOARD
Figure 18
JET
Factory Jumper
Factory Jumpers
PROGRAM
REMOTE
RADIO
DIP SWITCHES
8–PARTIAL
7–ONE-PASS
6–KICK-BACK
5–LOCK
4–PHO 2/ EDGE
3–TIMER
2–RADIO CYCLE
1–MODE
SPEED
+
ERD
+
TIMER
+
DELAY
+
COM
SAFETY
Motor 2 Motor 1
COM
EXIT
PHAN
COM
RADIO
STOP
COM
PHO 2
COM
MAG -
24 VDC
MAG +
MOT 1
MOT 1
MOT 2
MOT 2
120 VAC
NEUTRAL
16
www.ramsetinc.com
RAMSET
PROGRAMMING PROCEDURE
Make sure that the Jet gate operator has been properly installed and the physical limits on the undercarriage of the Jet arm have been set to
the open and close positions. Use the emergency release handle to move the gate to a half – open position then reengage the release handle
and apply pressure to the gate until it locks in place.
Program the operator using these steps:
Step 1 Step 2 Step 3
Locate the “PROGRAM” button on the
Star 24 control board. The red LED
lights; PH and STP should be on.
The Jet will automatically proceed to a learning mode. It will open the gate for 5 seconds (see important note below) and close the gate all the
way, then it will open the gate again all the way and close the gate.
Programming is now complete.
IMPORTANT: If during the initial programming the gate begins to close instead of open, stop the procedure by shutting off the power
and reverse the MOT 1 wires on the terminal strip. This will reverse the polarity of the motor. Repeat the programming procedure.
Press and hold the Program button for
about 2 seconds. The red LED lights
will go out. Release the Program button
when the red LED’s go out.
The red LED lights will come back on and
the yellow LED will now begin to flash.
Press the Program button again and release it immediately.
RADIO TRANSMITTER PROGRAMMING PROCEDURE
Step 1
Step 2
Step 3
JET
Locate the “REMOTE” button on
the Star 24 control board. The red
LED lights PH and STP should be
on.
Step 4
If you have more than one remote control that
you wish to program you can program them
all at this time. Simply press the button on
the remote control(s) and make sure that the
RAD light flashes to confirm the input.
Press and release the “REMOTE”
button. The red RAD LED light
should come on.
Step 5
When you have finished programming all of the
remote controls, wait for about 10 seconds until
the RAD LED light goes out. The remote controls are now programmed and ready to use.
Press the button on the transmitter (remote control) you wish to program. The RAD LED light
on the Star 24 control board should flash rapidly
to confirm that it has recognized the transmitter
input.
NOTE:
You can program up to 200
buttons on remote controls
at one time using this procedure
ADJUSTABLE SLOW DOWN LEARNING PROCEDURE
The Jet operator can be programmed to slow down at any point during the opening and closing process. This is especially useful when you
are using the operator on large gates or in compact installation. Complete the normal programming procedure for the Jet operator first to make
sure the operator is operating correctly and that the open and close stops are set properly.
Use the following procedure to reprogram the operator for adjustable slow down.
Step 1
Locate the “PROGRAM” button on the
Star 24 control board. The red LED lights;
PH and STP should be on.
Step 4
Immediately press the “REMOTE” button on the Star
24 control board. The yellow SET LED light will now
stop flashing and the Jet will begin its learning procedure. The gate will open for 5 seconds and then
close. The yellow SET LED light will remain on and
the operator is now standing by for a command input.
Step 2 Step 3
Press and hold the Program button for
about 2 seconds. The red LED lights
will go out. Release the Program button
when the red LED’s go out.
Step 5
Using either the “PROGRAM” button on the Star 24 control board or a
programmed remote control, press
the button to initiate a command.
The gate will now begin to open.
The red LED lights will come back on and
the yellow SET LED light will now begin
to flash.
Step 6
When the gate reaches the
point where you wish the slow
down to begin, press the PROGRAM or remote control button
again and the gate will slow
down.
Step 7
With the gate open use the same procedure to set the slow down point for
closing the gate: Press the PROGRAM or remote control button to begin
closing and then press it again at the point you want the gate to slow down.
When the gate is completely closed the yellow SET LED light will go out
and the programming is complete.
www.ramsetinc.com
NOTE:
In a double gate, master/ slave configuration: The
PROGRAM button is used to set the slow down point
for the first gate and the REMOTE button is used to
set the slow down points for the second gate.
17
RAMSET
MAIN BLOCK TERMINAL HOOKUP
21.22.23. TRANSFORMER
24.25. MOTOR 1
26.27. MOTOR 2
JET
ANTENNA
LIMIT SWITCH
FLASHING LAMP
ELECTRIC /
MAGNETIC LOCK
COMMANDS
1. ANTENNA signal
2. ANTENNA sock
3. Opening limit switch - motor 1
4. Closing limit switch - motor 1
5. Terminals 3, 4, 6, 7 common (limit switches)
6. Opening limit switch - motor 2
7. Closing limit switch - motor 2
8. FLASHING LAMP negative (O V)
9. FLASHING LAMP + (+24 Vdc max 15W)
10. Electric/magnetic lock control consent
11. Electric/magnetic lock control negative
12. RADIO contact
13. Terminal 12 – 14 – 15 COMMON
14. STOP contact
15. EXIT contact
MOT2 MOT1
ANT
GND
FOP1
FCC1
OV
FOP2
FCC2
LAMP
+v
ELET
OV
START
OV
STOP
EXIT
12V
RADIO RECEIVER
DIRECTION
LOW TENSION
FUSE 4A
TERMINAL
OV
24V
16. Safety devices in closing contact PHO1
17. Safety devices in opening contact PHO2
PHOTOCELLS BUZZER
18. Terminals 19 and 20 COMMON (OV)
18
19. + (12Vdc)
20. + Alarm buzzer (12Vdc)
www.ramsetinc.com
PHO1
PHO2
OV
+VA
+BUZ
MEMORY
MEMORY
CARD
DIRECTION

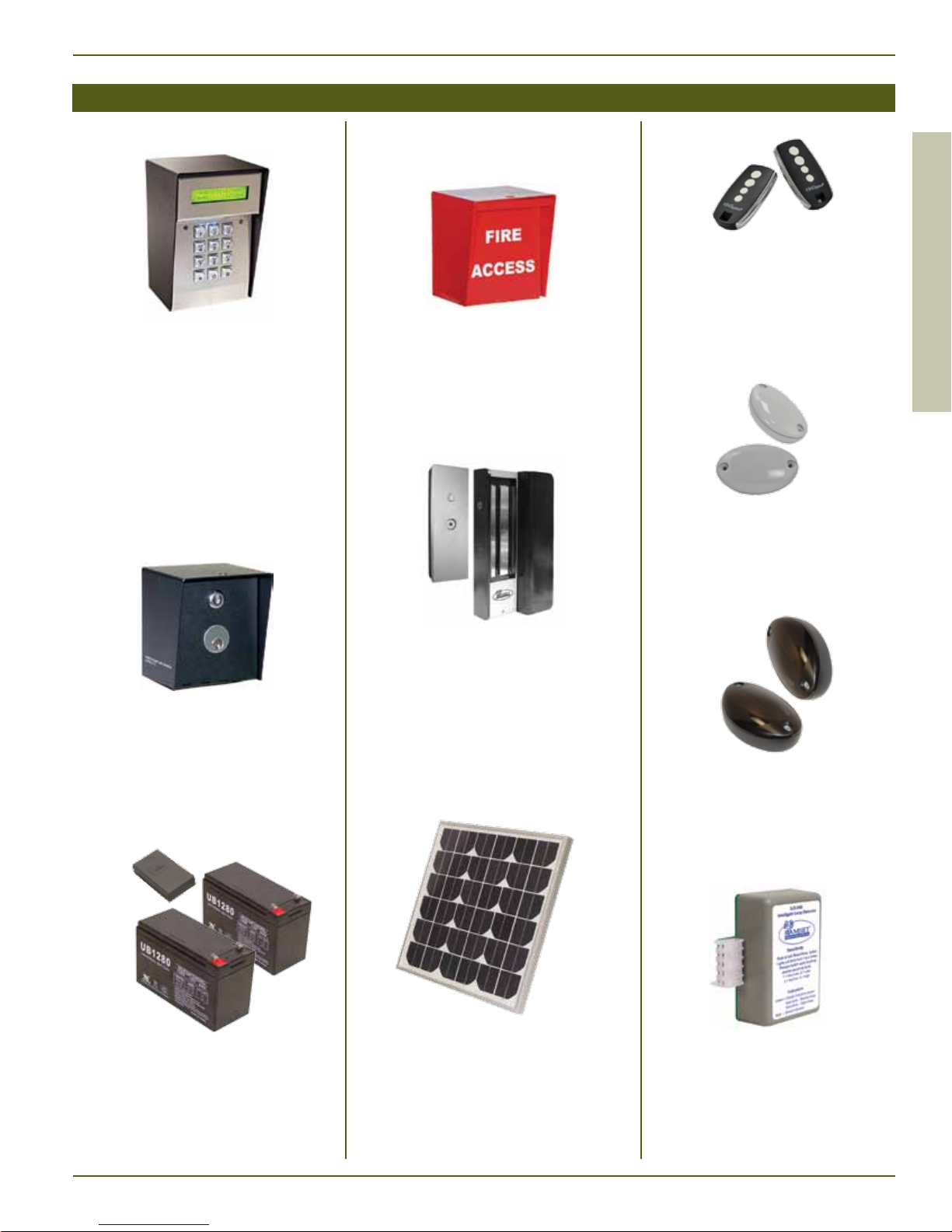

RAMSET OPTIONAL ACCESSORIES
LCD-KP
Liquid Crystal Display-Keypad
1,024 Codes
5,112 Event Log
LCD Display
7-Day Timer
Time Zones
Latching
Stainless Steel Faceplate
Fire Box
Allows the fire department
to open the gate in
case of an emergency.
RAMSET
RAMSET
Stylo Remote Controls
4-Channel Radio Transmitter,
Rolling Code, Small,
Sleek, black and
Chrome Design.
JET
Key Switch Box
Suitable for use on
Entry doors where access
is restricted by a key.
RAMSET
Fred Receivers
433.1 MHZ Rolling Code
Receiver. (12 to 24 VDC)
Magnetic Lock
12/24V DC.
1100 lb holding force.
Secures the gate(s) closed.
Photocells
External photocells.
For safety reasons every
installation should include
a photocell.
Batteries & Charger
Batteries 12V
2,7ah
Solar Panel
Solar Battery Charger
10 amps, 24 VDC
or Solar Panel.
www.ramsetinc.com
ILD-24S
Loop Detector
Wire harness loop detector with
sensitivity adjustment and
inherent loop diagnostics.
19
RAMSET
JET
IMPORTANT INFORMATION FOR THE HOMEOWNER
Ask your technician about all the features of our new Ramset operator.
Safety devices, such as reversing loops, phantom loops, photo eyes, or miller edges must be
installed on your gate before the operator may be used. Ask your technician which safety devices best suit your safety needs.
Never let children operate or play with gate controls. Keep the controls away from children.
The entrance is for vehicles only. Pedestrians should use a separate entrance.
Always keep people, children and objects away from the gate while the gate is in operation. No
one should cross the area of a moving gate.
Use the emergency release only when the gate is not moving & power is turned off to the unit.
Have the technician give you a demonstration of how to use the emergency release.
Keep gates properly maintained. Have a qualified gate technician service the gate operator
and gate hardware every six months to a year. This includes checking of safety devices, E.R.D.
and battery back up systems.
Warning signs must be placed on every gate in a highly visible area.
To reset the audible alarm on the gate operator you must turn the power of the unit off for
approximately 10 seconds, then back on.
Always keep a good relationship with your technician and keep his or her number handy for
future maintenance or emergencies.
Ramset wishes to thank you for trusting us
to meet your gate operator needs
20
www.ramsetinc.com

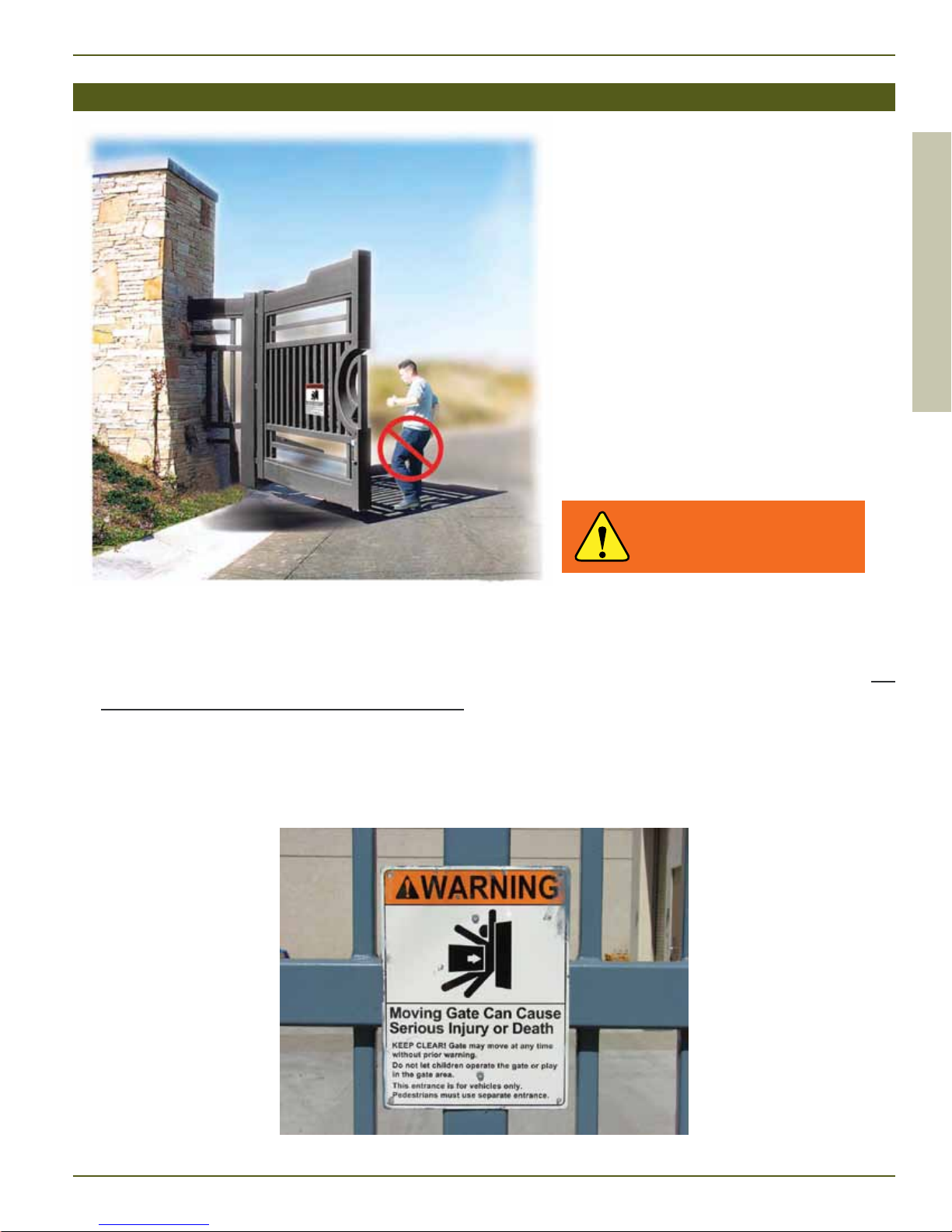

GATE ENTRANCE SAFETY PRECAUTIONS
RAMSET
JET
WARNING:
1. Never let children operate or play with gate controls. Keep the controls away from children.
2. The entrance is for vehicles only. Pedestrians should use a separate entrance.
3. Always keep people, children and objects away from the gate while the gate is in operation. No
one should cross the area of a moving gate.
4. No opening devices such as a keypad, cardreader etc., should be installed close to the gate,
where the gate could possibly cause injury.
5. Use warning signs attached on both sides of the gate.
www.ramsetinc.com
21
Tel: (818) 504-2533 • Fax: (818) 504-1141
9116 De Garmo Ave.
Sun Valley, CA 91352
www.ramsetinc.com
Loading...
