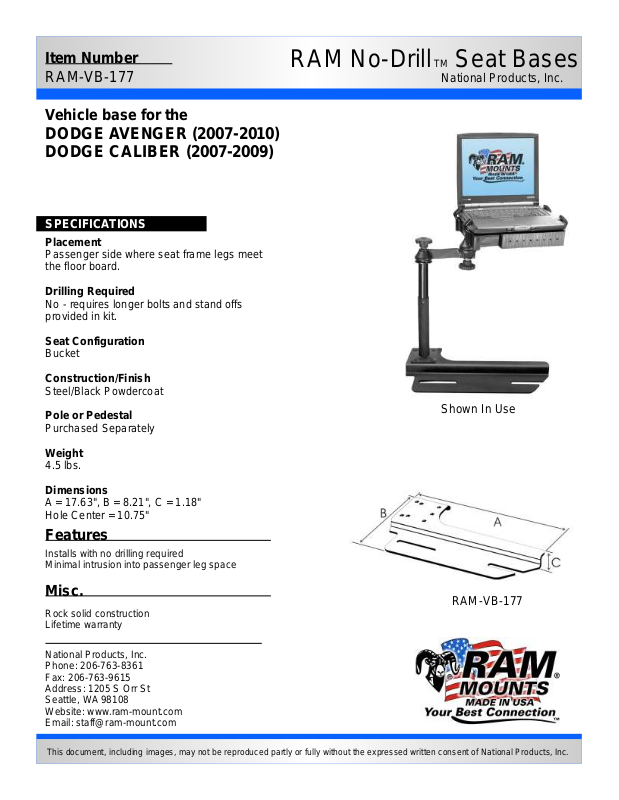

RAM Mount VB-177-SW1 User Manual

Item Number

RAM-VB-177

Vehicle base for the

DODGE AVENGER (2007-2010)
DODGE CALIBER (2007-2009)

SPECIFICATIONS

Placement

Passenger side where seat frame legs meet
the floor board.

Drilling Required

No - requires longer bolts and stand offs
provided in kit.

Seat Configuration

Bucket

RAM No-Drill TM Seat Bases

National Products, Inc.

Construction/Finish

Steel/Black Powdercoat

Pole or Pedestal

Purchased Separately

Weight

4.5 lbs.

Dimensions

A = 17.63", B = 8.21", C = 1.18"
Hole Center = 10.75"

Features

Installs with no drilling required
Minimal intrusion into passenger leg space

Misc.

Rock solid construction
Lifetime warranty

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

Shown In Use

RAM-VB-177

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-177

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

DODGE AVENGER (2007-2010)
DODGE CALIBER (2007-2009)

INSTALLATION INSTRUCTIONS

1. Move the passenger seat back to its rearmost position and remove the two front seat rail bolts. These are found
holding the front of the passenger side seat frame legs to the floor board. Do not discard these bolts. Save them for
use should you later remove this product from the vehicle.

2. Should you choose to use the optional riser, attach it to the No-Drill™ base now.

3. Take the longer seat leg bolts provided and pass each through the flat washer. Next, pass the bolt through the slots
of the No-Drill™ base.

4. Place the stand offs over the holes where the factory seat leg bolts were previously.

5. Lower the No Drill base down over the stand offs, pass the bolts through the stand offs, and into the threaded holes in
the floor board. Start the thread by hand.

Once both bolts have been started by hand, use a wrench to fully tighten these bolts and secure the base until rigid.
