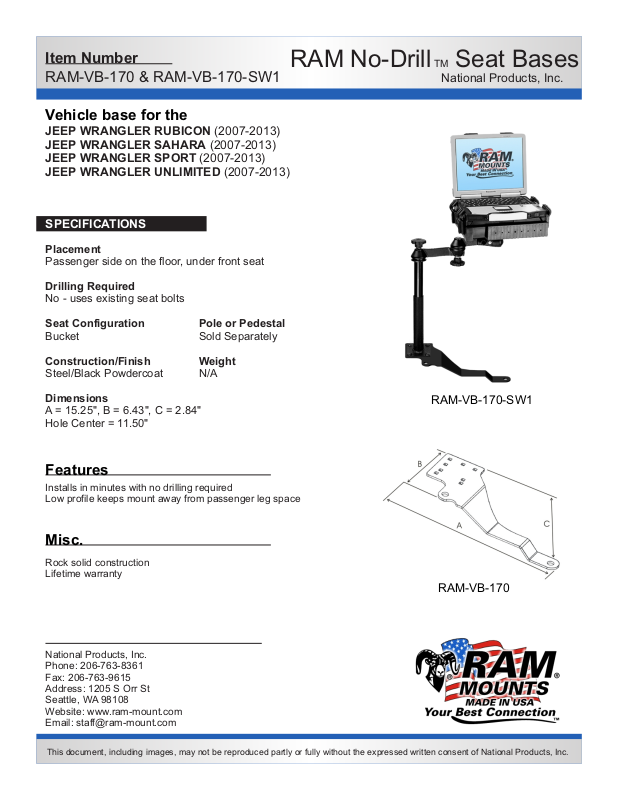

RAM Mount VB-170-SW1 User Manual

Item Number

RAM-VB-170 & RAM-VB-170-SW1

Vehicle base for the

JEEP WRANGLER RUBICON (2007-2013)
JEEP WRANGLER SAHARA (2007-2013)
JEEP WRANGLER SPORT (2007-2013)
JEEP WRANGLER UNLIMITED (2007-2013)

SPECIFICATIONS

Placement

Passenger side on the floor, under front seat

Drilling Required

No - uses existing seat bolts

RAM No-Drill TM Seat Bases

National Products, Inc.

Seat Configuration

Bucket

Construction/Finish

Steel/Black Powdercoat

Dimensions

A = 15.25", B = 6.43", C = 2.84"
Hole Center = 11.50"

Pole or Pedestal

Sold Separately

Weight

N/A

Features

Installs in minutes with no drilling required
Low profile keeps mount away from passenger leg space

Misc.

Rock solid construction
Lifetime warranty

RAM-VB-170-SW1

RAM-VB-170

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-170 & RAM-VB-170-SW1

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

JEEP WRANGLER RUBICON (2007-2013)
JEEP WRANGLER SAHARA (2007-2013)
JEEP WRANGLER SPORT (2007-2013)
JEEP WRANGLER UNLIMITED (2007-2013)

INSTALLATION INSTRUCTIONS

1. Locate and remove the two front seat rail bolts holding the passenger side seat to the floor board.

2. Place the No-Drill™ base over the inner most seat frame leg and under the outer most seat frame leg nearest the
door.

3. Align the holes in the base with those of the seat frame legs.

4. Replace the two bolts and fully tighten.

5. After a week of use or a day of off road use, check seat leg bolts and retighten if necessary.
