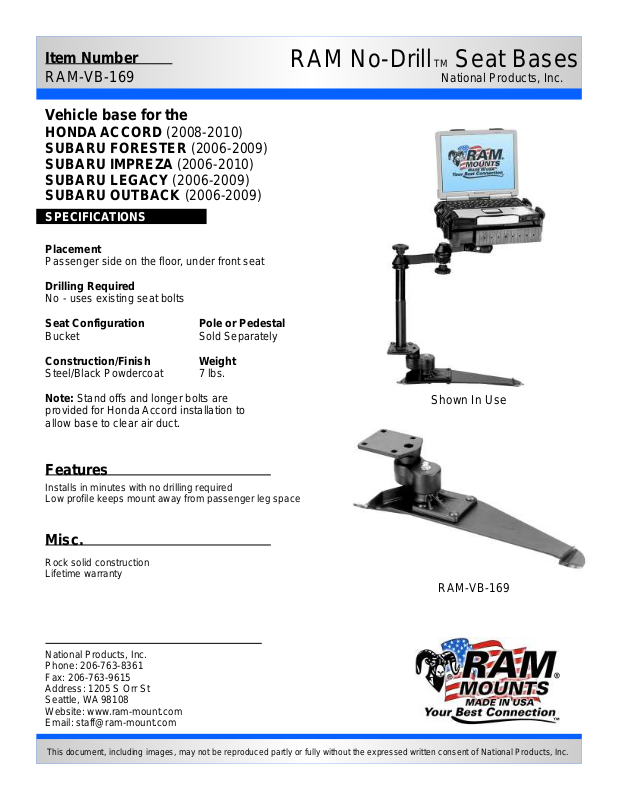

RAM Mount VB-169-SW1 User Manual
Item Number
RAM-VB-169
Vehicle base for the
HONDA ACCORD (2008-2010)
SUBARU FORESTER (2006-2009)
SUBARU IMPREZA (2006-2010)
SUBARU LEGACY (2006-2009)
SUBARU OUTBACK (2006-2009)
SPECIFICATIONS
Placement
Passenger side on the floor, under front seat
Drilling Required
No - uses existing seat bolts
RAM No-Drill TM Seat Bases
National Products, Inc.
Seat Configuration
Bucket
Construction/Finish
Steel/Black Powdercoat
Note: Stand offs and longer bolts are
provided for Honda Accord installation to
allow base to clear air duct.
Pole or Pedestal
Sold Separately
Weight
7 lbs.
Features
Installs in minutes with no drilling required
Low profile keeps mount away from passenger leg space
Misc.
Rock solid construction
Lifetime warranty
Shown In Use
RAM-VB-169
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
Item Number
RAM-VB-169
Vehicle base for the
HONDA ACCORD (2008-2010)
SUBARU FORESTER (2006-2009)
SUBARU IMPREZA (2006-2010)
SUBARU LEGACY (2006-2009)
SUBARU OUTBACK (2006-2009)
INSTALLATION INSTRUCTIONS
RAM No-Drill TM Seat Bases
National Products, Inc.
Note that stand offs and longer bolts are used for Honda Accord. Place the stand offs in between the base
and the seat frame legs. Pass the longer bolts provided through the base, then the stand offs, and start the thread by
hand into the floor board. Once started, use a socket wrench to fully tighten. Stand offs are so base clears air duct.
1. Move the passenger seat back to its rearmost position and remove the front seat rail bolts.
2. Without moving the seat, place the No-Drill™ base over the front of the seat frame legs.
3. Align the holes in the base with those of the seat frame legs. The pedestal platform should be near the console.
4. Re-install the seat bolts and fully tighten.
No-Drill™
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
