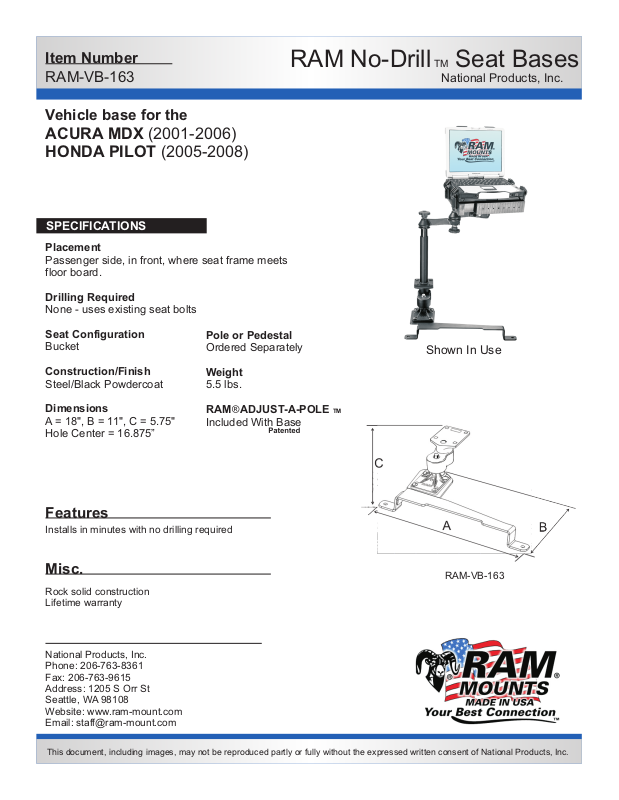

RAM Mount VB-163-SW1 User Manual

Item Number

RAM-VB-163

Vehicle base for the

ACURA MDX (2001-2006)
HONDA PILOT (2005-2008)

SPECIFICATIONS

Placement

Passenger side, in front, where seat frame meets
floor board.

Drilling Required

None - uses existing seat bolts

RAM No-Drill TM Seat Bases

National Products, Inc.

Seat Configuration

Bucket

Construction/Finish

Steel/Black Powdercoat

Dimensions

A = 18", B = 11", C = 5.75"
Hole Center = 16.875”

Pole or Pedestal

Ordered Separately

Weight

5.5 lbs.

RAM ADJUST-A-POLE TM

Included With Base

Features

Installs in minutes with no drilling required

Misc.

Rock solid construction
Lifetime warranty

Shown In Use

RAM-VB-163

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-163

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

ACURA MDX (2001-2006)
HONDA PILOT (2005-2008)

INSTALLATION INSTRUCTIONS

Depending on your make and model, there may be a piece of plastic trim that covers the lower front of the seat frame.
This will need to be removed and stored. If you wish to reinstall this piece of trim, you will have to modify it to fit over
the stamped metal base.

1. Assemble the Adjust-A-Pole TM riser and attach to the stamped metal base. Do so with the carriage bolts
passing down through the base so the nuts are on the bottom.

2. To the upper half of the Adjust-A-Pole TM, attach the lower female tube that is part of the Tele-Pole assembly.
Do so with the carriage bolts passing downward so the rounded part of the bolt is on top. Once completed, set aside.

3. Locate the two front seat rail bolts holding the passenger seat in place.

4. Using a 14MM socket, remove the two seat rail bolts and set them aside.

5. Place the stamped metal base under the seat with the mounting holes over those of the seat rail frame.

6. Re-install the 14MM seat rail bolts and tighten.
