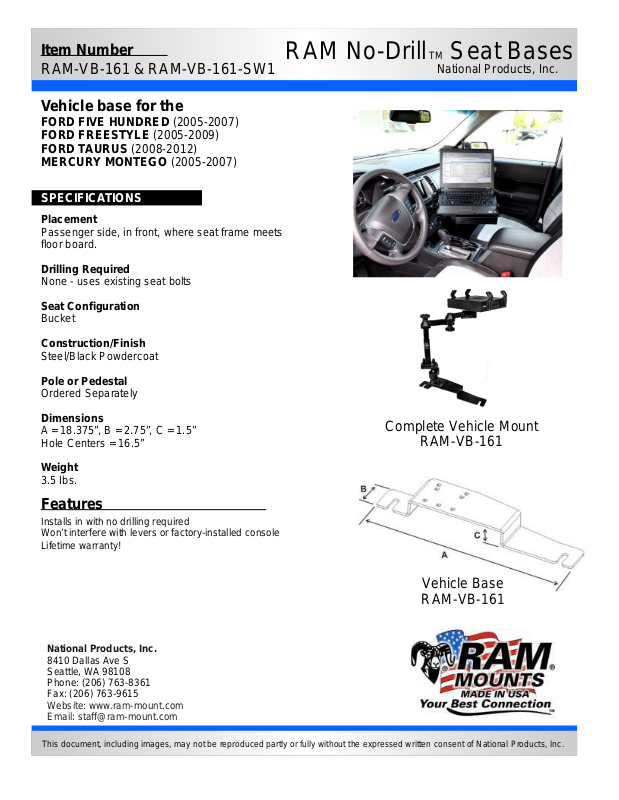

RAM Mount VB-161-SW1 User Manual

Item Number

RAM-VB-161 & RAM-VB-161-SW1

Vehicle base for the

FORD FIVE HUNDRED (2005-2007)
FORD FREESTYLE (2005-2009)
FORD TAURUS (2008-2012)
MERCURY MONTEGO (2005-2007)

SPECIFICATIONS

Placement

Passenger side, in front, where seat frame meets
floor board.

Drilling Required

None - uses existing seat bolts

Seat Configuration

Bucket

Construction/Finish

Steel/Black Powdercoat

RAM No-Drill TM Seat Bases

National Products, Inc.

Pole or Pedestal

Ordered Separately

Dimensions

A = 18.375”, B = 2.75”, C = 1.5”
Hole Centers = 16.5”

Weight

3.5 Ibs.

Features

Installs in with no drilling required
Won’t interfere with levers or factory-installed console

Lifetime warranty!

National Products, Inc.

8410 Dallas Ave S
Seattle, WA 98108
Phone: [phone]
Fax: [phone]

Website: www.ram-mount.com
Email: [e-mail]

Complete Vehicle Mount

RAM-VB-161

Vehicle Base

RAM-VB-161

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-161 & RAM-VB-161-SW1

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

FORD FIVE HUNDRED (2005-2007)
FORD FREESTYLE (2005-2009)
FORD TAURUS (2008-2012)
MERCURY MONTEGO (2005-2007)

INSTALLATION INSTRUCTIONS

For some models, it will be necessary to remove the plastic trim over the seat leg bolts. For 2008 and 2009 model year
Taurus vehicles, the base installs under the seat legs. For 2010 and 2011 model year Taurus, use the supplied stand off kit
to install the base on top of the seat frame legs as depicted below. This is also the case for the 2011 Flex. The longer bolts
supplied in this kit will allow the base to clear the under seat air duct. Once trim is removed, store it for reinstallation should
the no drill base be later removed.

Note that if you are going to use the supplied riser, pass the carriage bolts up through the base and use a small piece of
tape on the round heads to hold them in place during installation. Once the base is in place, align the holes in the riser with
the bolts and pass it down over them. Finish securing the riser in place with the supplied washers, nuts, and finish with the
rubber nut caps.

2010-2011 Taurus and 2009-2011 Flex:

1. Using a 13MM socket, remove the seat leg bolts that hold the seat frame legs to the floor board.

2. Place the stand offs supplied over the holes in the seat frame legs.

3. Place the no drill base on top of the stand offs.

4. Pass the supplied longer bolts through the flat washers, through the no drill base, and through the stand off.

5. Start threading the bolt by hand. Once the bolt has been threaded into the floor pan several turns, finish securing the
base into the vehicle with the socket wrench. Fully tighten. After a week of use, check seat leg bolts and re-tighten if
necessary.

2008-2009 Taurus:

1. Using a 13MM socket, loosen the two front seat leg bolts just enough to allow enough space between the seat legs and
the floor board to the no drill base will fit underneath.

2. One the bolts are loosened, gently lift the front of the passenger seat to create enough room to slide the base into place.

3. Align the slots in the base with the seat leg bolts. Push the base under the legs all the way back until the back of the slots
rest against the seat leg bolts.

4. Fully tighten the seat leg bolts.
Installation photo of 2010

Taurus. Above seat frame
legs installation. 2008 and
2009 models will have the
base placement under the
seat frame legs using the
factory bolts to secure base.
