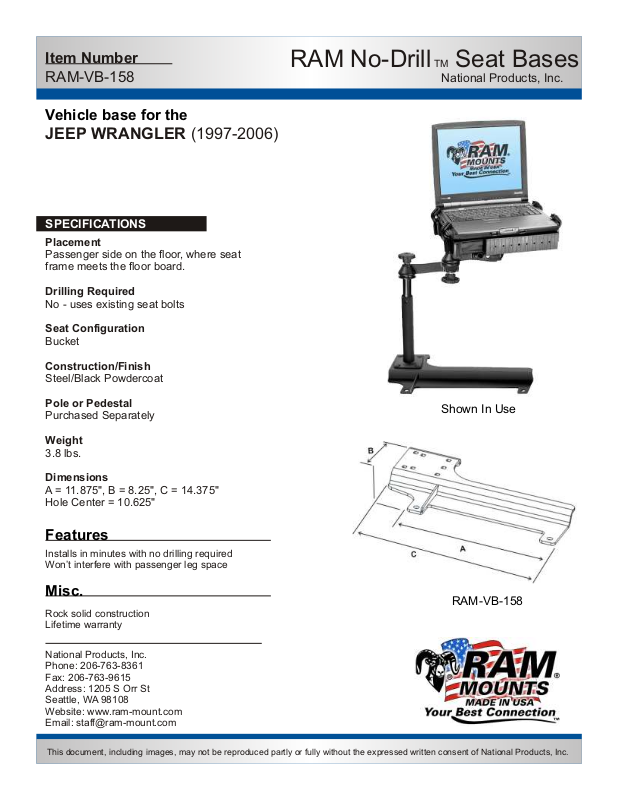

RAM Mount VB-158-SW1 User Manual

Item Number

RAM-VB-158

Vehicle base for the

JEEP WRANGLER (1997-2006)

SPECIFICATIONS

Placement

Passenger side on the floor, where seat
frame meets the floor board.

Drilling Required

No - uses existing seat bolts

Seat Configuration

Bucket

RAM No-Drill TM Seat Bases

National Products, Inc.

Construction/Finish

Steel/Black Powdercoat

Pole or Pedestal

Purchased Separately

Weight

3.8 lbs.

Dimensions

A = 11.875", B = 8.25", C = 14.375"
Hole Center = 10.625"

Features

Installs in minutes with no drilling required
Won’t interfere with passenger leg space

Misc.

Rock solid construction
Lifetime warranty

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

Shown In Use

RAM-VB-158

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-158

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

JEEP WRANGLER (1997-2006)

INSTALLATION INSTRUCTIONS

1. Move seat to its rear most position.
2, Using a wrench, loosen and remove the two front seat leg bolts holding the seat frame to the floor board.

3. Place the no drill base over the seat frame legs and align the holes.

4. Replace the seat leg bolts starting the thread by hand so as not to cross thread the bolts.

5. Using a wrench, fully tighten the seat leg bolts.

After a week of road use or a day of off road use, check seat leg bolts and re-tighten if necessary.
