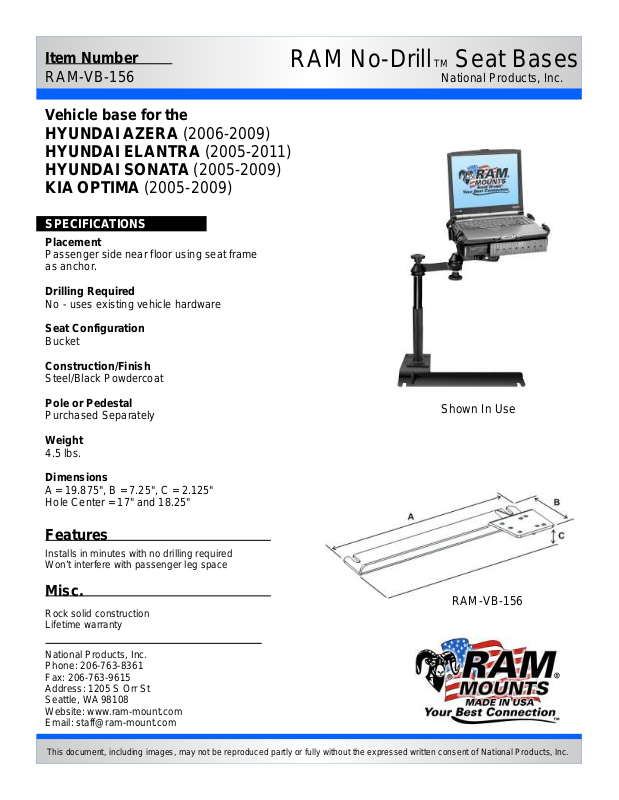

RAM Mount VB-156-SW1 User Manual
Item Number
RAM-VB-156
Vehicle base for the
HYUNDAI AZERA (2006-2009)
HYUNDAI ELANTRA (2005-2011)
HYUNDAI SONATA (2005-2009)
KIA OPTIMA (2005-2009)
SPECIFICATIONS
Placement
Passenger side near floor using seat frame
as anchor.
Drilling Required
No - uses existing vehicle hardware
Seat Configuration
Bucket
RAM No-Drill TM Seat Bases
National Products, Inc.
Construction/Finish
Steel/Black Powdercoat
Pole or Pedestal
Purchased Separately
Weight
4.5 lbs.
Dimensions
A = 19.875", B = 7.25", C = 2.125"
Hole Center = 17" and 18.25"
Features
Installs in minutes with no drilling required
Won’t interfere with passenger leg space
Misc.
Rock solid construction
Lifetime warranty
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
Shown In Use
RAM-VB-156
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
Item Number
RAM-VB-156
RAM No-Drill TM Seat Bases
National Products, Inc.
Vehicle base for the
HYUNDAI AZERA (2006-2009)
HYUNDAI ELANTRA (2005-2011)
HYUNDAI SONATA (2005-2009)
KIA OPTIMA (2005-2009)
INSTALLATION INSTRUCTIONS
Note: Depending on the vehicle trim level, there may be plastic covers over the seat frame legs. This will need to be
removed in order to install the base. Once installed, these can sometimes be replaces. Otherwise, store them for use
later should the base be removed.
1. Move the passenger seat back to its rearmost position and loosen the front seat rail bolts or nuts. It may be
necessary to loosen the two nuts or bolts at the rear of the seat as well for some vehicles in order to raise the front of
the seat enough to clear the No-Drill™ base.
2. Gently lift the front of the seat to create a small gap between the seat frame and seat track.
3. Align the slots in the base with the seat bolts and slide the base into place. Press the No-Drill™ base as far in as
possible so that the back of the slots engage the seat bolts. The pedestal platform should be near the console.
4. Re-tighten the bolts or nuts to secure the no drill base in place.
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
