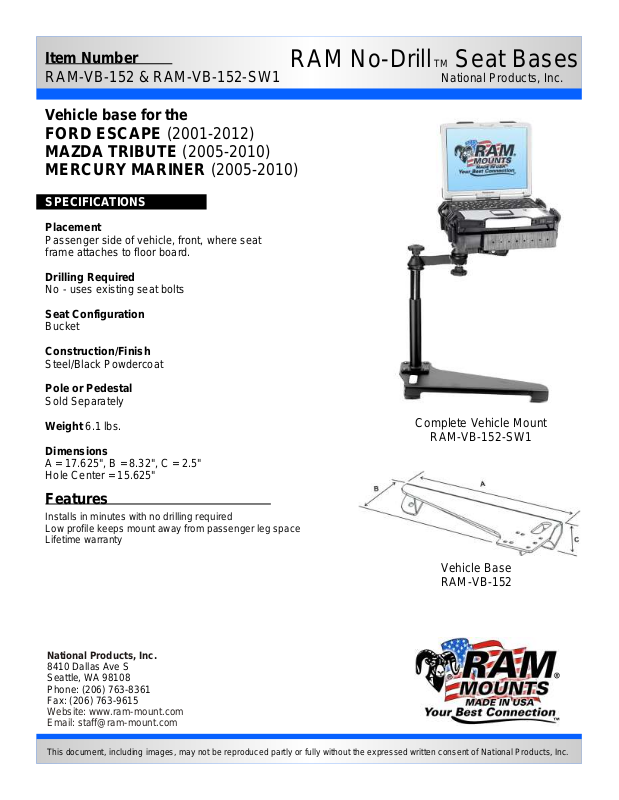

RAM Mount VB-152-SW1 User Manual
Item Number
RAM No-Drill TM Seat Bases
RAM-VB-152 & RAM-VB-152-SW1
Vehicle base for the
FORD ESCAPE (2001-2012)
MAZDA TRIBUTE (2005-2010)
MERCURY MARINER (2005-2010)
SPECIFICATIONS
Placement
Passenger side of vehicle, front, where seat
frame attaches to floor board.
Drilling Required
No - uses existing seat bolts
Seat Configuration
Bucket
Construction/Finish
Steel/Black Powdercoat
National Products, Inc.
Pole or Pedestal
Sold Separately
Weight 6.1 lbs.
Dimensions
A = 17.625", B = 8.32", C = 2.5"
Hole Center = 15.625"
Features
Installs in minutes with no drilling required
Low profile keeps mount away from passenger leg space
Lifetime warranty
National Products, Inc.
8410 Dallas Ave S
Seattle, WA 98108
Phone: (206) 763-8361
Fax: (206) 763-9615
Website: www.ram-mount.com
Email: staff@ram-mount.com
Complete Vehicle Mount
RAM-VB-152-SW1
Vehicle Base
RAM-VB-152
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
Item Number
RAM-VB-152 & RAM-VB-152-SW1
RAM No-Drill TM Seat Bases
National Products, Inc.
Vehicle base for the
FORD ESCAPE (2001-2012)
MAZDA TRIBUTE (2005-2010)
MERCURY MARINER (2005-2010)
INSTALLATION INSTRUCTIONS
1. Move the passenger seat back to its rearmost position and remove the front seat leg bolts. For most models, a T55
torx bit is required to remove the seat leg bolts.
2. Place the stand offs over the seat frame legs.
3. Pass the bolt with washer through the holes in the No-Drill™ base.
4. Lower the base with bolts over the stand offs, pass the bolts into the threaded hole, and begin threading the bolt by
hand.
5. Next, use a 17mm socket to fully tighten the bolt and secure the base in place. For the bolt closest to the passenger
side door, a wobble attachment will facilitate the tightening of this bolt.
