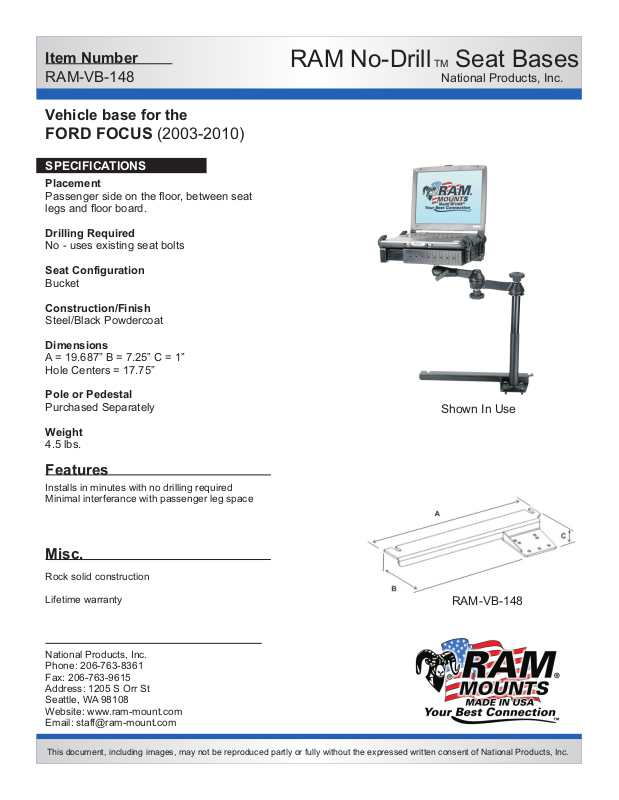

RAM Mount VB-148-SW1 User Manual

Item Number

RAM-VB-148

Vehicle base for the

FORD FOCUS (2003-2010)

SPECIFICATIONS

Placement

Passenger side on the floor, between seat
legs and floor board.

Drilling Required

No - uses existing seat bolts

Seat Configuration

Bucket

Construction/Finish

Steel/Black Powdercoat

Dimensions

A = 19.687” B = 7.25” C = 1”
Hole Centers = 17.75”

RAM No-Drill TM Seat Bases

National Products, Inc.

Pole or Pedestal

Purchased Separately

Weight

4.5 lbs.

Features

Installs in minutes with no drilling required
Minimal interferance with passenger leg space

Misc.

Rock solid construction

Lifetime warranty

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

Shown In Use

RAM-VB-148

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-148

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

FORD FOCUS (2003-2010)

INSTALLATION INSTRUCTIONS

1. Move the seat to its rear most position.

2. Loosen the front bolts that hold the seat frame legs to the floor board. The bolts only need to be loosened enough to
to allow the base to slide in between the legs and the floor board.

3. Slide the No Drill base into place making sure the shove the base back so the bolts engage the rear of the slots.

Please Note: If the seat is moved completely forward, the mounted equipment could possibly hit the dash. Once the
base is installed, use caution when adjusting the passenger side seat.

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
