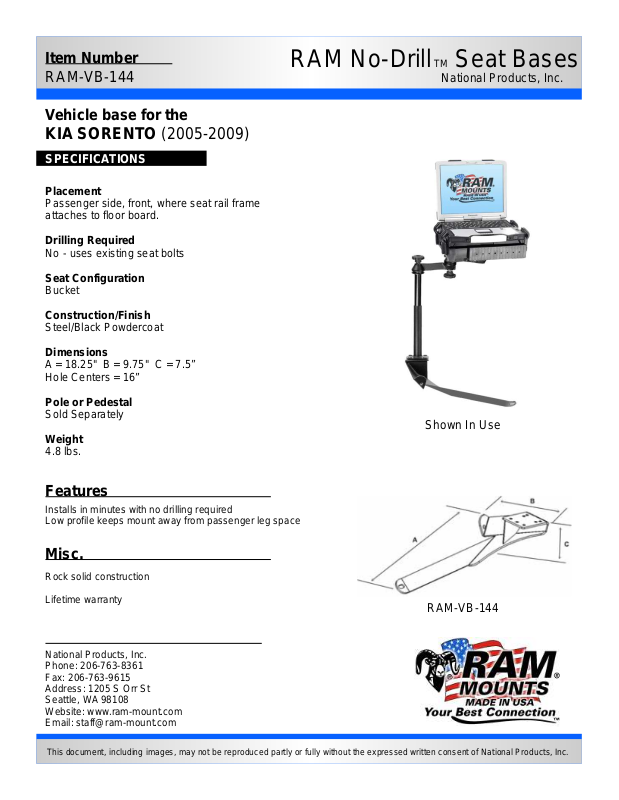

RAM Mount VB-144-SW1 User Manual

Item Number

RAM-VB-144

Vehicle base for the

KIA SORENTO (2005-2009)

SPECIFICATIONS

Placement

Passenger side, front, where seat rail frame
attaches to floor board.

Drilling Required

No - uses existing seat bolts

Seat Configuration

Bucket

Construction/Finish

Steel/Black Powdercoat

Dimensions

A = 18.25" B = 9.75" C = 7.5”
Hole Centers = 16”

RAM No-Drill TM Seat Bases

National Products, Inc.

Pole or Pedestal

Sold Separately

Weight

4.8 lbs.

Features

Installs in minutes with no drilling required
Low profile keeps mount away from passenger leg space

Misc.

Rock solid construction
Lifetime warranty

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

Shown In Use

RAM-VB-144

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-144

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

KIA SORENTO (2005-2009)

INSTALLATION INSTRUCTIONS

1. Move the passenger seat back to its rearmost position and remove the front seat rail bolts on the passenger side.

2. Without moving the seat, place the No-Drill™ base over the front of the seat frame legs.

3. Align the holes in the base with those of the seat frame legs. The pedestal platform should be near the console.

4. Re-install the seat bolts and fully tighten.
