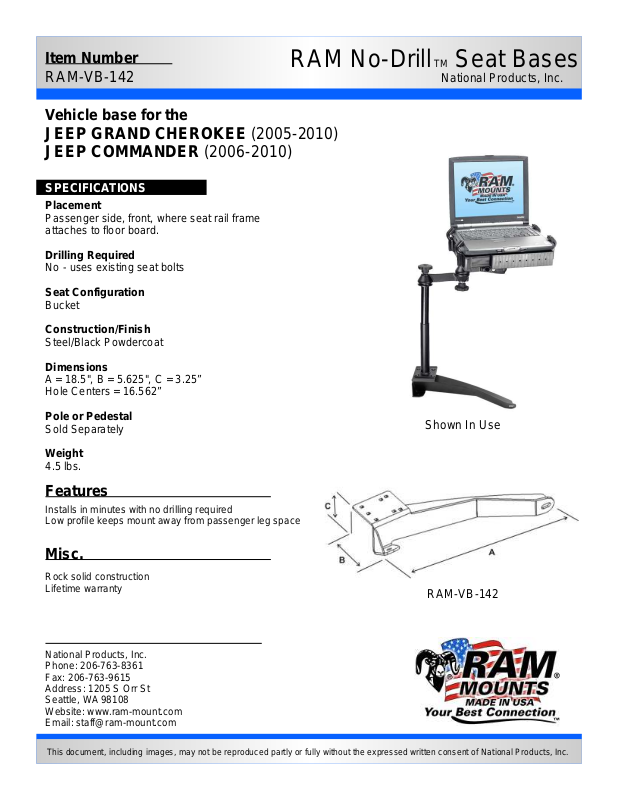

RAM Mount VB-142-SW1 User Manual

Item Number

RAM No-Drill TM Seat Bases

RAM-VB-142

Vehicle base for the

JEEP GRAND CHEROKEE (2005-2010)
JEEP COMMANDER (2006-2010)

SPECIFICATIONS

Placement

Passenger side, front, where seat rail frame
attaches to floor board.

Drilling Required

No - uses existing seat bolts

Seat Configuration

Bucket

Construction/Finish

Steel/Black Powdercoat

National Products, Inc.

Dimensions

A = 18.5", B = 5.625", C = 3.25”
Hole Centers = 16.562”

Pole or Pedestal

Sold Separately
Weight

4.5 lbs.

Features

Installs in minutes with no drilling required
Low profile keeps mount away from passenger leg space

Misc.

Rock solid construction
Lifetime warranty

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

Shown In Use

RAM-VB-142

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-142

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

JEEP GRAND CHEROKEE (2005-2010)
JEEP COMMANDER (2006-2010)

INSTALLATION INSTRUCTIONS

Jeep Commander Instructions:

1. Move the passenger seat back to its rearmost position and remove the front seat rail bolts. Store these bolts.

2. Place the supplied stand offs over the holes in the seat frame legs and rest the no drill base on top of these.

3. Align the holes in the base, stand offs, and seat frame legs with those in the floor board. The pedestal platform
should be near the console.

4. Pass the supplied longer bolts through to the holes in the floor board and start the thread by hand.

5. Using a socket wrench, fully tighten the bolts to secure the base into the vehicle.

6. After a week of use, check seat bolts and re-tighten if necessary.

No-Drill™

Jeep Grand Cherokee Instructions:

1. Move the passenger seat back to its rearmost position and remove the front seat rail bolts on the passenger side.

2. Without moving the seat, place the No-Drill™ base over the front of the seat frame legs.

3. Align the holes in the base with those of the seat frame legs. The pedestal platform should be near the console.

4. Re-install the seat bolts and fully tighten.
Note that depending on the trim level of your vehicle, there may be a one or more pieces of plastic trim covering the

seat frame bolts. These will need to be removed and stored to access the mounting hardware. Also, a supplied stand­off, washer, and longer seat bolt may be used on the passenger door side seat bolt location. While not necessary for
every installation, this hardware may be necessary for some installations.
