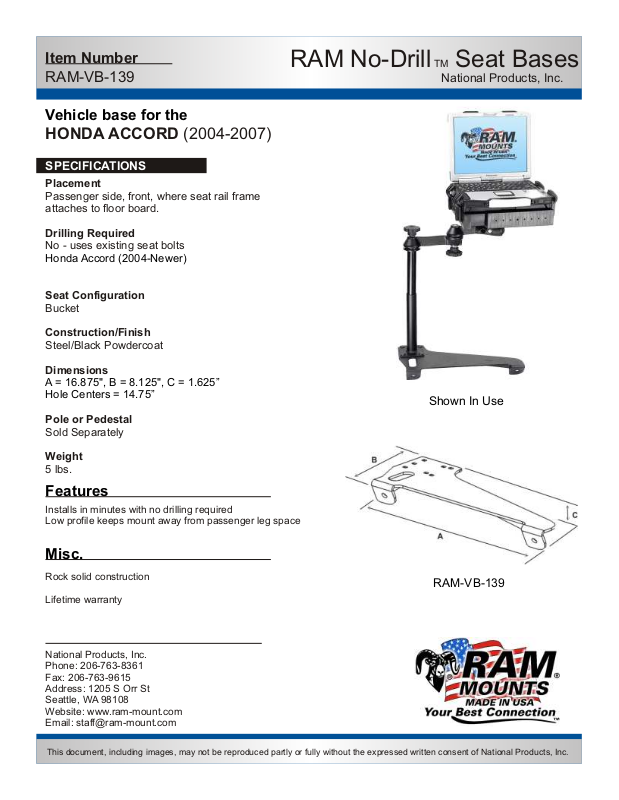

RAM Mount VB-139-SW1 User Manual

Item Number

RAM-VB-139

Vehicle base for the

HONDA ACCORD (2004-2007)

SPECIFICATIONS

Placement

Passenger side, front, where seat rail frame
attaches to floor board.

Drilling Required

No - uses existing seat bolts

Honda Accord (2004-Newer)

Seat Configuration

Bucket

Construction/Finish

Steel/Black Powdercoat

RAM No-Drill TM Seat Bases

National Products, Inc.

Dimensions

A = 16.875", B = 8.125", C = 1.625”
Hole Centers = 14.75”

Pole or Pedestal

Sold Separately

Weight

5 lbs.

Features

Installs in minutes with no drilling required
Low profile keeps mount away from passenger leg space

Misc.

Rock solid construction

Lifetime warranty

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

Shown In Use

RAM-VB-139

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-139

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

HONDA ACCORD (2004-2007)

INSTALLATION INSTRUCTIONS

1. Move the passenger seat back to its rearmost position and remove the front seat rail bolts. Store these bolts.

2. Align the holes in the base and seat frame legs with those in the floor board. The pedestal platform should be near
the console.

3. Pass the supplied longer bolts with washers through to the holes, into the floor board, and start the thread by hand.

4. Using a socket wrench, fully tighten the bolts to secure the no drill base into the vehicle.

5. After a week of use, check seat bolts and re-tighten if necessary.

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]
