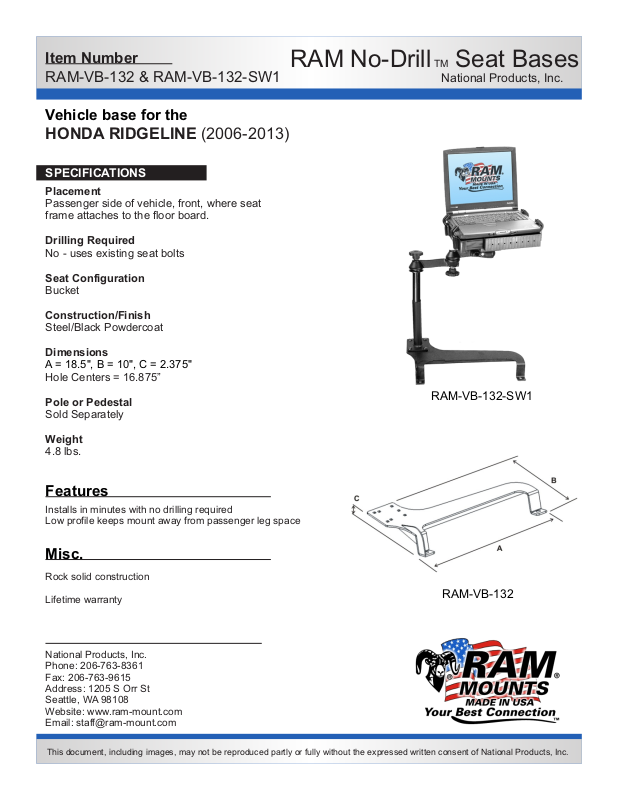

RAM Mount VB-132-SW1 User Manual
Item Number
RAM-VB-132 & RAM-VB-132-SW1
Vehicle base for the
HONDA RIDGELINE (2006-2013)
SPECIFICATIONS
Placement
Passenger side of vehicle, front, where seat
frame attaches to the floor board.
Drilling Required
No - uses existing seat bolts
Seat Configuration
Bucket
Construction/Finish
Steel/Black Powdercoat
Dimensions
A = 18.5", B = 10", C = 2.375"
Hole Centers = 16.875”
RAM No-Drill TM Seat Bases
National Products, Inc.
Pole or Pedestal
Sold Separately
Weight
4.8 lbs.
Features
Installs in minutes with no drilling required
Low profile keeps mount away from passenger leg space
Misc.
Rock solid construction
Lifetime warranty
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
RAM-VB-132-SW1
RAM-VB-132
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
Item Number
RAM-VB-132 & RAM-VB-132-SW1
RAM No-Drill TM Seat Bases
National Products, Inc.
Vehicle base for the
HONDA RIDGELINE (2006-2013)
INSTALLATION INSTRUCTIONS
1. Move the passenger seat back to its rearmost position and remove the front seat rail bolts on the passenger side.
2. Without moving the seat, place the No-Drill™ base over the front of the seat frame legs.
3. Align the holes in the base with those of the seat frame legs. The pedestal platform should be near the console.
4. Re-install the seat bolts and fully tighten.
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
