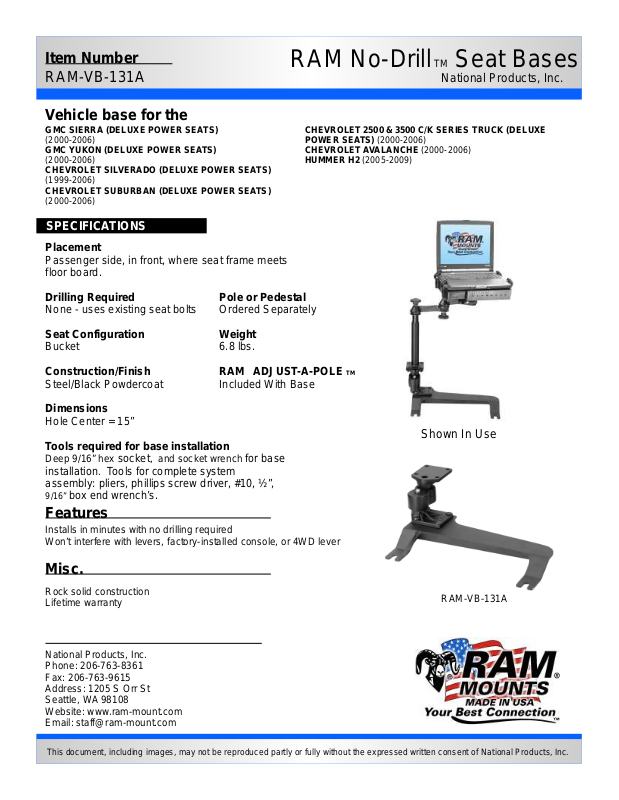

RAM Mount VB-131A-SW1 User Manual
Item Number
RAM-VB-131A
Vehicle base for the
GMC SIERRA (DELUXE POWER SEATS)
2006
(2000- )
GMC YUKON (DELUXE POWER SEATS)
(2000-2006)
CHEVROLET SILVERADO (DELUXE POWER SEATS)
(1999-2006)
CHEVROLET SUBURBAN (DELUXE POWER SEATS)
(2000-2006)
SPECIFICATIONS
Placement
Passenger side, in front, where seat frame meets
floor board.
RAM No-Drill TM Seat Bases
National Products, Inc.
CHEVROLET 2500 & 3500 C/K SERIES TRUCK (DELUXE
POWER SEATS) (2000- )
CHEVROLET AVALANCHE (2000-2006)
HUMMER H2 (2005-2009)
2006
Drilling Required
None - uses existing seat bolts
Seat Configuration
Bucket
Construction/Finish
Steel/Black Powdercoat
Pole or Pedestal
Ordered Separately
Weight
6.8 lbs.
RAM ADJUST-A-POLE TM
Included With Base
Dimensions
Hole Center = 15”
Tools required for base installation
Deep 9/16” hex socket, and socket wrench for base
installation. Tools for complete system
assembly: pliers, phillips screw driver, #10, ½”,
9/16” box end wrench’s.
Features
Installs in minutes with no drilling required
Won’t interfere with levers, factory-installed console, or 4WD lever
Misc.
Shown In Use
Rock solid construction
Lifetime warranty
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
RAM-VB-131A
Item Number
RAM-VB-131A
RAM No-Drill TM Seat Bases
National Products, Inc.
Vehicle base for the
GMC SIERRA (DELUXE POWER SEATS)
2006
(2000- )
GMC YUKON (DELUXE POWER SEATS)
(2000-2006)
CHEVROLET SILVERADO (DELUXE POWER SEATS)
(1999-2006)
CHEVROLET SUBURBAN (DELUXE POWER SEATS)
(2000-2006)
INSTALLATION INSTRUCTIONS
Note that attaching the riser prior to installing the base into the vehicle is suggested.
Tools needed for installation are 9/16” deep socket and ½” box end wrench for attachment a riser if being used.
1. Move the passenger side seat to its rear most position.
2. Locate the two front seat frame nuts holding the passenger side seat to the floor board. The one closest to the
passenger side door may be located within the seat track. The nut closest to the center of the vehicle may be
under a piece of plastic trim but is located outside of the seat track toward the inside of the seat frame. Both have
a star shape nut and can be loosened using a 9/16’ deep socket and socket wrench.
3. Loosen the two nuts holding the front of the passenger side seat to the floor board. Only loosen enough to pass
the no drill base in between the seat frame legs and the floor board.
4. Once there is enough room for the base, slide the base under the seat so that the notches align with the seat studs
projecting upward from the floor board. Make sure the back of each slot engages the seat studs.
5. Using the 9/16” socket and socket wrench, fully tighten the seat frame nuts to secure the base in place. Torque
nuts to 39 ft lbs.
CHEVROLET 2500 & 3500 C/K SERIES TRUCK (DELUXE
POWER SEATS) (2000- )
CHEVROLET AVALANCHE (2000-2006)
HUMMER H2 (2005-2009)
2006
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
The use of the stabilizer foot is recommended to reduce bounce in all applications.
Simply replace one of the carriage bolts holding the pole system or riser in place with
the stabilizer foot as shown. You will need a ½”box wrench to tighten the hardware.
The part number for the stabilizer foot kit is RAM-FOOT2. Slide the bolt
through the foot, slide a lock washer over the thread so it rest on the foot. Place a nut
over the thread and tighten to secure the foot over the head of the bolt. Place the
foot up through the base from the bottom. Tighten the nut so that it forces the foot
down against the floor. Secure with remaining nut and washers on top. Place the
bolt up from the bottom and through the base prior to positioning the base into the
vehicle.
