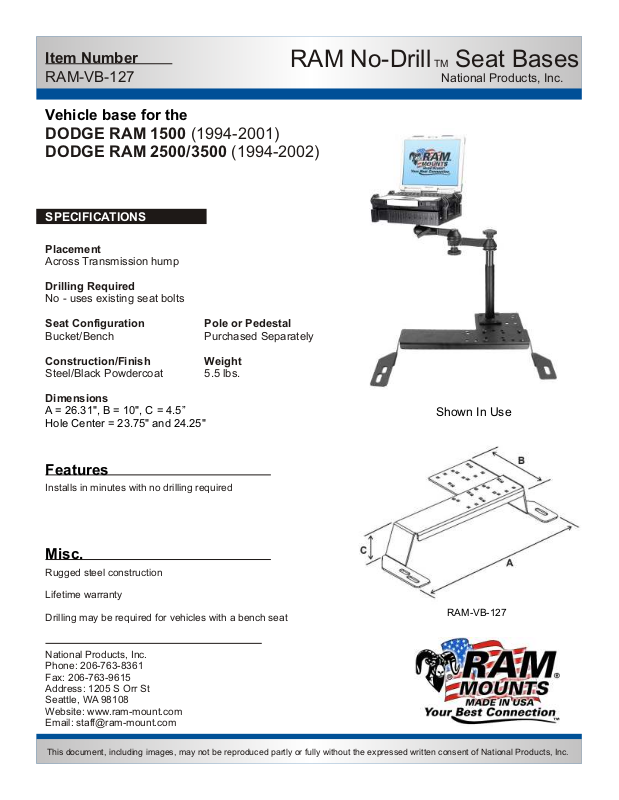

RAM Mount VB-127-SW1 User Manual

Item Number

RAM No-Drill TM Seat Bases

RAM-VB-127

Vehicle base for the

DODGE RAM 1500 (1994-2001)
DODGE RAM 2500/3500 (1994-2002)

SPECIFICATIONS

Placement

Across Transmission hump

Drilling Required

No - uses existing seat bolts

National Products, Inc.

Seat Configuration

Bucket/Bench

Construction/Finish

Steel/Black Powdercoat

Dimensions

A = 26.31", B = 10", C = 4.5”
Hole Center = 23.75" and 24.25"

Pole or Pedestal

Purchased Separately

Weight

5.5 lbs.

Features

Installs in minutes with no drilling required

Misc.

Rugged steel construction

Lifetime warranty

Drilling may be required for vehicles with a bench seat

Shown In Use

RAM-VB-127

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-127

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

DODGE RAM 1500 (1994-2001)
DODGE RAM 2500/3500 (1994-2002)

INSTALLATION INSTRUCTIONS

Before installation, attach extension plate to the bottom of the base with the provided hardware.

1. Place both front seats in their most rear position.

2. Remove the drivers side front right and the passenger side front left seat mounting bolts (inner seat bolts).

3. Slightly lift both the passenger and driver seats and slide the No-Drill TM base between the floor of the vehicle and the
bottom of the seat.

4. Align the holes and reinstall all of the seat bolts that have been removed.

INNER SEAT MOUNTING BOLTS
