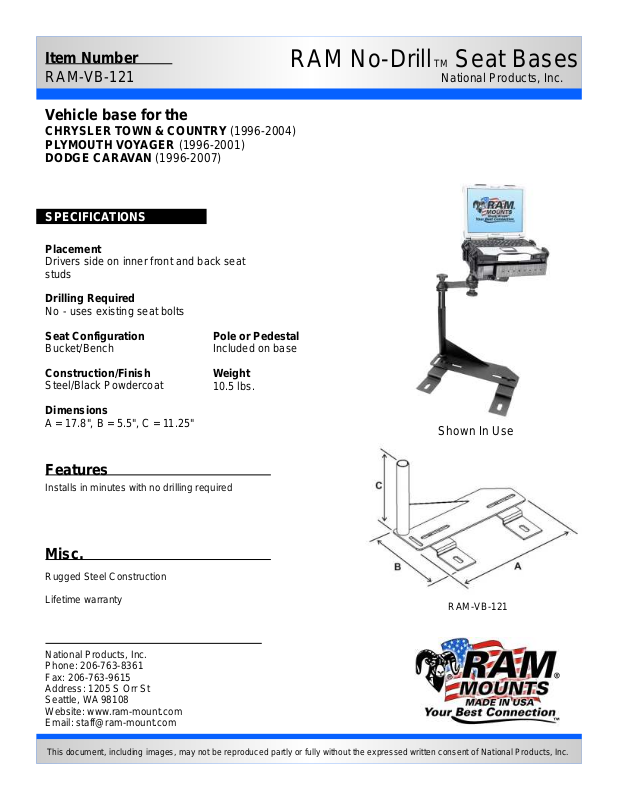

RAM Mount VB-121-SW1 User Manual

Item Number

RAM-VB-121

Vehicle base for the

CHRYSLER TOWN & COUNTRY (1996-2004)
PLYMOUTH VOYAGER (1996-2001)
DODGE CARAVAN (1996-2007)

SPECIFICATIONS

Placement

Drivers side on inner front and back seat
studs

Drilling Required

No - uses existing seat bolts

RAM No-Drill TM Seat Bases

National Products, Inc.

Seat Configuration

Bucket/Bench

Construction/Finish

Steel/Black Powdercoat

Dimensions

A = 17.8", B = 5.5", C = 11.25"

Pole or Pedestal

Included on base

Weight

10.5 lbs.

Features

Installs in minutes with no drilling required

Misc.

Rugged Steel Construction
Lifetime warranty

Shown In Use

RAM-VB-121

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-121

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

CHRYSLER TOWN & COUNTRY (1996-2004)
PLYMOUTH VOYAGER (1996-2001)
DODGE CARAVAN (1996-2007)

INSTALLATION INSTRUCTIONS

1. Remove the seat bolts that hold the right side of the driver’s seat to the floor.

2. Loosely assemble legs to the base. Do not firmly tighten.

3. Place mounting base to the right side of the driver’s seat. Align mounting legs to the seat bolt holes and tighten
in place.

4. Gently lift the inside of the seat upward to allow the seat frame to clear the studs.

5. Place the base between the seat frame and align the holes in the base with the seat studs.

6. Lower the seat back down over the No-Drill™ base and seat studs.

7. Fully tighten factory hardware to secure base in place along with seat frame.
