RAM Mount VB-119-SW1 User Manual

Item Number

RAM No-Drill TM Seat Bases

RAM-VB-119 & RAM-VB-119-SW1

Vehicle base for the

FORD ECONOLINE VAN (1995-2013)

SPECIFICATIONS

Placement

Attaches to the passenger side inner front and back seat studs

Drilling Required

No - uses existing seat bolts

Seat Configuration

Bucket

Construction/Finish

Steel/Black Powdercoat

National Products, Inc.

Pole or Pedestal

Included on base

Weight

10.5 lbs.

Dimensions

A = 16.75", B = 8.25", C = 18.75”, Hole Center = 13.5”

Tools required for base installation

18mm socket or T-55 torx for base installation.

7/16” box end wrench to attach stabilizer
Tools for complete system assembly: pliers, phillips screw driver,
#10, ½”, 9/16” box end wrench’s.

Features

Supplied stabilizer is used to brace the base against passenger side
seat for added rigidity. Lifetime warranty!

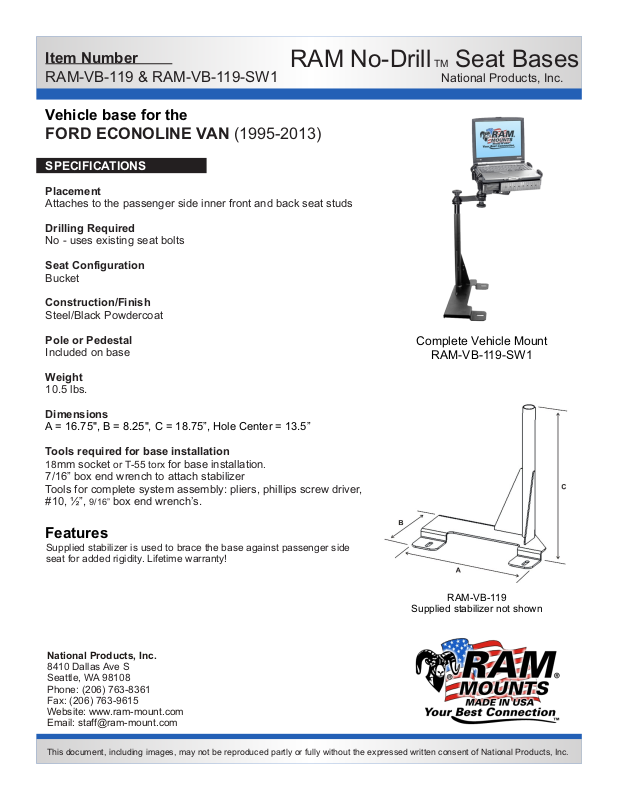

Complete Vehicle Mount

RAM-VB-119-SW1

RAM-VB-119

Supplied stabilizer not shown

National Products, Inc.

8410 Dallas Ave S
Seattle, WA 98108
Phone: [phone]
Fax: [phone]

Website: www.ram-mount.com
Email: [e-mail]

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-119 & RAM-VB-119-SW1

RAM No-Drill TM Seat Bases

National Products, Inc.

Vehicle base for the

FORD ECONOLINE VAN (1995-2013)

INSTALLATION INSTRUCTIONS

The RAM-VB-119 No-Drill™ base installs on the inside of the passenger seat with the pedestal forward. The inner front
and inner rear seat frame bolts secure the base in place. Use the supplied stabilizer brace for added rigidity as needed.

Tools needed for installation are 7/16” box end wrench, T-55 torx bit, and 18mm deep socket, socket wrench.

1. An “L” shaped stabilizer is included with this kit. One of the gussets has a mounting hole and slot to
accommodate this bracket. Attach this prior to installing the base into the vehicle. Leave the bracket just
loose and do the final adjustment once the base is installed and seat frame fully tightened to floor board. Using the
supplied 1/4-20 hardware, attach the bracket to the base with the 7/16” box end wrench. The part number for this
kit is RMR-HAR-VB-119. Kit includes hardware and “L” bracket only.

2. Using the 18mm deep socket and T-55 torx bit, loosen and remove the hardware holding the seat frame to the floor
board.

3. Raise the inside of the seat frame off of the floor enough to allow the No-Drill™ base to be placed over the hole and
stud now exposed on the vehicle floor. Placement is between the seat frame and floor board, inside front and
inside rear of passenger seat hardware.

4. Gently lower seat back into place so that the No-Drill™ base is between the seat frame and floor board.

5. Re-install the previously removed hardware and fully tighten to 39 ft lbs.
