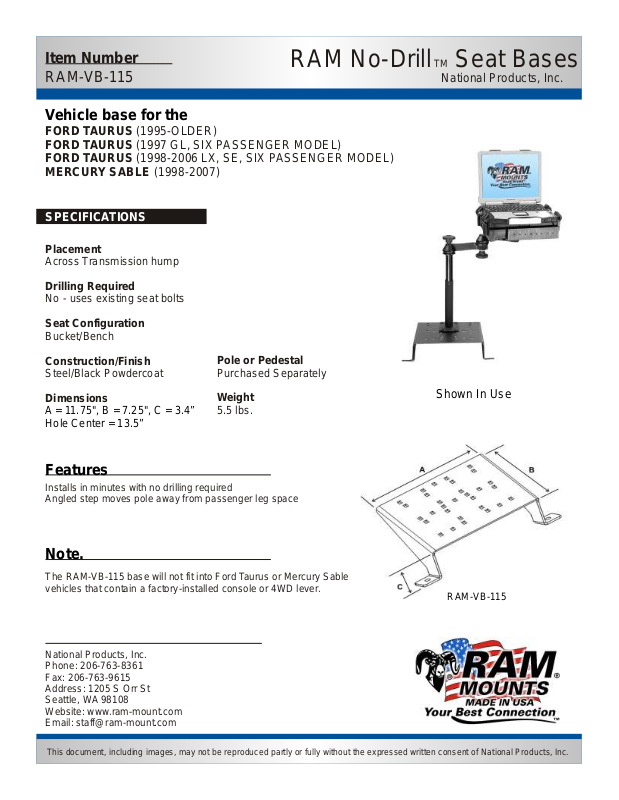

RAM Mount VB-115-SW1 User Manual
Item Number
RAM No-Drill TM Seat Bases
RAM-VB-115
Vehicle base for the
FORD TAURUS (1995-OLDER)
FORD TAURUS (1997 GL, SIX PASSENGER MODEL)
FORD TAURUS (1998-2006 LX, SE, SIX PASSENGER MODEL)
MERCURY SABLE (1998-2007)
SPECIFICATIONS
Placement
Across Transmission hump
Drilling Required
No - uses existing seat bolts
Seat Configuration
Bucket/Bench
National Products, Inc.
Construction/Finish
Steel/Black Powdercoat
Dimensions
A = 11.75", B = 7.25", C = 3.4”
Hole Center = 13.5”
Pole or Pedestal
Purchased Separately
Weight
5.5 lbs.
Features
Installs in minutes with no drilling required
Angled step moves pole away from passenger leg space
Note.
The RAM-VB-115 base will not fit into Ford Taurus or Mercury Sable
vehicles that contain a factory-installed console or 4WD lever.
Shown In Use
RAM-VB-115
National Products, Inc.
Phone: 206-763-8361
Fax: 206-763-9615
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: staff@ram-mount.com
This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.
Item Number
RAM-VB-115
RAM No-Drill TM Seat Bases
National Products, Inc.
Vehicle base for the
FORD TAURUS (1995-OLDER)
FORD TAURUS (1997 GL, SIX PASSENGER MODEL)
FORD TAURUS (1998-2006 LX, SE, SIX PASSENGER MODEL)
MERCURY SABLE (1998-2007)
INSTALLATION INSTRUCTIONS
1. Place both front seats in their most rear position.
2. Remove the drivers side front right and the passenger side front left seat mounting bolts (inner seat bolts).
3. Slightly lift both the passenger and driver seats and slide the No-Drill TM base between the floor of the vehicle and the
bottom of the seat.
4. Align the holes and reinstall all of the seat bolts that have been removed.
INNER SEAT MOUNTING BOLTS
