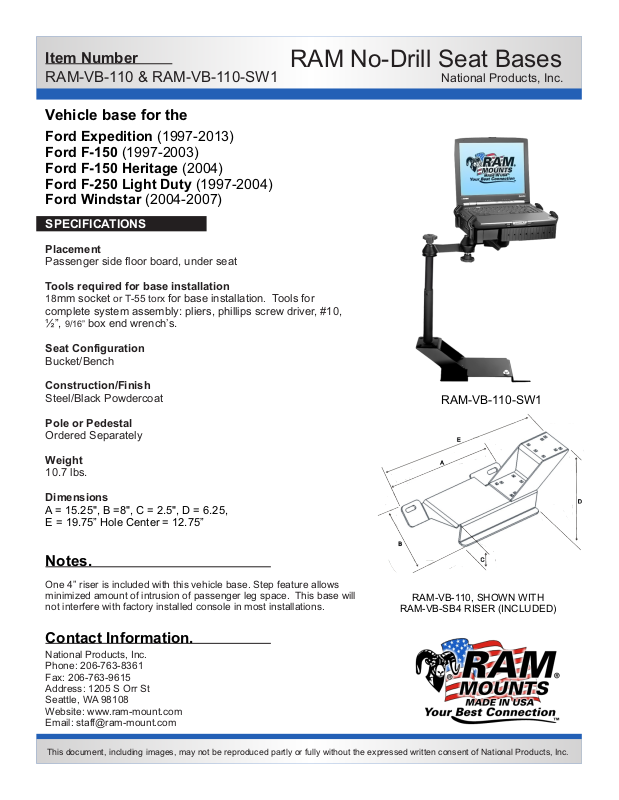

RAM Mount VB-110-SW1 User Manual

Item Number

RAM No-Drill Seat Bases

RAM-VB-110 & RAM-VB-110-SW1

Vehicle base for the

Ford Expedition (1997-2013)
Ford F-150 (1997-2003)
Ford F-150 Heritage (2004)
Ford F-250 Light Duty (1997-2004)
Ford Windstar (2004-2007)

SPECIFICATIONS

Placement

Passenger side floor board, under seat

Tools required for base installation

18mm socket or T-55 torx for base installation. Tools for

complete system assembly: pliers, phillips screw driver, #10,
½”, 9/16” box end wrench’s.

Seat Configuration

Bucket/Bench

National Products, Inc.

Construction/Finish

Steel/Black Powdercoat

Pole or Pedestal

Ordered Separately

Weight

10.7 lbs.

Dimensions

A = 15.25", B =8", C = 2.5", D = 6.25,
E = 19.75” Hole Center = 12.75”

Notes.

One 4” riser is included with this vehicle base. Step feature allows
minimized amount of intrusion of passenger leg space. This base will
not interfere with factory installed console in most installations.

Contact Information.

National Products, Inc.
Phone: [phone]
Fax: [phone]
Address: 1205 S Orr St
Seattle, WA 98108
Website: www.ram-mount.com
Email: [e-mail]

RAM-VB-110-SW1

RAM-VB-110, SHOWN WITH

RAM-VB-SB4 RISER (INCLUDED)

This document, including images, may not be reproduced partly or fully without the expressed written consent of National Products, Inc.

Item Number

RAM-VB-110 & RAM-VB-110-SW1

RAM No-Drill Seat Bases

National Products, Inc.

Vehicle base for the

Ford Expedition (1997-2013)
Ford F-150 (1997-2003)
Ford F-150 Heritage (2004)
Ford F-250 Light Duty (1997-2004)
Ford Windstar (2004-2007)

INSTALLATION INSTRUCTIONS

Kit includes longer seat leg bolts and stand offs for the 2008 and Newer Ford Expedition. These are not used on any
other vehicles listed. Use factory hardware and instructions below for all other vehicles.

1. Attach the RAM-VB-SB4 riser to base with the provided carriage bolts, washers, and nuts tightening with the ½” box
end wrench.

2. Move the passenger seat to the rearmost setting.

3. Remove the front seat rail bolts that fasten the passenger seat brackets to the vehicle floor using the 18mm or T55
torx bit.

4. Without moving the seat, place the base over the front of the seat bracket.

5. Re-install the seat bolts through the base, then the seat frame legs, and into the vehicle floor board. Start the thread
by hands. Fully tighten / torque the seat leg bolts to 39 ft lbs.

Note that for the 2008 and newer Expedition, the stand off kit included will be necessary for installation. The longer seat
leg bolts and short sections of steel tubing allow for angle correction in these models. Place the stand offs in between
the No-Drill™ base and the seat legs and pass the longer bolts with washers through and start the thread by hand.
Fully tighten as stated in step 5 above.

In some truck models, there is a jack mounted under the passenger side seat. It will be necessary to relocate this jack
for the vehicle base to be installed.

For bench seat models, the installer will need to expose the mounting hole under the carpet or vinyl flooring. Place the
laptop base so that the door side seat leg bolt and door side mounting hole on the base are lined up. Use a pencil or
chalk to mark the location under the hump side seat bolt hole of the laptop base. It is sometimes possible to feel the
mounting hole through the floor covering. Using a sharp tool or knife, cut a u-shaped flap approximately 1.5” wide
where the mark was made to expose the mounting point in the floor board.
