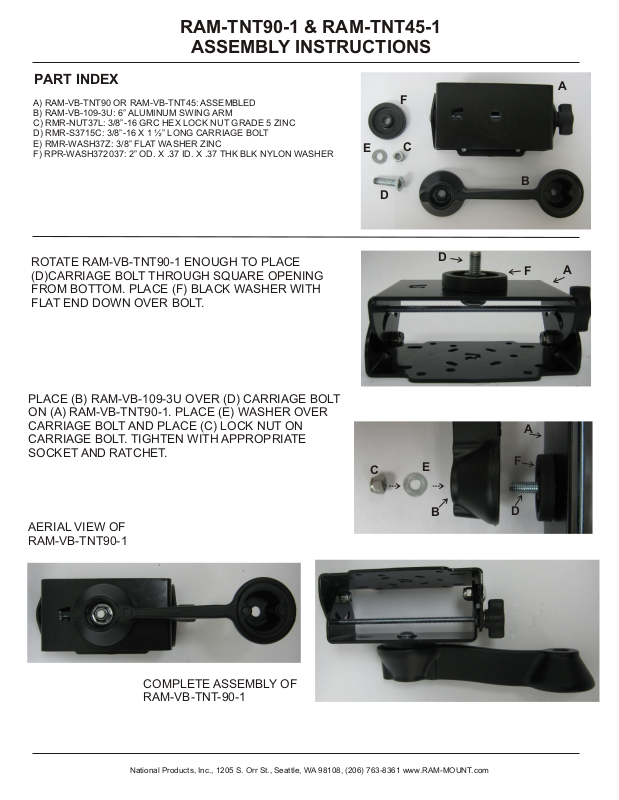

RAM-TNT90-1 & RAM-TNT45-1
ASSEMBLY INSTRUCTIONS
PART INDEX
A) RAM-VB-TNT90 OR RAM-VB-TNT45: ASSEMBLED
B) RAM-VB-109-3U: 6” ALUMINUM SWING ARM
C) RMR-NUT37L: 3/8”-16 GRC HEX LOCK NUT GRADE 5 ZINC
D) RMR-S3715C: 3/8”-16 X 1 ½” LONG CARRIAGE BOLT
E) RMR-WASH37Z: 3/8” FLAT WASHER ZINC
F) RPR-WASH372037: 2” OD. X .37 ID. X .37 THK BLK NYLON WASHER
ROTATE RAM-VB-TNT90-1 ENOUGH TO PLACE
(D)CARRIAGE BOLT THROUGH SQUARE OPENING
FROM BOTTOM. PLACE (F) BLACK WASHER WITH
FLAT END DOWN OVER BOLT.
E
D
A
F
C
B
D
F
A
PLACE (B) RAM-VB-109-3U OVER (D) CARRIAGE BOLT
ON (A) RAM-VB-TNT90-1. PLACE (E) WASHER OVER
CARRIAGE BOLT AND PLACE (C) LOCK NUT ON
CARRIAGE BOLT. TIGHTEN WITH APPROPRIATE
SOCKET AND RATCHET.
AERIAL VIEW OF
RAM-VB-TNT90-1
COMPLETE ASSEMBLY OF
RAM-VB-TNT-90-1
C
E
B
A
F
D
National Products, Inc., 1205 S. Orr St., Seattle, WA 98108, (206) 763-8361 www.RAM-MOUNT.com
